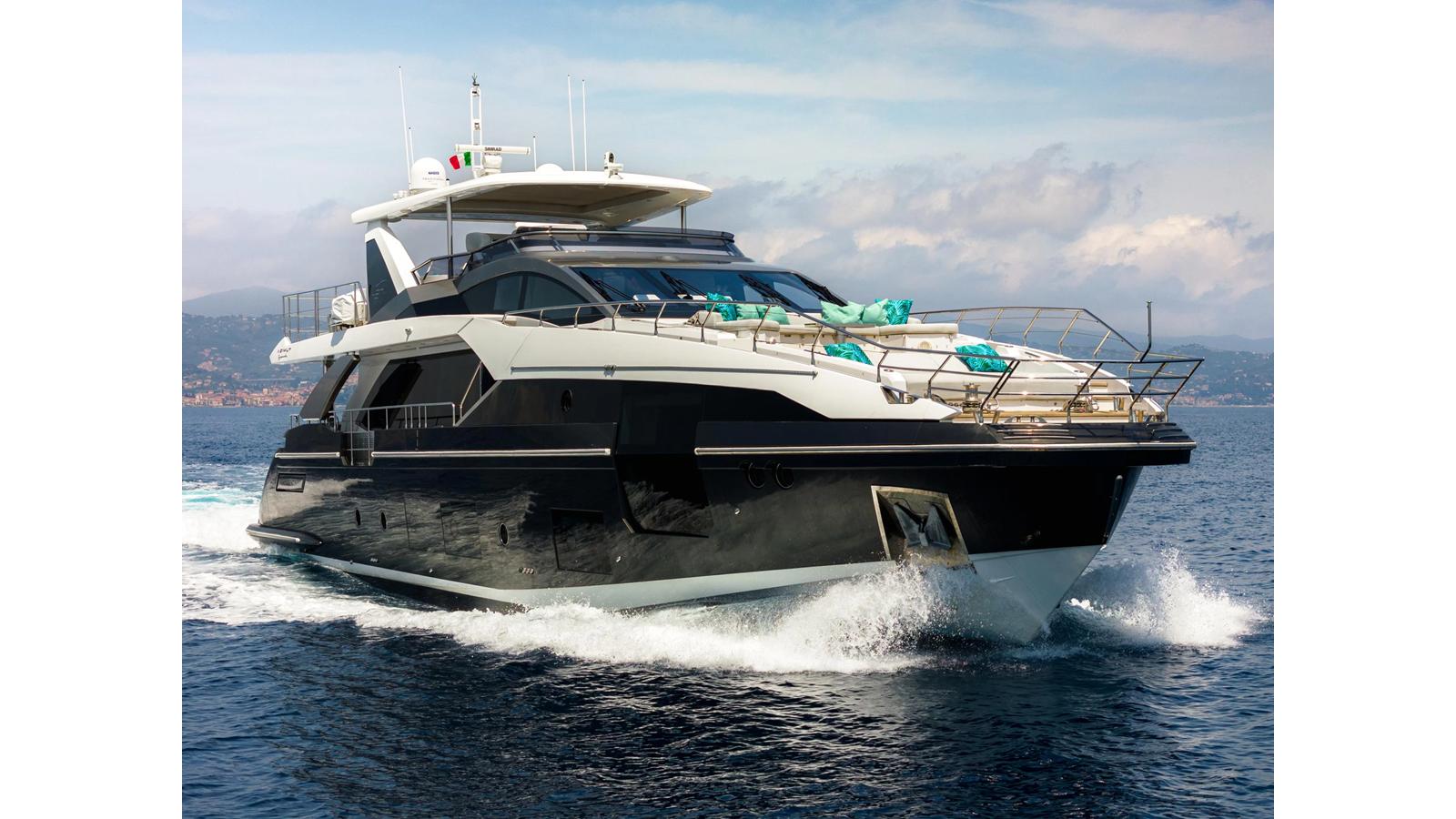

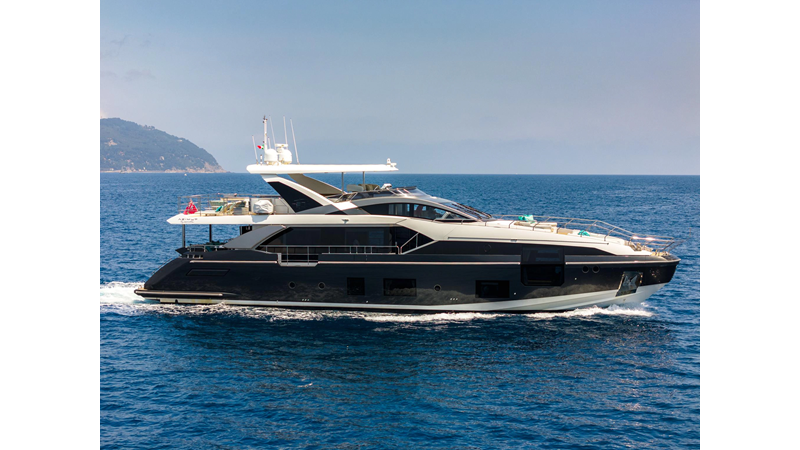

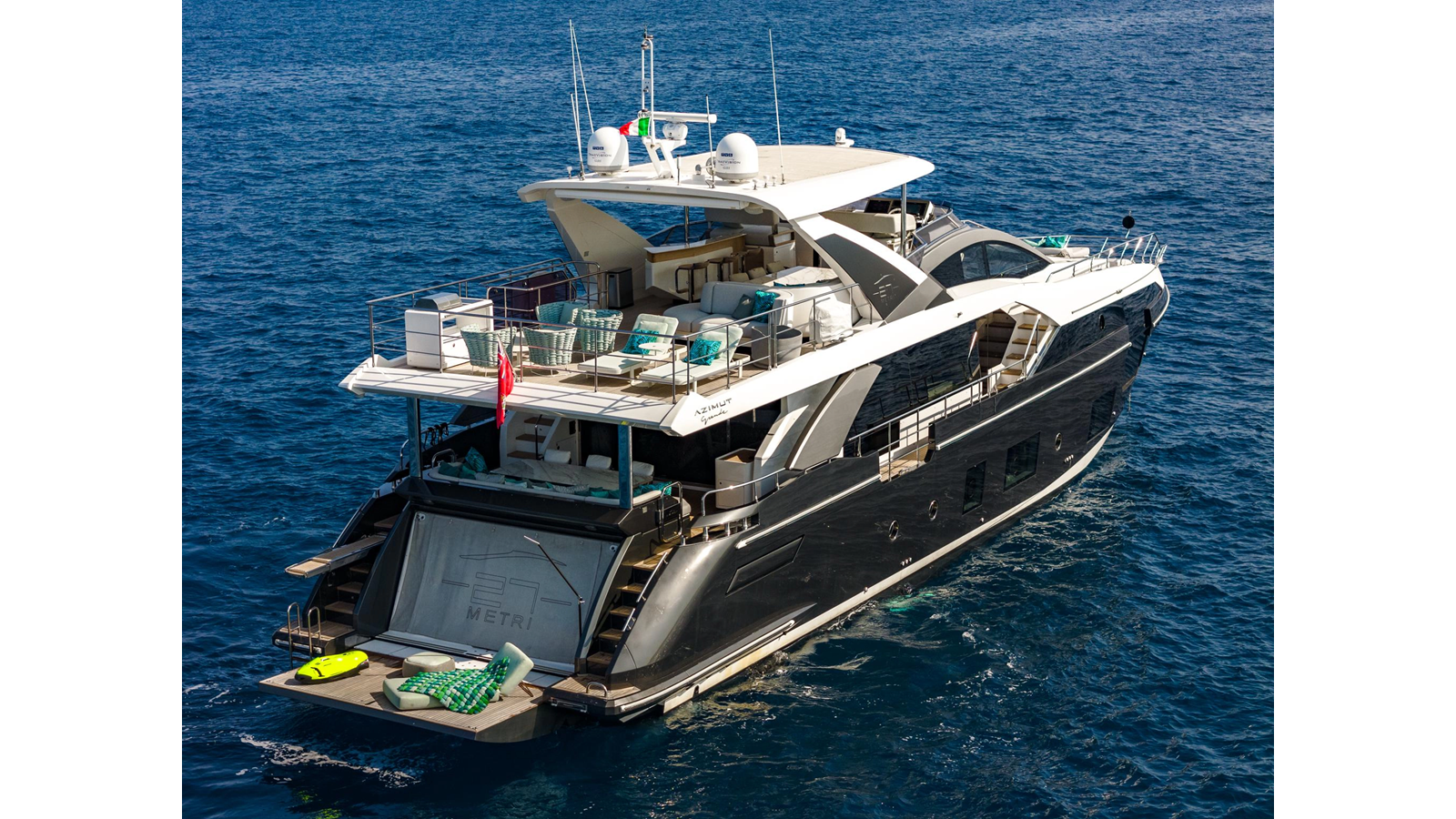

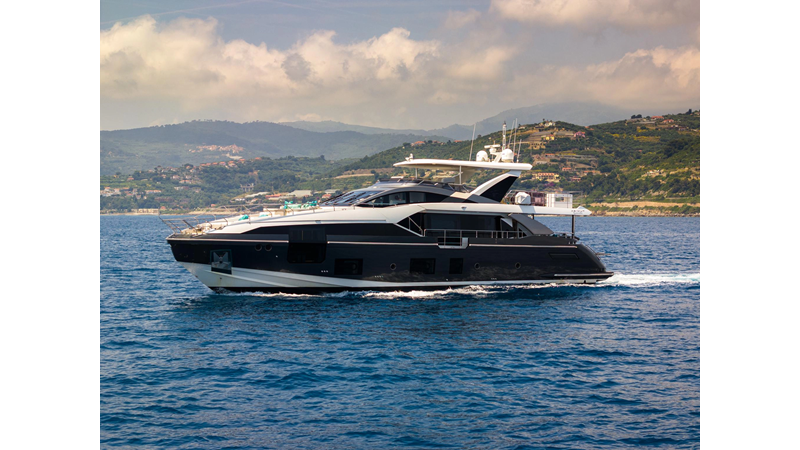

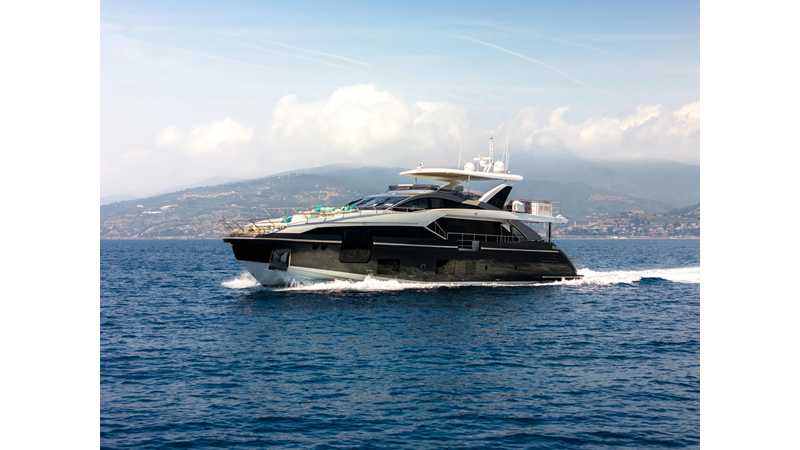

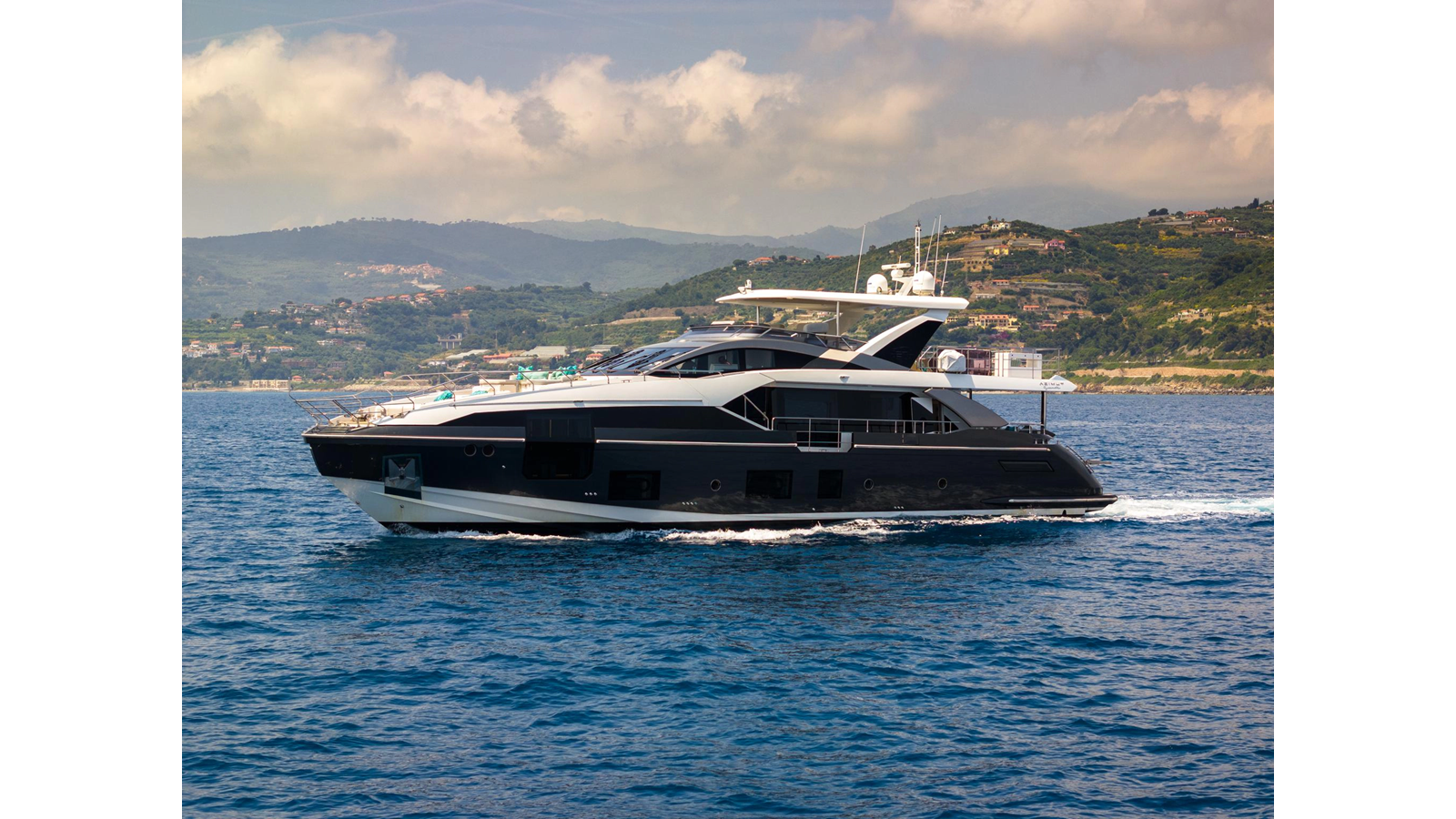

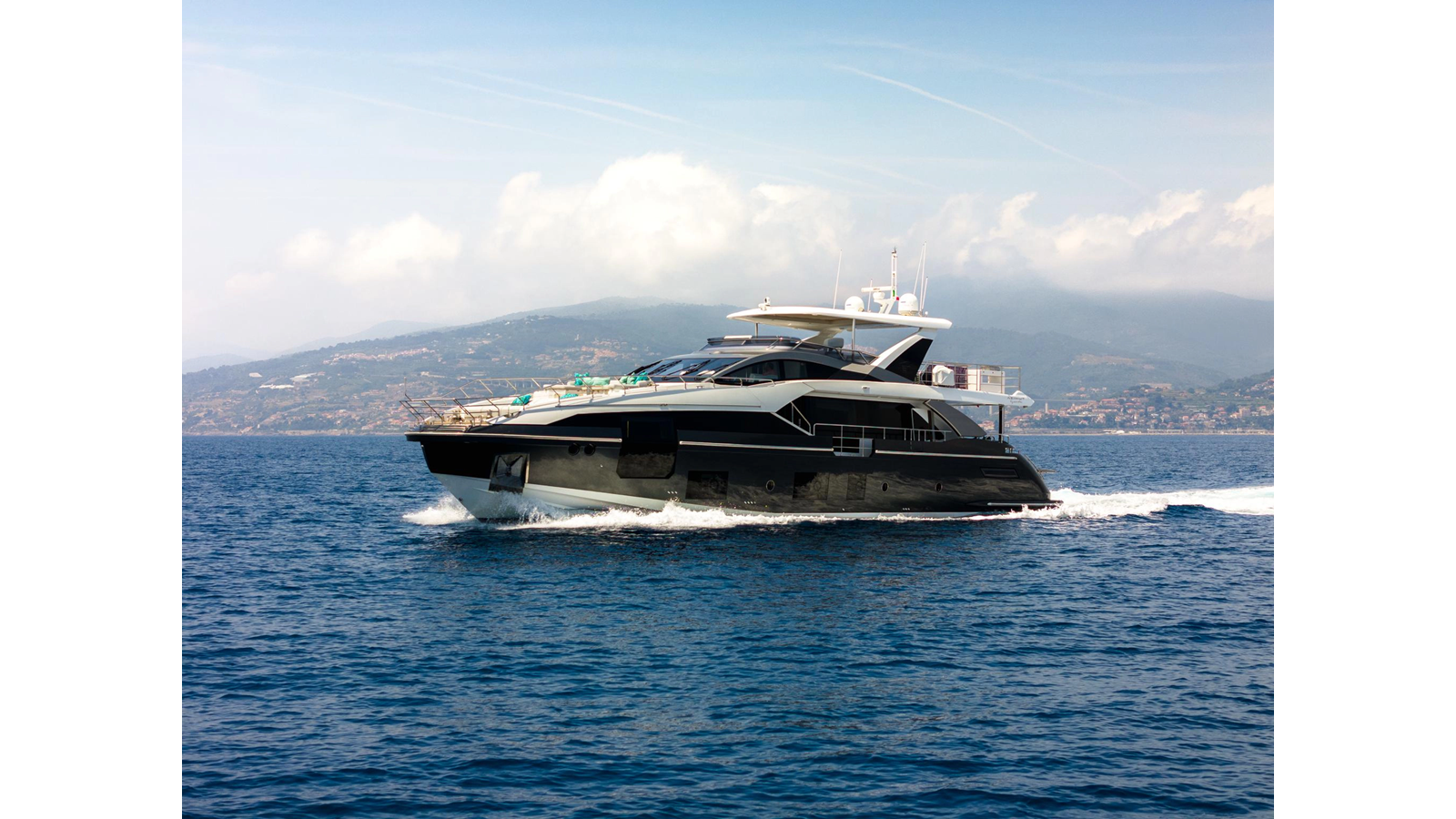

2019 AZIMUT YACHTS Grande 27M
Description

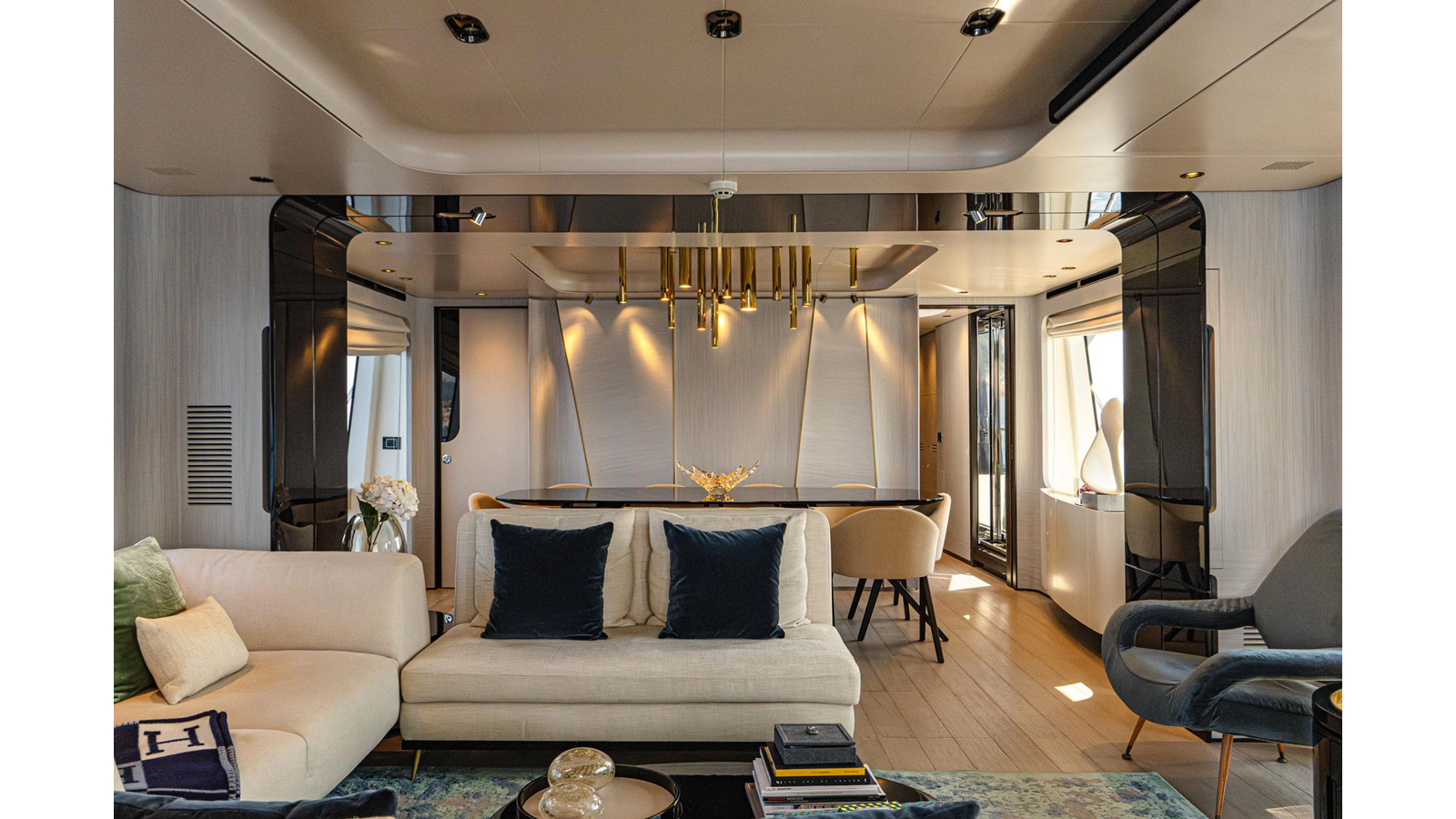

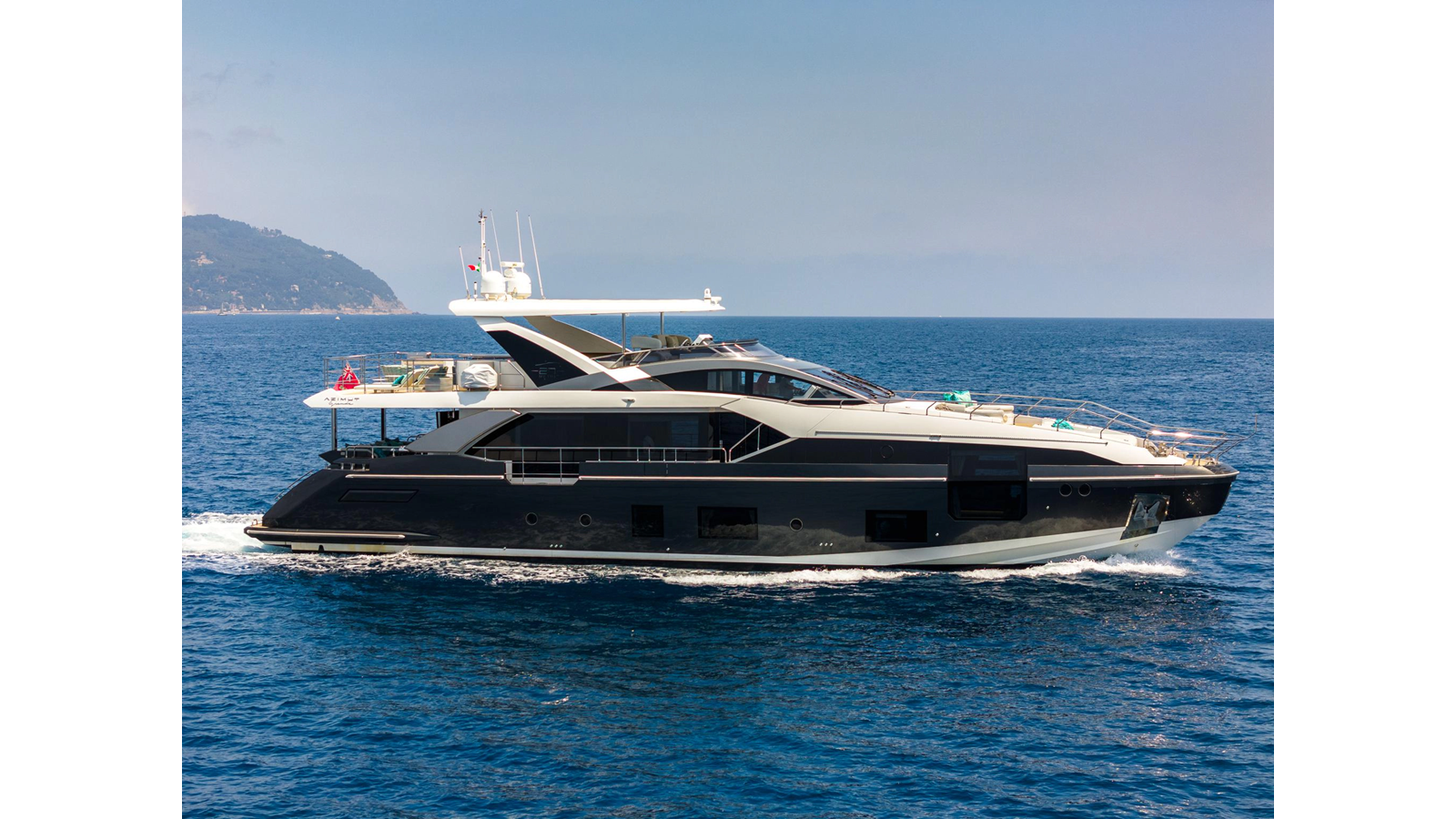

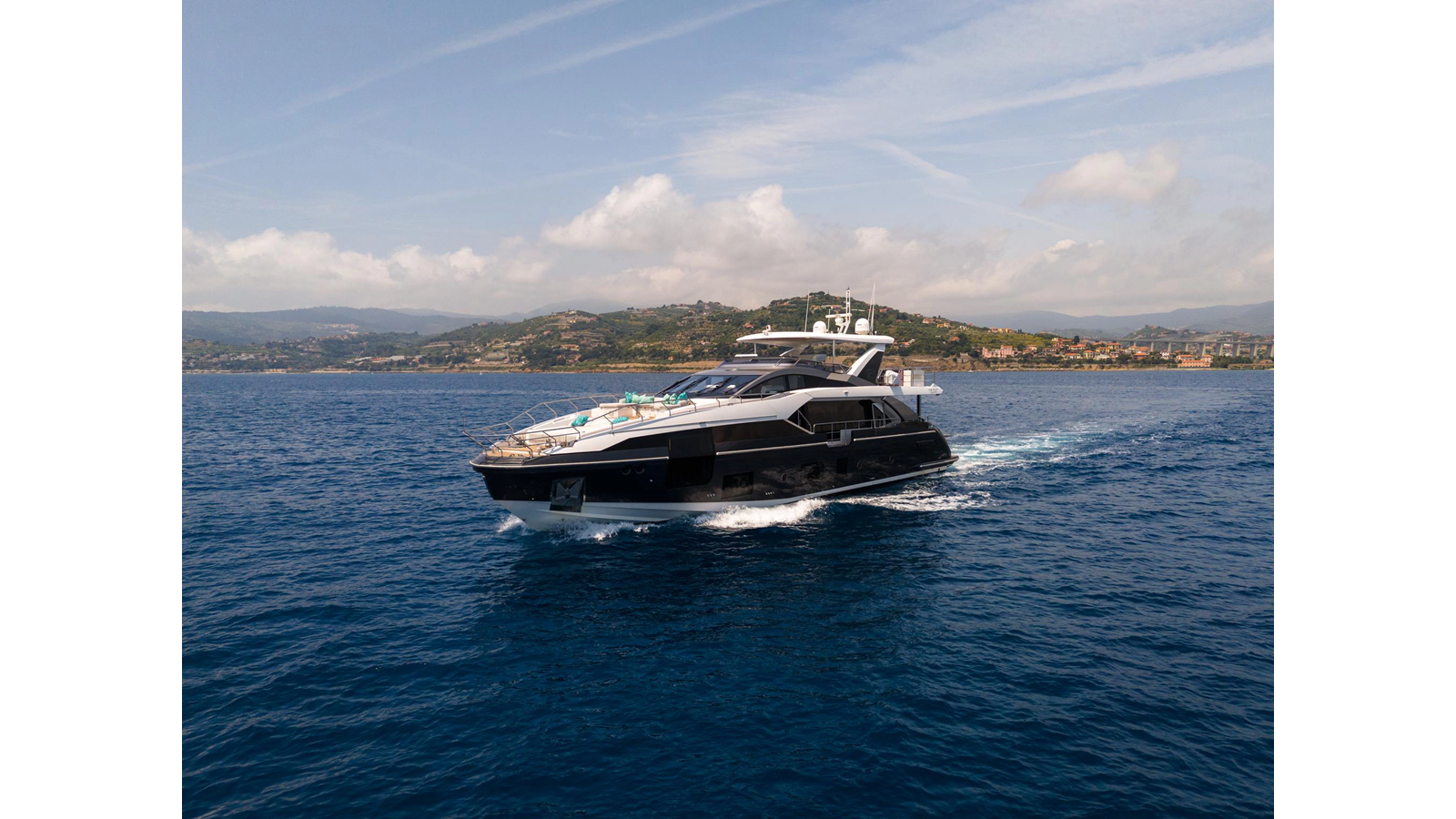

Built by Azimut in Italy and delivered in 2019, this 27M is part of Azimut’s flagship Grande Collection, combining renowned Italian craftsmanship with contemporary styling and strong performance. Her exterior design is by Stefano Righini, while the sophisticated, warm interior is styled by Achille Salvagni, she is the most luxurious version, with several additional features compared to the standard model.

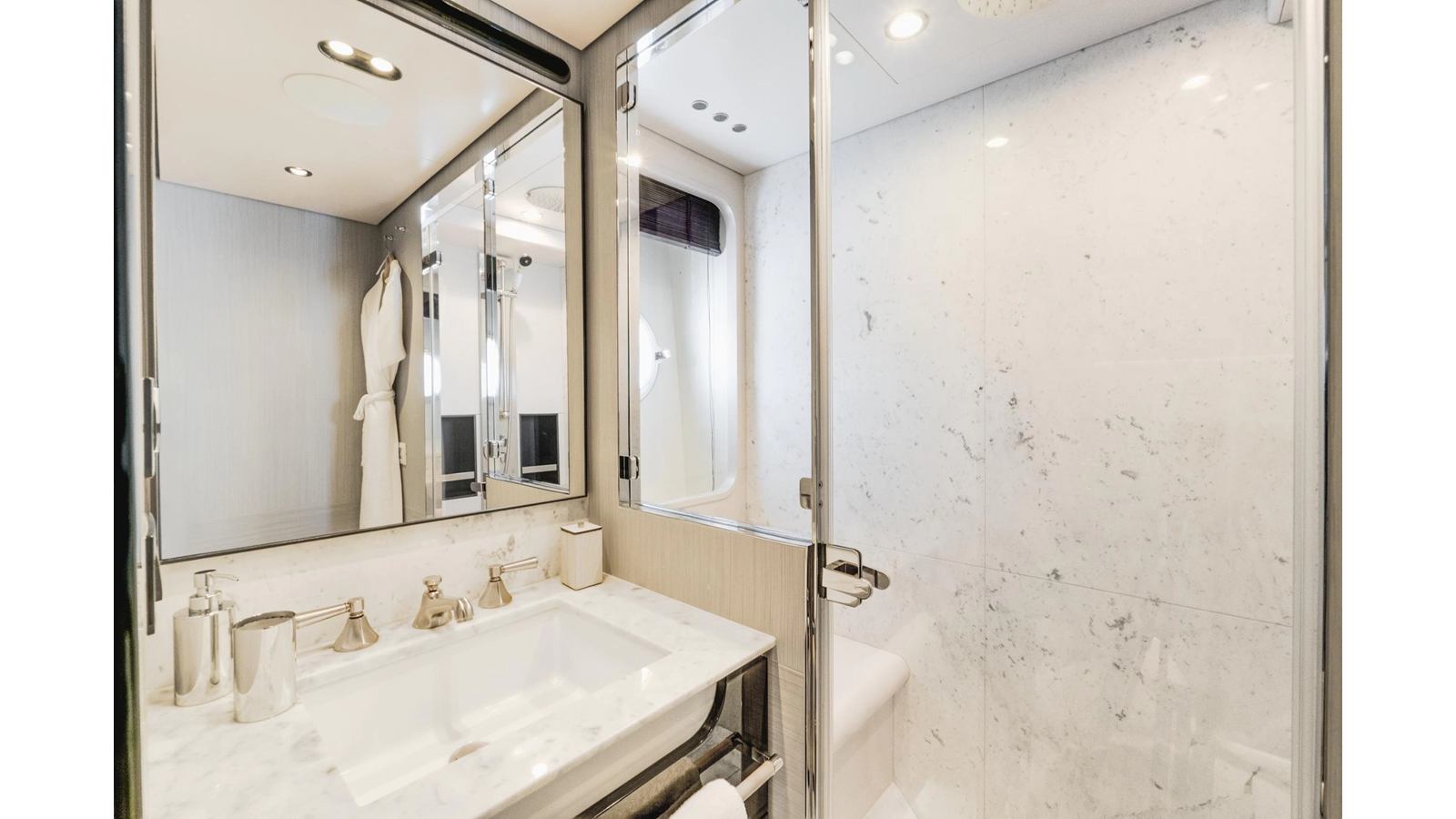

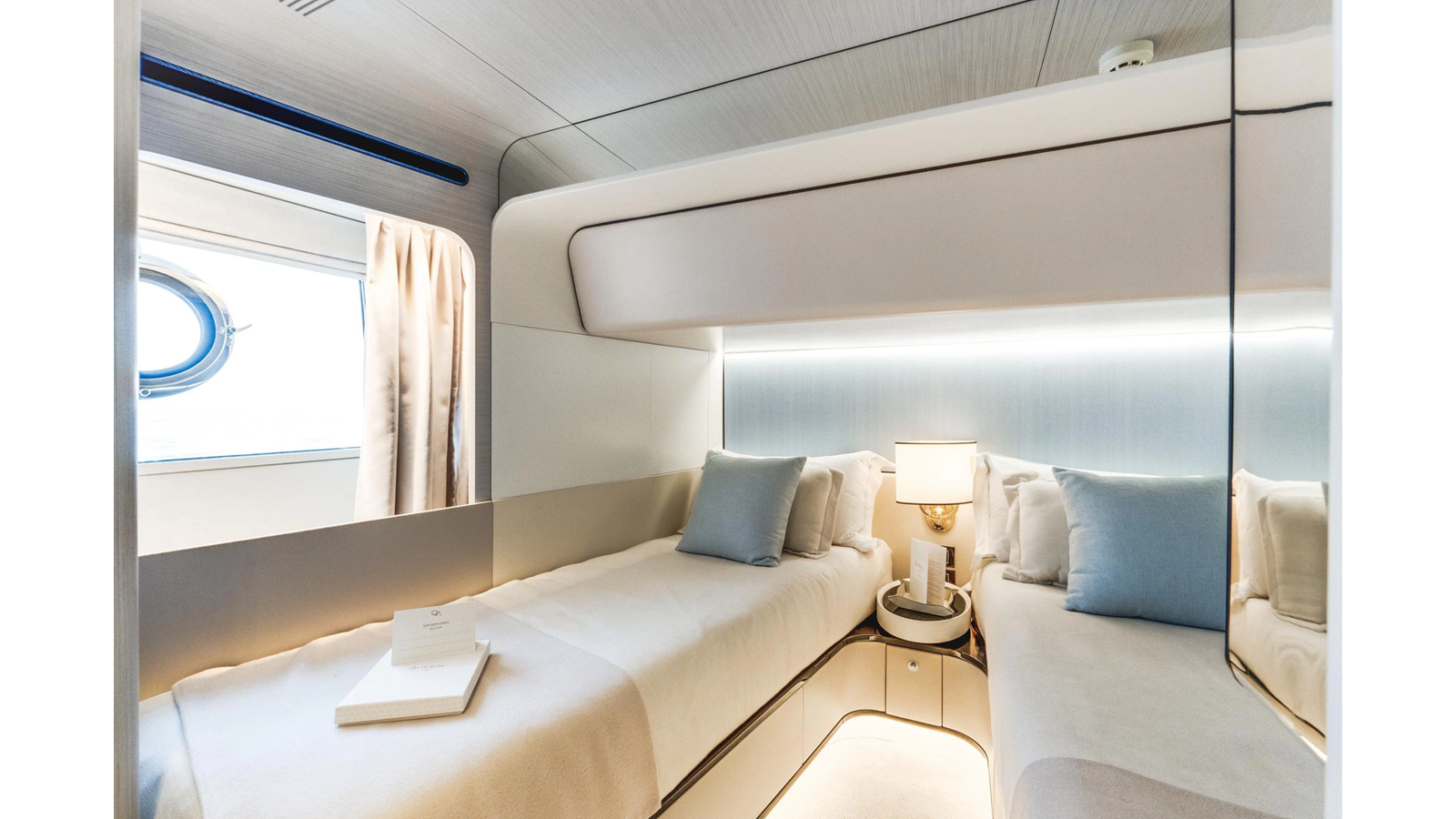

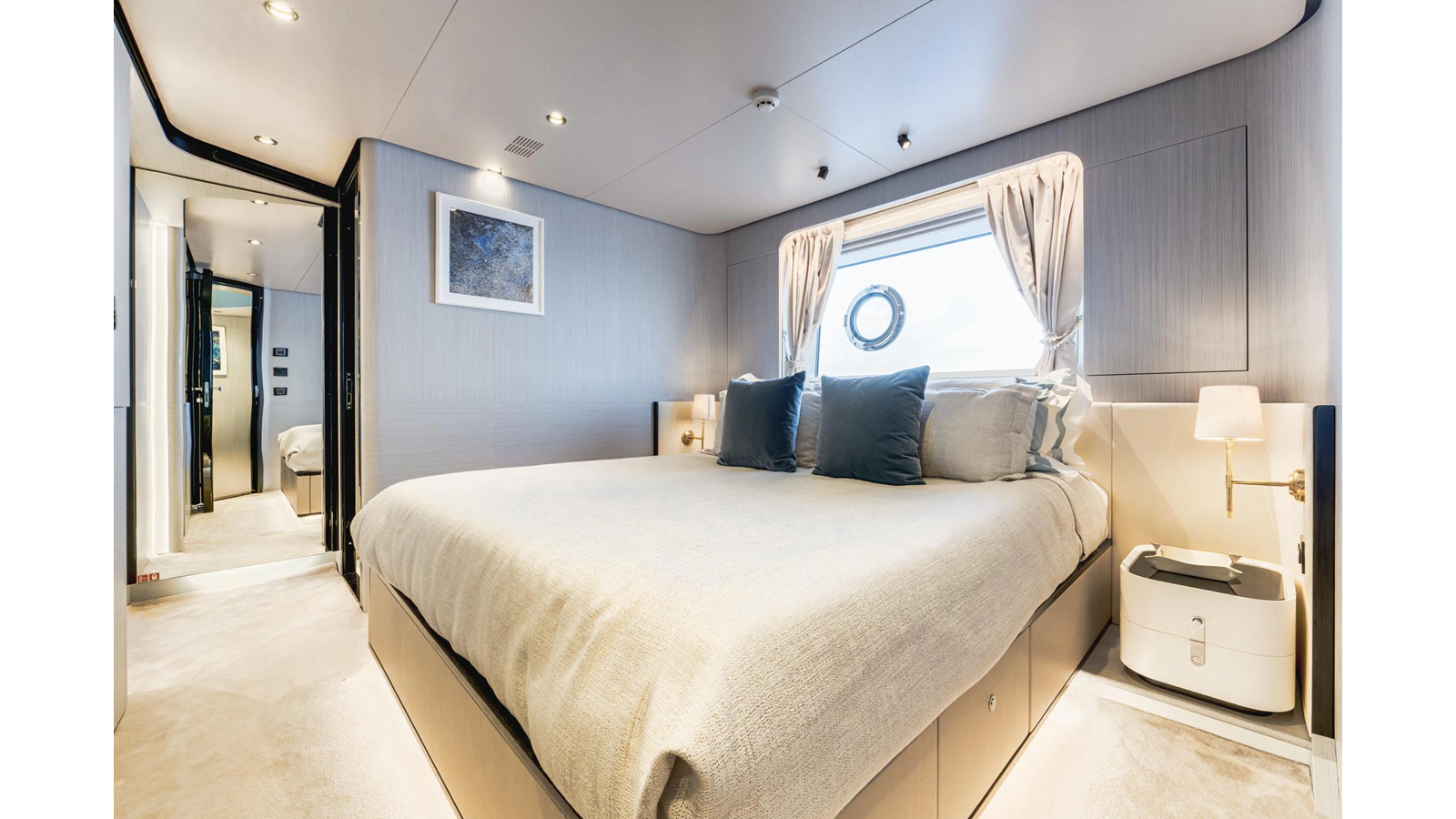

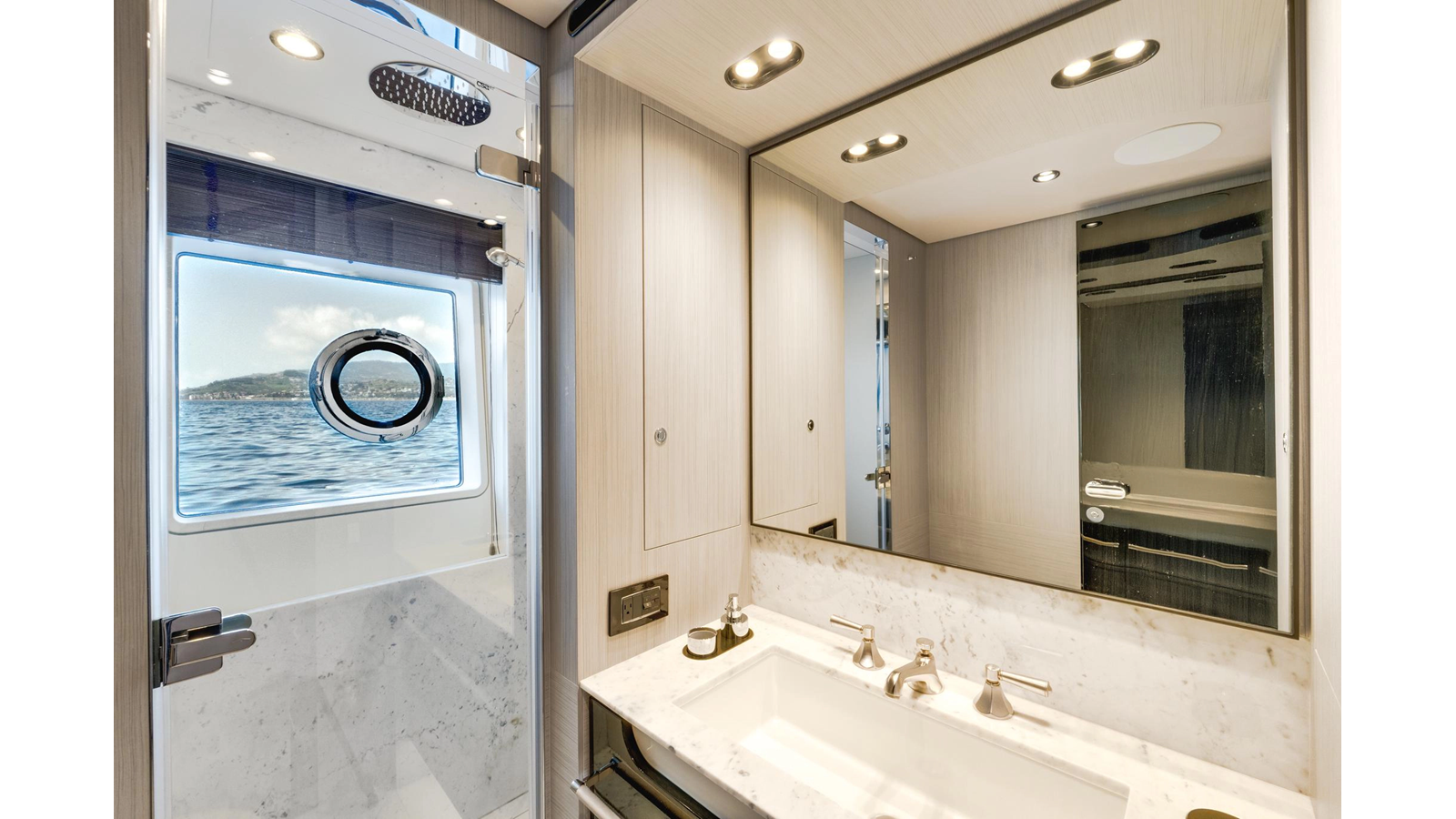

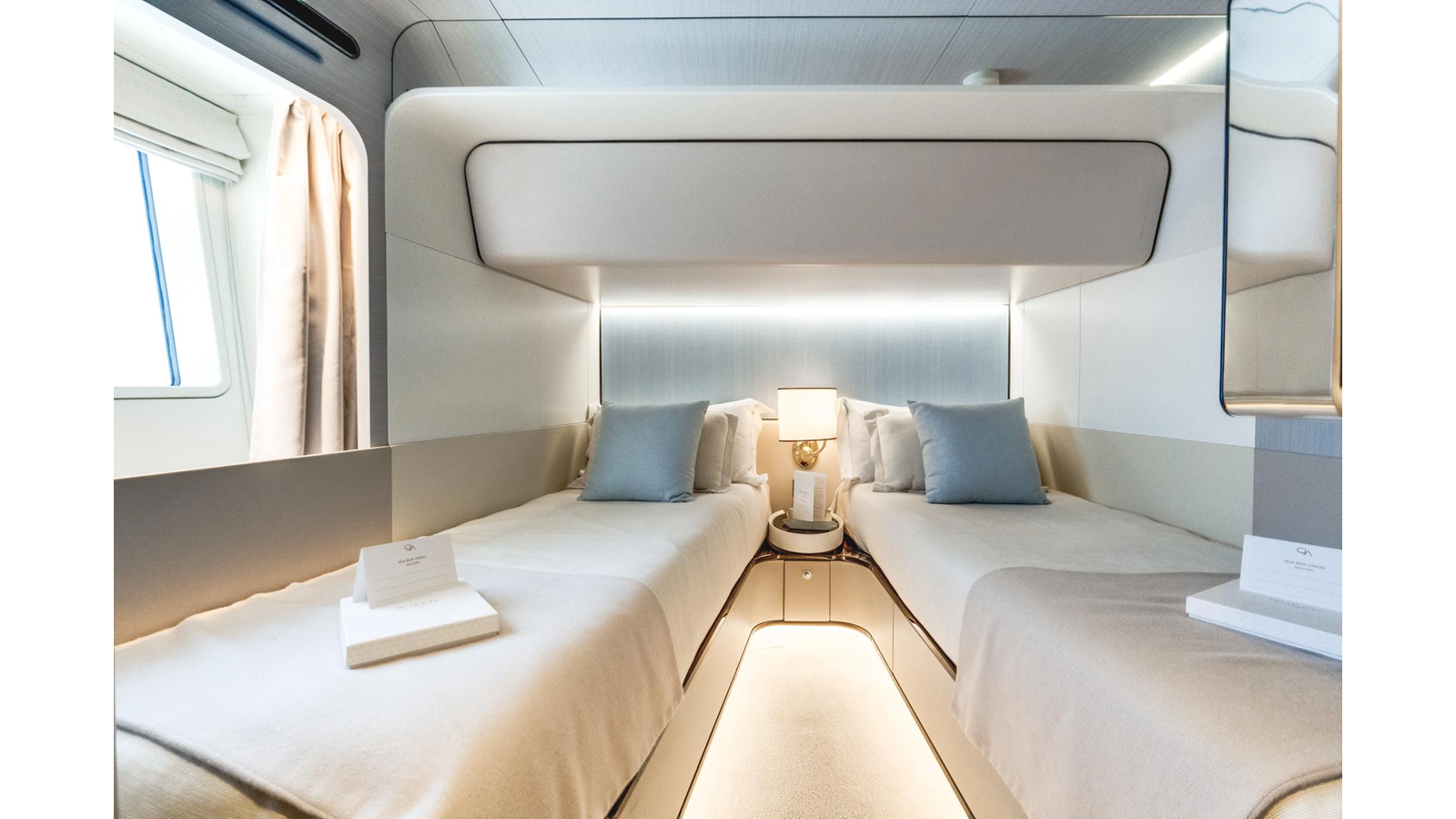

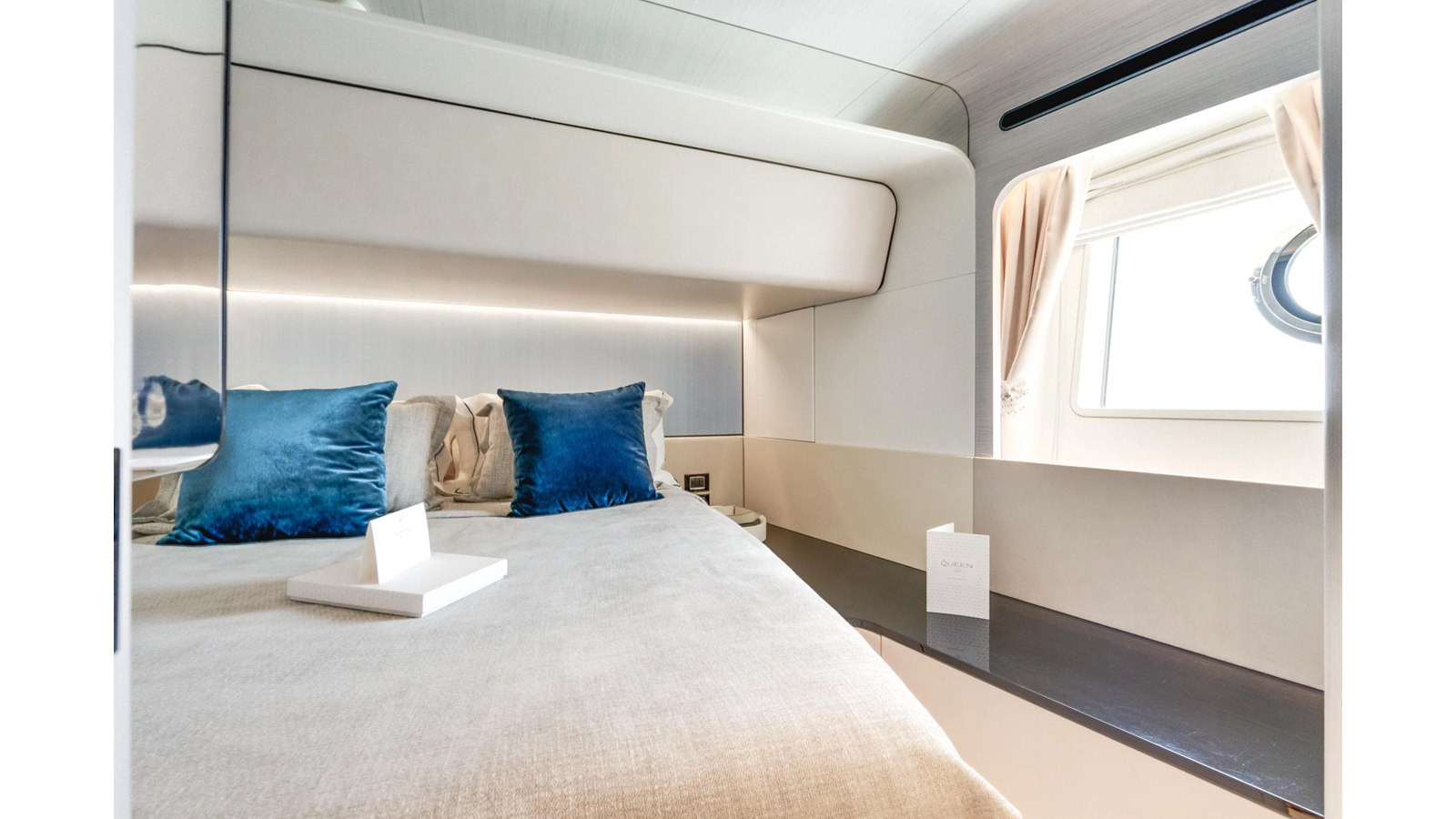

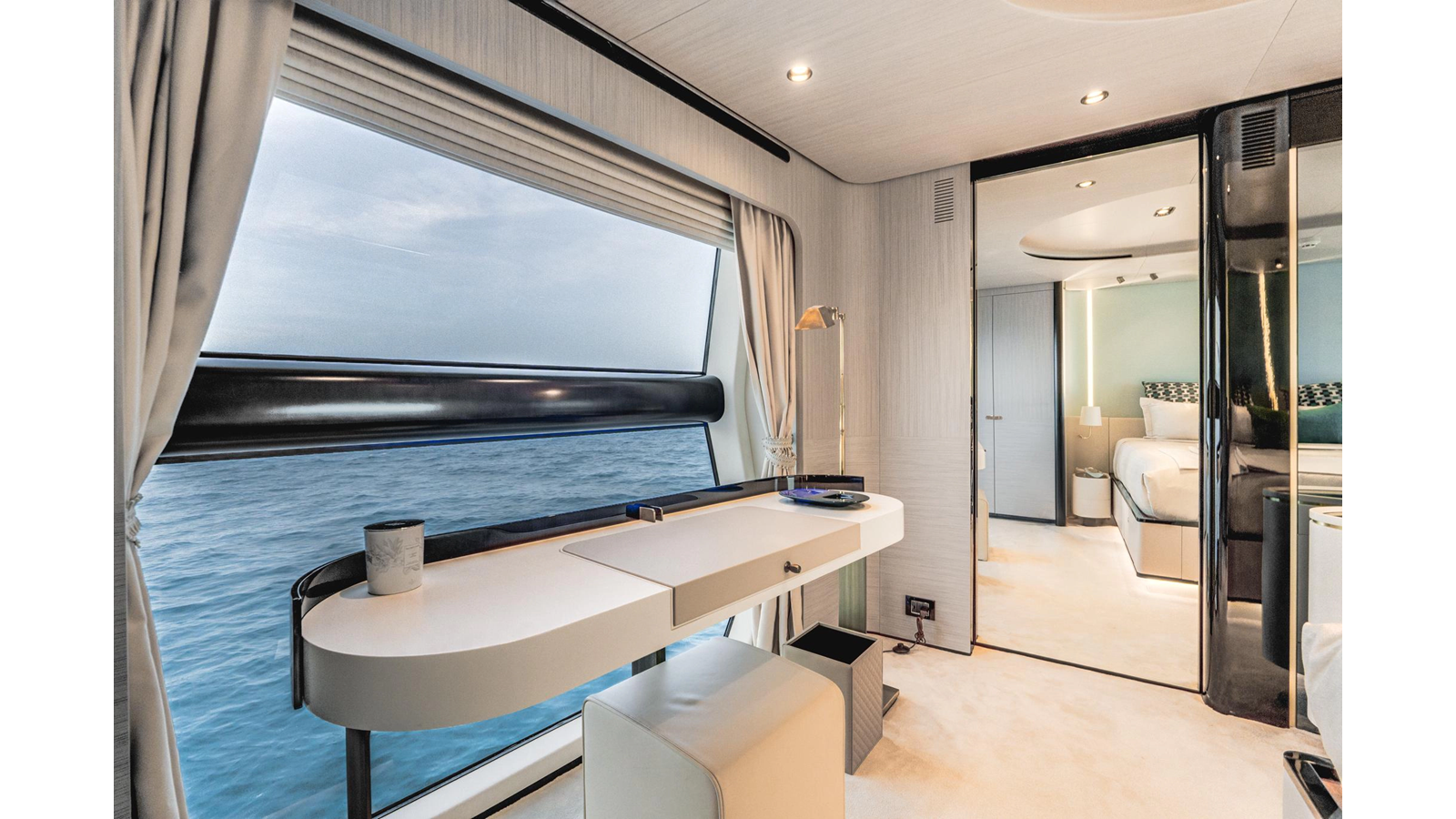

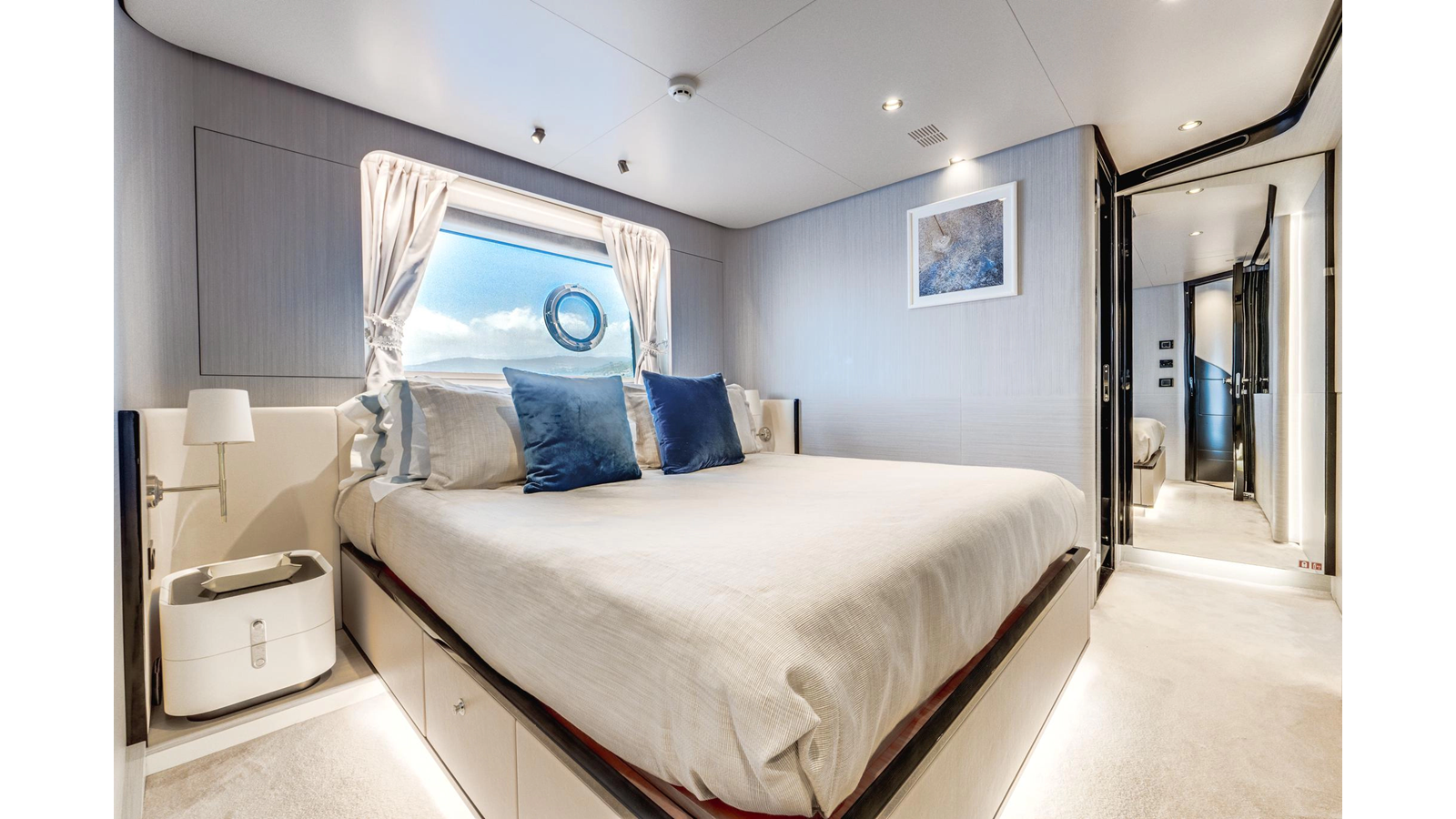

Designed for comfortable cruising and entertaining, she accommodates up to 10 guests in five luxurious suites, all with ensuite bathrooms, and carries up to four crew in separate quarters to ensure discreet, professional service and guest privacy.

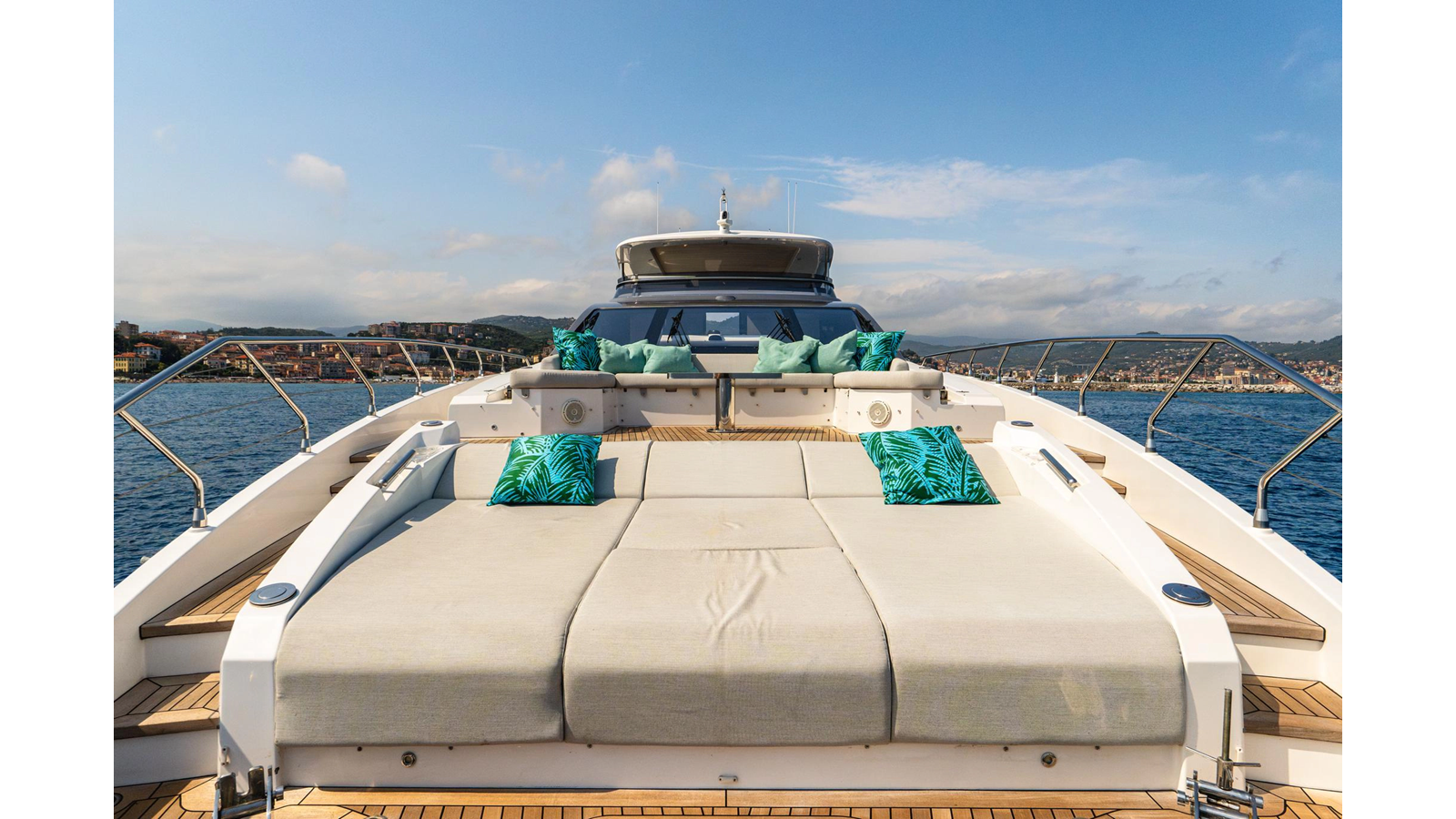

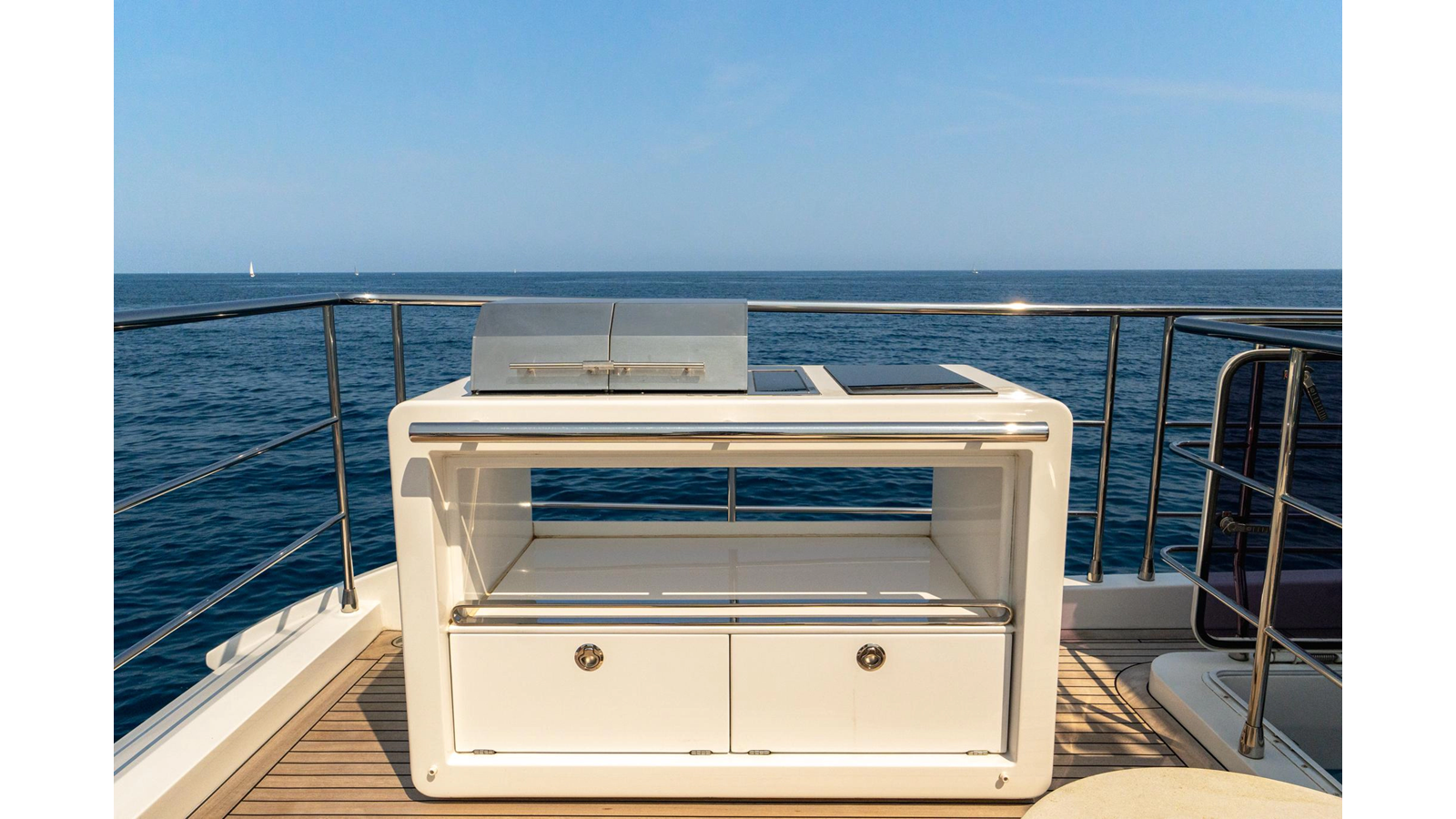

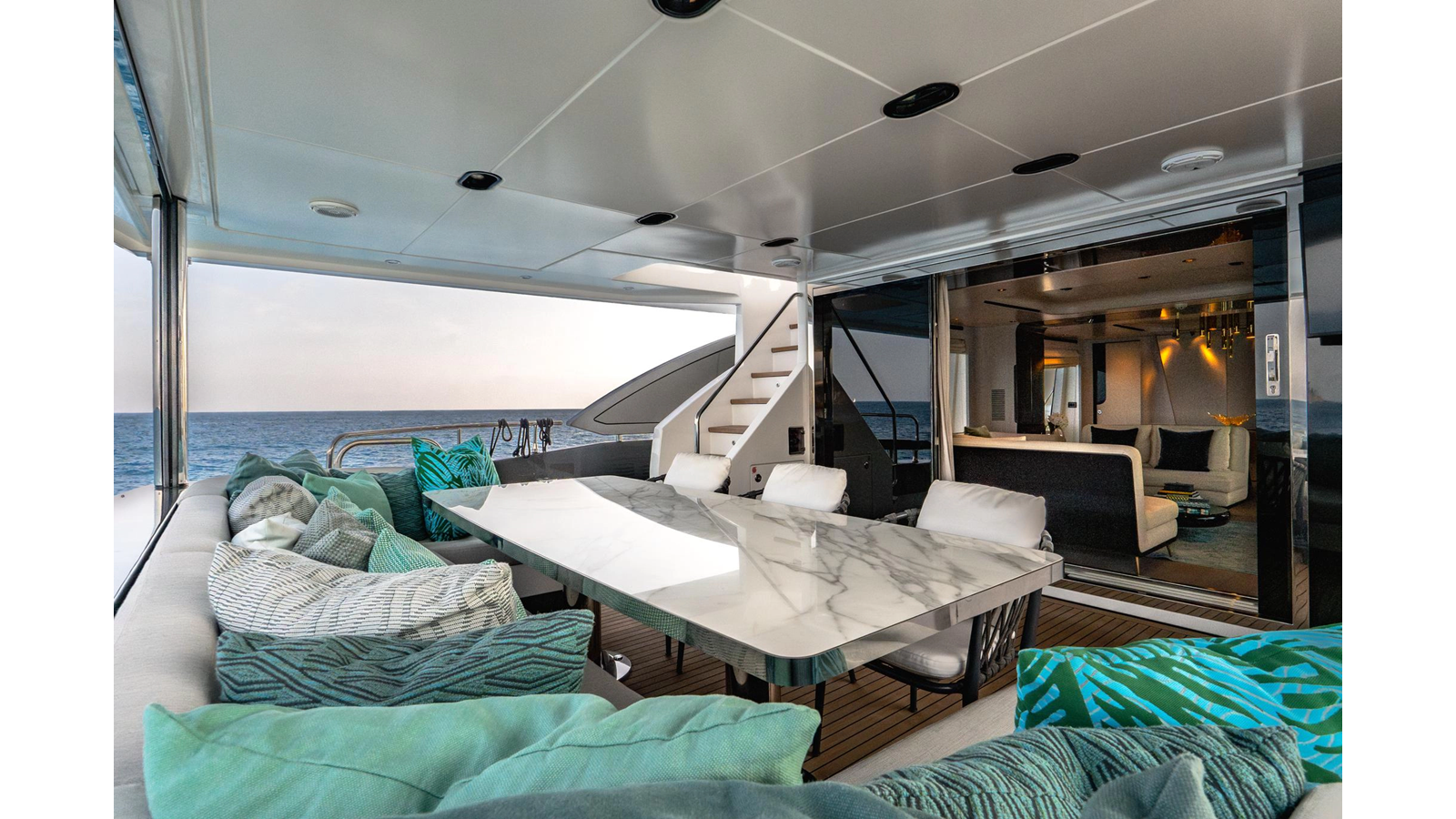

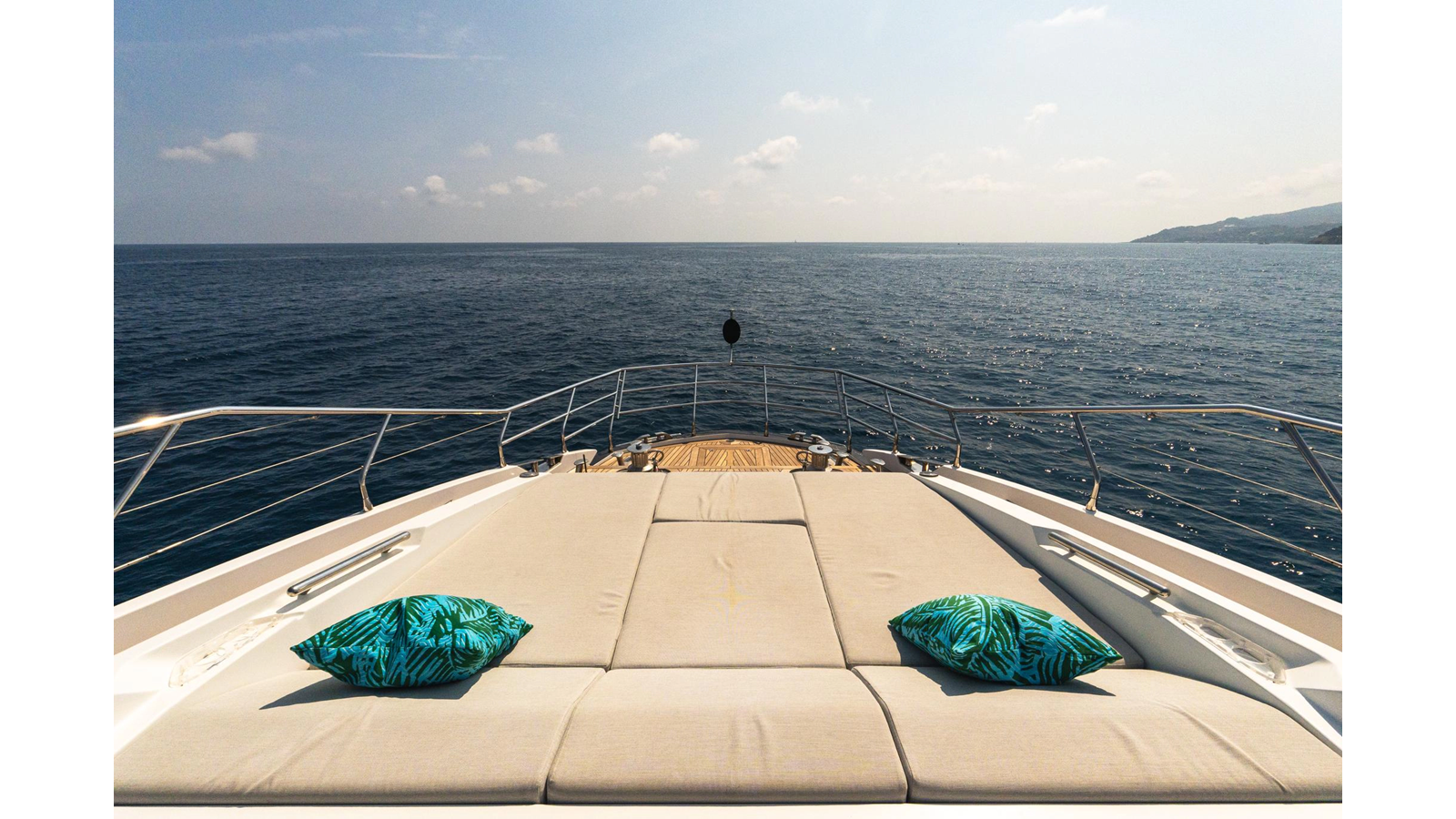

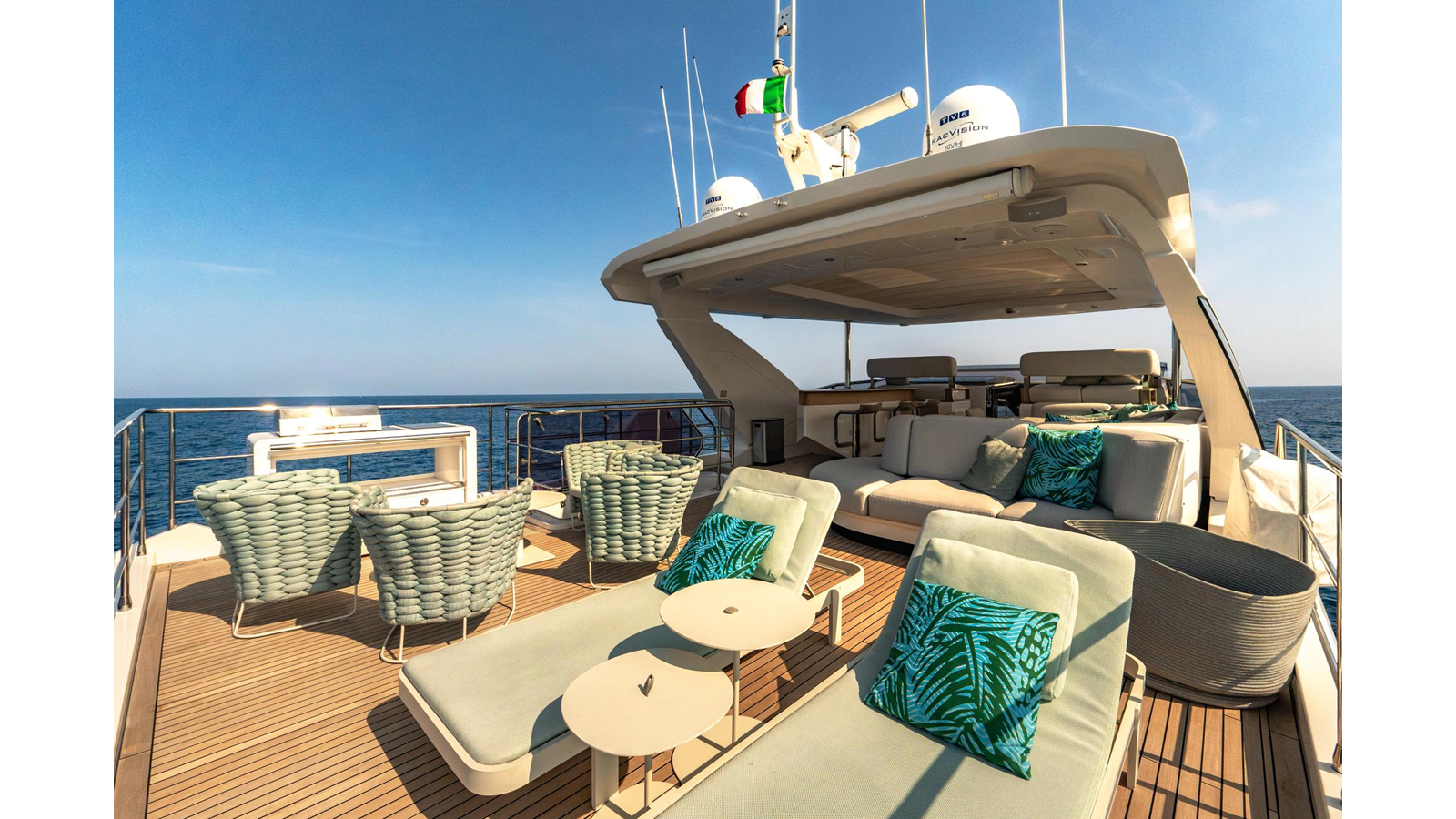

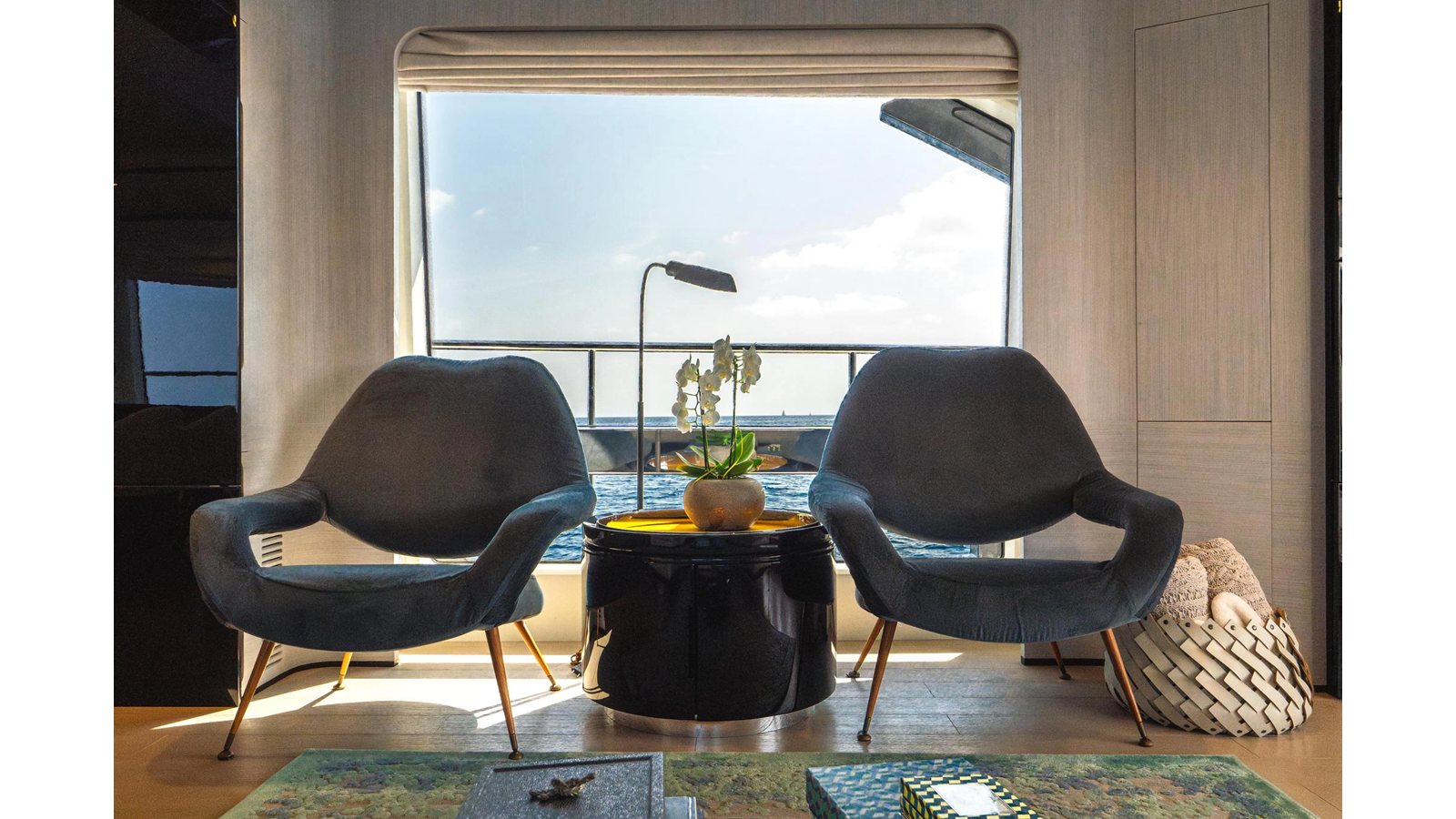

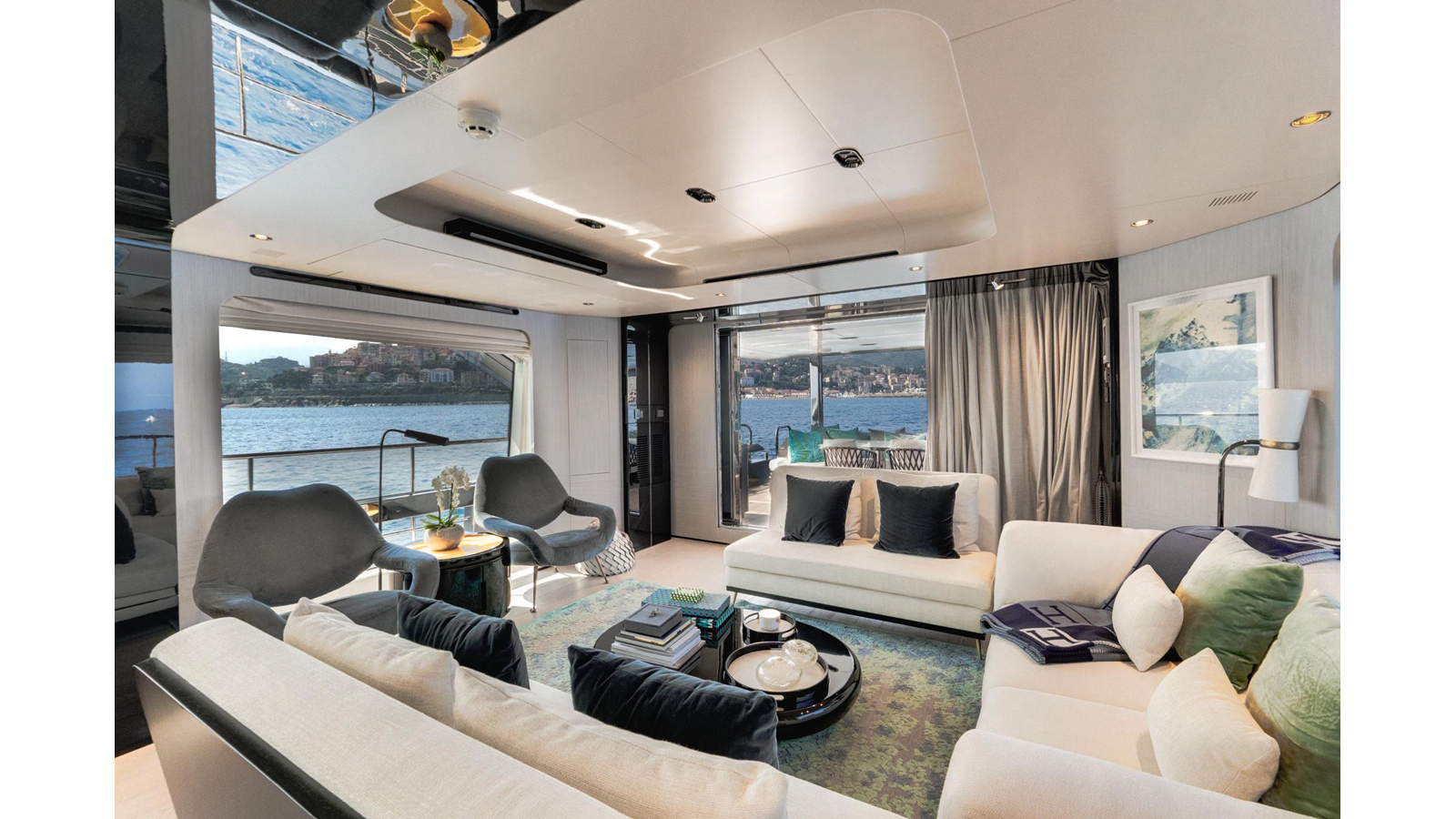

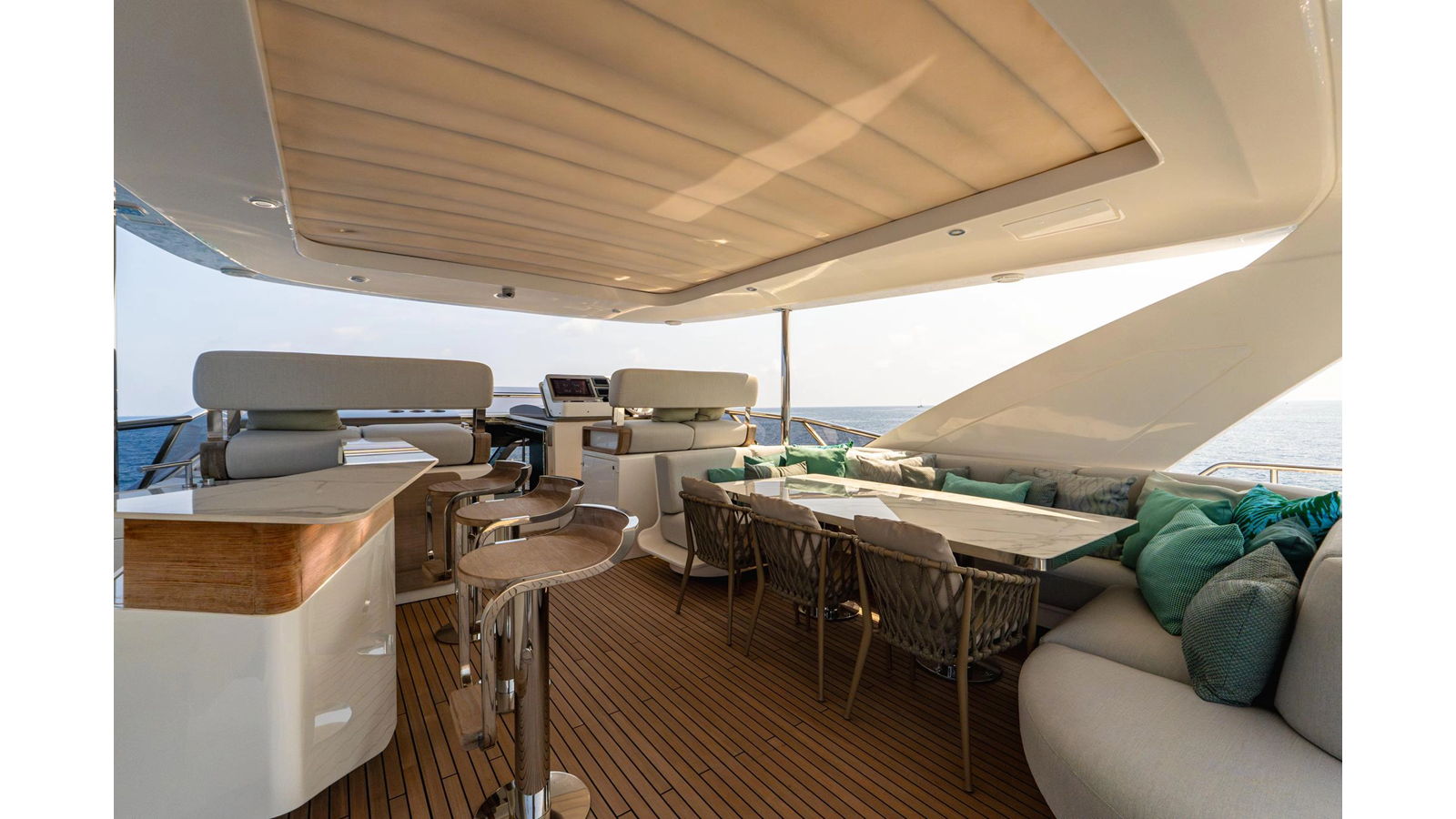

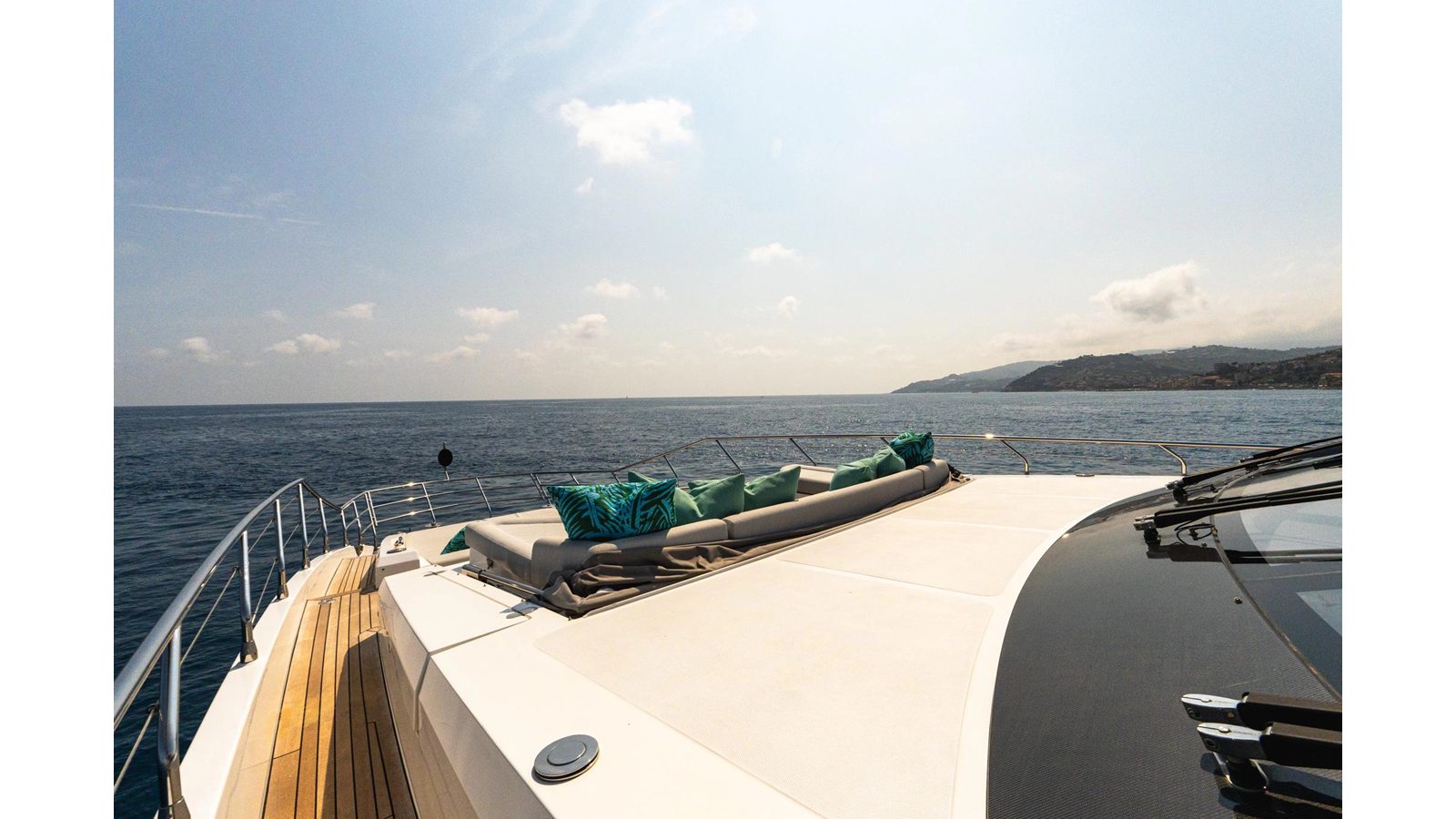

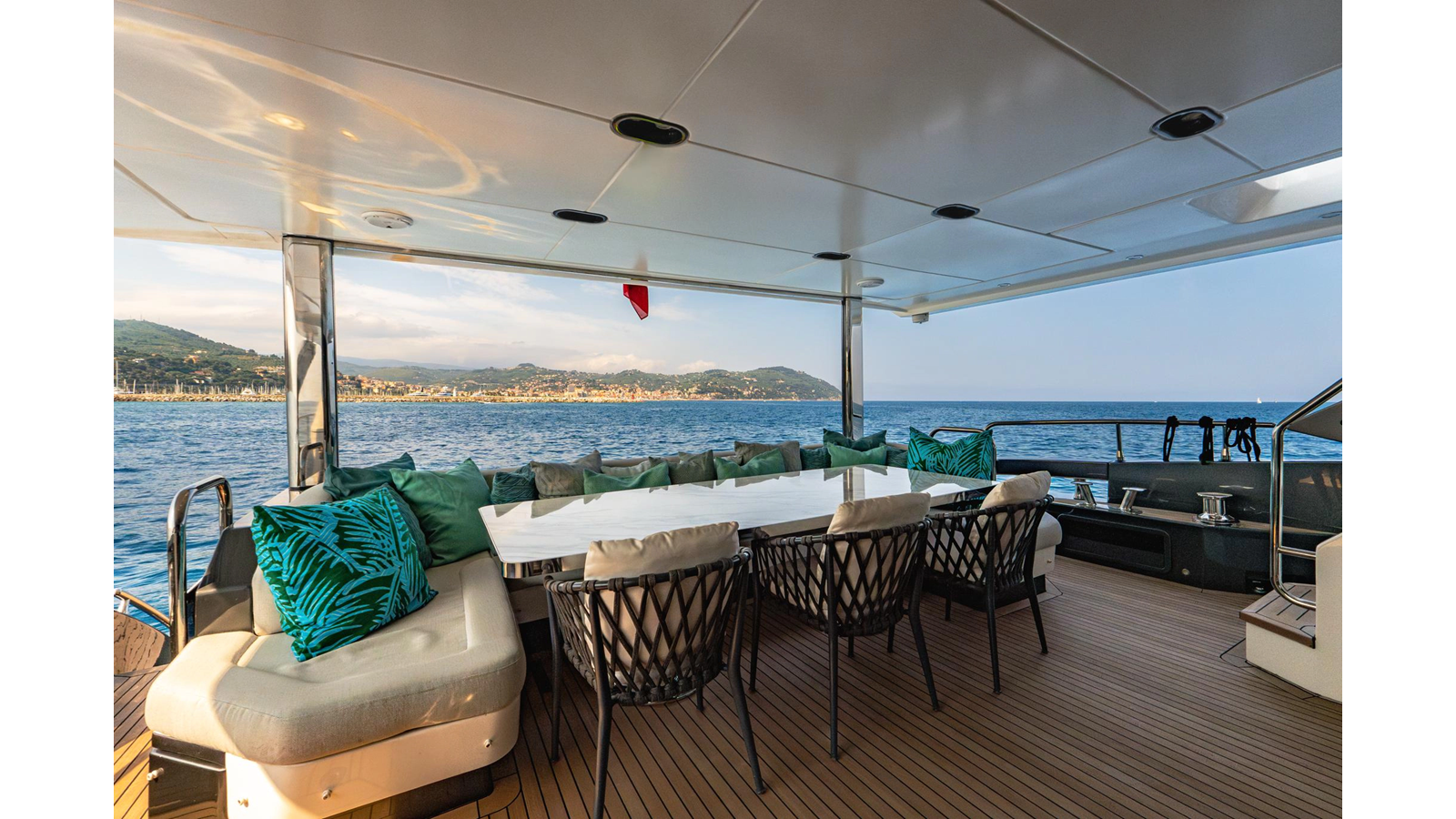

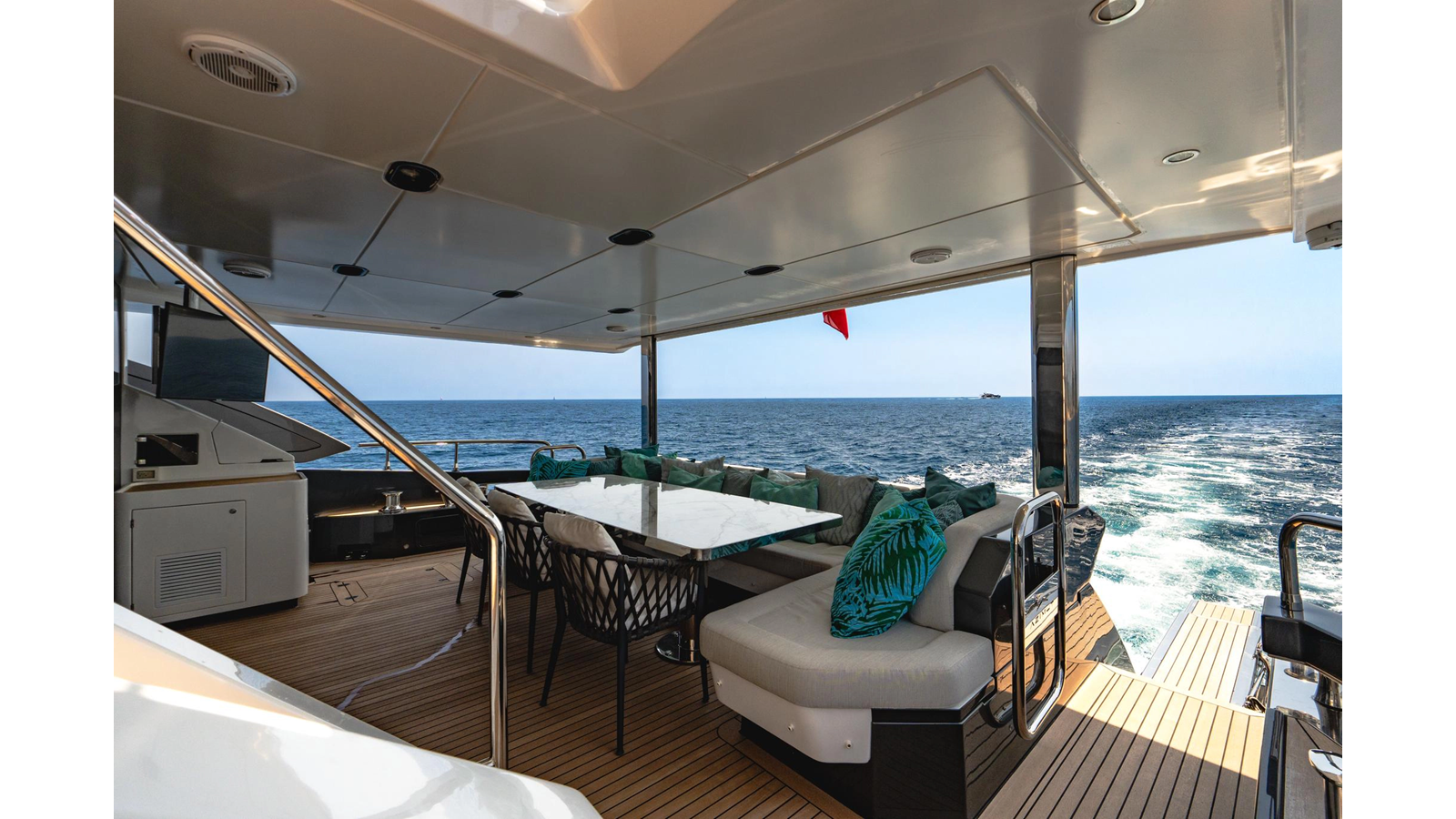

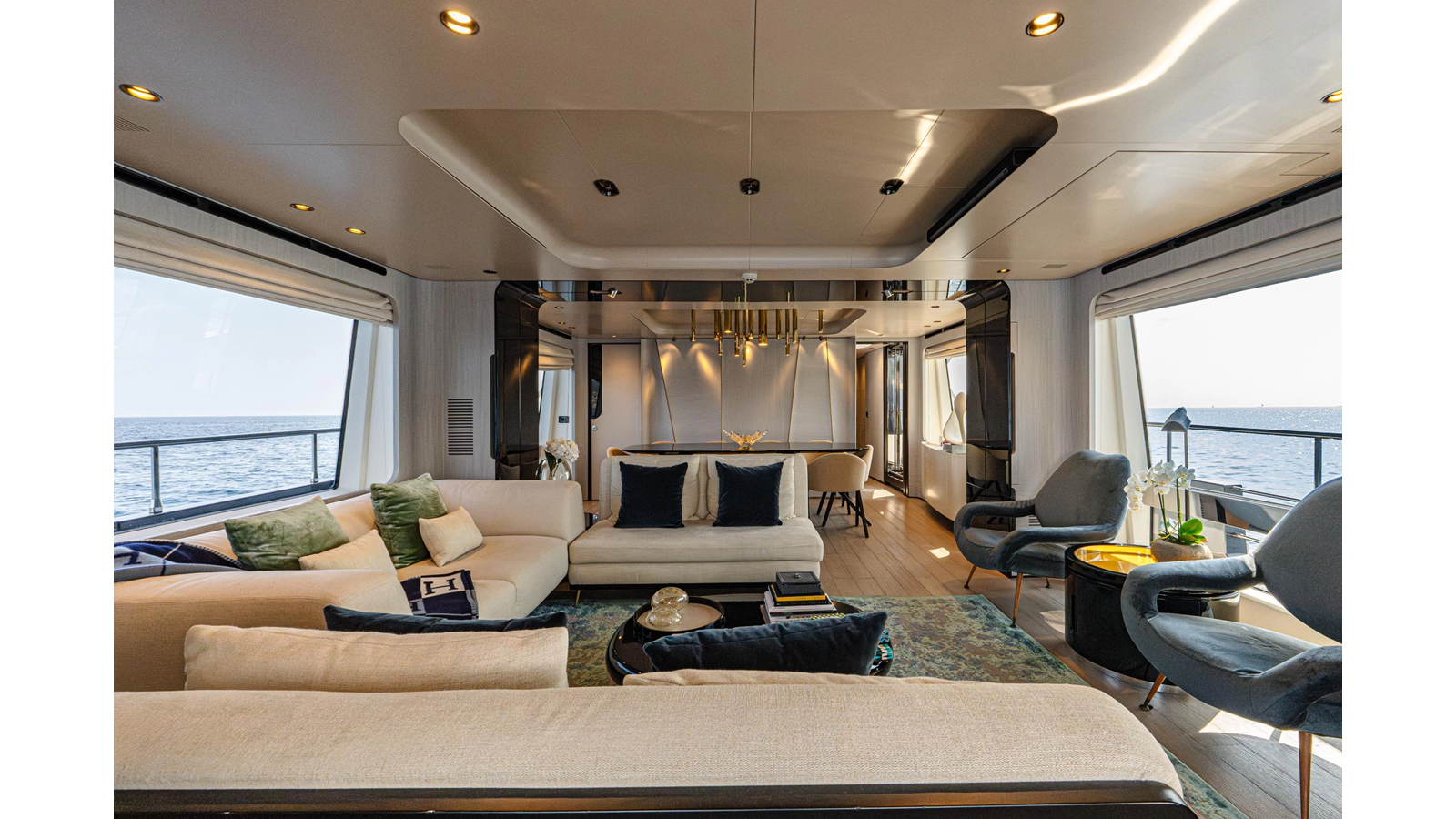

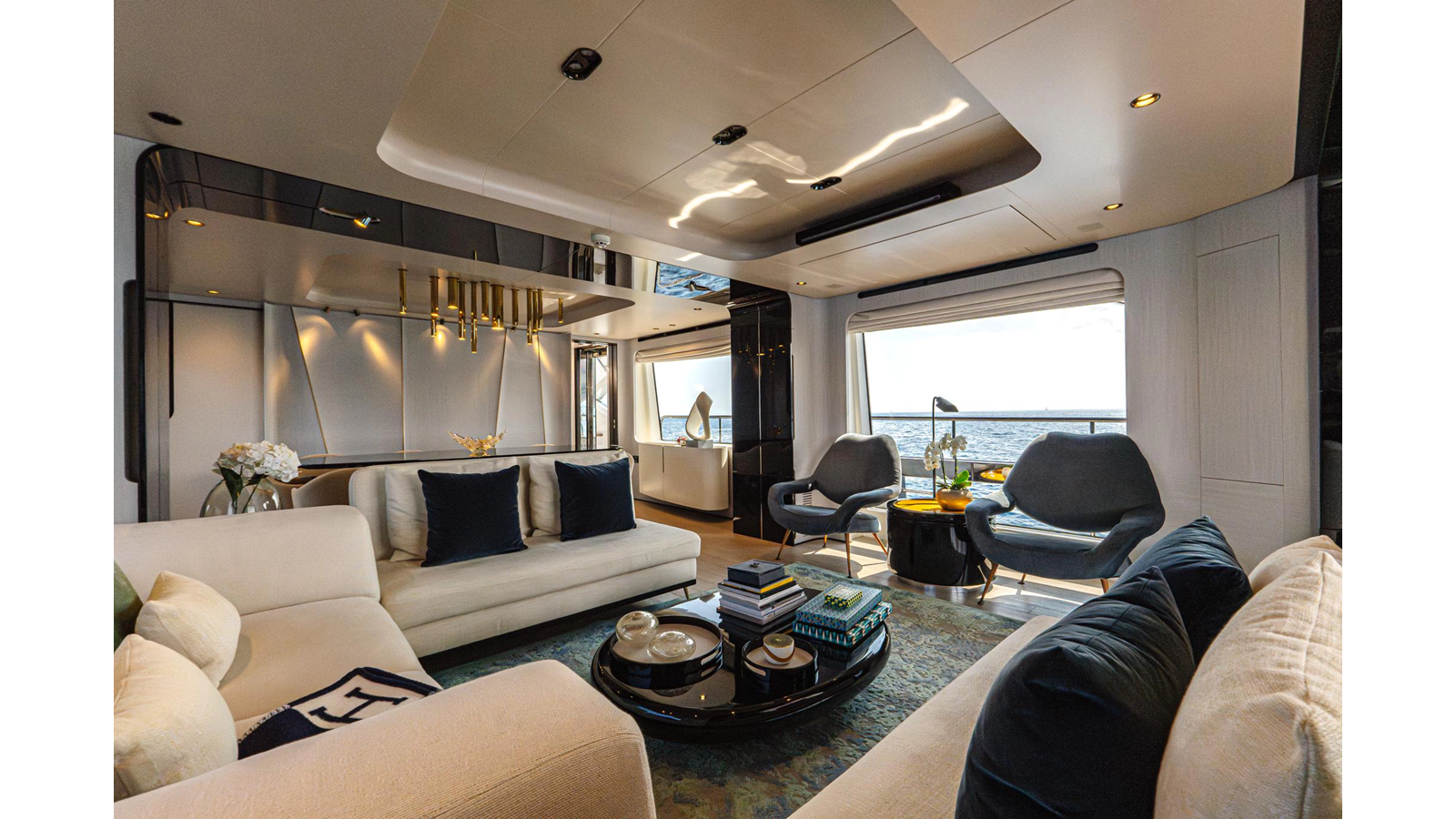

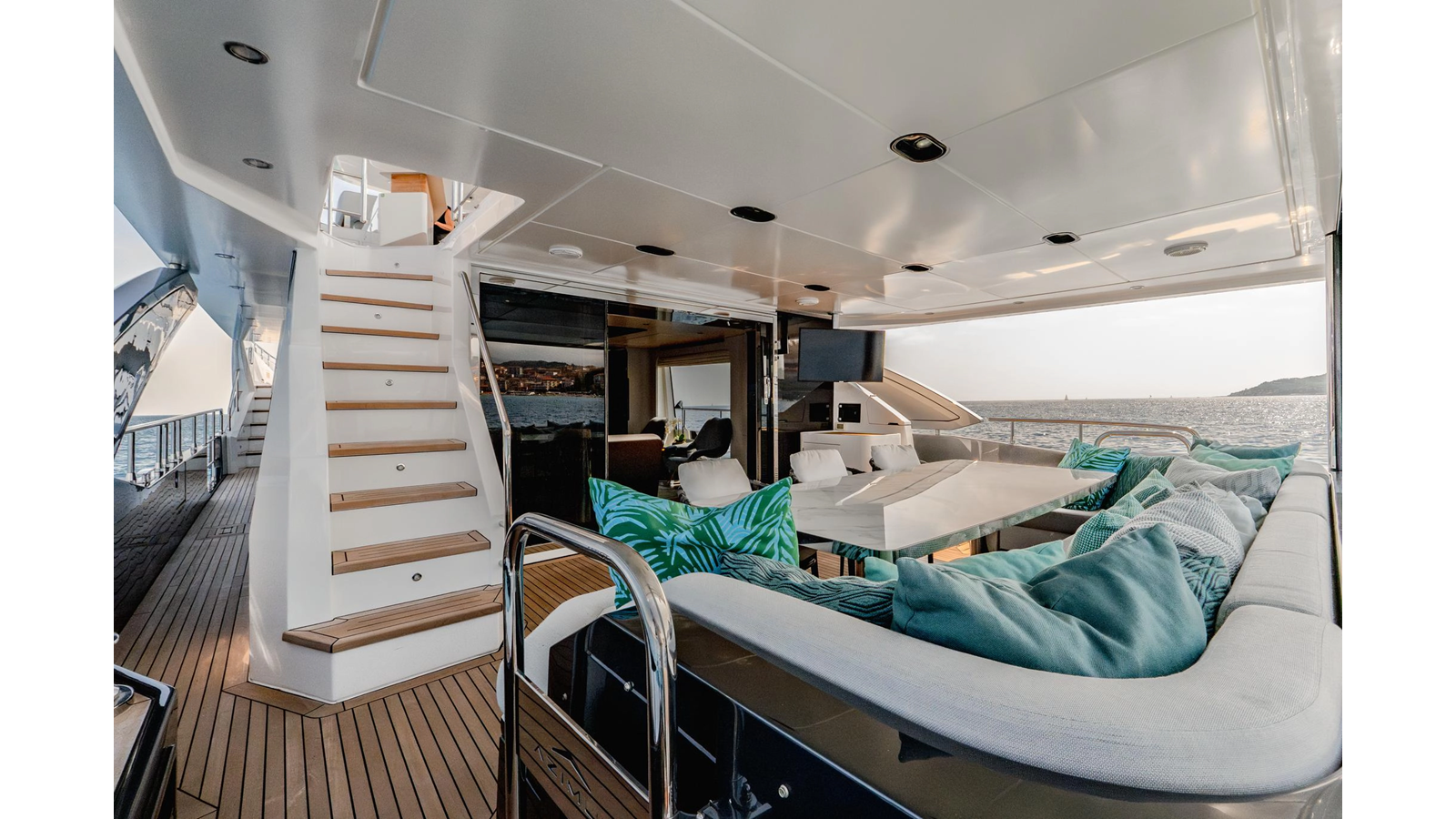

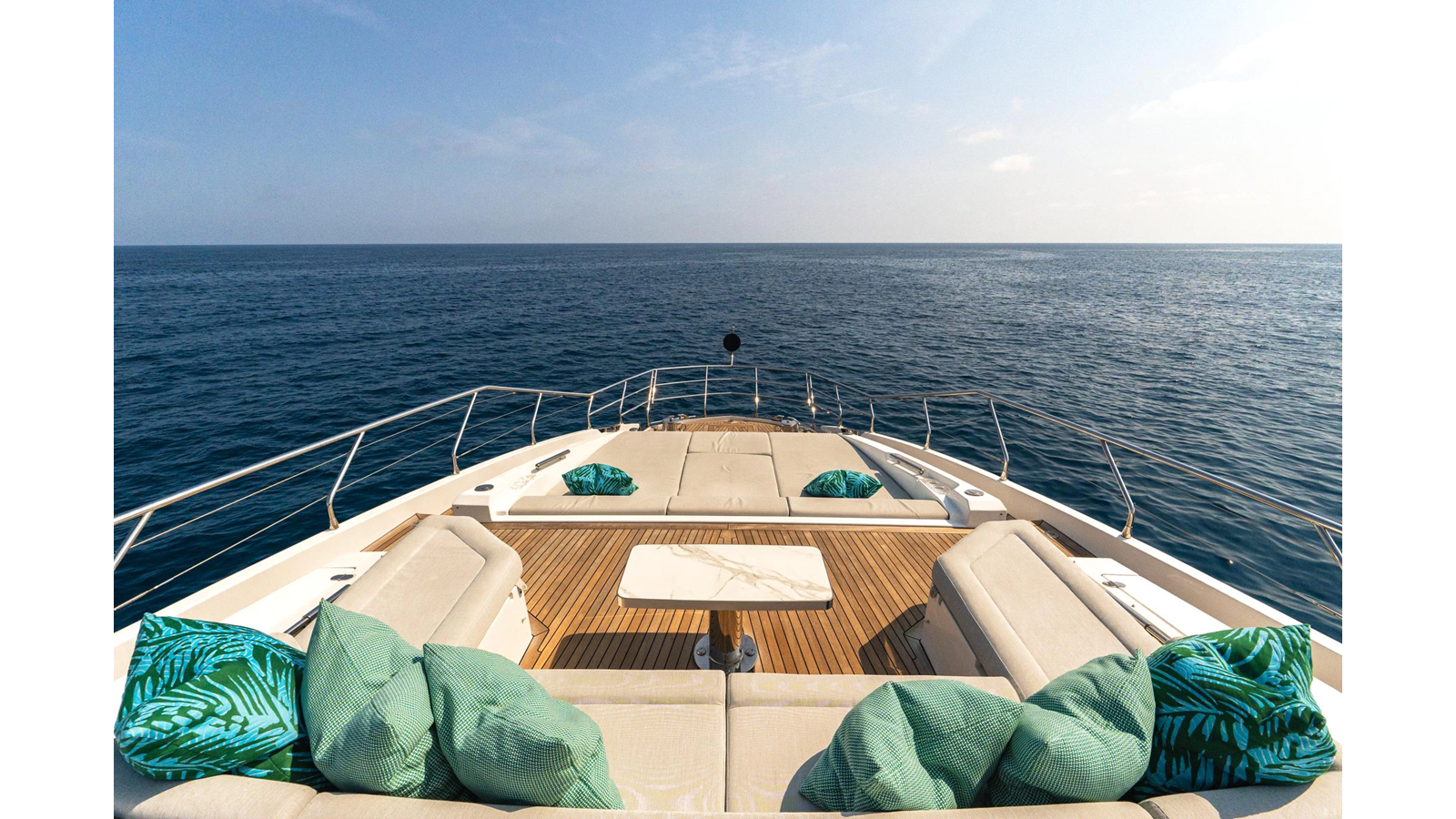

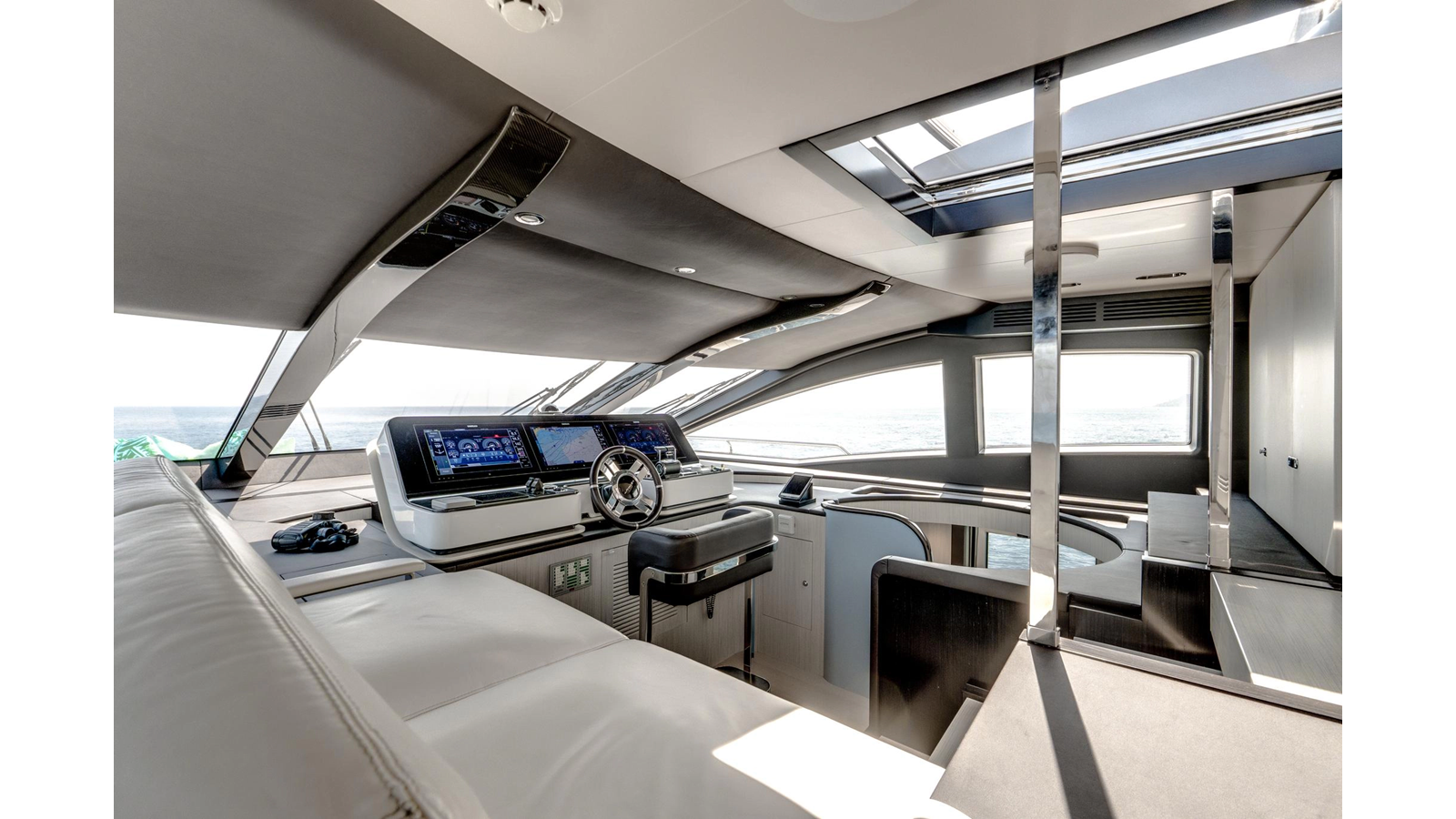

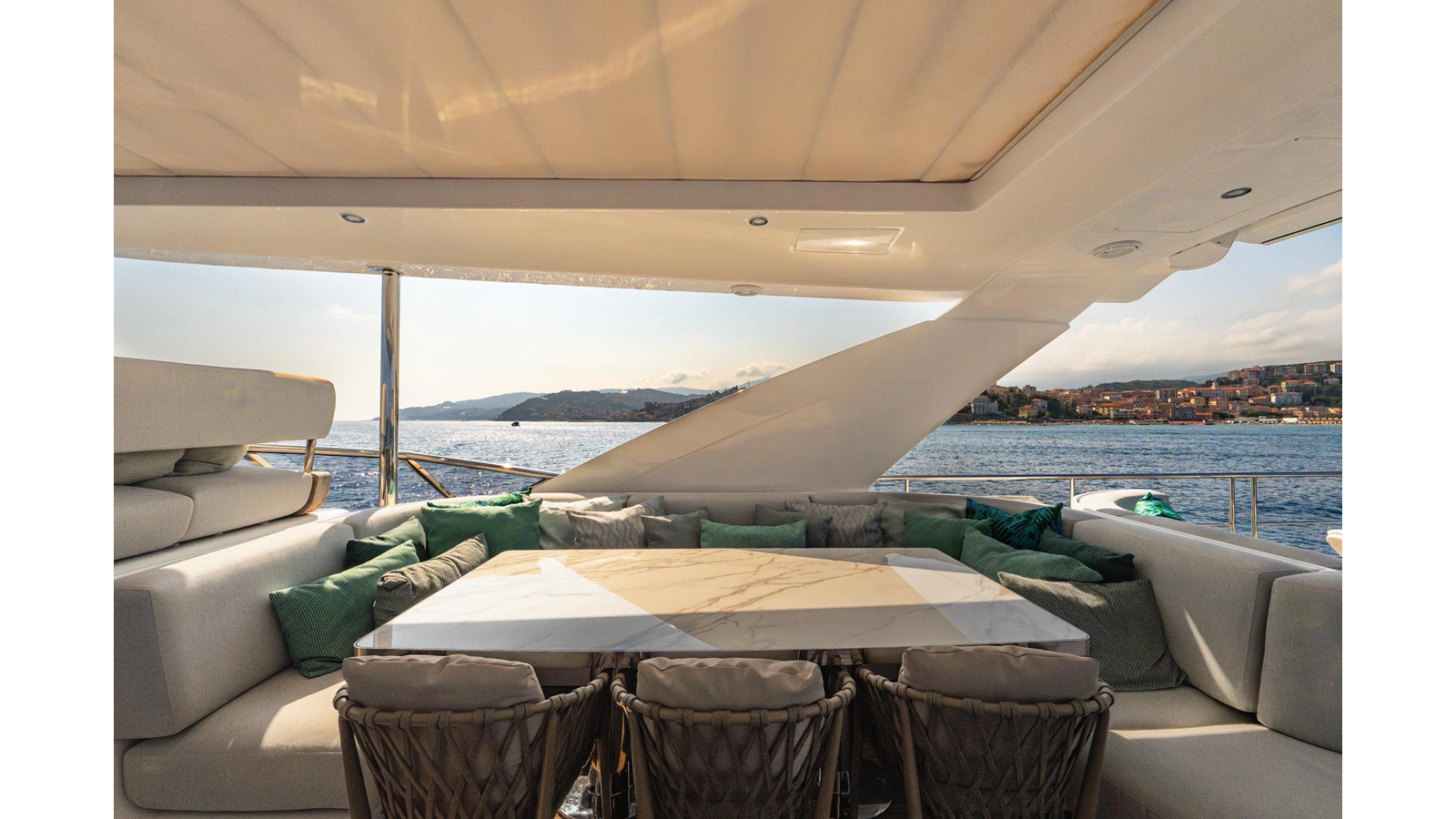

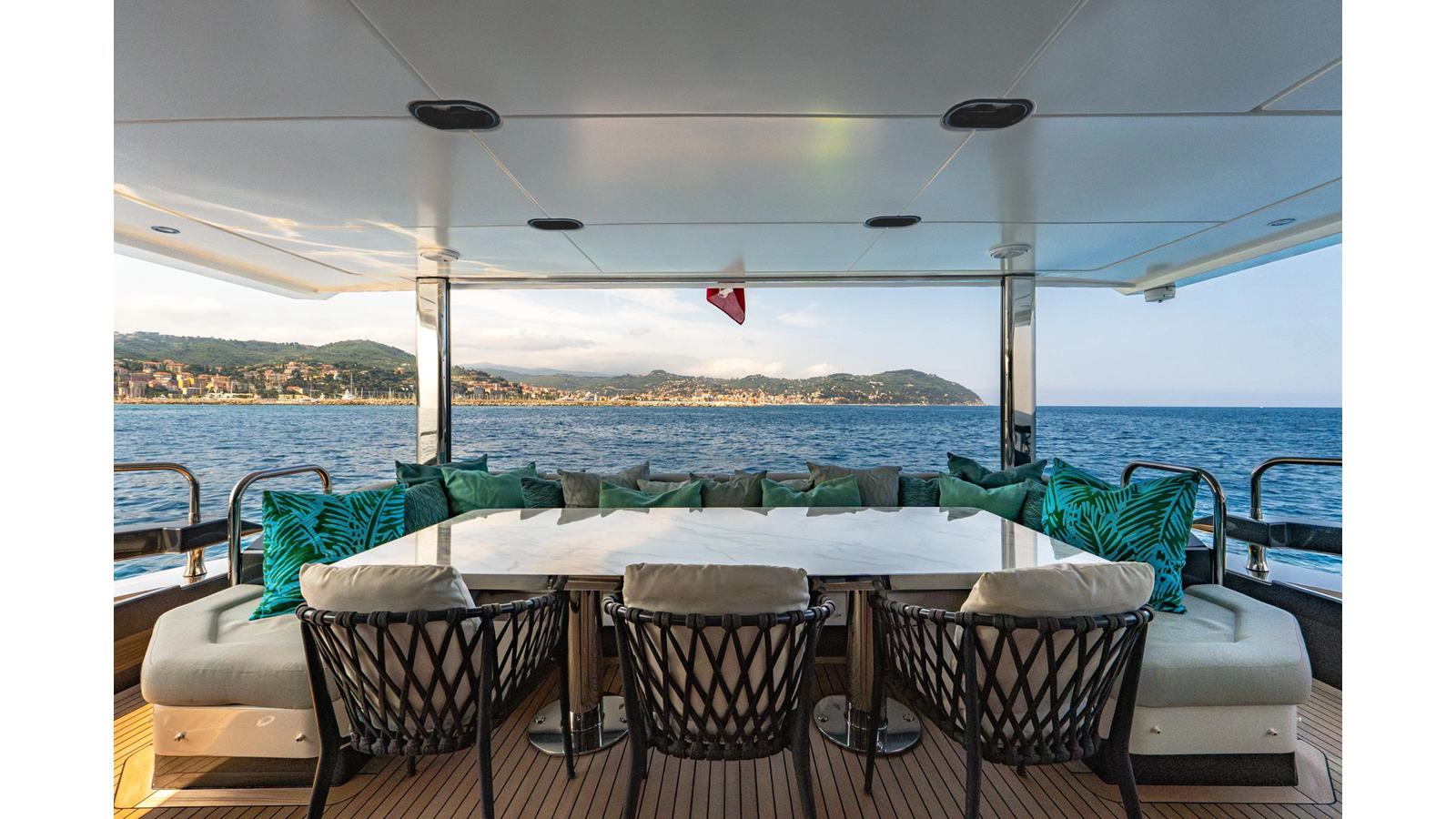

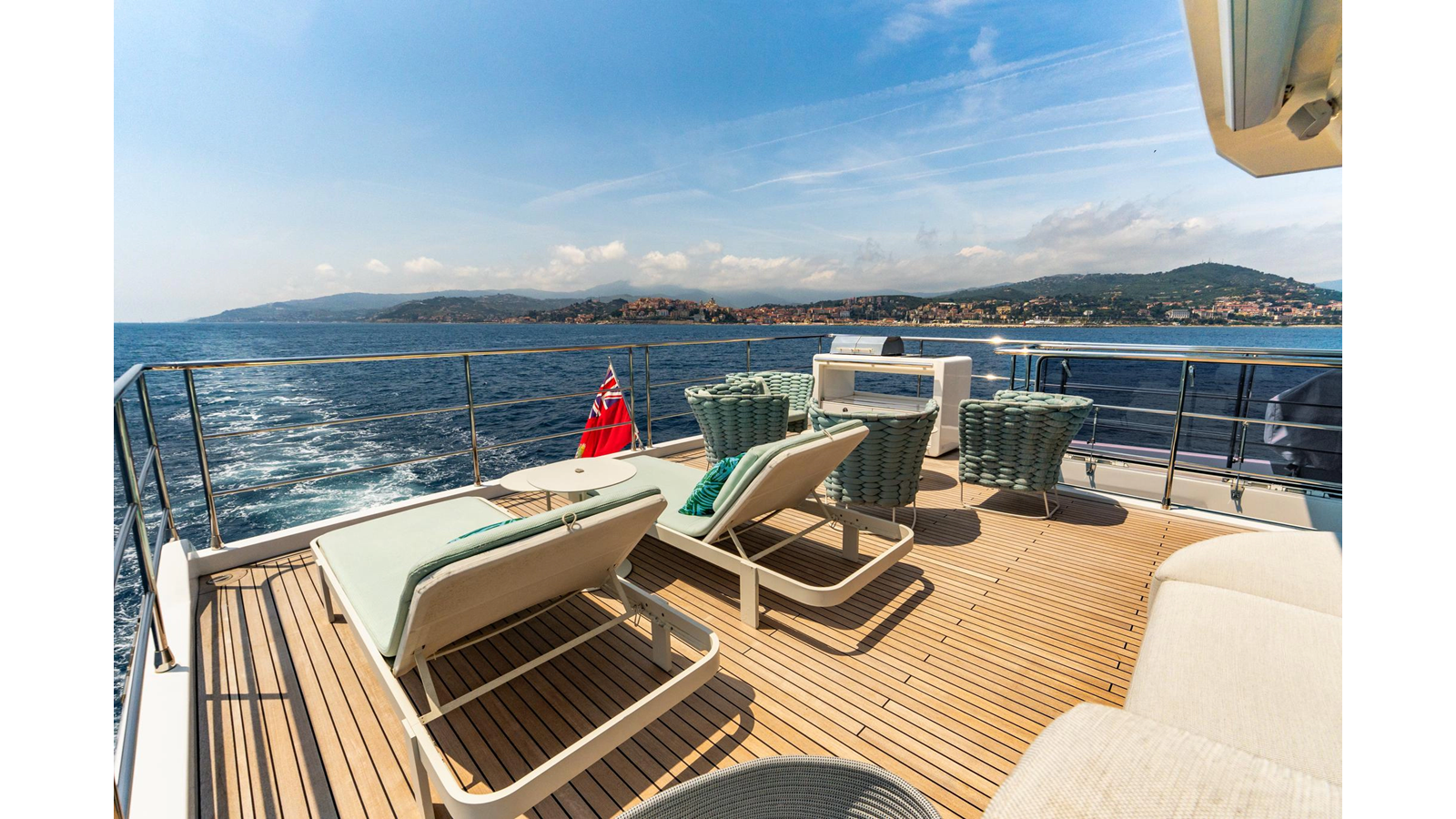

Large windows and clean, refined lines flood the yacht with natural light, while expansive outdoor areas elevate the onboard lifestyle. The flybridge offers panoramic views, generous lounging, and an alfresco dining area with a bar. The aft deck provides a welcoming setting for socialising, and the foredeck sun lounge offers ample seating and relaxation space.
Built in GRP with advanced systems and sound insulation for a quiet, comfortable ride, this Azimut Grande 27M is powered by twin MAN diesel engines (1,900hp each), cruising comfortably at 24 knots and reaching a top speed of 28 knots.
Key Features
- Only privately used no charters at all and one owner since delivery
- Very little use, only 1,075 hours on main engines
- Kept ashore during winter period
- ANG power system frequency converter: allows the MY to plug in at any dock all over the world
- Stabilizing Fins

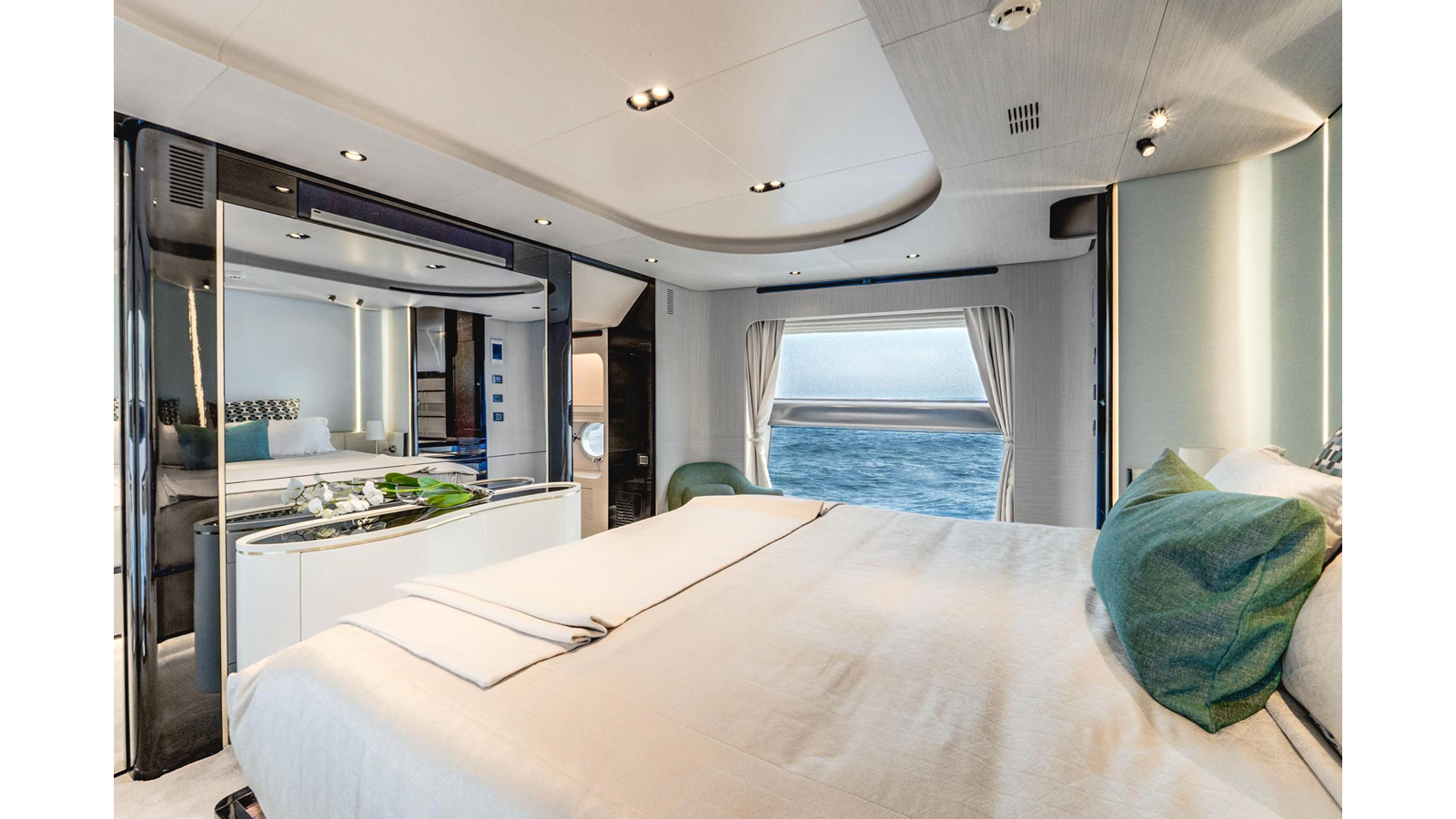

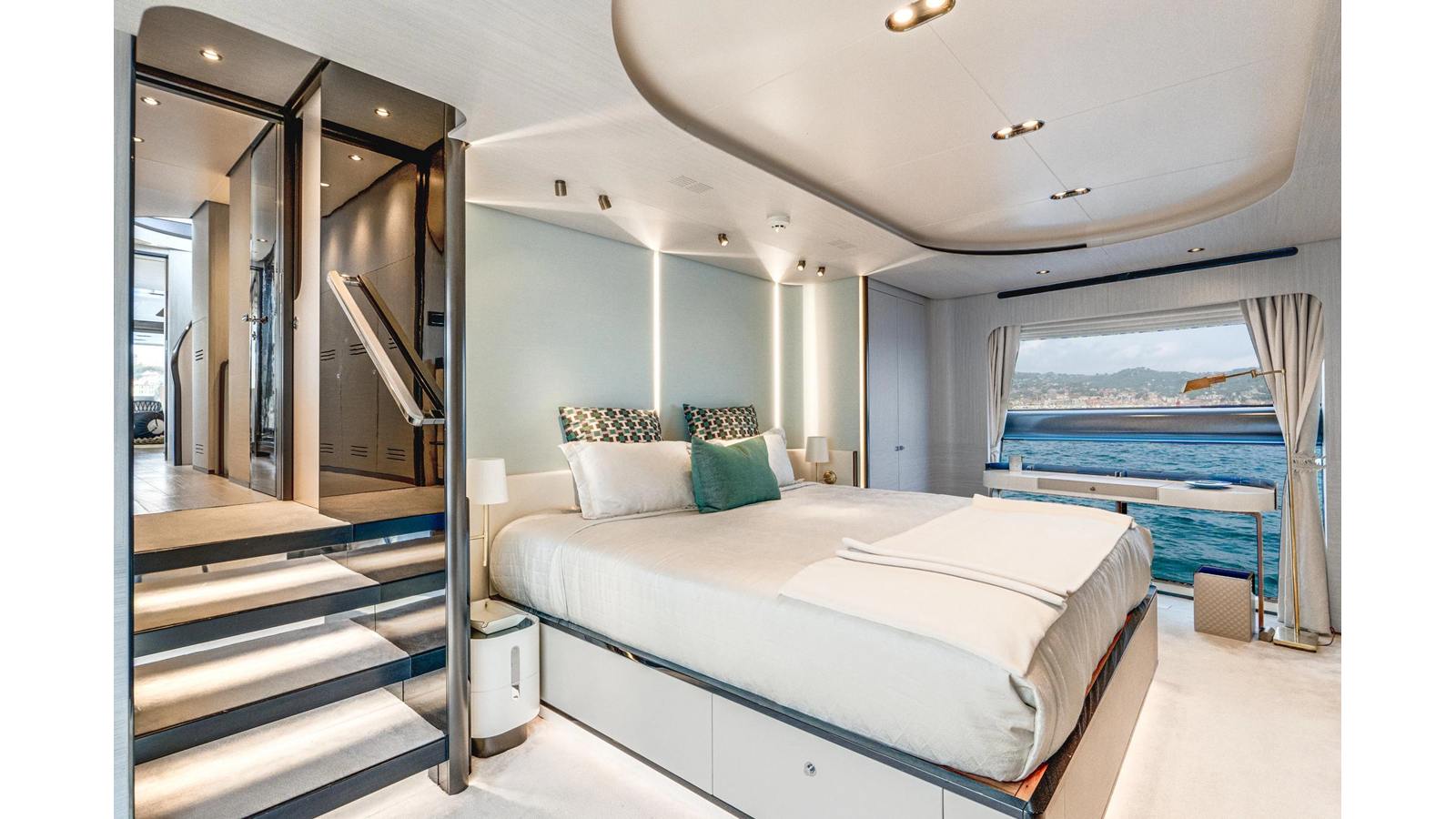

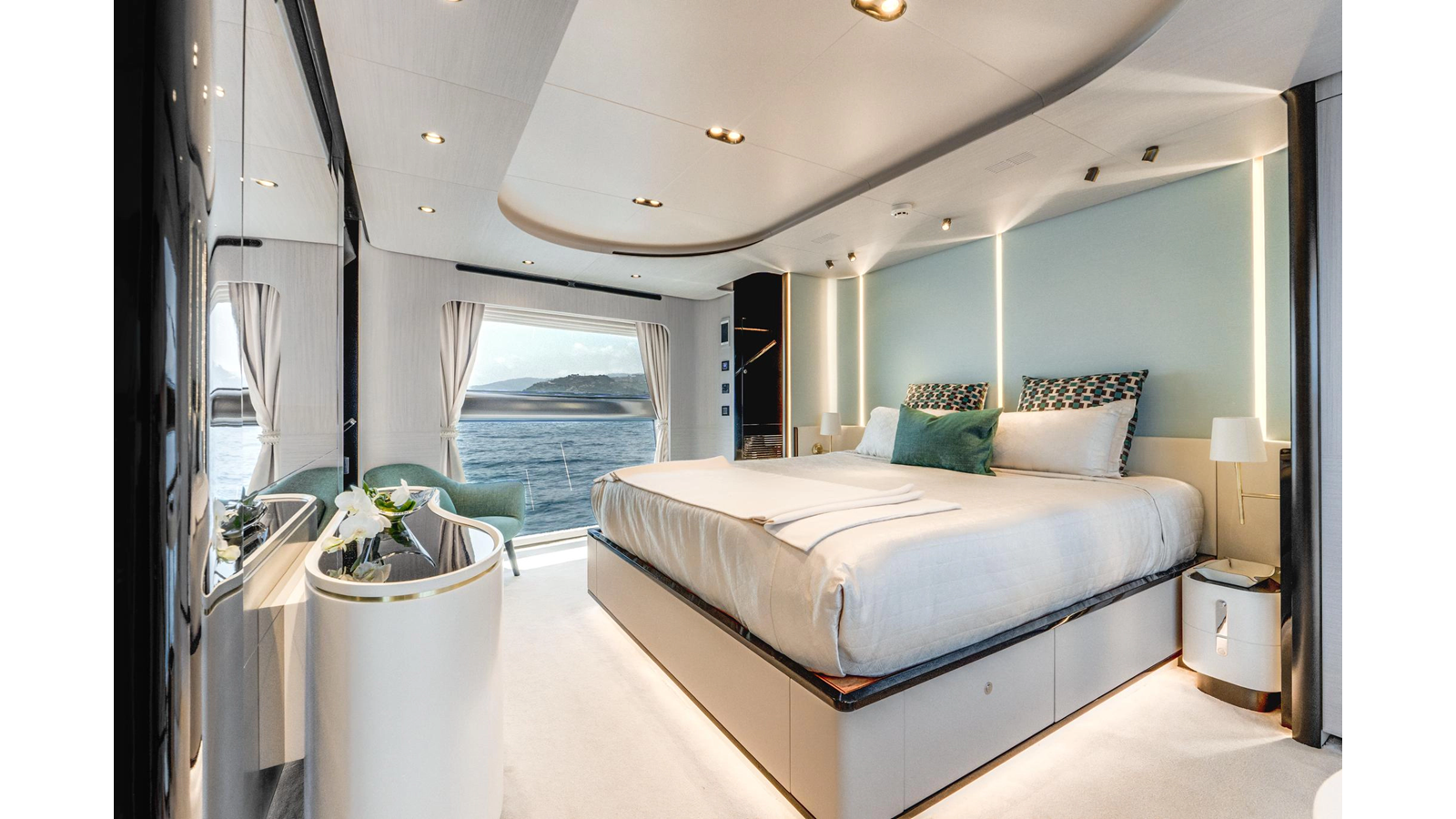

- Staterooms (5) layout including a master stateroom on main deck
- Free standing furnitures by Paola Lenti- Milano
Full Specifications
- TYPE: Motor Yacht
- YEAR: 2019
- FLAG: Cayman Island
- LOA: 26.78m (87.1ft)
- LH: 23.95m (78.7ft)
- LWL: 22.62m (74.3ft)
- BEAM: 6.59m (21.7ft)
- DRAFT: 1.93m (6.4ft)
- GROSS TONNAGE: 145
- DISPLACEMENT: Full Load – 93 Ton / Dry Load – 75.9 Ton
SPEED
- Cruising: 24 Knots
- Maximum: 28 Knots
- Economical: 11 Knots
FUEL CONSUMPTION
- Cruising Speed 580 litres/hr
- Maximum Speed 700 litres/hr
- Economical Speed 100 litres/hr
RANGE
- Cruising Speed 360 nm
- Maximum Speed 320 nm
- Economical Speed 880 nm
FUEL CAPACITY: 9,500 litres / 2,509 US gallons
WATER CAPACITY: 2,000 litres / 528 US gallons
BLACK WATER CAPACITY: 850 litres / 224.5 US gallons
GREY WATER CAPACITY: 850 litres / 224.5 US gallons
- ENGINES: 2x MAN 1900HP
- ENGINES MODEL: V12-1900 TIER III
- REDUCTION GEAR: ZF – 3050V – 3:1
- PROPULSION: 5-blades NiBrAl
- TRANSMISSION: Shaft line mechanical seal MTM900
- STEERING SYTEM: Stainless steel rudders
- FUEL TYPE: Diesel
- FUEL FILTRATION SYSTEM: Racor filters
- BOW THRUSTER: CMC BTM30H hydraulic
- STERN THRUSTER: CMC hydraulic
- STABILIZERS: CMC
- AIR CONDITIONING: 180,000 BTU
- WATERMAKER: Idromar 130 litres/hr
- GENERATORS: 2x 29kW – 60Hz
- ELECTRICITY: 110V – 60Hz / 24V / 12V
- POWER CONVERTER: 2x ASEA
- BATTERIES CHARGER:
- 2x Mastervolt 80 Ah (service batteries)
- 1x Mastervolt 30 Ah (engine batteries)
- 1x Mastervolt 10 Ah (generator batteries)
BATTERIES
- Service Batteries: 10x 90 Ah – 12V DC
- Engines Starter: 6x 90 Ah – 12V DC
- Generator Batteries: 2x 90 Ah – 12V DC
- VHF: 2x Simrad RS90
- INTERPHONE: Yes
- ANTENNA SAT: KVH TV6
- WI-FI: LTE router with 4 bonding radios
- AUTOPILOT: Simrad IS40 with Simrad OP10 keyboard
- GPS: Simrad

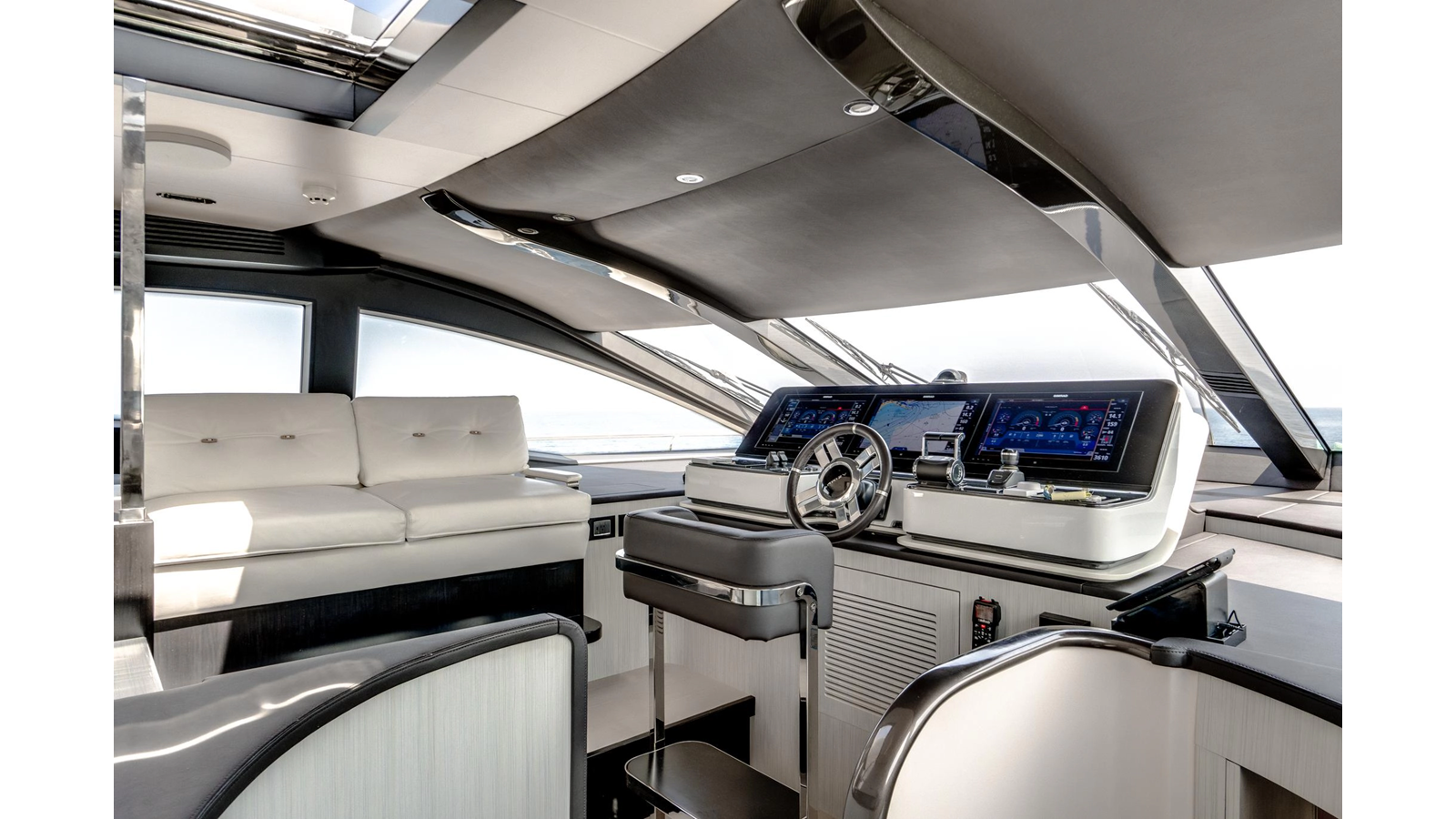

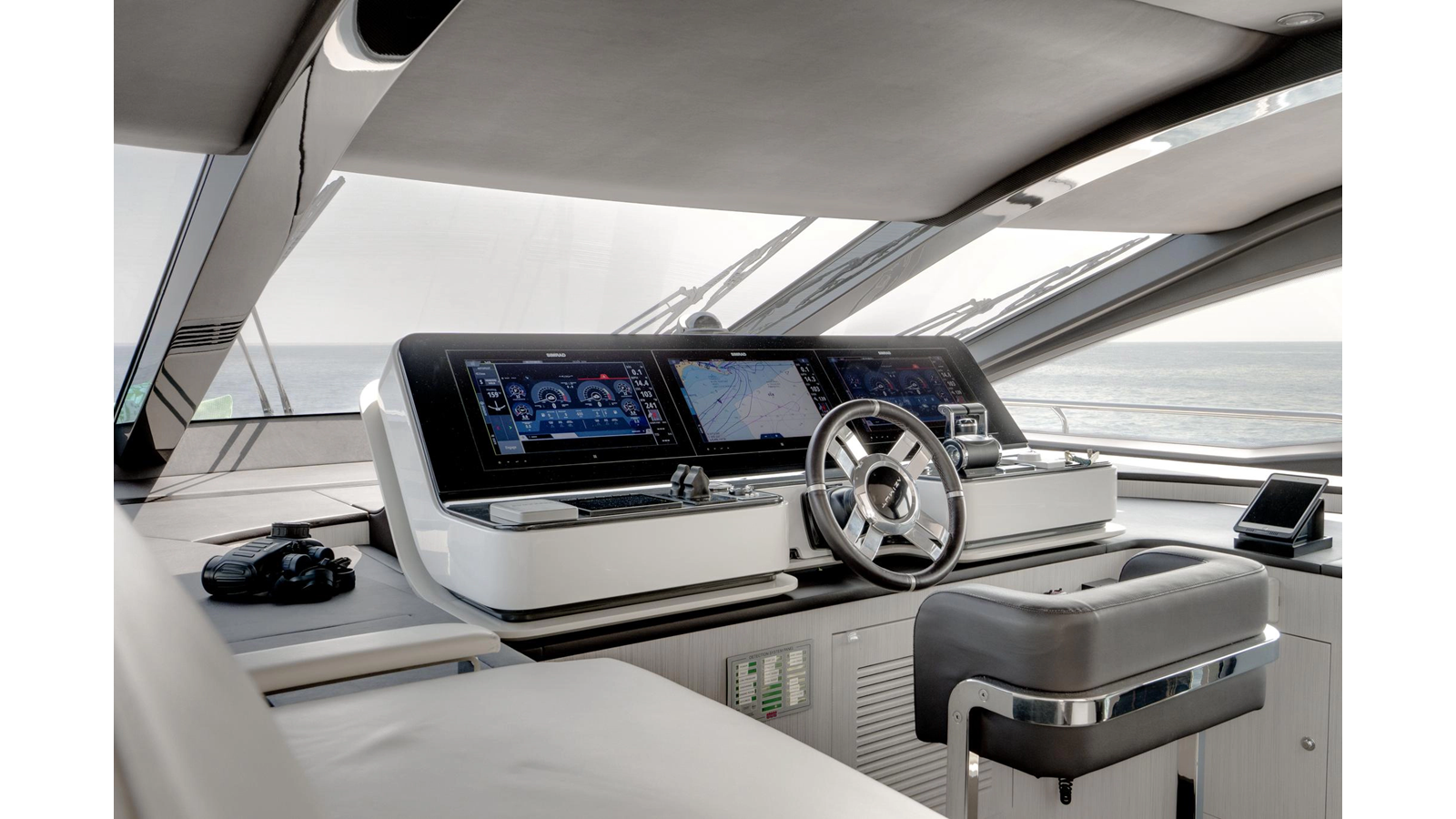

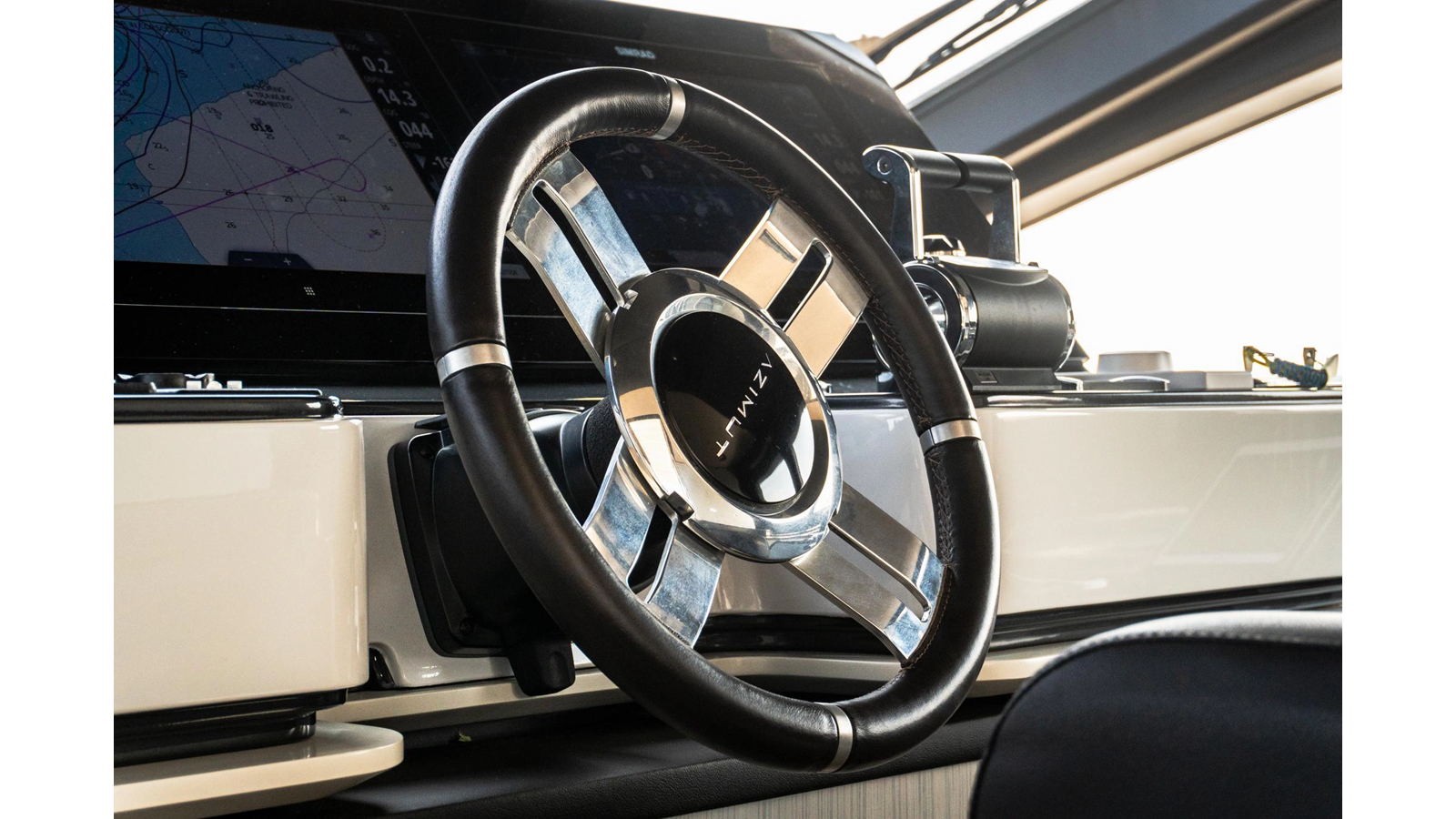

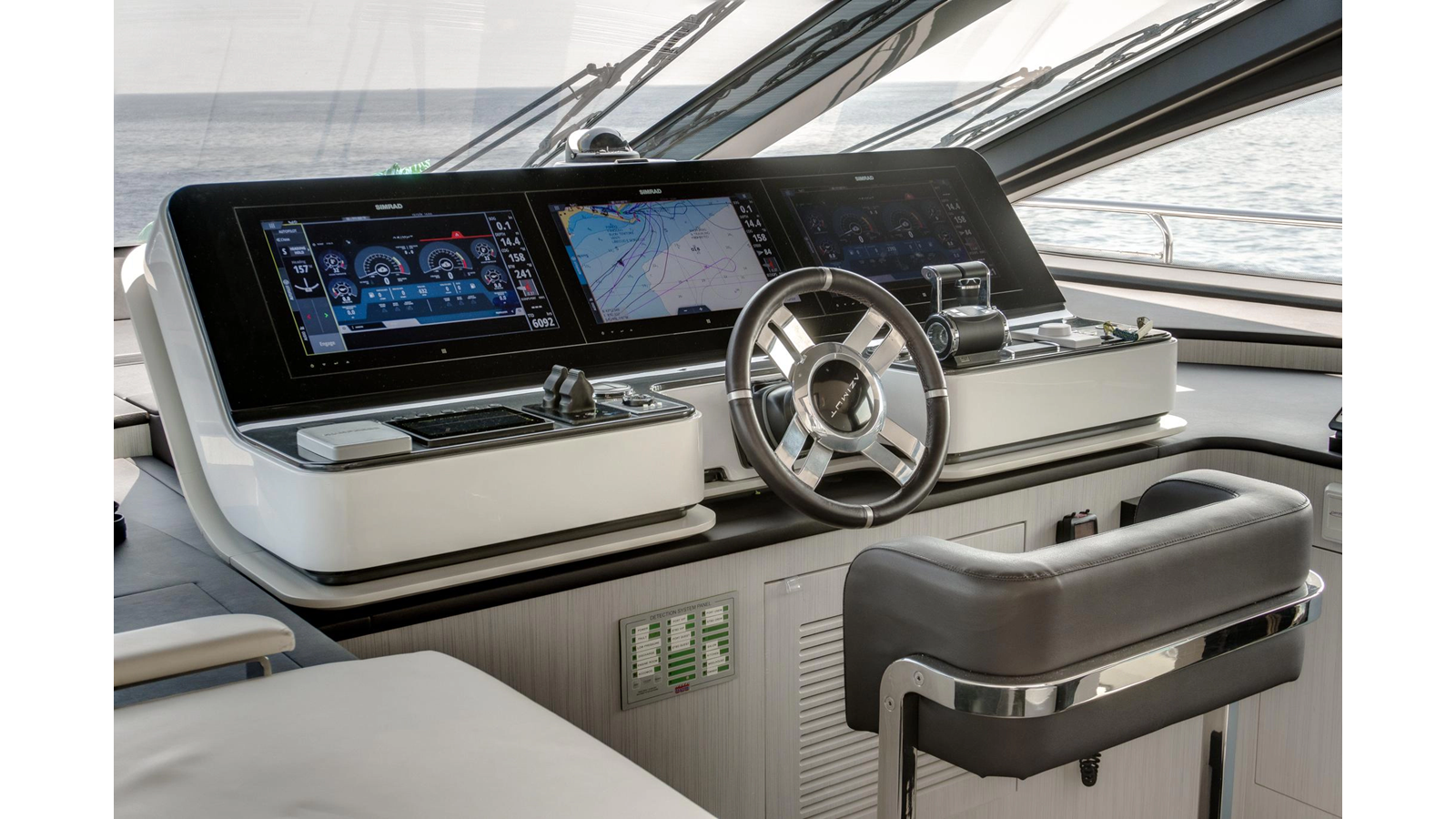

- CHART PLOTTER: 4x Simrad NSS-16 Evo 2 multifunctional displays
- ECHOSOUNDER: Simrad DST800
- RADAR: Simrad broadband 4G 36nm
- LOG: Simrad DST800
- OTHERS:
- FLIR camera
- CCTV system
- Simrad GOFREE WiFi wireless module
- ANCHOR WINDLASS: 2x 4000W / 110V – 60Hz 3-phases
- ANCHOR SYSTEM: 2x 79Kg anchors with 2x 12mm -100m (each) chains
- CAPSTANS: 2x 3600W / 110V 60Hz 3-phases
- PASSERELLE: Max capacity 150Kg 24V DC electro-hydraulic

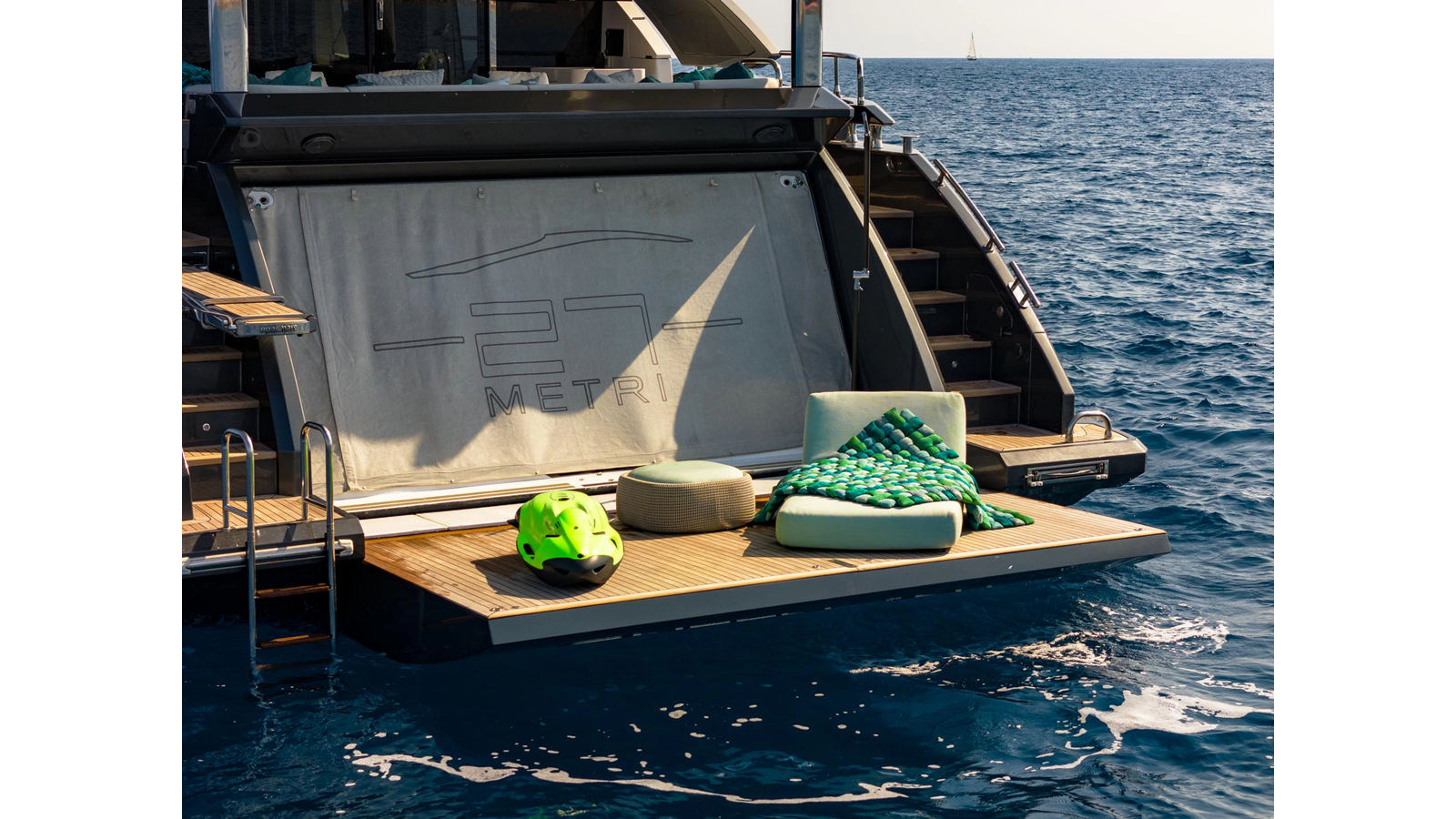

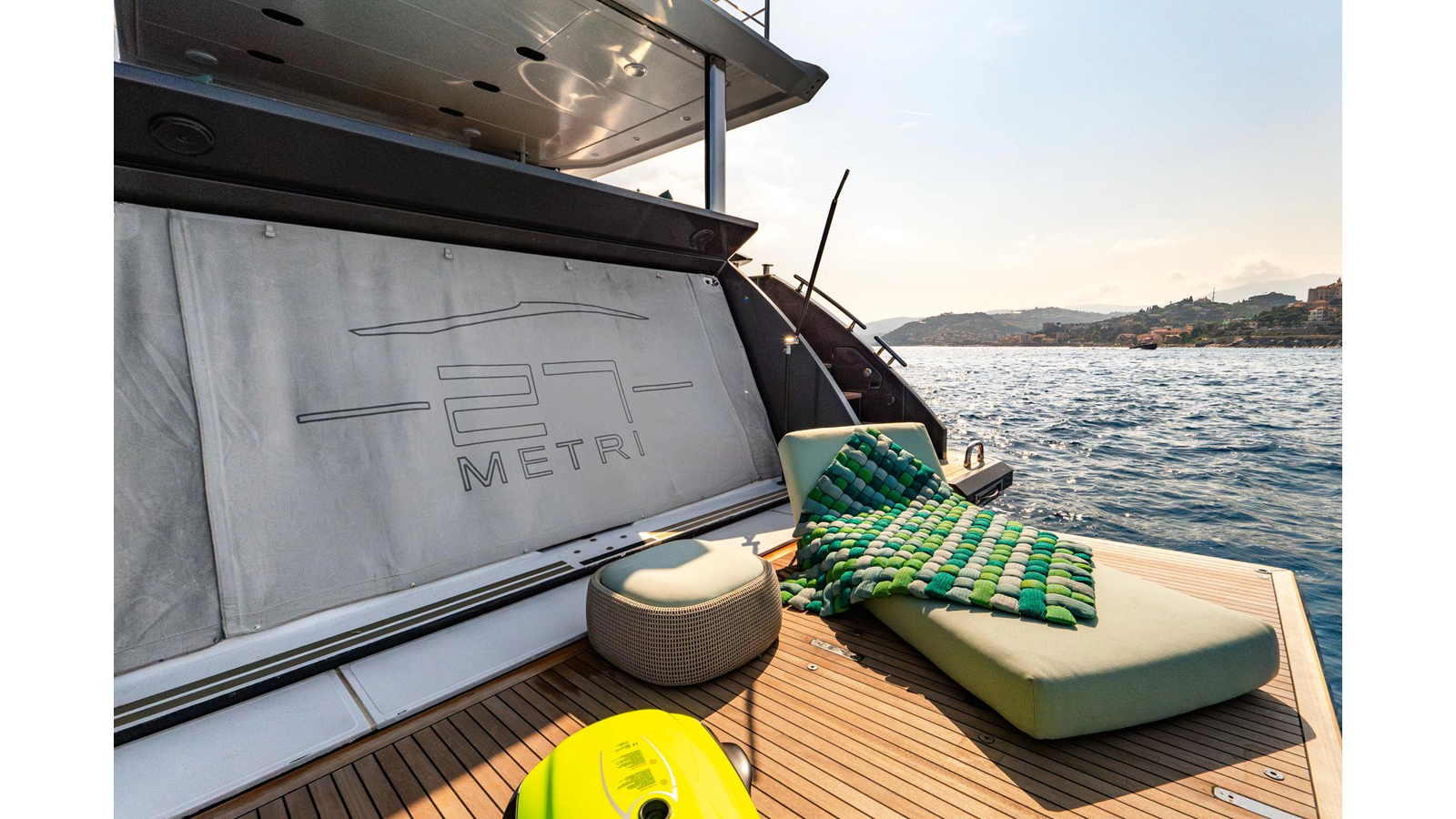

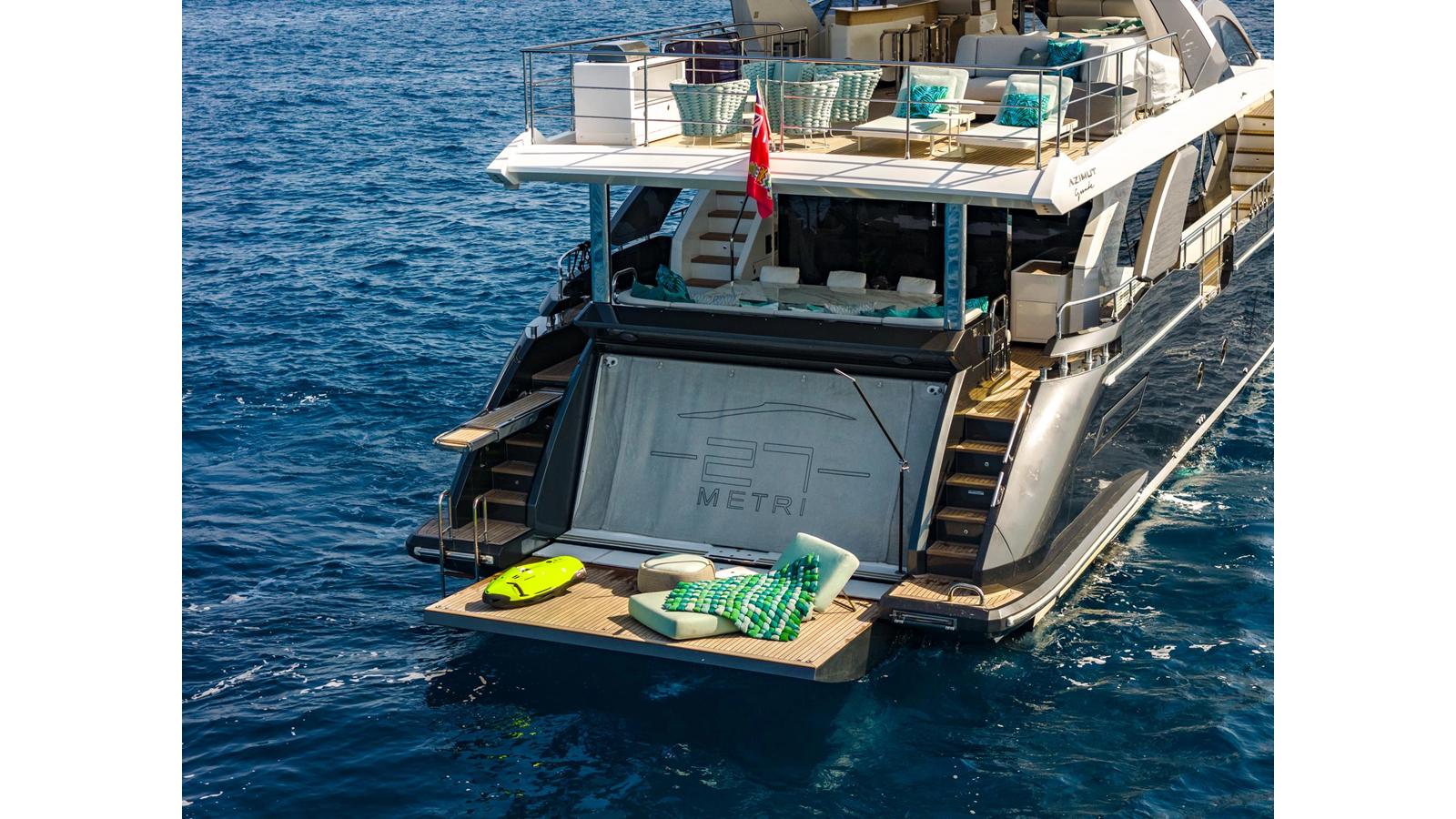

- SWIMMING PLATFORM: Rated capacity 1000Kg – dimensions: 3811x2555mm
- TENDER: Williams DJ445

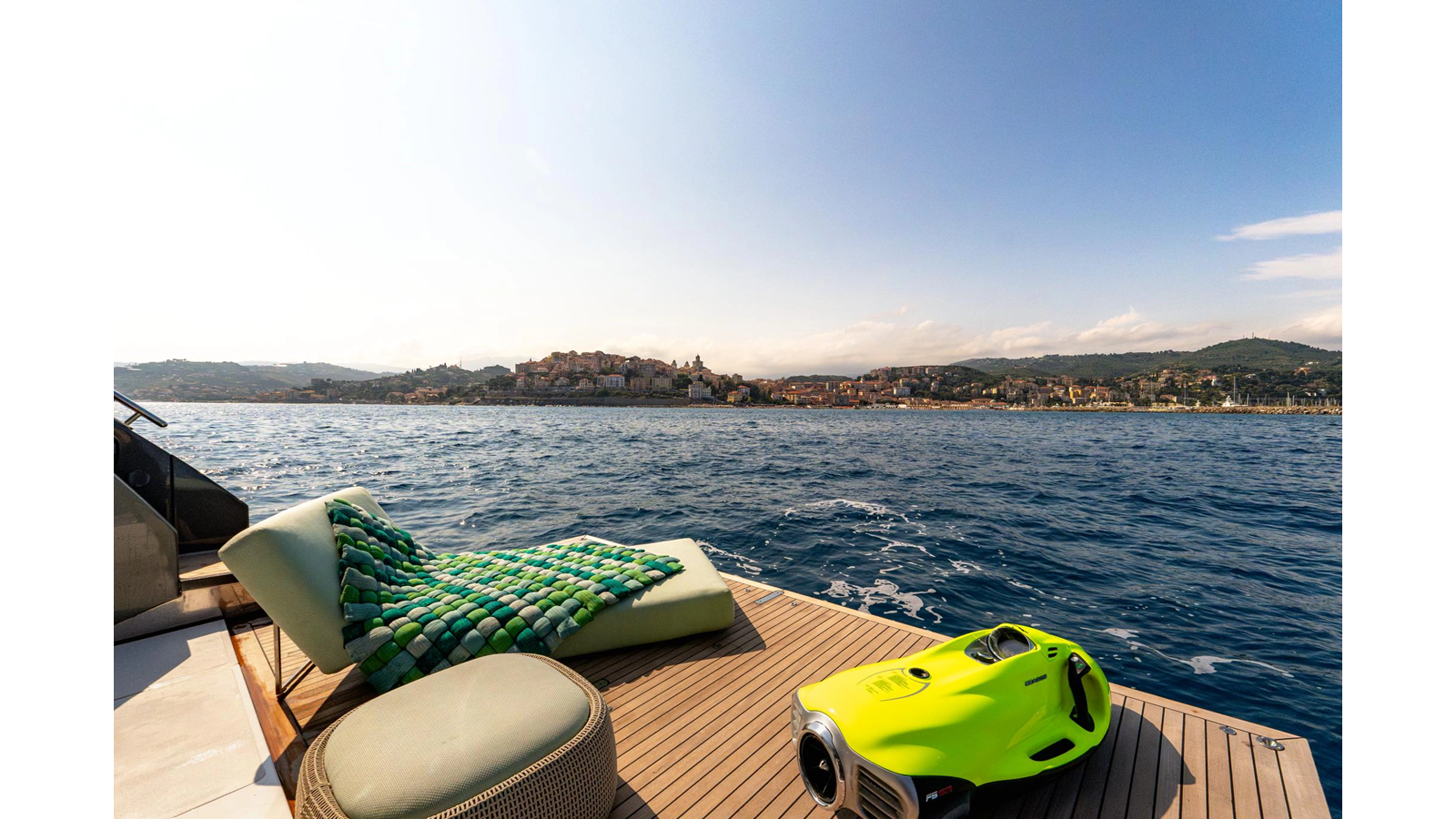

- TOYS: Seabob F5, SUP, Wakeboard, Donut, Snorkelling equipment, Pool with net
