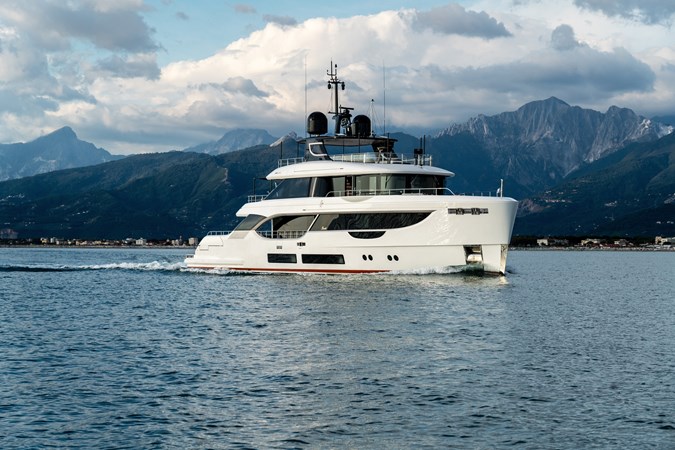

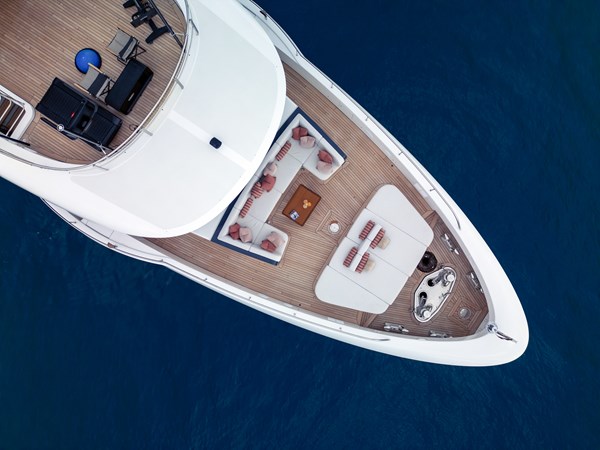

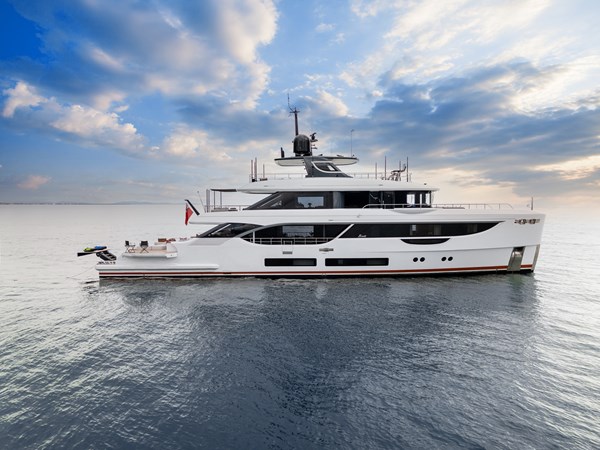

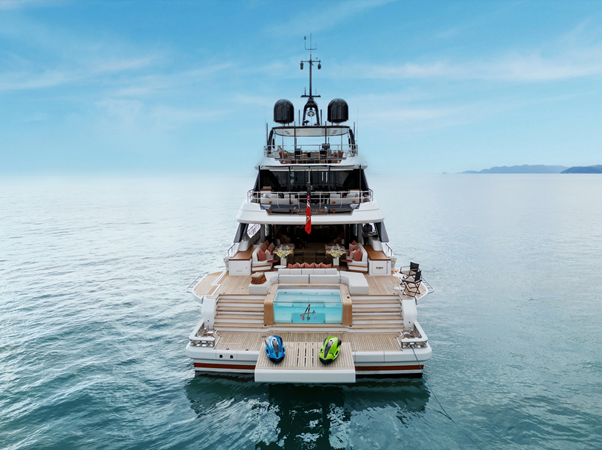

2024 BENETTI YACHTS 34 Oasis

Main Engines

•Two MTU 10V 2000M86 turbocharged, after-cooled four-stroke diesels, 1,015 kW

(1,380 hp) @ 2,450 rpm each, with Blue Vision NG Basic.

•Compliant with EPA Tier III and IMO Tier II. Optional SCR after-treatment available for

IMO Tier III compliance (required in ECAs).

Gearboxes

•Two ZF 2350 reduction gearboxes with 4.444:1 ratio, configured for outward propeller

rotation.

Generators

•Two Kohler 70EFOZDJ diesel generators, 70 kW, 3-phase, 1,500 rpm.

Gen Hours

2170 stb
2034 port

Bow Thruster

•CMC TP75 electric thruster, 52 kW, 400V/3ph/50Hz, 830 kgf thrust (5% reduction with

grids).

•Controlled from wheelhouse and wing stations.

Stabilizers

•One pair of CMC LR090 stabilizer fins for underway and at-anchor use.

•7 kW input per fin, 1.9 m. surface area, 400V/3ph/50Hz.

Wheelhouse Systems

•Dual 19” Furuno NavNet TZT19F multifunction displays for radar, charts, sonar, CCTV.

•Furuno FI70 4” full-color data repeaters (wheelhouse and wing stations).

•15” TFT touch display for monitoring, alarms, power management, bilges, doors,

engines, lighting, tanks, ventilation, etc.

Navigation & Sensors

•Radar: Furuno DRS6A, X-band, 96nm with ARPA.

•Echosounder: Airmar B744VL dual-frequency triducer with Furuno BBDS1 interface.

•GPS: Furuno GP330B antenna.

•Weather: Airmar 220WX station with wind, GPS, air temperature, humidity, and

pressure.

•Autopilot: Furuno NAVPILOT 711C with processor, feedback, and PG700 heading

sensor.

•Compass: Riviera Astra magnetic compass.

Communications

•Furuno FM4850 VHF with DSC & AIS receiver, wheelhouse and crew mess stations.

•Three ICOM IC-M37 portable VHFs.

Interior & Furnishings

•Wooden Venetian blinds added in Main Saloon and Skylounge

•King bed installed in Master Cabin with integrated LED strip lighting at bedside tables

•Decorative Holly Hunt lamp added in Main Saloon (starboard side)

•Clear mirror added in Lower Deck lobby

•Upgraded wooden flooring throughout with parquet finish

•Electric blackout blinds and curtains in all Lower Deck guest cabins

•Wine cellar integrated into forward furniture in Main Saloon

•Wheelhouse pilot chair installed

Audio / Visual & Technology

•Comprehensive speaker and AV system upgrade (JL Audio, Revel, Apple TV,

centralized Crestron control):

o Main Deck (Aft Exterior):

§4 x JL Audio 8.8" O-M6-880X speakers

§2 x JL Audio O-M6-10IB subwoofers

§Centralized power amplifier with AirPlay audio client

§Mini iPad remote control for aft deck

o Upper Deck Aft:

§4 x JL Audio 8.8" O-M6-880X speakers

§2 x JL Audio O-M6-10IB subwoofers

o Upper Deck Forward:

§ 2 x ~ JL Audio 7.7" O-M6-770X speakers

§2 x JL Audio 8.8" O-M6-880X speakers

§2 x JL Audio O-M6-10IB subwoofers

o Sun Deck:

§10 x JL Audio 8.8" O-M6-880X speakers

§4 x  JL Audio O-M6-10IB subwoofers

o Main Saloon & Dining Room:

§7 x Revel W893 speakers (replacing Revel C263)

o Master Cabin:

§5 x  Revel W893 speakers (replacing Revel C263)

o Upper Deck Saloon:

§5 x Revel W893 speakers (replacing Revel C263)

•3 x Apple TV added (Main Saloon, Skylounge, Master Cabin)

•Additional DirecTV HD signal distribution (SWM)

•Upgraded router (5G, 4 SIM)

•WiFi 6 roamingless system installed with full coverage

Systems & Utilities

•Additional fresh water filtration system installed

•USB outlets upgraded to Type A + C

•Domotics system upgrade in Lower Deck guest cabins, Main Saloon, Owner’s Cabin, and

Skylounge

•Additional CCTV cameras installed on Upper Deck exterior

•Microwave added to Main Deck Pantry (combined installation)

Finishes & Materials

•Marble package upgrades (two phases of enhancements completed)

•Additional anti-slip treatment applied to all guest showers

Rudders & Steering

• Rudder Blades & Stocks: Two stainless steel AISI 316 spade rudders sized for optimal

low-speed maneuverability. Rudder stocks constructed in MARINOX 17 (or equivalent)

per Classification Society requirements, with skegs above the blades.

•Rudder Tubes & Bushes: Bronze rudder bushes fitted to rudder stocks; rudder tubes

bolted to hull bottom with recessed flange housing.

• Steering Gear & Controls:

o1x electrical actuator in the wheelhouse

o1x electro-hydraulic power pack in aft technical room with two 400V, 3-phase,

1.1 kW pumps

o2 x hydraulic cylinders (one per rudder) with tiller arms

oAutopilot interface

oEmergency hydraulic hand pump with wheel in aft technical room

oRudder angle indicators at all steering positions

oControl via wheel, wing station tillers, or emergency hand pump

Anchoring & Mooring

•Windlasses: 2 x MZ Electronics NV16 vertical electric windlasses, 400V, 3-phase, 4

kW, with electromagnetic brake; raised from deck and locally controlled.

•Capstans: 2 x~ MZ Electronics MILOS vertical capstans, foot-operated, 400V, 3-phase, 4

kW, on aft deck maneuvering areas.

•Bollards: Polished stainless steel AISI 316L, including:

o4 x  aft mooring area

o4 x forward mooring area

o2 x mid-sides (horn type, integrated with fairleads)

o2 x aft platform (tender mooring)

o2 x garage floor (tender mooring)

• Fairleads:

o2 x stainless steel AISI 316L fairleads with integrated bollards, mid-sides (Benetti

standard)

oRoller fairleads: 4 x forward, 2 x aft

•Anchors: 2 x 200 kg galvanized steel HHP anchors (per rules), designed for temporary

mooring in harbors/sheltered waters. Not suitable for exposed coastlines or rough seas.

• Anchor Chains & Accessories:

o2  x 14 mm studless galvanized steel chains, 110 m each

oStainless steel chain rollers and stoppers (Benetti standard)

oQuick-release device for emergency anchor release

•Mooring Lines: 3 x polyester mooring lines, 77 m each, .30 mm, black with leathercoated

eye splice

Access & Service

•Gangway: Hydraulic retractable telescopic gangway with teak grating floor, polished

stainless steel structure, removable stainless steel/rope handrails. Functions also as a

swimming ladder.

•Dumbwaiter: Electric dumbwaiter (30 kg capacity) connecting Main, Upper, and Sun

Decks, with guillotine-type doors.

Tender & Watercraft Handling

•1 x  electro-hydraulic crane for tender launch/haulage, integrated into hull structure with

local controls for extension, retraction, and lift.

•Only diesel-powered tenders permitted in standard configuration. Petrol tenders require

optional vapor-management upgrade.

• Tender capacity:

oMax length: 5.03 m

oMax beam: 2.01 m

oMax height: 0.97 m

oMax weight: 900 kg

•Notes:

oTender and accessories not included in standard equipment

oTender must have a single lifting point

oDimensions and weight subject to Benetti technical verification

Controls

Wheelhouse

•Steering actuator with wheel

•Bow thruster control and indicator

•Main engine throttles

•Engine start/stop and alarm panel

•Emergency stop for engines

•Rudder angle indicator

•Fin stabilizer controls

Wing Stations

•Steering tiller

•Bow thruster control

•Main engine throttles

•Horn

•Engine start/stop and emergency stops

Displays & Monitoring

•Two 19” IP65 marinized LCD monitors in the wheelhouse

•One 4” NMEA display in the wheelhouse, plus two at wing stations

•Two keypads for chart and radar control

•One 15” touch panel for monitoring and control (wipers, horn, searchlights)

Navigation Systems

•X-band radar, 64 nm range with 4 ft antenna

•Dual frequency echo sounder with speed and temperature sensors

•GPS antenna and interface

•Magnetic compass and fluxgate sensor

•Autopilot with rudder feedback and control display

•Integrated chart plotter with radar/echo interface (charts not included)

•Ultrasonic weather station with wind, pressure, temperature, and GPS

Communication Systems

•Fixed VHF Class D system with wheelhouse handset

•Intelligent remote handset in crew mess

•Three portable VHFs with hands-free kits

•Intercom system connecting wheelhouse, engine room, and emergency steering station

•Internet connectivity via harbour Wi-Fi and 4G (single SIM)

Navigation Lights & Signaling

•Navigation lights compliant with COLREG 72, powered by 24V DC emergency and

service batteries, monitored with visual and audible alarms

•Kahlenberg T-3A Chimetone pneumatic horn, integrated with monitoring system

An integrated yacht monitoring and automation system is installed, with two intelligent control

units — one in the wheelhouse and one in the engine control room — connected via a redundant

LAN network. The system is operated through dual 15” touch panels and includes an alarm

repeater in the crew mess.

Key Functions

• Power Management: Interfaces with generators and shore power to monitor electrical

parameters (V, A, Hz, W), manage start/stop, and control load sharing. Data is displayed

in real time and stored for review.

• Navigation Lights: Full monitoring and control integrated into the system.

• Doors & Hatches: Monitors watertight, weathertight, hull, and deck hatches as required

by Classification.

• Main Engines: Interfaces with engine control units to display status, parameters, alarms,

and manage bypass gas exhaust valves.

• Bilges & Tanks: Monitors bilge levels and all tanks, including fuel oil, fresh water, and

black/grey water.

• Fans & Dampers: Controls and monitors engine room fans and dampers. Automatic

shutdown and closure in case of fire.

• Batteries & Chargers: Displays battery and charger status.

• Pumps: Interfaces with starters for fuel transfer, fire, bilge, and black/grey water pumps.

•Alarms: Receives alarms from all major yacht systems, displaying them with both

audible and visual alerts. Alarm panels are installed in the wheelhouse, engine room, and

crew mess.

Emergency Systems

• Emergency Stops: Main engine emergency stops are located in the wheelhouse, wing

stations, and engine room. A dedicated panel provides emergency shutdowns for engines,

generators, fuel pumps, and ventilators, along with fuel valve and damper closure.

• Engine Controls: Main engine throttles are located in both the wheelhouse and wing

stations.

• Fire Detection: A fire alarm system with heat and smoke detectors is installed

throughout all cabins, rooms, and technical spaces. Manual call points are fitted as

required by Classification, with alarms displayed in the wheelhouse.

Overview

•Fully integrated Crestron-based system over CAT6 high-speed network.

•Centralized racks house servers, amplifiers, storage, and Apple TV units.

•Distributed Wi-Fi via 12 Ubiquiti access points and 4G Peplink router.

Cabins & Guest Areas

•Crew Mess: LG 32” TV, JL Audio MM50 player, Revel speakers.

•Guest Cabins (x2): LG 28” TV, Yamaha AVR (centralized), Apple TV, Revel speakers,

Crestron HR-310I remote.

•VIP Cabins (x2): LG 32” TV, Yamaha AVR (centralized), Apple TV, Revel speakers,

Crestron HR-310I remote.

•Owner’s Suite: LG 55” 4K TV (with Apple TV app), Yamaha RX-V4A AVR, B&W

subwoofer, Revel speakers, iPad control.

Main Deck

•Main Saloon: LG 55” 4K TV (with Apple TV app), Yamaha AVR, B&W subwoofer,

Revel speakers, iPad control.

•Dining Area: Revel speakers (linked to main saloon).

•Galley: Revel speakers with centralized Yamaha audio client.

•Aft Deck: Four Revel 8” marine speakers, powered centrally.

Upper Deck

•Sky Lounge: LG 55” 4K TV, Yamaha AVR, B&W subwoofer, Revel speakers, iPad

control.

•Forward Sunpad: Four Revel 8” speakers with Yamaha audio client.

•Aft Deck: Four Revel 8” speakers, centrally powered.

•Captain’s Cabin: JL Audio MM50, Revel speaker.

•Wheelhouse: JL Audio MM50, Revel speakers.

Sun Deck

•Six Revel 8” marine speakers with Yamaha multiroom audio client.

Centralized Racks

•Two 24-port Fortinet switches, Crestron CP3 processor, Ubiquiti Wi-Fi controller, UPS.

•Four Apple TV 4 units, Yamaha AVRs (guest, VIP, owner, saloons).

•Yamaha XDA-QS5400RK and XDA-AMP5400RK amplifiers for multiroom and

external zones.

•Seven video extender transmitters (for cabins, saloons, and owner’s suite).

•PC station for remote service and rack management.

The yacht is outfitted with a fully integrated entertainment system built on a high-speed CAT6

network, managed by a Crestron-based control system. All central equipment — including

servers, amplifiers, and storage devices — is housed in dedicated racks outside of cabins and

salons, preserving maximum living space.

System Features

• Audio & Video: Distribution from owner’s devices, with optional internal storage for

video-on-demand, music, and image archiving.

•Control & Automation (optional): Lighting, temperature, and curtains may be managed

through the Crestron system.

• Connectivity: Wireless access throughout guest and crew spaces, with centralized

management and network access points.

Installed Equipment by Area

•Crew Mess: 32” TV, micro Hi-Fi, single stereo speaker.

•Twin Guest Cabins (x2): 28” TV, centralized AV receiver, speakers, Apple TV, remote

control.

•VIP Cabins (x2): 32” TV, centralized AV receiver, speakers, Apple TV, remote control.

•Owner’s Cabin: 55” TV, 5.1 surround sound with subwoofer, centralized AV receiver,

Apple TV, mini iPad with docking station for integrated control.

•Galley: Centralized audio client, single stereo speaker.

•Main Salon: 55” TV, 5.1 surround sound with subwoofer, centralized AV receiver,

Apple TV, mini iPad with docking station.

•Dining Area (adjacent to Salon): Pair of loudspeakers (linked to salon system).

•Main Deck Exterior: Two pairs of marine speakers (linked to salon system).

•Wheelhouse: Micro Hi-Fi and loudspeakers.

•Captain’s Cabin: Micro Hi-Fi and single speaker.

•Sky Lounge: 55” TV, 5.1 surround sound with subwoofer, centralized AV receiver,

Apple TV, mini iPad with docking station.

•Upper Deck Exterior (aft): Two pairs of marine speakers (linked to sky lounge).

•Upper Deck Exterior (forward): Two pairs of marine speakers and centralized audio

client.

•Sun Deck: Three pairs of marine speakers and centralized audio client.

Central Rack & Distribution

•Two 24-port switches, Crestron processor, Wi-Fi controller.

•Service PC for remote management.

•Seven AV receivers, four Apple TV units, two power amplifiers with integrated audio

clients.

•UMTS router, UPS rack mount, and two equipment racks.

•Twelve Wi-Fi access points.

•TV/radio antenna system for terrestrial broadcast reception.

Fuel Oil Transfer System

•One electric transfer pump (Gianneschi ACB 331, 400 Vac).

oFlow rate: 130 L/min (34 USG/min) at 6m H₂O.

•One manual pump (Gianneschi Super Lario 3).

oFlow rate: 50 L/min (13 USG/min) at 30m H₂O.

•Control from main electrical panel and integrated bridge.

Fuel Oil Filters

•Dual-element filters (one working, one spare with bypass).

•Provided for both main engines and generators.

•Equipped with vacuum gauges and water sensor.

Fuel Oil Flow Meter

•One counter for fuel measurement during filling operations.

Fresh Water System

Fresh Water Pumps

•Two electric pumps (Gianneschi ACB332, 400 Vac).

•Flow rate: 116 L/min (31 USG/min) at 40m H₂O each.

Hot Water Pumps

•Two circulating pumps (Gianneschi Z30, 230 Vac).

•One in service, one in standby to maintain constant temperature in hot water ring lines.

Watermaker

•One reverse osmosis watermaker (Idromar MC3J).

•Equipped with gauges, sand filters (back washing), high/low pressure pumps, and

automatic weekly freshwater flush.

•Nominal capacity: 4,300 L/day (1,135 USG/day) at 25ÅãC seawater.

Water Heaters

•Two electric stainless steel heaters (120 L / 31.7 USG each).

•Resistance: 3+3 kW per unit.

Sea Water Cooling

•Two seawater cooling pumps (one working, one standby) for the air conditioning system.

•Main engines and generators each fitted with independent seawater pumps.

•One spare impeller pump supplied for main engines.

Ventilation & Air Conditioning

System Overview

•Air conditioning system by Veco.

•Accommodation climate conditions:

oSummer: Outside 35 DegreesCelsius / RH 90% → Inside 22 Degrees Celsius (72F) / RH 55%.

oWinter: Outside 0 DegreesCelsius (32F) → Inside 22 Degrees Celsius (72 F).

oSeawater design conditions: 32 DegreesCelsius (90 F) summer, > 8 Degrees Celcius (47F) winter.

•Interior cooled/heated via chilled/hot water loop from central chiller.

•Fresh air supplied to living quarters through air treatment units.

Air Compressor & Cylinders

•One electric air compressor (Gianneschi GK17, 400 Vac).

oCapacity: 320 L/min at 8 bar.

•One 50 L cylinder in aft technical space.

•One 24 L cylinder for ship’s whistle in wheelhouse.

•Automatic valve for discharge of condensed water on 50 L cylinder.

Hydraulic Power Unit

•One electro-hydraulic power pack for gangway, side platforms, garage side door, and

tender crane.

•Manual emergency operation available.

Grey & Black Water

•Collecting tanks with transfer pump for sinks, showers, bathtubs, and fan coil drains.

•Ceramic WC units with integrated pumps for transfer to sewage/grey water tank.

Pumps

•Two electric-driven grey/black water pumps (Gianneschi MV44G, 400 Vac).

oFlow rate: 28 L/min (7.5 USG/min) at 10m H₂O.

•One pump acts as spare for redundancy.

Odor Control

•Carbon filter on black/grey water tank air vent.

Fire & Safety Appliances

Fire Extinguishers

•Portable CO₂, foam, and powder fire extinguishers supplied as per fire and safety plan.

•Type and number per Classification Society requirements.

Fire Nozzles & Hoses

•Fire nozzles and hoses supplied in compliance with regulations.

Fireman’s Axe

•One fireman’s axe provided.

Fire Blankets

•One blanket in the galley.

•One blanket on the sun deck near the cooking top.

Medical Kit

•One medical kit provided.

Life-Saving Appliances

Life Rafts

•Four (4) life rafts, each for 8 persons, fitted with hydrostatic release, located on the sun

deck.

Life Buoys

•Two (2) life buoys with buoyant line, located on main deck aft.

•Yacht’s name and port of registry painted on each.

Pyrotechnics

•Six (6) parachute flares.

•Two (2) floating smoke signals.

Life Jackets

•Seventeen (17) life jackets provided.

Fire & Bilge Systems

Fire Pump

•One electric self-priming pump (Gianneschi ACM 531, 400 Vac).

•Flow rate: 500 L/min (132 USG/min) at 18m H₂O.

•Located in engine room and connected to motor pump.

Bilge Pumps

•One electric self-priming pump (Gianneschi ACM 531, 400 Vac).

oFlow rate: 350 L/min (92 USG/min) at 20m H₂O.

•One electric pump for garage bilge (Gianneschi CP40, 400 Vac).

oFlow rate: 145 L/min (38 USG/min) at 4m H₂O.

•One submersible pump for forward locker (Gianneschi Maxisub, 24 Vdc).

oFlow rate: 100 L/min (26 USG/min) at 5m H₂O.

Diesel Motor Pump

•One motor pump (Gianneschi M-ACB 531).

•Flow rate: 400 L/min (105 USG/min) at 35m H₂O.

•For bilge and fire system backup.

Engine Room Fire Extinguishing System

•NOVEC fire suppression system with dedicated nozzles.

•Release handle located in emergency control panel outside engine room.
