2009 SOUTHERLY 49 RST
Price
$499,000 USD
Location
Sandakan, Sabah
Days on Market
300
Length
49.6 ft (15.1 m)
Year
2009
Builder
SOUTHERLY
Model
49 RST
Type
Sailing Yacht
Beam
13' 9" (4.19m)
Cabins
3
Heads
2
Engines
1
Engine
Yanmar 4JH4-TE
Engine Type
Inboard
Fuel
Diesel
Total Power
75 HP
Fuel Capacity
108 Gal
Water Capacity
413 Gal
Boat Name
Astra
Description
June 2025 price reduction from $570,000 to $499,000 firm.

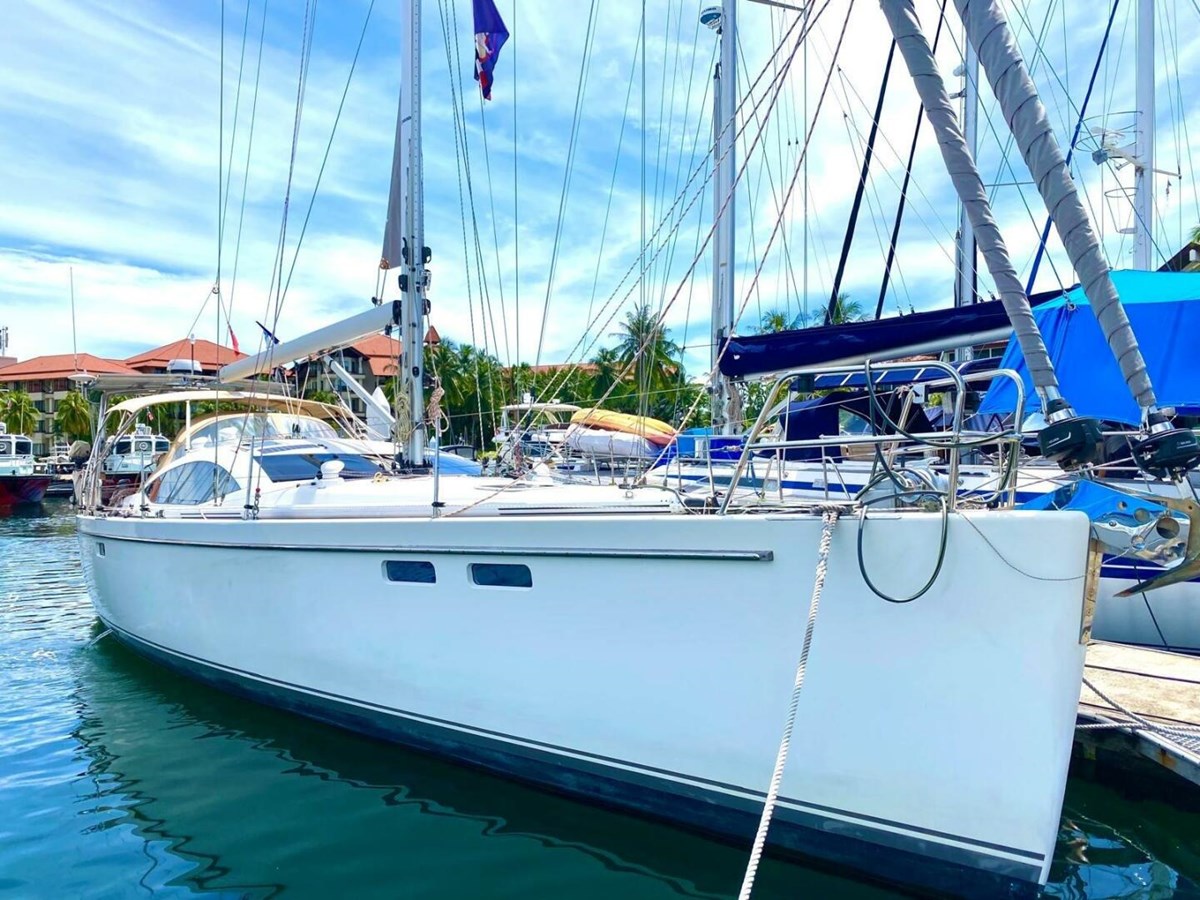

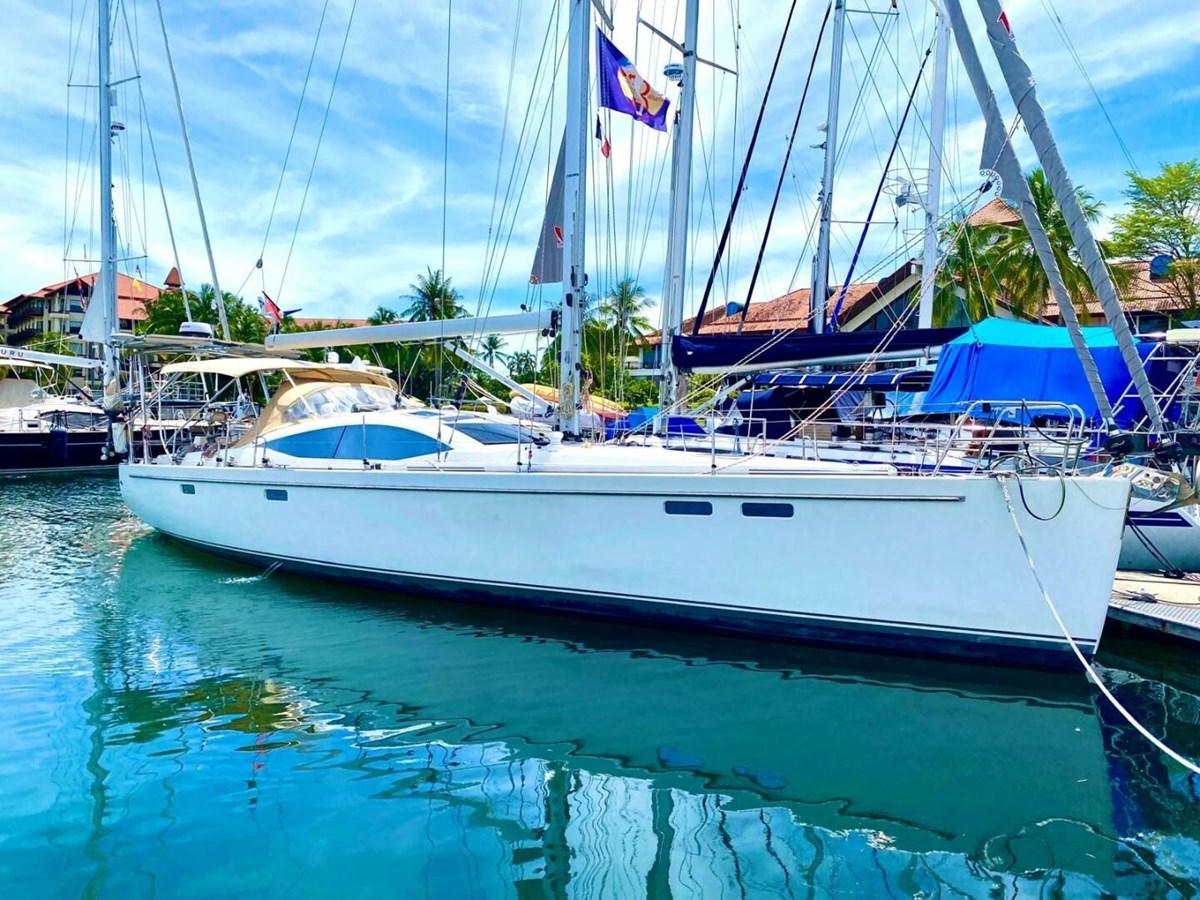

Astra is a turn-key blue-water cruising boat featuring a variable-draft swing keel. She has received many recent updates and underwent a partial refit in 2023. This robust 2009 Southerly 49 RS boasts excellent sailing characteristics and comfort, providing accommodations that include three cabins and two heads. Astra is your ticket to exploring Southeast Asia by water.
The Southerly 49 RS is equipped with two wheels, two rudders, a skeg-protected propeller, and a sturdy grounding plate along with a variable-draft swing keel. The yacht can dry upright in tidal zones. The draft with the keel up measures 2′ 10″, while the draft with the keel down reaches 10′ 3″. Imagine the possibilities!
Astra is docked at a beautiful marina and resort named Sutera Harbour Marina, Boulevard 1, Sutera Harbour, 88100 Kota Kinabalu, Sabah, Malaysia, on the island of Borneo. Sutera Harbour Marina is ideally positioned as the gateway to discovering Sabah and serves as a perfect starting or ending point for your sailing journey across Malaysia and beyond. To reach the resort, fly into Kuala Lumpur International Airport and then take a direct flight to Kota Kinabalu International Airport.
Full Specifications
- 7 at the nav station
- Raymarine Axiom 9R at the helm (2025)
- (10) ST60+ multifuncion displays
- Seatalk NMEA2000 backbone
- Raymarine Quantum Radar (2020)
- Raymarine AutoPilot Acu 400 (2024)
- The Lewmark rotary autopilot sprocket drive, autopilot chain, and bar transmission were replaced in 2023.
- Starlink high performance (2023)
- IridiumGo (2020)
- AIS em-trak B924 (2024)
- EPIRB Global Fix V4 (2020)
- Bow Thruster (Lewmar 185 TT, new control box and new gearbox kit in 2024)

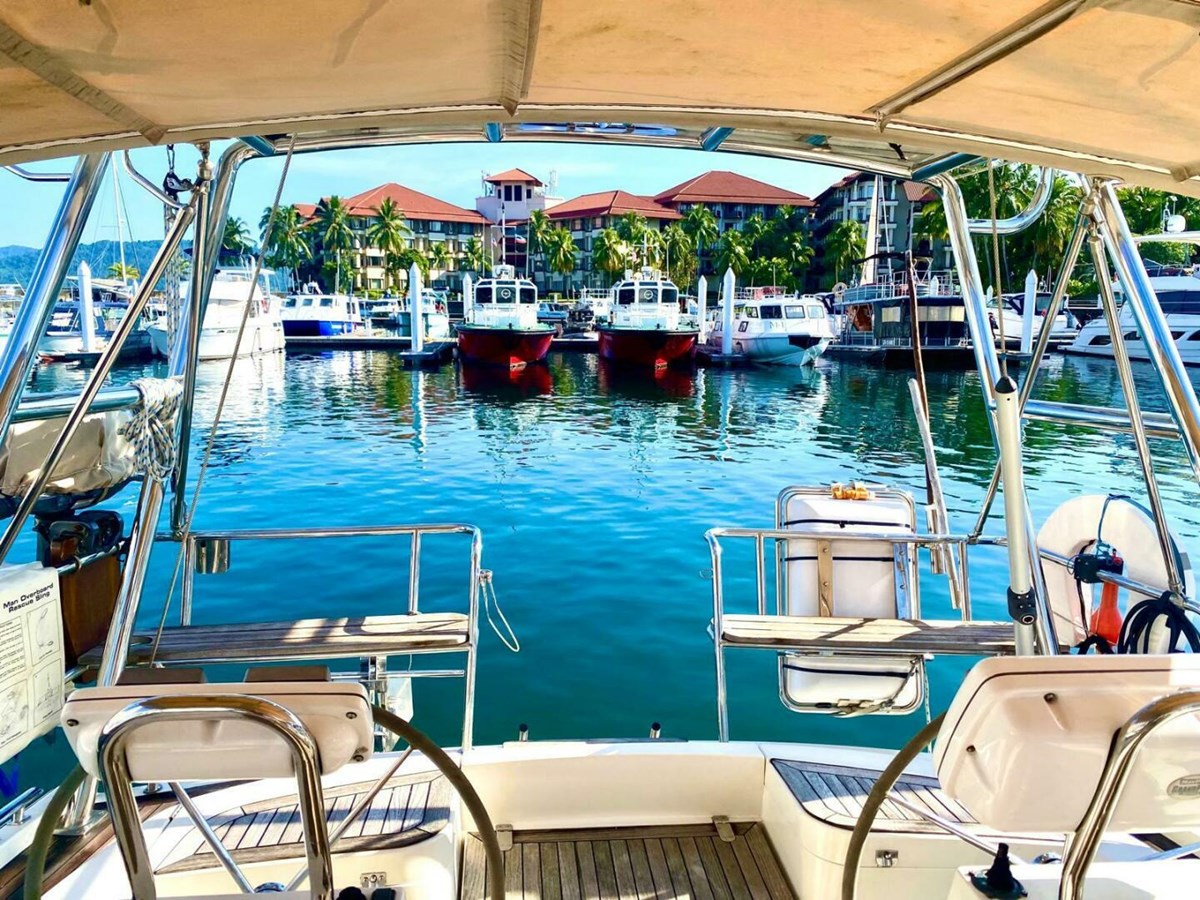

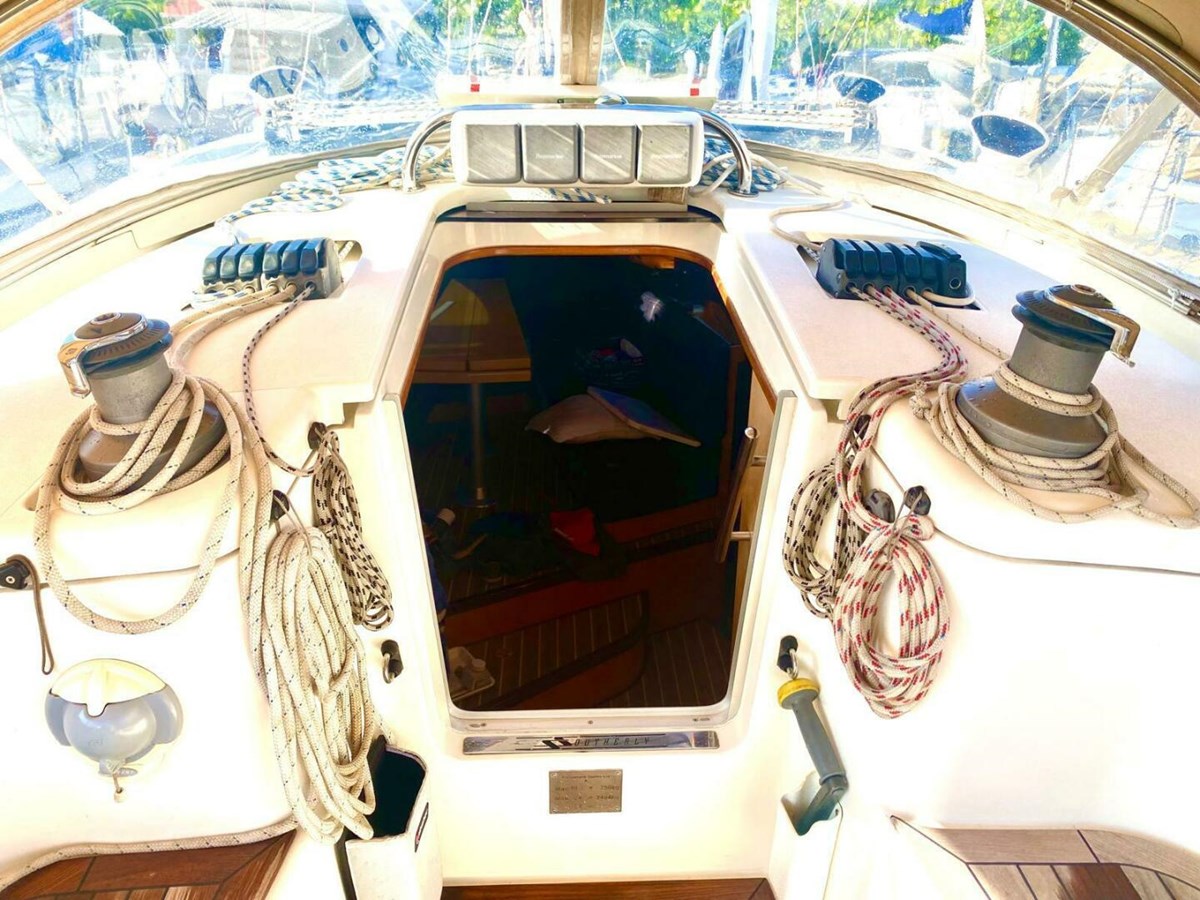

- The cockpit features comfortable seating, including cockpit cushions, a bimini top, and a spray hood.

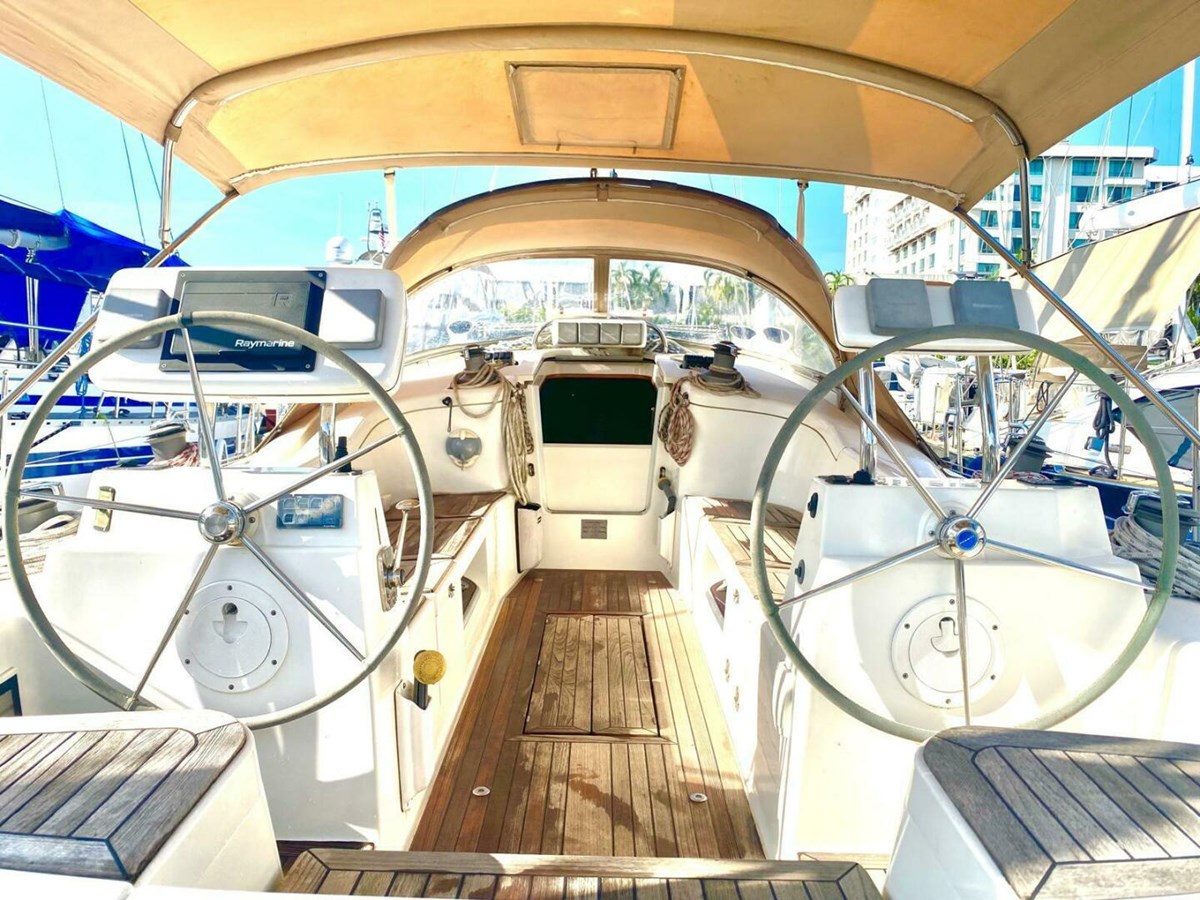

- Twin wheels and rudders

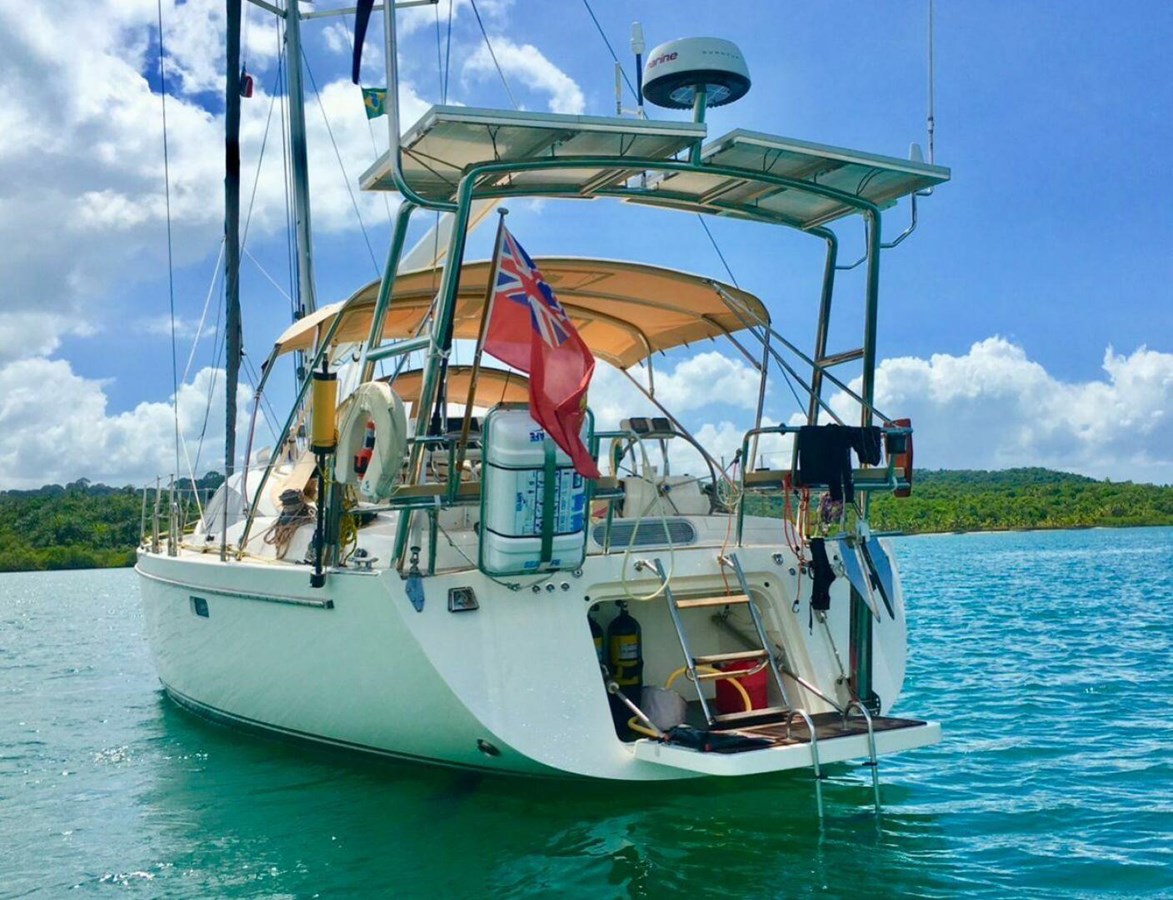

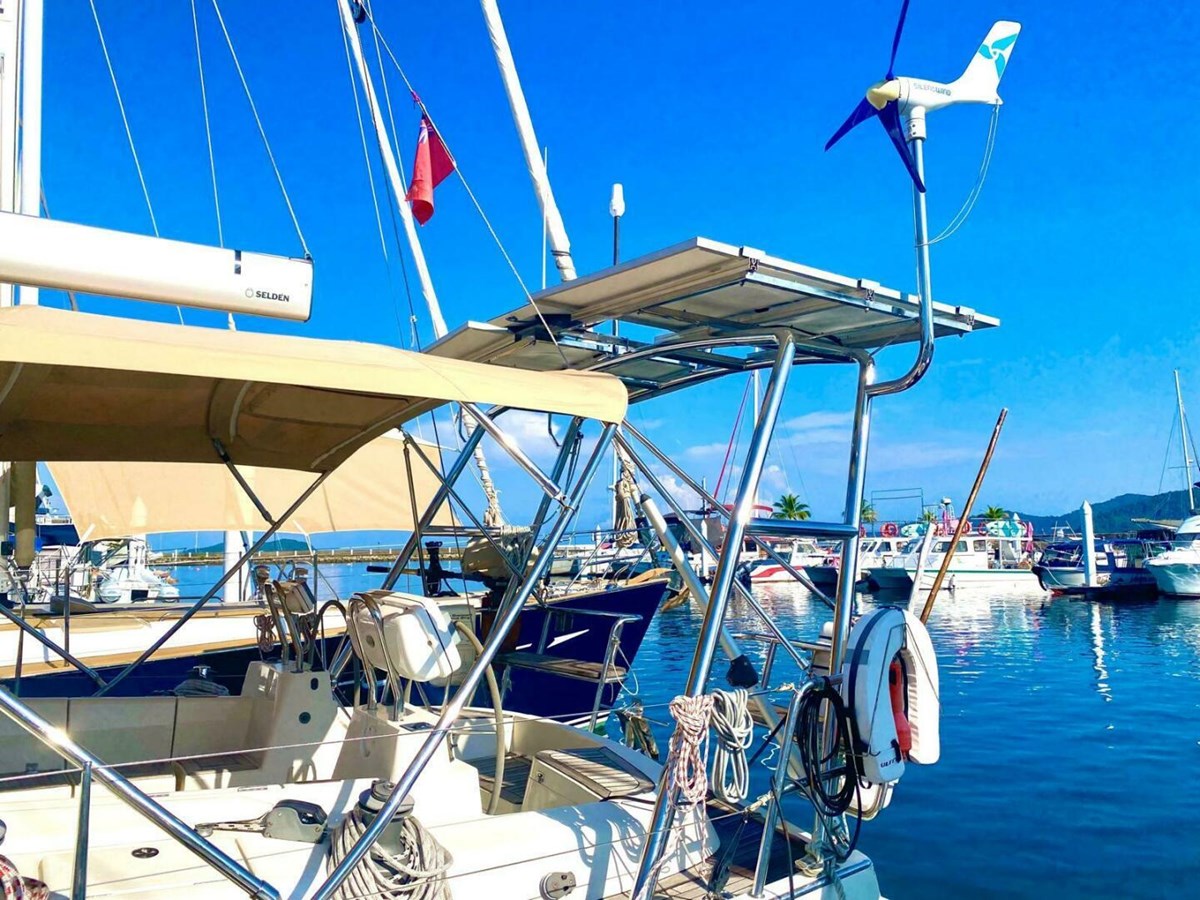

- Aluminum arch with solar, radar, and wind generator mounts.
- Dodger and Bimini (new clear panels in 2024)
- Anchor roller with an attachment point for the downwind sail

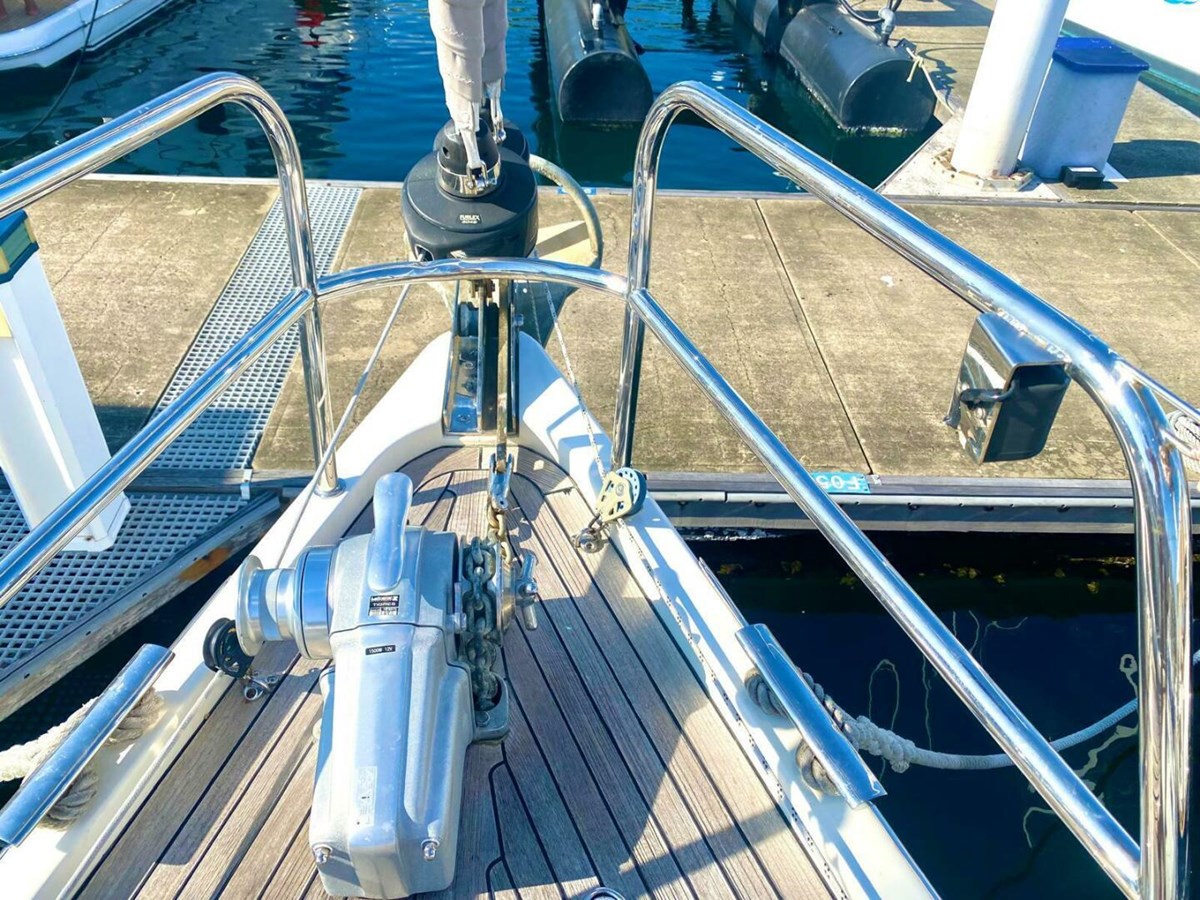

- Anchor Windlass: Lofrans Tigre 12V/1500W with a service kit (2023)
- Large foredeck/anchor locker
- Anchor:
- Anchor Chain: 80M (262 feet) galvanized chain (2023)
- Secondary Anchor: Rocna with 49 feet of chain and 196 feet of rode
- Stainless steel stern anchor with an electric windlass (sleipner control box replaced in 2024)
- The coach roof windows are properly sealed and water-tight.
- Ten opening deck hatches, including four upgraded Goiot deck hatches

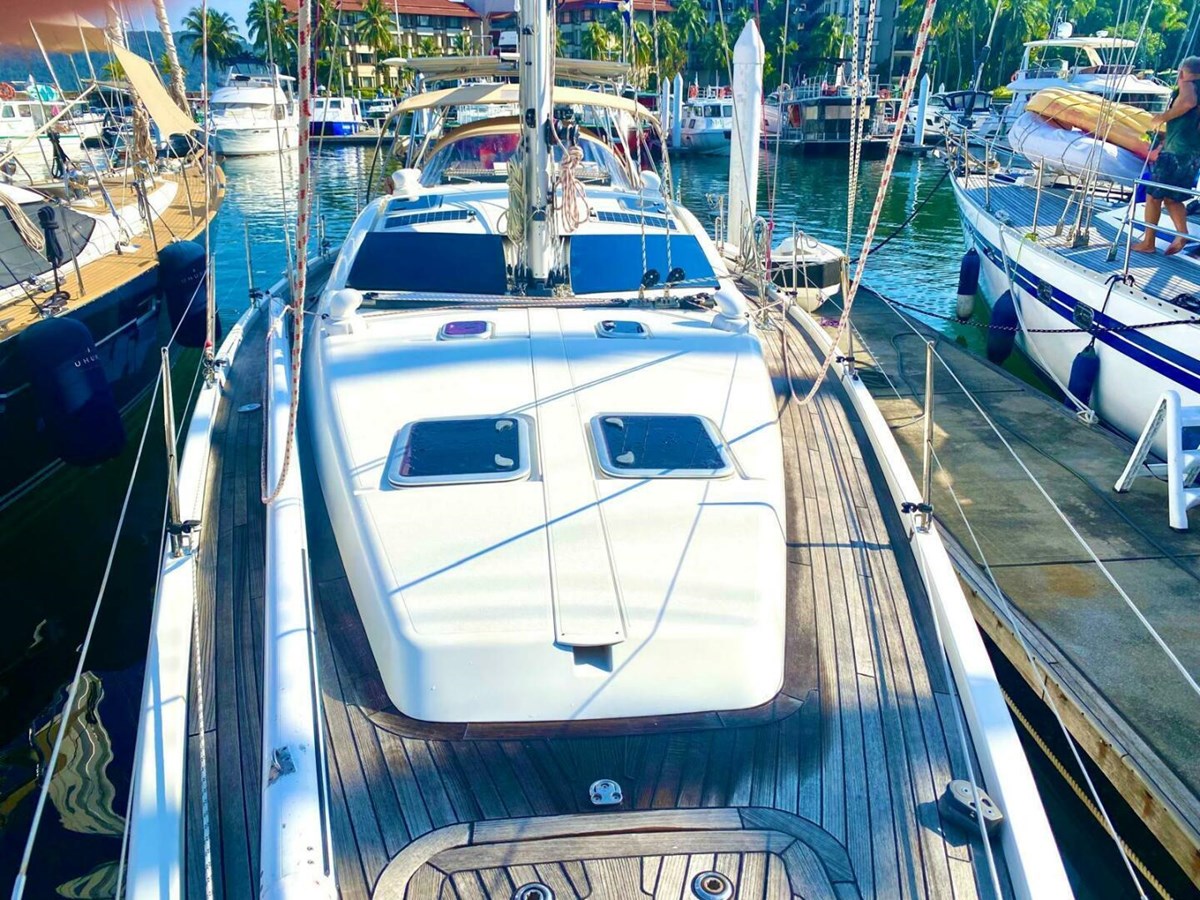

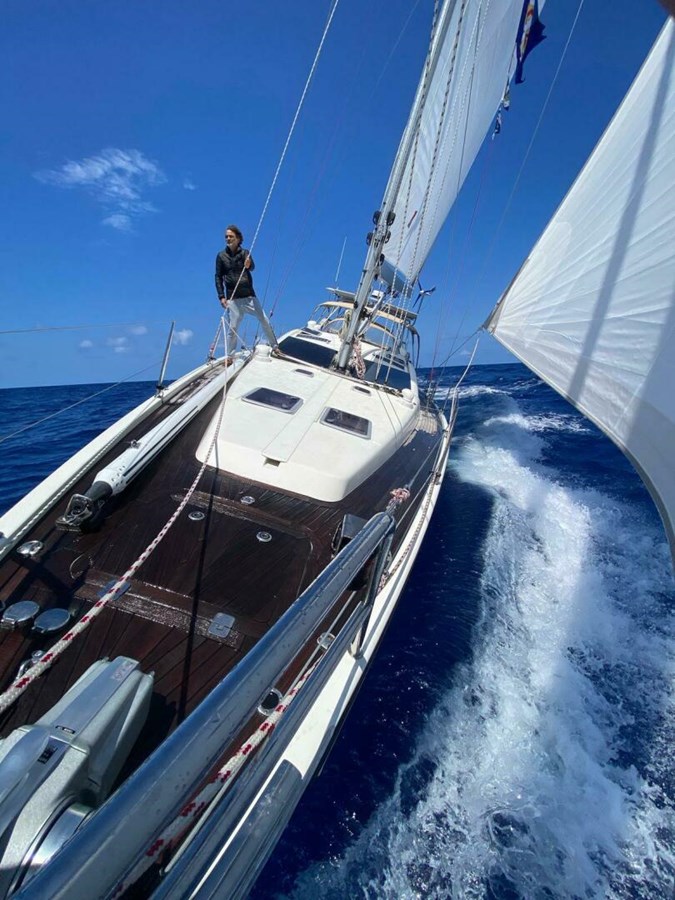

- Teak decks
- Seven deck hatches, including four Goiot deck hatches
- Reflective glass coach roof windows
- Eight hull windows
- Lifelines with port and starboard boarding gates
- Integral handrails on either side of the coachroof

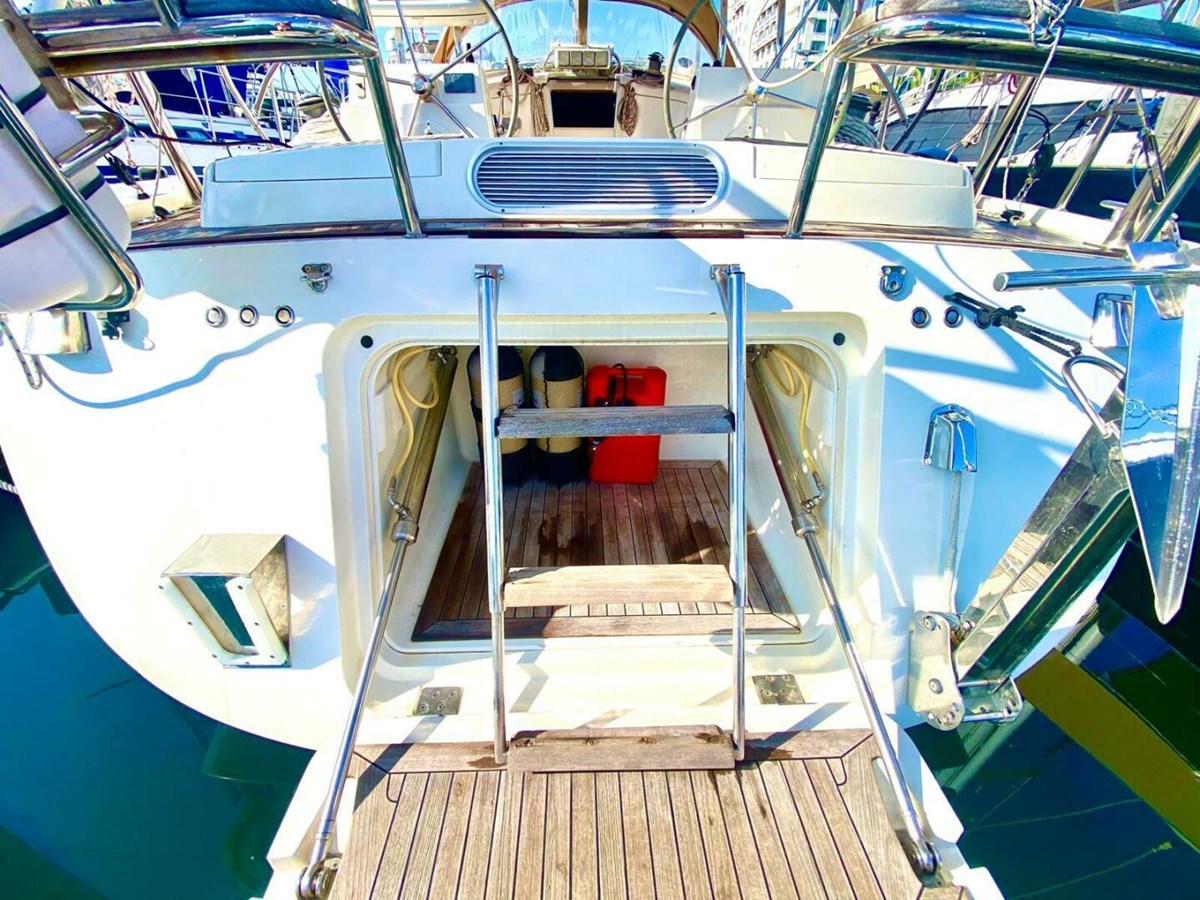

- Transom garage with a fold-down platform, ladder, and swim ladder.
- Yanmar 4JH4-TE diesel engine: 75 HP, 4-cylinder diesel engine
- Two diesel tanks
- ZF gearbox overhauled (2025)
- Spare ZF gearbox (new in 2025)
- New damper, shaft seal, stuffing box, clear water pump, and injector tuning (2025)
- Maintenance is performed every 250 hours.
- 80 amp alternator
- Engine start battery (2024)
- Stainless steel shaft
- Bronze three-blade prop
- GRP stern tube with water lubricated stern gland
- Bow Thruster: Lewmar 185TT (serviced, new control box, and gearbox kit 2024), with a control at the port helm
- Watermaker: Shenker Zen 12-volt, 50 L/h (reconditioned in 2025)

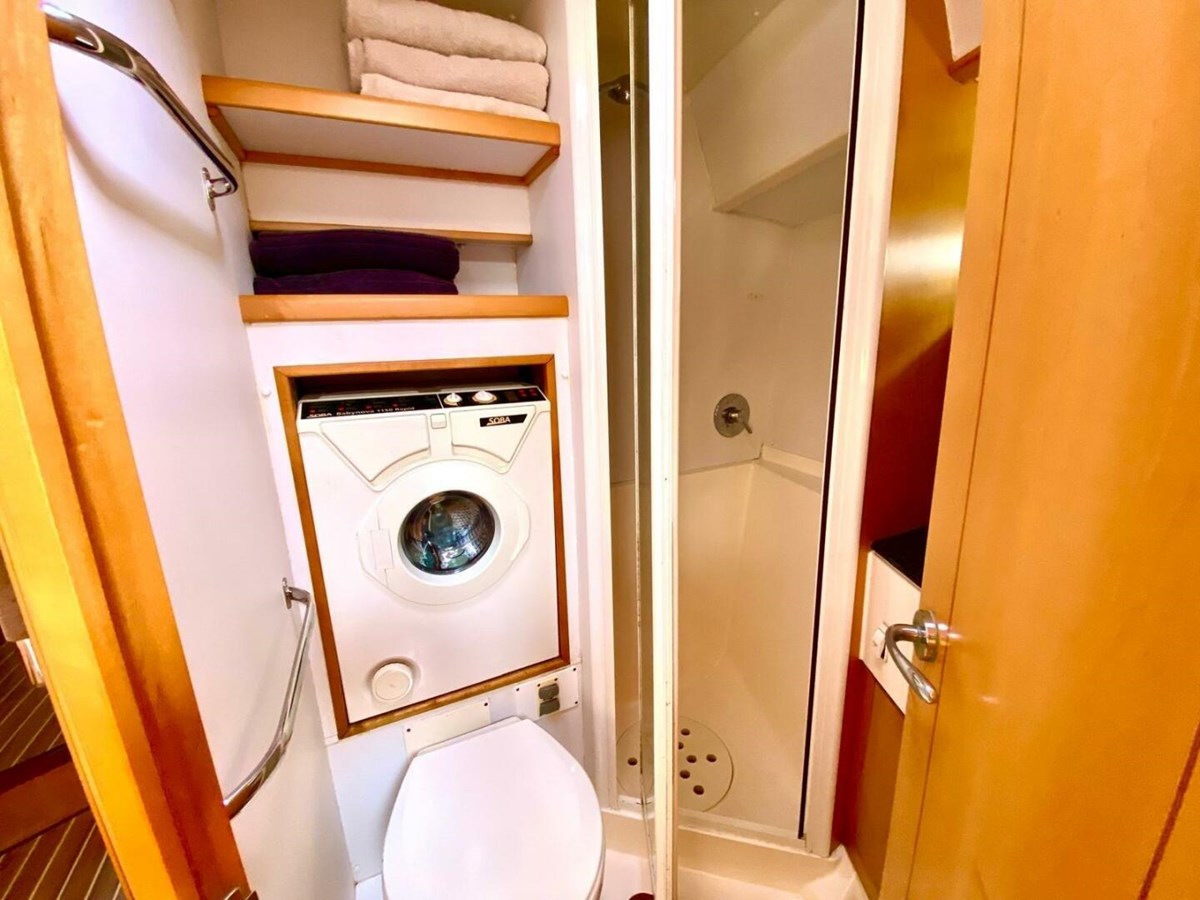

- Washing Machine: Soba Babynova 1150 rapid (2022)
- Two non-metallic freshwater tanks
- Fresh water pressure pump (2025)
- Shower sump pumps
- Manual bilge pump
- Electric bilge pump
- (2) grey water tank pumps and one spare (2025)

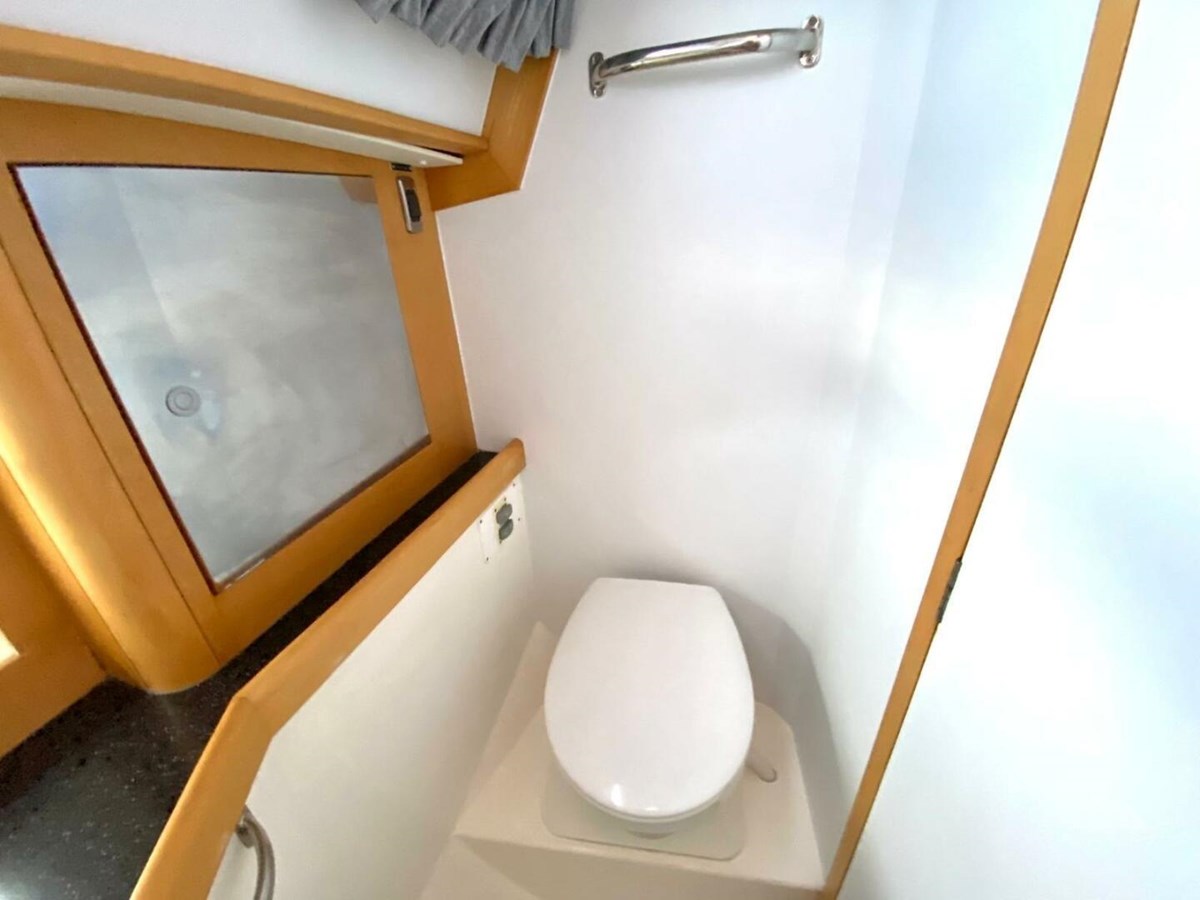

- Jabsco electric toilet (new pump 2024)
- Water Heater
- 12-volt DC system
- 230-volt electric system
- Shore power connection
- Shore power cord
- Isolation Transformer: Mastervolt Mass GI 3.5 (2023)
- Wind Generator: SilentWind 400-watt (2022) mounted on the arch
- Hydro Generator: watt&sea 300-watt (2022)

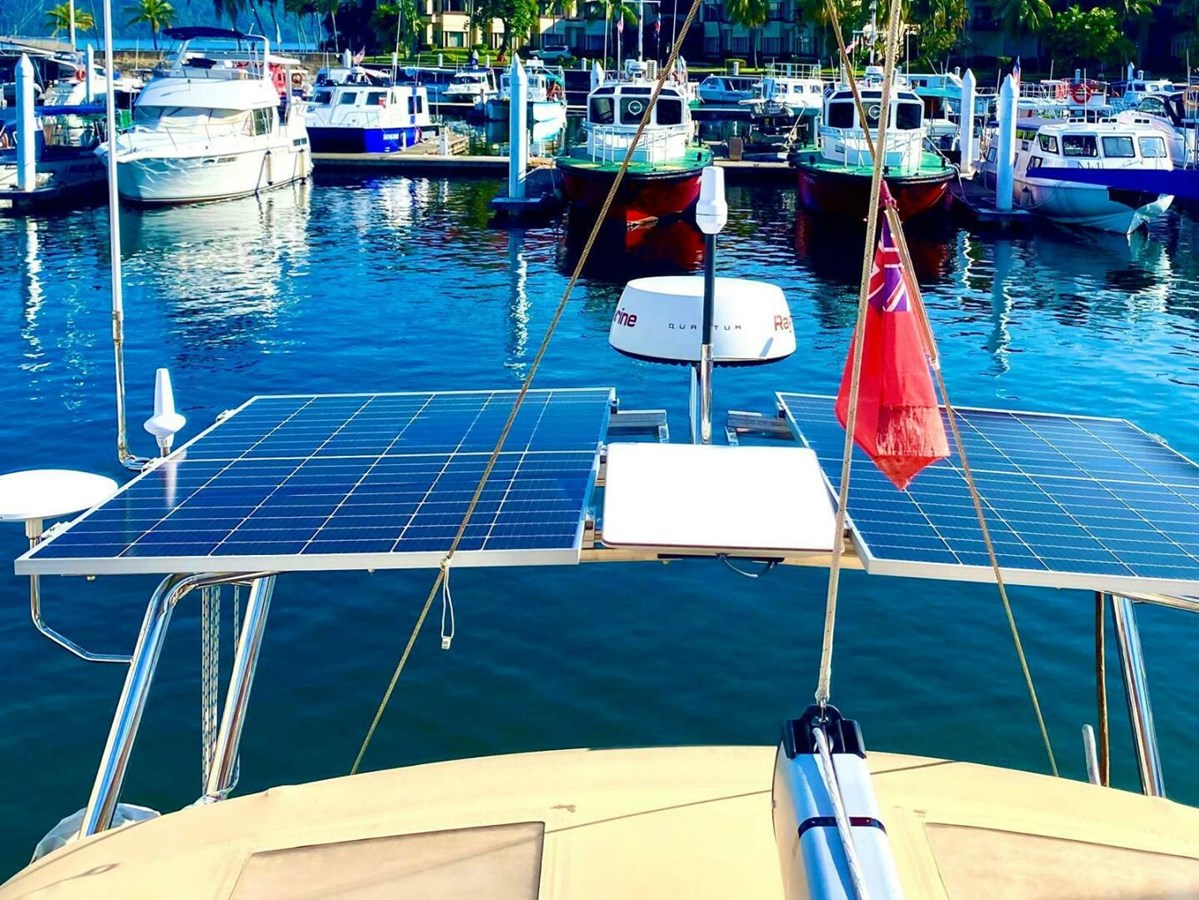

- (2) 450-watt solar panels mounted on the arch (2023)

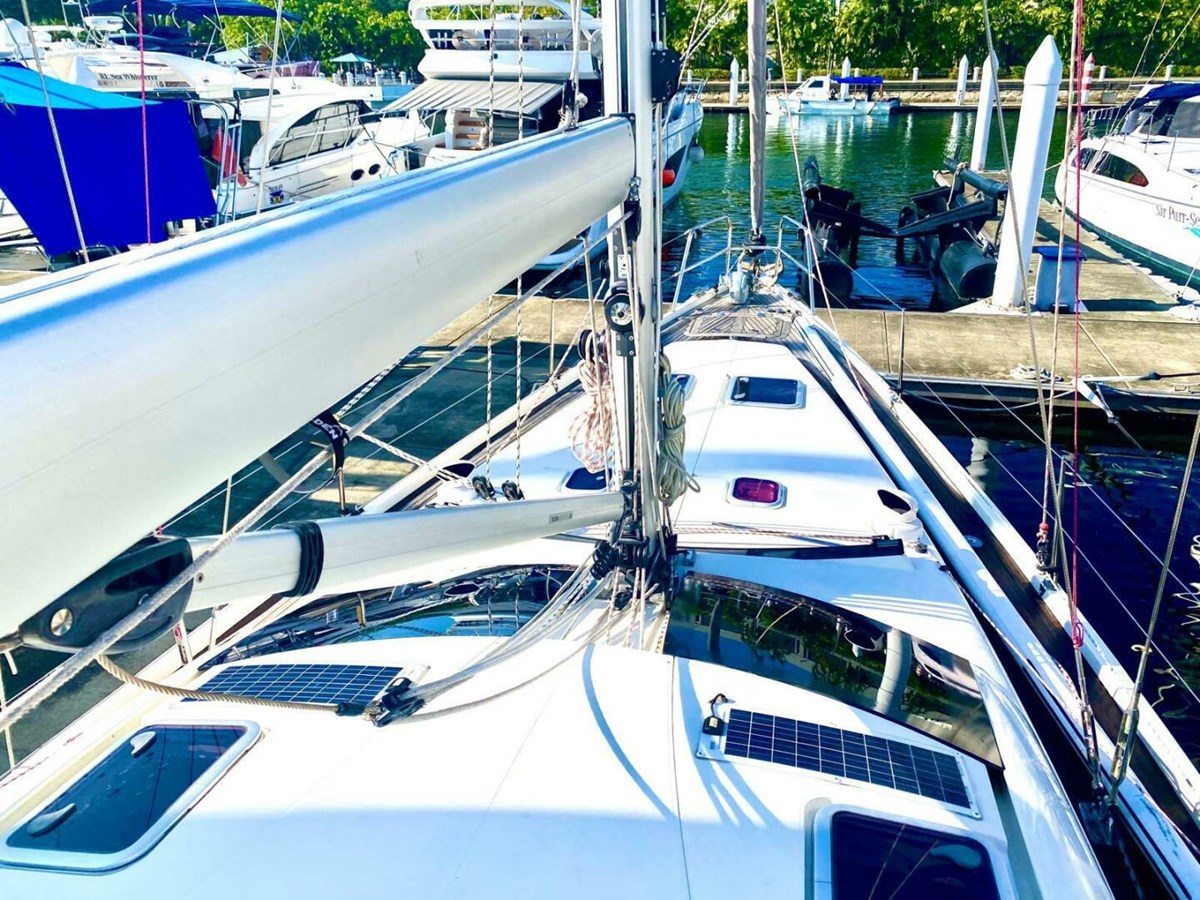

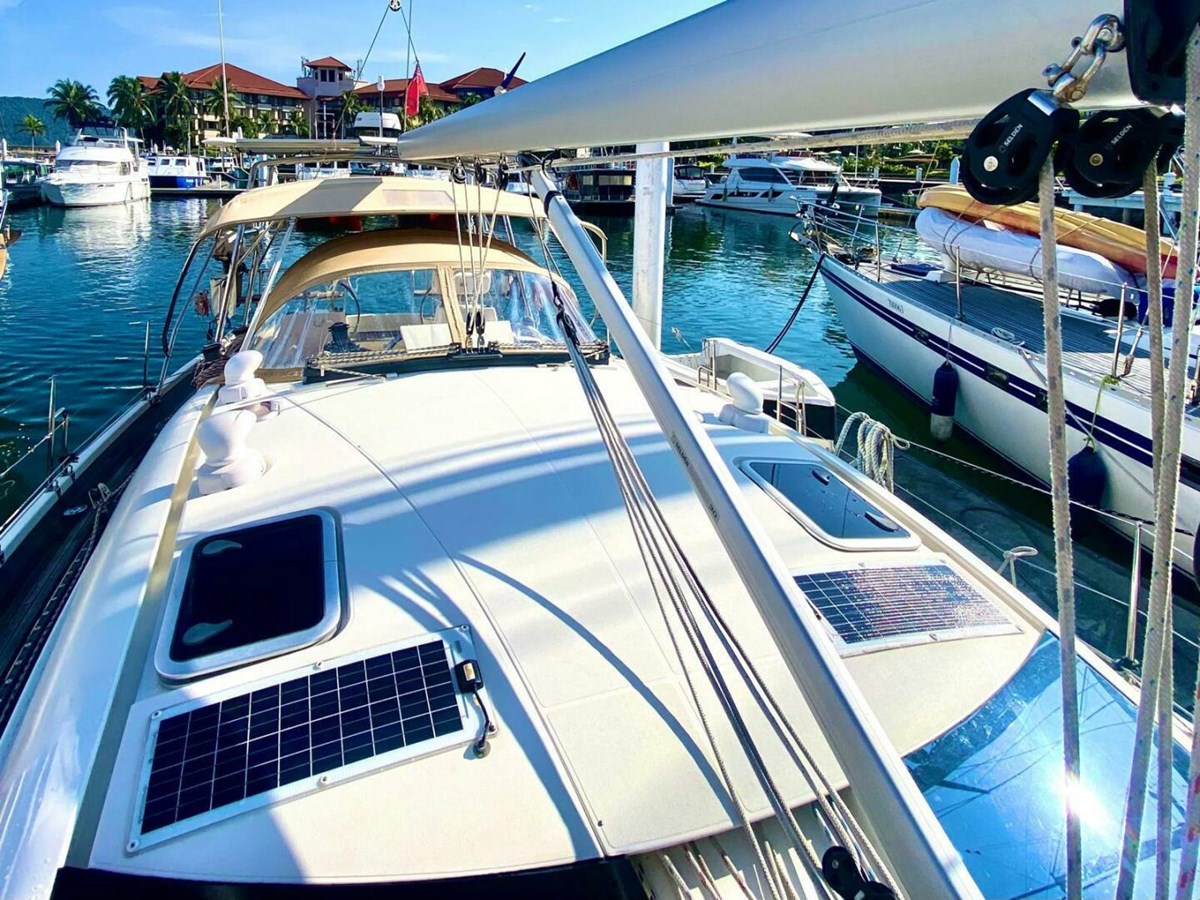

- (2) 22-watt solar panels mounted on the deck for the engine battery (2023)
- Lithium Batteries: (5) 100-watt Victron lithium battery with an additional breaker (2023)
- Engine start battery (2024)
- (3) Victron charge controllers
- Inverter/Charger: Mastervolt Combimaster 12/3000-volt (2023)
- Astra is not equipped with a generator; however, it is equipped with all required electrical and plumbing connections. It was previously fitted with a Fischer Panda 5000i.

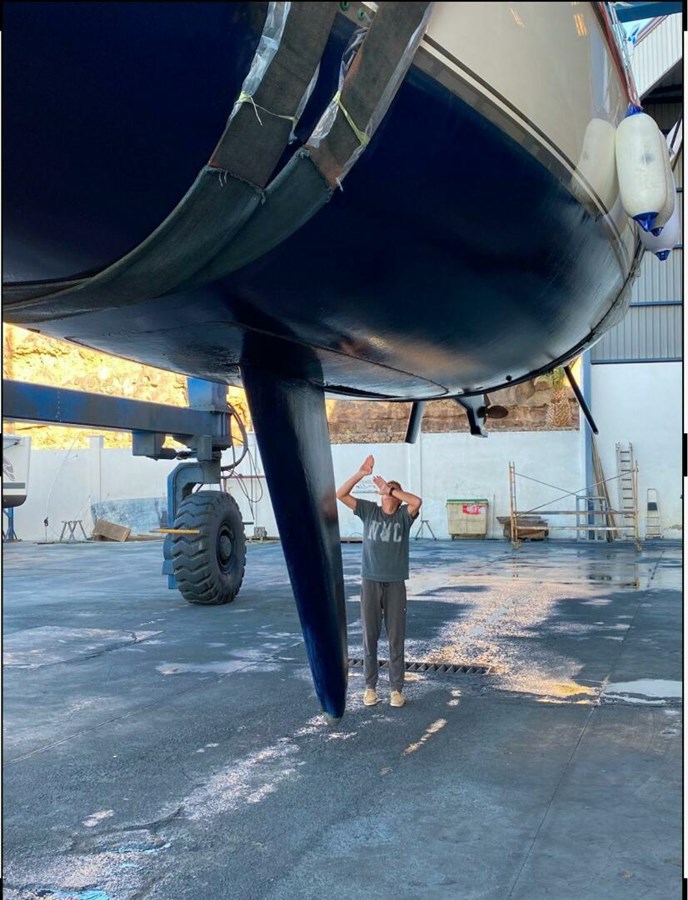

The Southerly 49 boasts a robust variable draft swing keel system, a hallmark of Southerly Yachts, designed to offer a unique blend of exceptional sailing performance and the freedom to explore shallow waters.
The primary purpose of the variable draft swing keel is to allow the Southerly 49 to alter its draft significantly. At the touch of a button, the keel can be lowered for deep draft performance (10' 3") or raised (2' 10") for navigating shallow areas inaccessible to most yachts of this size. This dual capability dramatically expands the cruising potential of the Southerly 49.
The swing keel is a substantial, cast-iron hydrofoil, carefully shaped to provide excellent lift and minimize drag when lowered. It pivots on a robust stainless steel pin located at its leading edge.
The swing keel retracts into a reinforced recess or trunk built into the hull. This trunk is an integral part of the hull structure, ensuring both strength and watertight integrity, regardless of whether the keel is up or down.
A significant portion of the ballast (11,530 lbs) is incorporated into a fixed iron casting that forms a grounding plate at the bottom of the hull.
The keel is raised and lowered using a hydraulic ram powered by an electric pump. This system offers smooth and controlled movement of the heavy keel. There is a manual pump for redundancy, should it be needed.
- The grounding plate, swing keel, pulleys, keel pennant, and keel pump were serviced in 2023.
- Bottom Paint (2025)
- Grounding plate, swing keel, pulleys, pennant, and hydraulic keel pump overhauled (2023)
- Yamaha Enduro
- Life Raft: Sea Safe 6-person (2022)

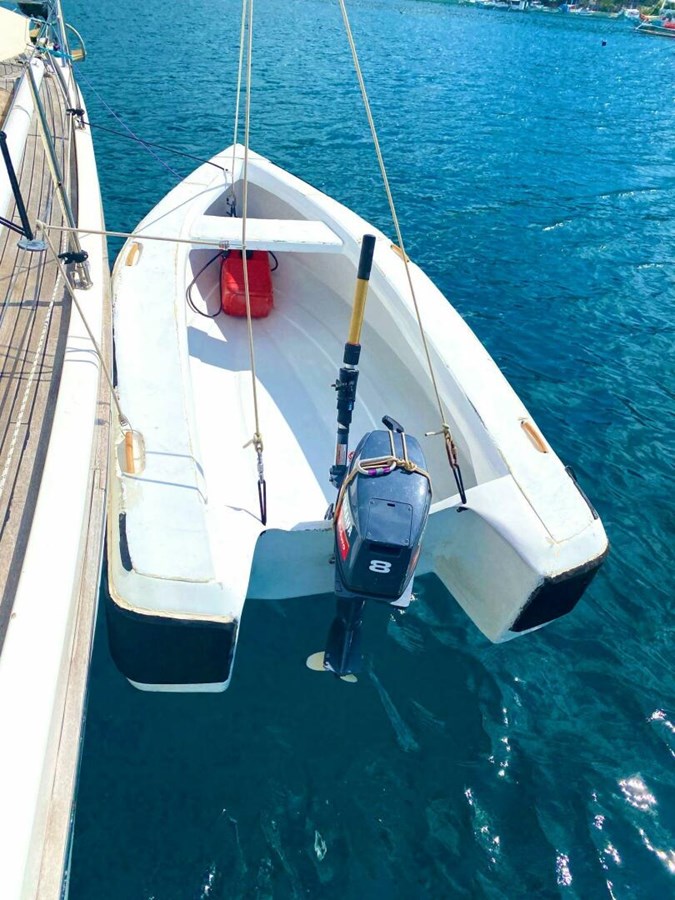

- Outboard: 8 HP Yamaha Enduro (2023)
