2009 CRYSTAL YACHT
Description

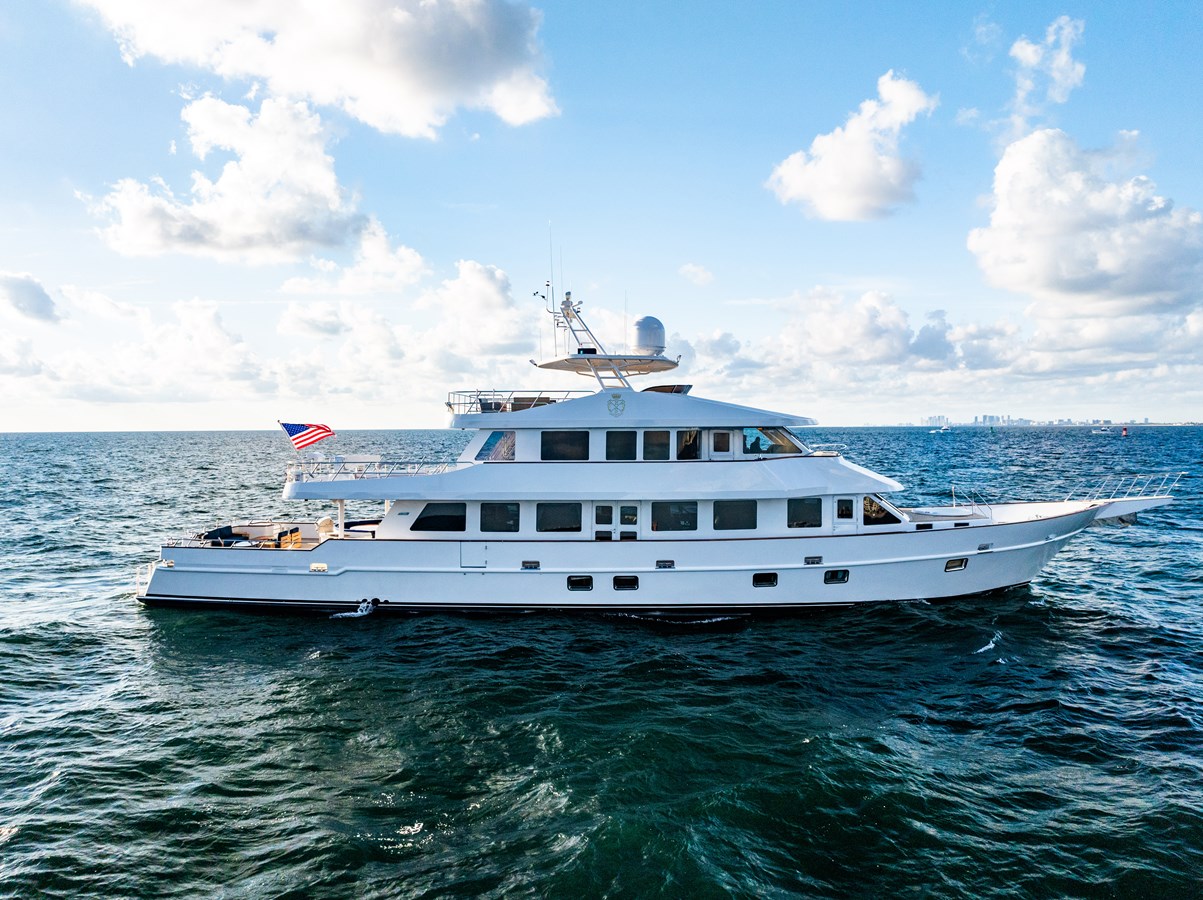

EMPIRE SEA was designed and built as a full-displacement expedition yacht, ideally suited for diving and offshore sport fishing, while offering the accommodations and amenities typically found on much larger motor yachts.
Over the past 10 years, she has been meticulously maintained and continuously upgraded by her current Owner on an “open checkbook” basis, ensuring she remains in true turnkey condition and ready to cruise in all respects.
KEY FEATURES:
• Designed for long-range cruising
• Expansive open deck spaces
• Equipped for offshore fishing & diving
• High capacity davit for tender storage
• Powerful CAT main engines provide the capability to tow a large tender
• Excellent ownership history of 10 years with the current owner.
• Low crew requirements for easy management
• Large portholes for ample natural light
• Exclusively used for private purposes
Full Specifications
General
Length Overall (L.O.A.):
- 117.08 feet
- (35.69 meters)
Length at Waterline (L.W.L.):
- 101.00 feet
- (30.78 meters)
Beam (molded):
- 28.50 feet
- (8.68 meters)
Draft (loaded):
- 7.50 feet
- ( 2.34 meters)
Tonnage:
- 208 gross
- 78 net
Capacities
Fuel Capacity:
- 13,366 US Gallons
- (50,596 liters)
Water Capacity:
- 1,278 US Gallons
- (4,838 liters)
Black Water:
- 1,420 US Gallons
- (5,405 liters)
Lube Oil:
- 328 US Gallons
- (1,241 liters)
Waste Oil:
- 166 US Gallons
- ( 628 liters)
Speed
Maximum:
- 14.0 knots
- 78 US Gallons /hr
- 2,000 nm
Cruising:
- 12.0 knots
- 51 US Gallons /hr
- 2,750 nm
Economical:
- 10.0 knots
- 36 US Gallons /hr
- 3,241 nm

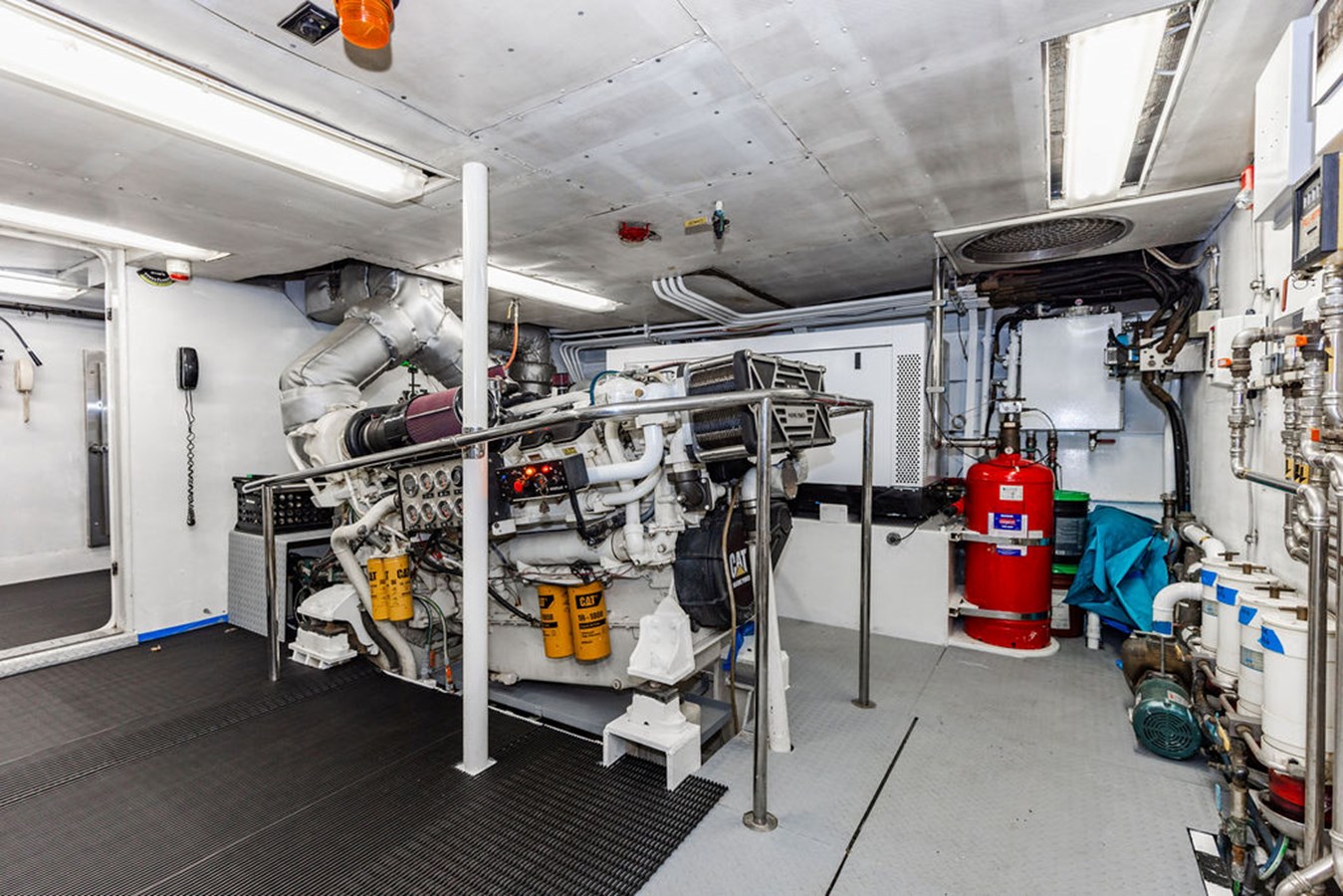

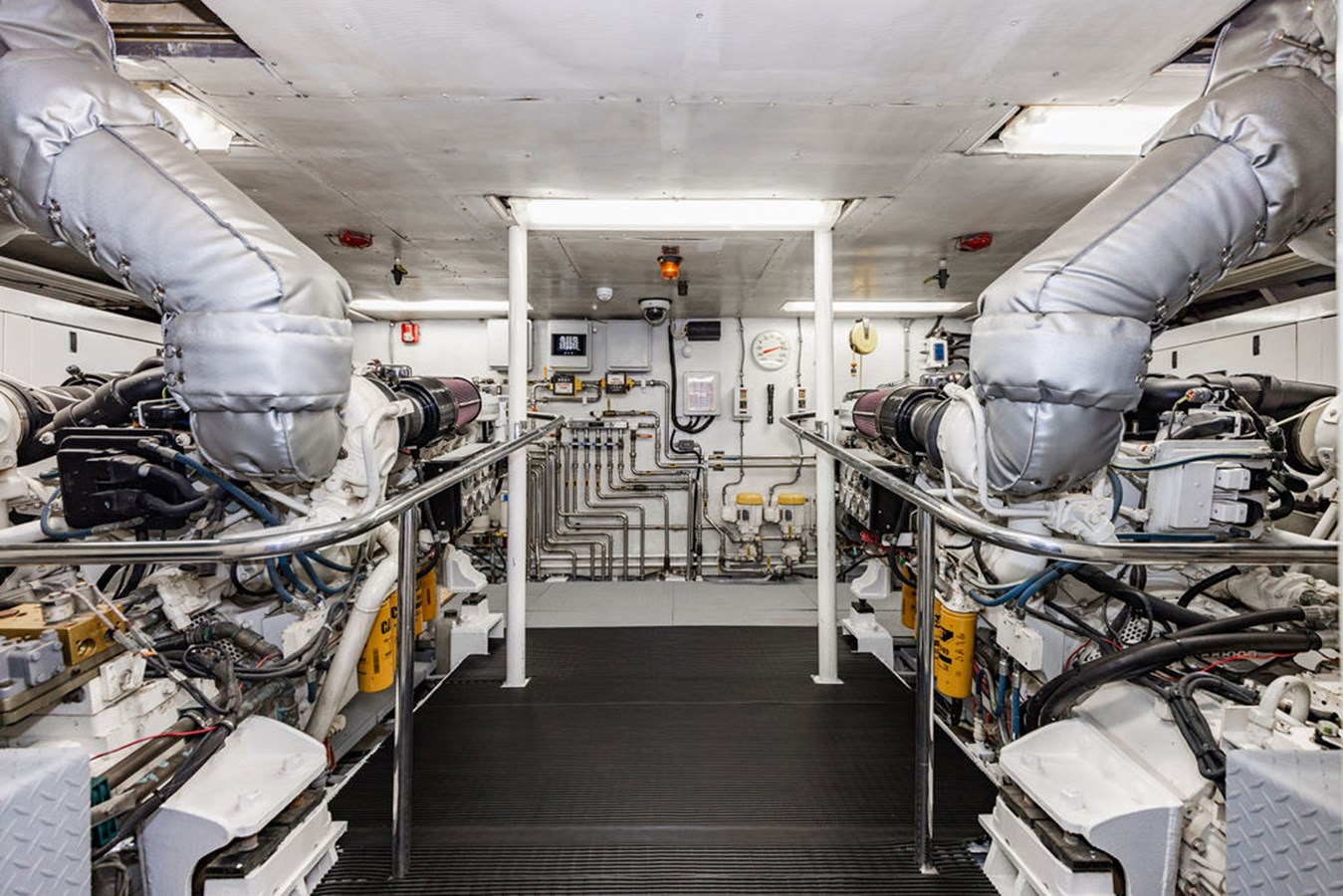

Main Engines
Engine Type:
- (2) Caterpillar 3412, @ 1,400 Hp each
- Fully serviced by Anchors of America June 2024
- Walker Airsep turbo intake filters
Gearboxes for Main Engines: (2) Twin Disc MG-6556DC Ratio 3-1
Drive: (2) 4-bladed skewed 34”
Generators & Electricity
Generators:
- (2) Northern Lights 65Kw generators
- NEW Installed 2025
Shorepower: New transformer changed to 480v
Batteries:
- REPLACED 2025 - all main engine/generators
- NEW 2025 battery chargers
Air Conditioning
Type: 2 units- 120,000BTU and 90,000BTU
Other Machinery
Watermakers: (2) FEI MAX Q / 1275 GPD / NEW 2025 with piping replaced
Trim Tabs/Stabilizers: Wesmar 1600 2- Fin
Bow Thruster: NEW & UPGRADED 2025 with new bridge controls
Steering System: Hydraulic
Sewage System:
- Headhunter HMX- USCG approved
- Jet Vacuum heads, fresh water
Fresh Water System: NEW 2025 pumps & mainifolds
Communication Systems
SATcom:G6 unit/gyro Trac
Telephone System: V11- HTS Dual Mode (voice/data)
VHF: ICOM M604
Cellular Phone System: digital 4000
WIFI: Wi-Fi access throughout for Owner, guests, crew, A/V equipment, Data from single panel Marine Starlink
LoudHailer: Furuno LH3000 to Engine room / forward & aft
Navigation Systems
Radar: (2) Furuno 1964c 12kw and 25kw
AIS:Furuno F-150
Sonar: Furuno CH250BB 88Kz
Gyrocompass: Simrad RGL 50
Auto Pilot: Simrad AP50
Depth Sounder: Furuno dual frequency 2kw
GPS:Furuno Navnet GPS32B receiver
Chart Plotter:Timezero electronic chart plotting system
Wind/Speed Log: B&G Hydra H1000 Wind Anemometer
Entertainment System:
- Sound and Video is fed throughout the boat on RTI T3X Wi-Fi enable remote controllers in each zone, there are also RTI KX3 wall controllers throughout for SONOS sound feed, streaming and DirectTV feed.
- Audio speakers throughout vessel
Main Galley Equipment
Cooking Equipment: • GE profile SS 4-burner glass cooktop
• GE profile Microwave/convection oven
• Samsung microwave oven
Refrigeration/Freezer:
- Leib Herr refrigeration/freezer
- Perlick freezer
- (2) 180 cubic feet walk in refrigerator & freezer
- (1) 122 cubic feet walk in center refer in engineering aft compartment
- Scotsman Icemaker
Dishwasher: Fisher Pikel dishwasher
Additional Galley Equipment
Cooking Equipment: Force 10 propane BBQ (deck)
Refrigeration/Freezer: Various icemaker/refers
Laundry Equipment
Main Laundry Equipment: Whirlpool Duet stacking washer/dryer

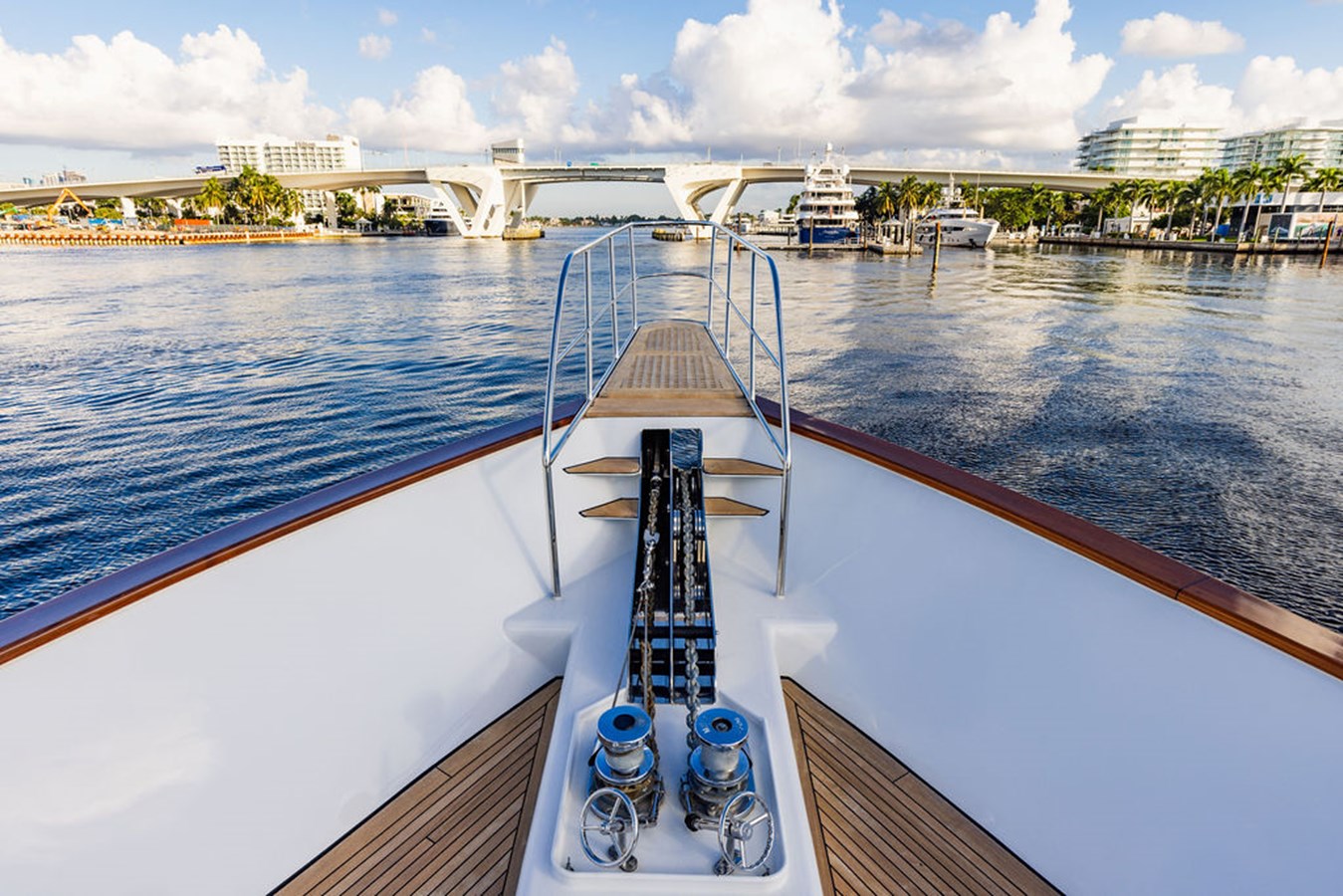

Anchor Windlass System: (2) Muir Model 4500 Vertical
Anchors: (1) 80 KG BRUCE type
Anchor Chain:
- (1) 5-shots (450’) chain port
- (1) 5-shots (450’) starboard
Bridge deck Davit:
- Steelhead Marine CT3500
- Tender Crane controls rebuilt 2025
Swimming Platform: With removable railing stanchions

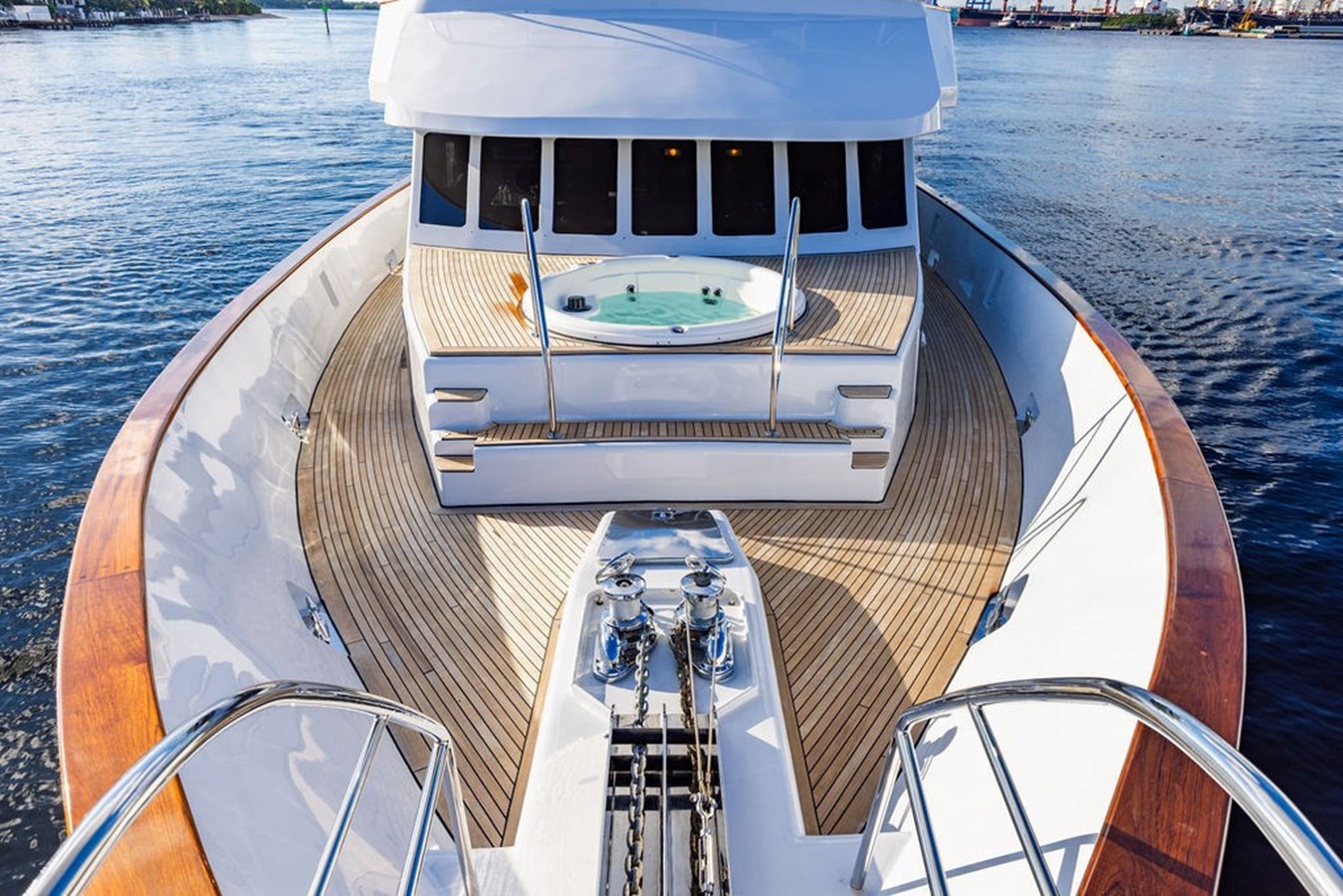

Jacuzzi: Foredeck (4-persons)
Security Equipment
CCTV System: Panasonic Digital Video Multiplexer WJFS
Cameras: (4)
Monitors: (5) 18” Green Marine color
Fire Fighting Equipment
Fire Control System: Seafire FM-200 fire extinguisher (engine room)
Fire Extinguishers: (16)
Other:
- Seafire FM-200 fire extinguisher (engine room)
- Deck fire system rebuilt 2025
Safety Equipment
Life Rafts: 2) Viking 12 Person life rafts
Life Rings: (2)
Life Vests: (30) USCG approved life vests
EPIRBS: (1)
Medical Equipment: Yes

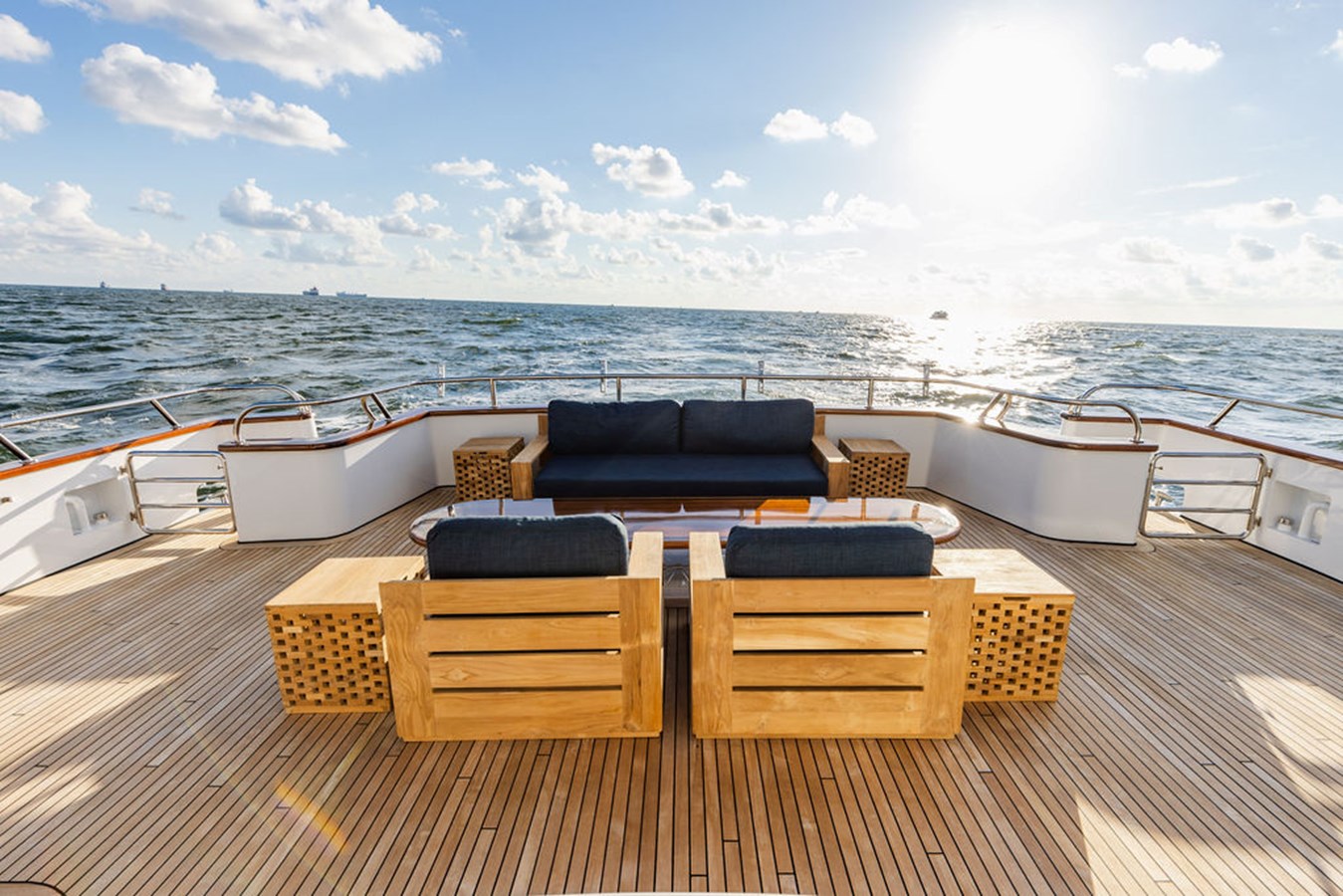

MAIN DECK AFT

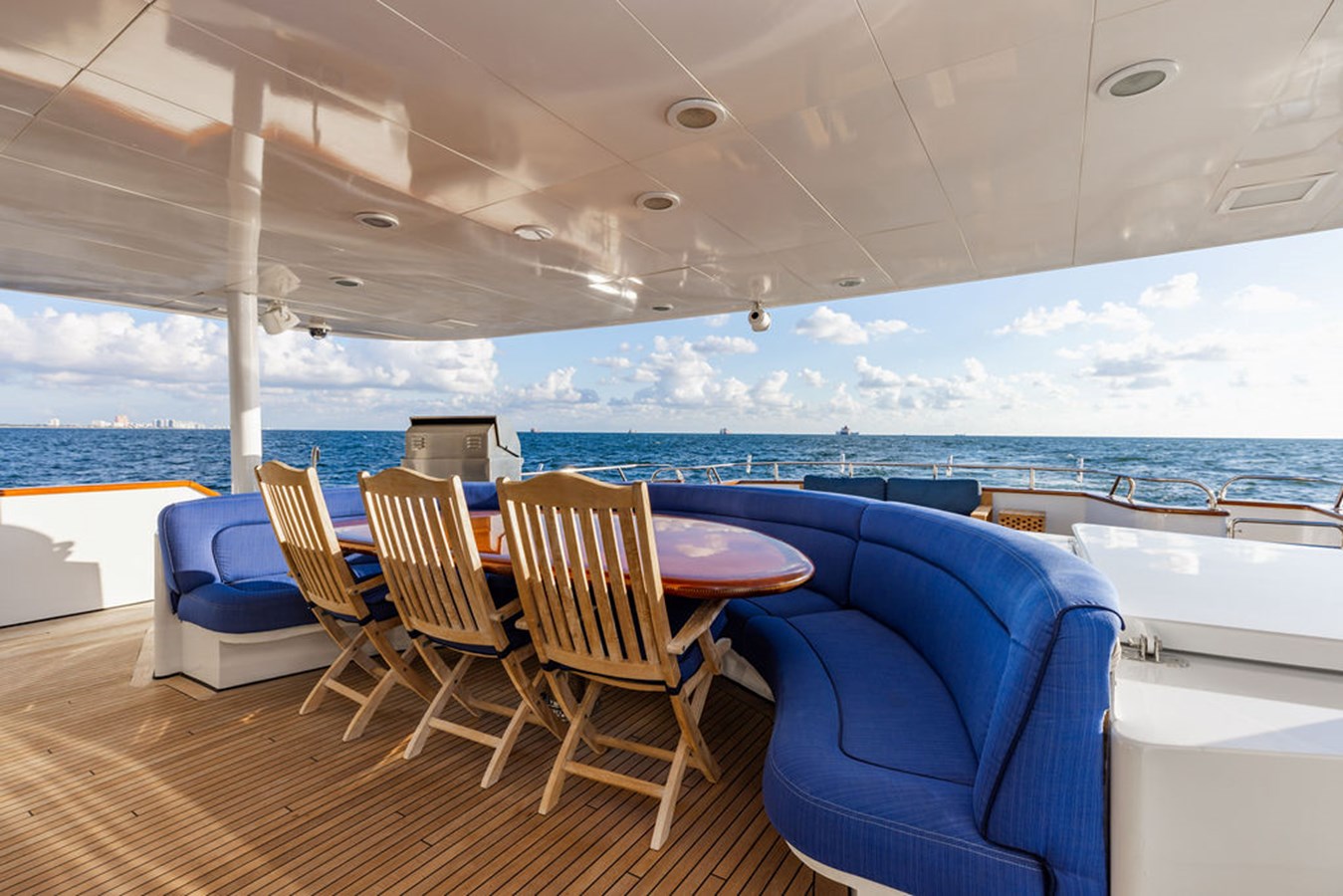

Empire Seas partially covered after deck is comfortably furnished with U-shaped settee and cocktail table centerline forward. There is also an exterior wet bar with marble top, refer, BBQ aft and day head. There are stairs to the large aft open deck aft that has been used for fighting chair and sportfishing, access to the dive lazarette and watersports storage is in the center of deck. There are also two large fish wells under the deck. The swim platform is aft on centerline with port and starboard stairs

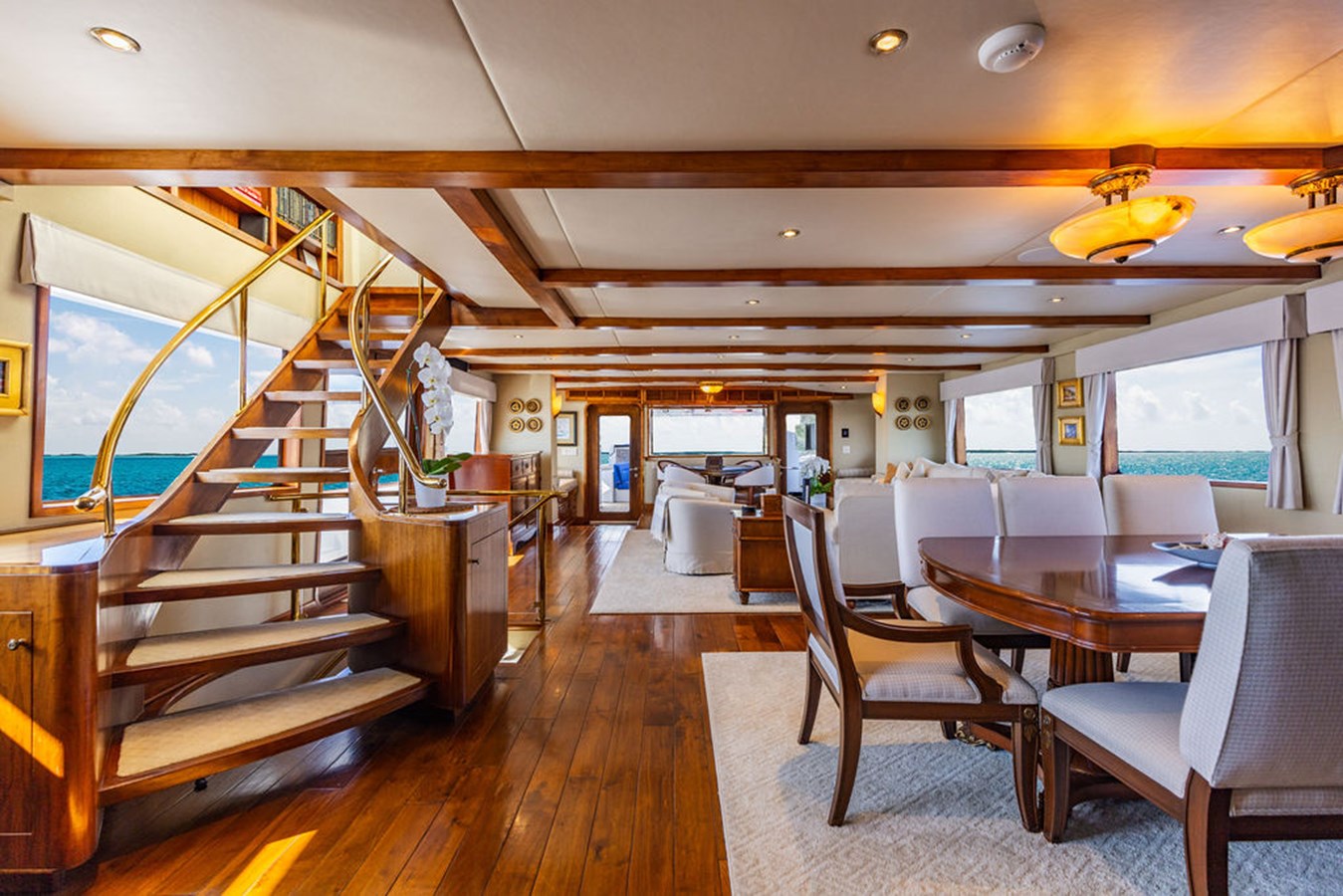

MAIN DECK SALON
Entry to the Main Salon is port and starboard aft, opening to the full beam entertaining area aft, with oversize windows port and starboard for panoramic views of every port of call. The open arrangement comes with a large L-shaped couch, game table, dining table and additional comfortable seating encouraging relaxing interaction in a elegantly casual environment. There is a large television that is on lift that comes out of starboard side cabinet aft of the starboard side double entry doors.
MAIN DECK DINING
The open Dining Salon adjoins the Main Salon forward, with a rectangle dining table for eight guests. Mid Salon starboard is the entry foyer which opens to the deck companionway, the dining area to starboard joins the main staircase to the bridge and owner’s stateroom and access to the galley forward.

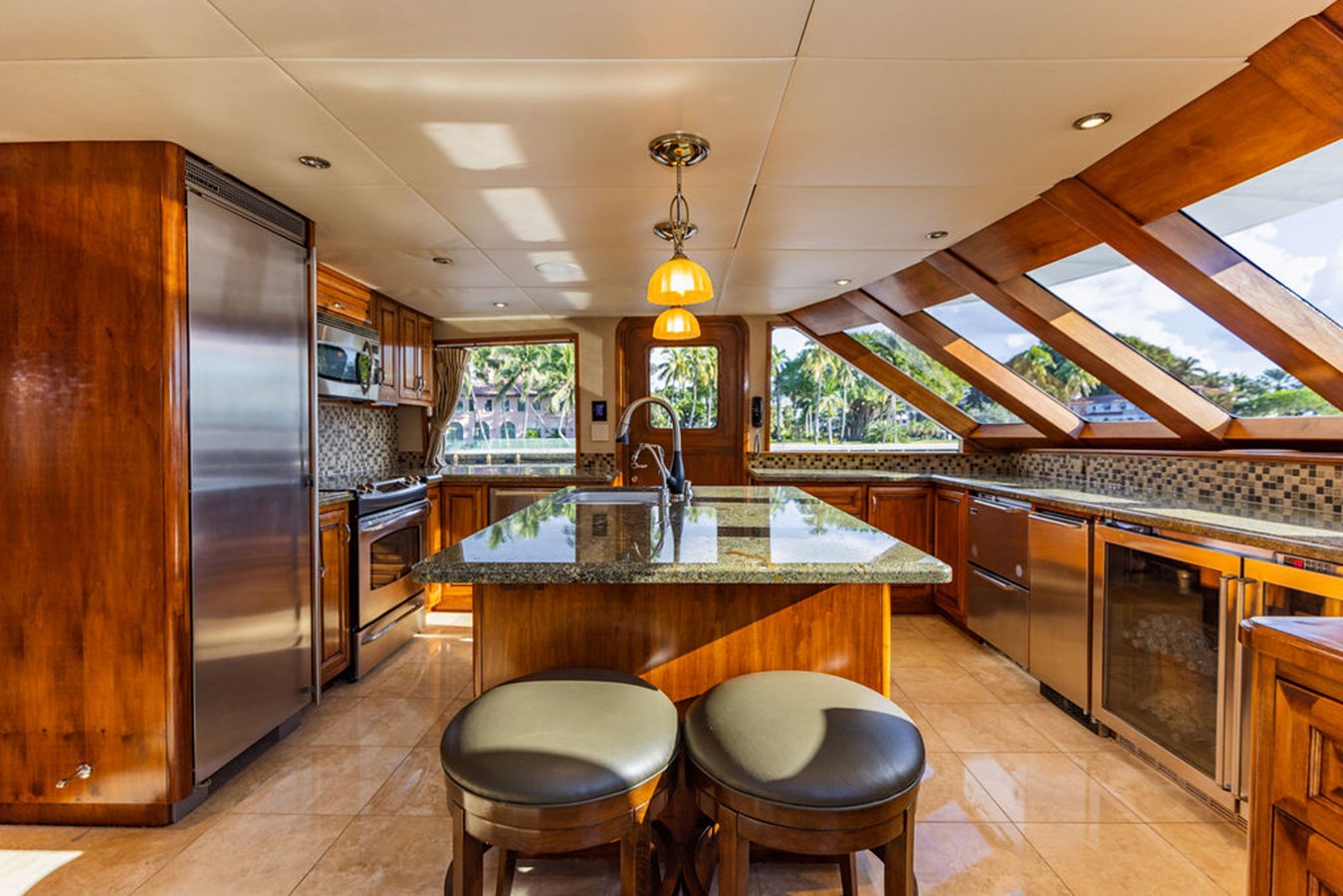

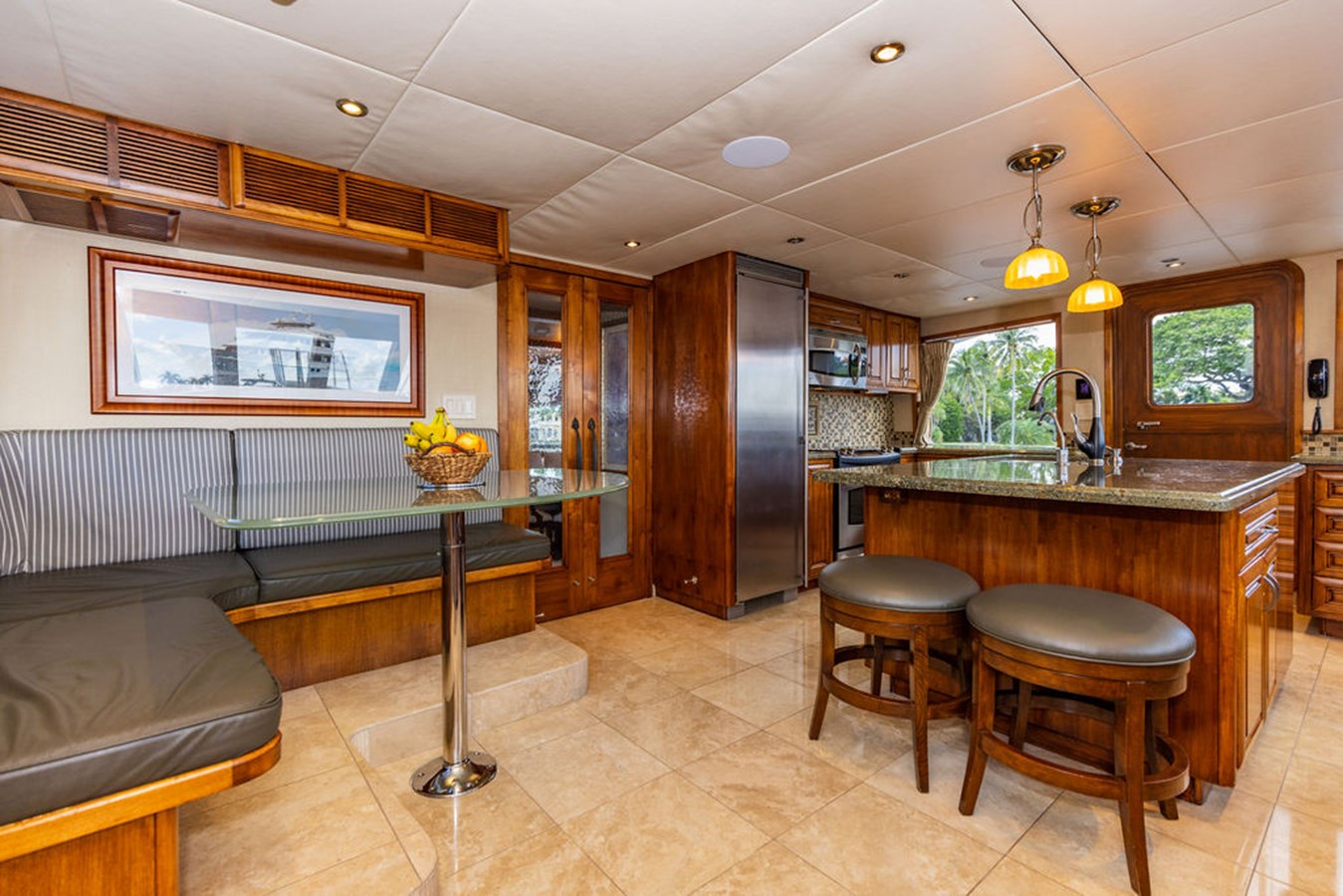

MAIN DECK GALLEY
The Galley is on the main deck forward of the dining area, with central island and large pantry adjoining doors are aft which is perfect for seamless service. The galley features huge windows—a chef’s dream. Port and starboard deck access further facilitating ease of service.

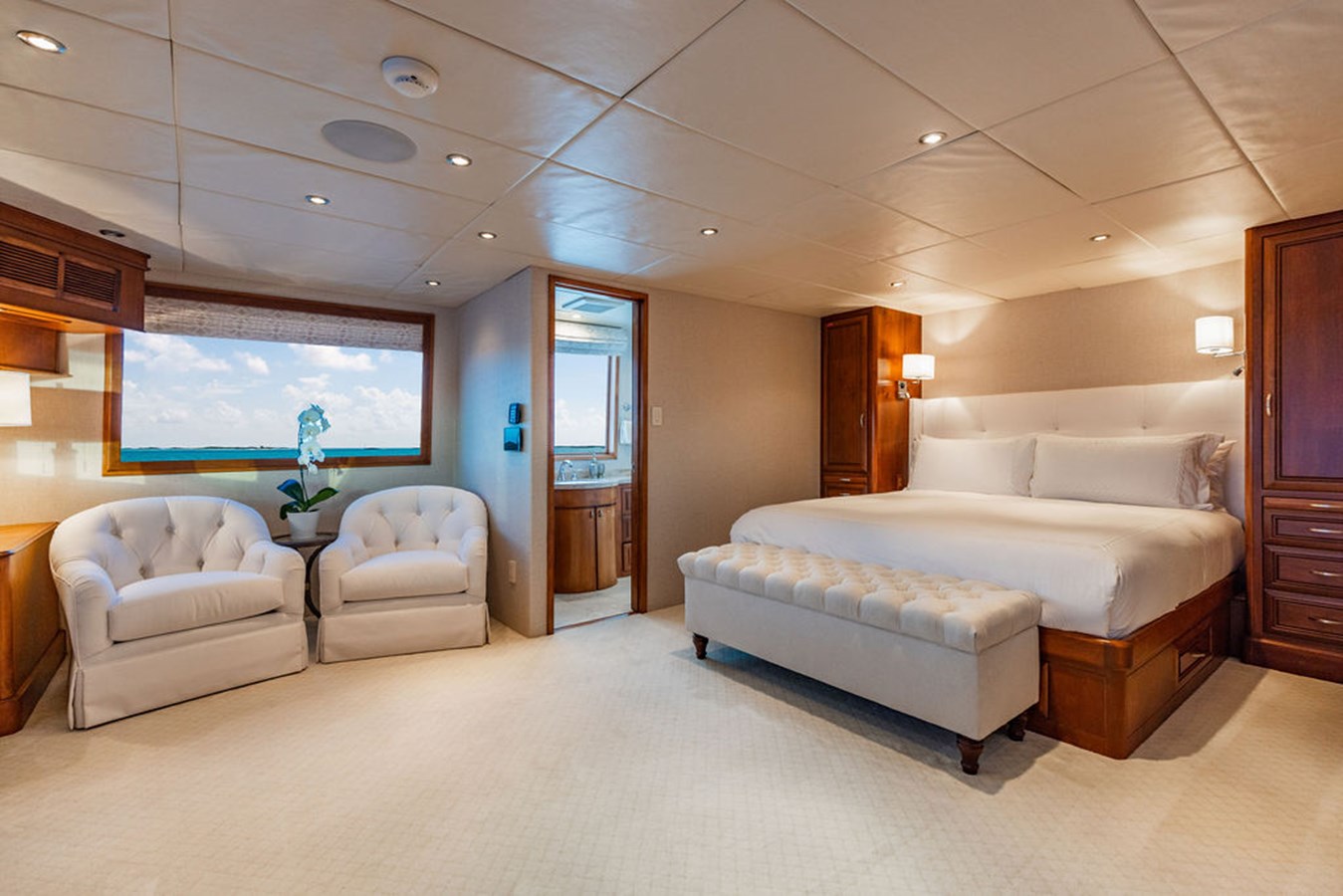

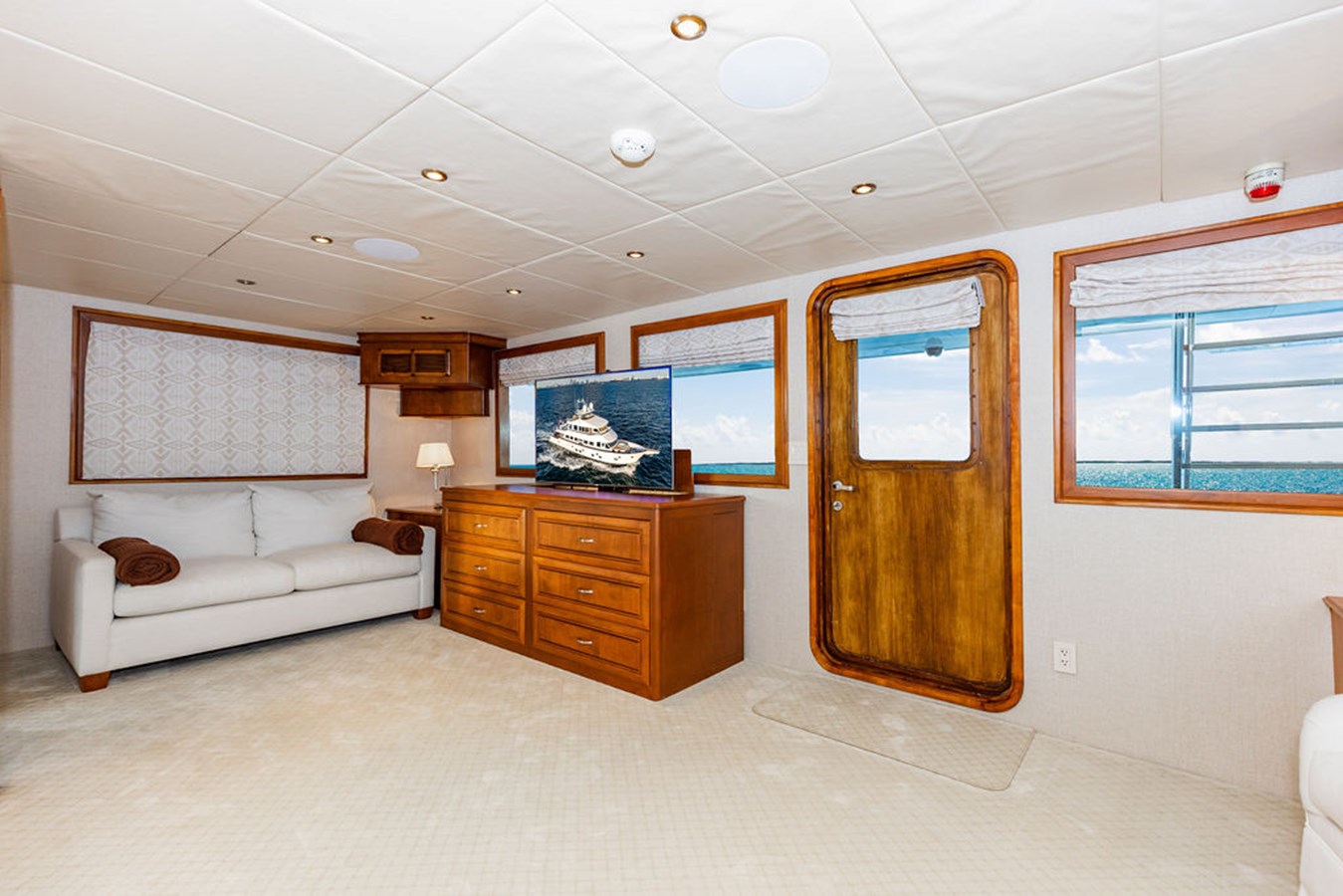

BRIDGE DECK MASTER STATEROOM

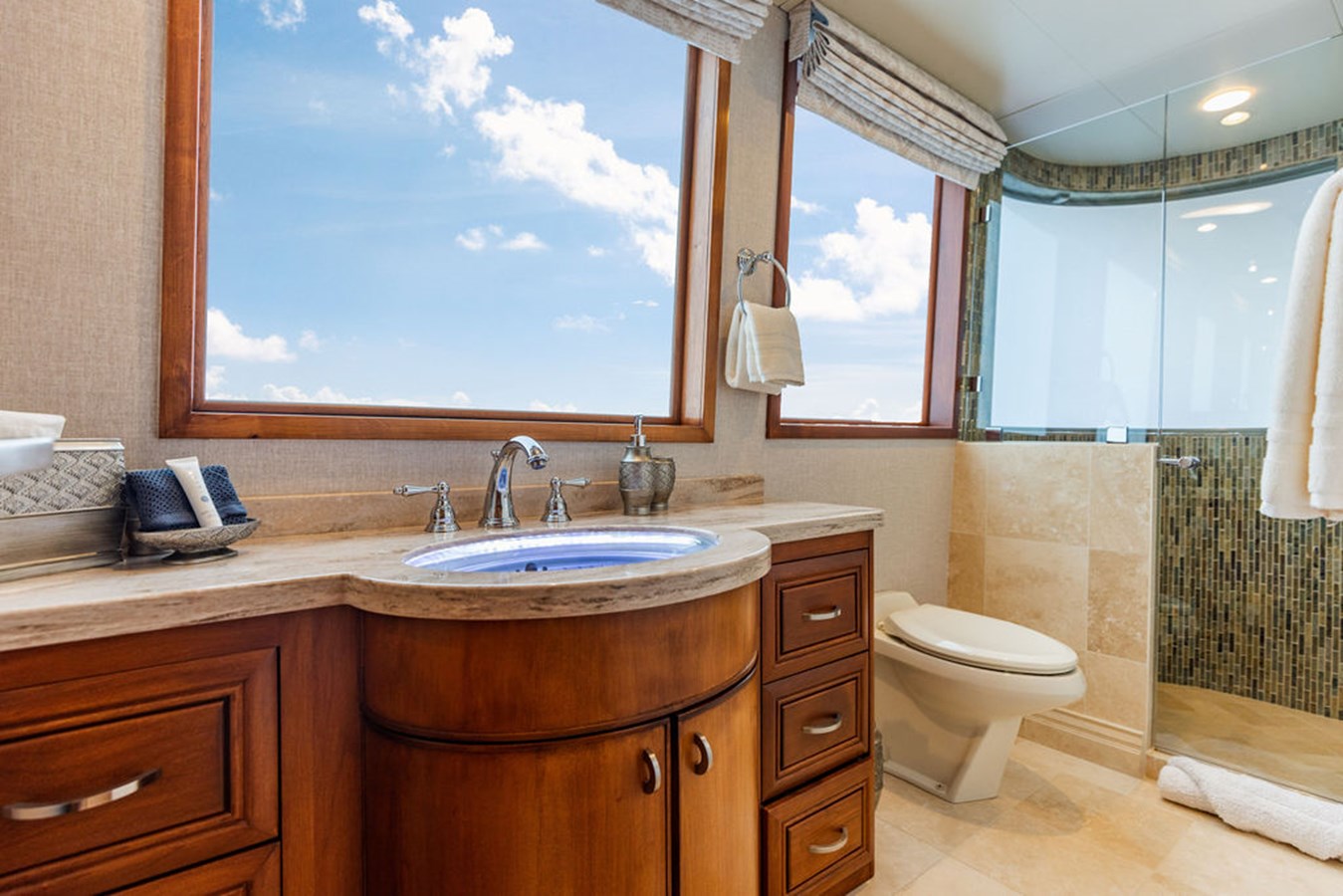

Empire Sea features a large Master suite aft on the bridge deck aft with King bed, extensive storage, couch and chaise lounge area with expansive windows to further enhance the spaciousness of the stateroom. The ensuite Master Bathroom has a large glass shower with electric opaque windows and electric blinds

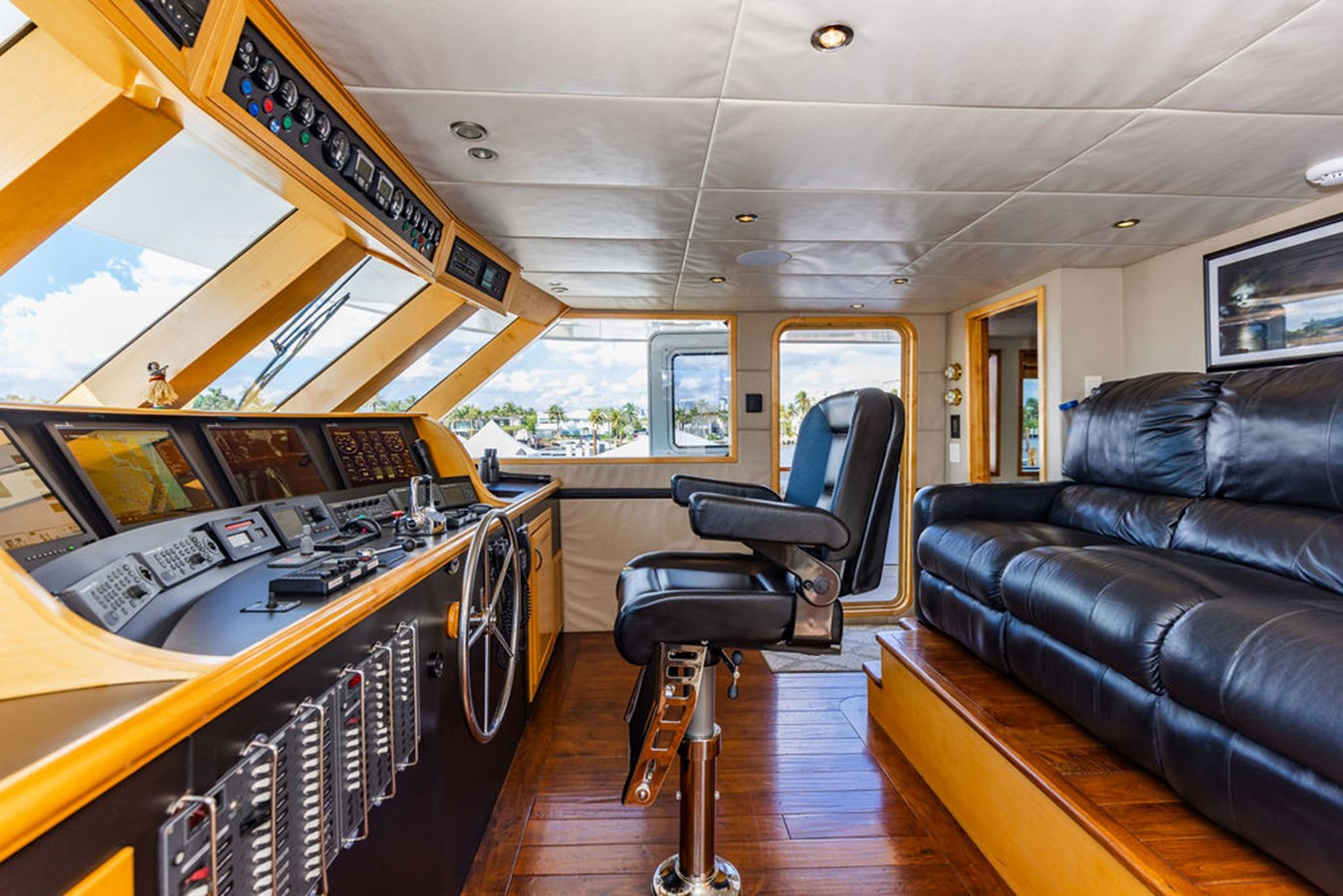

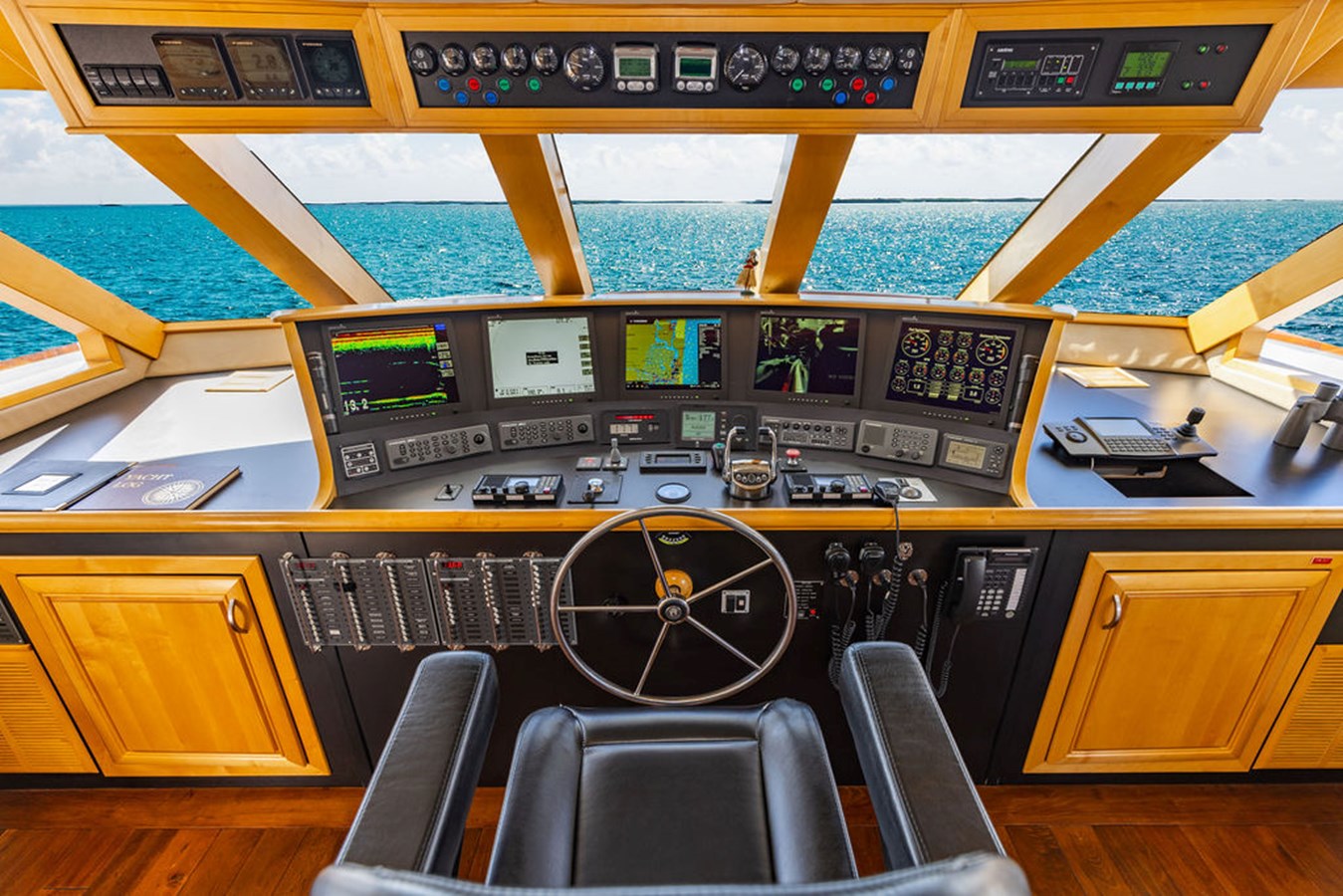

WHEELHOUSE/BRIDGE DECK
Forward on the Bridge deck, the Wheelhouse has a complete navigation arrangement with a large couch aft for cruising extensively and with the oversized windows it is very comfortable for all with its centerline Stidd helm chair.

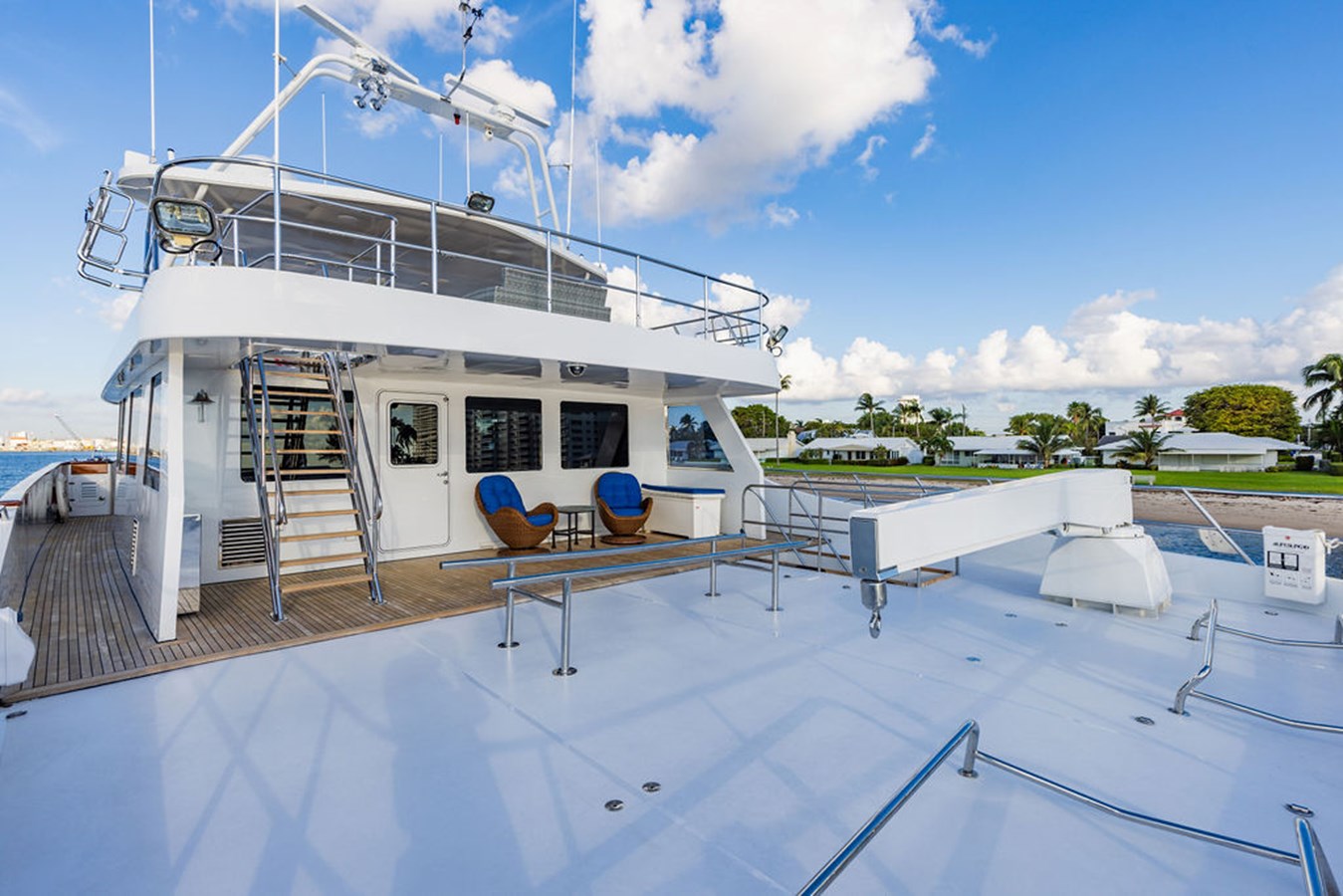

BRIDGE DECK AFT

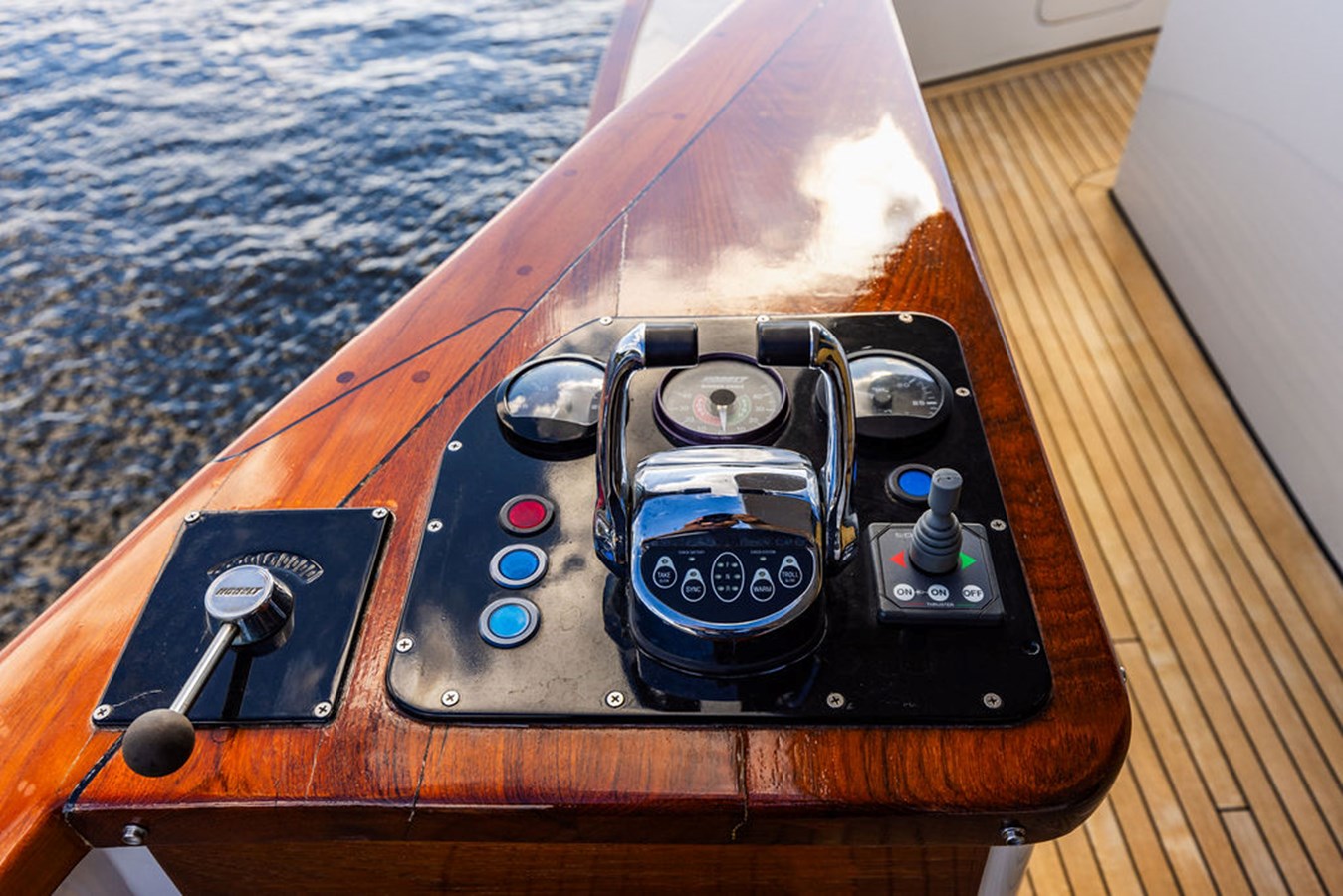

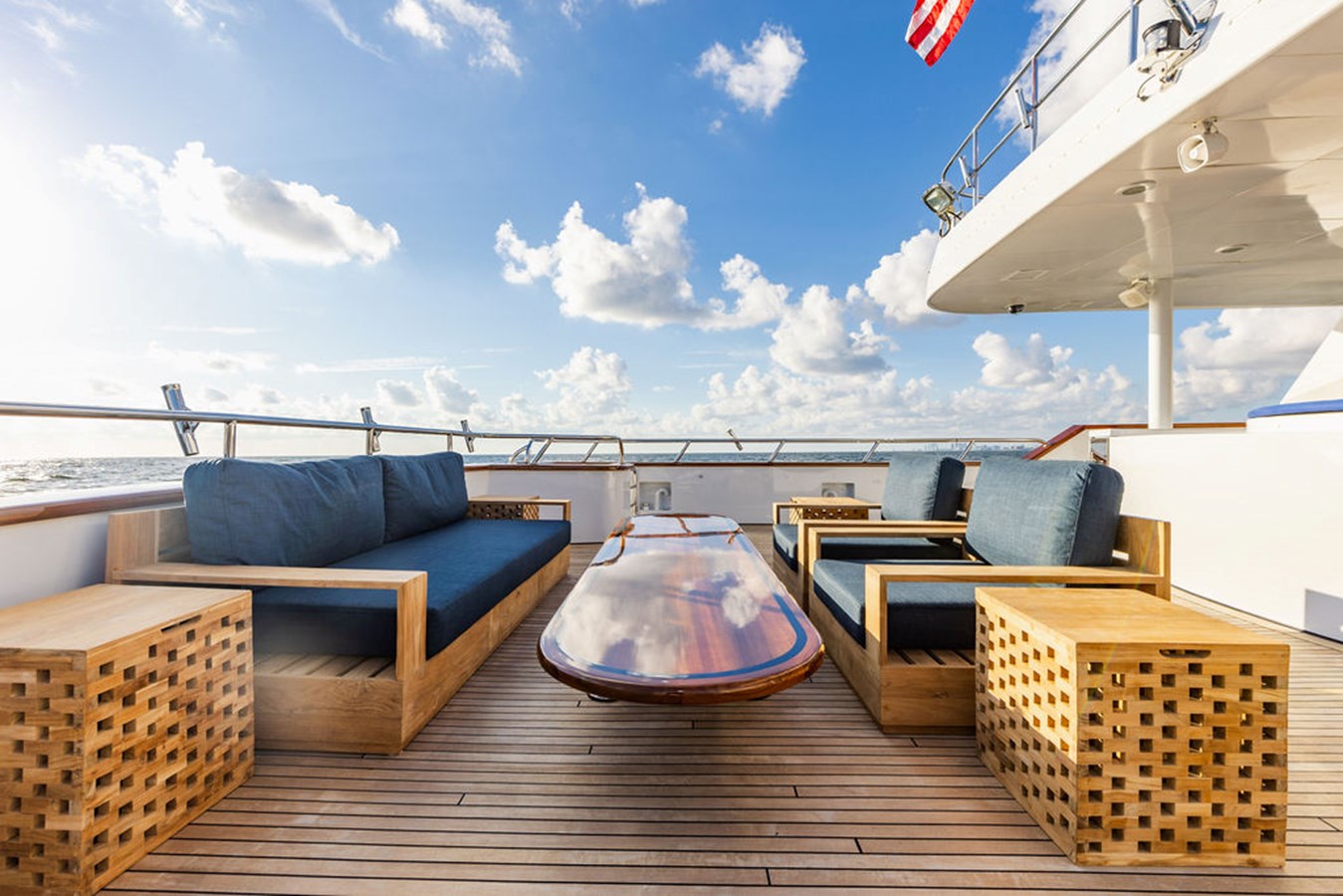

With comfortable portable aft facing seating out the master stateroom this a great area to enjoy your anchorage. The area aft is a large tender and toy storage deck with crane, with the tenders/toys removed for the day this area makes a great sun lounging or entertainment deck. There is also full control box for maneuvering or fishing aft

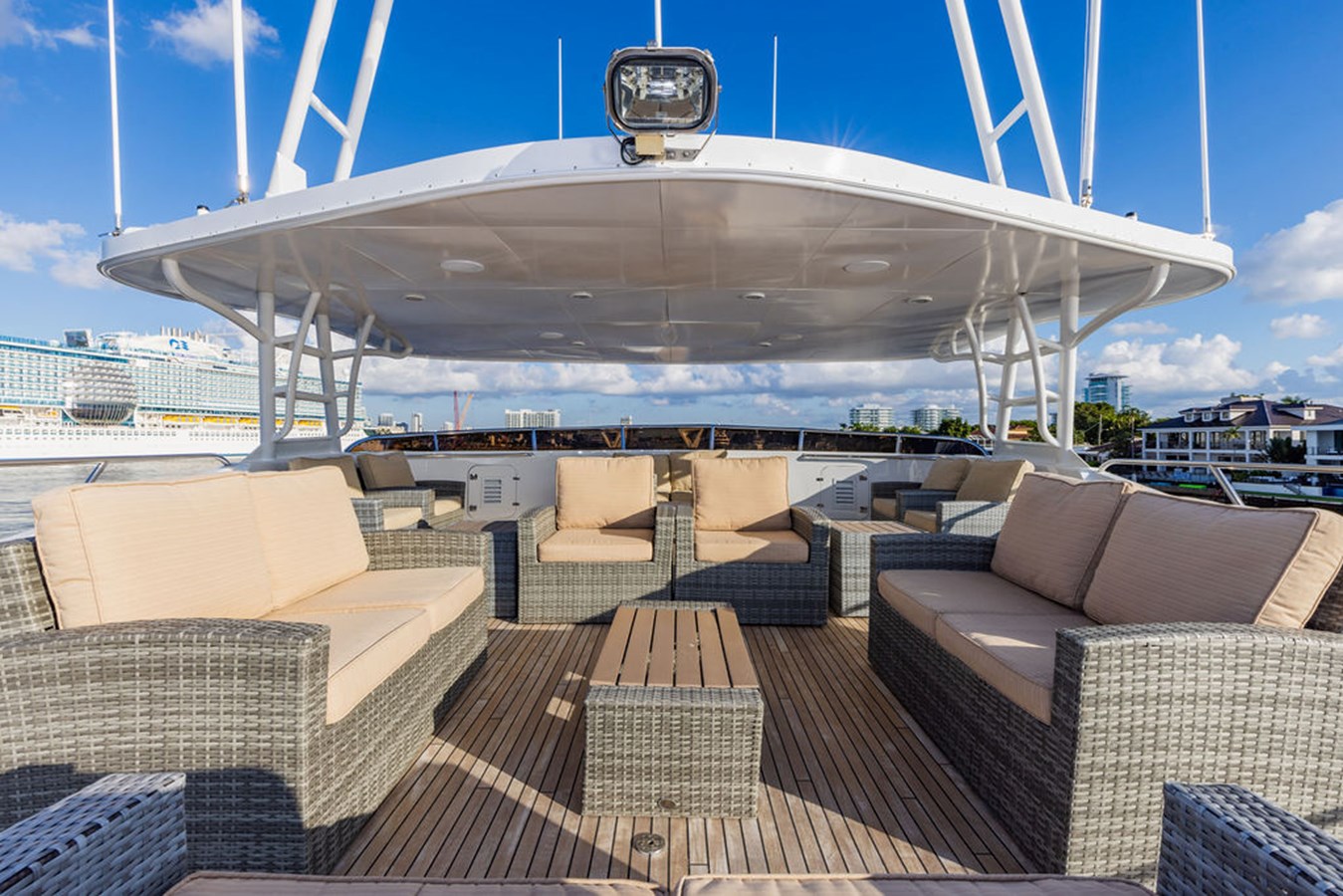

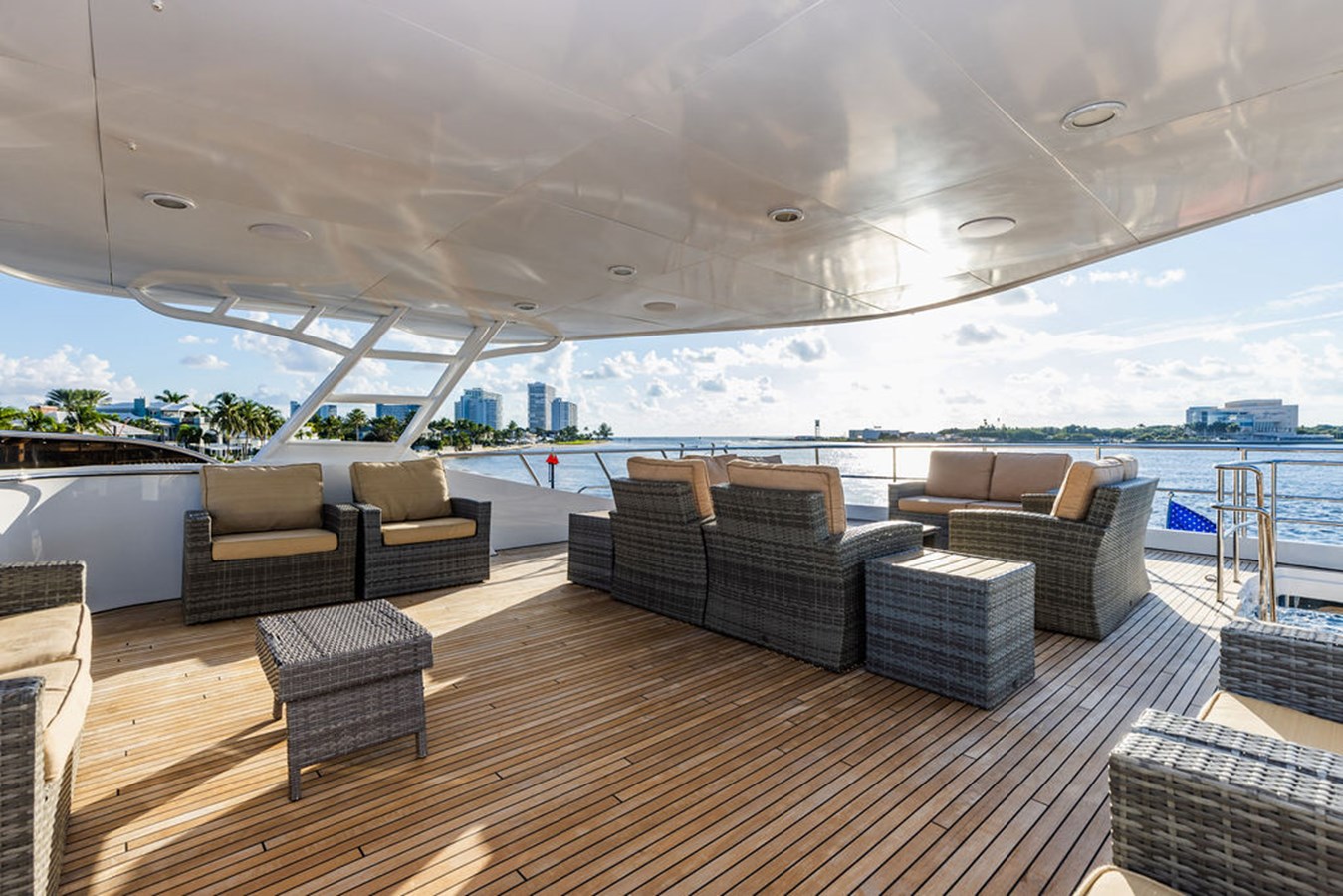

SUNDECK / FLYBRIDGE
This is the guest’s favorite area to lounge, sunbathe, and arrive into ports in style. The sundeck can be used as gym area in addition to the endless wicker furniture configurations that can be utilized under the cover of the mast and overhead cover. There is also space and ability to store additional water toys on this deck.

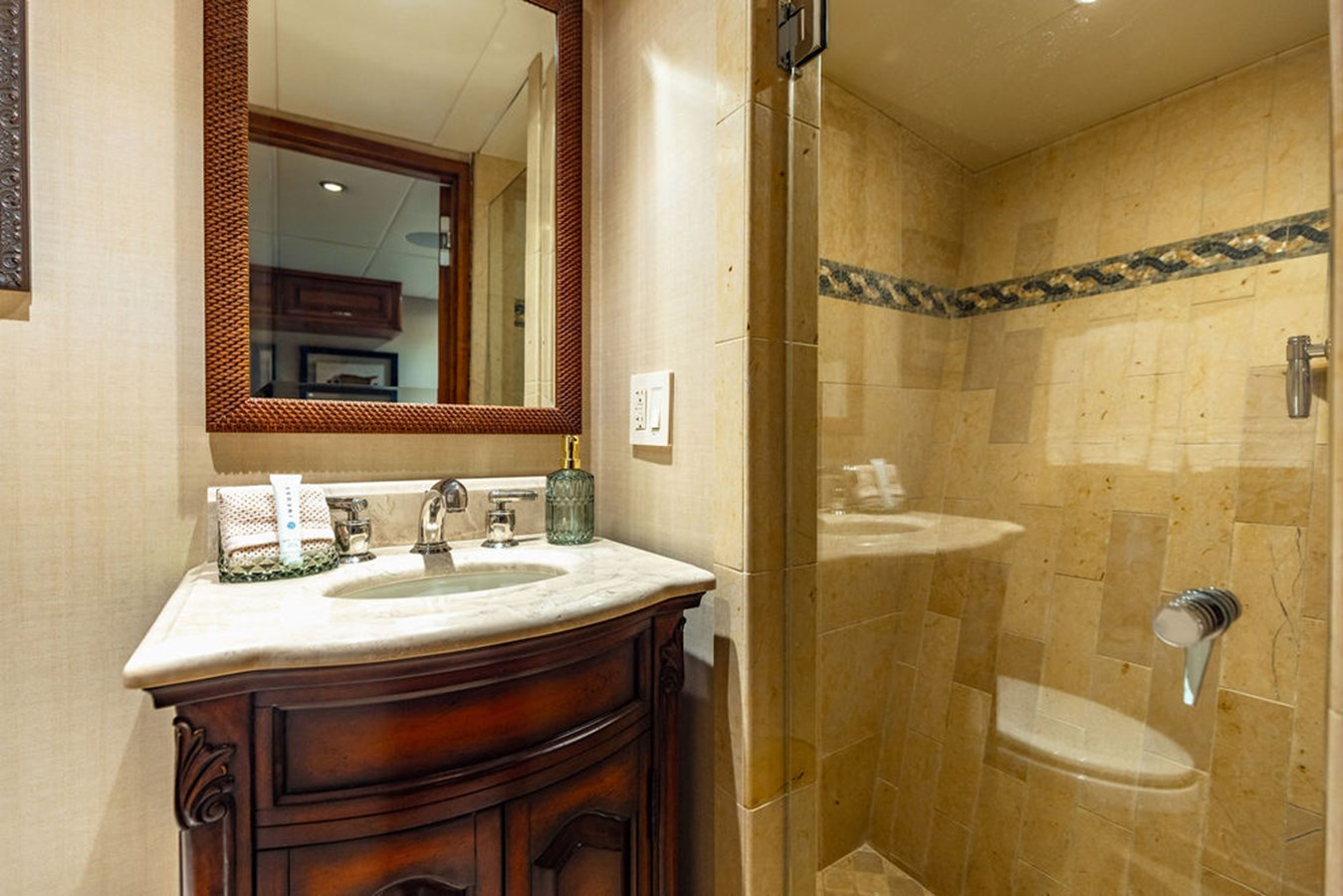

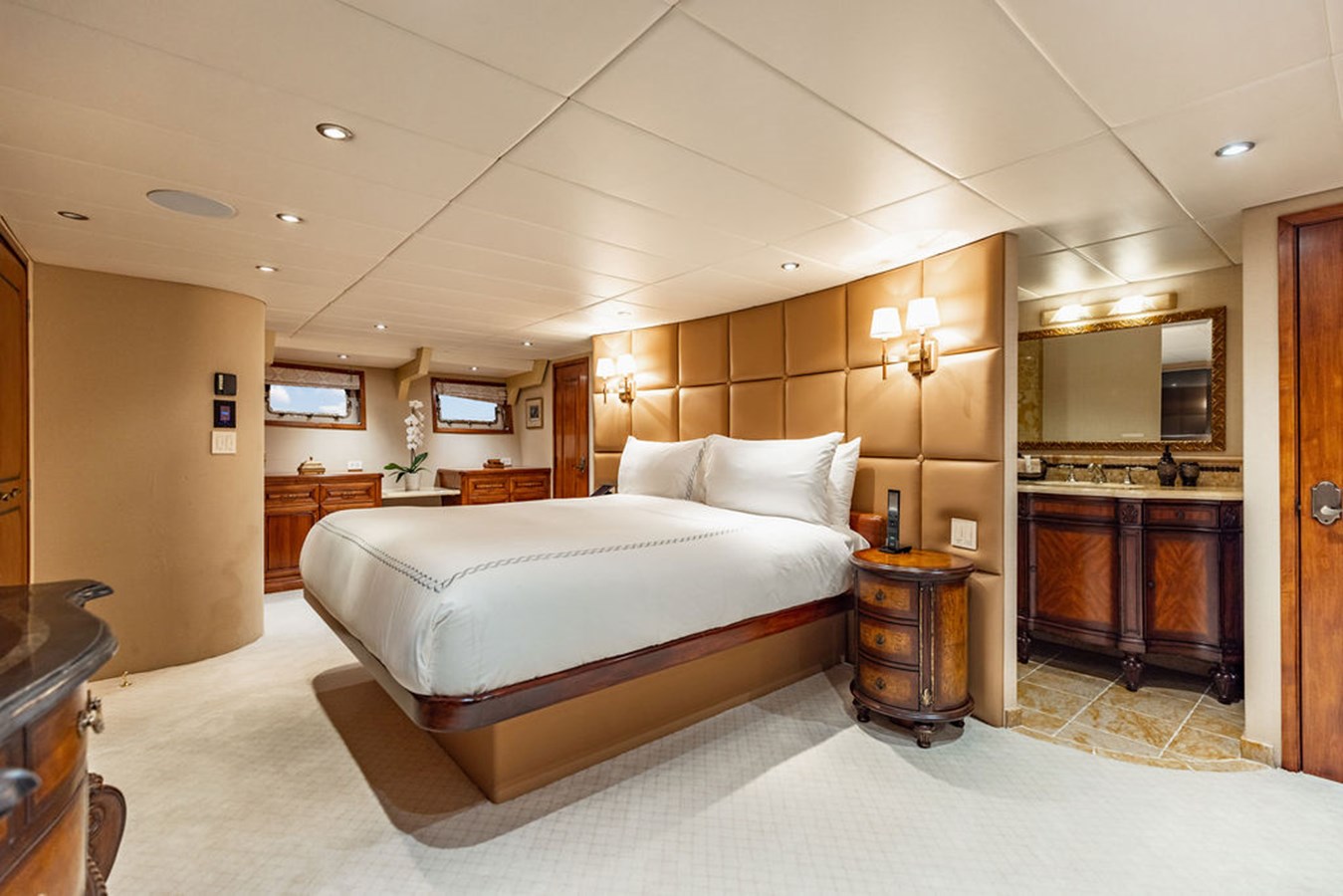

GUEST STATEROOMS

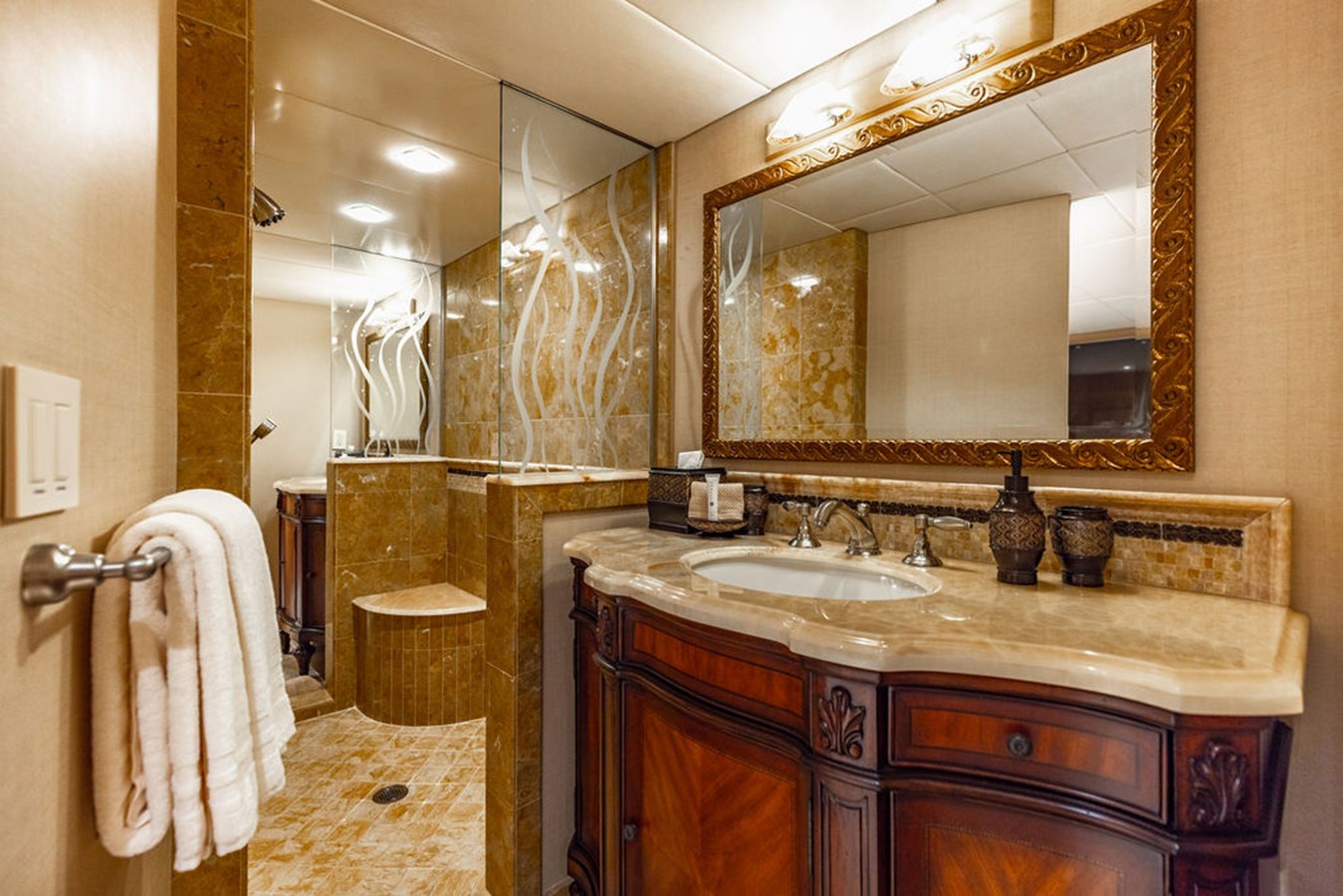

Below deck are three guest staterooms with complimentary styling, clean lines, and the elegant, designed millwork seen throughout the yacht. There are two queen staterooms with ensuite bathrooms with showers. There is also one additional large VIP stateroom with lounge area and makeup desk as well as an ensuite bathroom with a walk-through shower stall complete with high finishes and luxurious marble work throughout and a separate water closet. All staterooms have entertainment systems, individual A/C controls, and safes for guest security.
CAPTAIN & CREW
Empire Sea can accommodate up to 5 crew in 3 cabins, including a Captain’s cabin and two additional crew cabins. Each crew cabin includes an ensuite bathroom, AC controls, and entertainment system
Over the past 10 years, she has been meticulously maintained and continuously upgraded by her current Owner on an “open checkbook” basis, ensuring she remains in true turnkey condition and ready to cruise in all respects.
KEY FEATURES:
•Designed for long-range cruising
•Expansive open deck spaces
•Equipped for offshore fishing & diving
•High capacity davit for tender storage
•Powerful CAT main engines provide the capability to tow a large tender
•Excellent ownership history of 10 years with the current owner.
•Low crew requirements for easy management
•Large portholes for ample natural light
•Exclusively used for private purposes
