2027 JOHNSON RPH w/ON-DECK MASTER

 1.  MAIN DECK-TEAK 14MM

 2.  HIGH BULWARK W/FLUSH MOUNTED LED DECK LIGHTS, TWO REAR
         BULWARK SIDE DOORS FOR BOARDING (ONE BOARDING GATE ON
           EACH SIDE)

 3.  STAINLESS STEEL INTEGRAL ROLLERS & CHAIN STOPPER FOR DUAL
         ANCHOR CHAIN

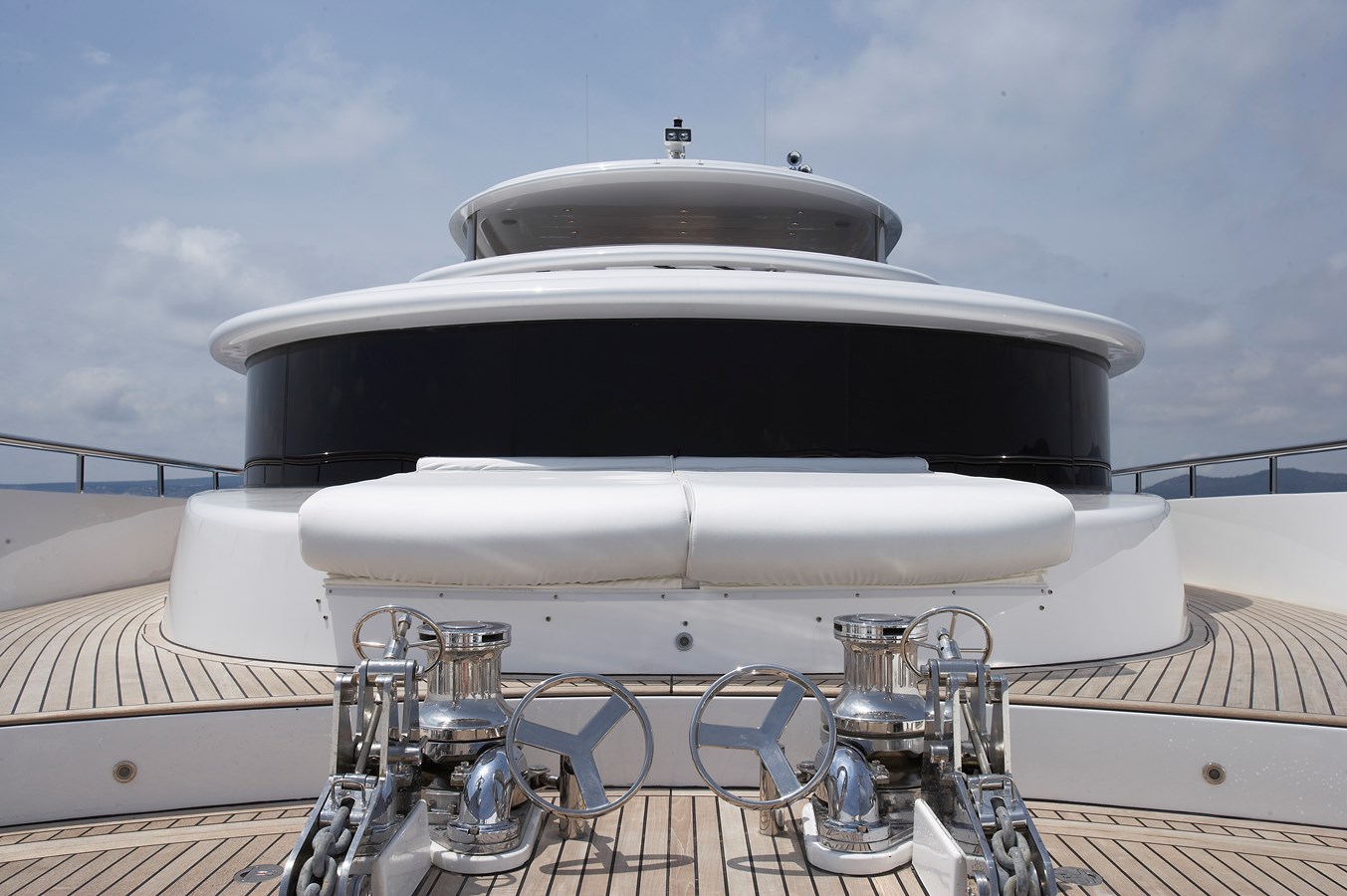

 4.  VERTICAL ELECTRIC ANCHOR WINCHES x 2
      MAXWELL VWC6000C/HYDRAULIC
      VERTICAL HYDRAULIC WINDLASS, DUAL DIRECTION, CHROMED, MATCHED
         PAIR,W/CHAIN WHEEL C1=3182/016 (1/2”HT) AND PARTS:
      2 X AA560 ROPE/CHAIN COUNTER/REMOTE CONTROL
      1 X BAND BRAKE
      1 X CHAIN ROLLER STOPPER TENSIONER
      1 X HAND HELD REMOTE CONTROL

 5.  AFT DECK MOORING CAPSTAN x 2 SETS
      MAXWELL VC2200W/D
      VERTICAL ELECTRIC CAPSTAN, WIDE DRUM SINGLE DIRECTION, 24VDC,
         CHROMED, AND PARTS:
      1 x FOOT SWITCH W/COVER
      1 x 80 AMP BREAKER PANEL
      1 x REVERSING SOLENOID PACKS, 24VDC

 6.  STAINLESS STEEL 250 LB ANCHOR x 2

 7.  HIGH TENSILE GALVANIZED ANCHOR CHAIN x 2
      LEFT: 300 FEET (5/8”)
      RIGHT: 300 FEET (5/8”)

8.  FRESH WATER ANCHOR CHAIN WASH DOWN

 9.  HEAVY DUTY S/S 3” OVAL HANDRAIL WITH 1 1/2” STANCHIONS

 10. S/S FLAGPOLE ON BOW RAIL

 11. BOW STORAGE LOCKER FOR FENDERS AND ANCHOR CHAINS

 12. HEAVY DUTY 316# STAINLESS STEEL TWIN CLEATS AND FAIRLEADS
         WITH ROLLERS

 13. BLACK TEMPERED SAFETY GLASS (EXCEPT 5 WINDOWS IN FRONT
         OF PILOT HOUSE)
  
 14. STAINLESS STEEL PNEUMATIC SALOON SLIDING DOOR WITH BUTTON AND
           SAFETY SENSOR DEVICE

 15. TWO PANTOGRAPH SIDE DOORS (PORT SIDE & STARBOARD SIDE) IN
         DECK HOUSE

 16. STAINLESS STEEL PORTHOLES ALL WITH BLACKOUT SHIELDS/ ROUND
          PORT LIGHTS ON DECK HOUSE

 17. BUILT-IN HOT & COLD WATER SHOWER – SWIM PLATFORM
       SSI 48300000 STOWAWAY SHOWER UNIT WHITE x 1 SET

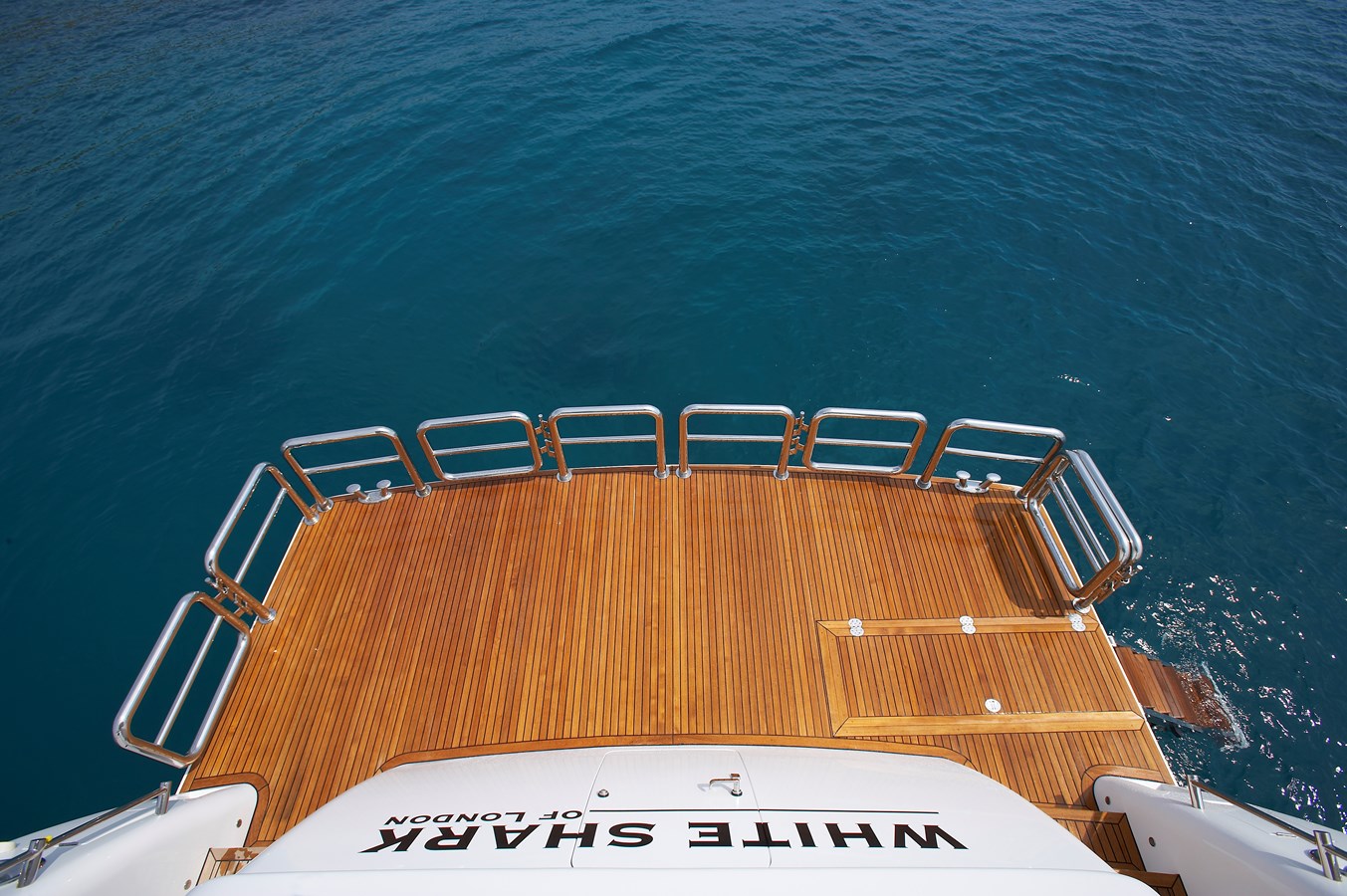

 18. LARGE TEAK INLAY SWIM PLATFORM WITH STAIRWAYS TO AFT DECK

 19. FRP “U” SHAPE SEATING ON AFT DECK WITH CUSHION AND COVERS

 20. AFT DECK CUSTOM SLIDING HIGH-LOW TABLE WITH COMPASS INLAY x 2

 21. FRP STORAGE CABINET ABOVE RUDDER IN THE LAZARETTE

 22. ANTI-FOULING BOTTOM PAINT
       SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
       SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445
          BLACK OR 3430 DARK BLUE

 23. SINGLE BOOT STRIPE COLOR: BLACK

 24. S/S HANDRAILS ON AFT DECK STAIRS WITH TWO INTERMEDIATE RAILS

 25. LED FLOOD LIGHT ON THE END OF AFT DECK CEILING x 2

 26. EXTERIOR STEP LIGHTS
       IMTRA KODIAK BLUE LED S/S 24V

 27. RUB RAIL WITH S/S CAP ON LOWER AFT HULL SIDES

 28. SOLID STAINLESS STEEL RUB RAIL AROUND HULL/DECK JOINT

 29. ZINC ANODES ON TRANSOM, SHAFT AND BOW AND STERN THRUSTER

 30. FRESH WATER WASH DOWN SPIGOTS ON THE BOW AND AFT DECK
       SCANDVIK 10187 S/S

 31. AFT DECK REFRIGERATOR - U-LINE WH95TP-20 110V/60HZ

 32. DECK WASHDOWN, SALT WATER - FLOJET 4325-343L WATER PUMP 24V
          w/NOZZLE x 1

 33. HYDRAULIC SWIM PLATFORM (BESENZONI PL850 OR EQUIVALENT
          w/1873 LBS. LIFTING CAPACITY

 34. LADDER, SIDE RAILS + SUN PADS ON MASTER COACH ROOF

 35. WATER FILL DECK FITTING x 1

 36. DIESEL FILL DECK FITTING x 4

1. TEAK FLOOR WITH 14 MM TEAK AND HOLLY WITH MATT FINISH

2. FRP RADAR ARACH, MAST, AND WINGS

3. TEAK TREAD STAIRWAY FROM AFT DECK TO FLYBRIDGE WITH HAND RAILS AND LED STEP LIGHTS

4. AIR HORN:

BUELL S/S AIR HORN COMPRISING:

1 X 5444-3 24V TANK MOUNTED COMPRESSOR

1 X 1062 12” STROMBOS AIR HORN

1 X 1063 15” STROMBOS AIR HORN

1 X 1064 18” STROMBOS AIR HORN

5. CUSTOM WALK BEHIND WET BAR:

REGRIGERATOR/ICEMAKER: U-LINE LATEST MODEL 110V/60 HZ
MICROWAVE: GE LATEST MODEL
FAUCET: GROHE
SINK
3 x BAR STOOLS
GRANITE TOP

6. WOOD/ UPOLSTERED SETTEE + COFFEE TABLE

7. S/S FLAG STAFF ON REAR OF FLYBRIDGE

8. HELM SEAT:

PORT SIDE: AIRTEX HELM SEAT X 2

9. HIGH QUALITY ARITEX S/S GAS BBQ

10. S/S HATCH ON F/B DECK STEP OPENING

11. OVERSIZE DRAINS W/STRAINERS AT EACH CORNER OF FLY BRIDGE DECK WITH INTERNAL OVERBOARD DRAINS

12. CUSTOM LIFERAFT BRACKET ON THE OUTBOARD X 2 LIFERAFTS OWNER SUPPLIED

13. SEARCH LIGHT, DUAL STATION:

ACR RCL-100 24V

14. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM:

I. GARMIN:

GPSMAP 8617 17” FULLY-INTEGRATED MULTI-TOUCH MFD x 2
GMI 20 MARINE INSTRUMENT DISPLAY x 1
GMR FANTOM™ 4”/40W/72NM, SOLID-STATE, OPEN-ARRAY RADAR x 1
GARMIN VHF 210 MARINE RADIO x 1
GARMIN AIS 600 CLASS B TRANSCEIVER x 1
GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
GARMIN GSD 25 MARINE NETWORK SOUNDER 2KW x 1

II. RAYMARINE:

RAYMARINE GS15.4” GLASS BRIDGE MULTIFUNCTIONAL DISPLAY WITH x 2
RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
RAYMARINE RAY218E VHF RADIO x 1
RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400 ACTUATOR CONTROL UNIT x 1
RAYMARINE CP100 DOWNVISION FISHFINDER x 1

15. STABILIZER CONTROL AND MONITORING DISPLAY

16. BOW & STERN THRUSTER CONTROL PANEL

17. CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE ENGINE ROOM AND 2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH

18. RUDDER INDICATOR

19. FUEL GAUGE HEADHUNTER TS-3000 SERIES

20. DANFORTH 5” MAGNETIC COMPASS x 1

21. FUSION STEREO SYSTEM, FLYBRIDGE, AFT DECK:

MS-AV700I DVD / RECEIVER–WITH FUSION LINK
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

22. POP UP TV CABINET W/ 32” LCD TV

23. APPLE TV

24. LOW LEVEL COURTESY LED LIGHTS 24V

25. INTERNATIONAL NAVIGATION LIGHTS & CONTROLLER ALL LED:

AQUA-SIGNAL ONE SET (5)
3532-003 #55 MASTHEAD LIGHT 24V
3535-103 #55 STARBOARD LIGHT 24V
3534-203 #55 PORT LIGHT 24V
3533-703 #55 STERN LIGHT 24V
3531-703 #55 ALL-ROUNG LIGHT 24V

26. BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM W/ SPEAKERS

27. PIONEER BDP-160 BLU-RAY DISC PLAYER

28. PNEUMATIC STAINLESS STEEL SKYLOUNGE SLIDING DOOR WITH BUTTOM AND SAFETY SENSOR

29. SIDE AND AFT BIRDGE RAIL STAINLESS STEEL

30. S/S GRAB RAIL AROUND BAR UNIT

31. INDIRECT LED LIGHTING UNDER WET BAR AND SEATING

32. OVERHEAD LED LIGHTS

33. INTERLOCKING HEADLINER

34. DAYHEAD WITH TOILET AND WASH BASIN

1. ENGINE:

CAT C-32 ACERT 1925 HP X 2

GEARBOX:

ZF2070A MARINE GEAR RATIO 2.467:1 RATIO x 2

2. SOUNDOWN ENGINES MOUNTS TO REDUCE VIBRATION

3. CAT ELECTRONIC ENGINE CONTROL SYSTEM, INCLUDING REMOTE STATION CONTROL & BACK-UP SYSTEM:

FIXED STATIONS x 1 AT F/B; REMOTE CONTROL STATION x 1 IN THE AFT DECK PORT SIDE

4. ENGINE FUEL FILTERS:

RACOR 75/1000MAX2 W/ALARM x 2

5. GENERATOR FUEL FILTERS:

RACOR 75/500MAX2 W/ALARM x 2

6. S/S SHAFTS:

AQUATECH 22 HIGH STRENGTH DIAMETER 4” x 2

7. HIGH PERFORMANCE 5–BLADE PROPELLERS:

HUNG SHEN NIBRAL PROPS x 2

8. MAIN & INTERMEDIATE BRONZE SHAFT STRUTS WITH BACKING PLATES

9. SHAFT & RUDDER PACKING GLANDS WITH MAINTENANCE FREE TIDE STRONG SEALS:

TIDES MARINE RUDDER SEAL DIAMETER 3-1/2” & SHAFT SEAL DIAMETER 4”

10. HYNAUTIC POWER STEERING SYSTEM WITH PTO ON BOTH ENGINES:

PSC-2252-21-2 DUAL STATION W/COOLING WATER FLOW DETECTOR

11. SEA WATER STRAINERS FOR ENGINE, GENERATORS, AIR CONDITIONER AND WATER MAKER

12. SEA COCKS ON ALL UNDERWATER FITTINGS

13. S/S EMERGENCY TILLER

14. S/S RUDDERS:

DIAMETER 3-1/2”

15. HEAVY DUTY S/S WIPERS WITH VARIABLE SPEED CONTROLS & SCREEN WASHER SYSTEM:

EXALTO 24V x 4, PILOTHOUSE AND SKYLOUNGE

16. BOW AND STERN THRUSTERS WITH CENTRAL HYDRAULIC SYSTEM

17. "AT REST" STABILIZER SYSTEM

18. STEERING WHEELS AT P/H & F/B:

S/S 22” DIAMETER x 2

19. UNDERWATER EXHAUST W/ BYPASS

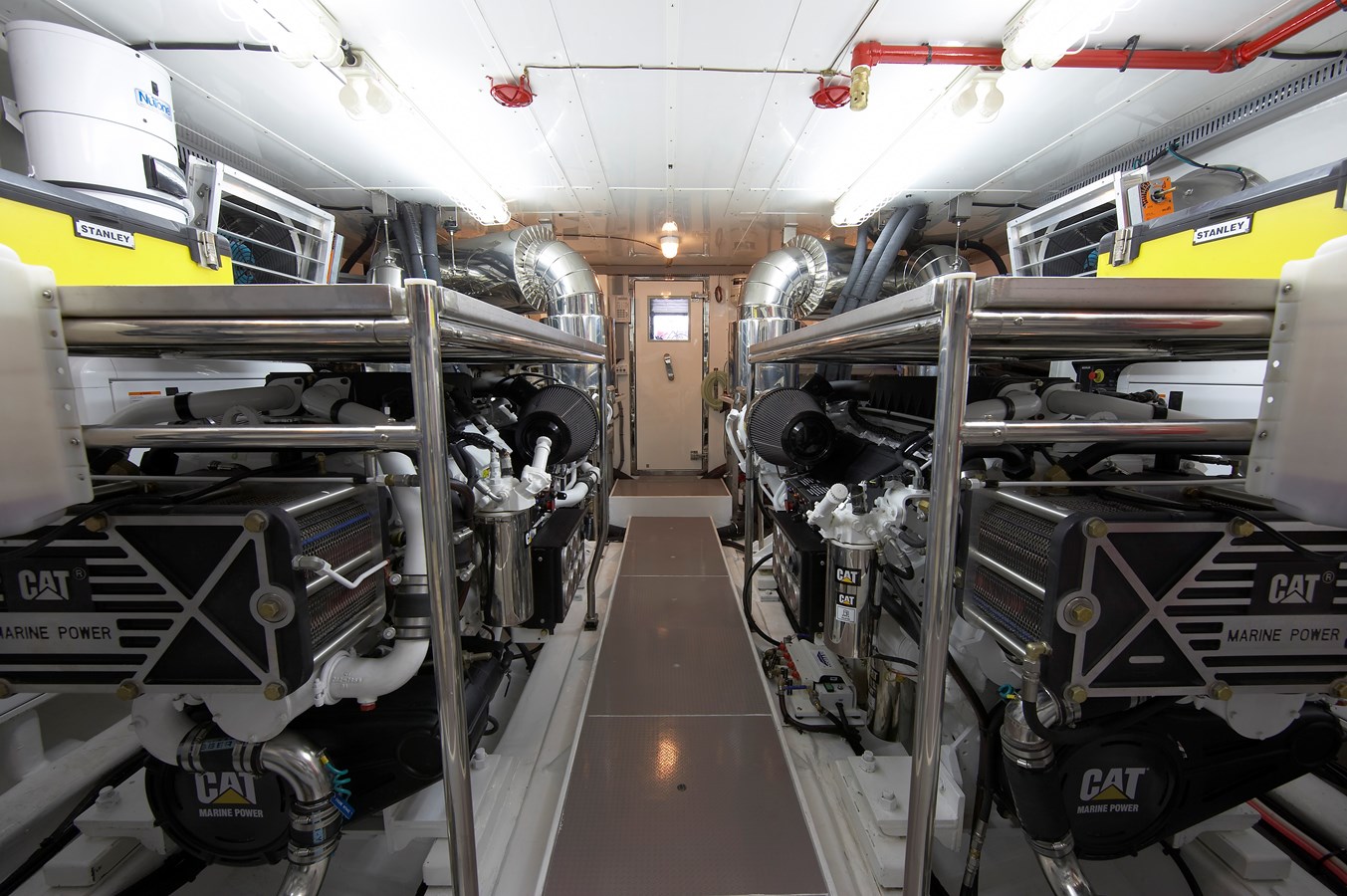

1. WELL PLANNED, SPACIOUS E/R WITH REMOVABLE NIDA-CORE DECK PLATES

2. VAN CAPPELLEN CONSULTANCY DESIGN SOUND INSULATED MATERIALS

3. WATER TIGHT BULKHEAD UP TO ENTRANCE DOOR

4. FULL LENGTH S/S GRAB RAIL ON EACH SIDE OF ENGINE

5. E/R AC LED LIGHTS & DC LED DOME LIGHTS

6. ENGINE COMPARTMENT BLOWER & MOISTURE ELIMINATOR:

DELTA “T” BLOWERS WITH 600-P/T4 CONTROL SYSTEM, ADJUSTABLE SPEED DRIVE AND COLOR TOUCH SCREEN

500-219183-45/8 INTAKE FAN W/DAMPER, AXIAL. 21 IN. x 2 SETS

500-215363-30/8 EXHAUST FAN W/DAMPER, AXIAL. 15 IN. x 2 SETS

7. AUTOMATIC FIRE EXTINGUISHING SYSTEM W/AUTOMATIC ENGINES & VENTILATION SHUTDOWN:

SEA-FIRE FM-200 24V

SEA-FIRE FIRE DETECTION & MONITORING SYSTEM THROUGHOUT THE BOAT

8. ENGINE ALARM SYSTEM FOR LOW OIL PRESSURE & HIGH WATER TEMPERATURE

9. HIGH VOLUME AC FRESH WATER PRESSURE PUMP & ONE DC PUMP FOR BACK UP:

HEADHUNTER XR-124 12-24VDC x 1

HEADHUNTER M5-230 MACH 5 230VAC x 2

10. CHILLED WATER AIR CONDITIONING UNITS LOCATED IN ENGINE ROOM:

CRUISAIR CHILLED WATER AIR CONDITIONING 230V/60HZ W/SMXHT DIGITAL CONTROL
AIR COMPRESSOR:

TWC72DC (72000 BTU) x 3
AIR HANDLER:
SALOON: 24000 BTU/HR x 3
GALLEY: 12000 BTU/HR x 1
MASTER CABIN: 18000 BTU/HR x 2
MASTER BATHROOM: 12000 BTU/HR x 1
HALLWAY: 6000 BTU/HR x 1
VIP CABIN/BATHROOM: 18000 BTU/HR x 1
PORT GUEST CABIN/BATHROOM: 12000 BTU/HR x 1
STBD AFT GUEST CABIN/BATHROOM: 12000 /HR x 1
PORT AFT GUEST CABIN/BATHROOM: 12000 /HR x 1
SKYLOUNGE: 24000 BTU/HR x 2
OFFICE/LOWER HELM: 24000 BTU/HR x 1
CAPTAIN CABIN: 9000 BTU/HR x 1
CREW CABIN: 6000 BTU/HR x 1
CREW GALLEY: 12000 BTU/HR x 1

11. ALUMINIUM & FRP FUEL TANKS W/ HEAD HUNTER FUEL GAUGE:

723 GAL ALUMINIUM FUEL TANK x 2
1,180 GAL FRP FUEL TANK x 1
1,355 GAL FRP FUEL TANK x 1

12. OIL CHANGE PUMP SYSTEM FOR ENGINES, GENERATORS AND CLUTCHES
REVERSO OP-704 24V x 1

13. HEAVY DUTY ENGINE ROOM DOOR WITH VIEWING WINDOW

14. MANUAL BILGE PUMP:

HENDERSON MK5 UNIVERSAL MOUNT PUMP x 1

15. FUEL TRANSFER PUMP W/ MECHANICAL FLOW METER:

TUTHILL FR2410C 24V 1/4HP x 2
TUTHILL 901-1 x 2

16. S/S COVER OUTSIDE ENGINE EXHAUST

17. FRESH-WATER HOSE FOR FILLING ENGINE AND GENERATOR AND EXPANSION TANK IN ENGINE ROOM:

BASIN: LP-7000 x 1
TAP: SCANDVIK 10477 COMPACT MIXER WHITE x 1
SHOWER DRAIN: RULE 98 800GHP 24V x 1

18. WATER MAKER:

SEA RECOVERY 1400GPD(ONE) COMPLETE PREFILTER, OIL/WATER SEPARATOR, CARBON FILTER, SRC FWF/AW AUTOMATICALLY RINSES WITH FRESH WATER

19. WORK BENCH OVER THE ENGINE X 2

 1.  110/220 VOLT ELECTRICAL SUPPLY FROM GENERATOR OR SHORE POWER

 2.  SHORE POWER INLET W/ RADIO REMOTE CONTROL IN THE TRANSOM
      GLENDINNING CABLE MASTER CM-8 100AMP 24V WITH 120’ CABLE x 2 SETS
      GLENDINNING RADIO REMOTE CONTROL 04155 (2 TRANSMITTERS) x 1 SET

 3.  INVERTER
      MASTERVOLT MASS COMBI 24/4000-100 x 1

 4.  COLOR-CODED WIRING FOR EASY IDENTIFICATION

 5.  GENERATORS
      ONAN MARINE DIESEL GENERATORS 55KW SINGLE PHASE, (60HZ); 220V/110V
         60HZ x 2
     INCLUDING STANDARD EQUIPMENT(CONTROL PANEL): SOUND SHIELD, WET
         EXHAUST MUFFLER, GAS/WATER SEPARATOR

 6.  AUTOMATIC BATTERY CHARGER
      DOLPHIN 80 AMP 24V 115-230V 50/60HZ x 2 FOR SERVICE BATTERIES
      PROTECH 12V 30AMP x 1 FOR GEN BATTERIES

 7.  BATTERY SWITCH (VAPOR PROOF) - BEP 701-MDO x 3

 8.  225 AMP/HR GEL CELL SEALED BATTERIES FOR
         SERVICE/ENGINES/GENSETS
      SERVICE LIFELINE GPL-8DL 255AMP x 4
      ENGINE LIFELINE GPL-8DL 255AMP x 4
      GENSETS LIFELINE GPL-8DL 255AMP x 2

 9.  ALL BATTERIES ENCLOSED WITH FIBERGLASS BOXES AND COVERS

 10. MAIN ELECTRIC PANEL INCLUDES AC AND DC CIRCUIT BREAKERS

 11. 24 VOLT DC MONITORING AND MAIN CIRCUIT BREAKERS

 12. AC VOLT DUPLEX RECEPTACLES LOCATED THROUGHOUT INCLUDING
         ENGINE ROOM

 13. GFI PROTECTION FOR AC REQUIRED OUTLETS - VIMAR 16511.16B
         120V~60HZ

 14. AUTOMATIC ISOLATION & BOOSTING TRANSFORMER
       CHARLES 93-ISOBOST 100 AMP x 2

 15. INDIRECT LED LIGHTING UNDER VALANCE IN SALOON, STATEROOMS,
         PILOTHOUSE, HAND RAILS, AND GALLEY

 16. COMPLETE ANTI ELECTROLYSIS BONDING SYSTEM VIA 2” COPPER STRAP
         AND HULL ANODES

 17. SHORE TELEPHONE INLET - HUBELL PH6594TV x 1



1. FWD 150 GALLON HOLDING TANK WITH MACERATOR PUMP & AFT 50 GALLON TANK WITH MACERATOR

2. WASTE TREATMENT SYSTEM IN E/R:

HEADHUNTER TW-HMX-512 1200GPD

3. SUMP PUMPS FOR SHOWER:

RULE 12 24V/2000GPH x 3

4. BILGE PUMPS:

RULE 16A 24V/3700GPH x 7

5. FLOAT SWITCH:

LOW-SUREBAIL 382251 x 6
HIGH-SUREBAIL 382251 x 9

6. MARINE GRADE LINES FOR FRESH WATER SYSTEM

7. WATER HEATERS W/HOT WATER CIRCULATING PUMP:

WATER HEATER: TORRID MV40S 120V 1500W S/S 40 GALLONS x 2
HOT WATER CIRCULATING PUMP: GRUNDFOS UP10-16B5/ATLC 115V/60HZ x1

8. 634 GAL S/S WATER TANKS W/ HEADHUNTER TS-3001B ELECTRIC WATER GAUGE

9. PRESSURE STORAGE TANKS:

HEADHUNTER AVF-4 4 GAL x 2
GROCO PST-1 1 GAL x 1

10. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER OF THRU HULL FITTINGS, IN BRONZE WITH BALL VALVES

11. HIGH WATER BILGE ALARM SYSTEM - 7 AREAS

12. DOCKSIDE FRESH WATER INLET:

PAR JABSCO 44410-1001 x 1

13. COLOR CODED PIPING SYSTEM FOR EASY IDENTIFICATION

14. BRONZE INTAKE VALVES (BALL). ALL THRU HULL FITTINGS ARE BRONZE

15. 2HP AC FIRE PUMP WITH ON-DECK FIRE HOSE

16. BILGE EXHAUST VENTILATION:

PAR 35740-0013 24V 3” FLANGE-MOUNT BLOWER



1. HIGH QUALITY FABRIC SOFAS

2. INTERLOCKING VINYL CEILING PANELS THROUGHOUT

3. HIGH QUALITY DOOR LOCK SETS THROUGHOUT:

HAFELE-SANDRA

4. TGI LIGHTING SYSTEM THROUGHOUT:

TGI SP0101 (#3) / CHROME TRIM & WHITE COLOR

5. ITALIAN SWITCH & OULTETS THROUGHTOUT:

VIMAR / CHROME TRIM

6. CHOICE OF FABRICS FOR BEDDING & CURTAINS

7. INDIRECT LIGHTING SYSTEM THROUGHOUT, UNDER SOFAS, BEDS & CURTAIN VALANCES:
IMTRA LED ROPE LIGHTING 24V WARM WHITE

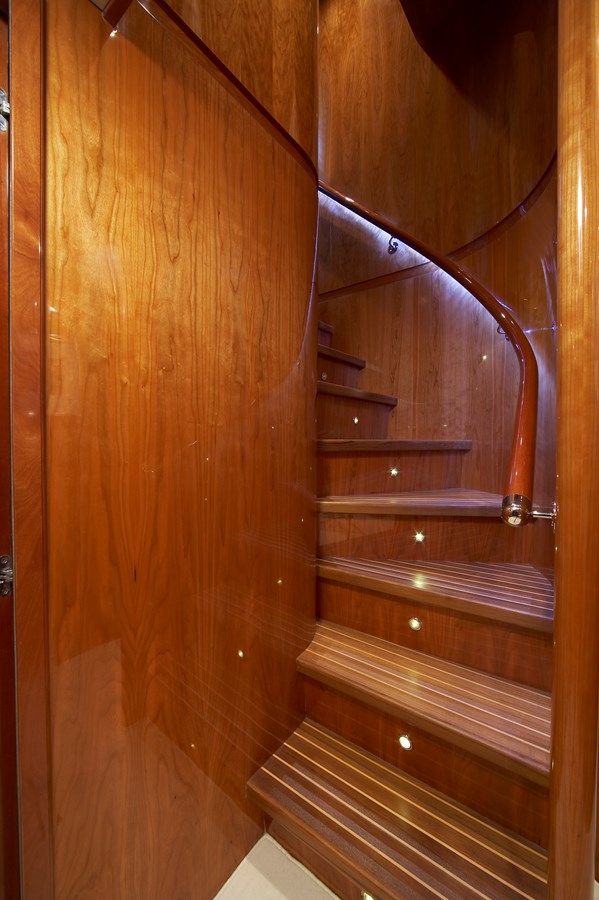

8. INTERIOR STAIRWAYS WITH SAFETY LIGHT SYSTEM:

SEA WORLD 10435WW LED ROPE LIGHTING 24V WARM WHITE

9. CEDAR LINED HANGING LOCKER CABINET W/LED LIGHT (SPK LEDCAchW24) IN EACH CABIN

10. HIGH QUALITY OF SOUND INSULATION IN WALLS BETWEEN CABINS

11. CENTRAL VACUUM SYSTEM W/ OUTLETS:

NUTONE 110V/60 HZ x 1

12. OPEN/CLOSE ELECTRIC CURTAIN IN SALOON & MASTER STATEROOMS

13. CHROME COLOR BATHROOM FIXTURE THROUGHOUT

14. FROSTED GLASS FOR SHOWER DOORS

15. PAINTED SOJI SCREEN IN ALL STATEROOMS IN FRONT OF PORTHOLES

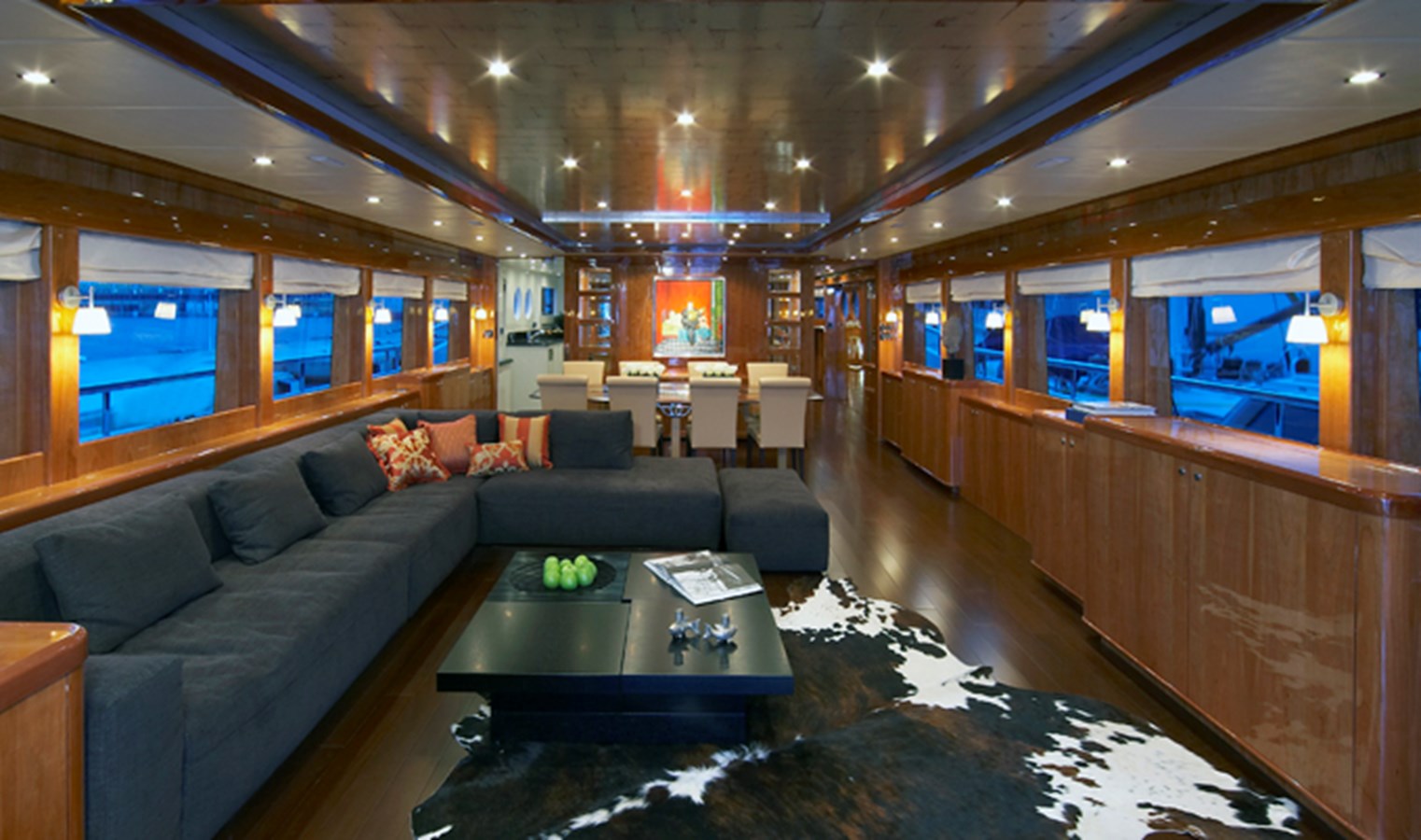

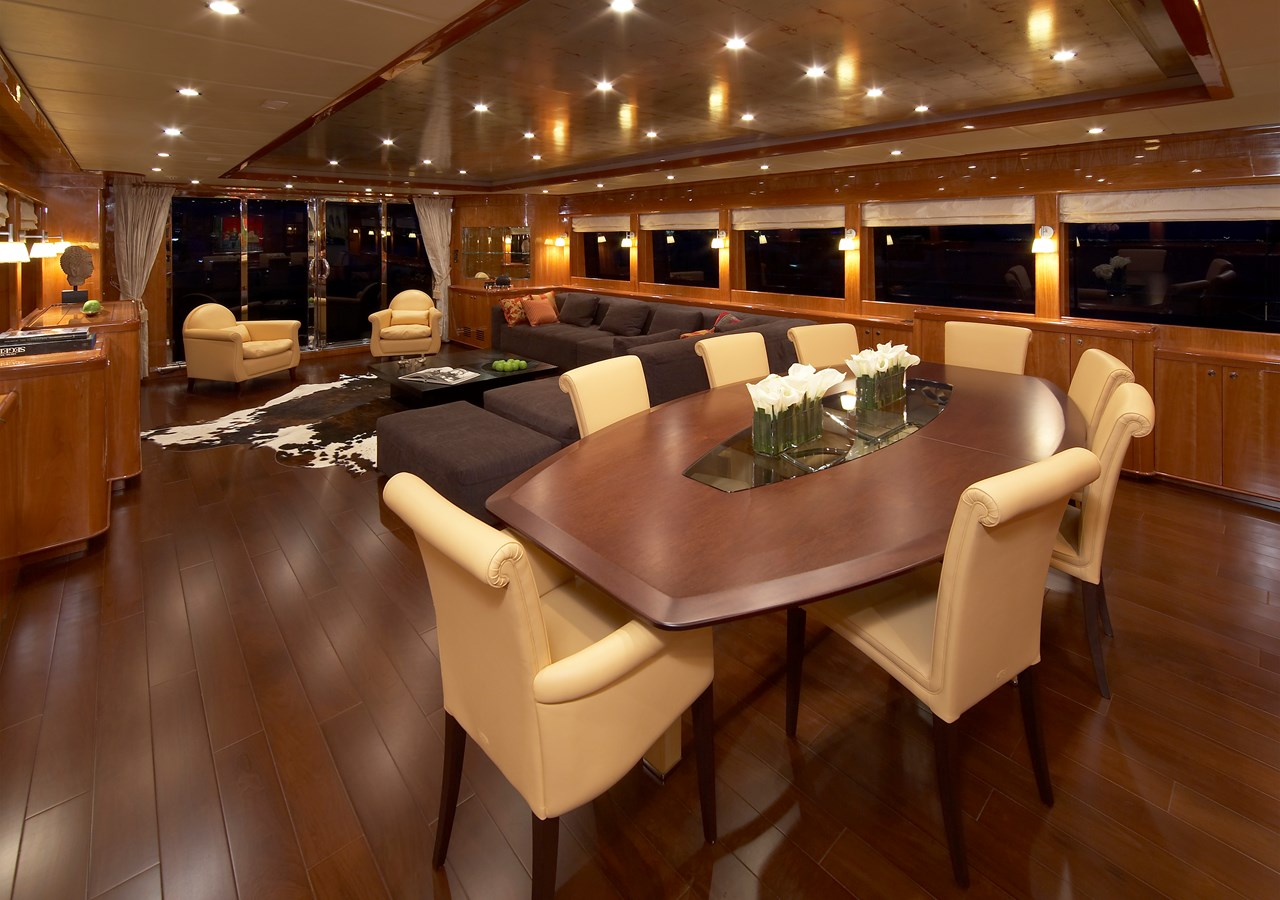

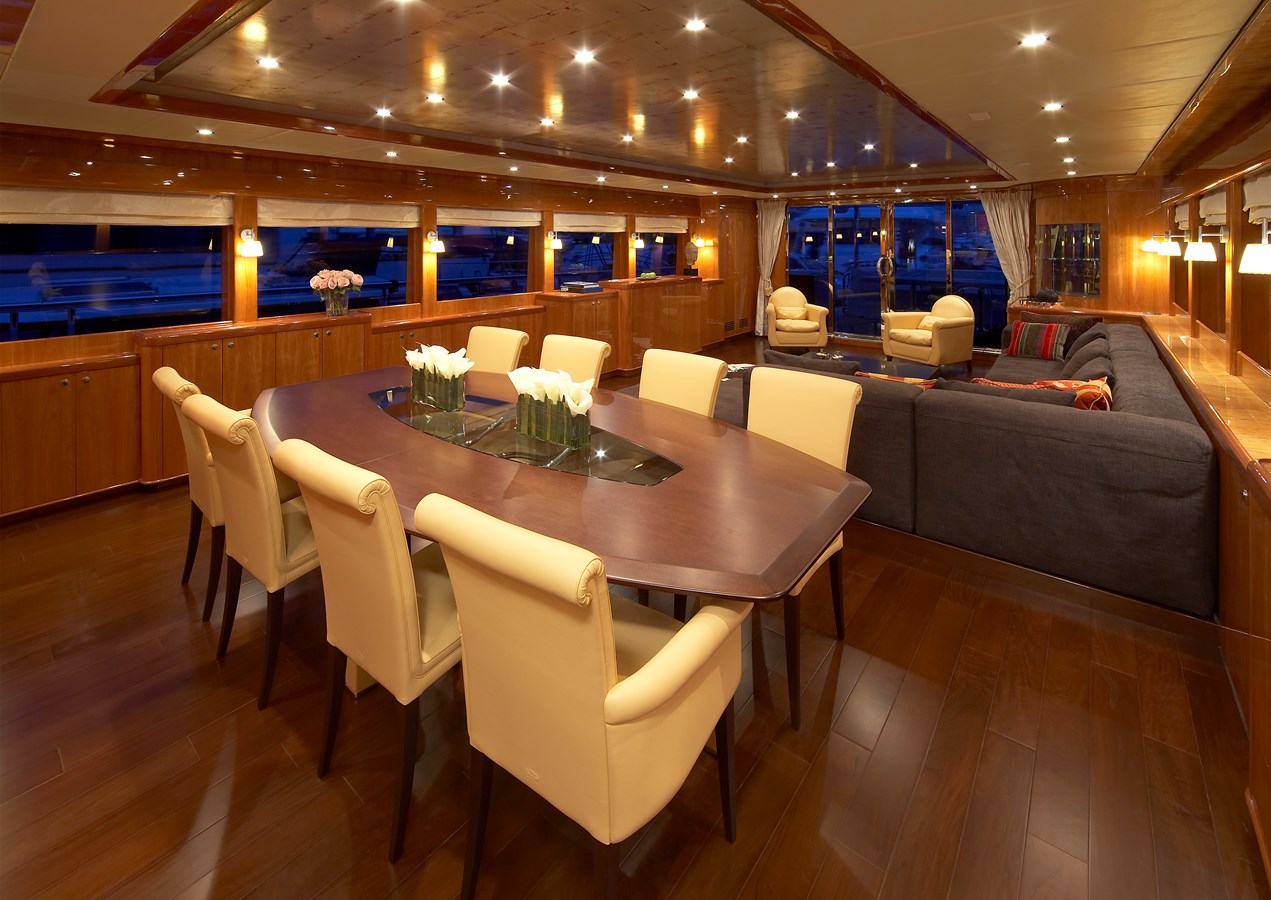

16. SALOON:

HIGH QUALITY CUSTOM BUILT UPHOLSTERED SOFA x 2
INTERLOCKING VINYL CEILING PANELS THROUGHOUT
S/S HIGH POLISH AIR DOOR
CUSTOM DESIGN DINING TABLE
CUSTOM DESIGN CEILING SOFFIT
CUSTOM DESIGN TV CABINET
HANGING CLOSET
BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM
SAMSUNG LCD 47” TV
PIONEER BLU-RAY DISC PLAYER
APPLE TV

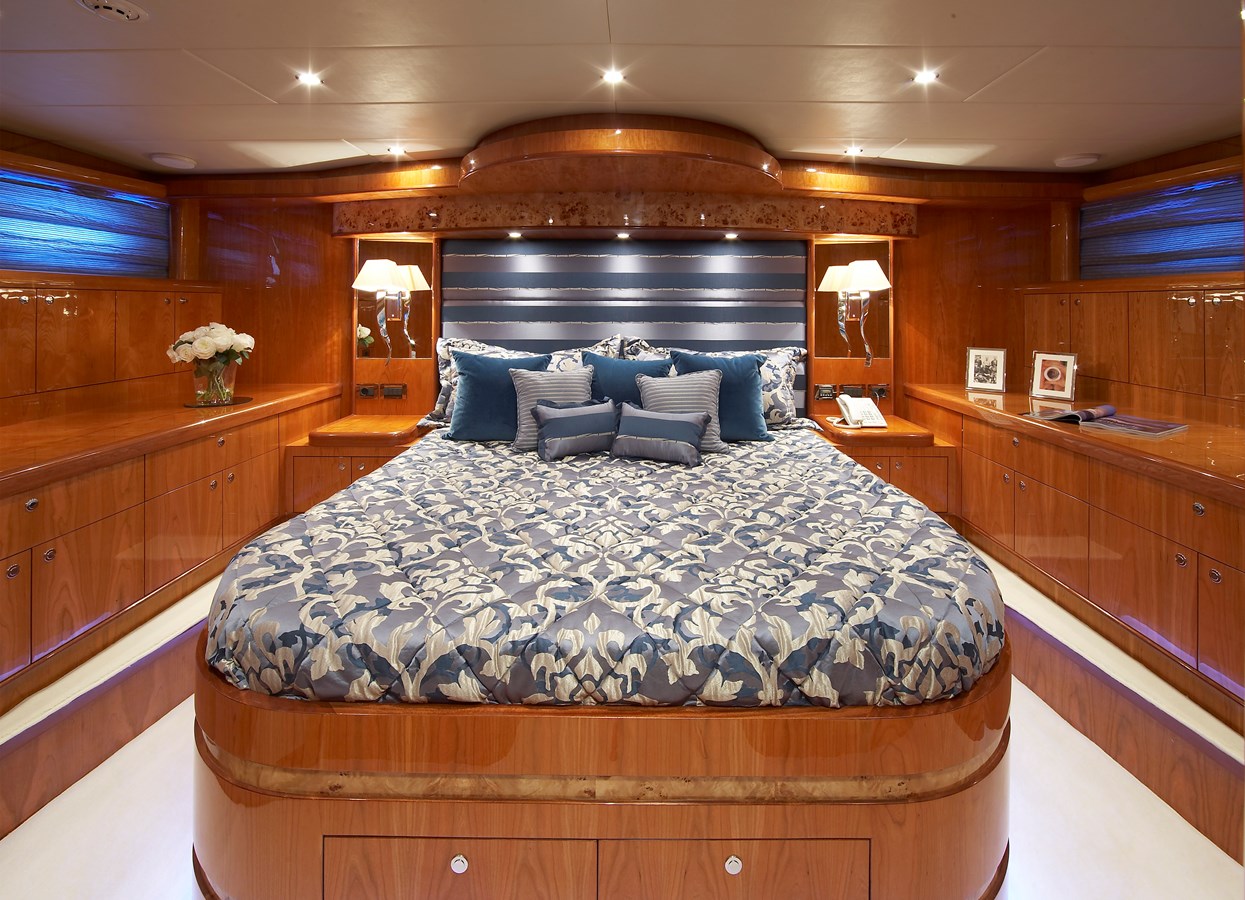

17. MASTER CABIN:

INTERLOCKING VINYL CEILING PANELS
KING SIZE BED
CUSTOM DESIGN HEADBOARD
CUSTOM STORAGE CABINETS
POWER CURTAINS
VANITY LIGHT: QUICK QB-COMPASS/CHROMED x 1
SIDE SOFA X 1
CEDAR LINED CLOSET
REFRIGERATOR: NORCOLD DE-7040 24V
READING LIGHTS: QUICK DOMINIQUE 22-35/CHROMED/SHADE LINEN/ B15D LED x 2
SAMSUNG LCD 47” TV
PIONEER BLU-RAY DISC PLAYER
APPLE TV
FUSION STEREO SYSTEM
MS-RA205 RECEIVER / MEDIA PLAYER WITH FULL IPOD / IPHONE CONTROL
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

18 FWD VIP CABIN:

INTERLOCKING VINYL CEILING PANELS
QUEEN SIZE BED
CUSTOM DESIGN HEADBOARD AND CEILING
CUSTOM STORAGE CABINETS
VANITY LIGHT: QUICK QB-COMPASS/CHROMED x 1
CEDAR LINED CLOSET
READING LIGHTS: QUICK ISABELLA 15-25 /CHROMED/SHADE LINEN/ B15D LED x 2
SAMSUNG LCD 32” TV
APPLE TV
FUSION STEREO SYSTEM:
MS-AV600G DVD / RECEIVER – WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

19. AFT VIP CABIN:

INTERLOCKING VINYL CEILING PANELS
QUEEN SIZE BED
CUSTOM DESIGN HEADBOARD AND CEILING
CUSTOM STORAGE CABINETS
VANITY LIGHT: QUICK QB-COMPASS/CHROMED x 1
CEDAR LINED CLOSET
READING LIGHTS: QUICK ISABELLA 15-25 /CHROMED/SHADE LINEN/ B15D LED x 2
SAMSUNG LCD 32” TV
APPLE TV
FUSION STEREO SYSTEM:
MS-AV600G DVD / RECEIVER WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

20. PORT GUEST CABIN:

INTERLOCKING VINYL CEILING PANELS
QUEEN SIZE BED, OUTBOARD
CUSTOM DESIGN HEADBOARD AND CEILING
CUSTOM STORAGE CABINETS CEDAR LINED CLOSET
READING LIGHTS: QUICK MAYA 30 /CHROMED/ALUMINIUM x 2
SAMSUNG LCD 32” TV
APPLE TV
FUSION STEREO SYSTEM
MS-AV600G DVD / RECEIVER – WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

21. STBD GUEST CABIN:

INTERLOCKING VINYL CEILING PANELS
TWIN BEDS x 2
CUSTOM DESIGN HEADBOARD AND CEILING
CUSTOM STORAGE CABINETS
CEDAR LINED CLOSET
READING LIGHTS: QUICK MAYA 30 /CHROMED/ALUMINIUM x 2
SAMSUNG LCD 32” TV
APPLE TV
FUSION STEREO SYSTEM
MS-AV600G DVD / RECEIVER WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

22. CAPTAIN’S CABIN -PORTSIDE:

TEAK & HOLLY FLOORS
HANGING LOCKER
DOUBLE BED
DESK & READING LIGHTS
SAMSUNG LCD 24” TV
APPLE TV
FUSION STEREO SYSTEM
MS-AV700I DVD / RECEIVER WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

CREW QUARTERS STBD SIDE:

TWIN BED
READING LIGHTS

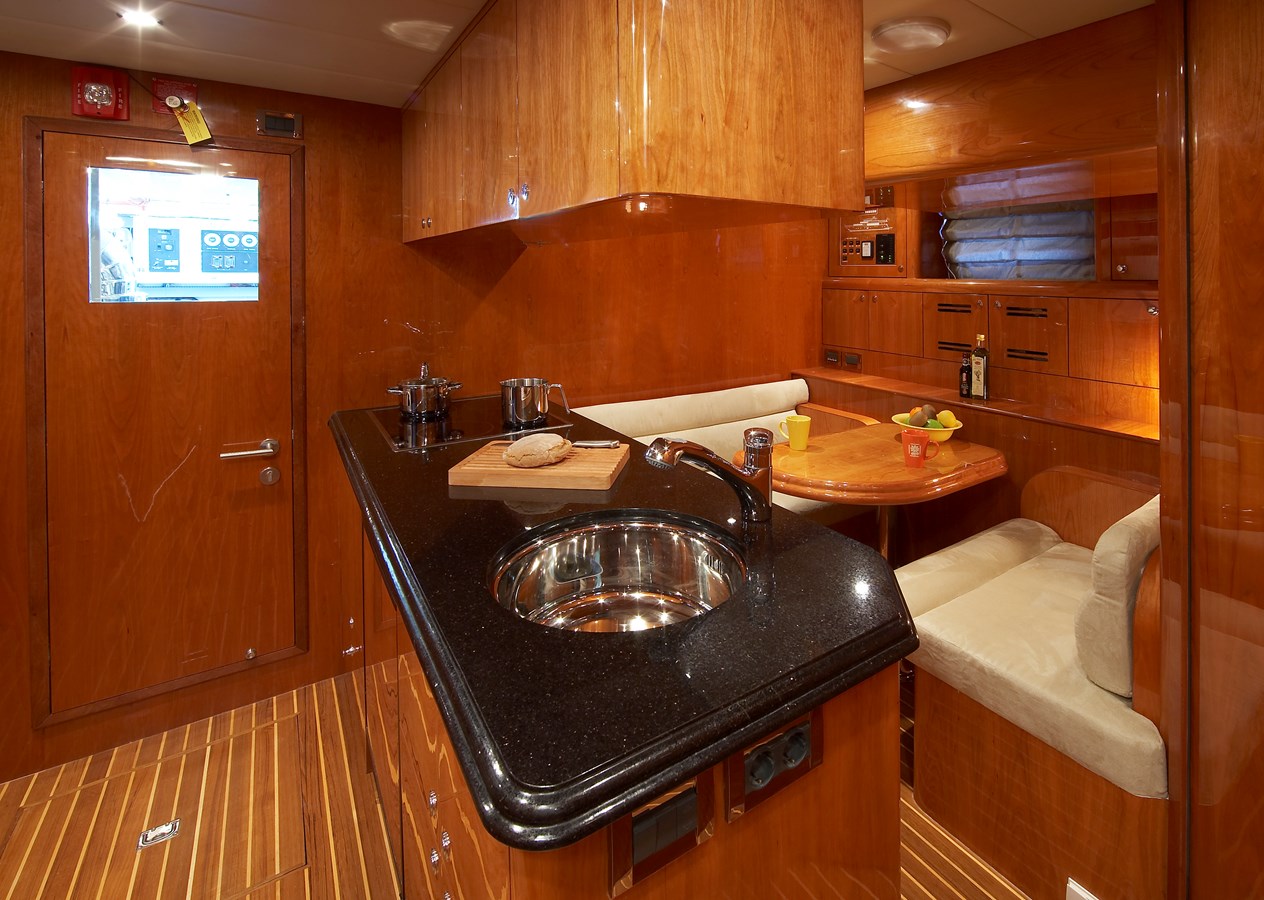

CREW’S GALLEY:

REFRIGERATOR: U-LINE CO29BTP-20 BLK 110V/60 HZ
COOK TOP: SEAWARD SEW3247-5200 220V/60HZ
MICROWAVE: GE LASTEST MODEL
WASHER: GE LASTEST MODEL
DRYER: GE LASTEST MODEL
4 PERSON DINNETTE
AUXILIARY ELECTRICAL PANEL
SAMSUNG LCD 24” TV
APPLE TV

FUSION STEREO SYSTEM:

MS-AV600G DVD / RECEIVER WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

23. ENTERTAINMENT SYSTEM (REFER TO ATTACHED DRAWINGS FOR EQUIPMENT DETAILS)



1. TRASH COMPACTOR:

BROAN # 15SSEXF S/S

2. COOKTOP:

GE LATEST MODEL

3. DOWNDRAFT VENTILATOR:

GE LATEST MODEL W/ LIGHT

4. DISHWASHER:

GE LATEST MODEL

5. OVEN:

GE BUILT-IN LATEST MODEL

6. REFRIGERATOR + FREEZER:

GE LATEST MODELS

7. MICROWAVE:

GE LATEST MODEL



1. MARBLE COUNTER TOP AND LACQUER FINISH IN ALL HEADS

2. SEAMLESS POLYURETHANE FINISH IN ALL HEADS

3. NON-SLIDE MARBLE FLOORING SELECTED BY THE OWNER WITH HONEYCOMB BACKING

4. SEALAND VACUUM TOILETS SYSTEM IN EACH HEAD

5. EXHAUST FANS IN EACH HEAD:

MANROSE BSL24C/24V

6. MIRROR CEILING WITH WOOD BORDERS IN EACH HEAD

7. SINKS WITH GROHE FIXTURES

8. STALL SHOWER W/ HAND HELD SPRAYS

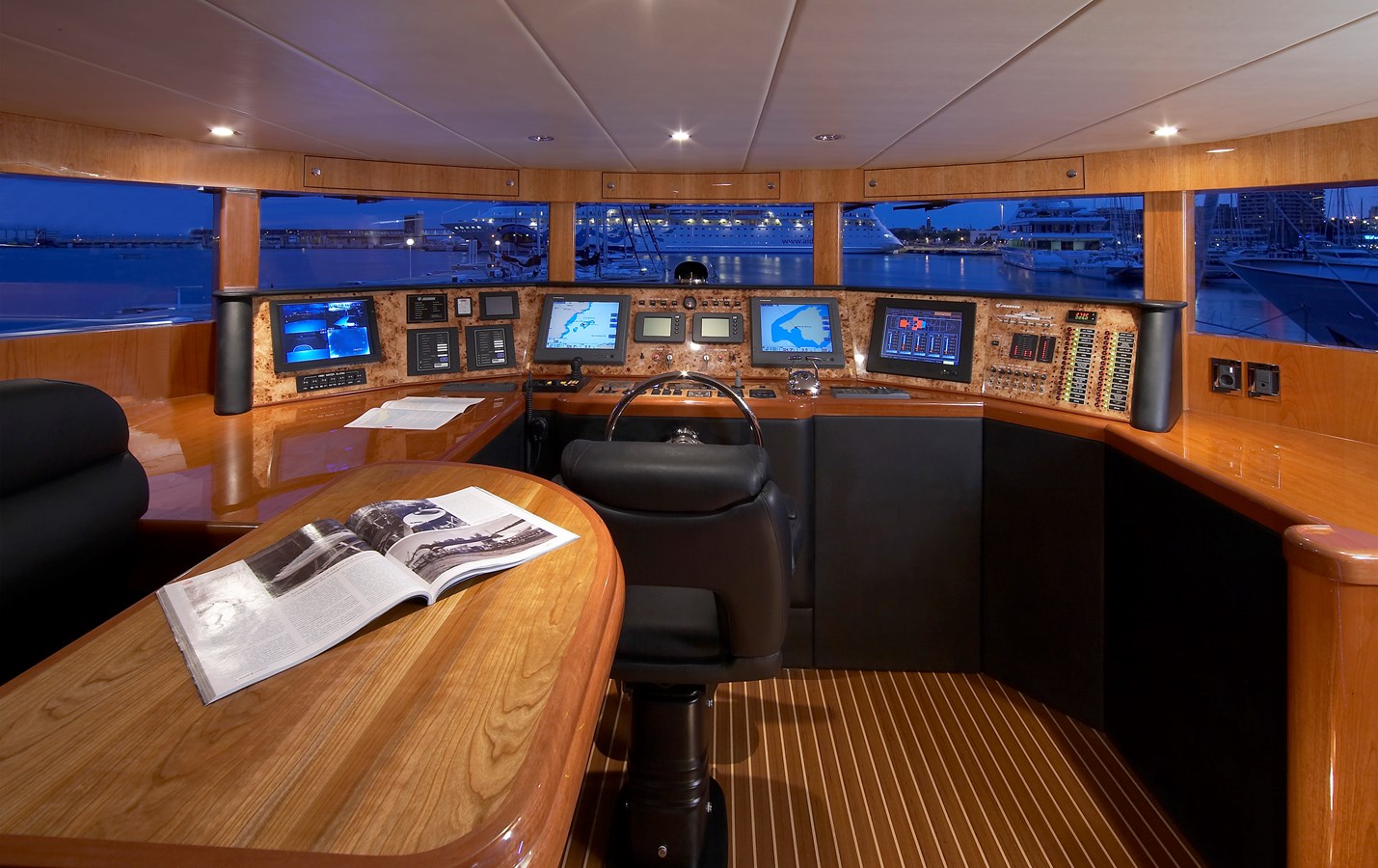

1. FLOOR: TEAK & HOLLY

2. STAIRWAY: TEAK & HOLLY

3. STAINLESS HANDRAIL OF STAIRWAY

4. LEATHER SETTEE W/ WOOD TABLE

5. HELM CHAIR BESENZONI P217 24V HELM SEAT x 1

6. RUDDER INDICATOR:

VDO 382-233 24V x 1

7. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM:

I. GARMIN:

GPSMAP 8617 17” FULLY-INTERGRATED MULTI-TOUCH MFD x 2
GMI 20 MARINE INSTRUMENT DISPLAY x 1
GMR FANTOM™ 4”/40W/72NM, SOLID-STATE, OPEN-ARRAY RADAR x 1
GARMIN VHF 210 MARINE RADIO x 1
GARMIN AIS 600 CLASS B TRANSCEIVER x 1
GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
GARMIN GSD 25 MARINE NETWORK SOUNDER 2KW x 1

II. RAYMARINE:

RAYMARINE GS15.4” GLASS BRIDGE MULTIFUNCTIONAL DISPLAY WITH x 2
RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
RAYMARINE RAY218E VHF RADIO x 1
RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400 ACTUATOR CONTROL UNIT x 1
RAYMARINE CP100 DOWNVISION FISHFINDER x 1

8. INTERGRADED INSTRUMENT PANEL AT BOTH HELM STATIONS

9. ENGINE CONSOLE WITH ALL GAUGES

10. COMPASS DANFORTH 5” x 1

New build project.  Hull and deck are completed in the molds and waiting for Buyer's choice of customization.

Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete!  Completion time is approximately 14 months depending on other yard projects.

** OPTIONS UPON REQUEST **

 ** ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

Price is FOB Taiwan.  Neither duty nor tariffs are included in the price.

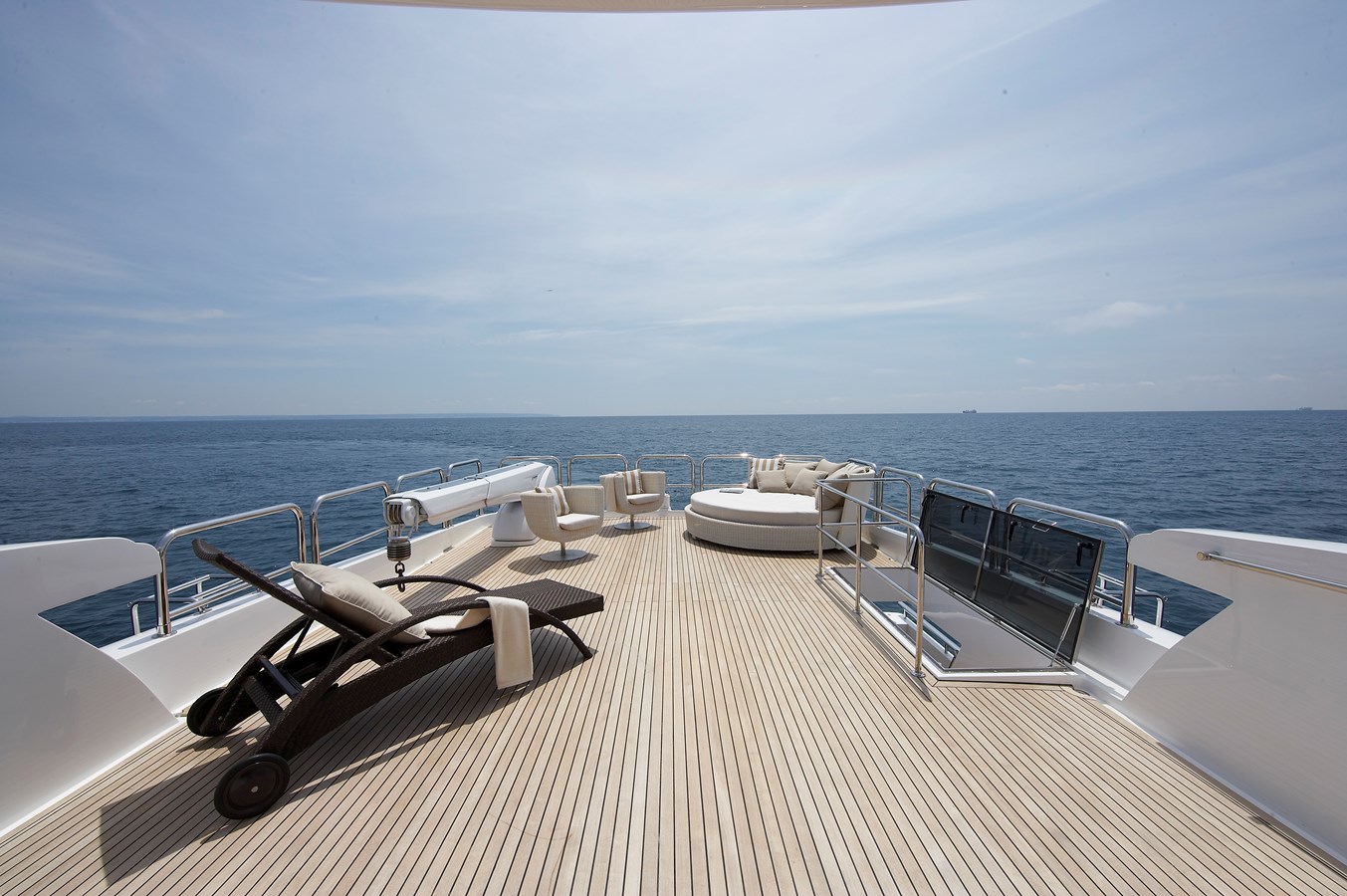

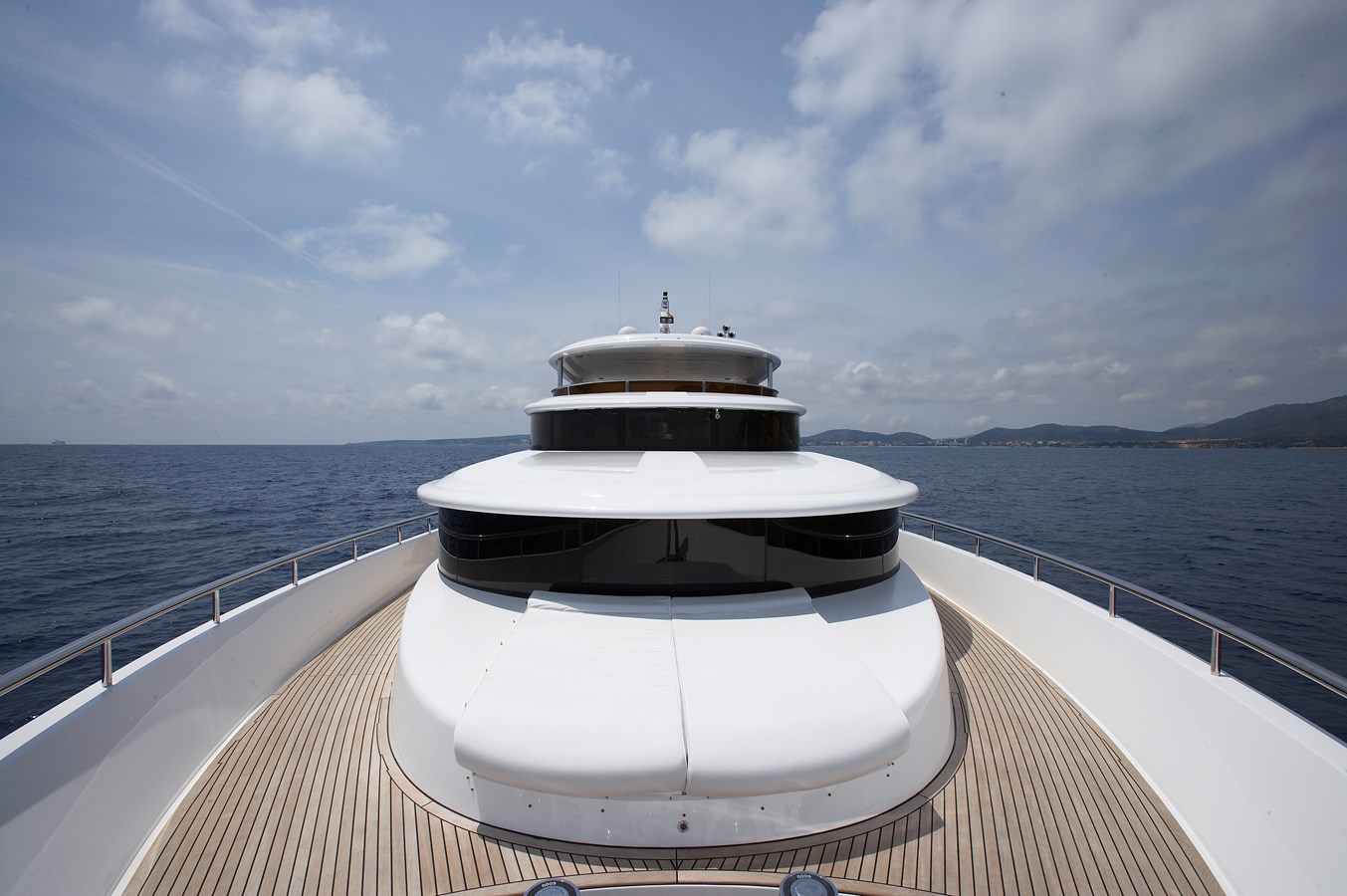

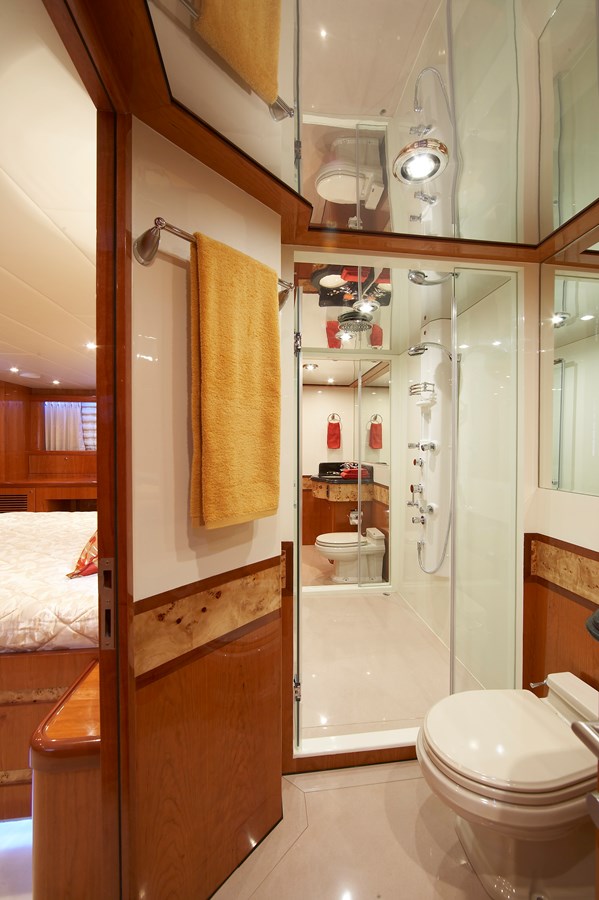

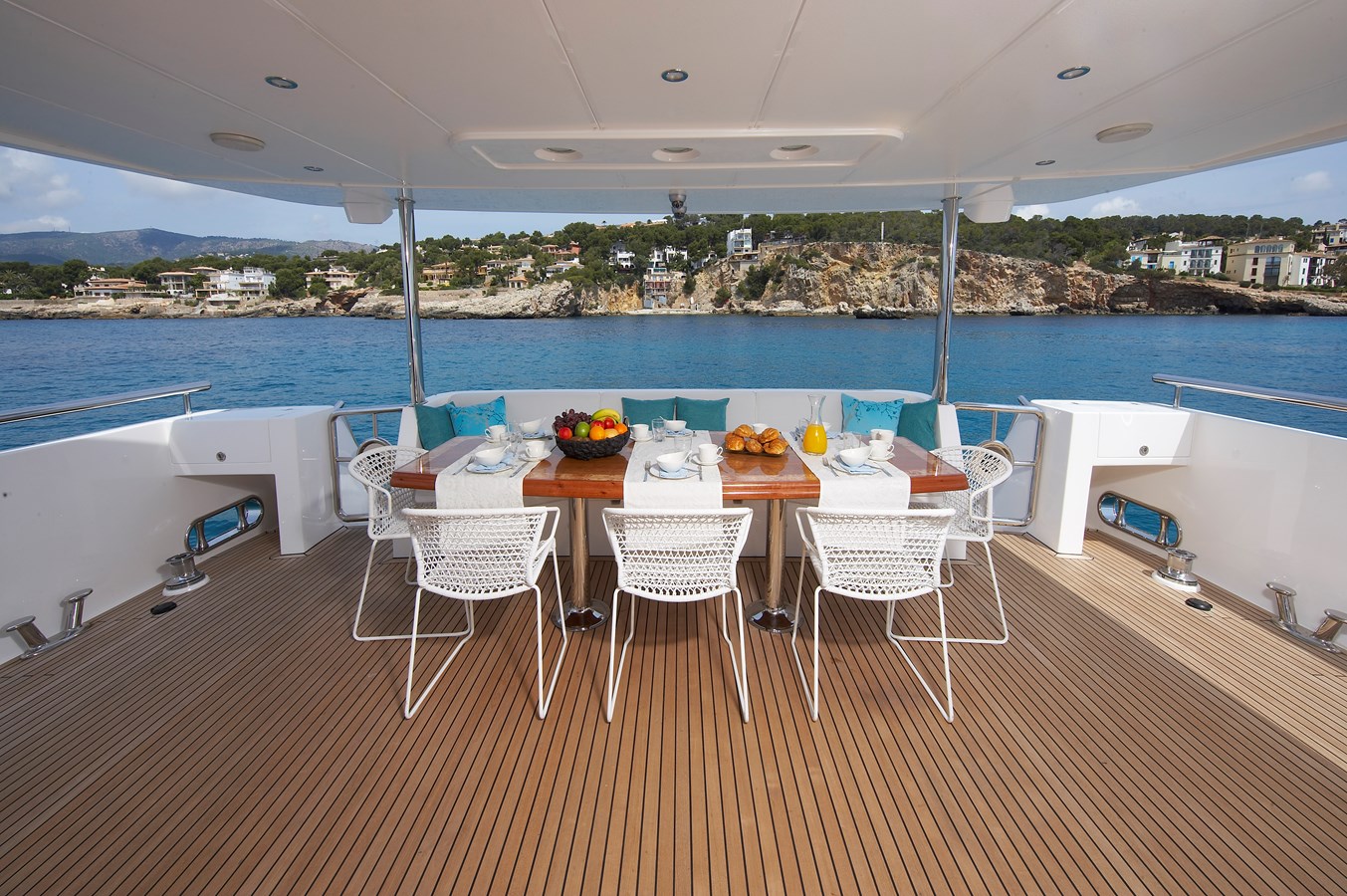

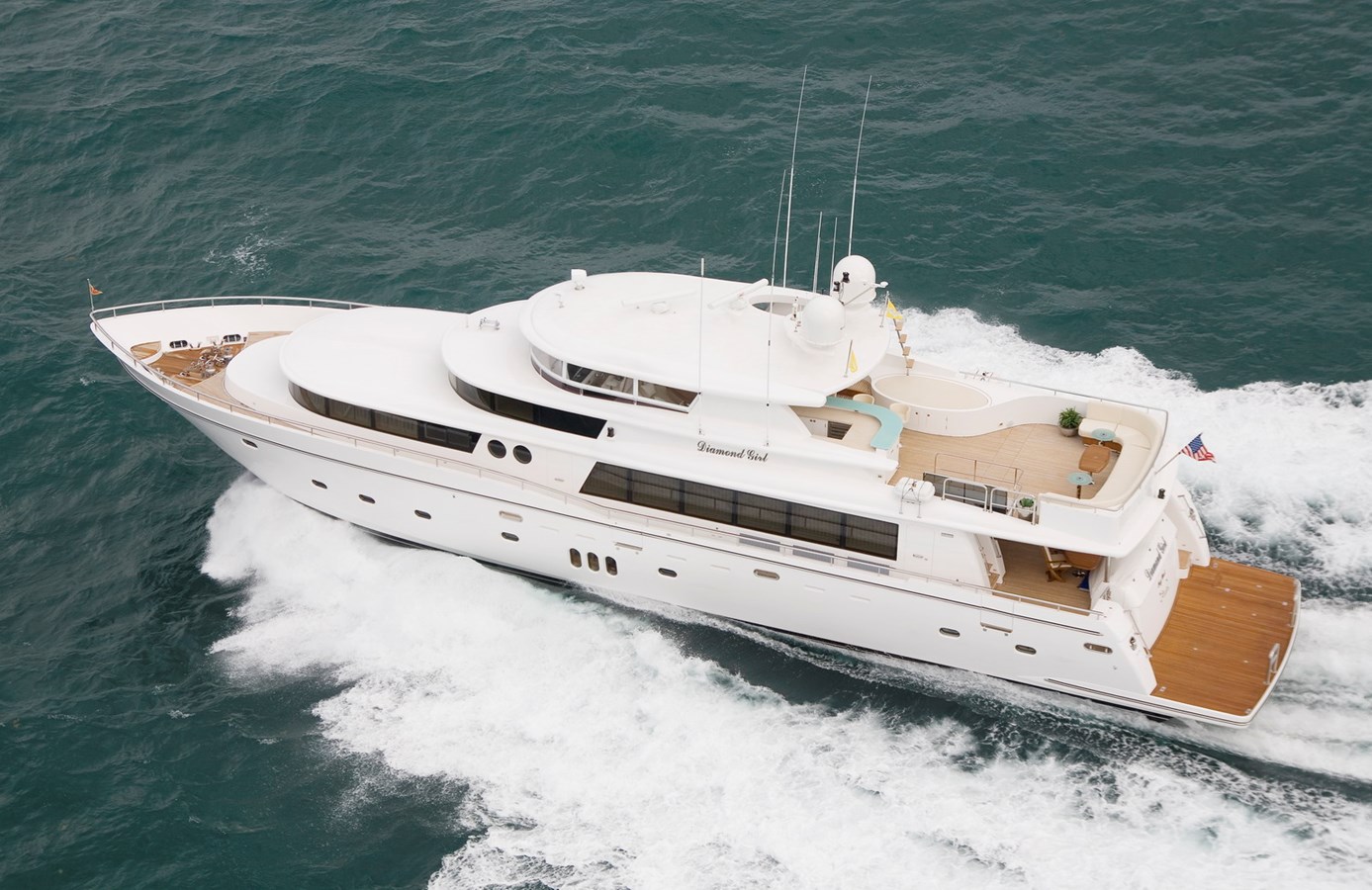

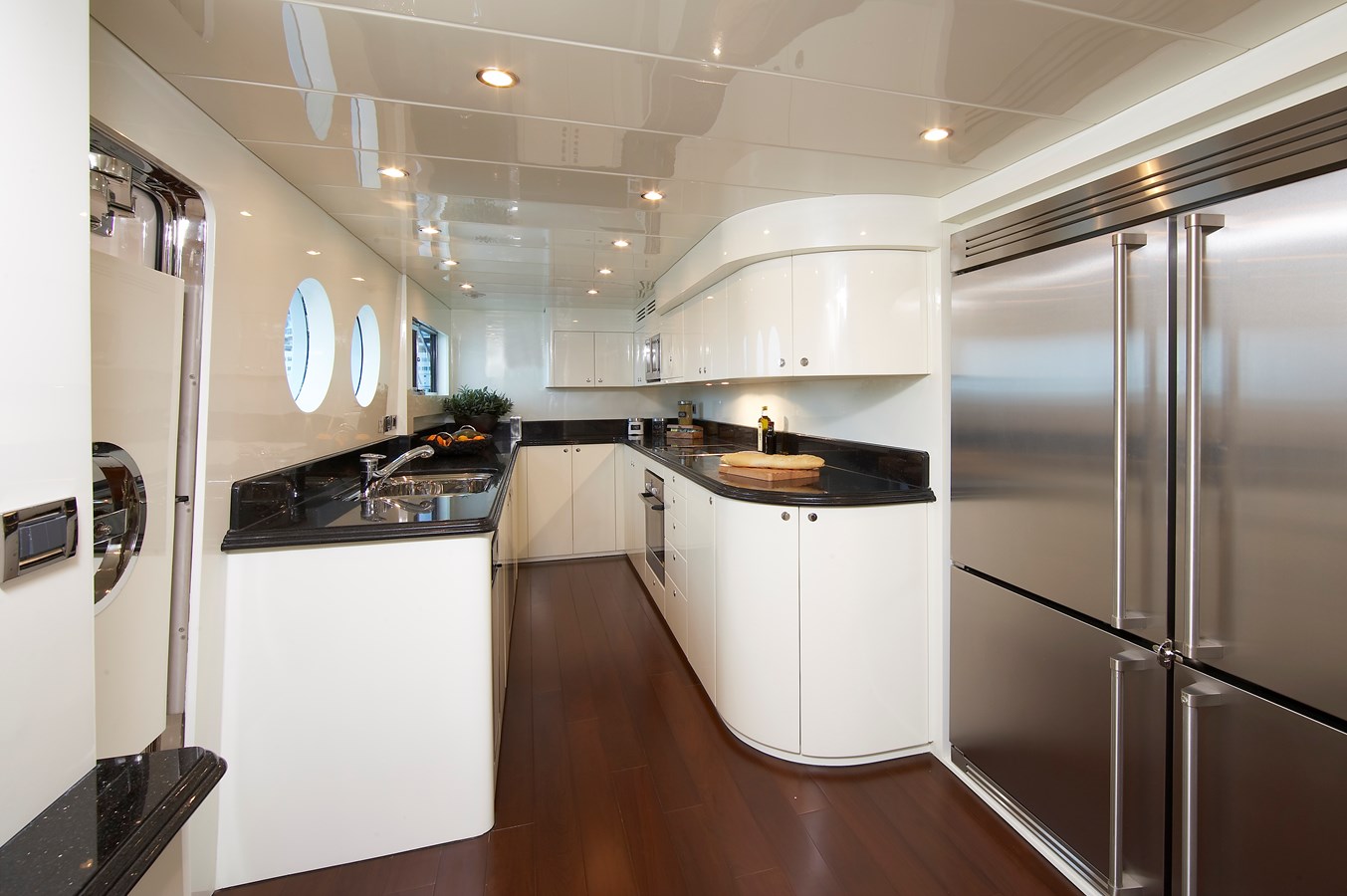

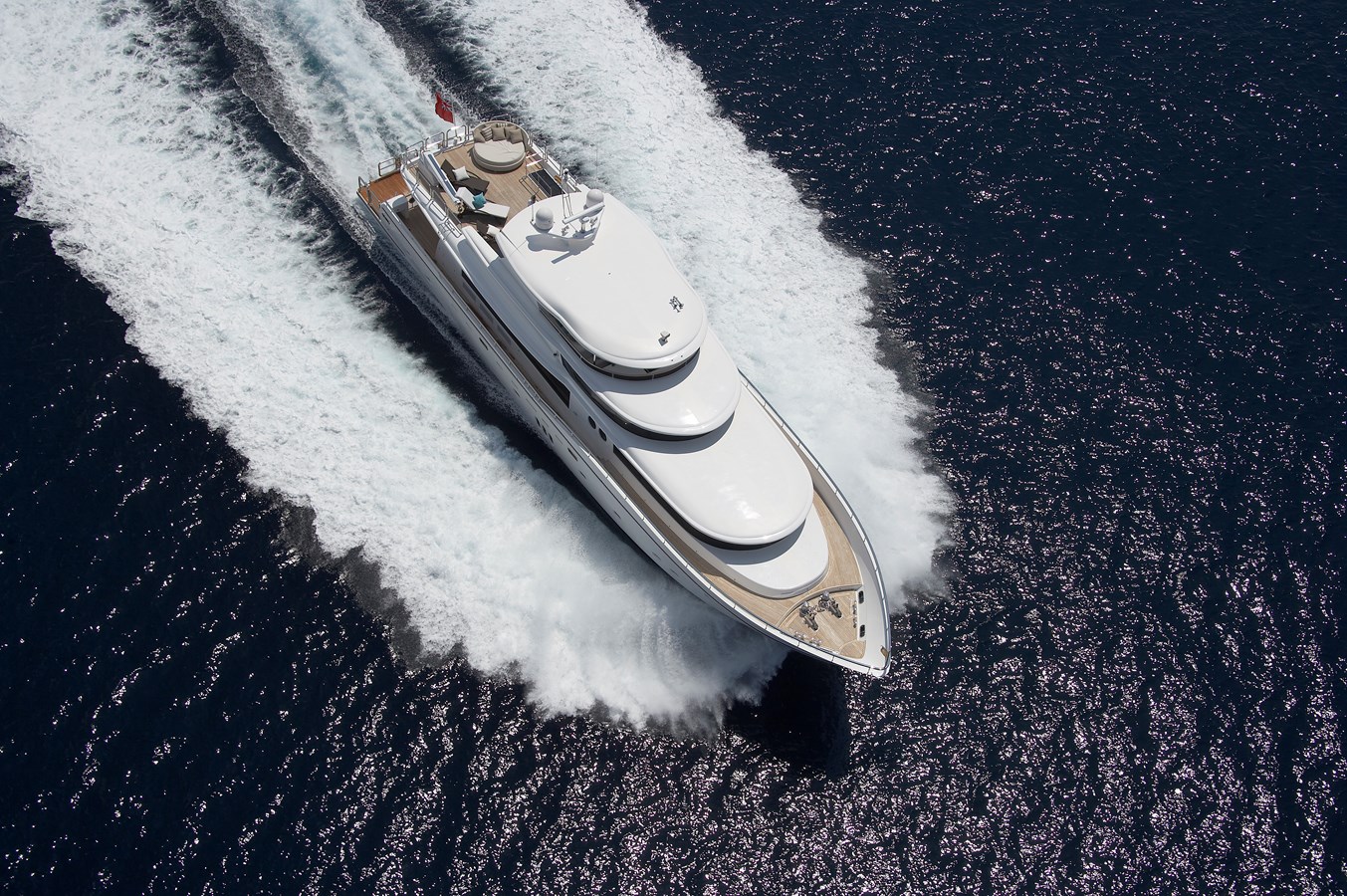

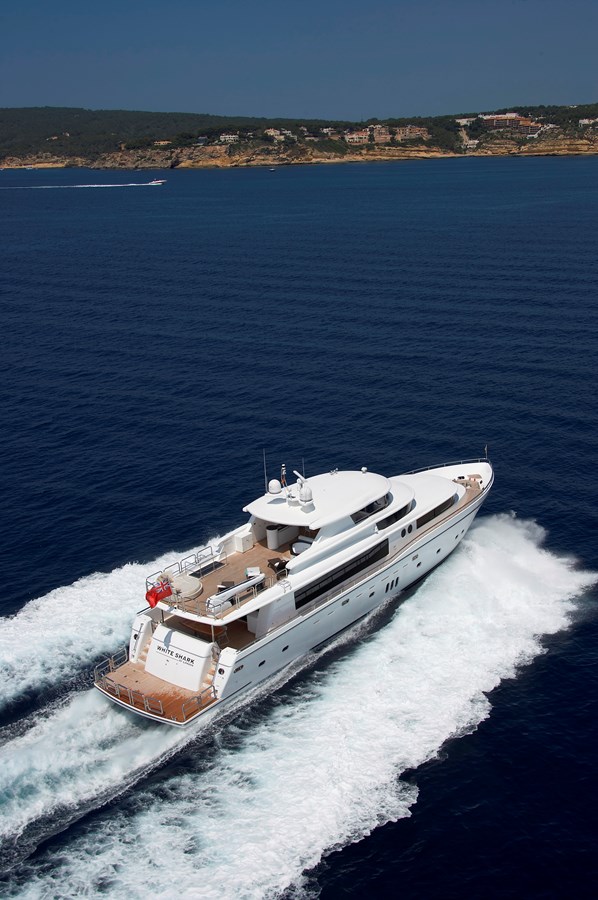

Since this is a new build offering, all photos are of previous projects.  Exact layout, wood and stone selection are buyer's choice.

Price is FOB Taiwan.  Neither duty nor tariffs are included in the price.
