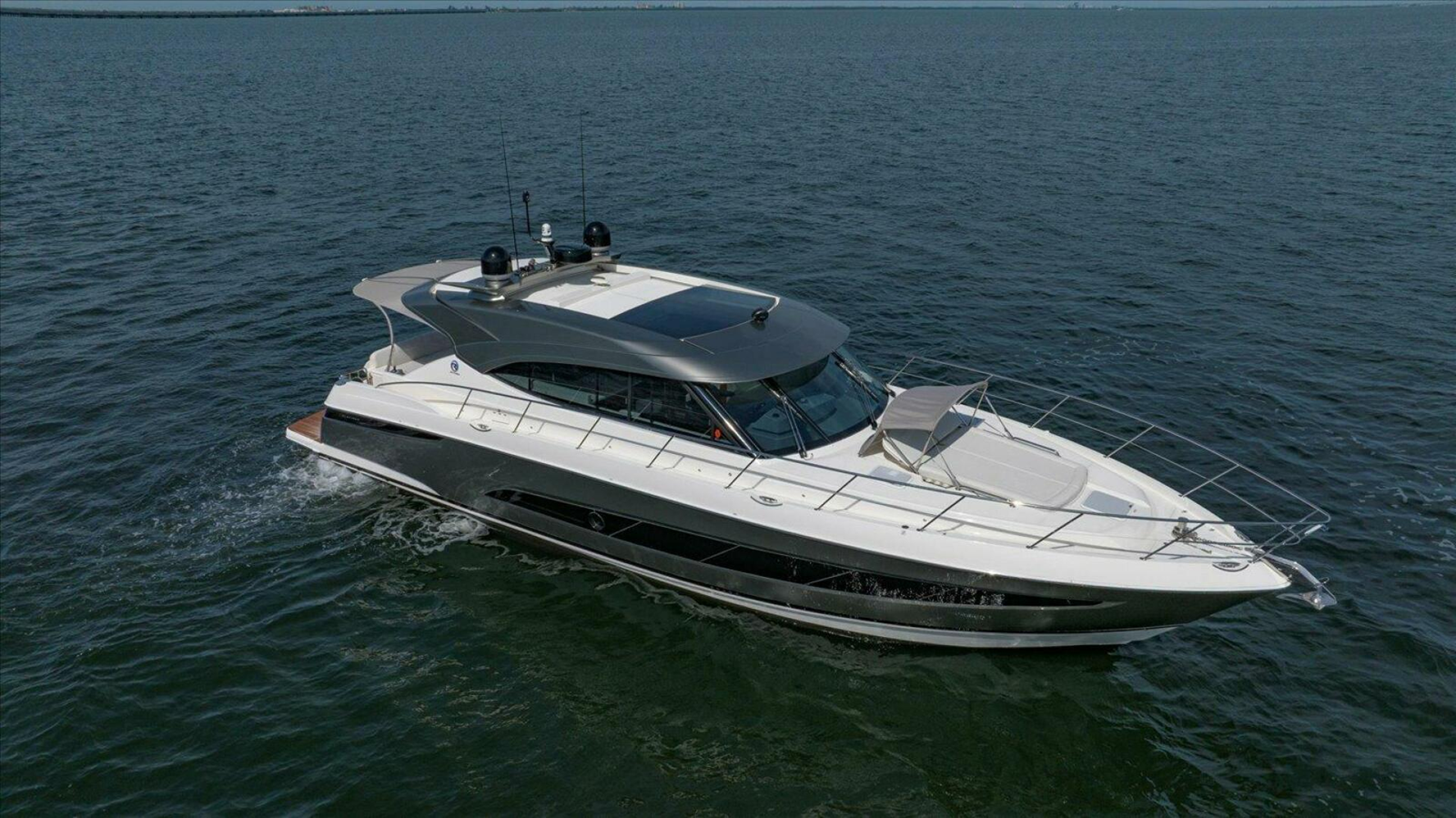

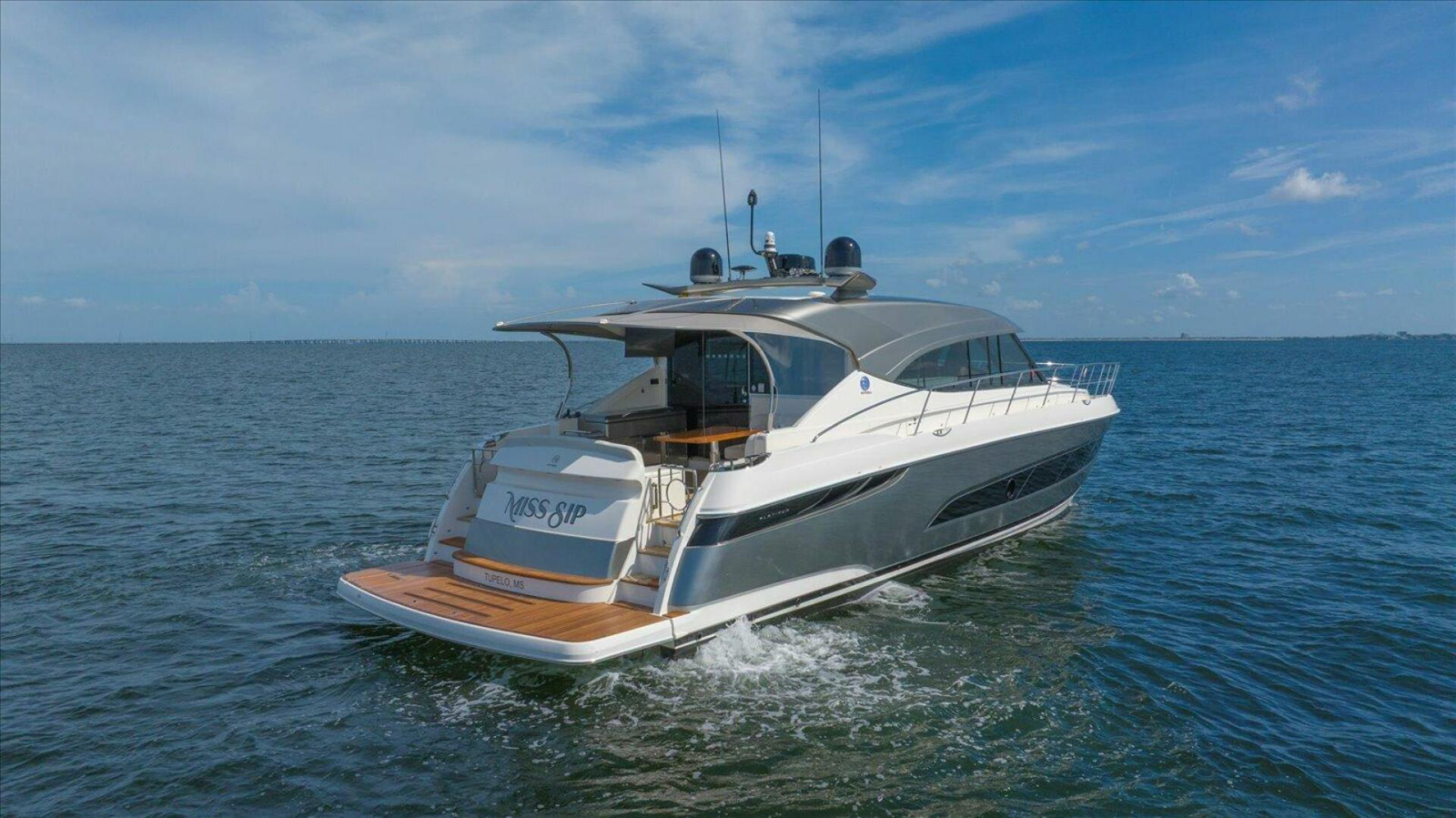

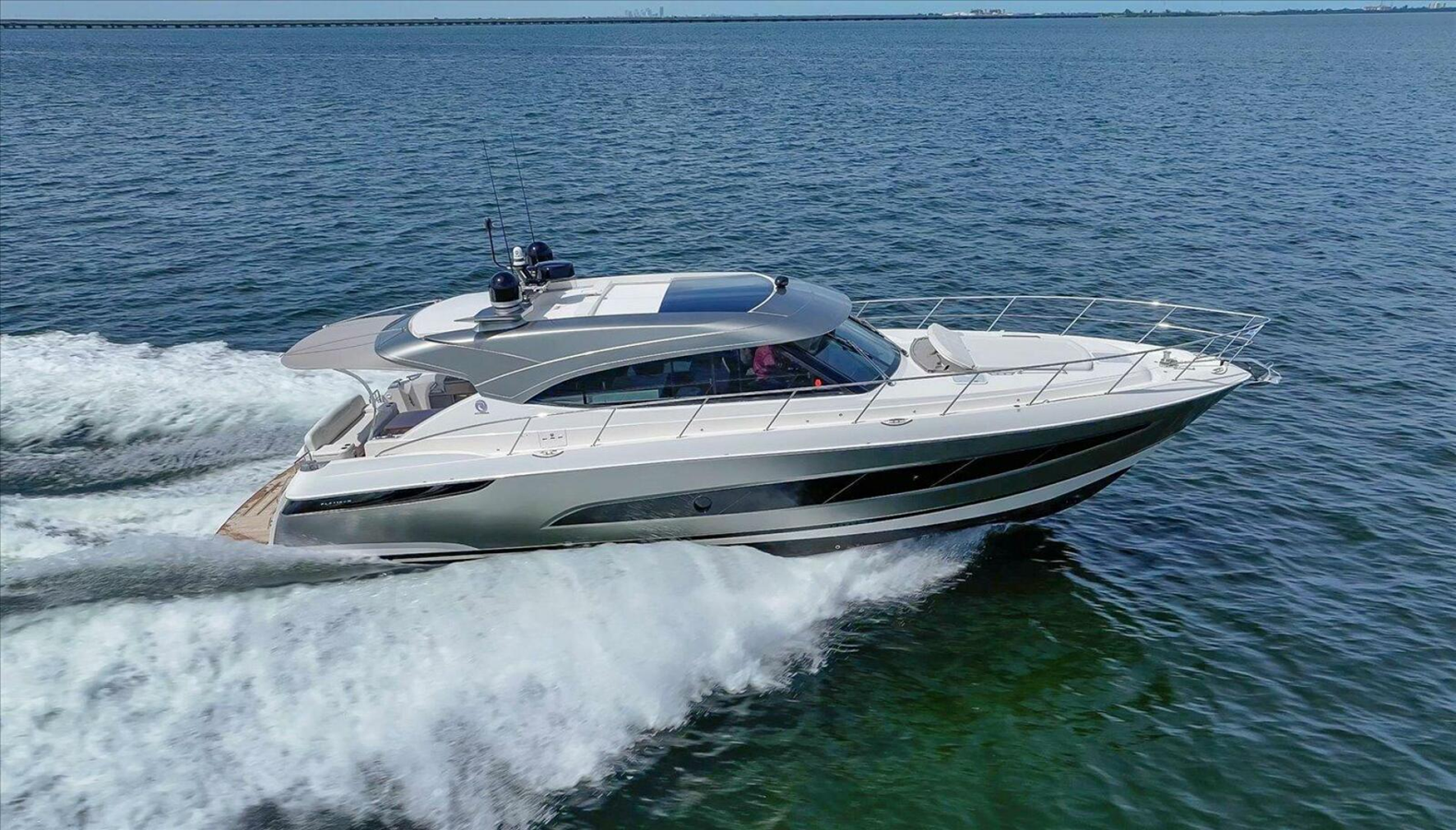

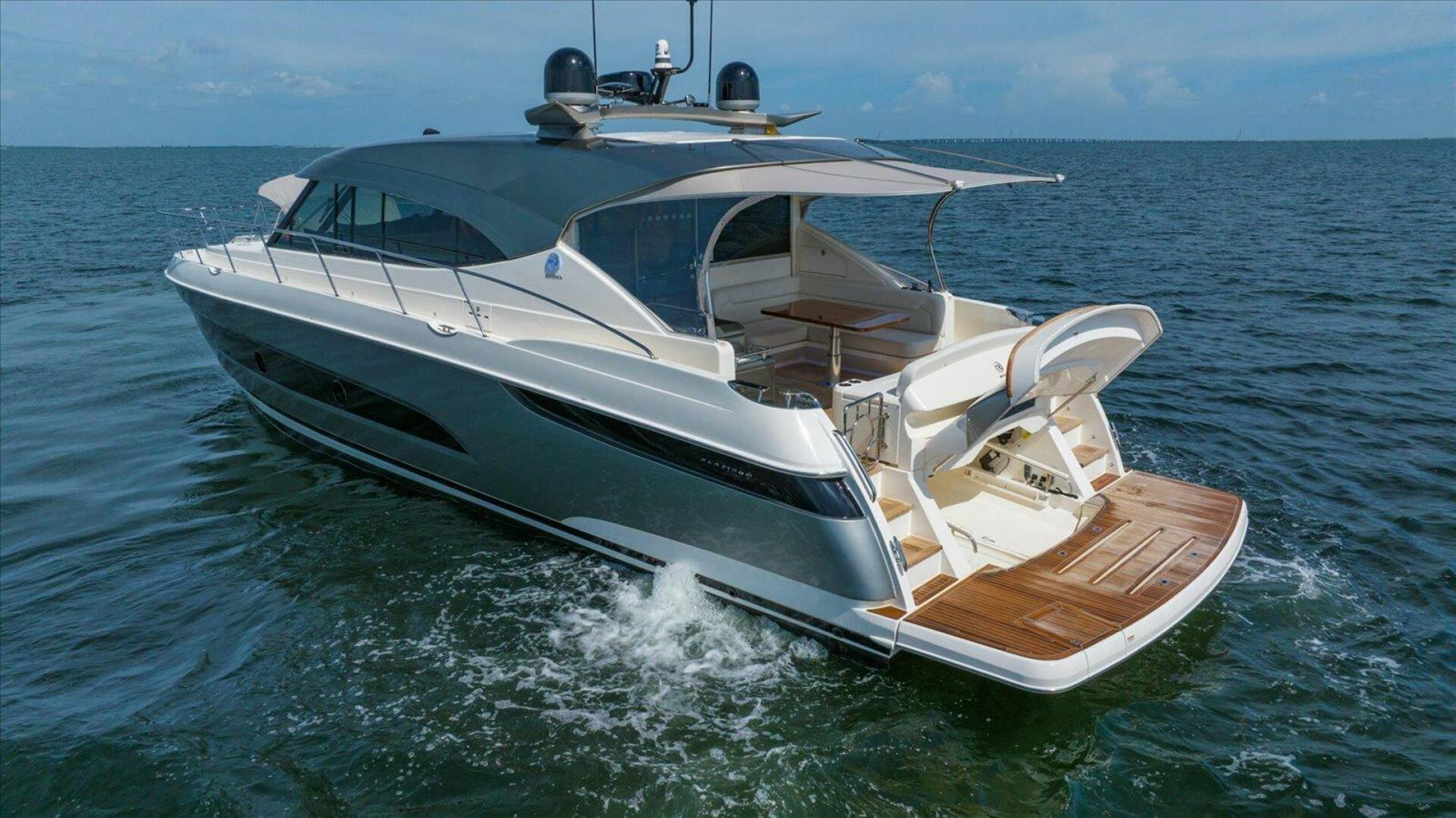

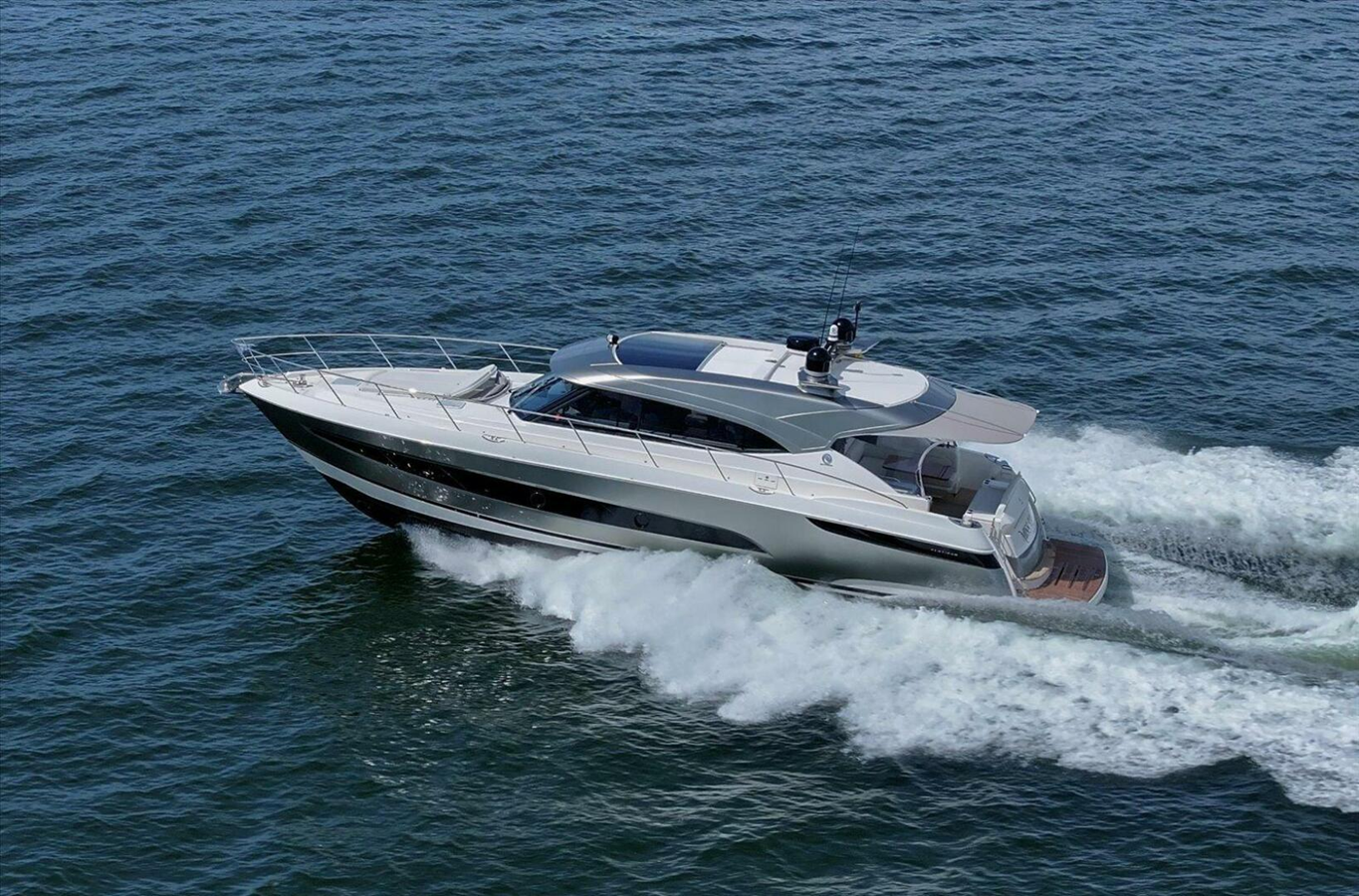

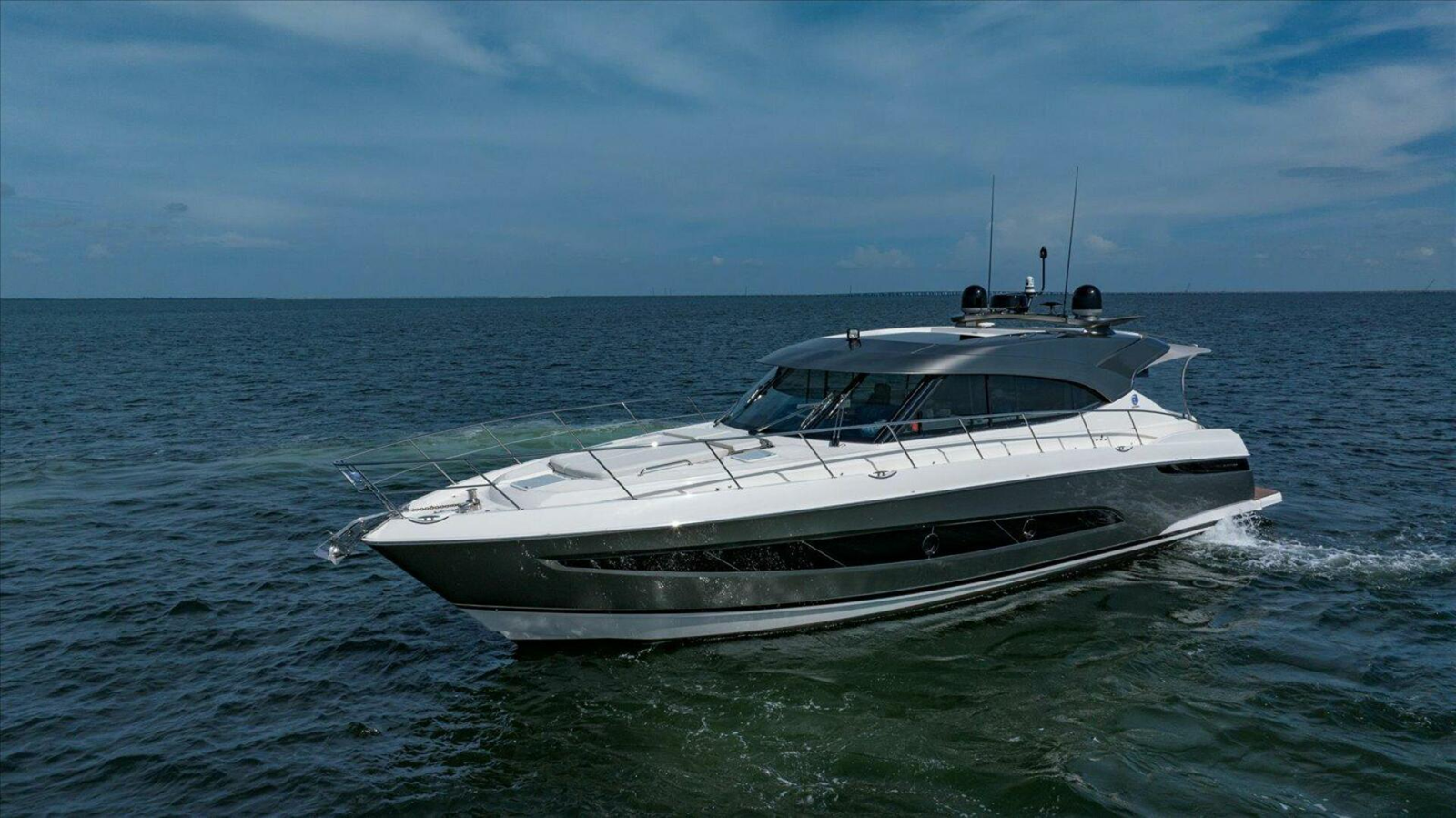

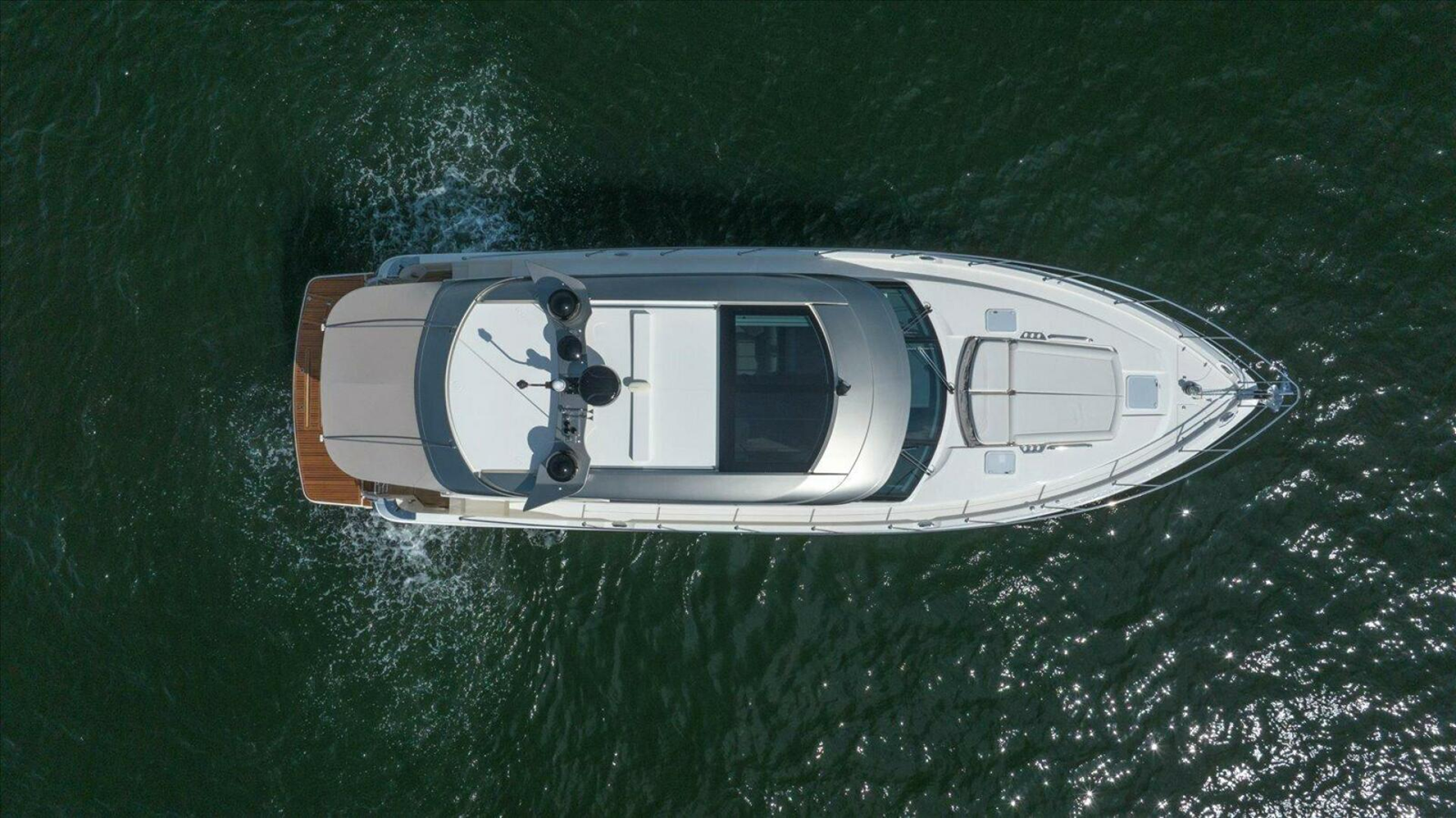

2023 RIVIERA 5400 Sport Yacht

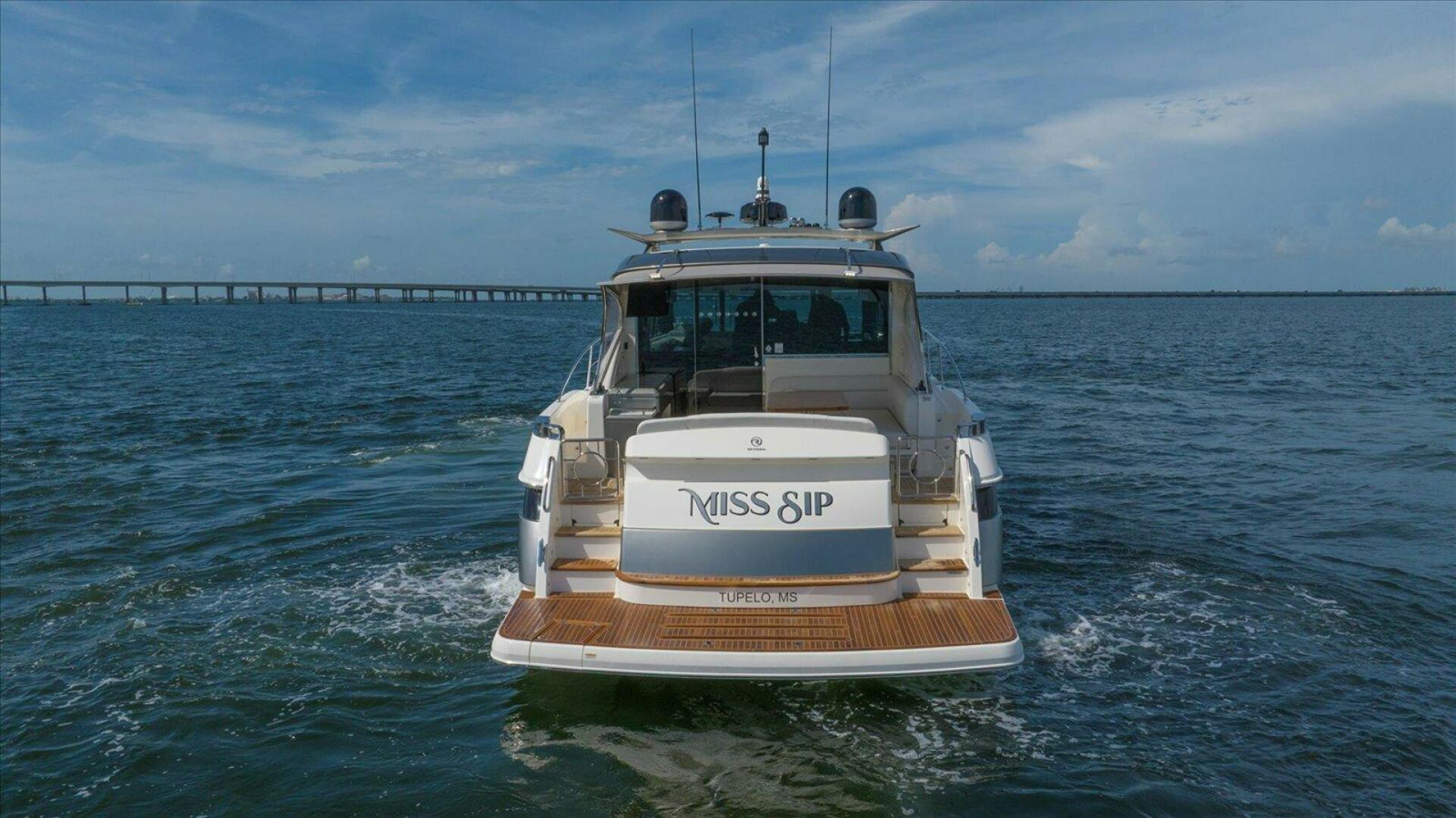

These are upgrades found on the 2023 Riviera 5400 Sport Yacht Platinum Edition "MISS SIP" - some of these upgrades will supersede the standard features. For any questions please feel free to contact the central agent for clarification - this is A LOT OF UPGRADES - BE SURE TO REVIEW THE WHOLE LIST

UPGRADES

• Volvo Penta Full Warranty Until 11/28/2027! Engines, Transmissions, Pods- ALL VOLVO COMPONENTS

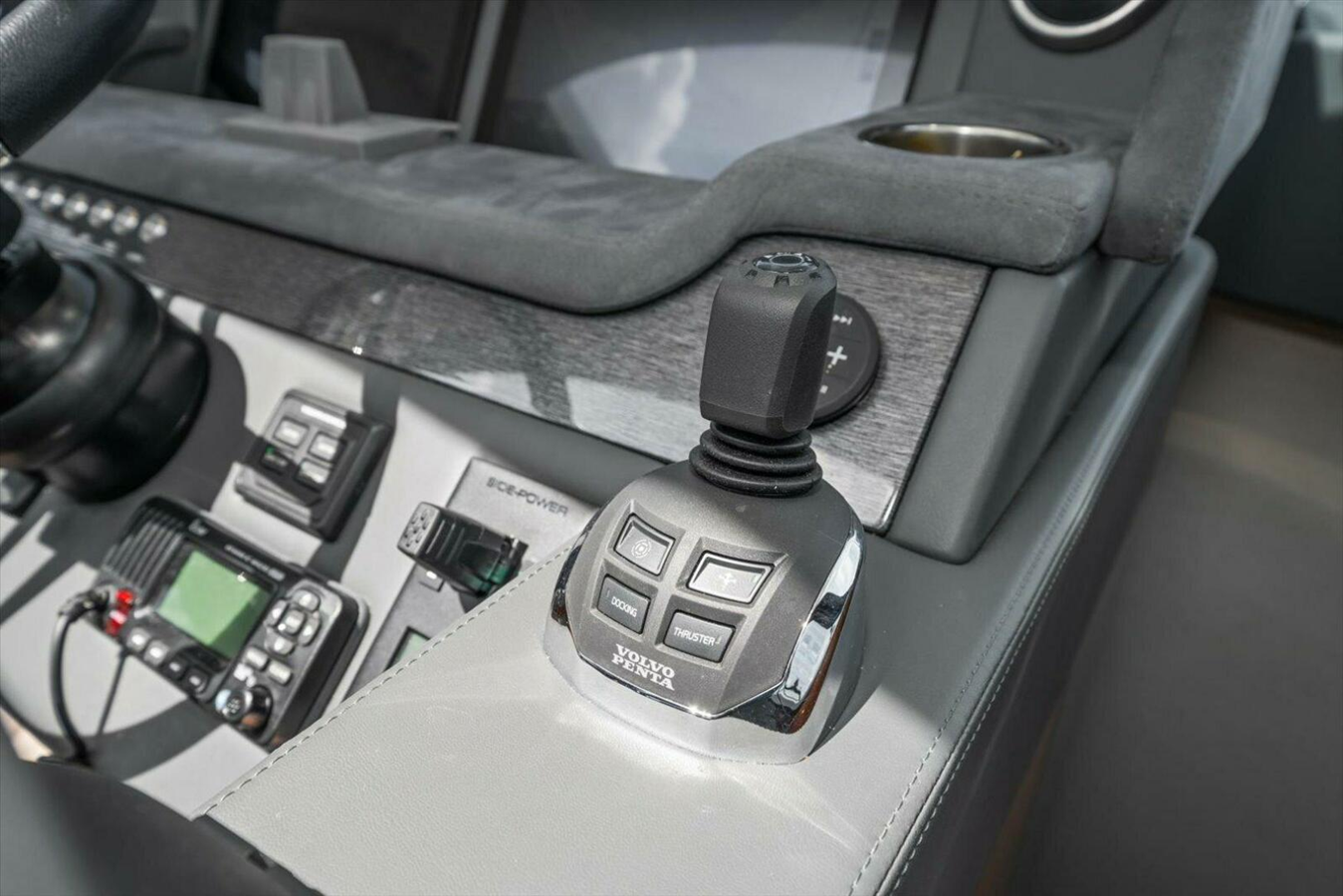

• Joystick, cockpit (x1) with station select/start/stop control

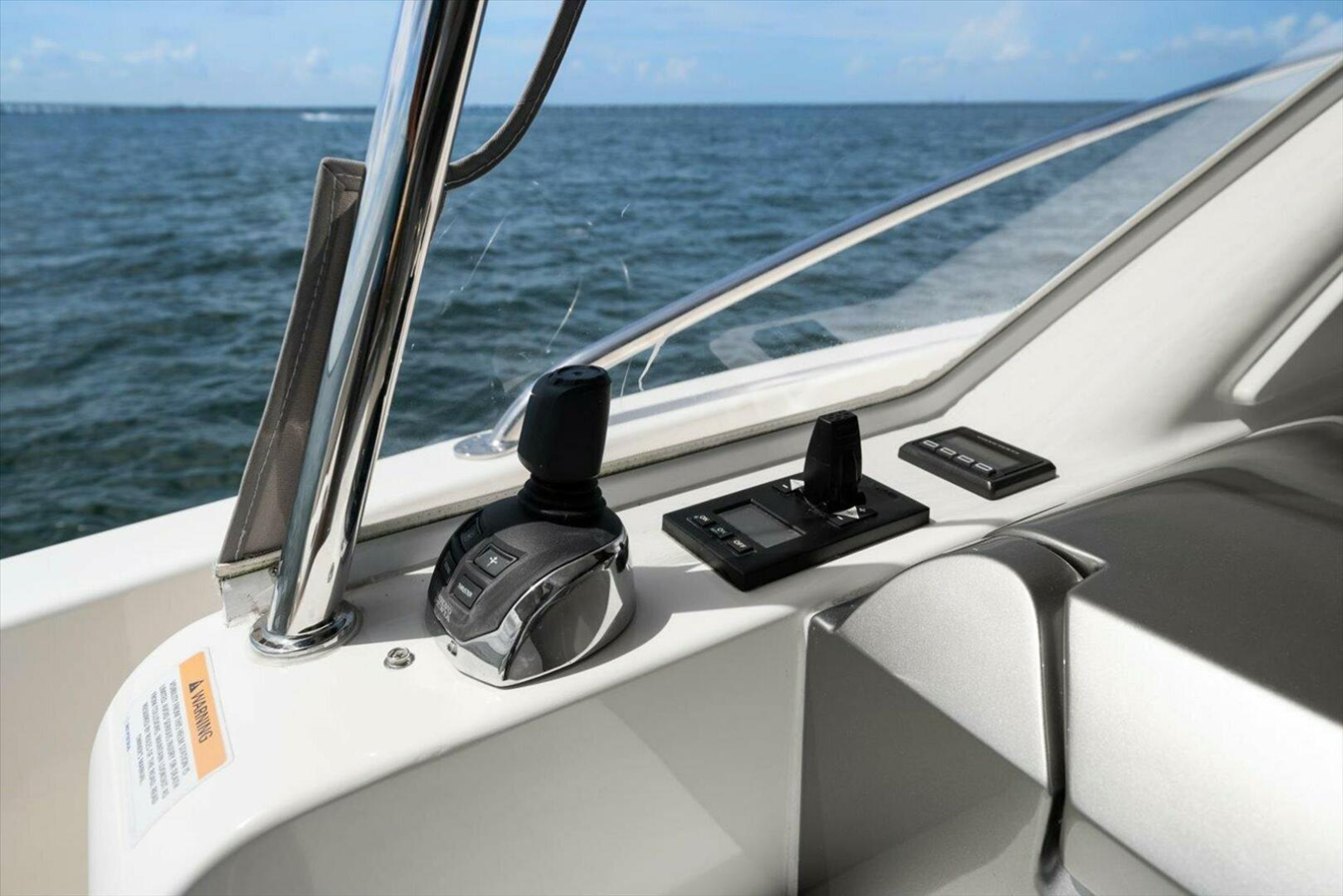

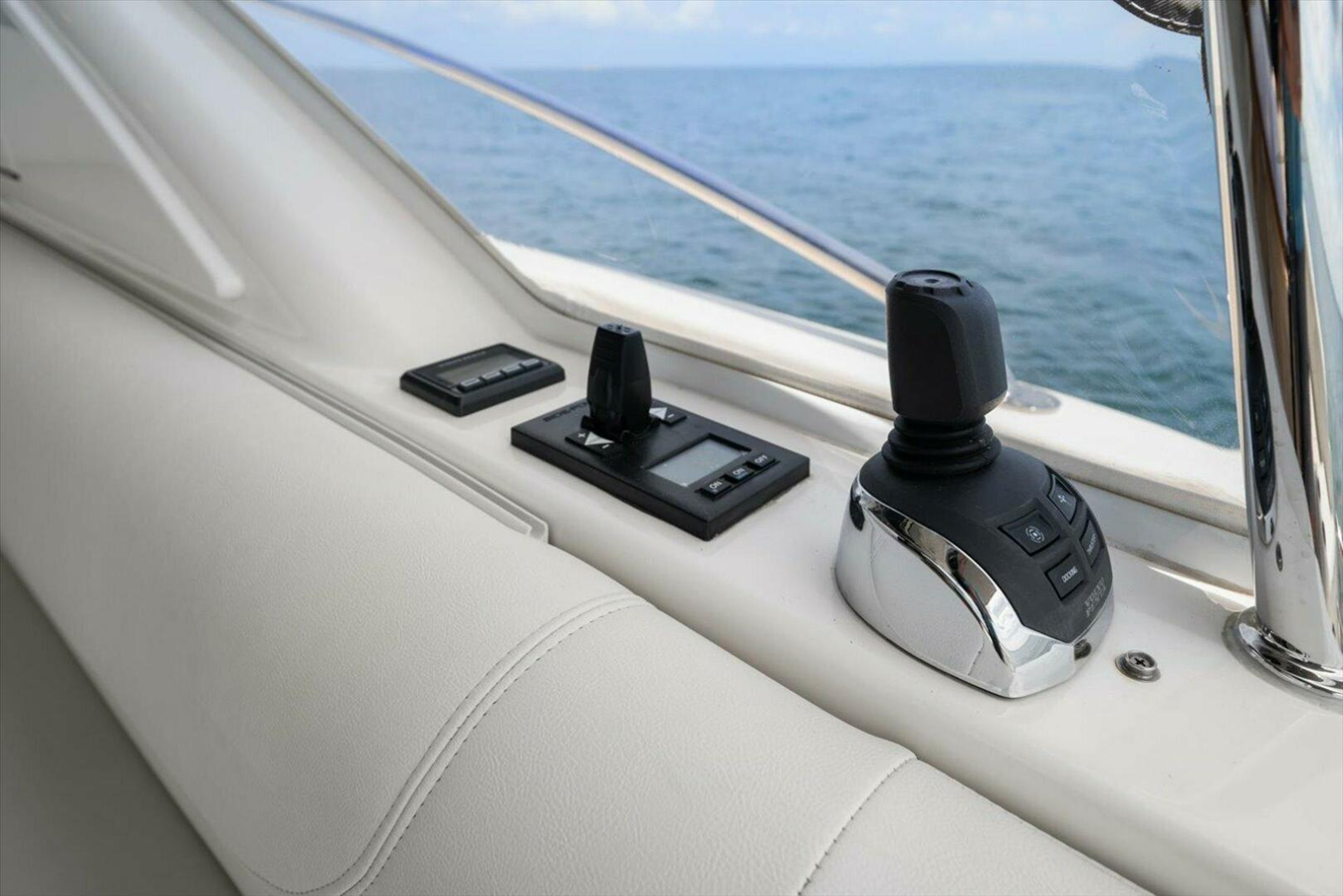

• Cockpit Joystick - Additional joystick station mounted to cockpit (so 2 cockpit joystick stations, one port and one starboard)

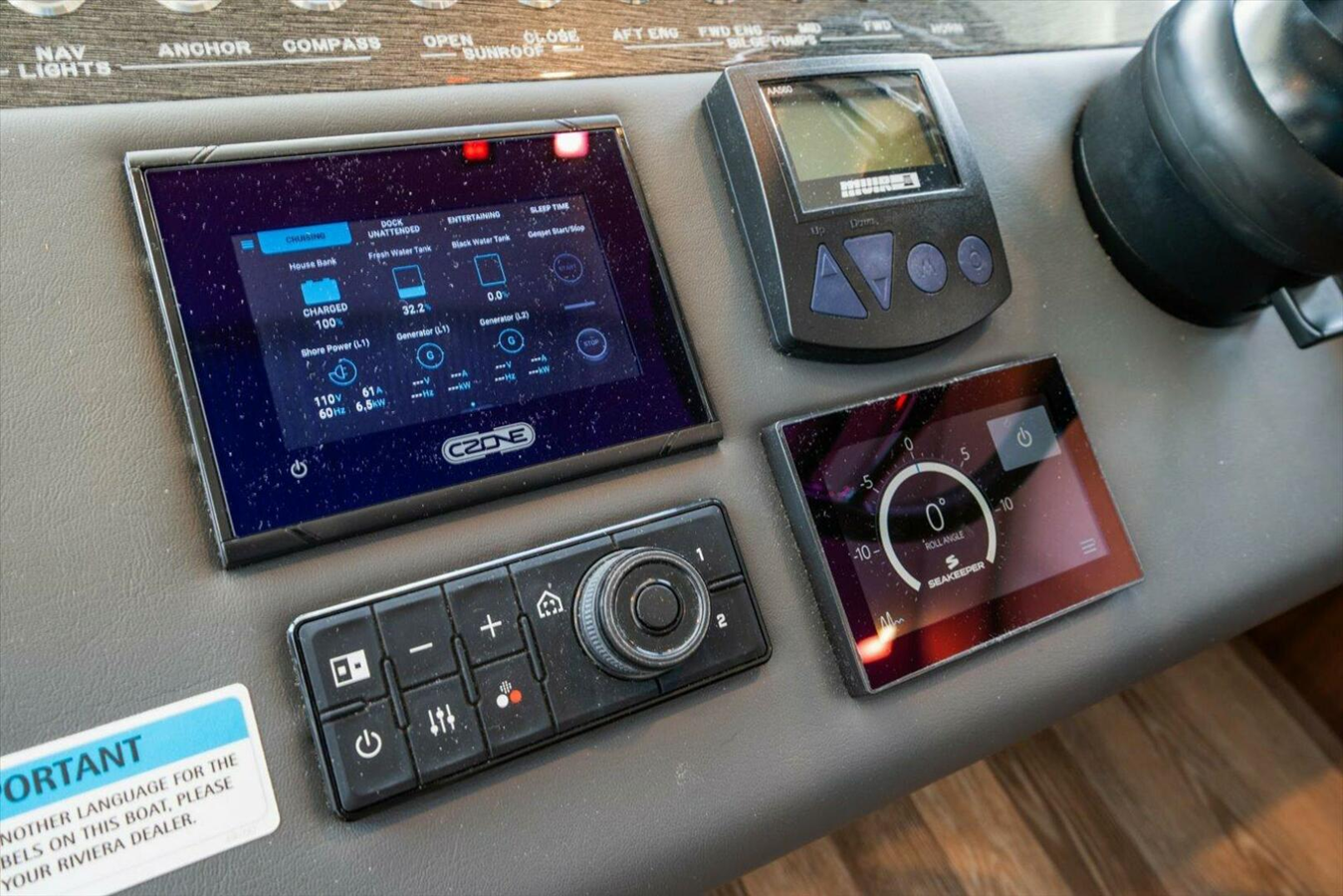

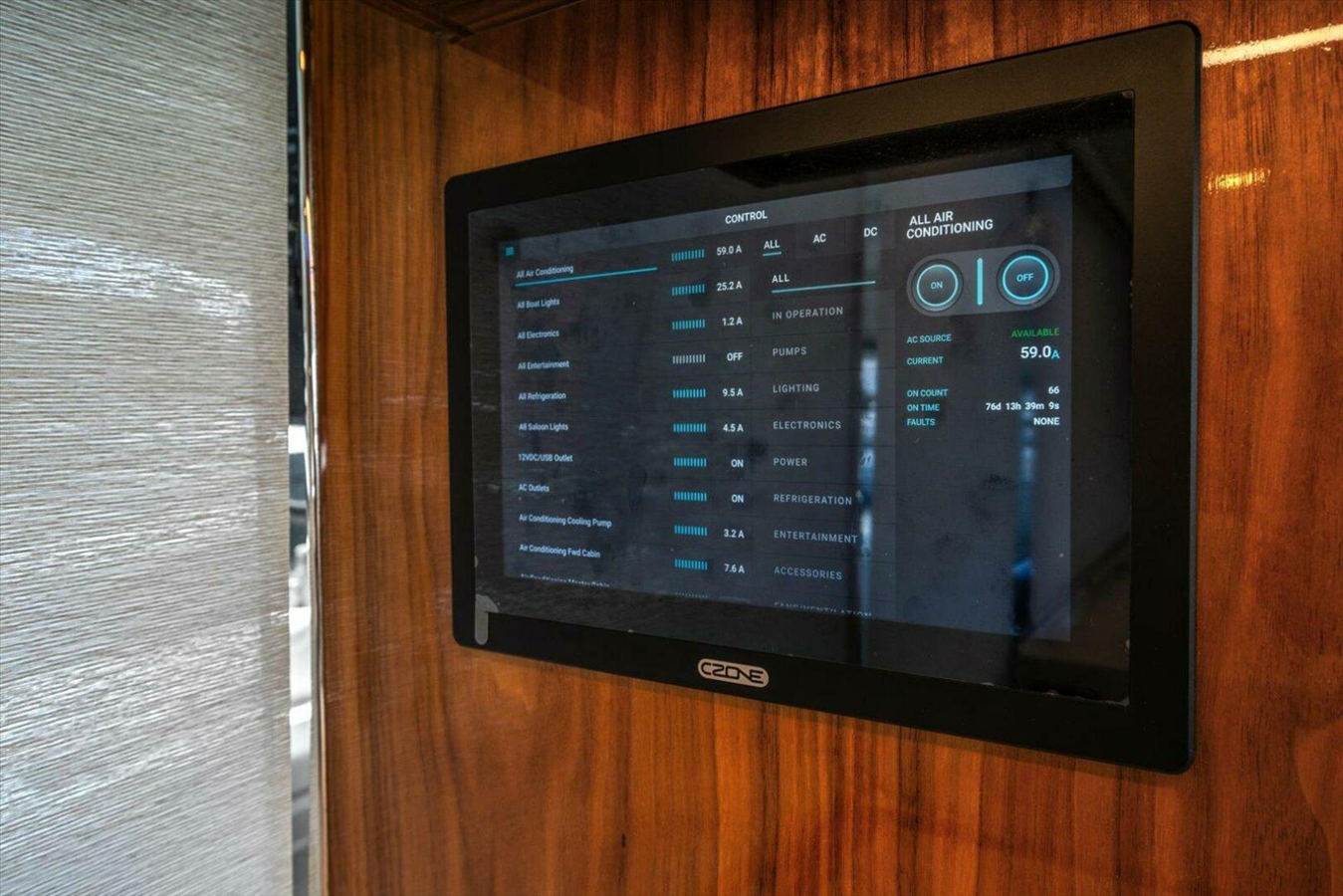

• Czone- Configuration for ipad connectivity, includes programming and Wi-Fi interface

• Tropical Air Conditioning Package- salon upgrade to 48,000 BTU and includes heat reflective film to windows, front and sides as well as sunroof glass

• High Pressure Water Cleaner plumbed to outlets at bow and cockpit (supplied with 1x 10 metre (32'10") hose and spray wand)

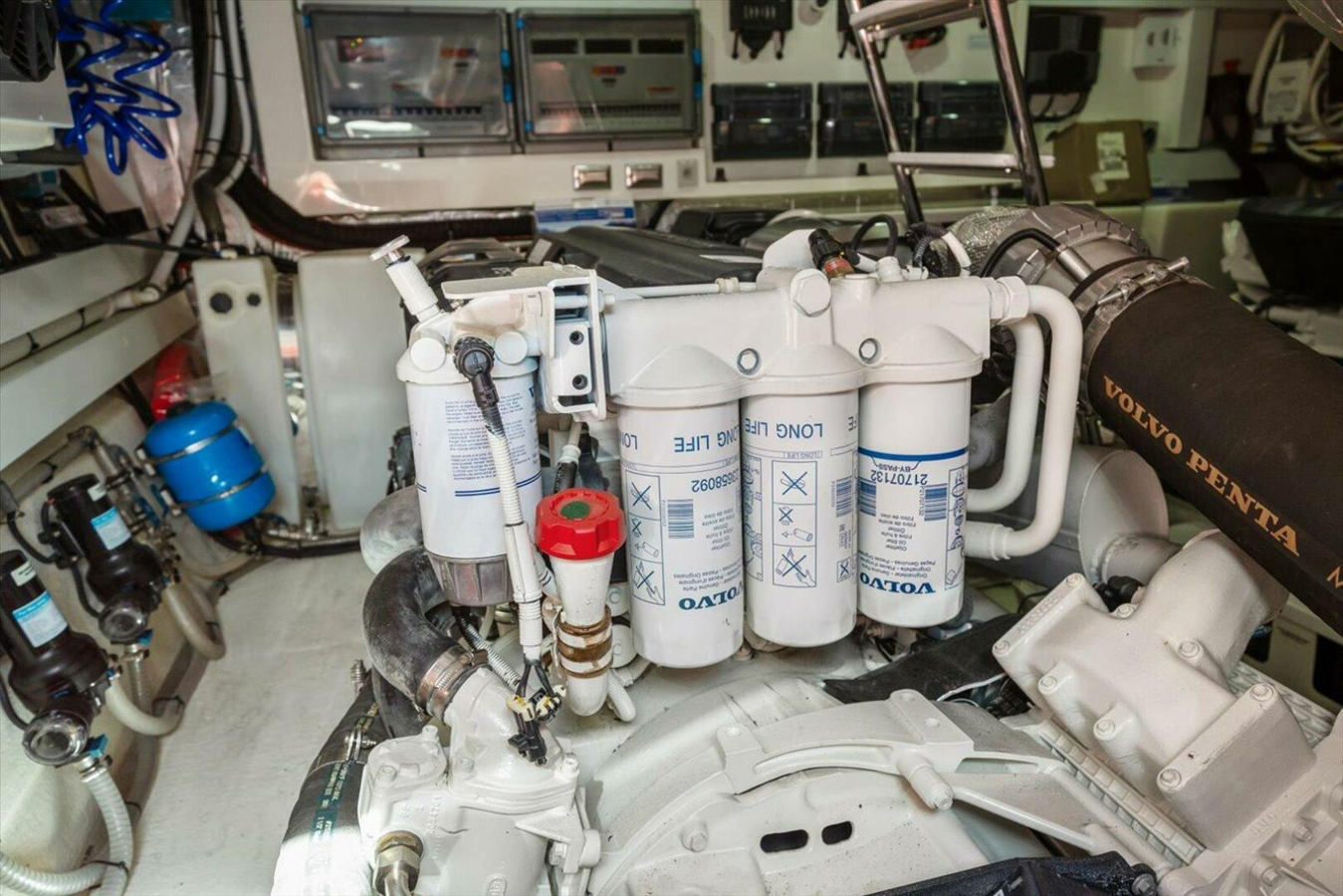

• Fuel filters/ water separator for engines & generator, DUAL to main engines

• Upgrade house battery bank to include additional Lithium-ion battery (total x4) (400AHr Total/280AHr Usable Capacity)

• Wireless remote for Glendinning Cablemaster

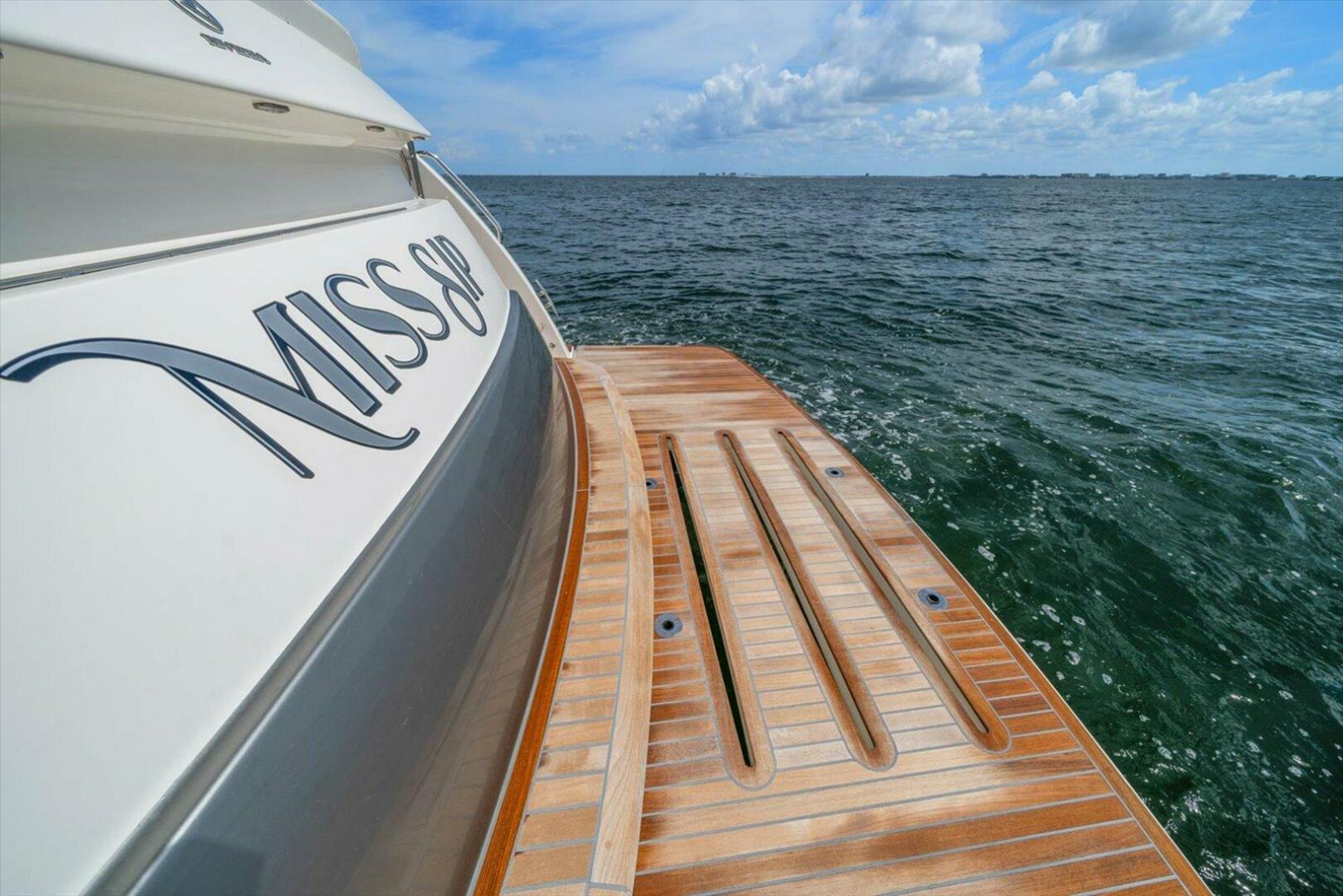

• Hand held corded remote for swim platform, mounted in tender garage to allow operation of up down mechanism from the swim platform

• Port stateroom (or lounge area) - 24” LED TV, Fusion Apollo 670 Stereo with FM, Bluetooth, Airplay and Partybus, 2 x Fusion Speakers)

• Cockpit Speaker Upgrade - includes 4 x 7.7" and 2 x 8.8" JL Audio M6 Blue backlit speakers powered by JL Audio 6 channel amp.

• Additional transom fixed cleats mounted to lower transom style line

• Dyson cordless rechargeable vacuum cleaner with detachable long reach wand with charging station

• Drinking water purifier with outlet in galley

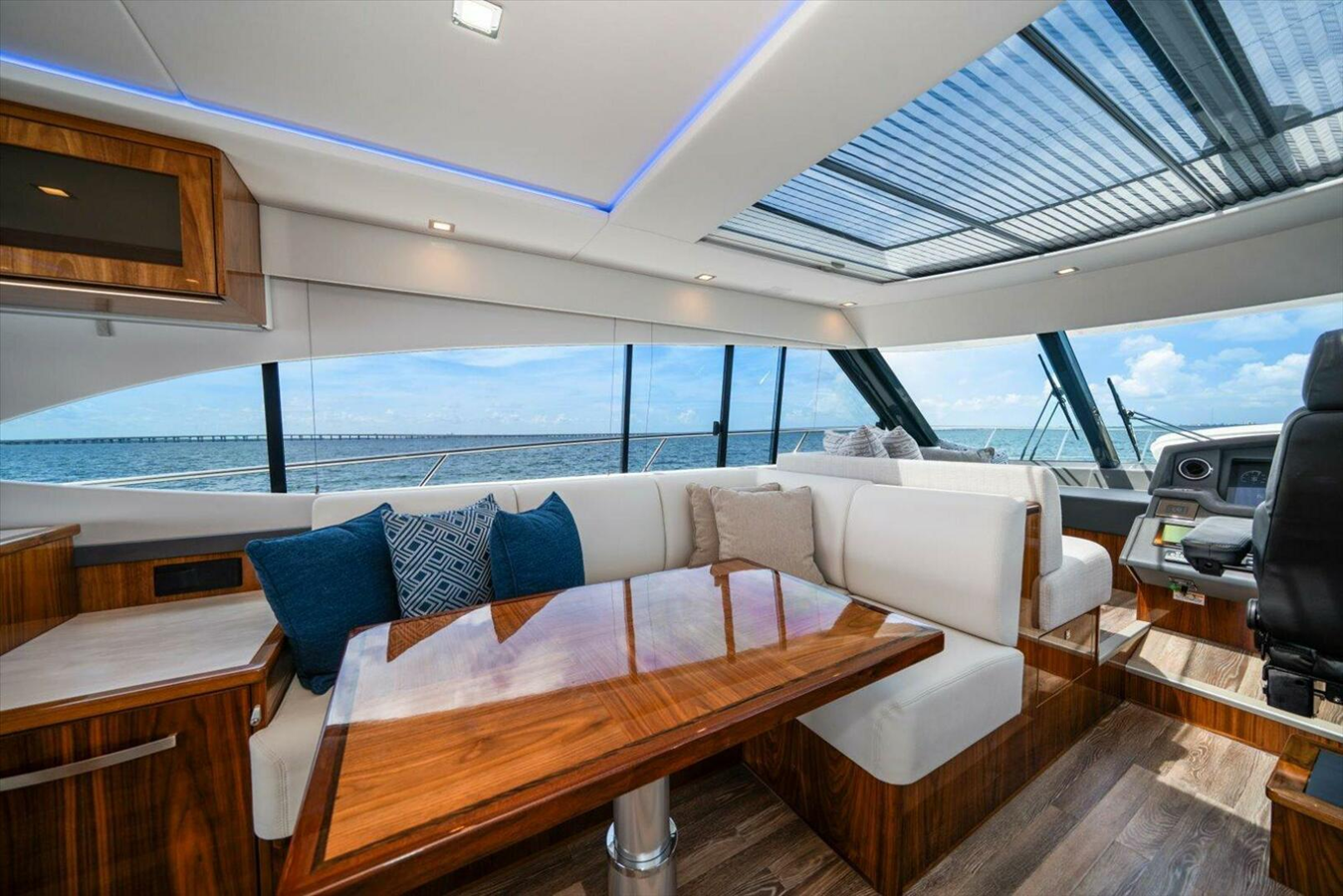

• Salon table upgrade to electric hi/lo with infill cushion allows conversion of dinette into daybed

• Painted hull topsides in metallic colour (Gunwhale to pin stripe, following the chine line up at the bow, swim platform not included)

• Cockpit awning - Yacht acrylic - Fixed forward section only with integrated 1/4 panel strata-glass clears to port and stbd

• Master cabin to include a small safe, mounted into hanging locker

• Saloon side window covers

• Triangular Quarter glass clears to cockpit port and stbd with additional grab rails

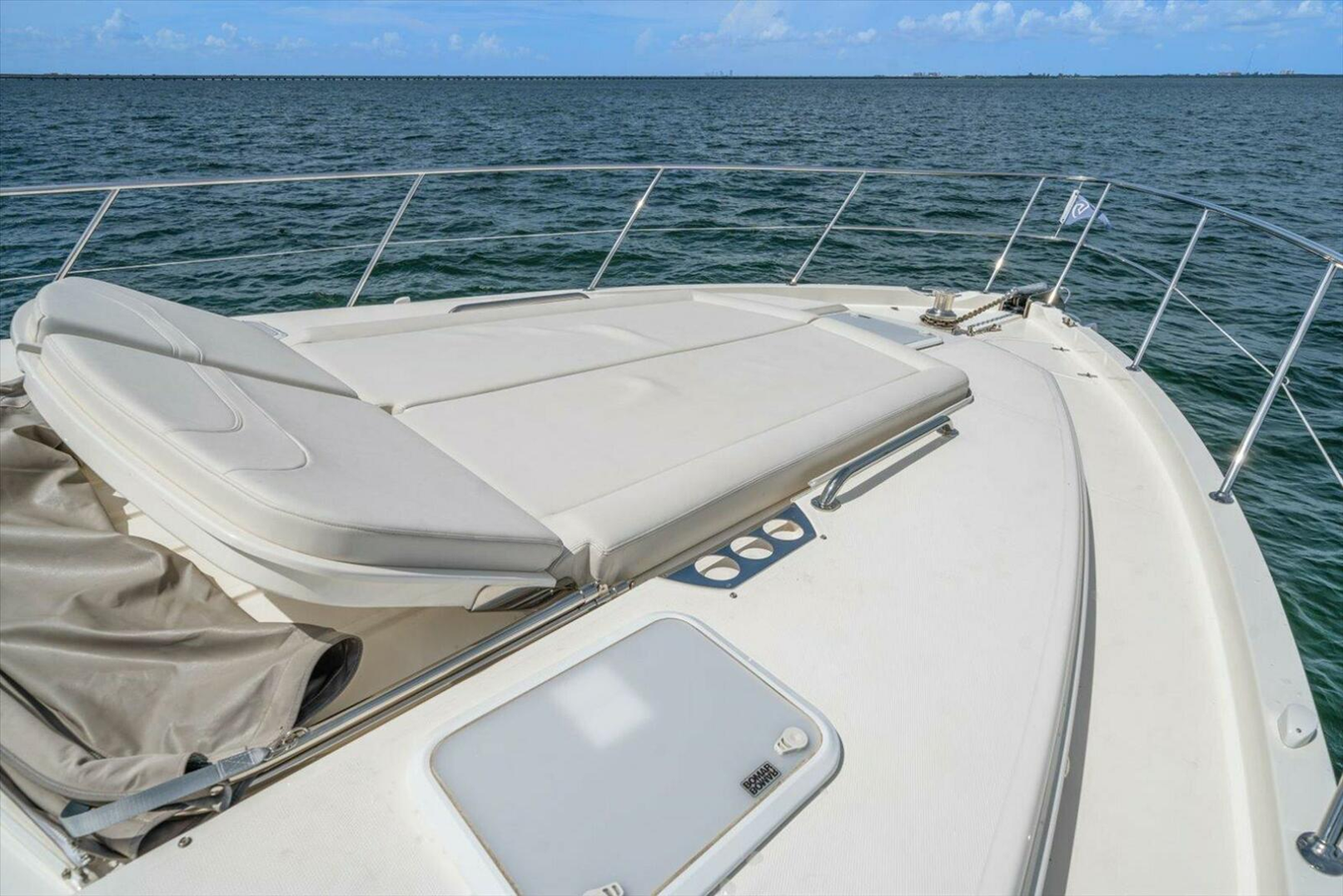

• Upholstery to cockpit lounge and foredeck sun pad - Dove Vinyl

• Solid Surface benchtop colour - As fitted to Galley, Cockpit and Heads (Including heads floor) Corian - PEARL

• Upholstery - Bedhead & Bed surrounds - Bedside Inlays to compliment- LOVELY MARBLE

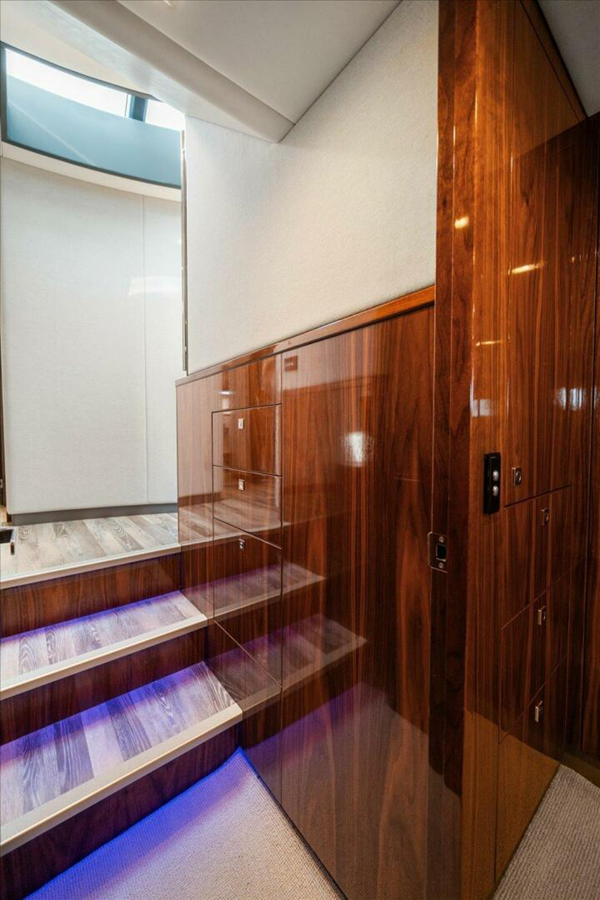

• Saloon, Galley, Stairs & Companionway Flooring in commercial grade vinyl UPGRADE- LIMED LINEN OAK

• Staterooms Fitted with 100% Wool Carpet- TROIKA MOSCOW

• GALLEYWARE PACKAGE (32pce Cutlery set, 32pce Dinner set, 2 x Kitchen towels, Tumblers - 8 x Medium & 8 x Large, 8 x Wine Glasses, 8 x Champagne Flutes, Salad Bowl & Salad Servers)

• Mattress Protectors - for 3 cabin layout (1 x King, 1 x Queen, 2 x Singles)

• Additional Fitted Sheet Sets - for 3 cabin layout (1 x King, 1 x Queen, 2 x Singles)

• Timber - Walnut interior including high gloss Finish varnish throughout

• Saloon roller blinds to sides and rear bulkhead (manual)

• 2 x 17" Volvo Glass Bridge 8617 inc GPS and GRID Controller

• Sounder/Transducer CHIRP Garmin GSD 26 CHIRP Sounder with 1kw B275LHW depth/temp transducer

• Sounder/Transducer Panoptix Livescope FrontVu forward looking transducer

• Garmin GFR Fantom CHIRP Closed Array Radar 48NM

• Garmin Autopilot integrated into Glass Bridge

• Garmin AIS 800 Transciever with VHF radio integration

• Aft Awning Flood Lighting (2 lights) Lumitec Caprera LT

• Foredeck Lighting (6 each side) Hella Easy Fit Blue

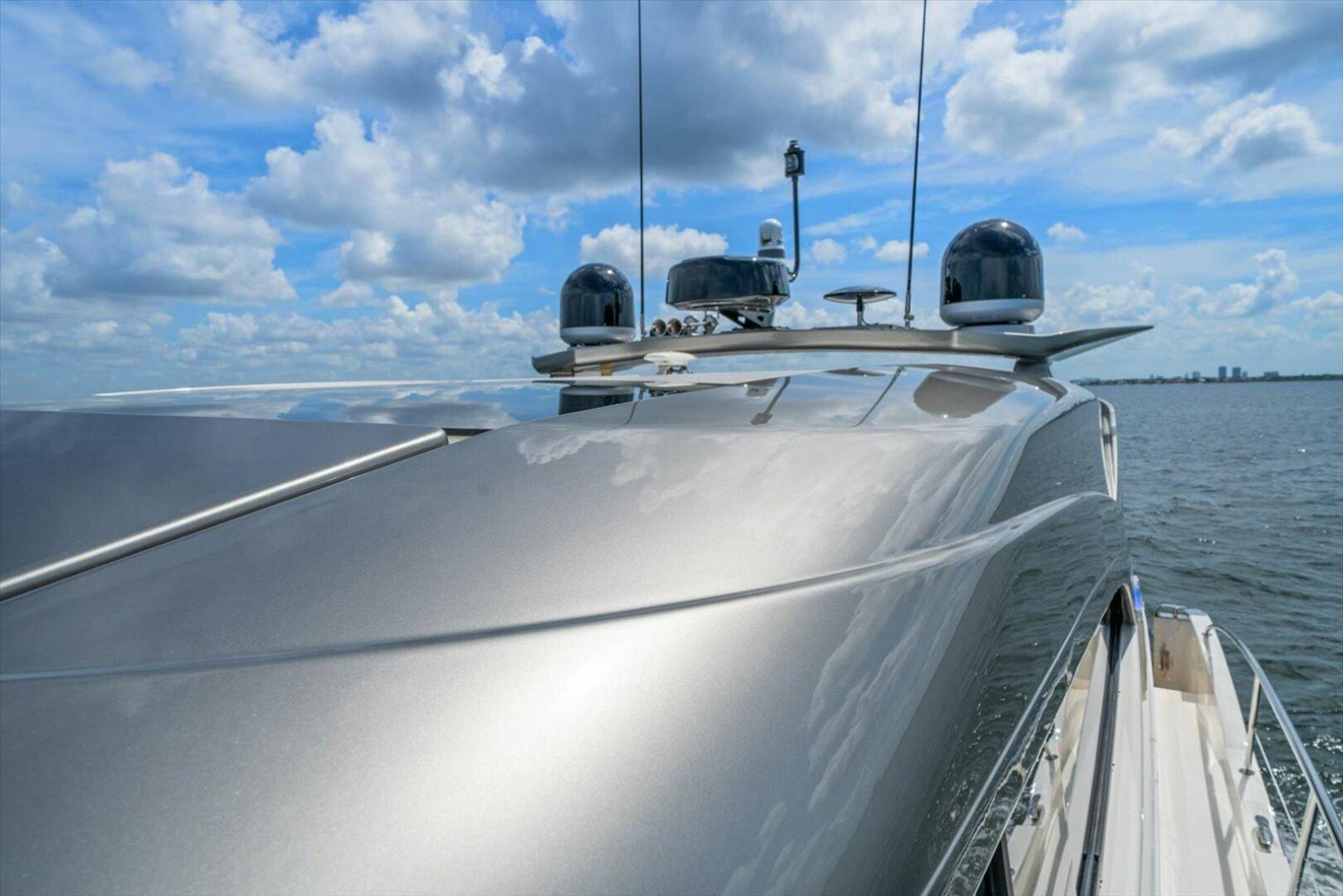

• Targa Uplighting Lumitec Echo White x 6 to light Sat Domes and Radar

• Engine Room Camera Garmin GC 200 IP Dome Camera (infra red)

• Cockpit Camera Gamin GC 200 IP Dome Camera (infra red)

• Awning Camera, mounted to stainless rail

• Thermal FLIR M232 Camera with tilt/pan and JCU controller

• Siren Marine Remote Monitoring System

• Navigation display connected to Salon TV

• HRO Seafari Watermaker 900GPD, with control panel in salon

• KVH TV5 Tri-Americas SAT TV Dome

• Lumitec SeaBlaze X2 Full-Spectrum Underwater Lights, 4 across transom and 1 on each side, 6 in total

• Garmin GXM54 weather module for chartplotters

• Seakeeper 9 Gyro Stabilizer

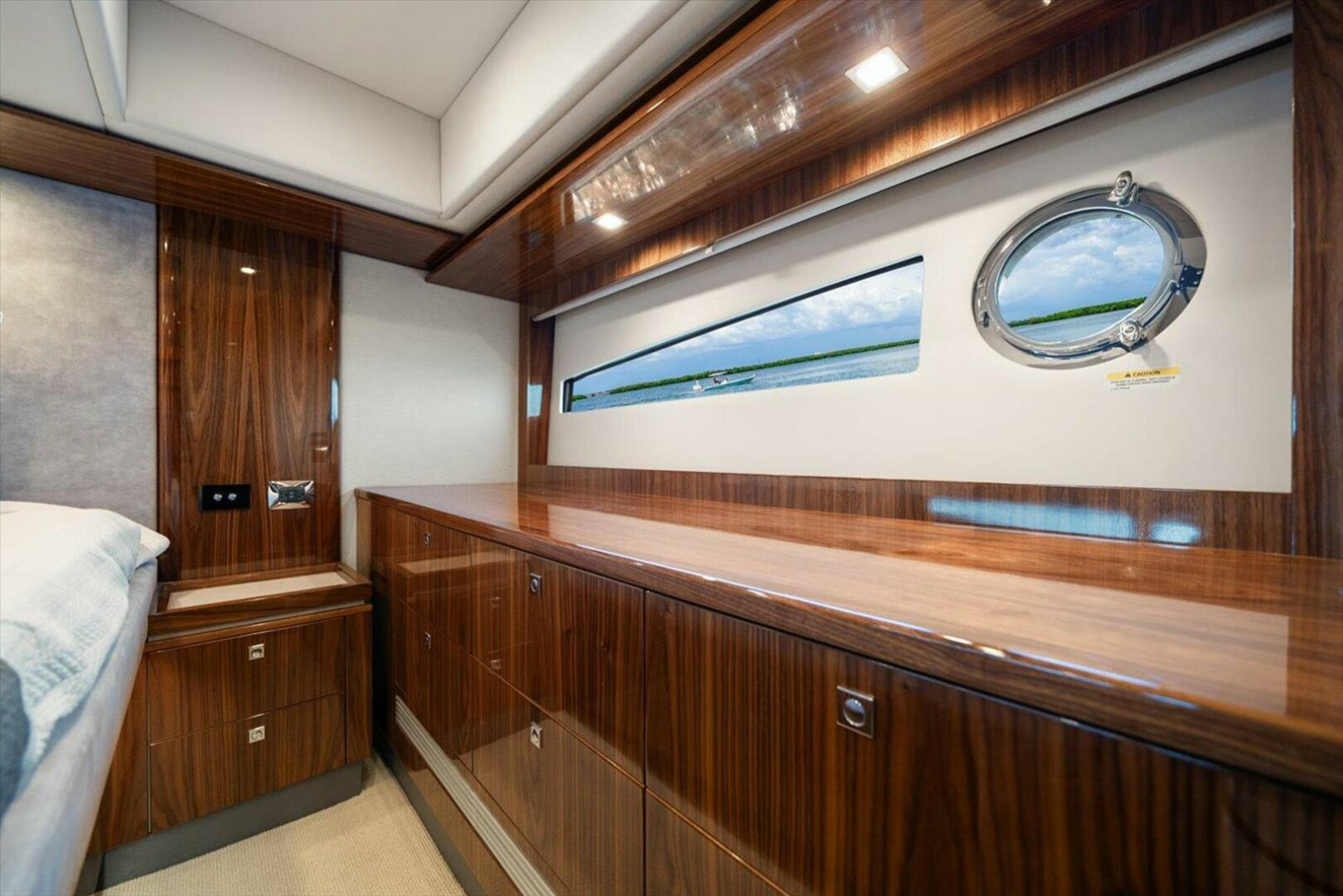

• Master Cabin Chaise Lounge to be removed and a drawer unit same as port side to be installed to maximize storage

• Additional power sockets with USB ports in cabinets by helm

• SAT TV to be connected to all TV's on board

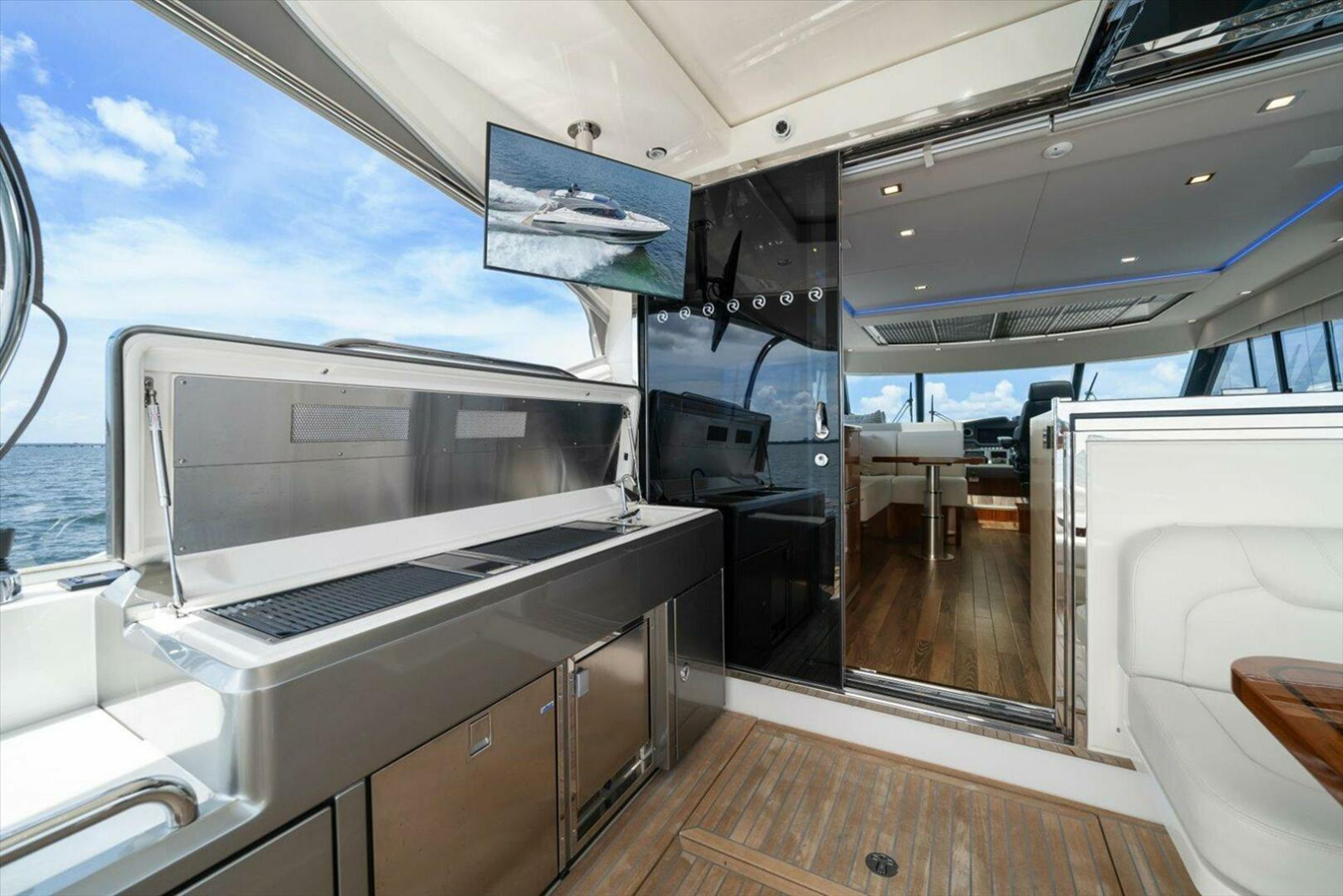

• 32" Samsung TV on Custom stainless steel bracket on port side of aft deck area

• Volvo Penta Assisted Docking System with proportional bow thruster (new for 2023). Big game changer for joystick docking. The boat will maintain its fixed position but actively let you move it with the joystick all while counteracting wind and current.

• Tracfone LTE-1 data dome

CONSTRUCTION Hand laid, moulded fibreglass hull, deck (with core), cabin top & enclosed hardtop Independent compartments throughout hull Isophthalic gelcoat exterior (white) Solid reinforced GRP keel, chines and hull bottom Vinylester resin in first outer layer of hull Watertight collision bulkhead forward Hull windows are glass full length port and starboard

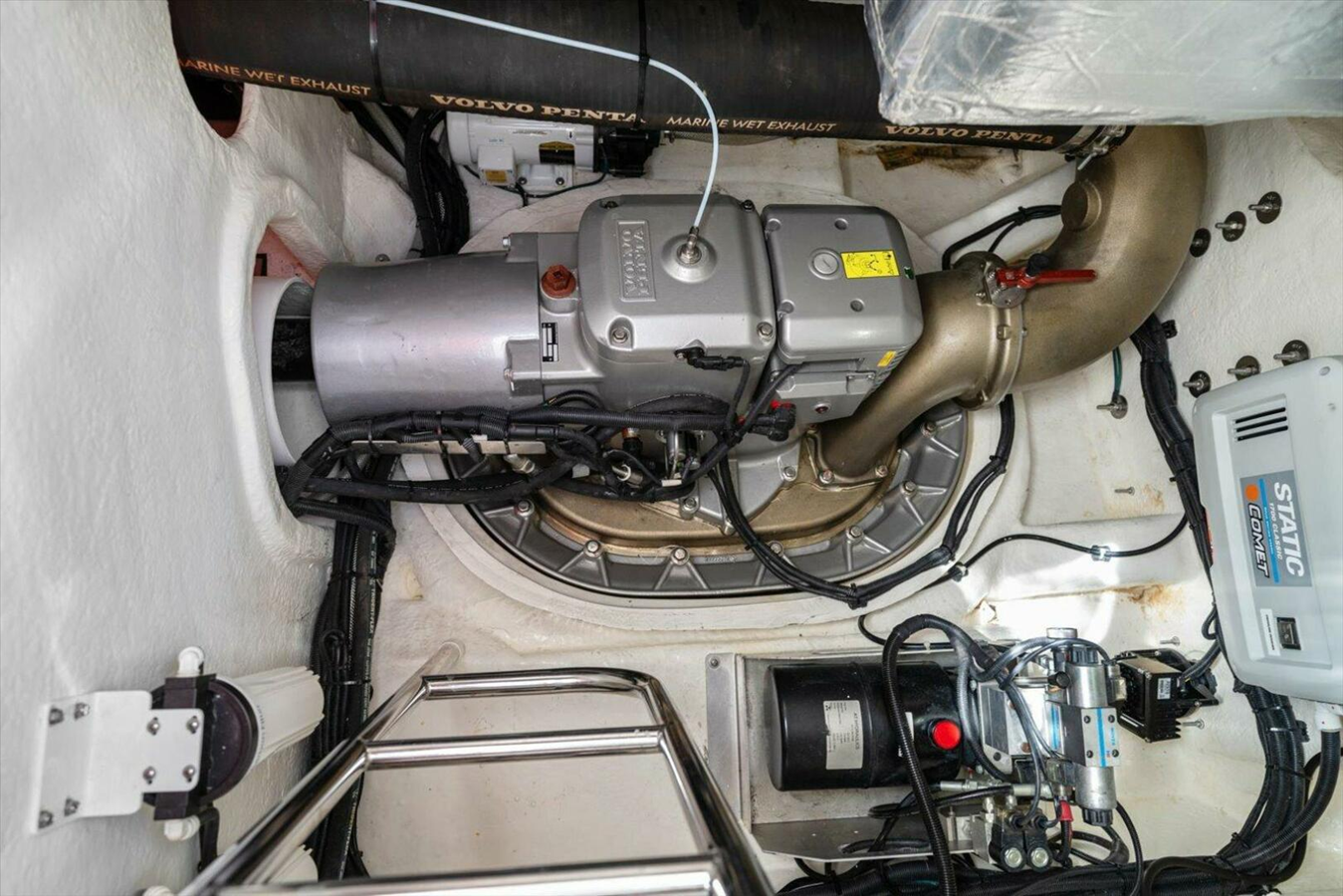

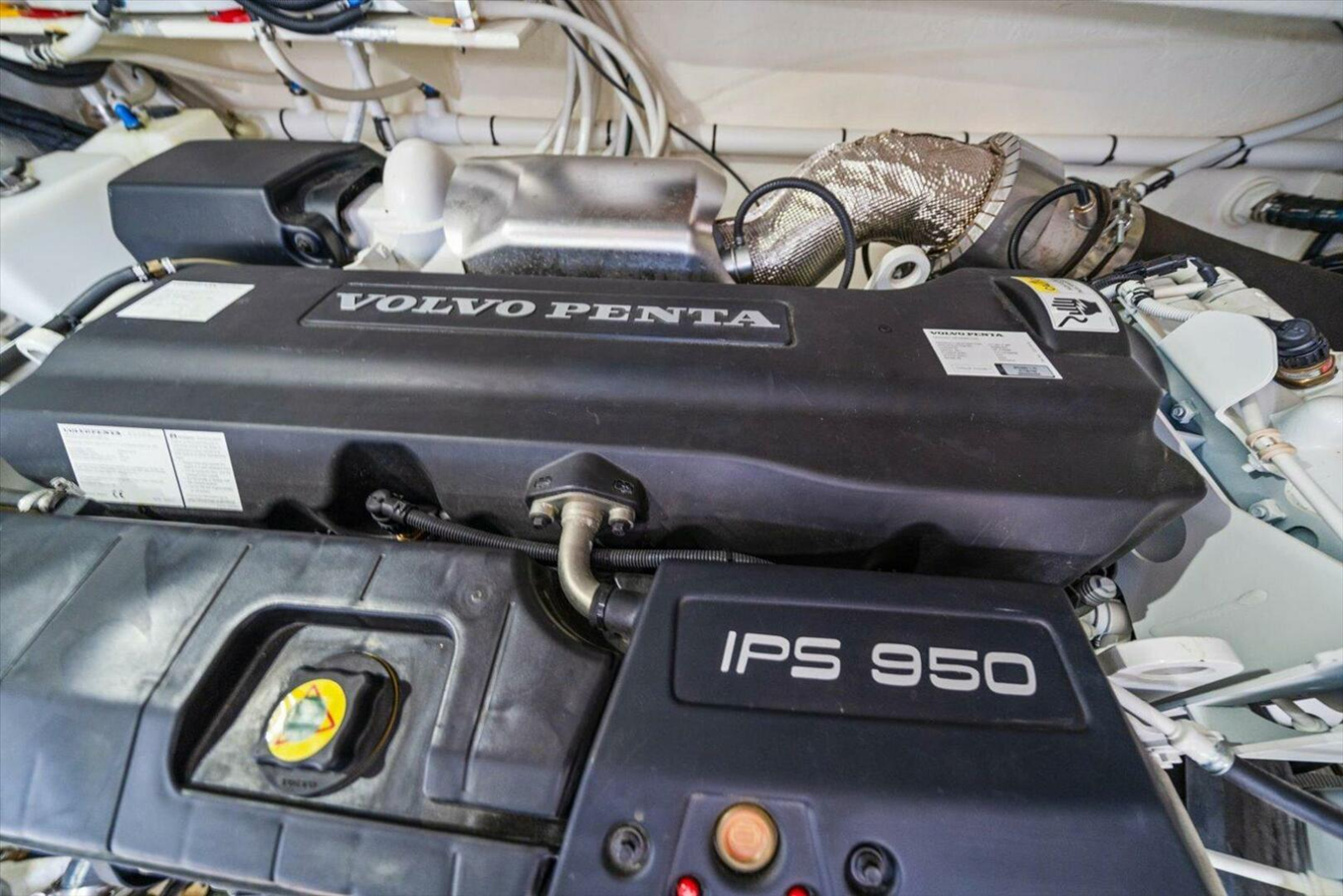

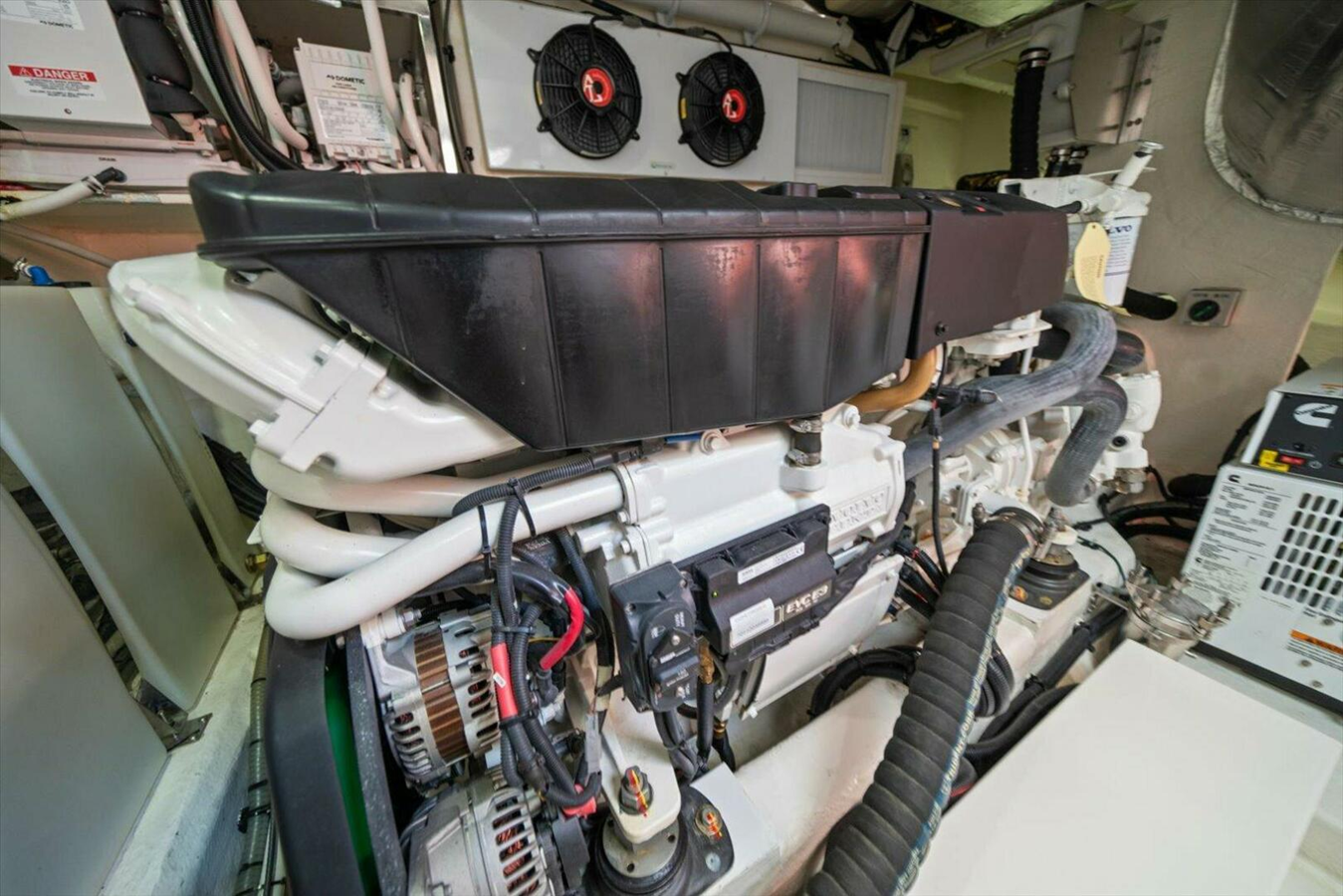

ENGINES Twin Volvo IPS 950 D11 Diesel- 725hp each Low speed mode Dynamic Positioning System Line cutters Twin lever electronic controls 2x17" Garmin Glass Bridge Screens Volvo Penta easy connect for remote app based monitoring

GENERAL SPECIFICATIONS All exterior stainless mirror finish with ground polished welds, 316 marine grade Antifouling: 2 coats epoxy undercoat, 2 coats antifoul with Propspeed coating to propellers & Pod Drive gear Fenders x 4, dock lines x 4 and boat hook Fire extinguishers, portable x 4 Owners manual - high quality and comprehensive Safety labels - English language Washer/Dryer combination machine (Premium Brand) located in companionway

MECHANICAL Acoustic & thermal insulation to Engine room Air conditioning condenser units - (BTU's) 36,000, 16,000, 12,000 & 6,000 All through hull fittings on or below the water line fitted with ball valves, all hoses double clamped Bilge pumps, auto & manual override x 4 Engine hatches insulated & removable Engine monitoring display (Volvo) - 7'' Glass Bridge MFD Engine mounts - anti vibration Engine room lighting, LED (DC) External & internal seawater strainers for main water intakes - engines, generator &air conditioning Fire suppression system for engine room with automatic/manual controls Fresh water heater (AC) Fresh water pump, Secondary backup pump (switched independently) Fresh water system (pressurised) 2 x 400 litre tanks, total capacity 800 litres (211 USgallons)* (approx.) displayed in Czone Fuel lines all swaged Fuel shut-off valves Fuel tank, GRP coated in fire retardant resin, 3000 litres (792 US Gallons)*approx. displayed within Volvo Engine monitoring & visual site gauge on tank Holding tank capacity 400 litres (105 Gallons)*Approx. Sanitation system with overboard pump out switch & deck fitting for dock side pump out Tender winch, electric for tender retrieval Trim Tabs - Volvo trim assist system Venting dorade system for engine and air intakes & fans (DC)

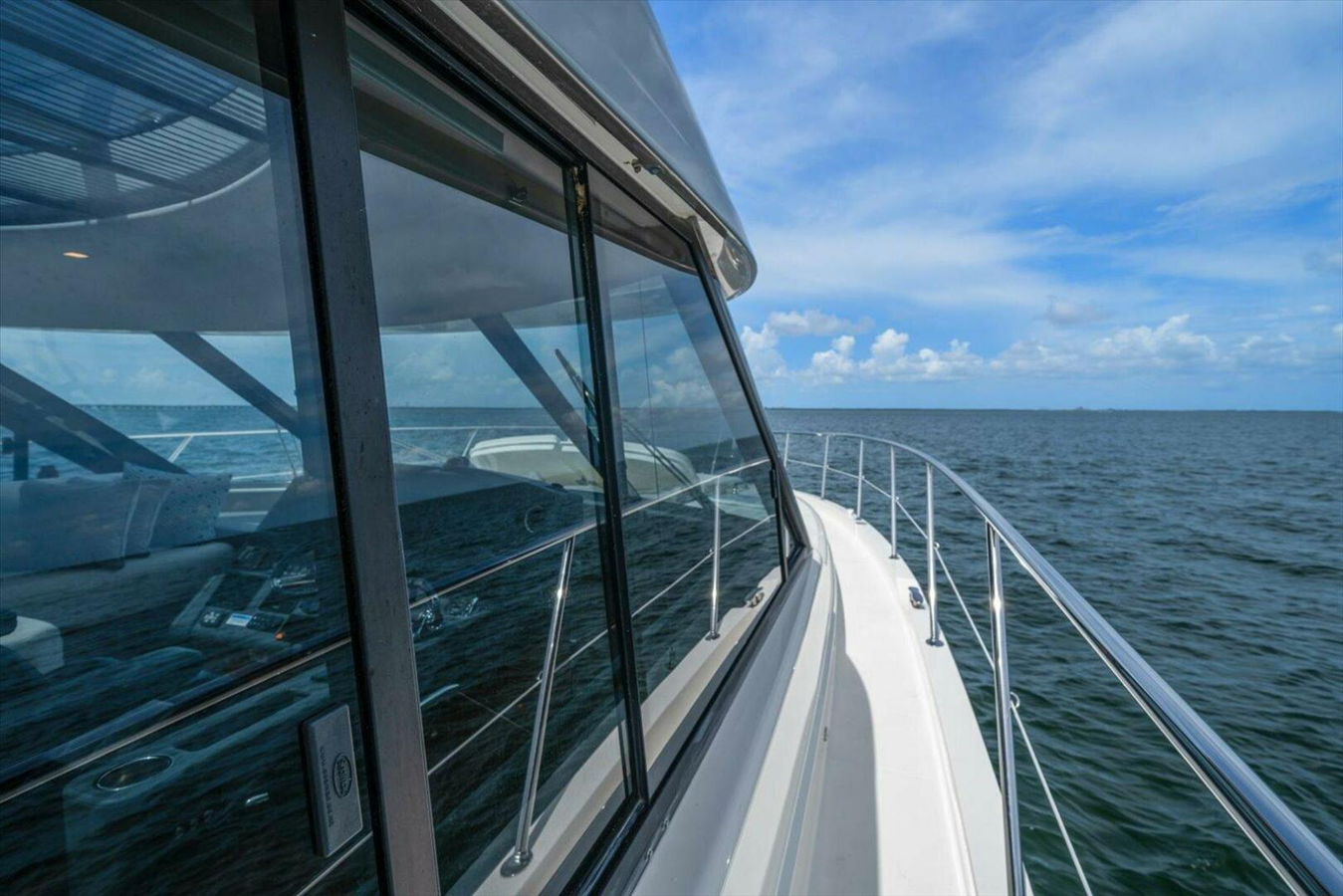

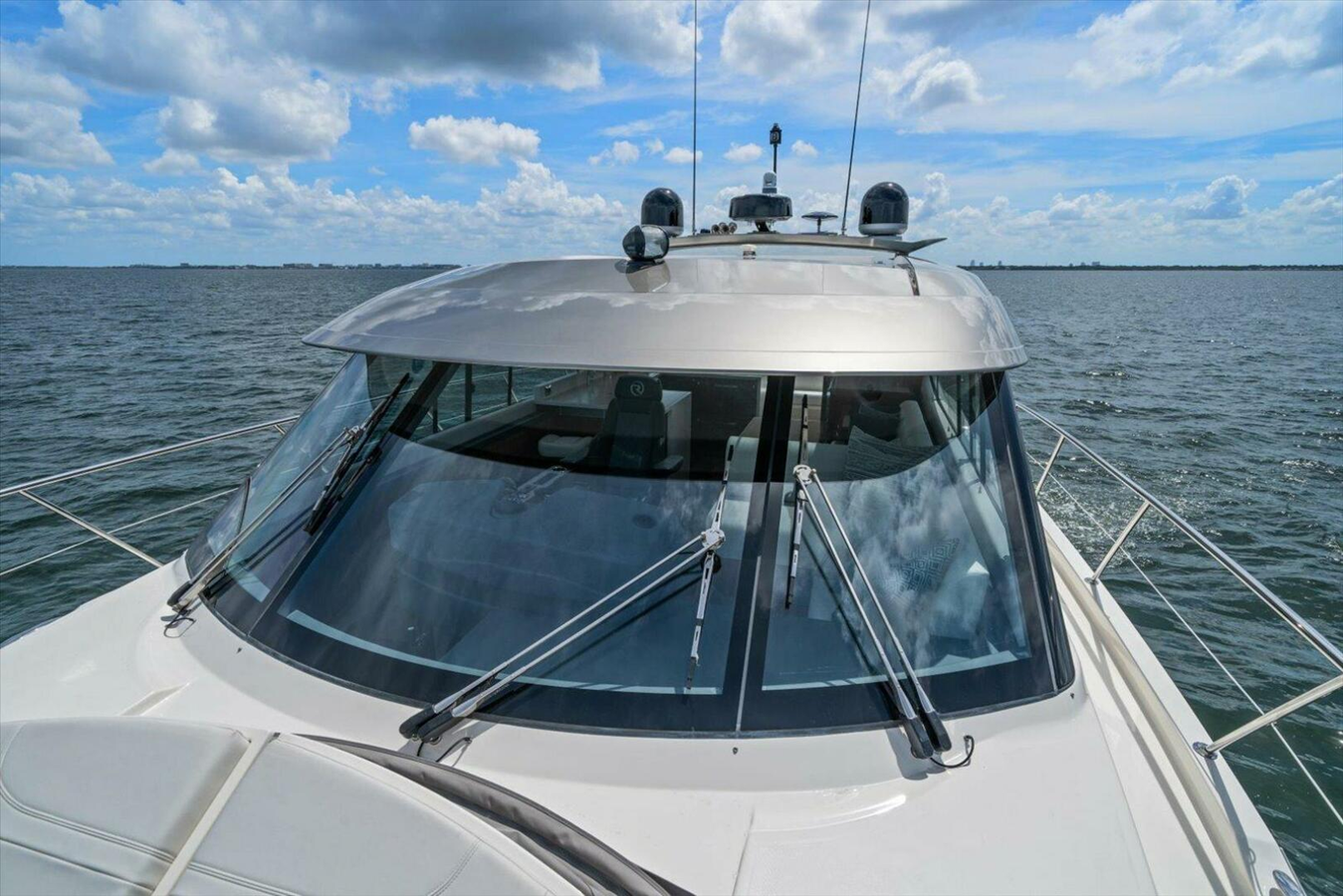

SUPERSTRUCTURE Enclosed hardtop - GRP double moulded, 4 sides toughened glass, with sliding sidewindows, opening rear bulkhead to connect indoor/outdoor areas Sunroof, GRP electric open/close sliding over forward cockpit Sunroof, Tinted glass electric open/close sliding over helm/dinette area. Includes manual sliding screen & blind Targa on hardtop painted Riviera Platinum with all electronics to be black where applicable Hardtop painted Riviera Platinum

ELECTRICAL Alternators - Independent start bank and independent house bank (total x 4) Alternators - Port alternator charges start bank, secondary port alternator charges auxiliary bank. Starboard alternator charges starboard start bank & secondary starboard alternator charges house bank. Batteries (Maintenance free) - Independent port & stbd start (total x 4), Auxiliary (x2)& house 24V x 3 (300AHr Total/210AHr Usable Li-Ion bank) Battery banks individually isolated Battery charger (24V/100A) for house bank Battery paralleling system for emergency engine starting Bonding system, to all metallic hull fittings under the water line with zinc anode including galvanic isolator Digital monitoring system including AC& DC power metering, fluid tank level monitoring & DC circuit status via 10'' colour LCD touch screen mounted at aft saloon and 5'' Touch control screen at helm Inverter 2.5kW to operate entertainment, 1 x Galley GPO and ice machine in the absence of generator or shore power Navigation lights (international standard) Wiring coded, numbered & assembled in looms where possible Generator - Onan EQD 21.5kW/60Hz with muffler, fresh water-cooled including sound shield, remove stop/start electronic & hour meter Backlit R Logos x2 fitted to deck sides

ELECTRICAL AUDIO VISUAL Forward stateroom - 24” LED TV, Fusion Apollo 670 Stereo with FM, Bluetooth, Airplayand Partybus, 2 x Fusion Speakers Master stateroom - 32” LED TV, Fusion Apollo 670 Stereo with FM, Bluetooth, Airplayand Partybus, 2 x Fusion Speakers Saloon – 43” LED TV on electric lift, Fusion Apollo 770 Stereo with FM, Bluetooth,Airplay and Partybus, 4 x Fusion speakers with 4 channel Fusion Amplifier plus subwoofer to saloon, (TV powered off inverter) Cockpit - Fusion Apollo 670 Stereo with FM, Bluetooth, Airplay and Partybus. 2 x JL Audio Speakers with 4 channel JL Audio amplifier Foredeck – 2 x Fusion speakers connected to Zone 2 of cockpit Fusion Apollo 670 Stereo

DECK Anchor - stainless steel 35kg (77lbs) ultra anchor, 70m (230ft) of 10mm (3/8'') galvanised chain Anchor lockers- access to anchor chain, storage, fresh & salt water outlets Anchor safety strap Anchor winch vertical with overload protection, suits rope and chain, up & down via plug in remote control & mounted counter at helm. Bow rail welded stainless steel (316 marine grade, highly polished) with mid safety wire including flag staff and burgee (bow flag) Bow roller stainless steel self-loading - through bowsprit, heavy duty Cleats - Stainless steel, 11'' (x 8) Rub rail - impact and UV resistant PVC (white) with stainless steel insert strip Spotlight on hardtop, remote control at helm Sunpad area to have a small fold up bimini (colour to match cockpit awning) also with cover (white stamoid) Swim Platform, hydraulic operation (up/down 350kg max), teak laid, including recessed stainless steel swim ladder hatch Windscreen cover, front (Black breezeway) Grabrails fitted to transom steps

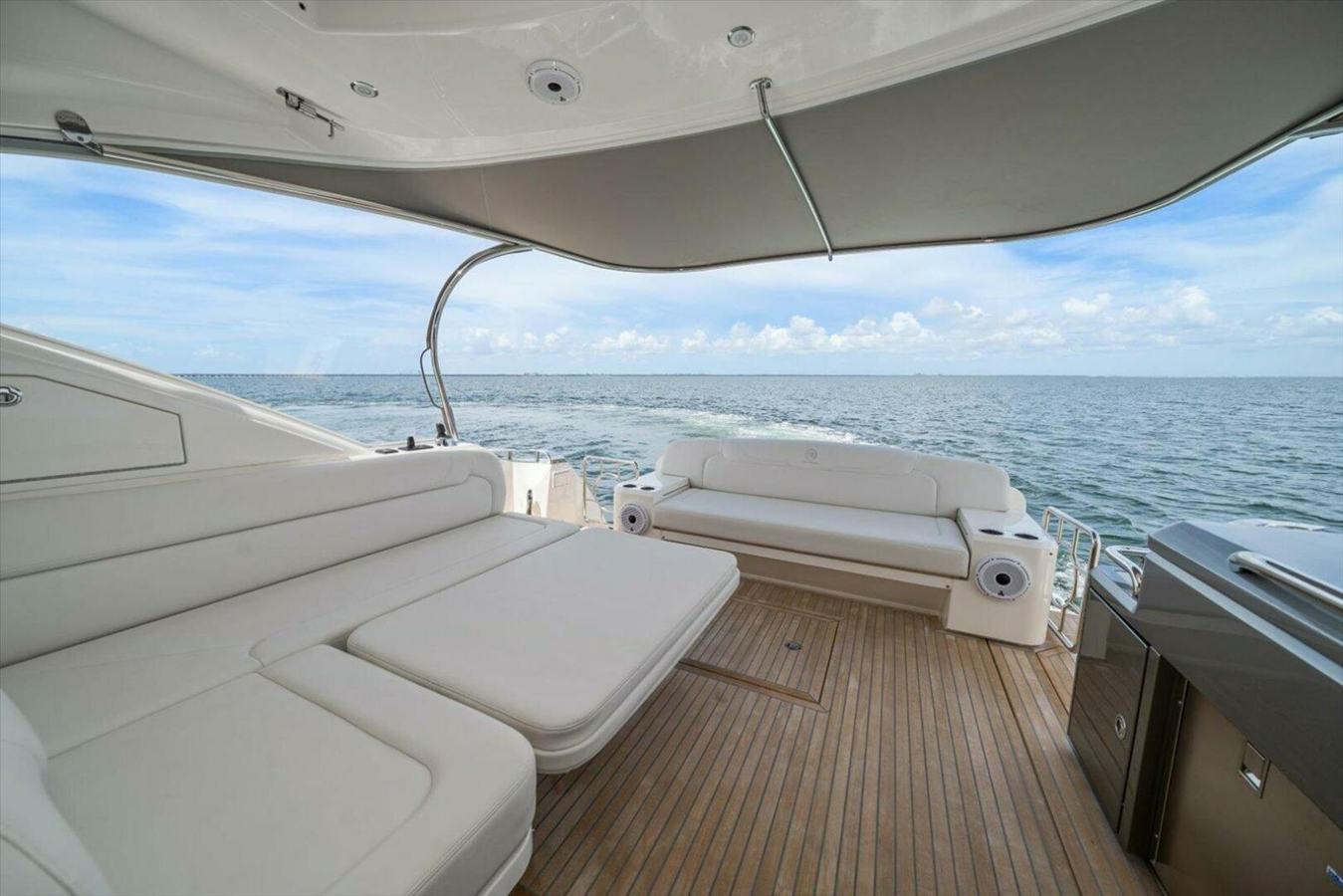

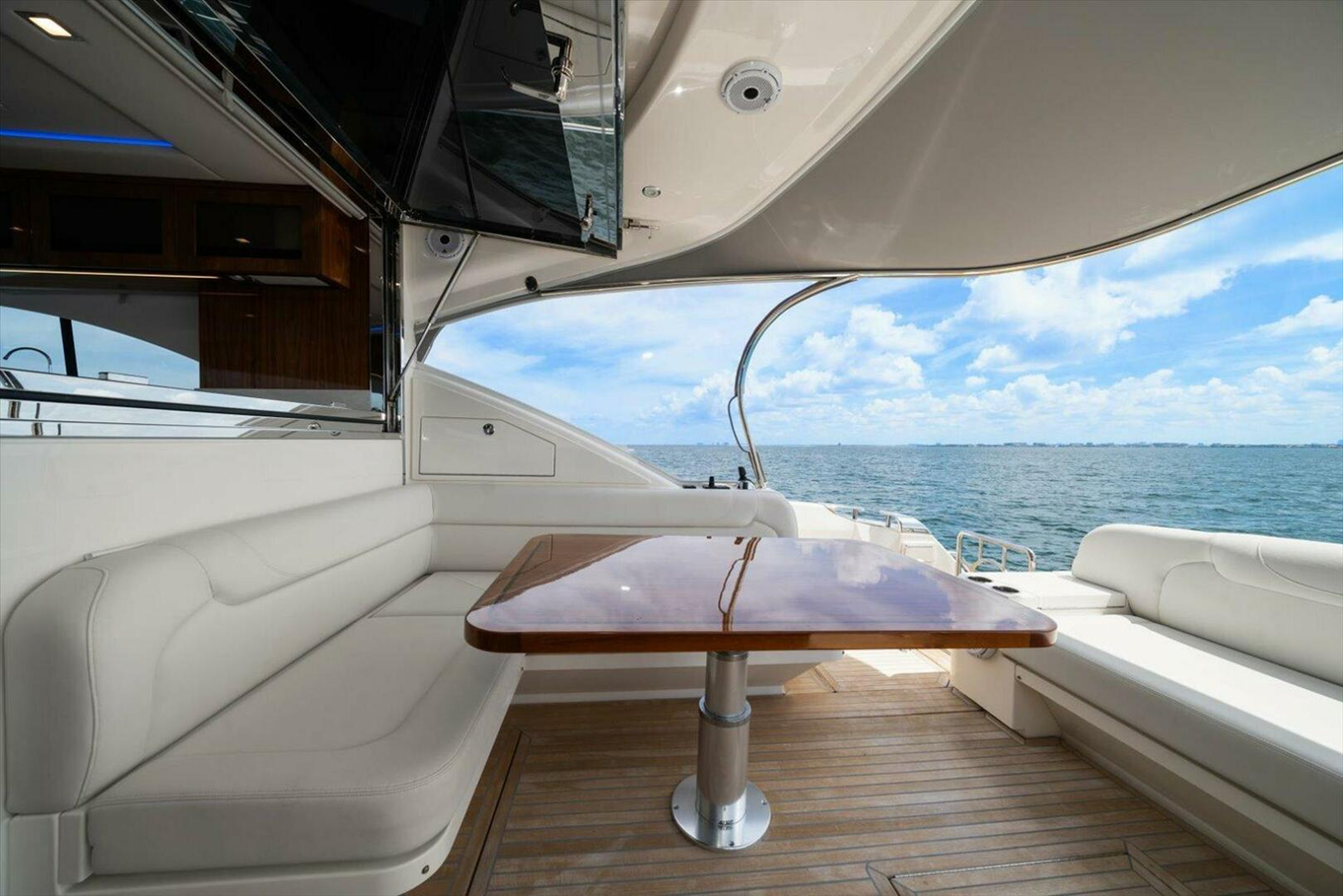

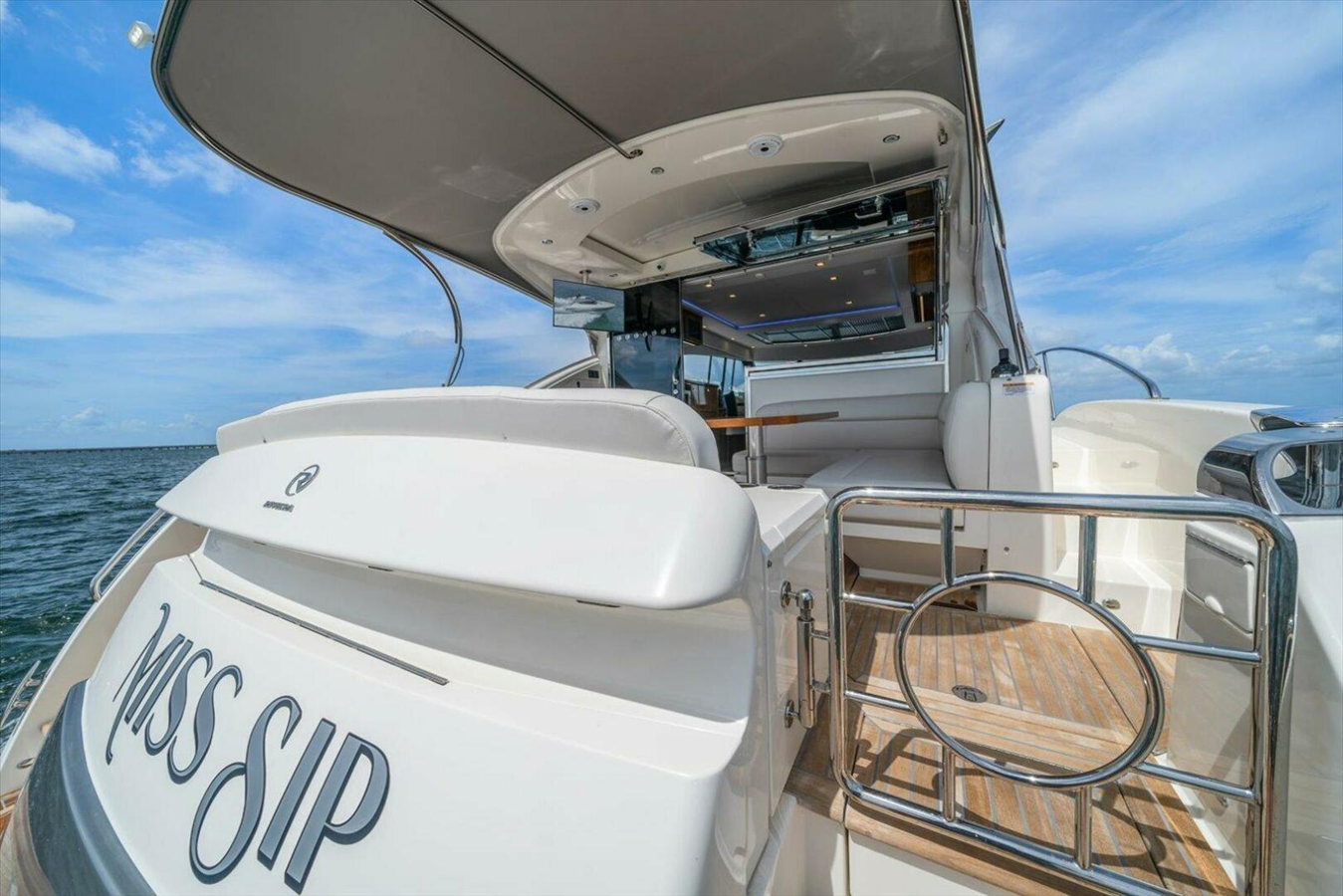

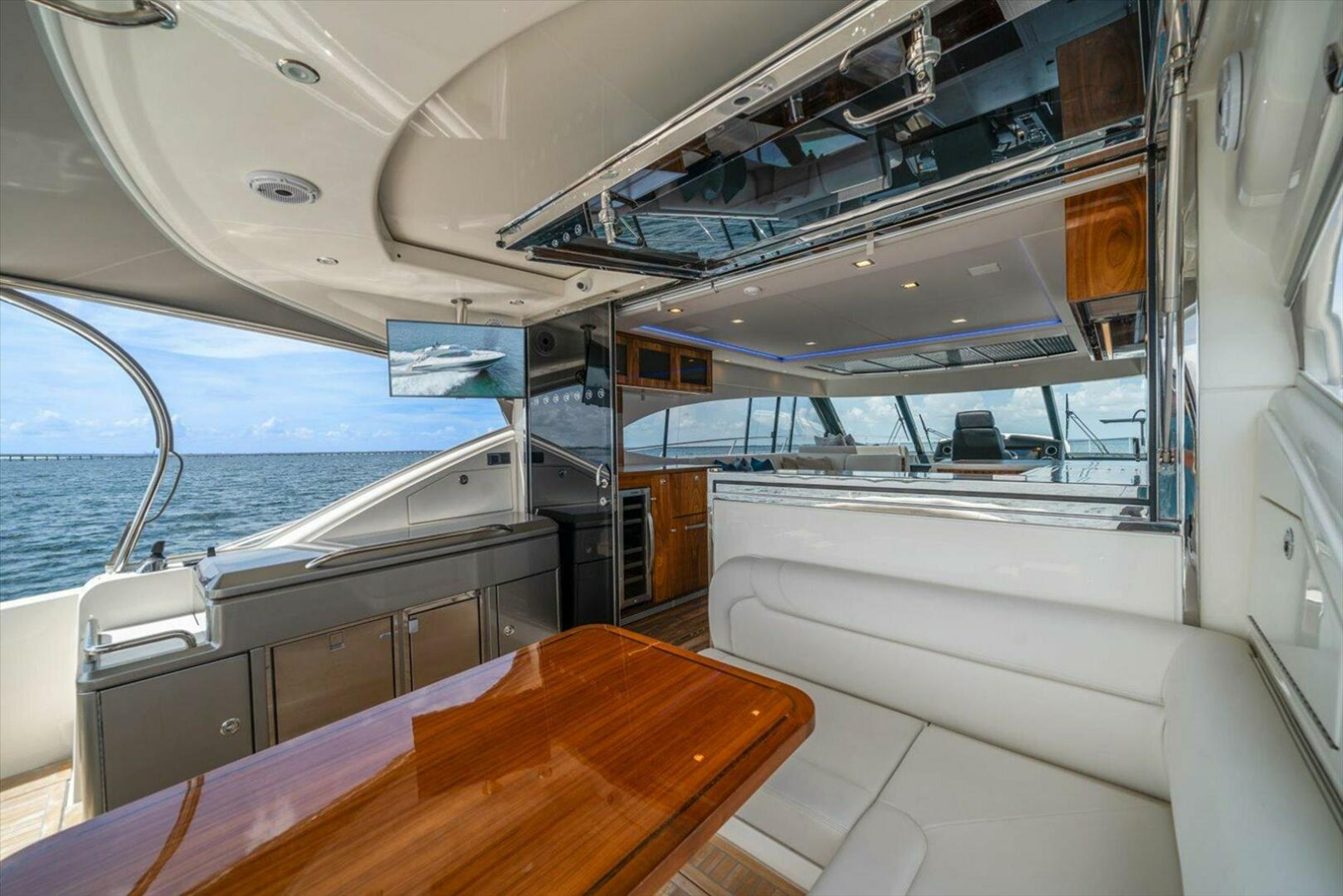

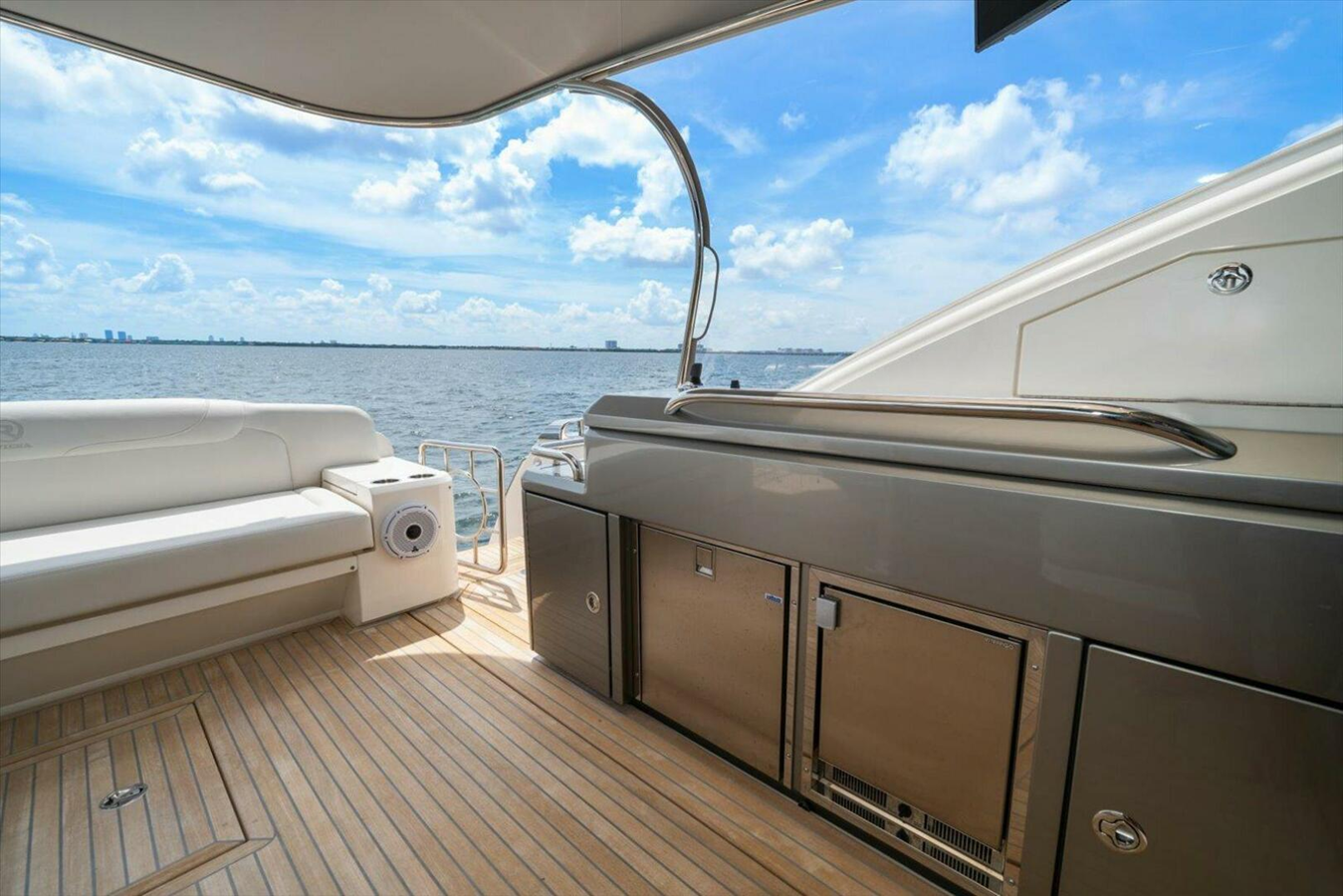

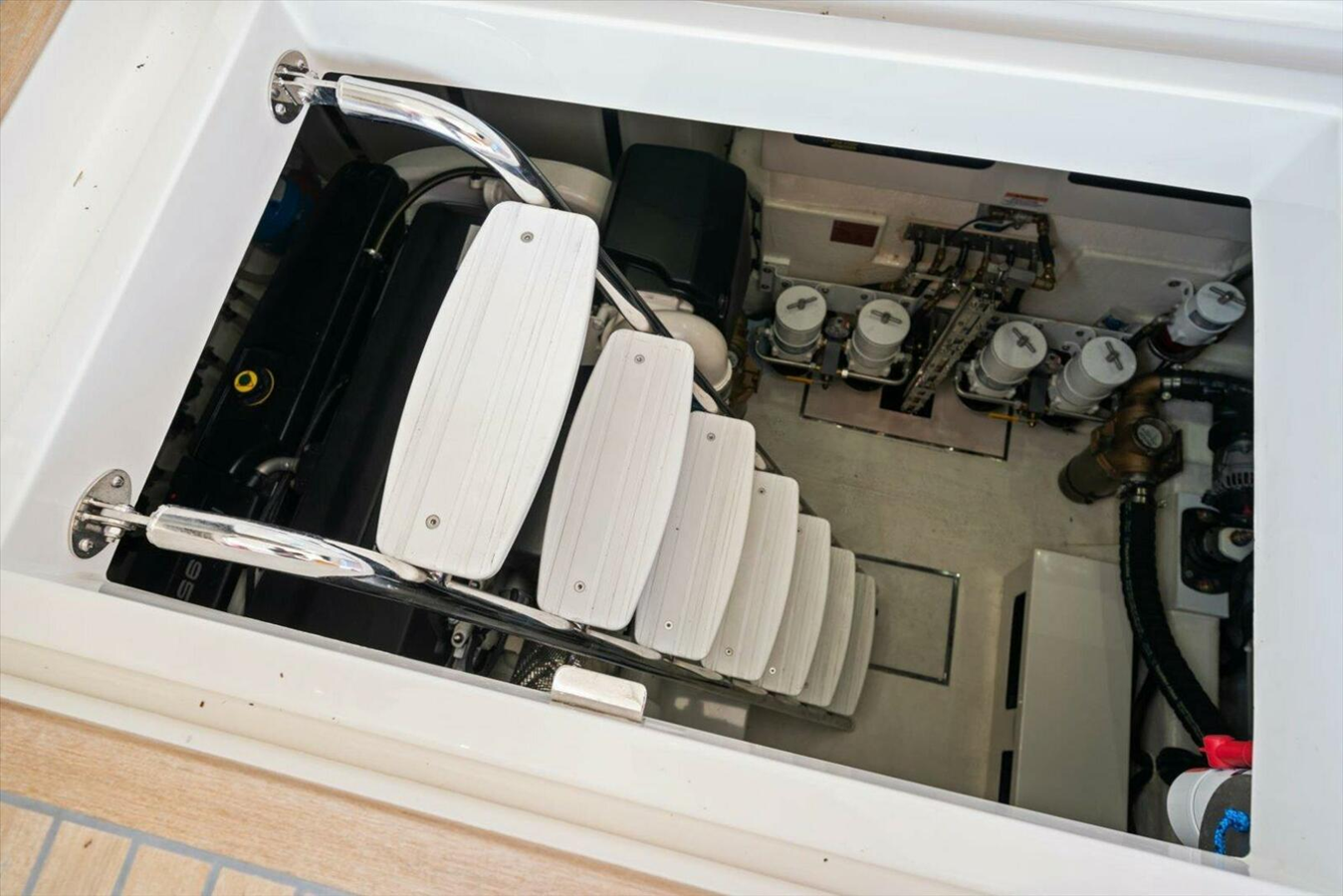

COCKPIT Access hatch into tender garage Access to Engine room through 3 x hatches with stainless steel lockdowns Bulkhead, sliding stainless steel door with awning style opening up window, tinted tempered glass, with gas strut, safety latch & lock Cockpit floor, teak laid Double action manual bilge pump for engine room Garage for tender storage, opens with electric actuator, includes electric winch (may not suit all tenders) Garbage bin within wet bar Hand held shower hot & cold (Fresh water) Lighting, overhead & courtesy (DC) Lounge to transom, Drink holders either side within arm rest, upholstered in vinyl(white) also includes fender storage location and cover (White Stamoid) Lounge, L shaped in vinyl (white) with storage beneath including cover (white stamoid) Master battery isolator panel, portside Self draining cockpit to the stern Steps to side decks port & starboard Table, Teak to L shaped lounge mounted on single electric hi/lo pedestal with infill cushion for conversion into daybed includes cover (white stamoid) Transom stainless steel gates (x2) Wash down salt and fresh water quick connects Riviera Platinum Wet bar including benchtop, refrigerator, icemaker, sink with folding hot/cold faucet & 2 x electric BBQ, extraction fans, & fold down lid with auto safety shutoff. Courtesy lights fitted beneath transom lounge back

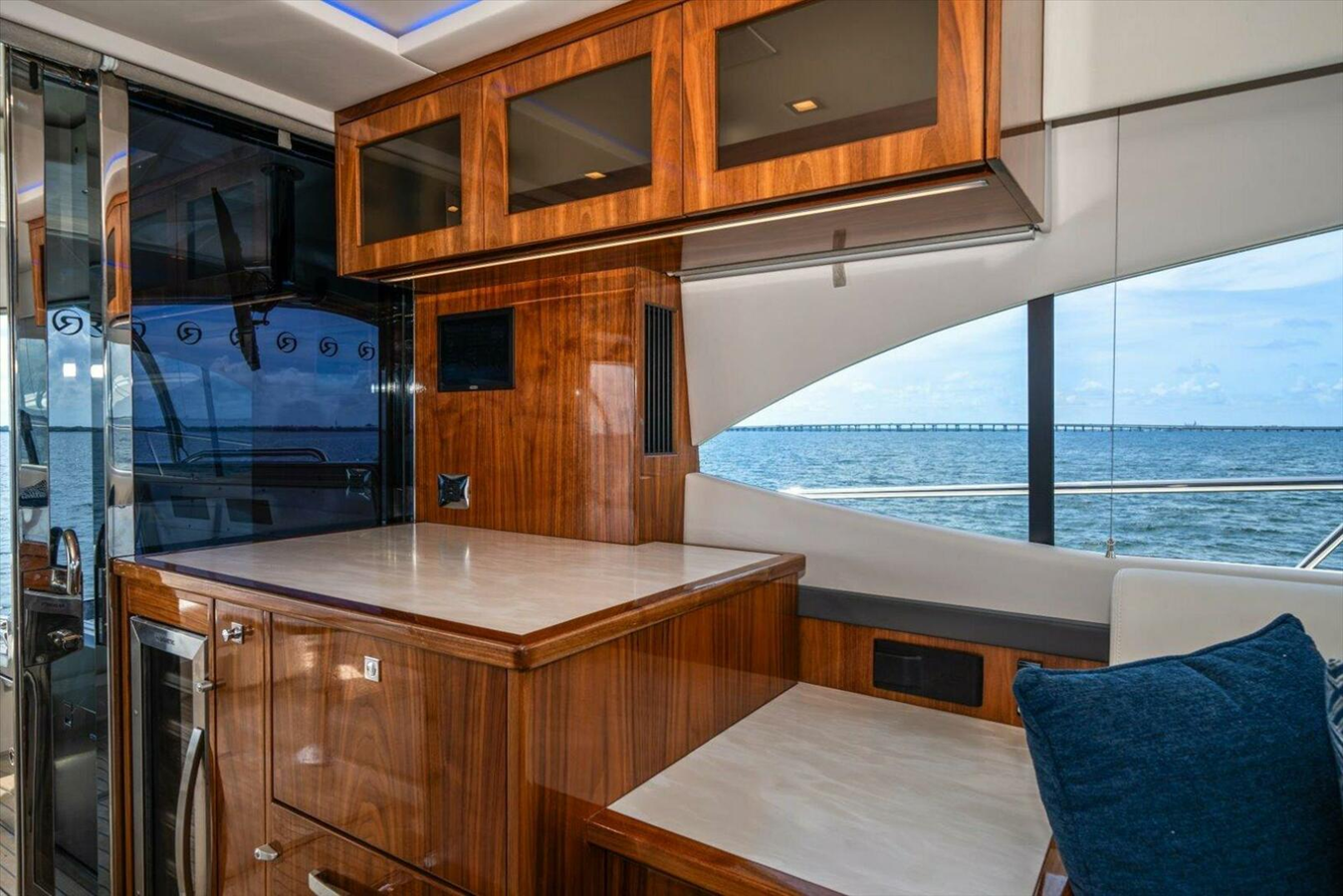

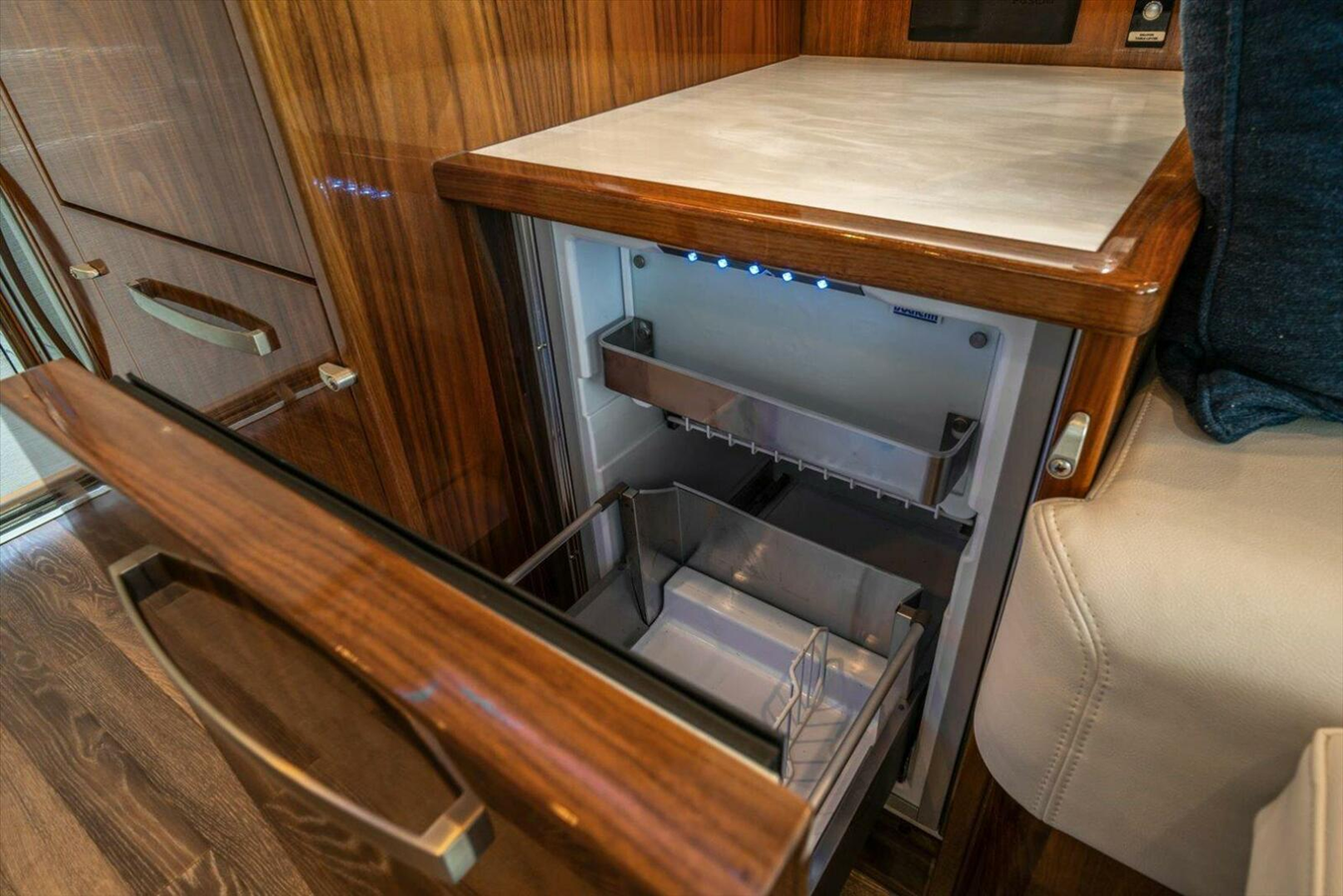

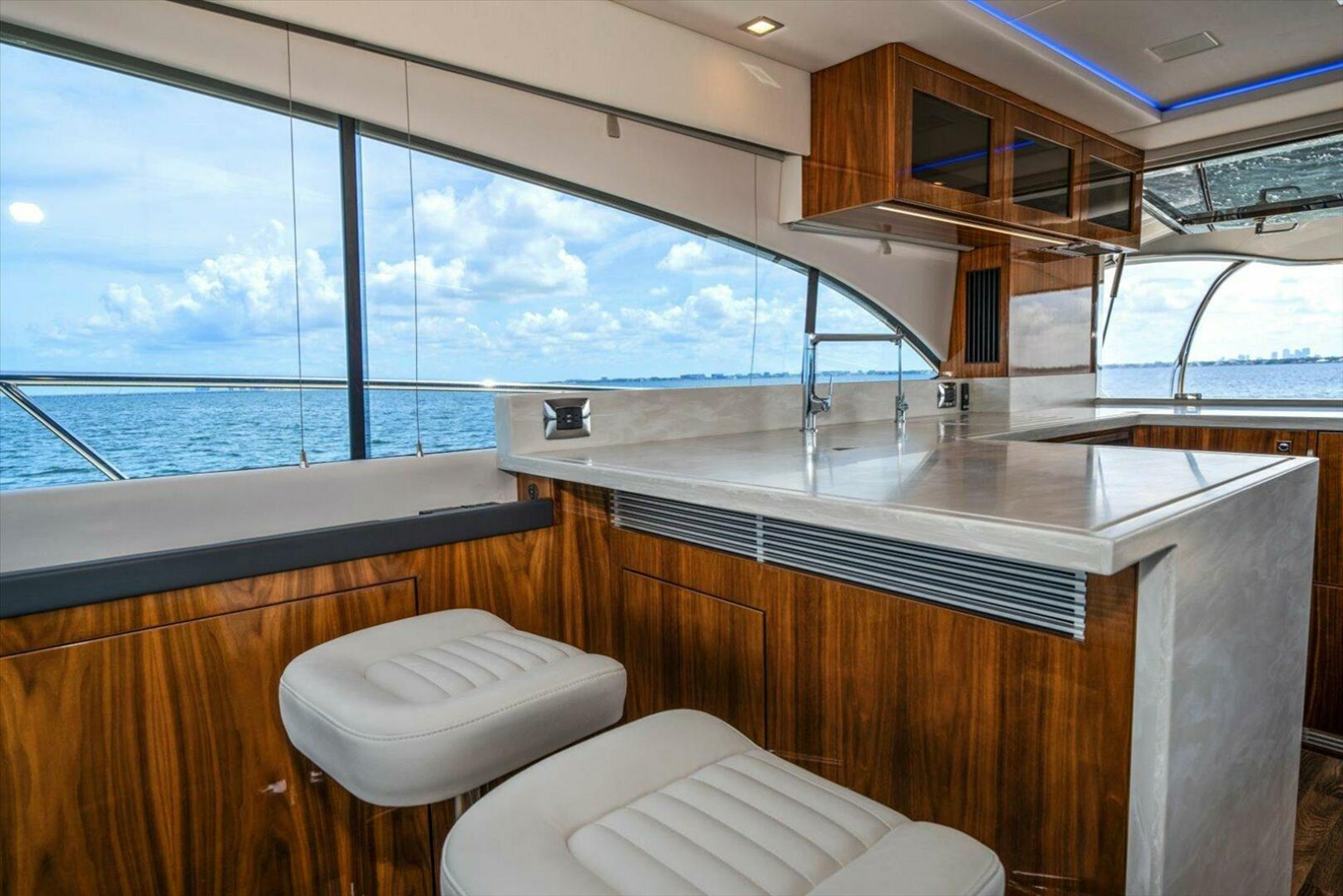

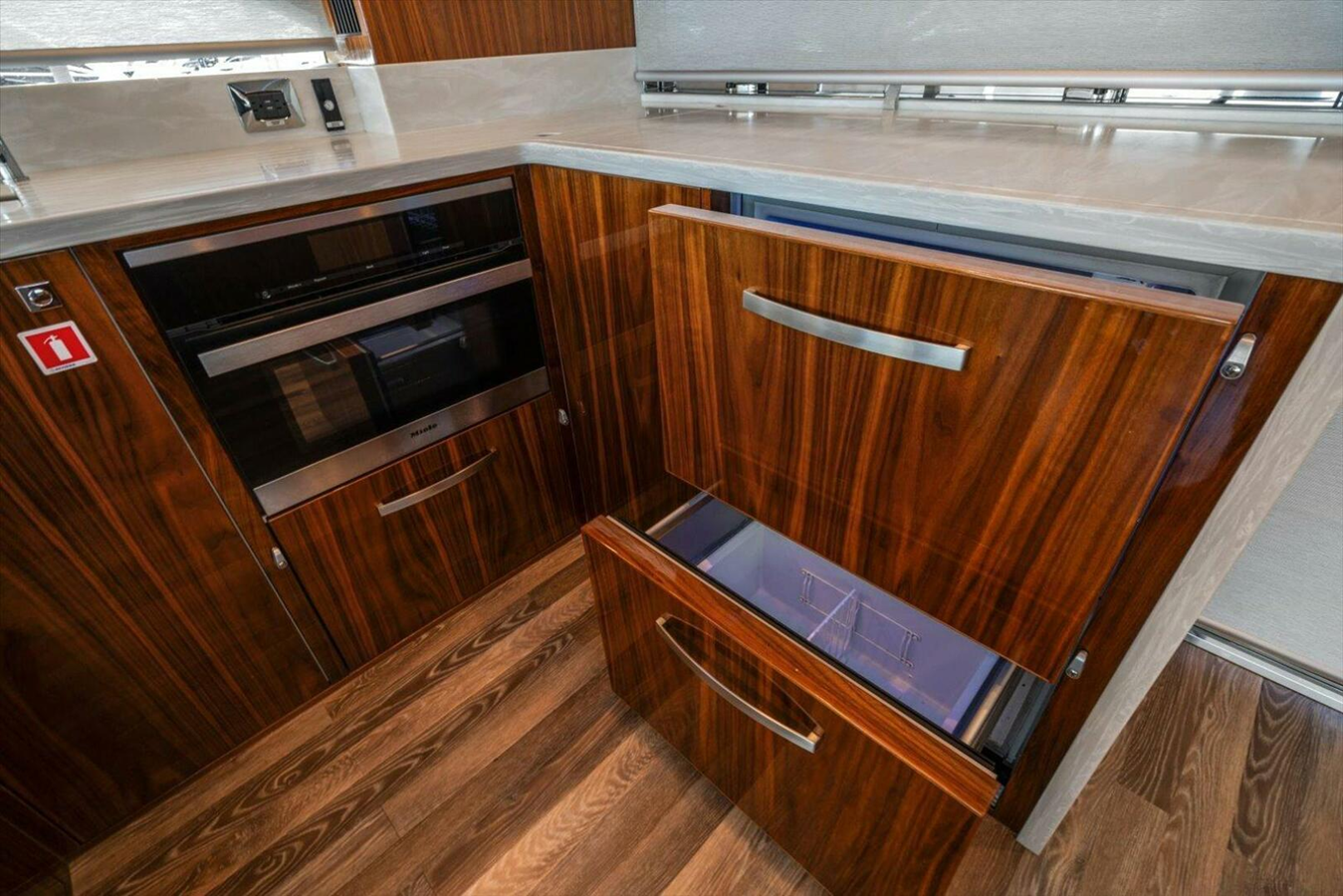

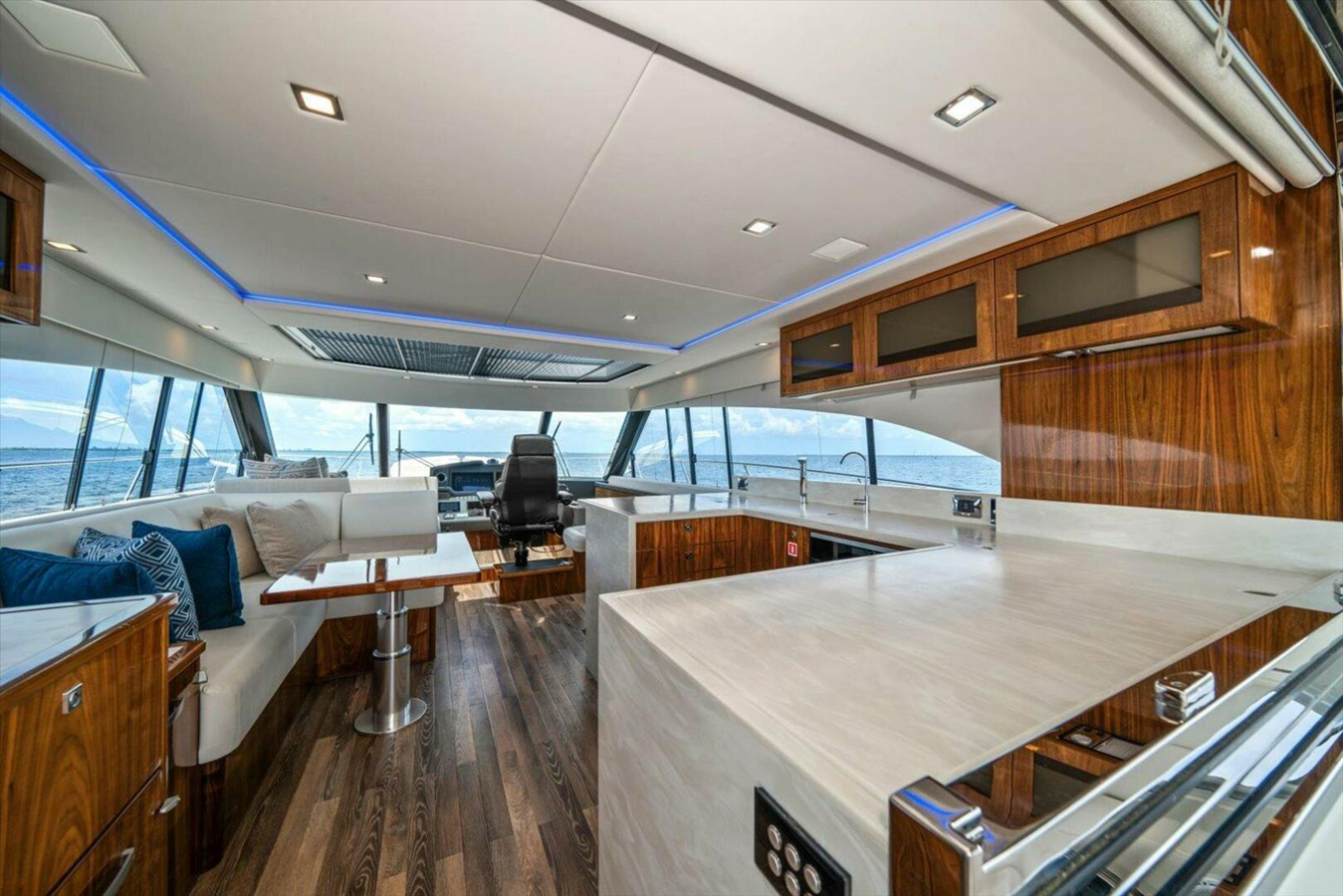

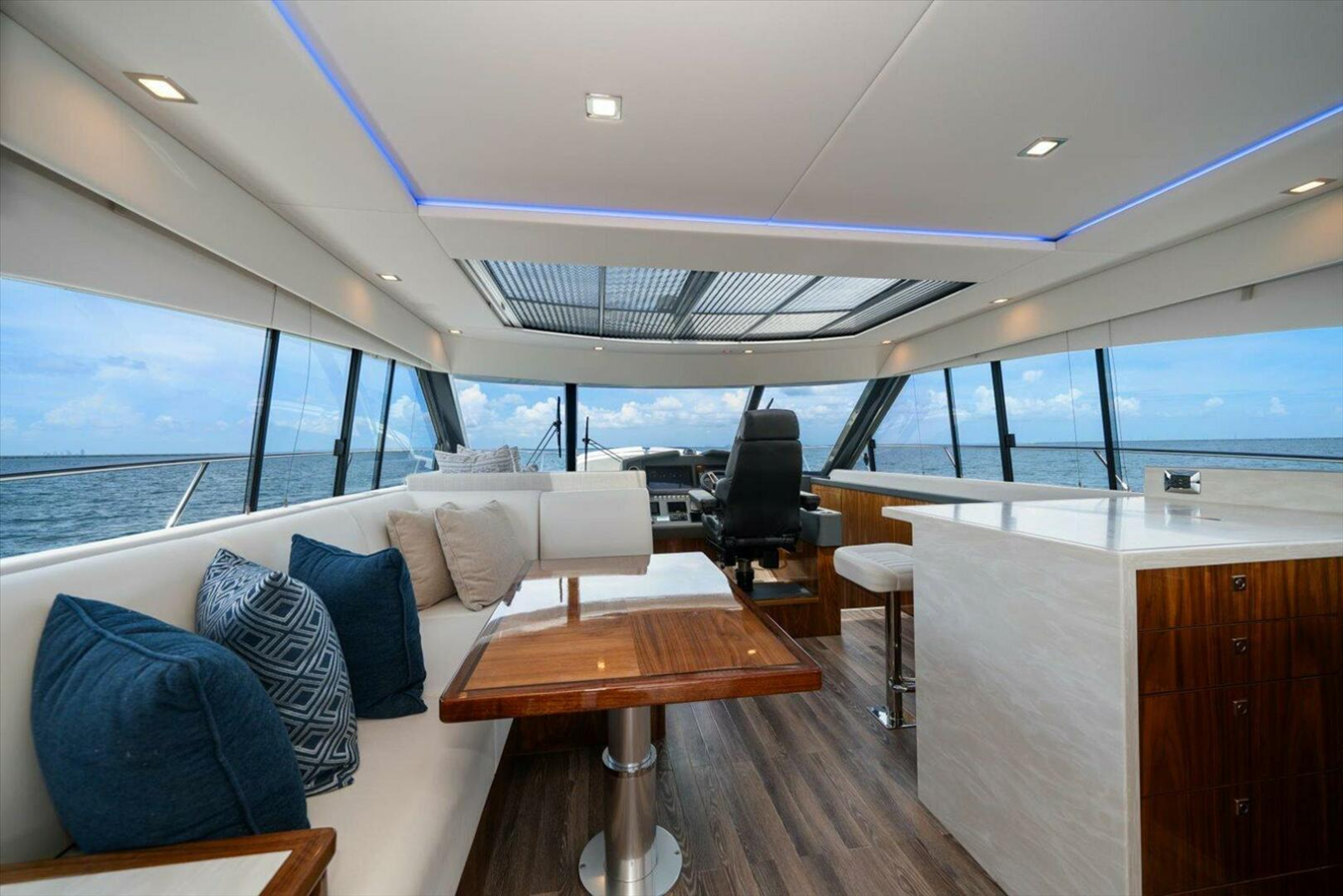

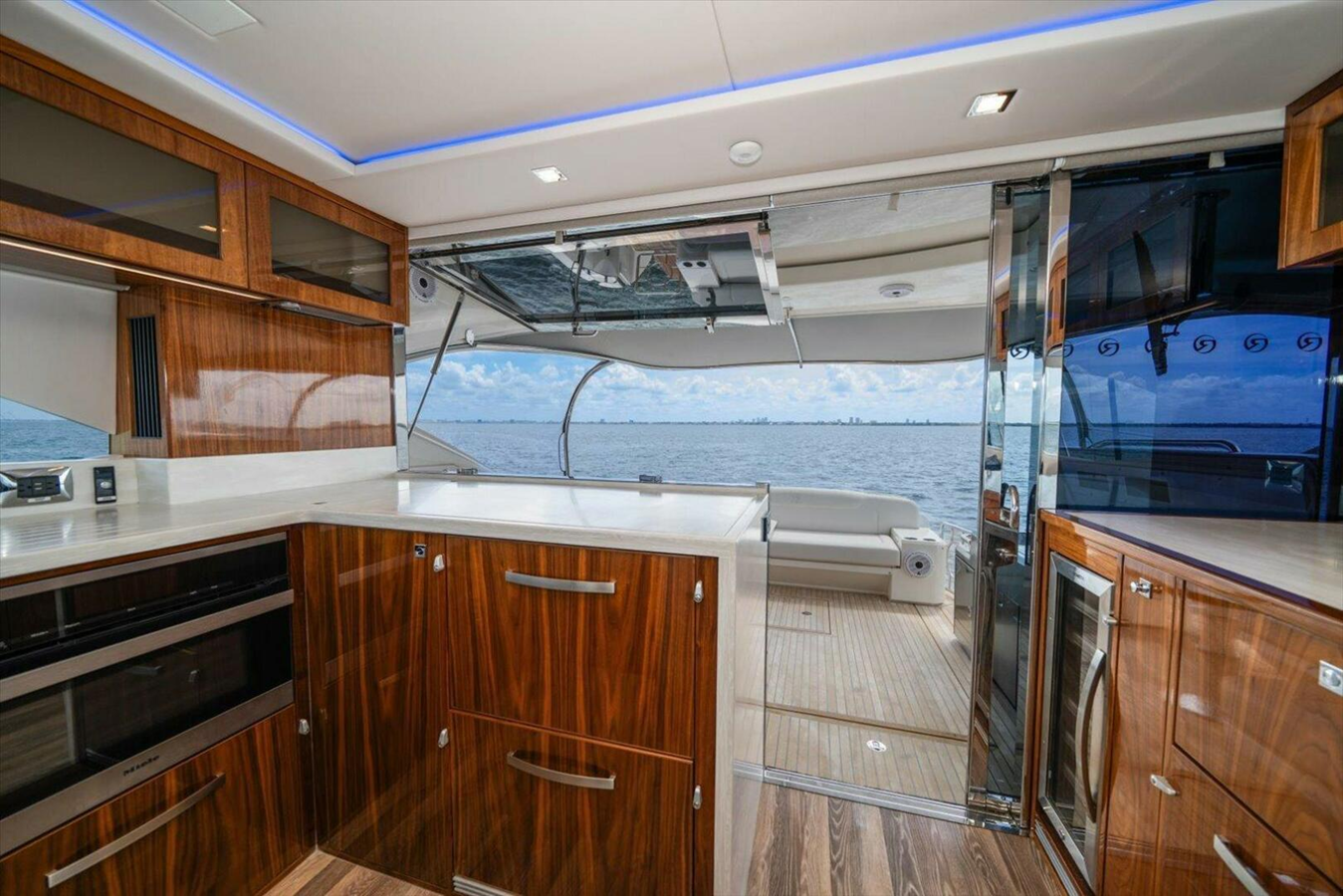

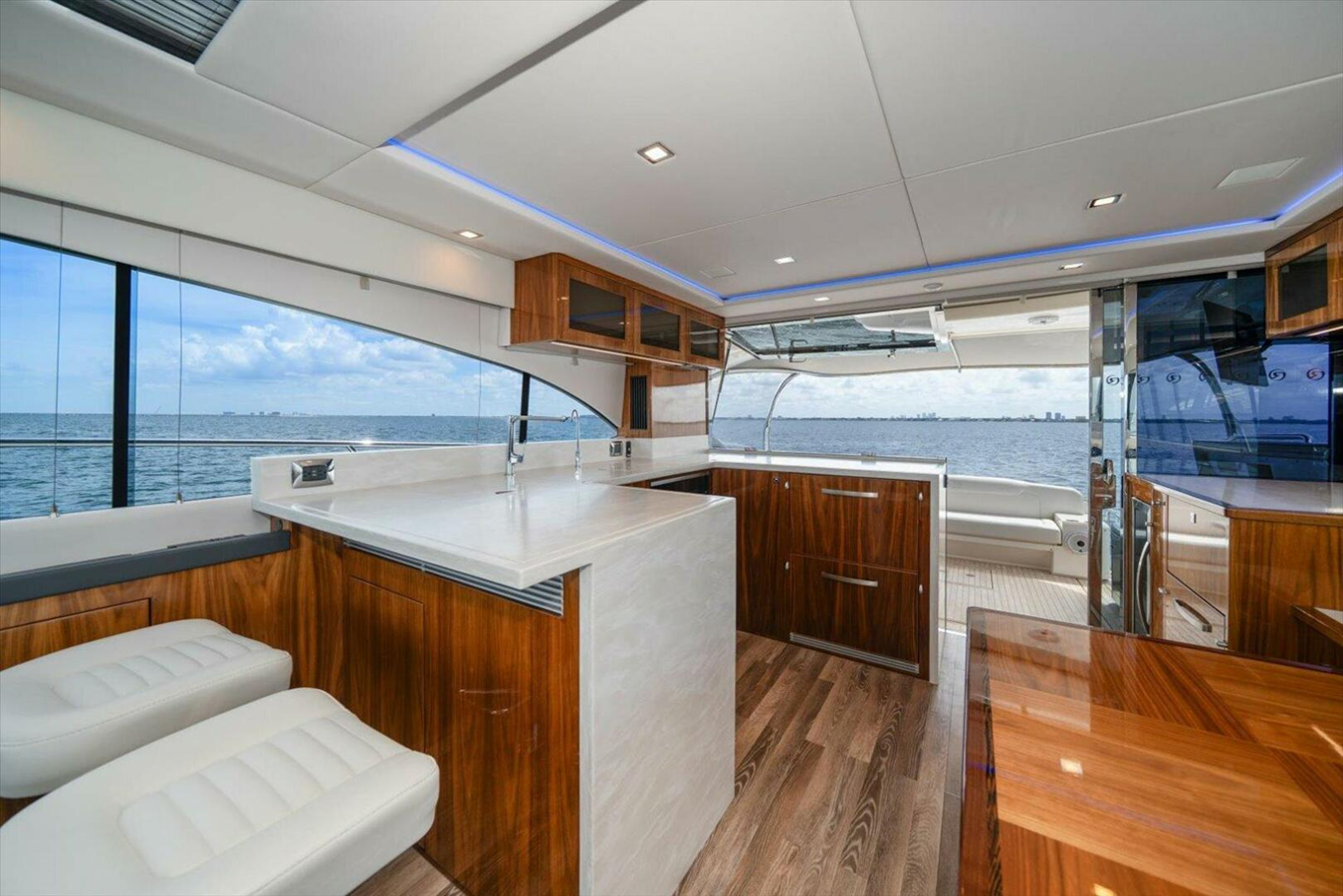

SALOON/GALLEY Air conditioning - reverse cycle heat, 3 x 12,000BTU to saloon/galley with helm outlets and windscreen outlets Cocktail cabinet with bottle storage, drawers for glass storage, 1 x refrigerator drawer,1 x freezer drawer & wine cooler Courtesy lights in stairs to cabins Dishwasher drawer Flooring, Vinyl (Premium Grade) Galley - built in overhead storage lockers with positive locking hardware Galley - Exhaust fan Galley - Microwave convection oven (Miele) Galley - Refrigerator Drawer unit (2 drawers) Waterfall galley benchtop in solid surface with stainless steel sink and faucet, also incorporating recessed cooktop including lid with cut off switch & drop in bin with cover Galley storage cabinets & drawers Lighting overhead & courtesy DC (LED) Lounge, saloon L shaped companion lounge to port side Saloon dinette L shaped Table to dinette, varnished timber on fixed height pedestal

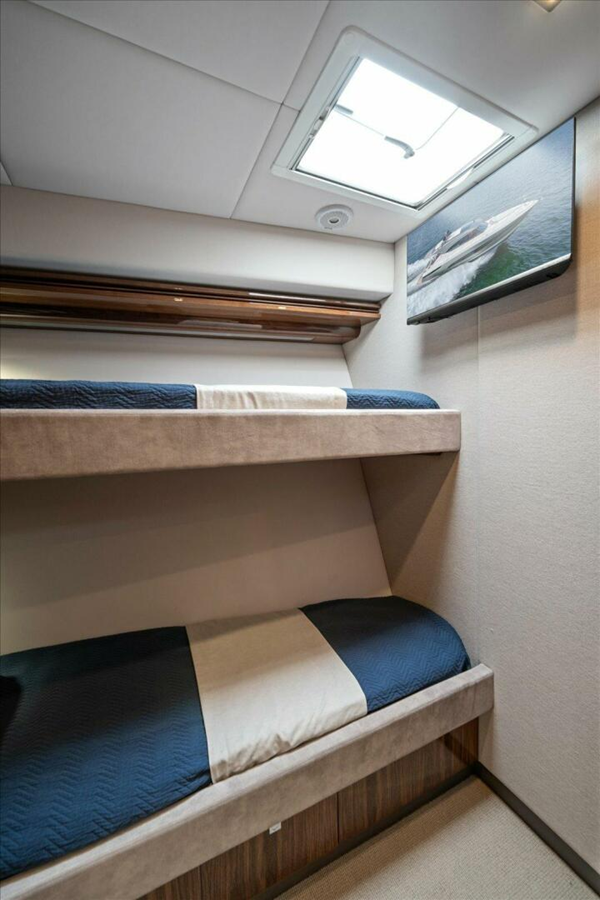

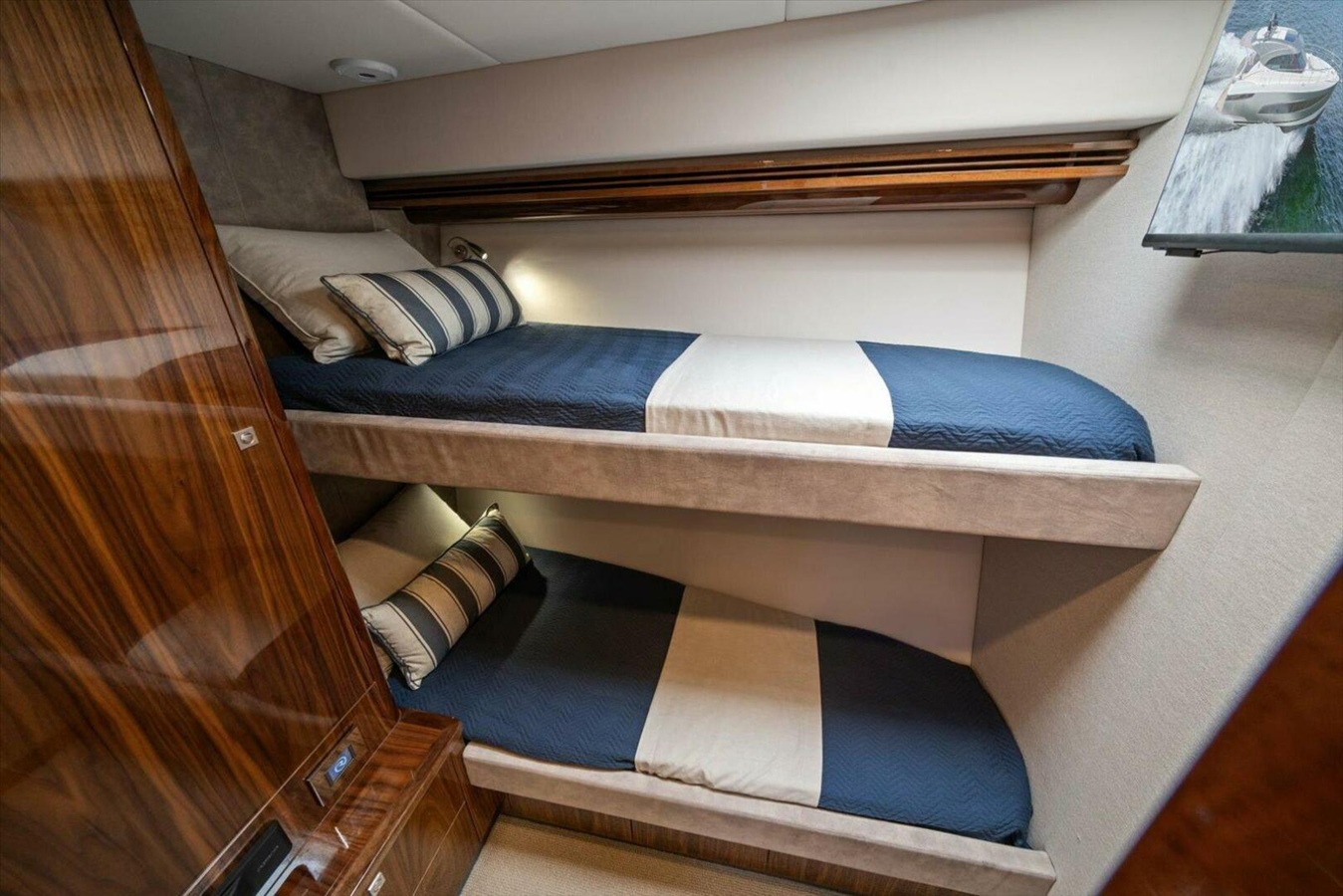

STATEROOM- PORT GUEST Air conditioning 6,000BTU with reverse cycle heat, split to head Berths, upper and lower (innerspring mattresses) with storage under Carpet with underlay Hanging locker with cedar lining Hatch - white with screen and blind Hull and head linings, vinyl covered with padding Private entrance door Reading and overhead lighting (DC), LED

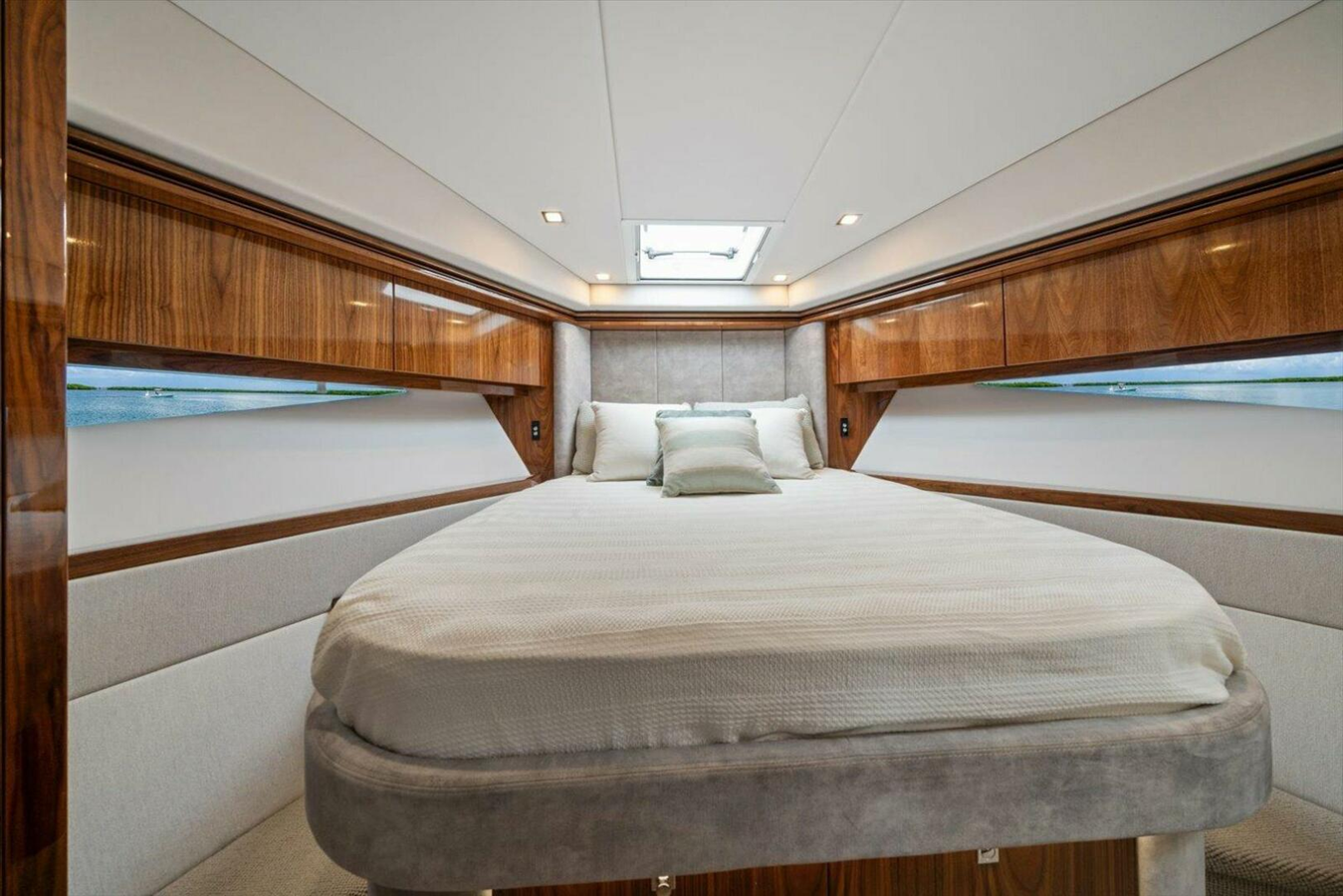

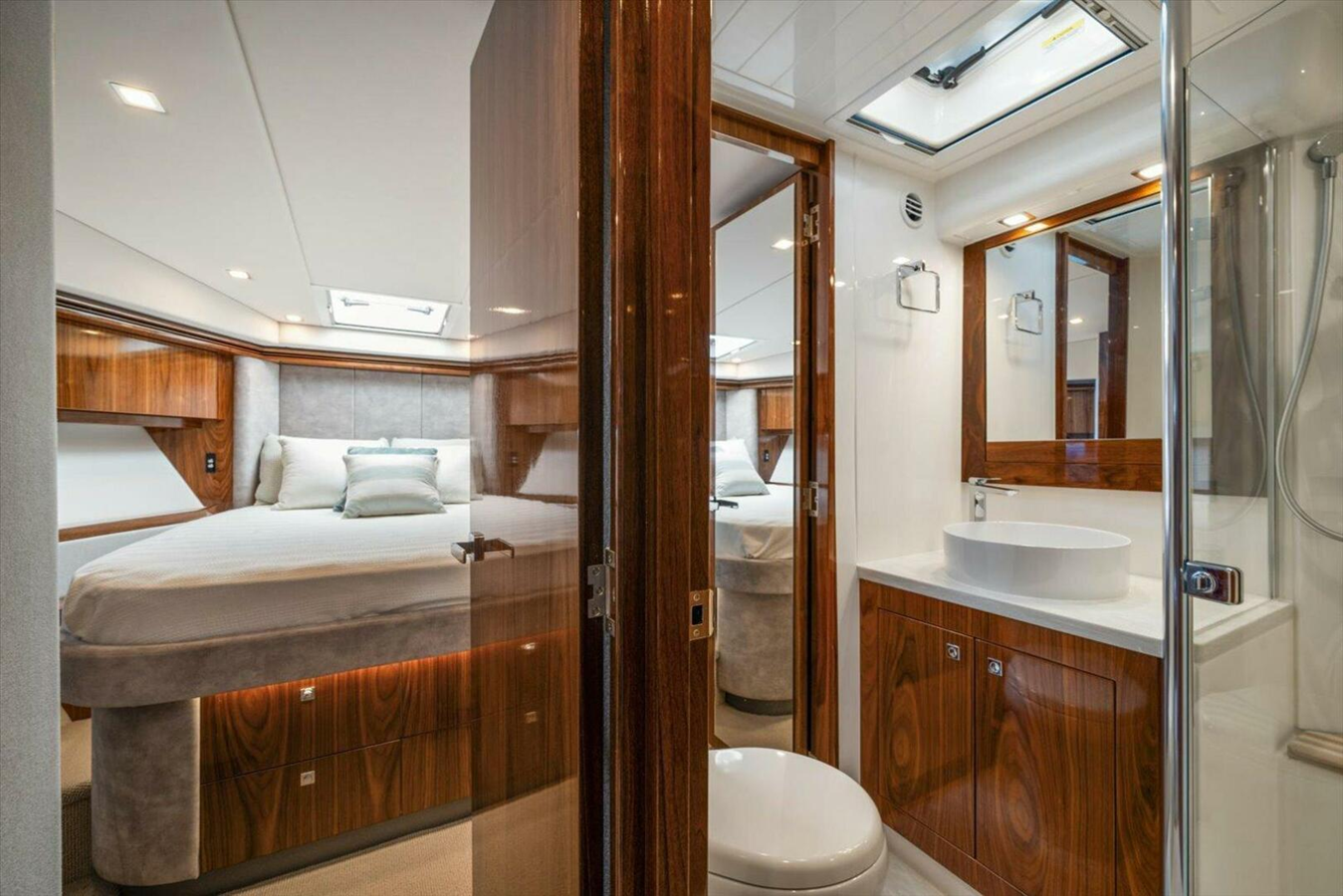

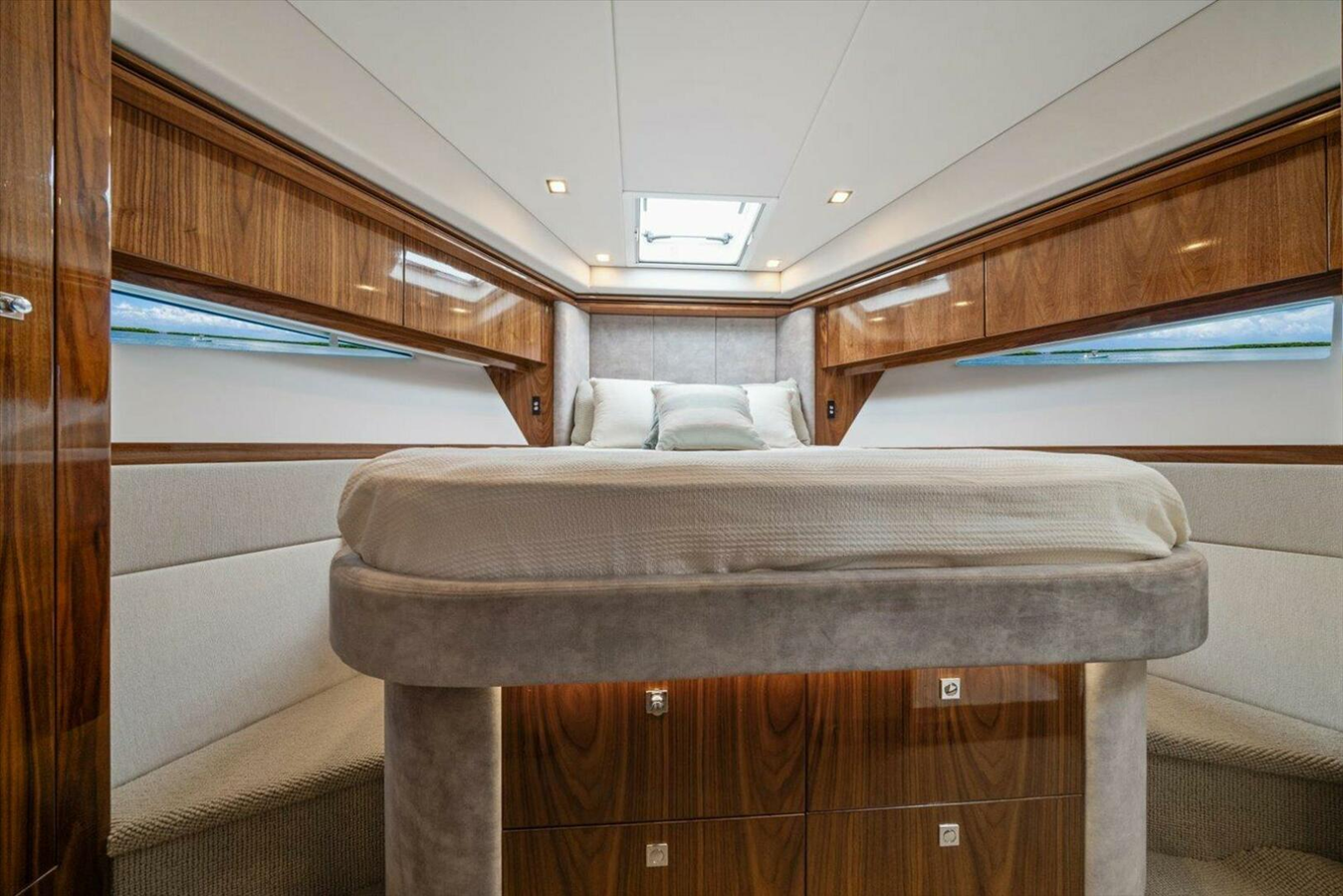

STATEROOM- FORWARD VIP Access to private ensuite with privacy lock Air conditioning: 12,000 BTU with reverse cycle, heat (split into head) Carpet with underlay Fixed hull windows fitted port and starboard in tinted tempered glass including roller blinds matching saloon selection Hanging locker port with cedar lining & auto lighting (DC), stbd storage locker cedar lined with shelve Hatch - white with screen and blind Headboard - upholstered Hull and head linings, vinyl covered with padding Private entrance door Queen walk around berth with latex mattress & storage under berth including drawers Reading and overhead lighting (DC) Storage cabinets outboard with positive locking hardware

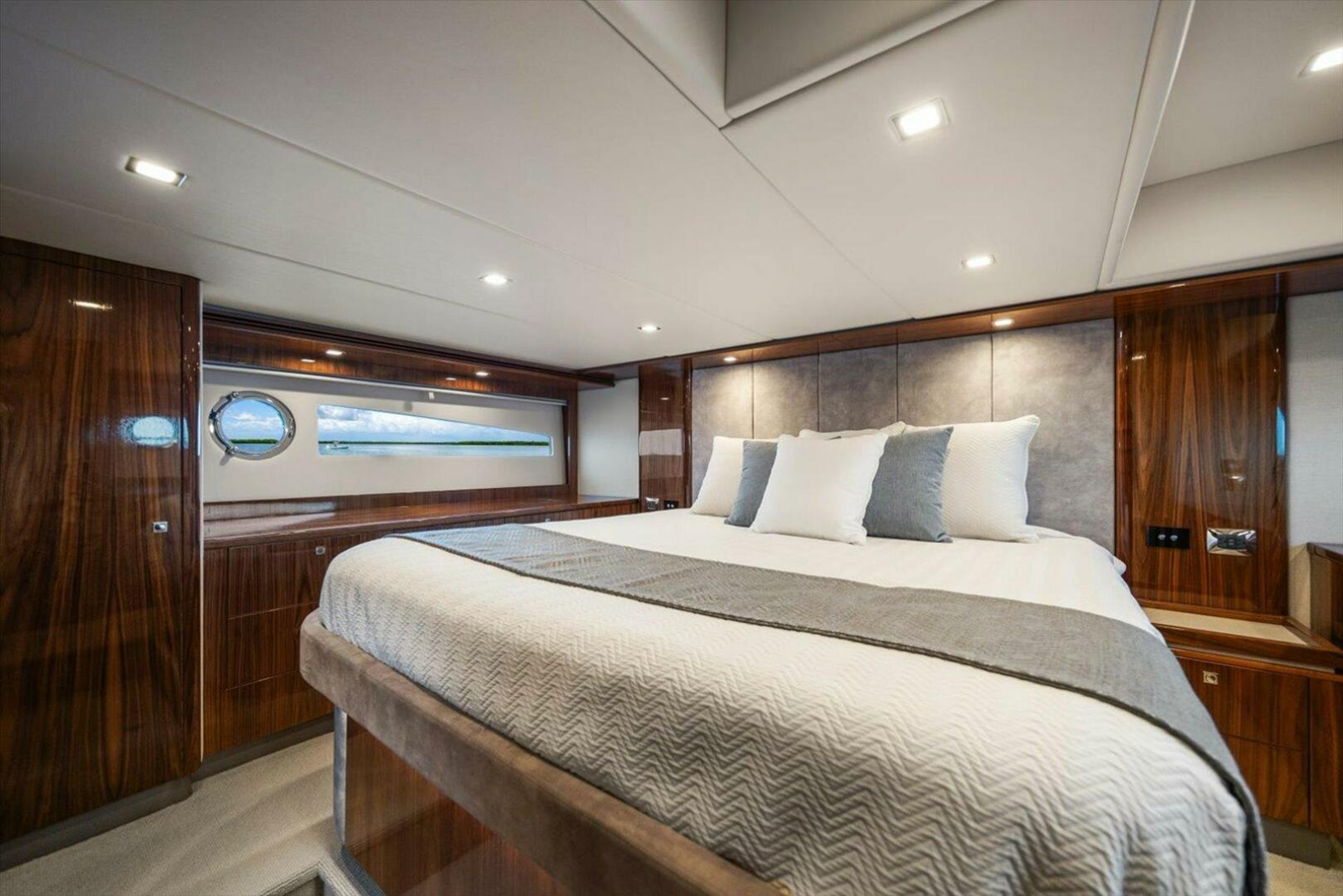

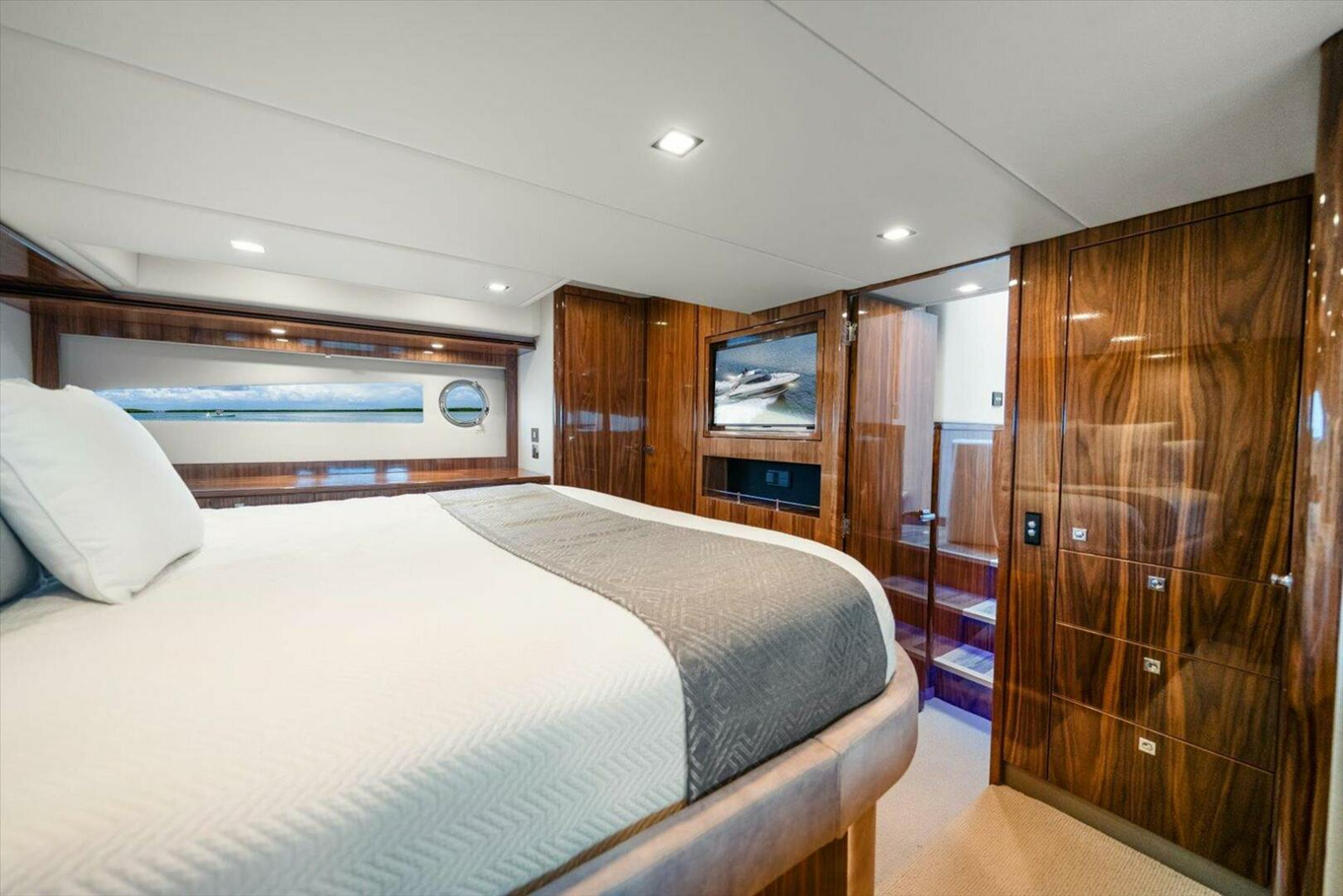

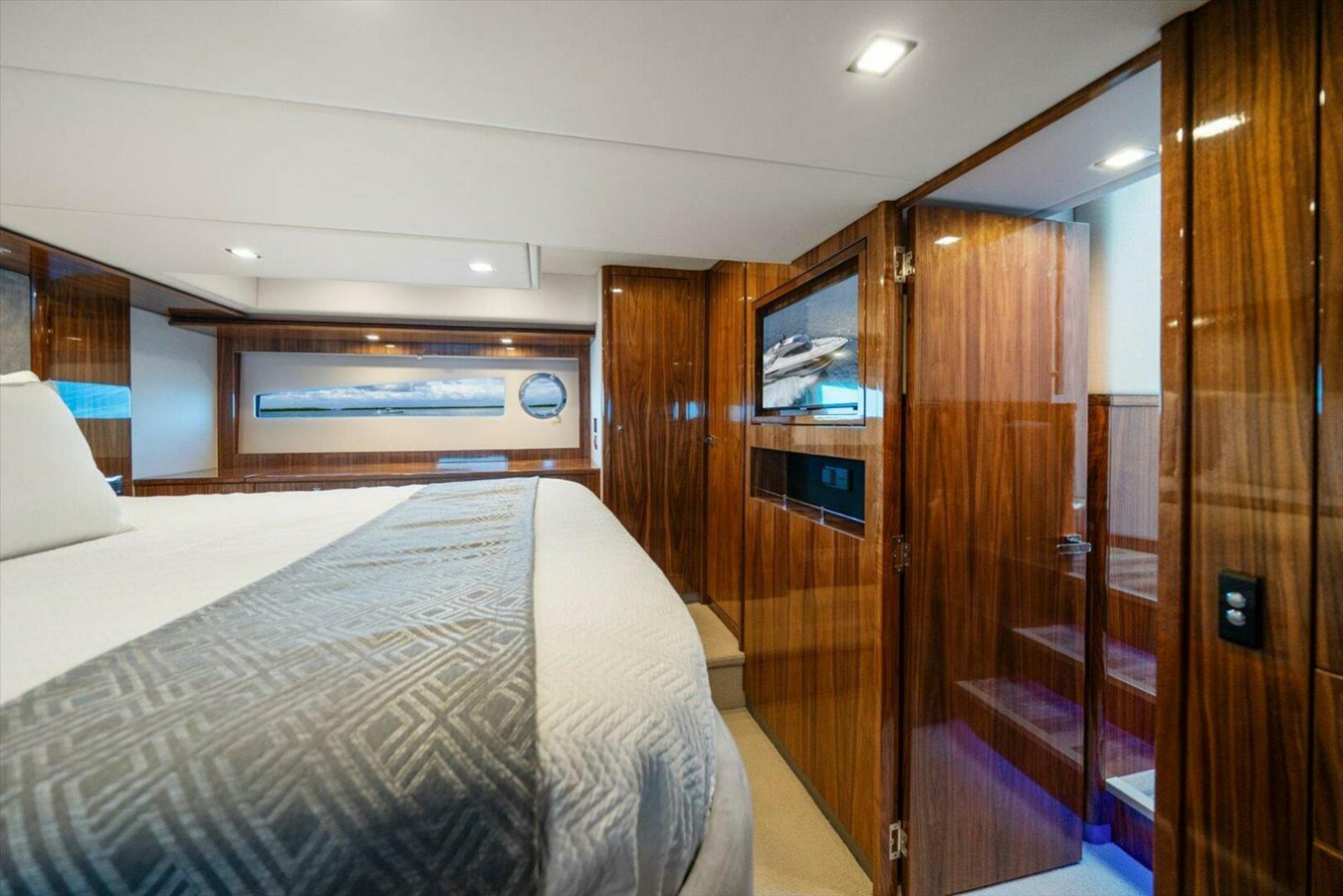

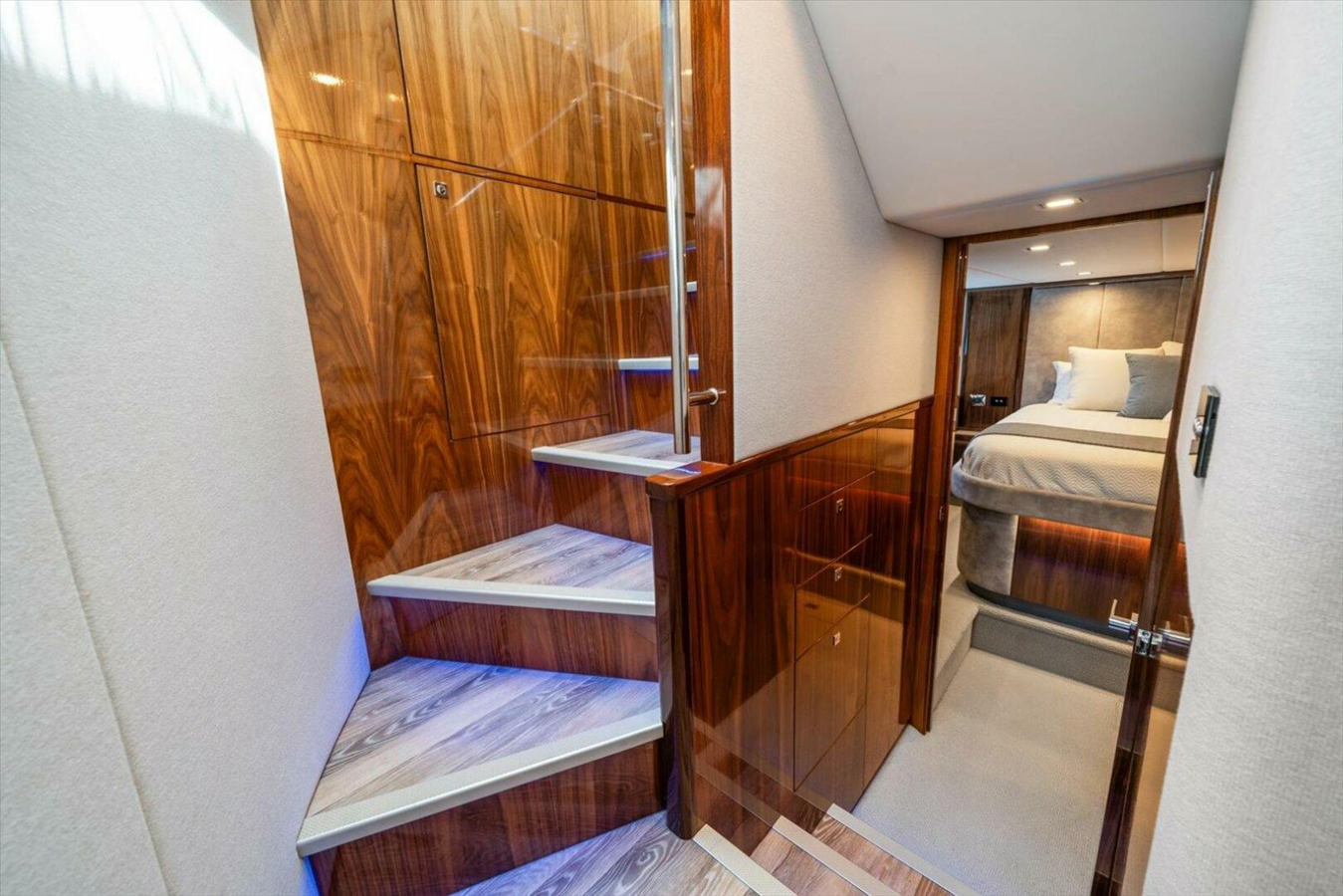

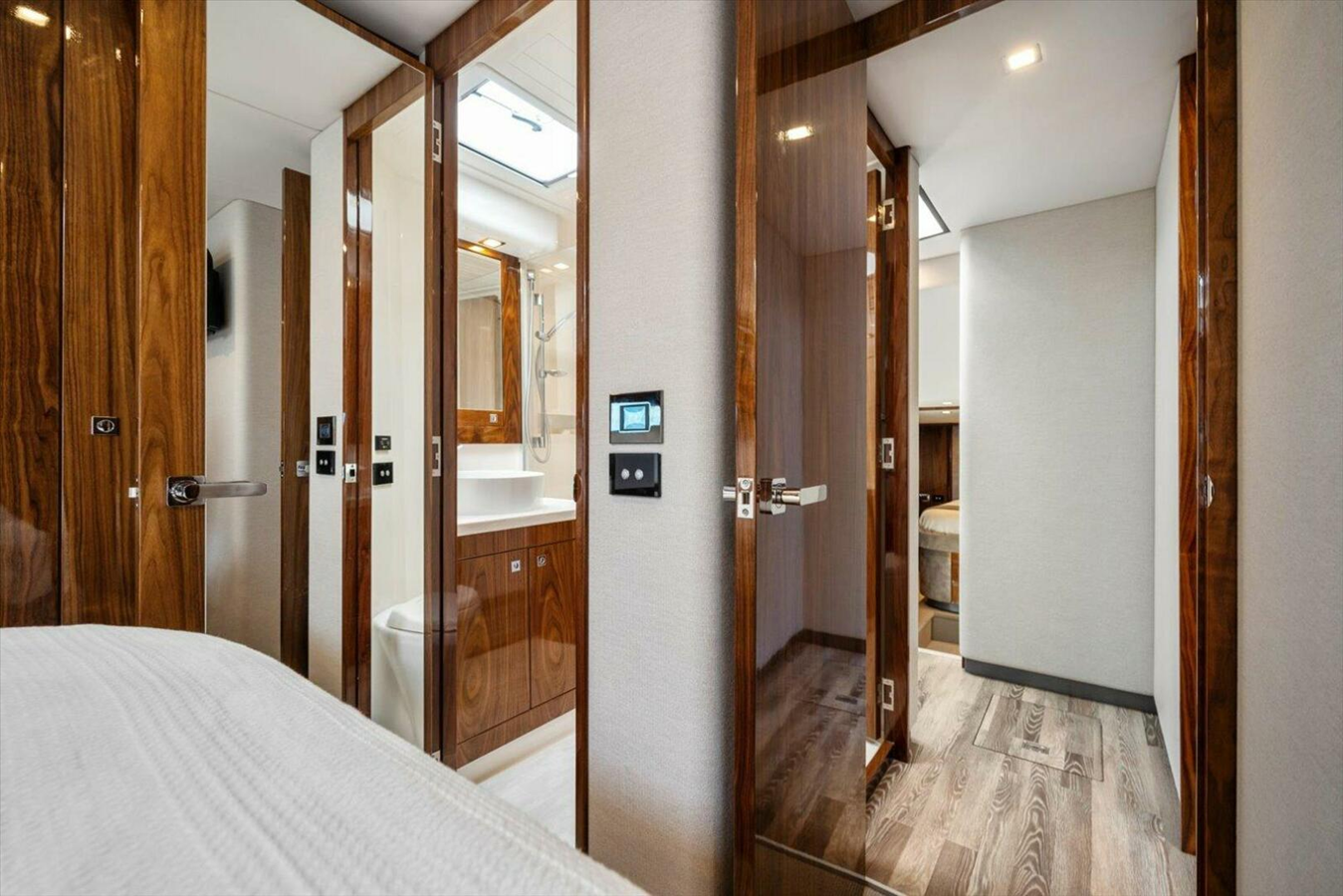

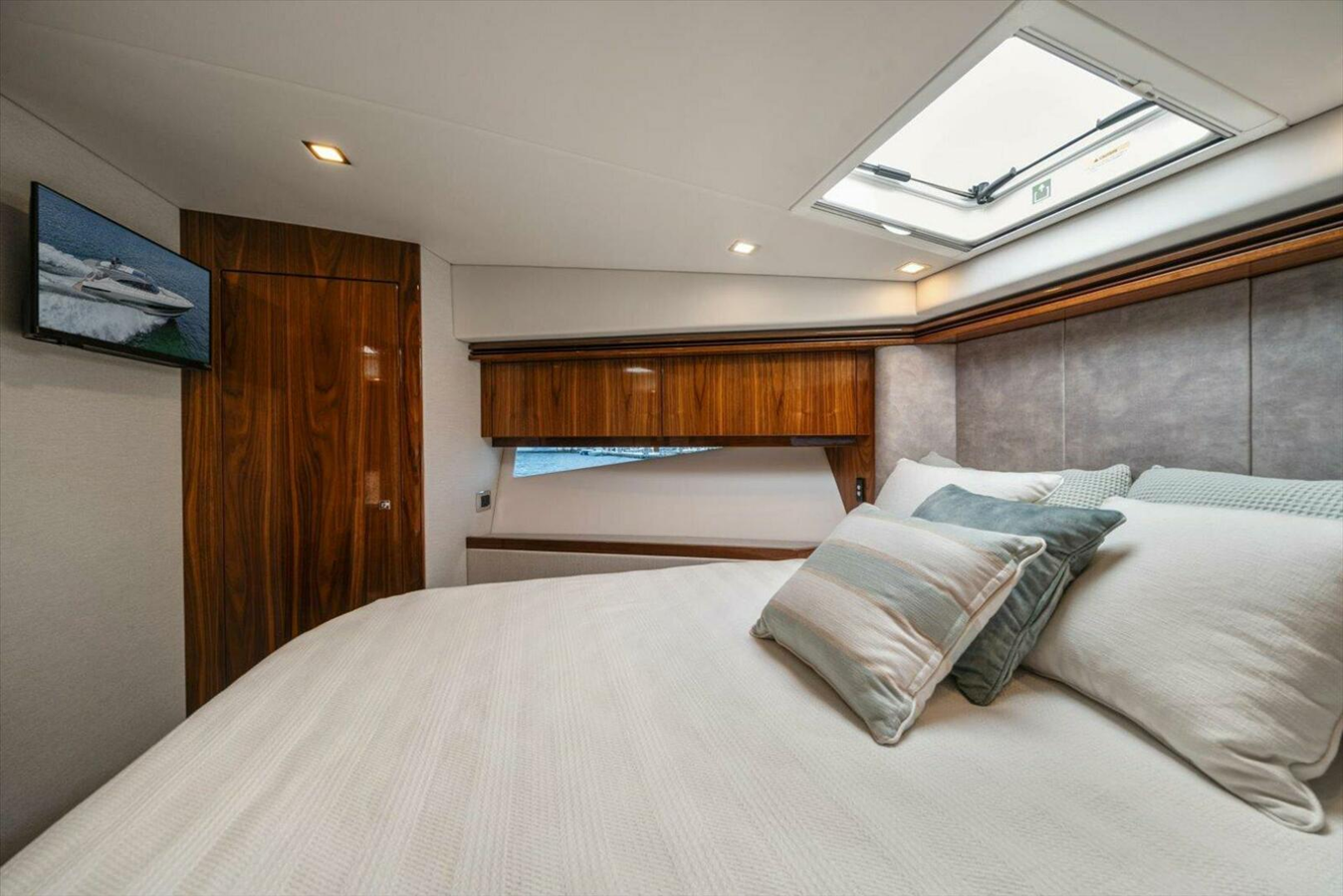

STATEROOM- MASTER AFT Air conditioning 12,000 BTU with reverse cycle heat, split to ensuite. Berth, King size latex mattress Carpet with underlay Drawers and storage to portside Fixed hull windows fitted port and starboard in tinted tempered glass including roller blinds matching saloon selection Hanging lockers (x2) cedar lined with auto lighting Headboard - featured Hull and head linings, vinyl covered with padding Portholes, 2 x round opening portholes and screens, includes alarm to helm. Private entrance door Reading and overhead lighting (DC, LED)

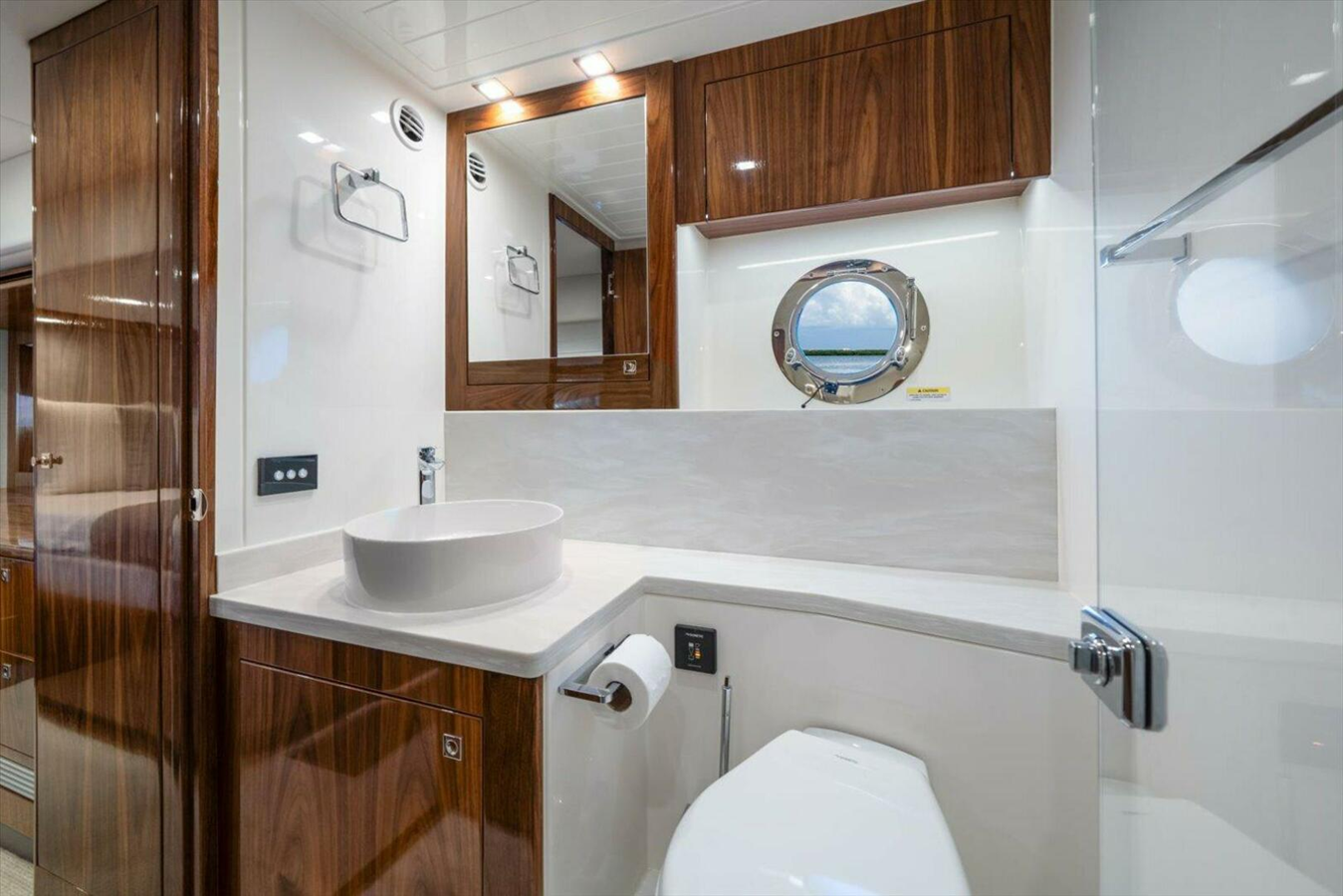

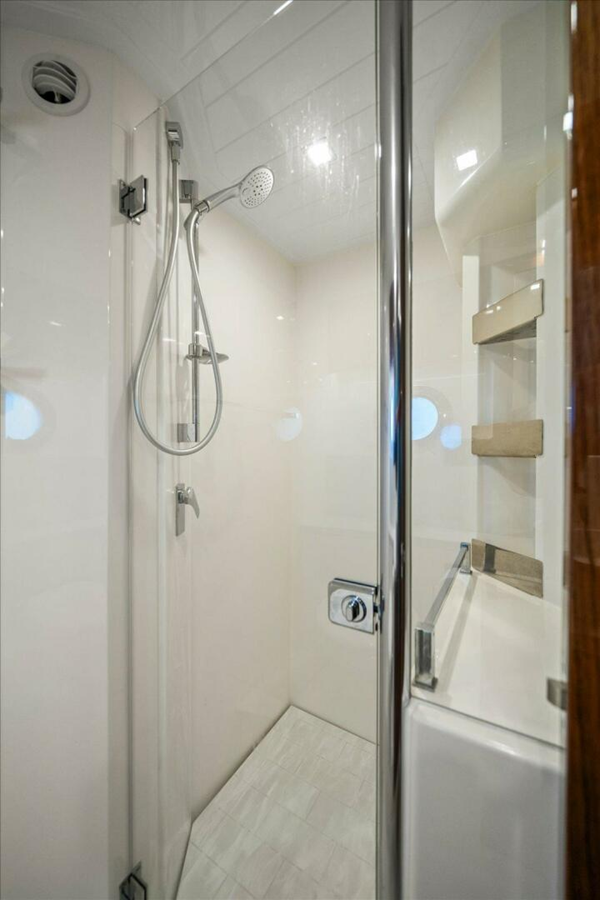

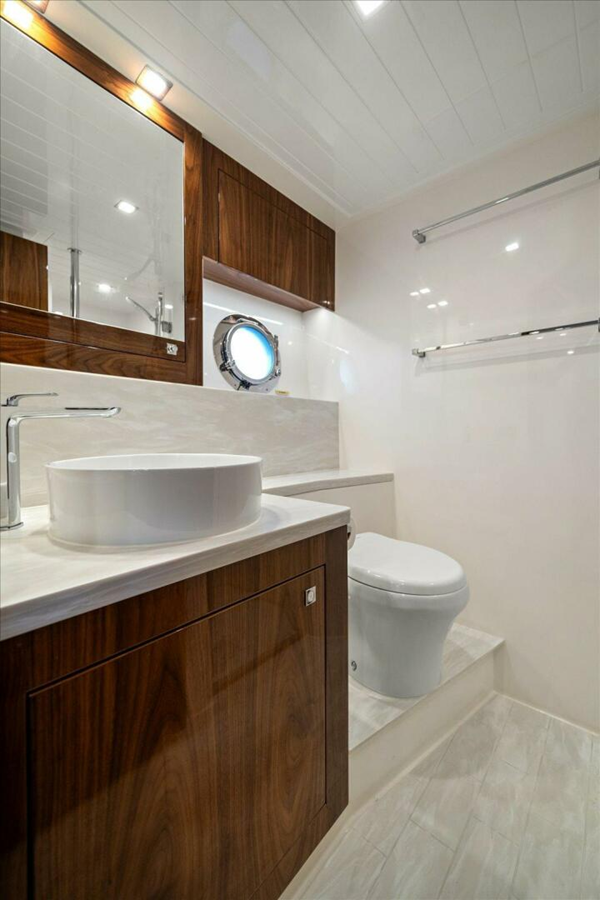

HEAD- MASTER ENSUITE Contemporary design, solid surface benchtop with above bench bowl sink and high quality mixer tap Extraction Fan Flooring - Corian to match benchtop selection with brick style pattern Holding tank level indicator Mirror Overhead and vanity mirror lighting (DC) Porthole, 1 x round opening porthole with screen, includes alarm to helm Private entrance door Shower stall with glass partition, frameless glass door, automatic sump pump and shower head (on slide bar) Storage locker with shelves under bathroom sink Toilet roll holder, towel holder and accessories Toilet, fresh water flush Vanity cabinet

GUEST HEAD- STARBOARD Contemporary design, solid surface benchtop with above bench bowl sink and high quality mixer tap Entrance to starboard head from companionway & private ensuite from stateroom fwd Exhaust Fan Flooring - Corian to match benchtop selection with brick style pattern Hatch - white with screen and blind Mirror Overhead and vanity mirror lighting (DC) Shower stall with glass partition, frameless glass door, automatic sump pump and shower head (on slide bar) Storage locker with drawers under bathroom sink Toilet roll holder, towel holder and accessories Toilet, fresh water flush Vanity cabinet

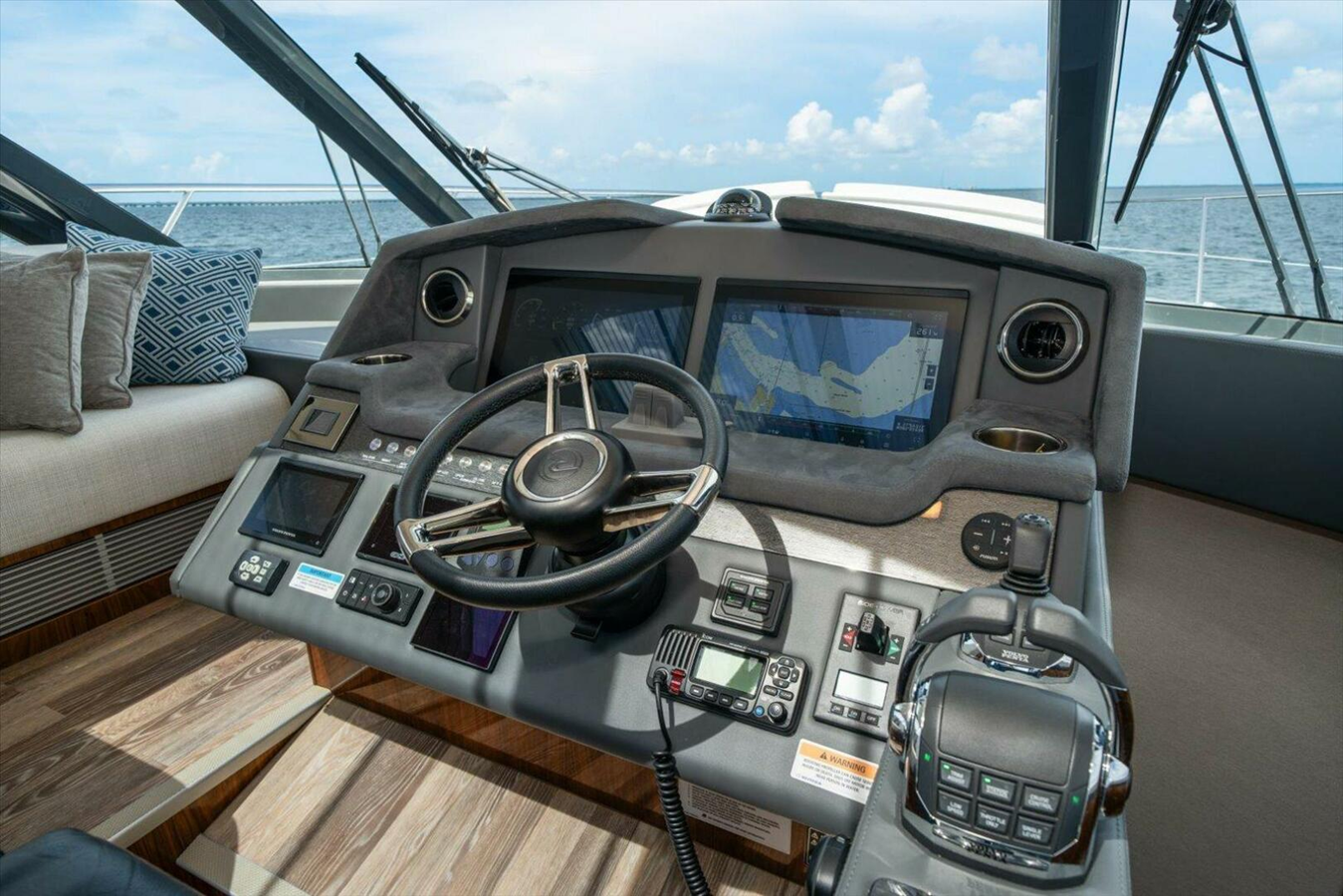

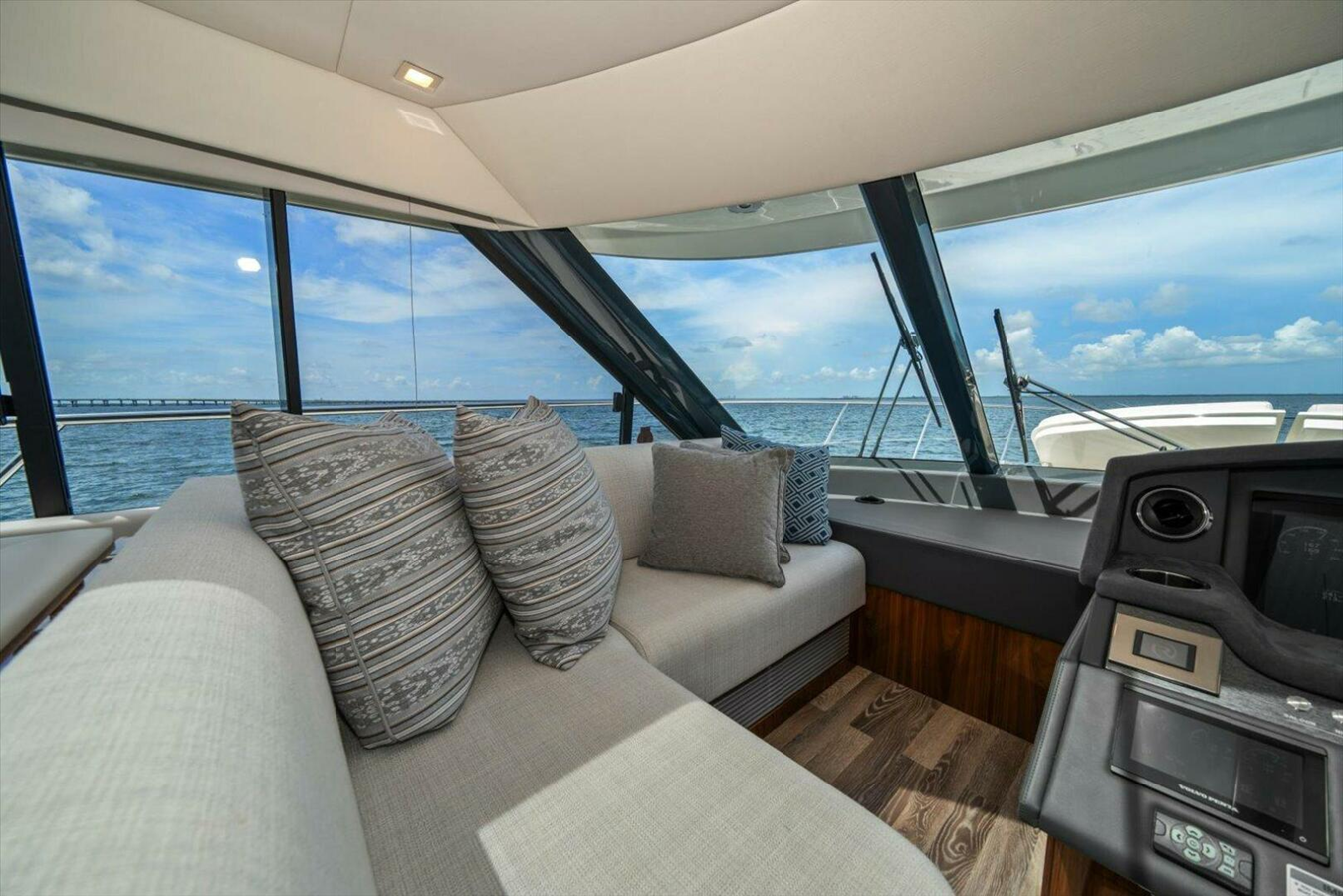

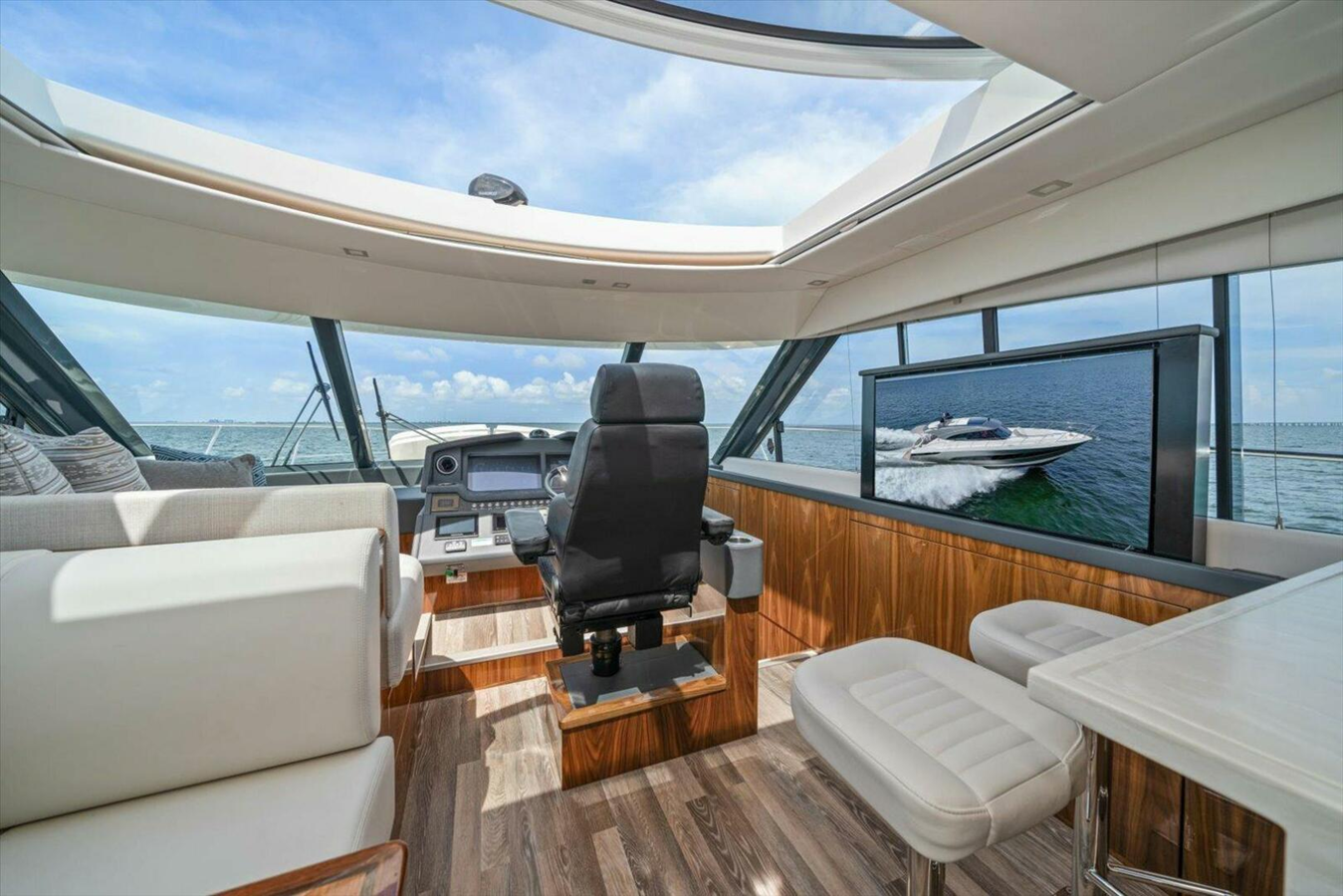

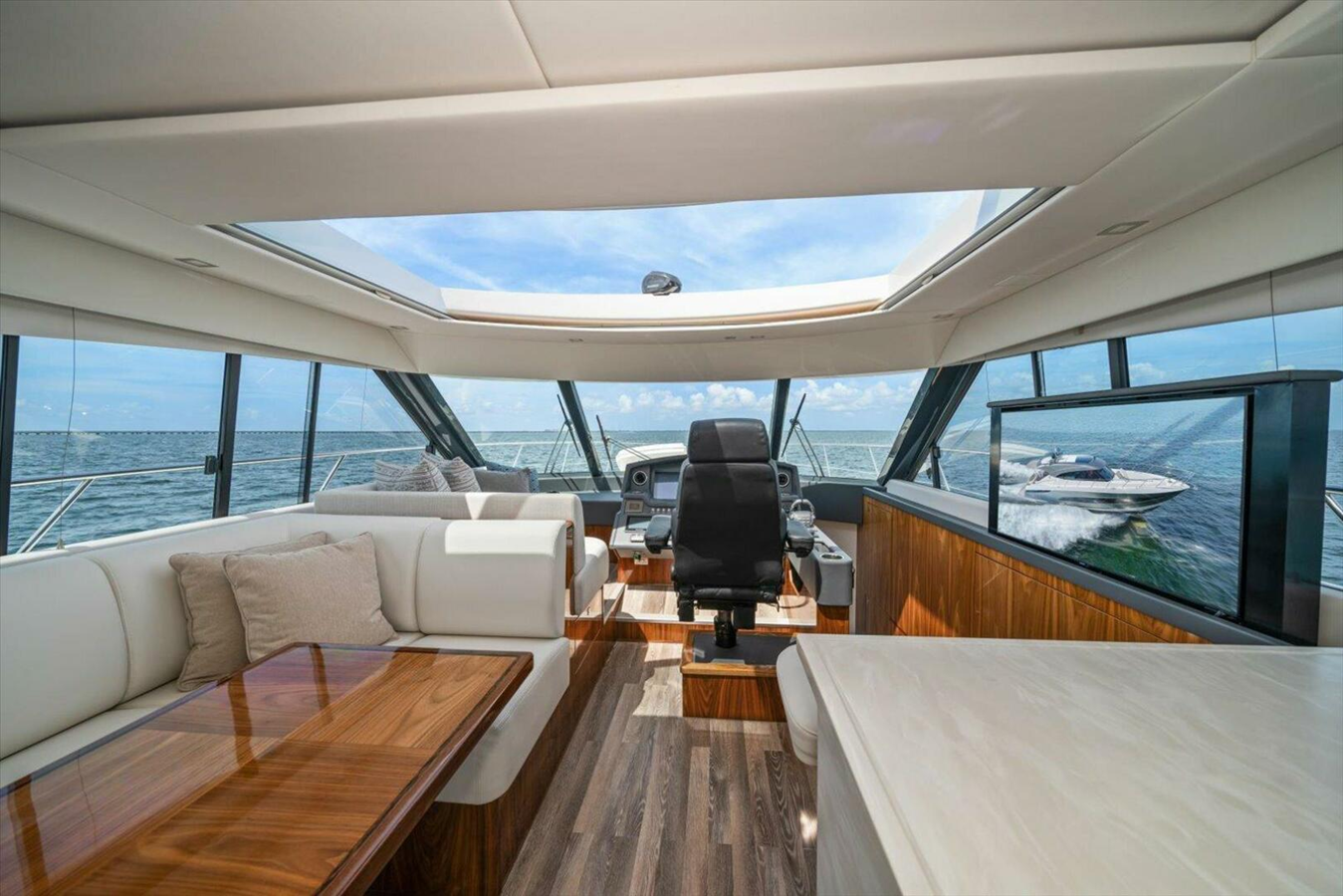

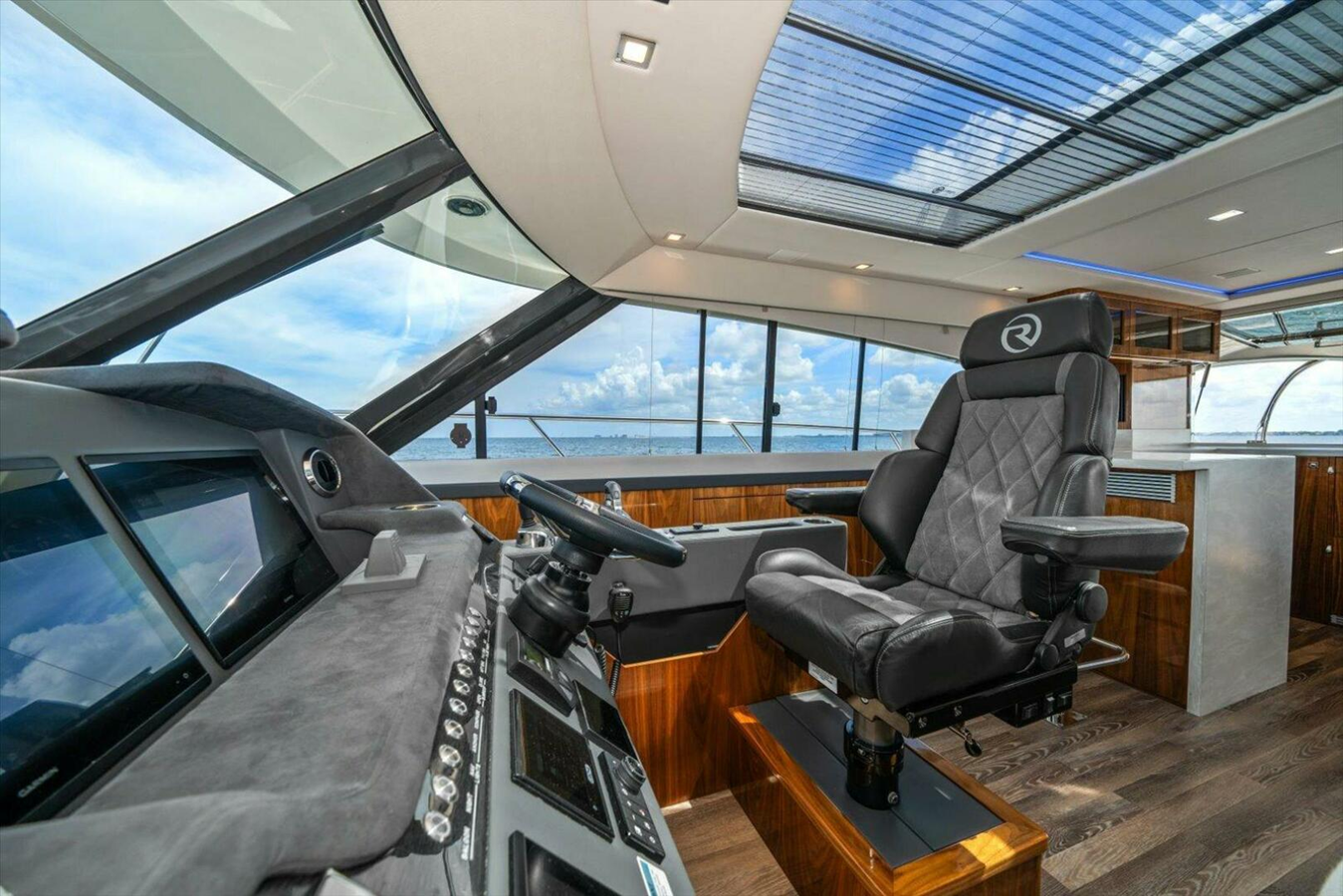

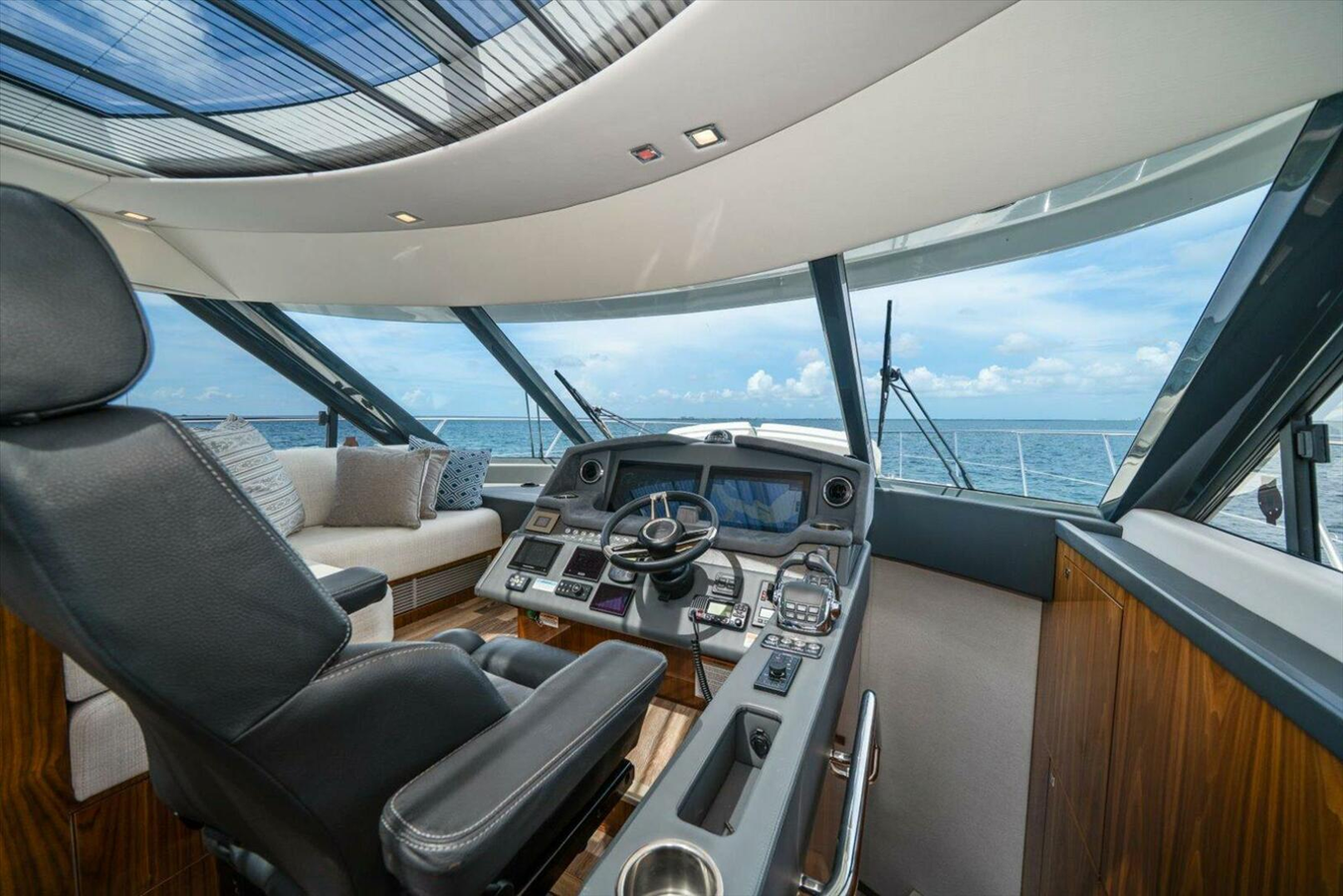

HELM- SALOON Anchor chain counter Companion seat shaped to port side Compass, 4.75'' with light Directional air conditioning outlets to helm and vent outlets to windscreen Ergonomically designed console with drink holders, storage tray, electronic engine controls and joystick docking control Helm Chair (x1) electric Recaro (colour to compliment dash) Navigation - 2 x 16'' 7616 Volvo Glass Bridge multi Function displays, GPS & GRID controller Navigation - Garmin GSD 26 CHIRP Sounder with 1kW B275 depth/temp transducer Navigation - Volvo/Garmin auto pilot integrated into glass bridge Steering wheel leather sports VHF radio with aerial Windscreen, clear tempered glass with 3 pantograph wipers with washers plumbed off fresh water system
