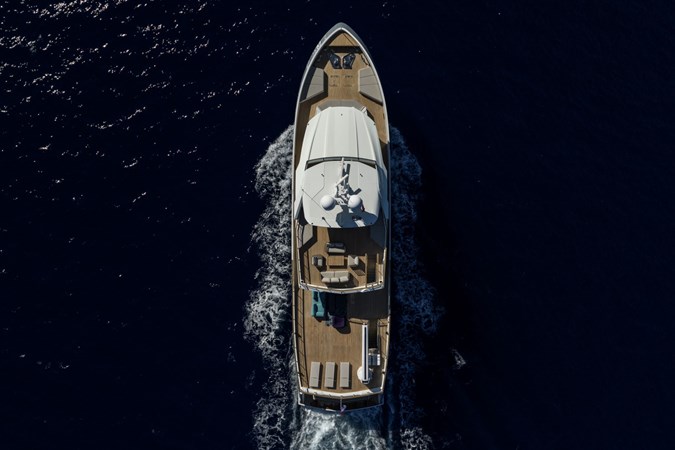

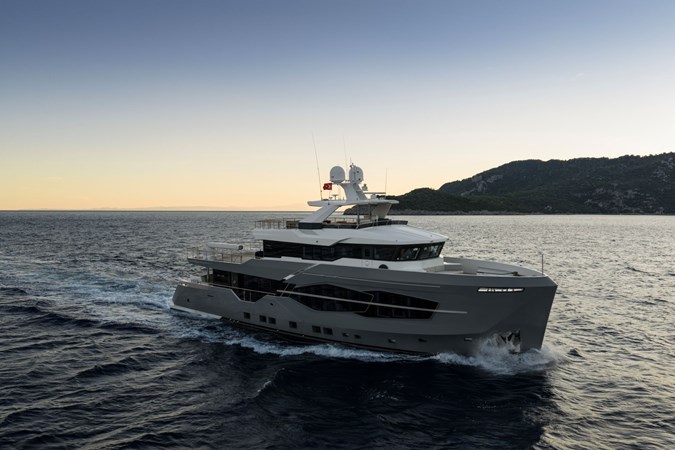

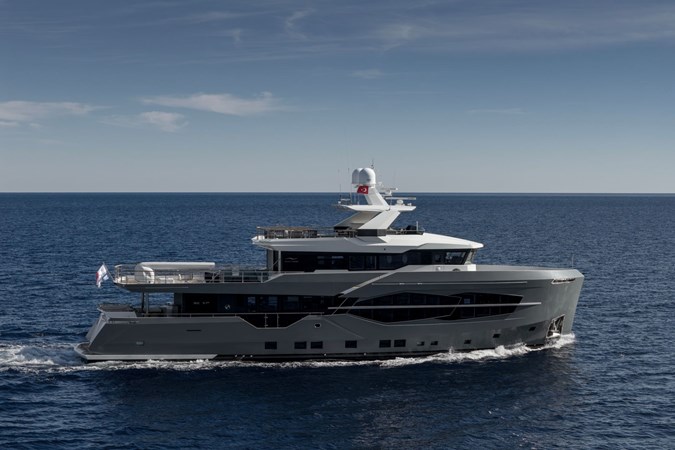

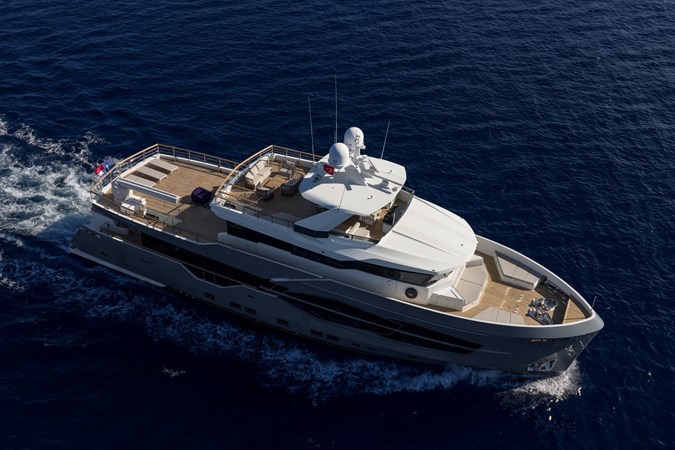

2019 NUMARINE 32XP
Description
QM, the 2019 Numarine 32XP is being offered for sale for the first time by her original owner. She has always been used privately by the owner’s family & friends and never chartered. Thanks to the longevity of the crew who have been with the vessel since delivery, QM shows in fantastic condition with an immaculate service history.
She was custom ordered by the owner and features a stunning, family friendly interior decor by Esra Kasmirci that features warm earth tones throughout. To encourage large family gathering, her layout consists of 6 cabins that sleep 12 guests including a private owners deck on the upper level, a main deck VIP that could double as a second master, and 4 additional cabins on the lower deck.
Her bold lines are highlighted by a plumb bow painted in a striking ghost gray, forward raked windows, and large glass windows. Equally stunning as she is capable, QM has a 4,000nm range & can carry a best-in-class number of tenders & toys on deck thanks to her 3 ton davit on the boat deck.
Priced to sell, QM represents one of the best deals on the market today for a long range, full displacement steel hulled explorer yacht.
Full Specifications
QM, the 2019 Numarine 32XP enters the market for the first time having been privately owned by the original owner since she was delivered. Never chartered, she has been maintained to an extremely high standard by the original crew who have also remained with the vessel since she was first launched back in 2019 assuring continuous service records and maintenance program onboard.
Stepping onto QM back aft you have a large transom door that opens up to reveal a beautiful beach club which is a key feature onboard. Here you find a lounge area with air conditioning, refrigerator & ice maker, storage for water sports toys & spare parts, washer/dryer and a day head which I love as guest avoid having to go into the main salon to use the facilities.
Stairs located to port and starboard lead up to a spacious aft deck with center line dining table with chairs and built in bench seating. Aft of this you have large sunpads which are probably my favorite space onboard to lounge. A full bar compliments the space assuring that this will be your one of your most popular locations for dining and entertaining. Full walk arounds continue to mid ship on both the port & starboard sides.
Stepping through the sliding doors you enter the main salon. Important to point out that the sliding doors can completely tuck away behind the bar to the port side and no threshold to step over when entering the salon so the exterior & interior spaces merge into one.
The salon is massive for a 32m yacht with a large settee built in to the port side opposite of the flush mounted TV and double lounge chair. Forward of this you have your formal dining area.
Continuing forward to port you enter into a large commercial grade galley with stainless steel cabinets throughout. This is probably the nicest galley I have seen on any of the Numarine 32XP or 37XP models that have been delivered of which there have been over 12. Stairs continue down to the crew area where you have a substantial mess area with small kitchenette, 3 cabins all of which are ensuite that sleep up to 5/6 crew with a private captain's cabin.
Back on the main deck moving forward to starboard you have a private gym area located outboard of the main foyer as well as the day head. A central staircase leads up to the private owners deck and down to the 4 additional guest cabins.
All the way forward on the main deck is the VIP which could easily double as a second master cabin. Center line king, floor to ceiling windows, his & hers sinks with large rain shower, and plenty of storage with walk in wardrobe.
Down below you have 4 guest cabins all of which have private ensuites that sleep 8 guests. Large port holes allow plenty of natural space to enter the guest cabins.
Heading up to the upper deck you first enter the wheelhouse which has forward raked windows that are a prominent design feature onboard the 32XP and allow the captain & crew to have excellent visibility in any weather condition. Water tight doors to port & starboard lead to wing stations on either side. All the way forward on the bow area are multiple sunpads, table and hatch that leads down to a massive forepeak great for storage.
Back aft on the upper deck is the private owners deck with sliding doors that open up to the boat deck and small lounge area. The boat deck is a true highlight with 3 ton davit assuring best in class toy & tender storage.
Finally we reach the sundeck where we have a huge space with substantial hard top, full service bar area, sitting areas and complete second helm station. This will be your other favorite space to gather for entertaining, meals and enjoying the view.
We can finish the walk through in the engine room where we find Caterpillar C18 715hp engines that give QM a range of 4,000nm and Onan 65kw (2) generators and 1 Onan 27kw night generator. Easy access to all major machinery assures routine maintenance for the engineer and crew.
QM is in fantastic condition and features a striking gray hull setting her apart from other explorers on the market. Excellent value, large volume, bright interior decor with a family friendly layout and chefs dream of a galley.
Located in Marmaris, Turkey.
This Yacht is designed in conjunction with Silent Line Group Van Cappellen consultants to the highest standard for noise and vibration, each machine is studied to evaluate the best mounting and connection solution to provide optimum isolation preventing vibration transfer into the structure, free airborne noise is minimized and insulated with the latest technology in sound absorbance and blocking. The yacht will comply with or exceed RINA “Comfort Class” certification.
RINA C +Hull • Mach, Y Unrestricted Navigation
The vessel is designed, constructed and classed to RINA, SpA Code of Practice for Safety of Pleasure Craft and Motor Vessels for vessels under 300GT and less than 50 meters in length.
- Main engines: (2) caterpillar c18 Acert C Rating - 715 bhp@1800-2100rpm - 533 kW - 24 Volt
- (2) Transmission ZF 665 A Coupled
- (2) Propulsion Teignbridge - shaft, coupling, etc.
- (2) Propeller Teignbridge
- (1) Bow thruster CMC Marine BTM 50H hydraulic 45 kW
- (2) Stabilizers CMC Marine SE80.7.4.160 - electric - 7 kW - 380 Volt
- (1) Steering Data DDS 2x550-ESC electro hydraulic 1.5 kW - 380 Volt
- (2) Anchors Baran yacht 230kg - HHP stainless
- Chains Data grade U1 Ø16mm 150m+180m
- (2) Windlass Data DZC 2200 HPI/Kr-14L vertical hydraulic
- (2) Capstan Data DHC 2200 HPI/Kr hydraulic
- (2) Generators Onan 50Hz, 3 phase diesel, 65 kW @ 1500 rpm - 380 Volt
- (1) Generator - night Onan 50Hz, 3 phase diesel, 27 kW @ 1500 rpm - 380 Volt
- (1) Pasarella Besenzoni PI 383.500 - 24 Volt
- (1) Stern door/platform Reis Denizcilik bespoke design hydraulic - 380 Volt
- Deck crane Besenzoni ART. G 360 G telescopic crane 2500Kg -with fiberglass cowling - 380V/24 Volt back up electro hydraulic - Max from 180° to 270° 1 - 380/24 Volt
- Sliding saloon door Bofor Bespoke Design manual
- Sliding owners door Bofor Bespoke Design manual
- Pantograph side doors Bofor Bespoke Design
- (1 set) Air conditioners Dometic 5x VARC 72 Chillers - Fan coils and chillers - 380/230 Volt
- Fresh air make up & extraction Dometic FAM 1000cm/h
- (1) Water heater main Quick Nautic Boiler BK 200L 10/8BAR - 2 kW - 230 Volt
- (1) Water heater crew Quick Nautic Boiler BK 150L 10/8BAR - 2 kW - 230 Volt
- (9) Fuel senders, Water Senders Wika Pressure Transmitter A-10 - 24 Volt
- (4) Back up fuel Senders Wema Float Type - 24 Volt
- (5) Shower Tanks Vela Integral pump - 24 Volt
- (8) Submersible bilge pumps Rule - 3 pcs of Rule 1500-03 24V 2.3A, 5 pcs Rule IL500 - 24 24V 3A - 24 Volt
- (1) Chain wash pump CEM INOX 025 3,48 m3/h - 2 kW - 380 Volt
- (2) Life rafts Solas B 10 MAN
- (1) Dumb waiter ISAS 400 D x450 Wx 500 H (mm) - 380 Volt
- (4) Drop down windows Trend Bespoke Design
- (1) Washing machine Siemens - WM10Q482TR 1.1 - 220 kW- 240 Volt
- (1) Dryer Siemens WT46S52STR - 2.8 kW 220 - 240 Volt
- Cooker Siemens ET875SC11D 7.9 kW - 220 - 240 Volt
- Oven Siemens HB933R52 - 3.3 kW 220 - 240 Volt
- (1) Microwave/Oven Siemens HF15G564 - 1.27 kW - 220 - 230 Volt
- (1) Extractor Siemens LC97BD532 90 cm - 220 - 240 Volt
- Refrigerator Siemens KS36VAI31 iQ500 Inox Easy Clean Refrigerator - 220 - 240 Volt
- Dishwasher Siemens
- (1) Gaggenau RW464361 Wine Cooler (Glass Door) - 220 - 240 Volt
- Coffee maker V-ZUG Supremo XSL 220 - 240 Volt
- (1) Refrigerator at Owner's Cabin - Vitrifrigo C39i - 24 Volt
- (1) Refrigerator at Master Cabin - Vtrifrigo C39i - 24 Volt
- (1) Refrigerator at VIP Cabins corridor - Indelwebasto Cruise 42 Inox - 24 Volt
- (1) Refrigerator Vitrifrigo at Flybridge - DW100 - 24 Volt
- (1) Icemaker Vitrifrigo at Flybridge - IM Classic Refill P - 230 Volt
- (2) Grill Kenyon Custom at Fybridge - 230 Volt
- (2) Freezer Siemens at Crew - GS36NAI31 iQ500 Inox Easy Clean No frost Freezer with drawers - 220 - 240 Volt
- (1) Refrigerator Vitrifrigo at Crew C115IX - 24 Volt
- (1) Washing machine Siemens at Crew - WM10Q482TR - 220 - 240 Volt
- Tumble dryer Siemens at Crew - WT46S52STR - 220 - 240 Volt
- Refrigerator at Beach Area - Webasto Drawer 65 Inox - 24 Volt
- (1) Icemaker at Beach Area - Vitrifrigo IM Classic Refill P - 230 Volt
- (10) Toilet heads Tecma Privilege Bone color PRI024NP / T02CO - 24 Volt
- (1) Icemaker at bar Vitrifrigo IM Classic Refill P - 230 Volt
- Refrigerator at bar Vitrifrigo C39i - 24 Volt
- (2) Bilge pump & Fire pumps CEM 070 15M^3/H Main bilge pump and main fire pump - 380 Volt
- (1) Emergency fire pump - Diesel CEM AMD-D50 18M^3/H 1 - 12 Volt
- (1) Water pressure pumps CEM GDV-JBR 4/2 160LT/M (Vertical/ AC-AC Pump) - 380 Volt
- (2) Pressure tank of water set - CEM 60X 60L
- Dampers CEM Bespoke Design
- (4) Engine extractor fans EBM pumps 350 Axial fans AC fan - 380 Volt
- (1) Water tight doors Bofor 600 x 1800 mm -Clear opening
- Water tight hatches Bofor 500 x 500 mm -Clear opening
- Sewage treatment Tecnicomar Ecomar 45 - 3.5A kW - 380 Volt
- (2) Gray & black water discharge pumps CEM SBM MIDEX/2 4,8M^3/H - 380 Volt
- (2) Main engine exhaust system/silencer Centek/Manuflex
- (3) Generator exhaust system/Silencer Centek/Manuflex
- (1) Fuel transfer pump CEM gear 50B 3M^3/H 5 - Bar Bronze - 380 Volt
- (1) Fuel separator Alfa Laval Centrifugal separator MIB303 - 230 Volt
- Silver-ion sterilizer Jowa 15 M^3/H - 230 Volt
- (1) Water softener Octomarine Octo Compact 1500~3000L/H DN20
- (2) Water maker Tecnicomar Sailor C1500 400V 220 L/H - 380 Volt
- (2) Fuel filter main engines Separ SWK-2000/10 Duplex, with metal bowl & gauge
- (3) Fuel filter generator sets - Separ SWK-2000/5 Duplex, with metal bowl & gauge
- (1) Sludge tank discharge pump CEM 020 1.8 M^3/H For Sludge tank - 380 Volt
- (1) Fuel transfer backup pump CEM gear 15B 0,9M^3/H Bronze Back-up pump - 24 Volt
- (2) Water circulation pump CEM CR 20/4 2,6M^3/H Boiler - 230 Volt
- (1) Water transferring pump CEM 040 6M^3/H -forward ballast tank - 380 Volt
- (1) Discharge pump for forward ballast tank - Flojet Quad II bilge pump - 24 Volt
- (2) Water strainer for main seawater intake CSY Marine Soytek GGG40 rg5 flanged DN150 "L" type
- (1) Water strainer for aft seawater intake CSY Marine Soytek GGG40 rg5 flanged DN80 "L" type
- (1) Water strainer for forward seater intake CSY Marine Soytek GGG40 rg5 flanged DN65 - "T" type - For forward Sea Water Intaker
- Fire system Seckin FM200
- Pannels Etc - Energy Solutions
- (12) Service batteries Victron Gel 10 OPzV 1000 GEL OPzV tubular plate 2V cells 1000AMP - 2 Volt
- (4) Start batteries Victron AGM 12V/220Ah AGM Deep Cycle Batt. 220 AMP - 12 Volt
- (4) Generator batteries Victron AGM 12V/110Ah AGM Deep Cycle Batt. 110 AMP - 12 Volt
- (2) Emergency batteries Victron Gel 160 AMP - 12 Volt
- (1) VHF Batteries Victron Gel 110 AMP - 12 Volt
- (1) Shore cable recovery Glendenning CM-8 with al hawse pipe + 22" x 22" container 125AMP - 380 Volt
- (1) Battery charger Victron charger 1 Victron 24/100TG 3 Ph - 4A to Port Eng Bat - Skylla TG 24/100 - 380 Volt
- (1) Battery charger Victron charger 2 Victron 24/100TG 3 Ph - Skylla 24/100TG - 380 Volt
- (1) Battery charger/Inverters Victron Charger 3 Victron MultiPlus C24/5000/120 1Ph - 4A to Stbd Eng Bat - 230 Volt
- (1) Battery charger Victron Generator/Engine Charger Victron 24/16 3 output 1Ph - Blue Power IP22 - 230 Volt
- (1) Battery charger Victron Fire Pump Charger Victron IP65 12/10 - Blue Power IP65 - 230 Volt
- (1) Battery charger Victron VHF Bat Charger IP65 12/15 - Blue Power IP65 - 230 Volt
- (1) Battery charger Victron VHF Bat Charger Orion 24/12-25 - 24 Volt
- (1) Battery charger Victron Emergency Bat Charger IP65 24/8 - Blue Power IP65 - 24 Volt
- (1) Battery charger Victron Emergency Bat Charger Orion 24/24-15 - 24 Volt
- (3) Wipers Exalto 255BS (sides) / Linkage wiper KW2 (center ) - 24 Volt
