2024 HARGRAVE CUSTOM YACHTS
Description

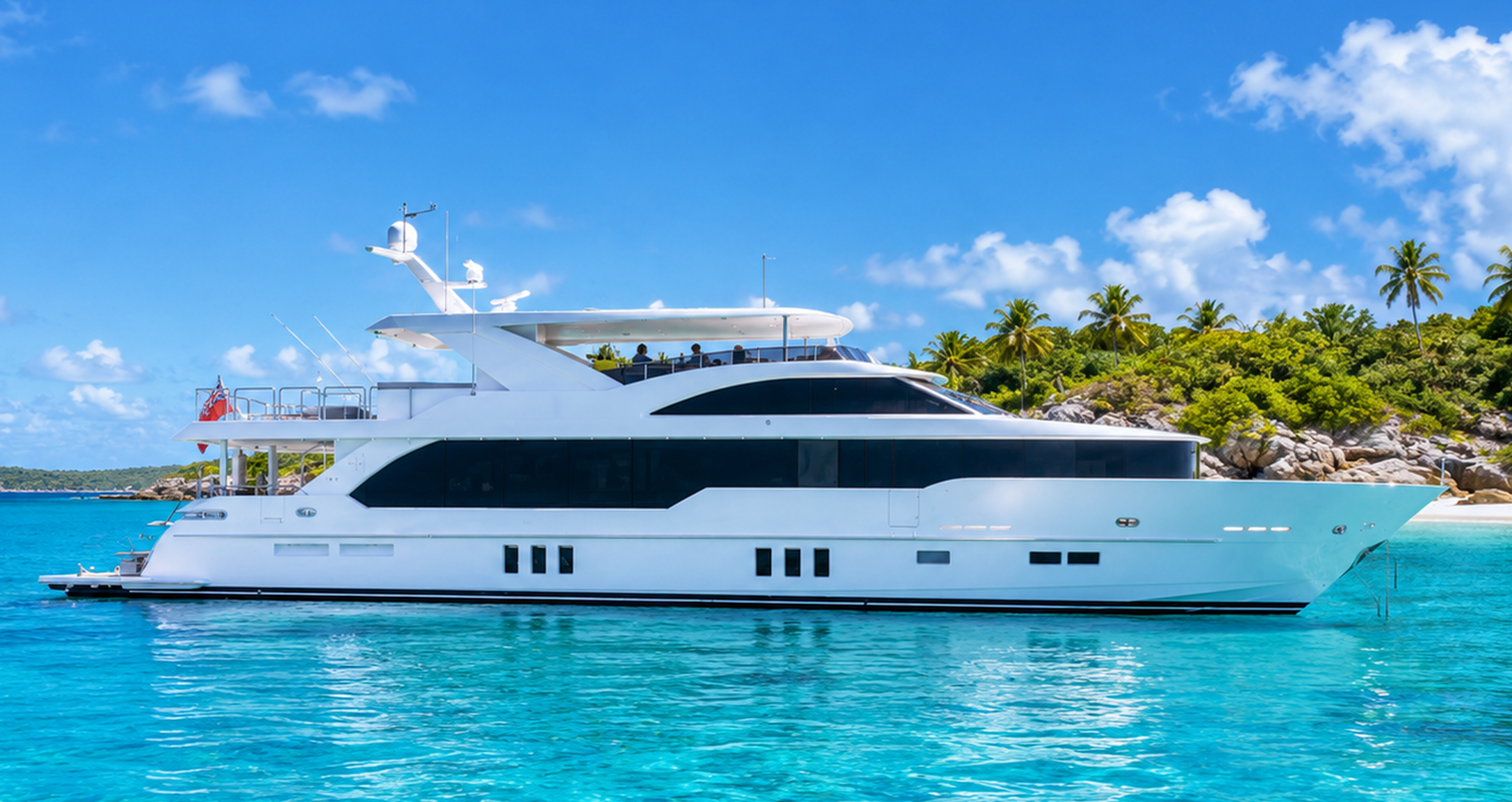

This 102’ Hargrave Raised Pilothouse represents the finest of Hargrave’s custom yacht program. Hull 678 was built for an experienced owner with upgraded engineering, quiet operation, and luxurious interior appointments by Yacht Interiors by Shelley. Powered by twin CAT C-32 2000 HP engines and set on Hargrave’s proven 102’ x 21’ beam platform, the yacht offers exceptional performance, extended cruising capability, and spacious owner/guest accommodations.
Full Specifications
Principal Dimensions & Performance
LOA: 101’
Beam: 21’
Engines: Twin CAT C-32, 2000 HP
Generators: (2) Northern Lights 38 kW
Fuel: 3,200 gallons
Water: 600 gallons
Stabilizers: Naiad 302 with Datum control
Bow Thruster: Hydraulic 48 HP, 16” tube
Hull & Construction
Hand-laid fiberglass hull with foam-core reinforcement
Vacuum-bagged stringers bonded to hull
FRP superstructure, decks, and bulkheads
V-shaped keel with longitudinal stringers
Teak or non-skid exterior deck options
Stainless steel portlights and deck fittings
Custom fiberglass swim platform with ladder
Stainless steel handrails, cleats, and hawse pipes
Transom with integrated steps
Aquamet shafts and bronze running gear
Sea chest and Groco sea strainers
Engineering & Mechanical
Engine Room & Machinery
Underwater exhaust with idle bypass
Racor 1000 FG engine filters (double Racors for redundancy)
Racor 500 MA10 genset filters
Oberdorfer fuel transfer pump
Reverso oil change system (engines, gears, generators)
Hydraulic Hynautic steering with autopilot capability
Delta “T” ventilation system
Additional insulation for quiet ride
Tide Seal dripless shaft logs and rudder seals
Electrical Systems
220V/110V/60Hz electrical system
Mastervolt chargers: 80A/24V, 30A/24V, 30A/12V
(2) 100-amp MasterVolt AC/DC transformers
(8) 200-amp/hr batteries for ship & engine systems
(2) Glendinning 100-amp Cablemasters (125' cords)
Newmar 50A 24V-to-12V converter
100-amp galvanic isolator
Stabilization & Thruster
Naiad 302 stabilizers w/ 12 sq. ft. fins and Datum control
Backup stabilizer & bow thruster hydraulic pumps
PVC-shielded hydraulic line protection
Exterior & Deck Equipment
Bow
FRP bow seating with storage
Eight waterproof deck lights
Stainless umbrella base
Maxwell Nilsson VW4000 windlass
210 lb stainless steel anchor with 300’ chain
Quartz floodlights

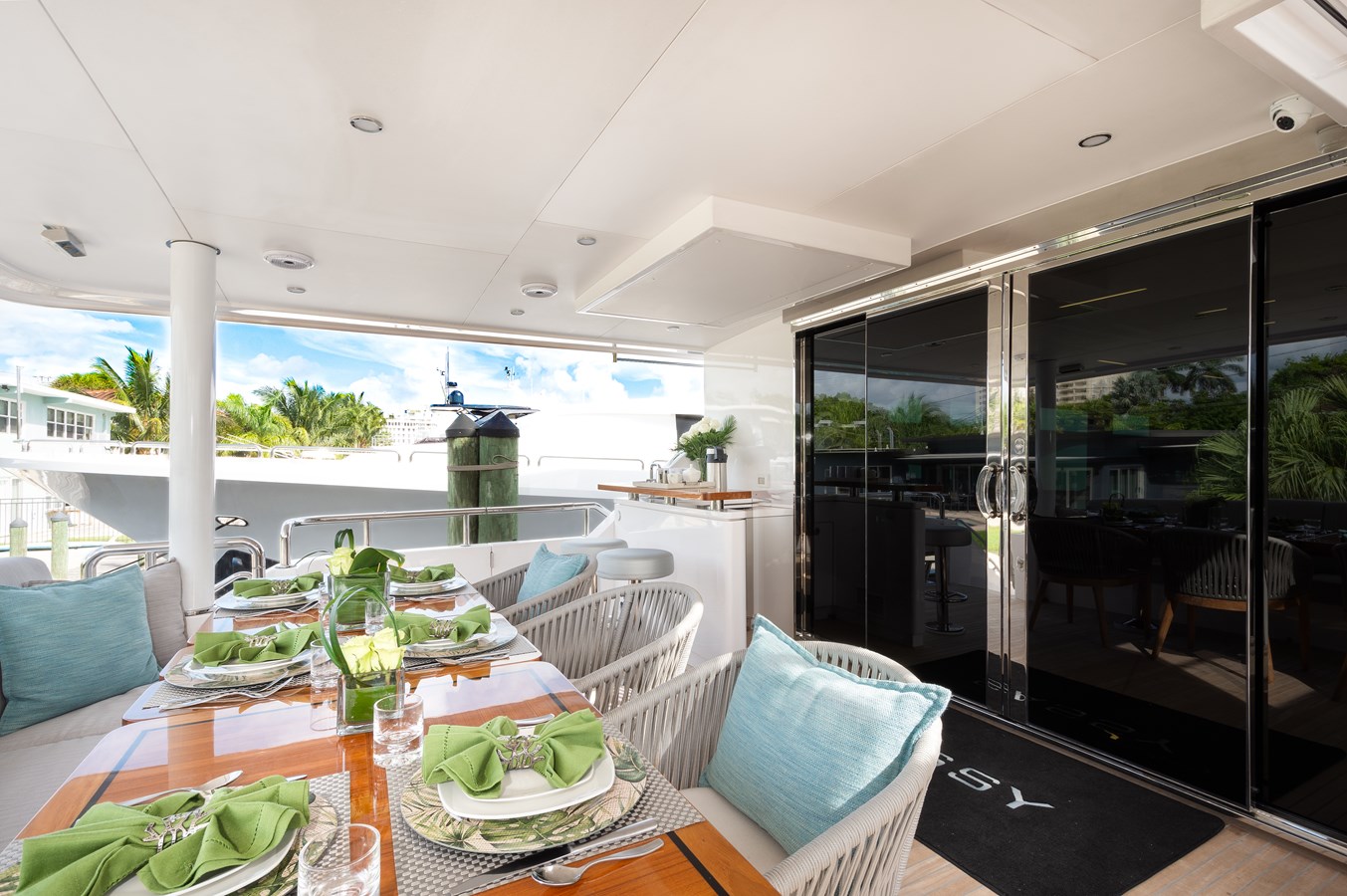

Aft Deck
Built-in bench seating
Teak table (sliding & hi-low)
Wet bar with sink
Storage lockers & ladder locker
TV on an electric lift
Stainless baby gates
Teak deck chairs

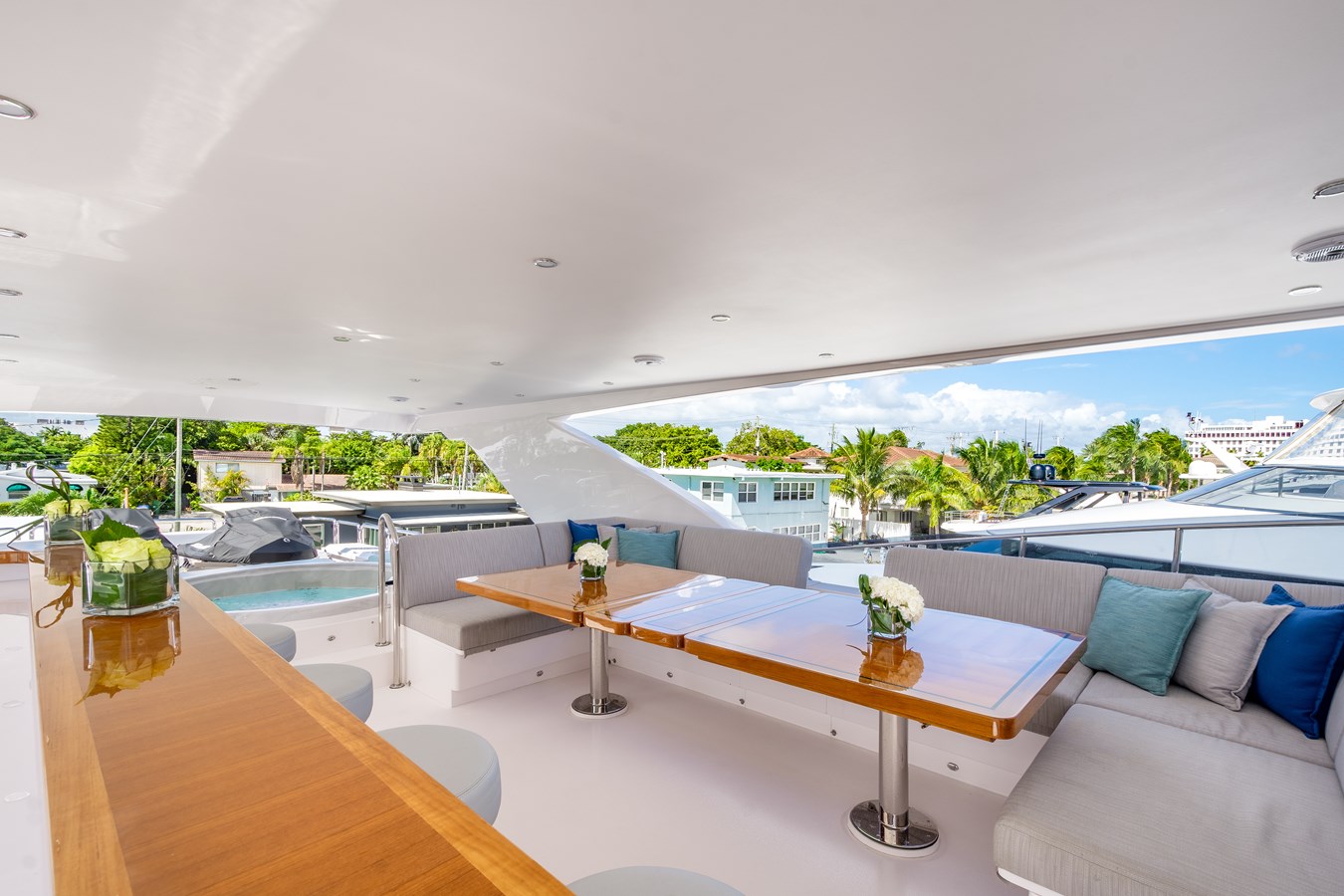

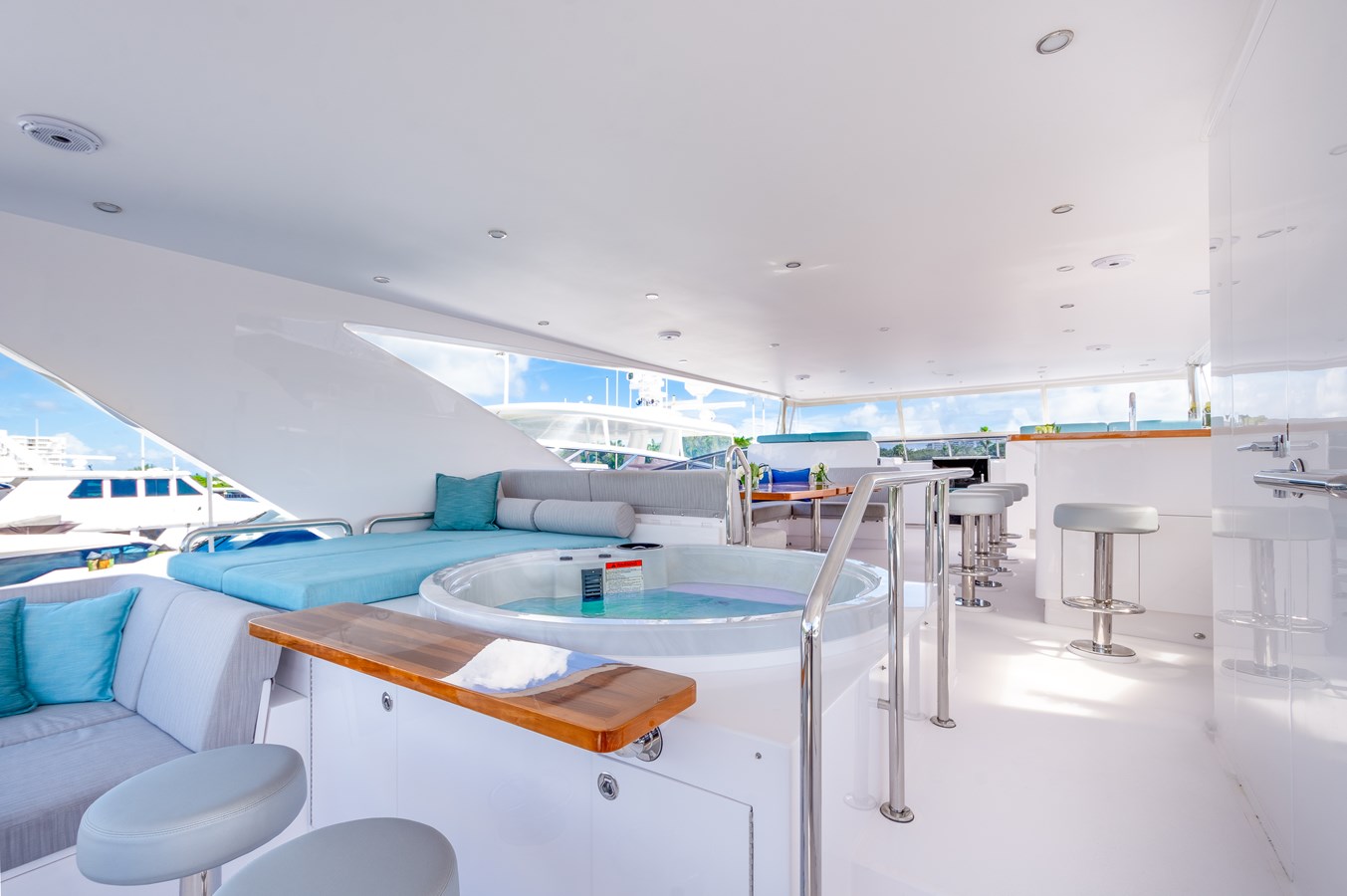

Flybridge
Custom hardtop
Large granite-top wet bar with stools
Hot tub with FRP seating & whirlpool
L-shaped seating with coffee table
Stainless rails and footrests
Fire Magic grill station
Refrigerator drawers, wine cooler, ice maker
Helm chair with storage
Sliding hatch from pilothouse
Swim Platform
Custom FRP platform
Stainless U-rails
Pop-up cleats
Freshwater shower
Interior – Designed by Yacht Interiors by Shelley
General Interior
Walnut cabinetry & Toseva veneers
Vinyl-covered headliner system
Recessed tray ceilings & custom soffits
Cantalupi LED lighting
Vimar switches w/ dimmers
Marble & granite surfaces
Italian hardware & German latches

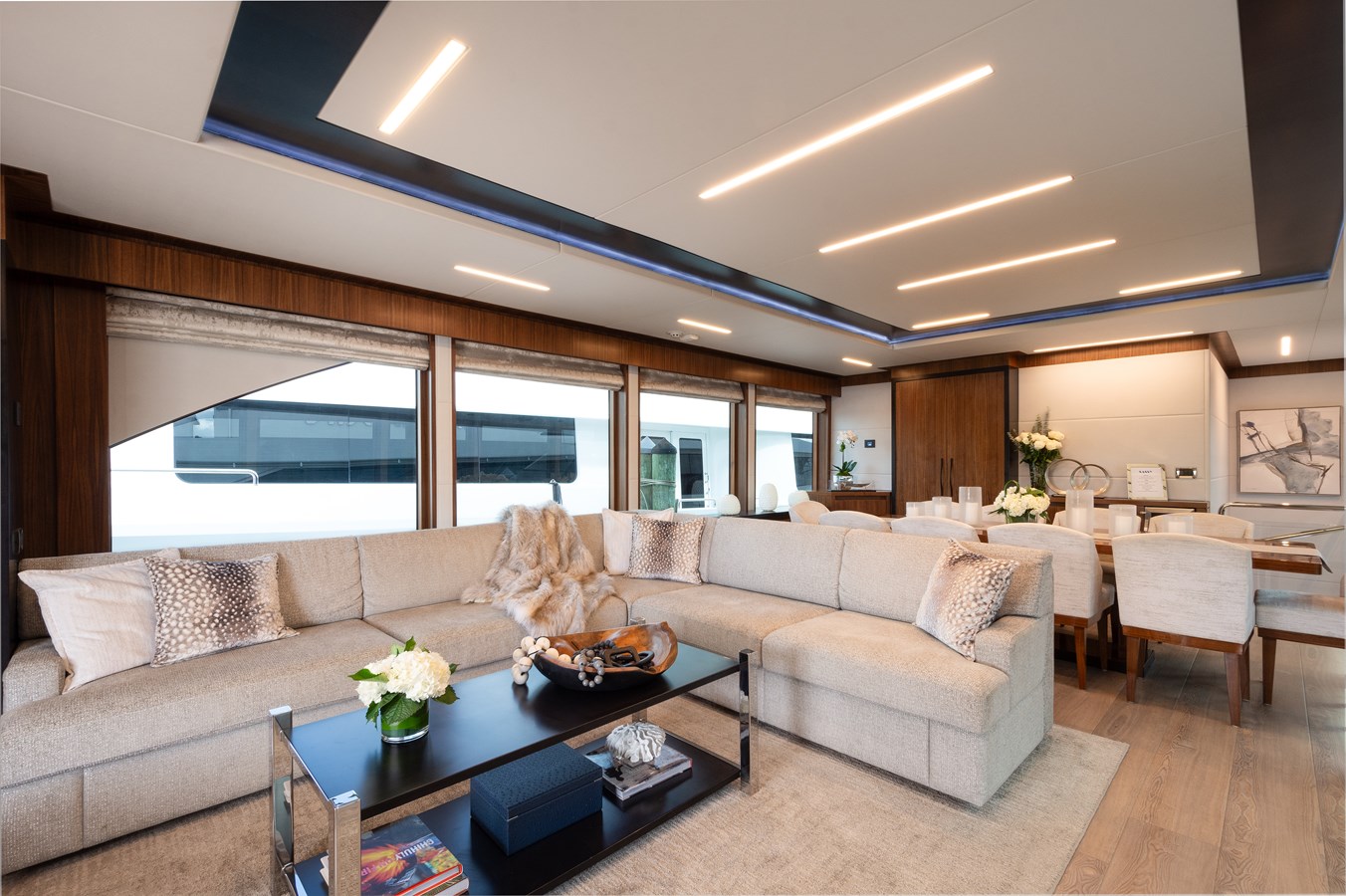

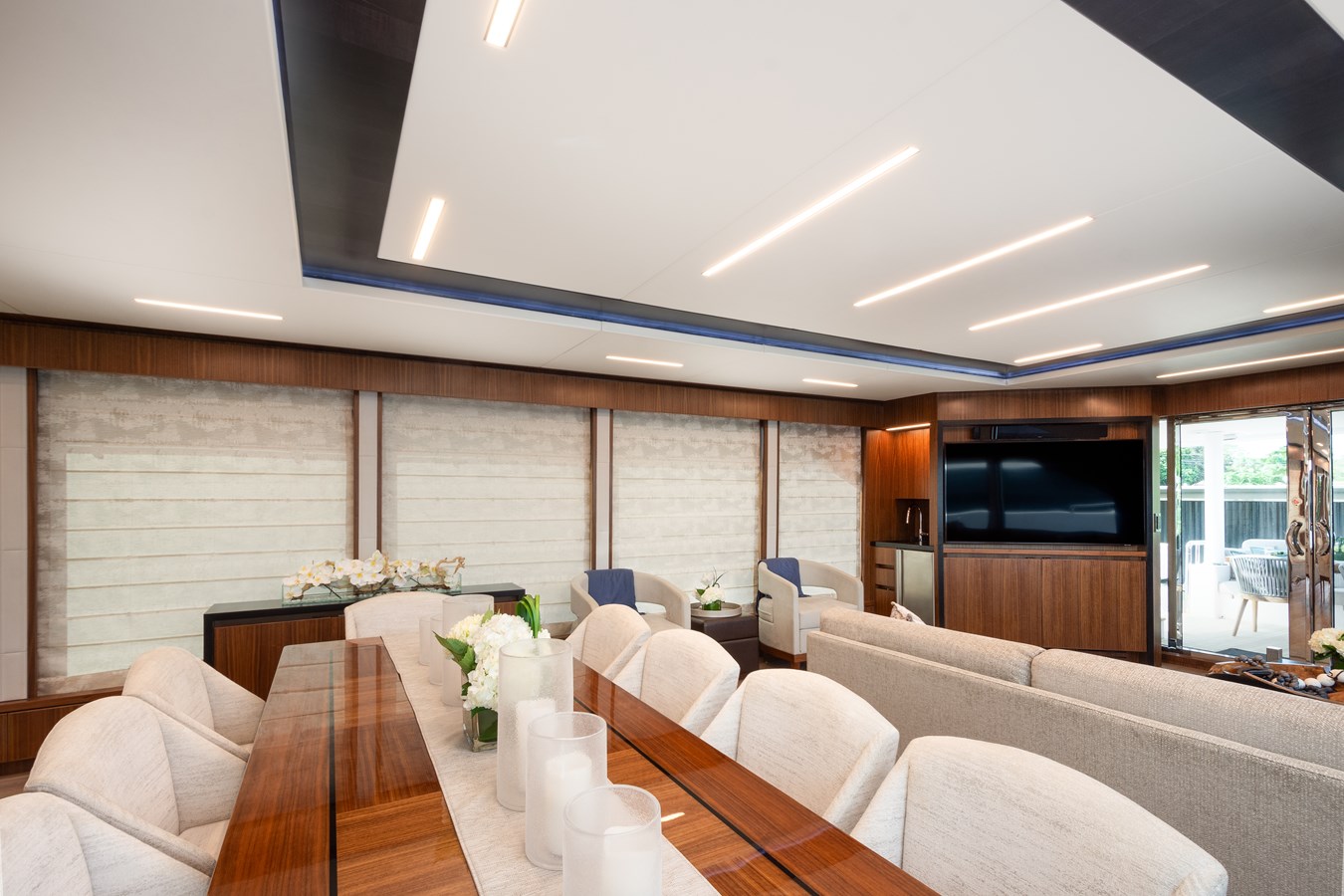

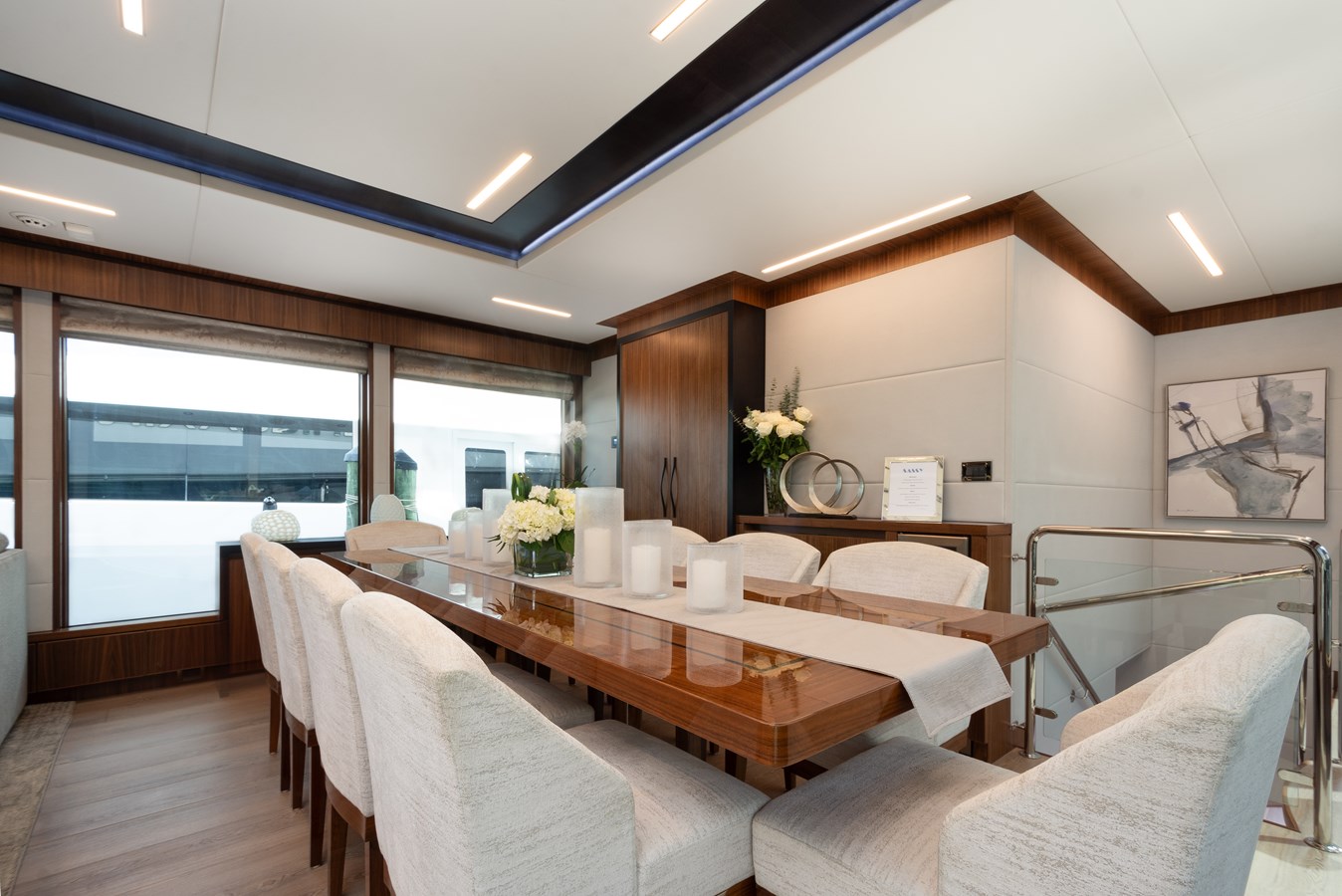

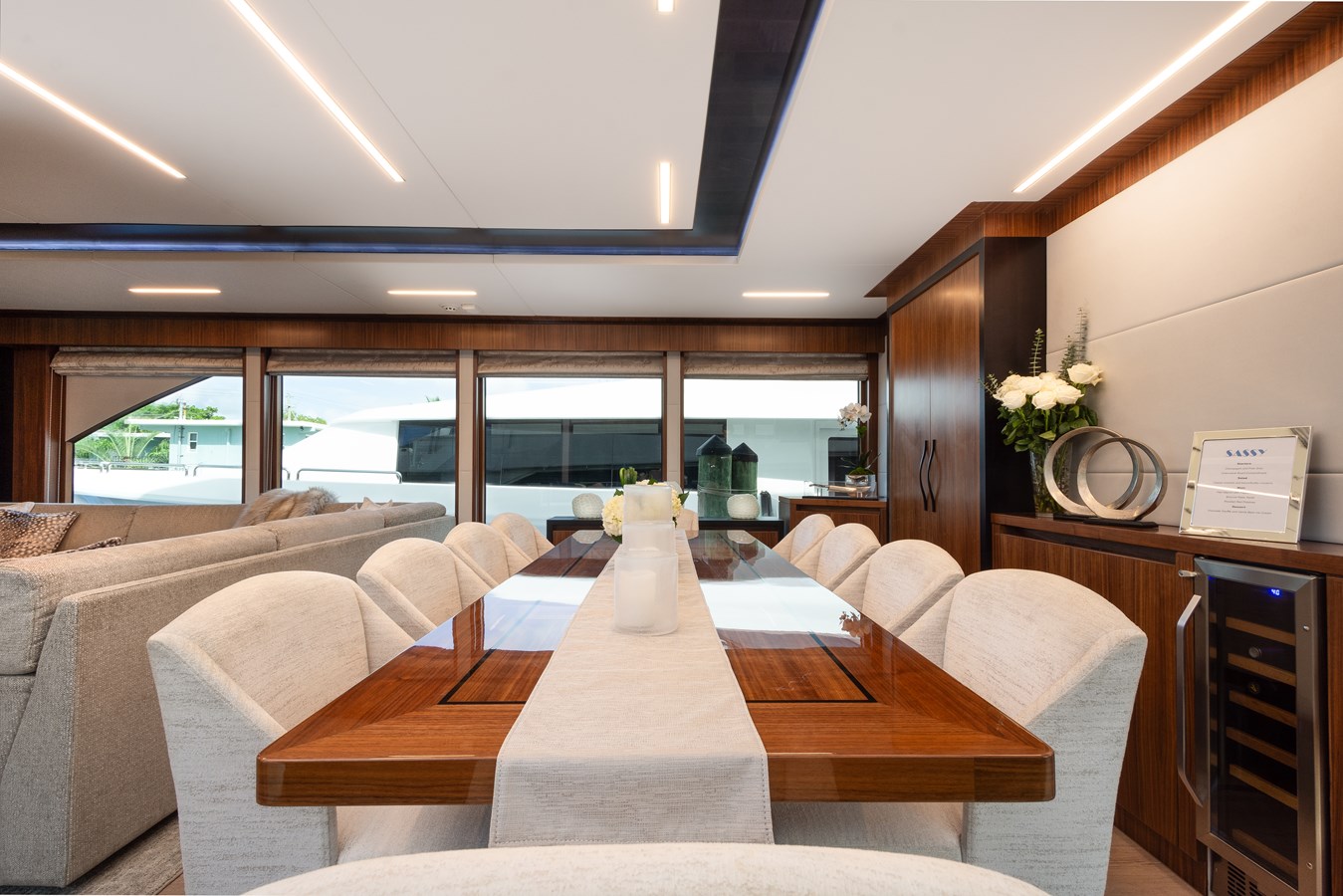

Main Salon
Custom cabinetry and furniture
Decorative rain-glass panels
Marble-top bar with sink
Three bar stools in Pearl Gray
Glass shelving & bottle storage
Custom club chair
Glass cocktail tabletop

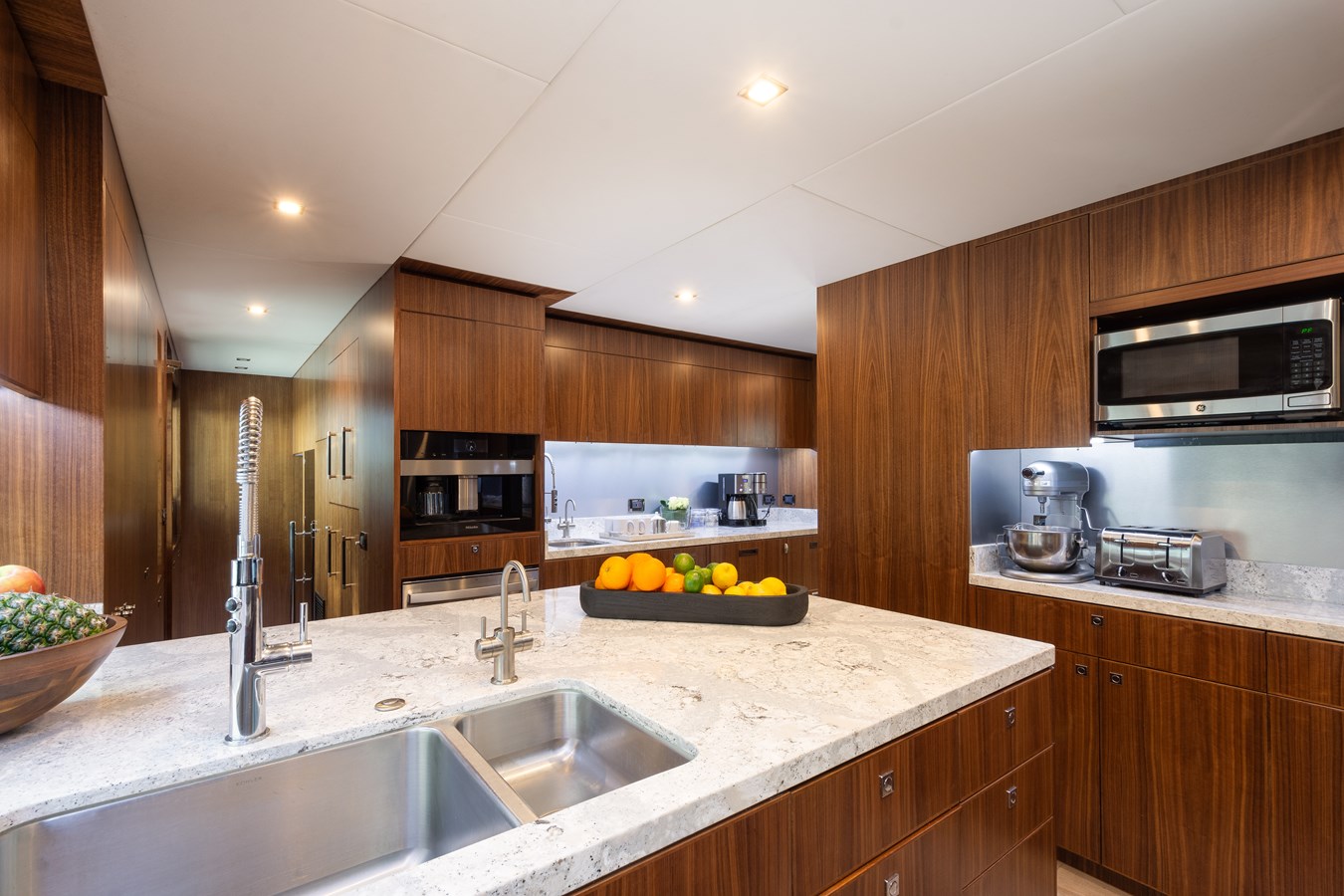

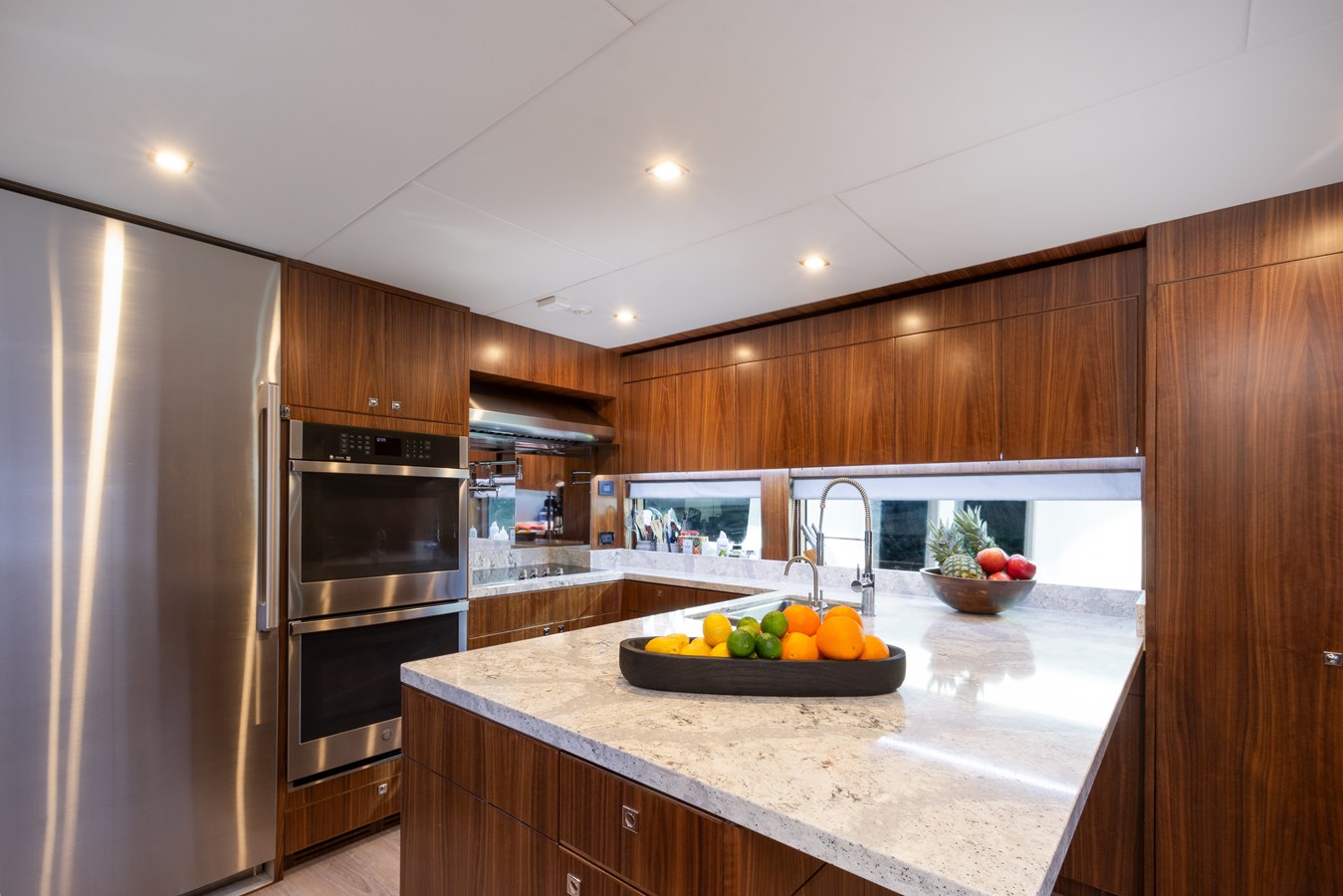

Galley
Granite counters
Marble backsplash
Stainless railings & handrails
Pneumatic lift-up steps for storage
Hafele pull-out pantry system
Multiple utensil drawers

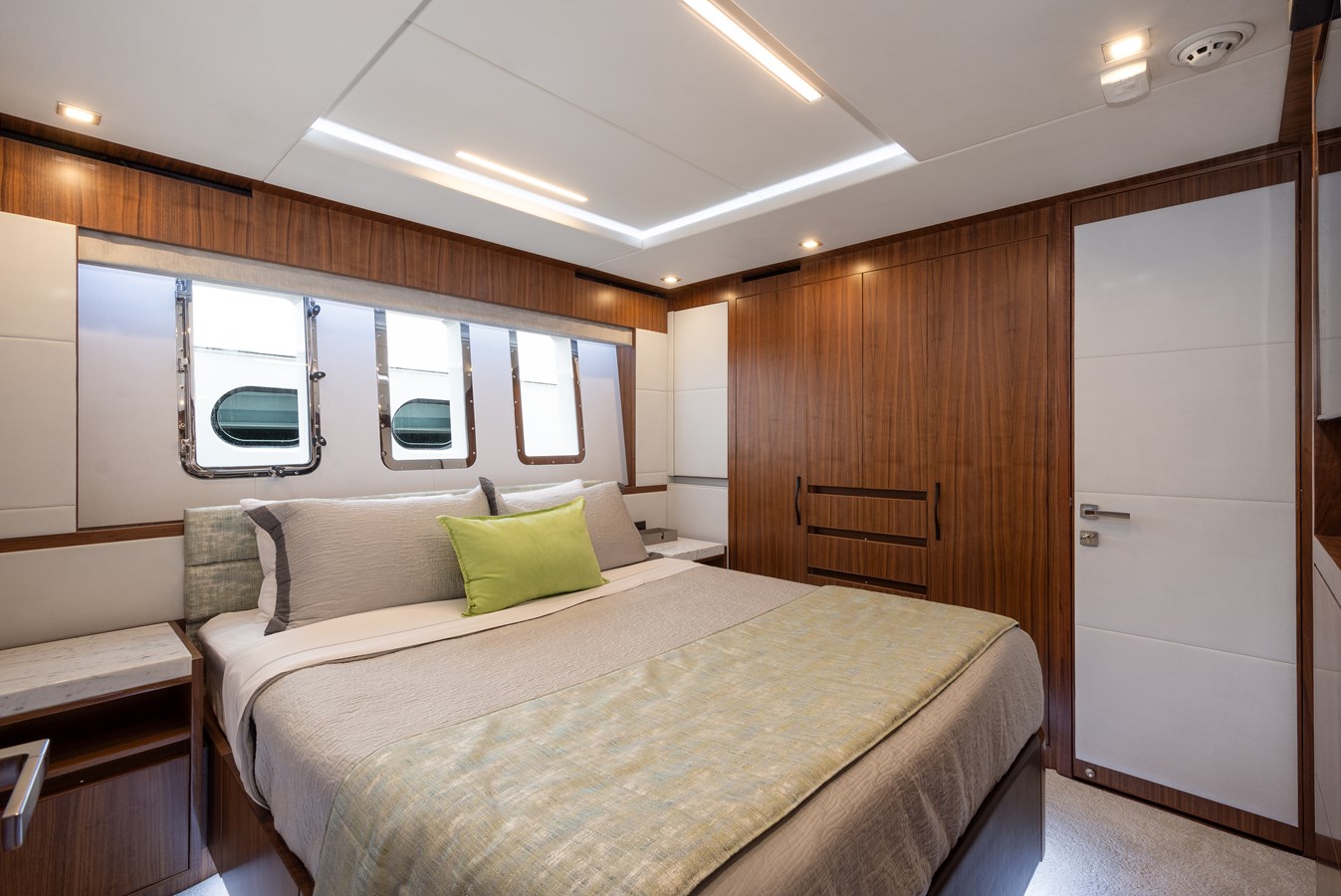

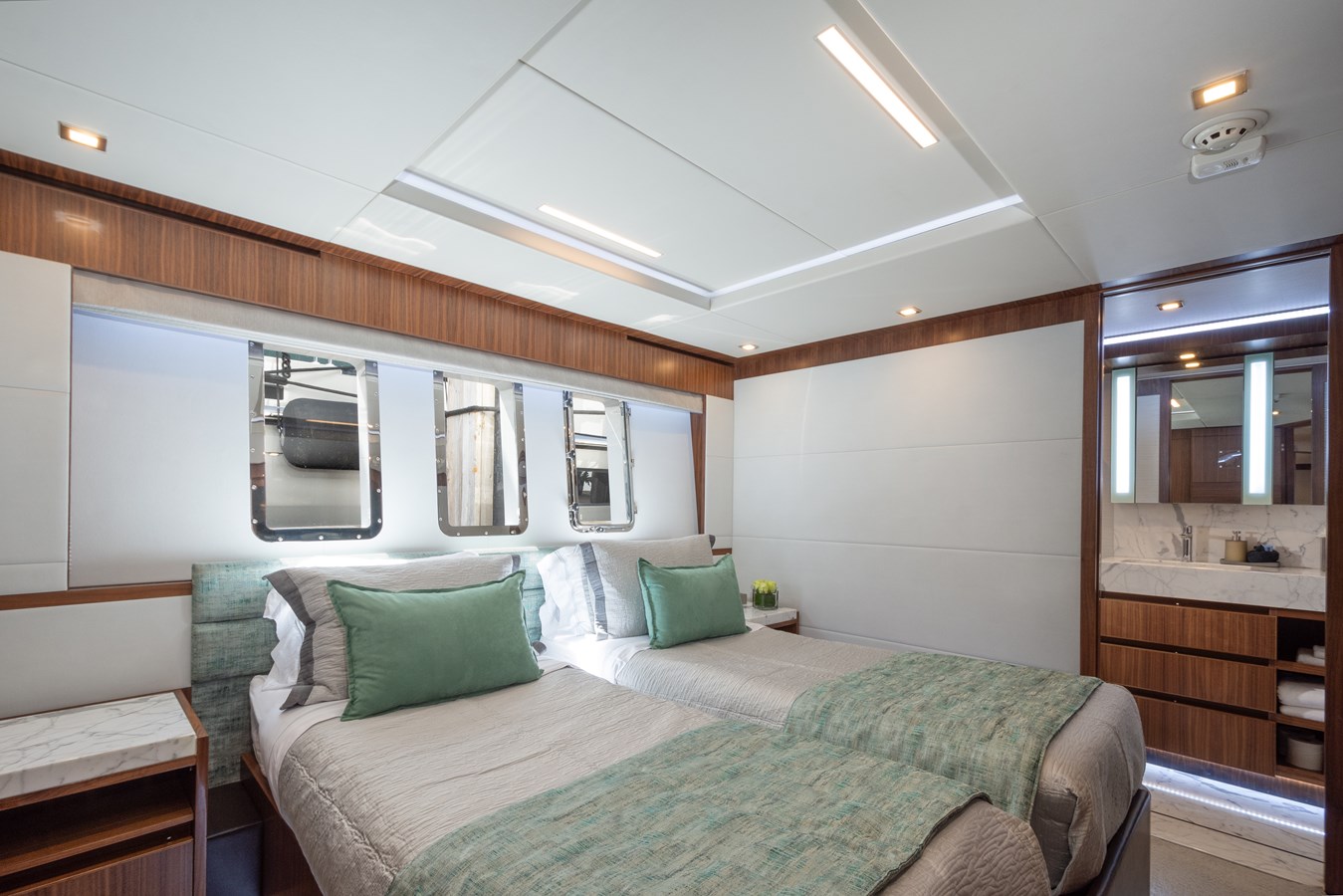

Lower Foyer & Guest Areas
Marble floors with stainless inlay
Samdam K-Pro sound insulation
Mirrors on closet doors
Custom upholstery
Pneumatic lift beds in the Master cabin & Captain’s cabin
Sliding bed mechanisms (Captain & Starboard Guest)

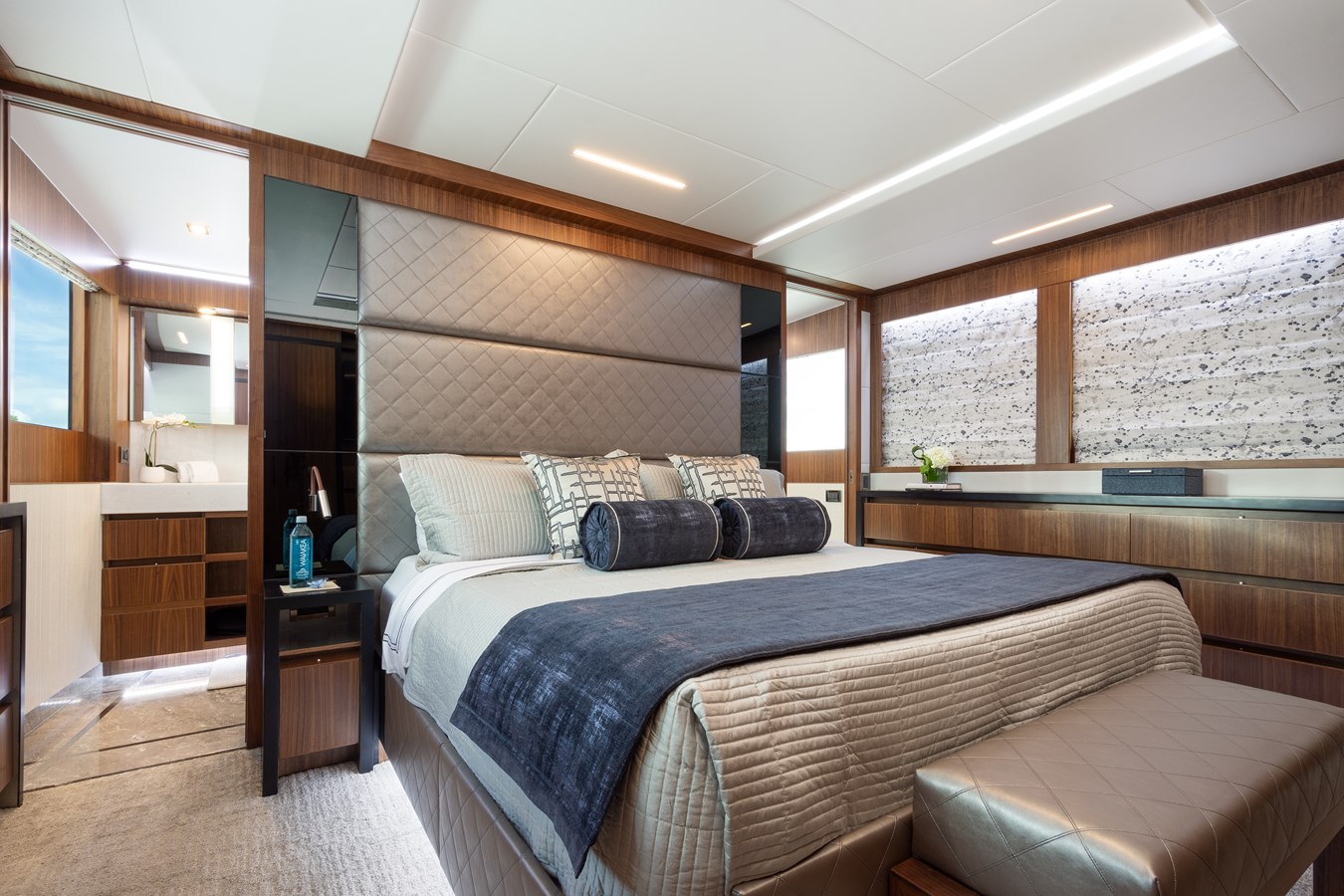

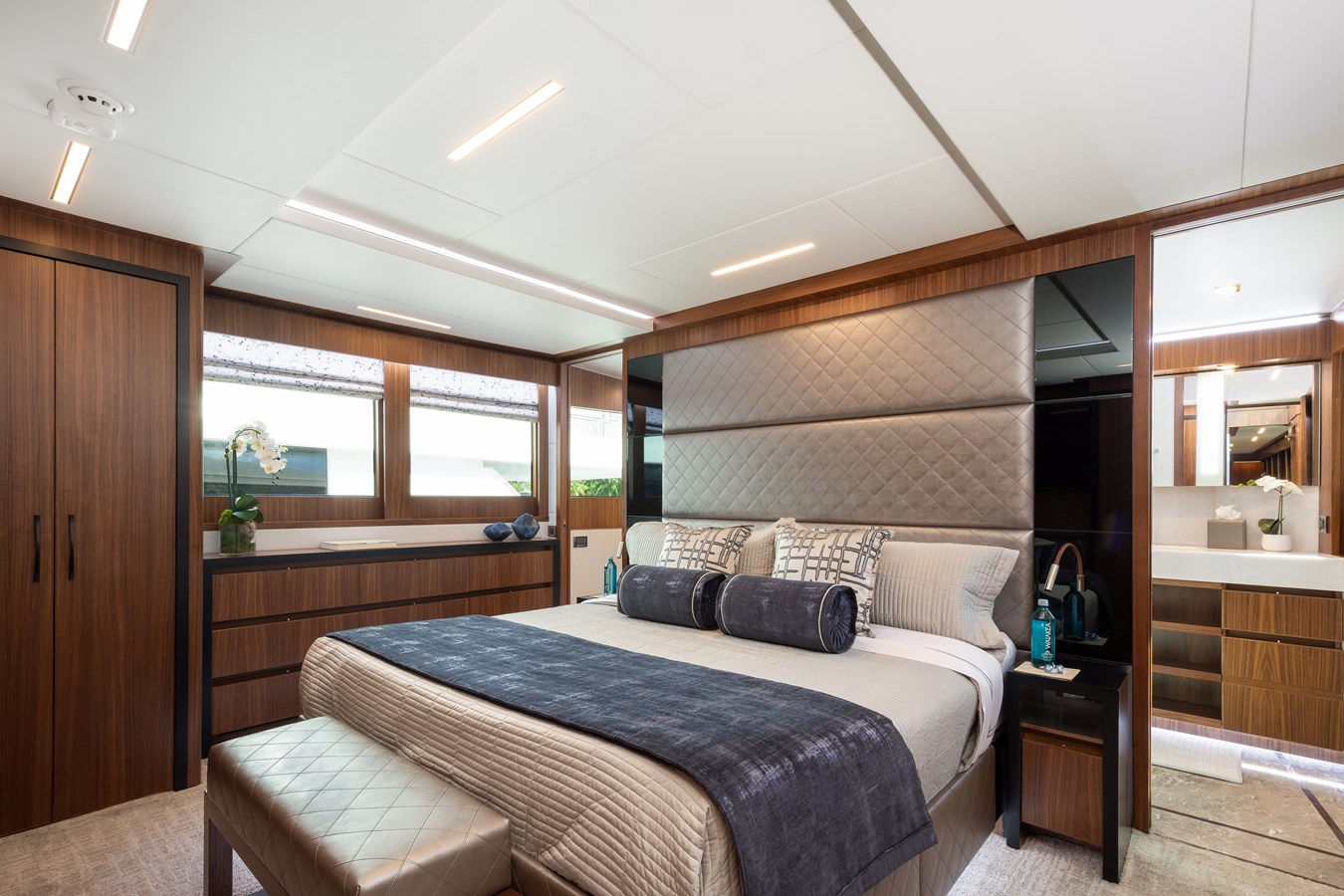

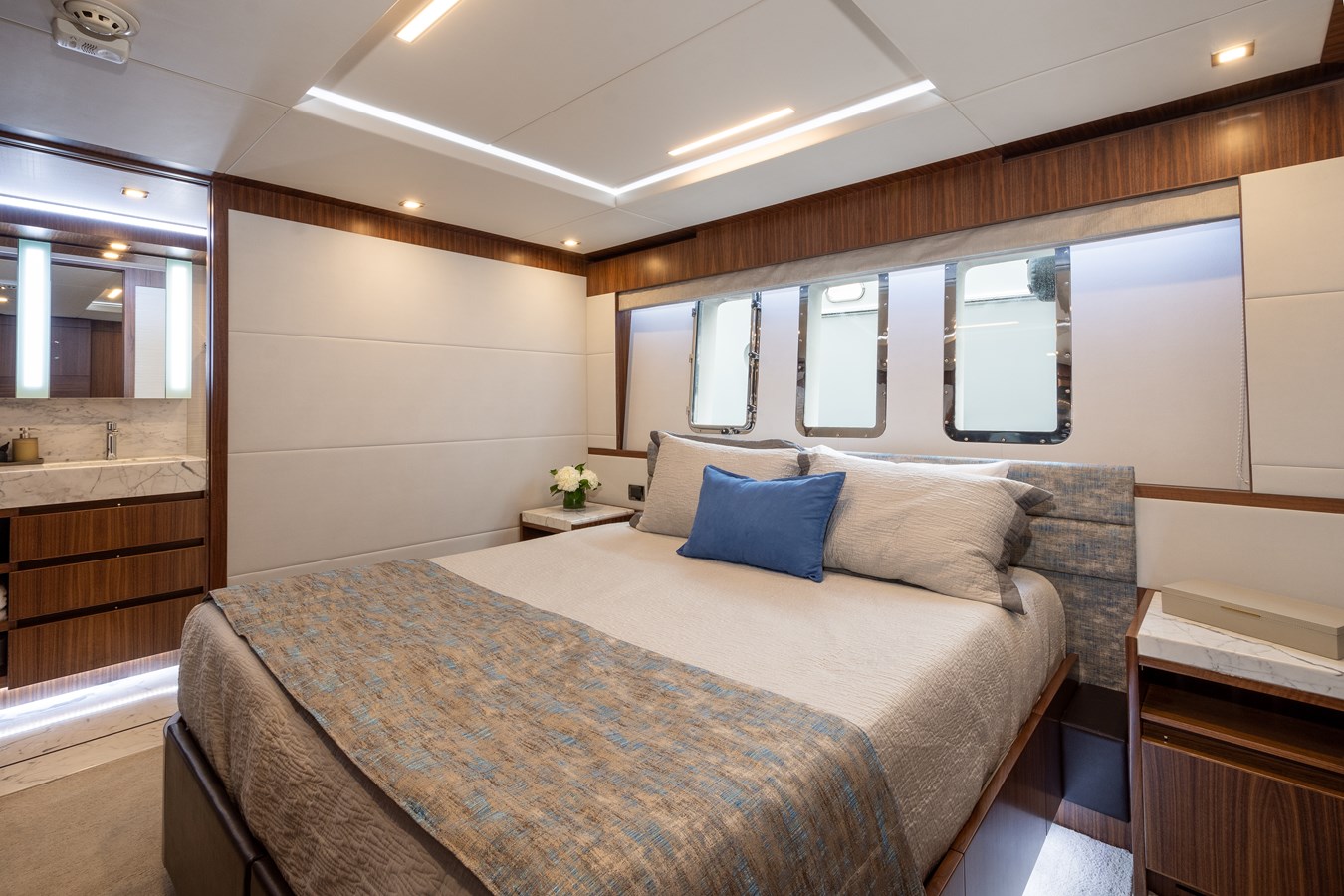

Master Suite
Full-beam layout
Marble counters, flooring & shower
Dual Kohler sinks
Frameless glass shower door
Non-slip shower floor
Marble shower seat

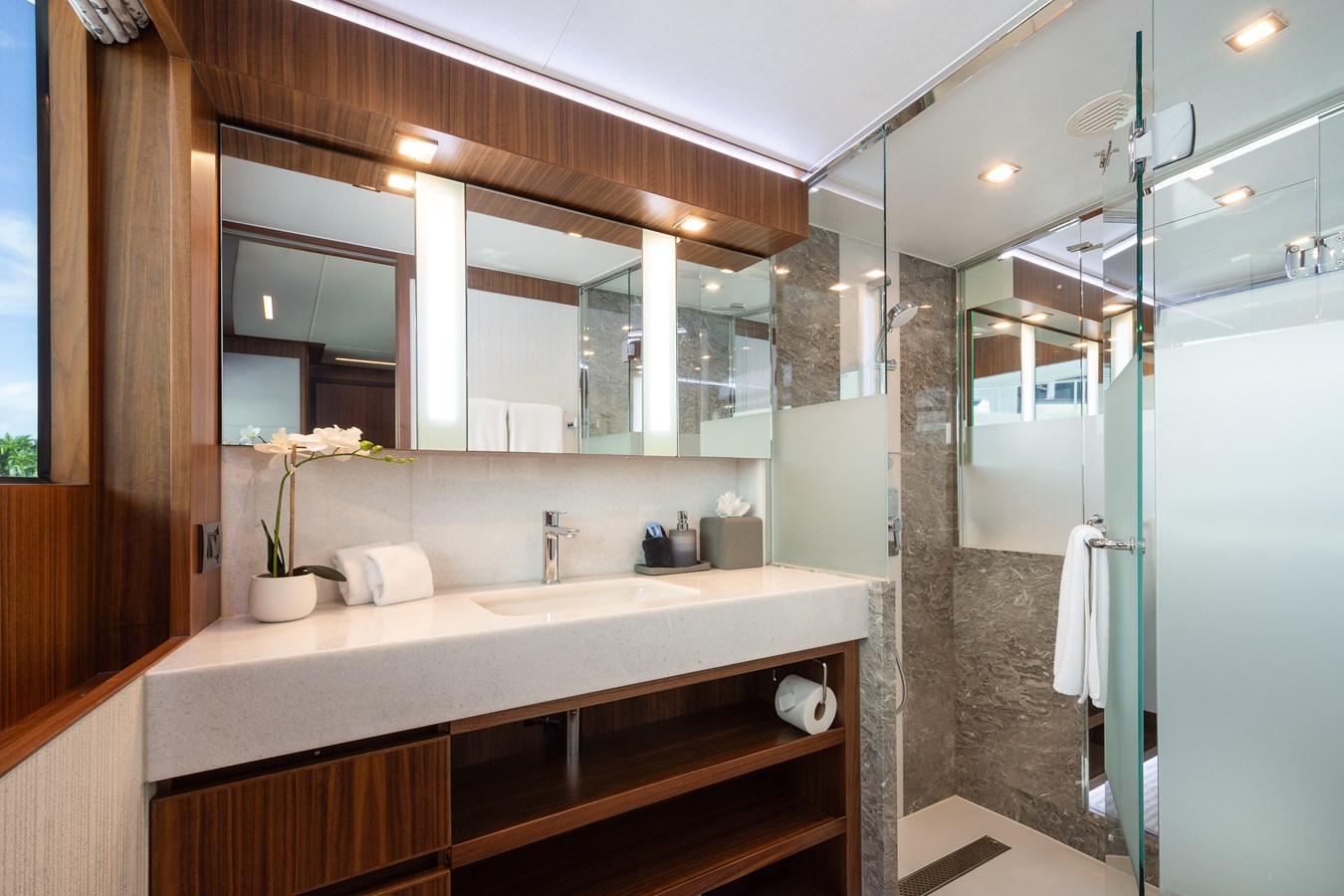

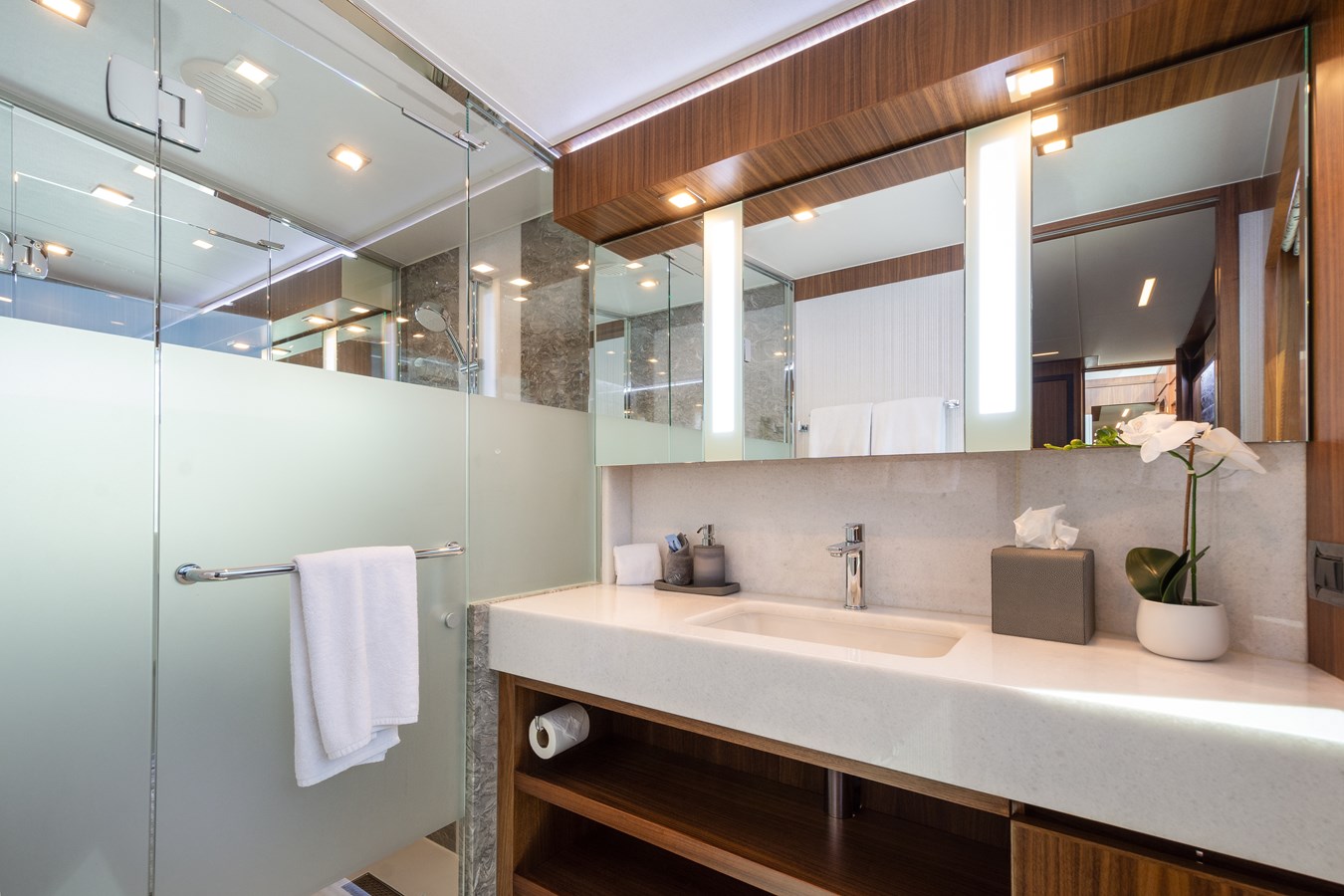

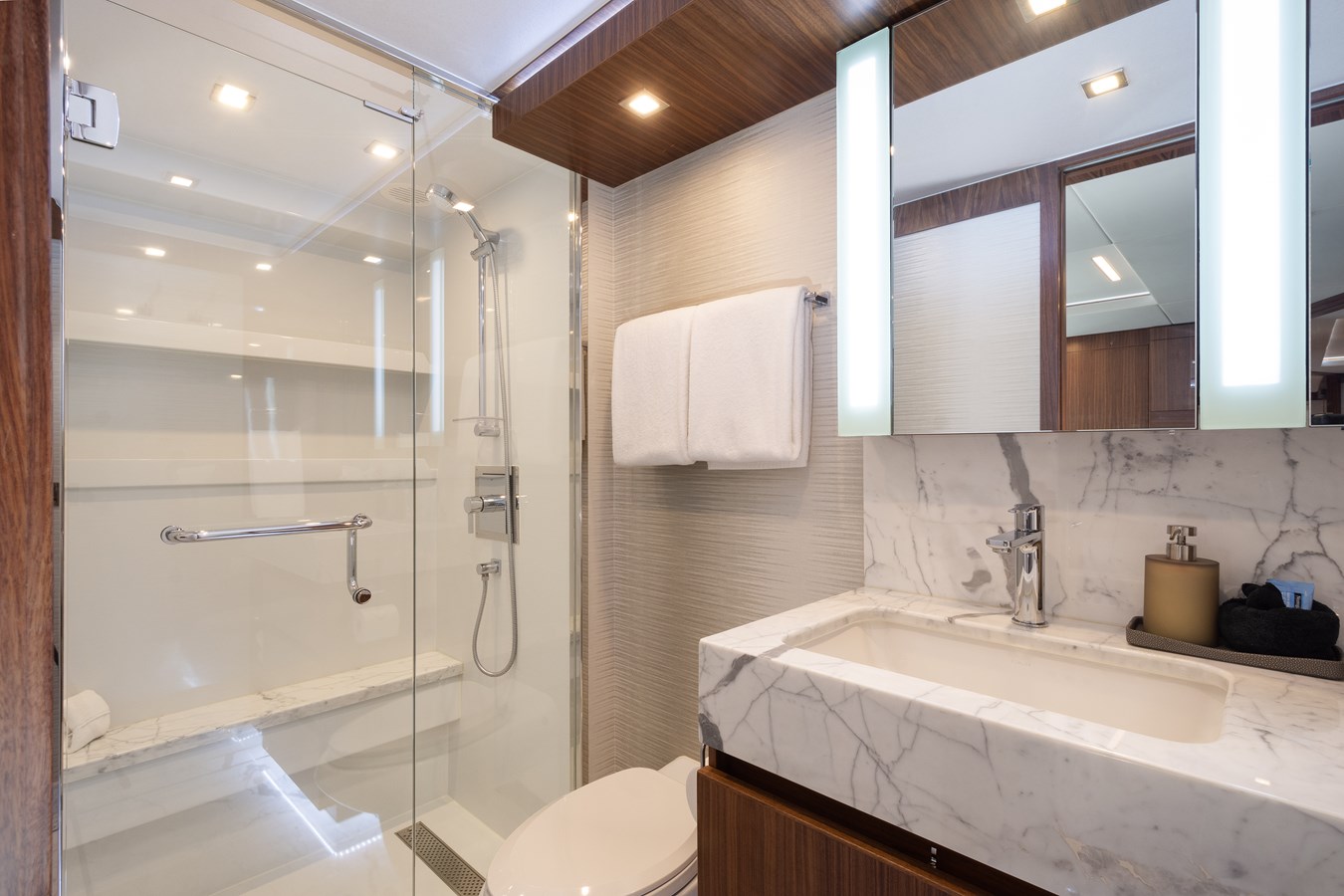

VIP & Guest Heads
Marble floors & countertops
Grohe fixtures
Frameless glass doors
Marble shower seats
Appliances
Galley
GE Profile refrigerator, oven, cooktop, microwave
Sub-Zero integrated fridge drawer
GE dishwasher & disposal
GE trash compactor
Franke stainless sink
Blanco chrome faucet
Salon
U-Line ice maker
GE ice maker w/ panel kit
Kohler bar sink
Aft Deck
U-Line refrigerator and ice maker
Flybridge
Sub-Zero refrigerator drawers
U-Line wine cooler
Whirlpool 68" spa tub
Fire Magic grill
Scandvik faucet
Laundry
GE washer/dryer sets (lower foyer & crew lounge)
Crew & Service Areas
Separate crew lounge
Washer/dryer sets
Pullman berth in the forward crew
Pneumatic storage access
Excellent machinery access throughout
Navigation & AV
See the separate detailed electronics and A/V equipment list.
(Will be inserted once we receive it.)
USA-Installed Options
Full safety package
Life rafts
Quick Lift 2000 lb davit
1500 GPD BWD watermaker
Stidd 500N Admiral helm chair
UMT Sea Stairs
Interior Décor Package (YIBS)
Includes carpeting, upholstery, drapery, spreads, chairs, stools, lighting, hardware, fixtures, and complete interior design services.
