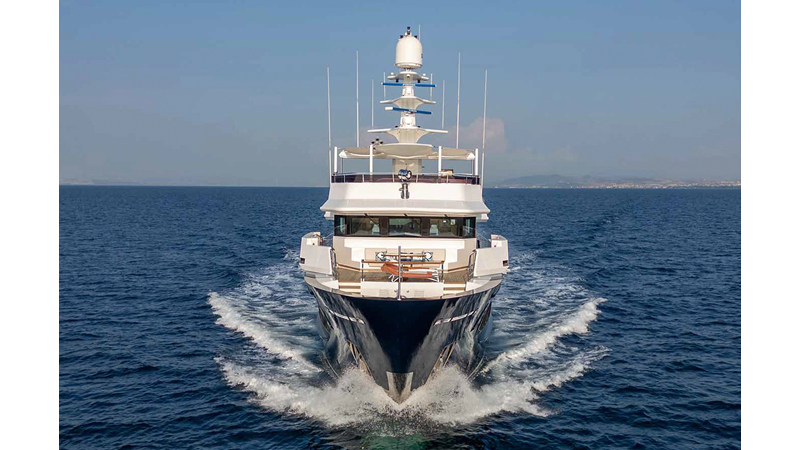

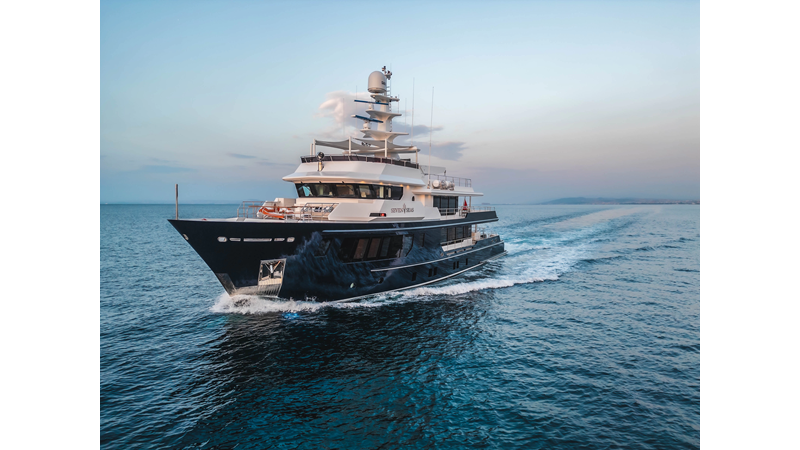

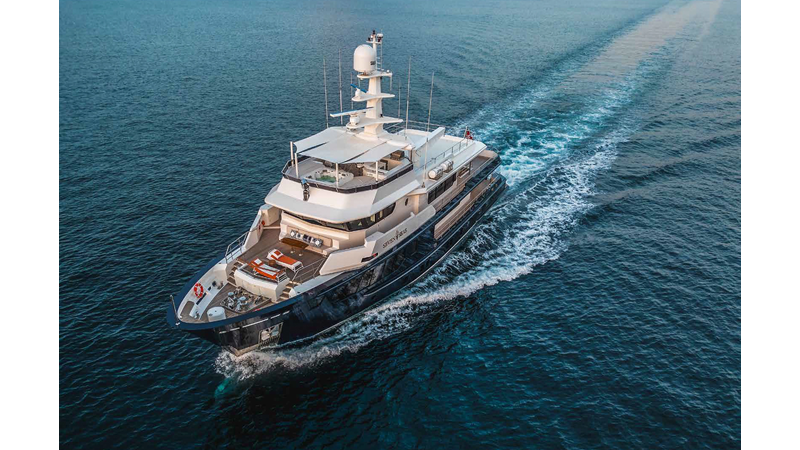

2024 RMK MARINE 120
Description

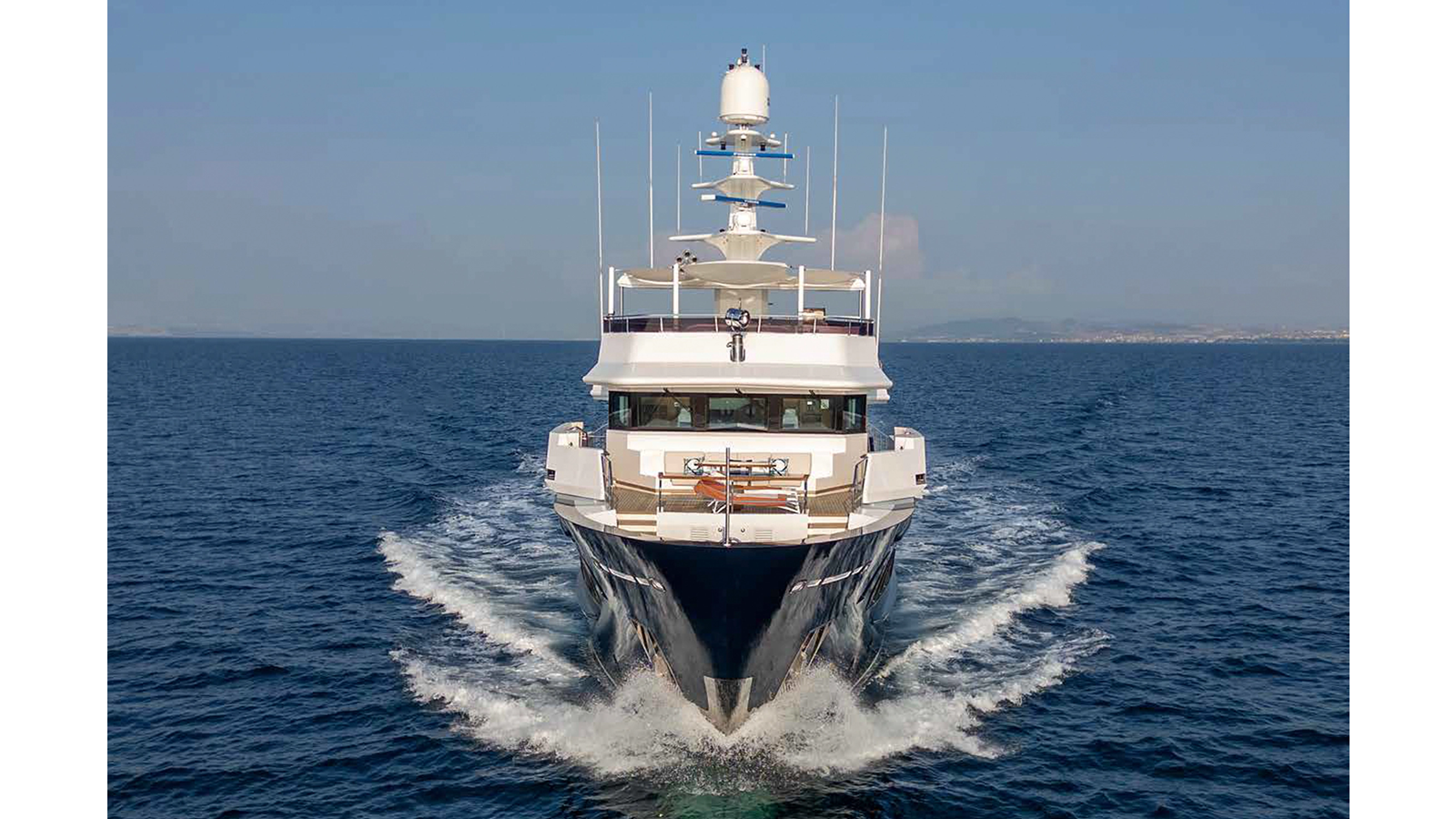

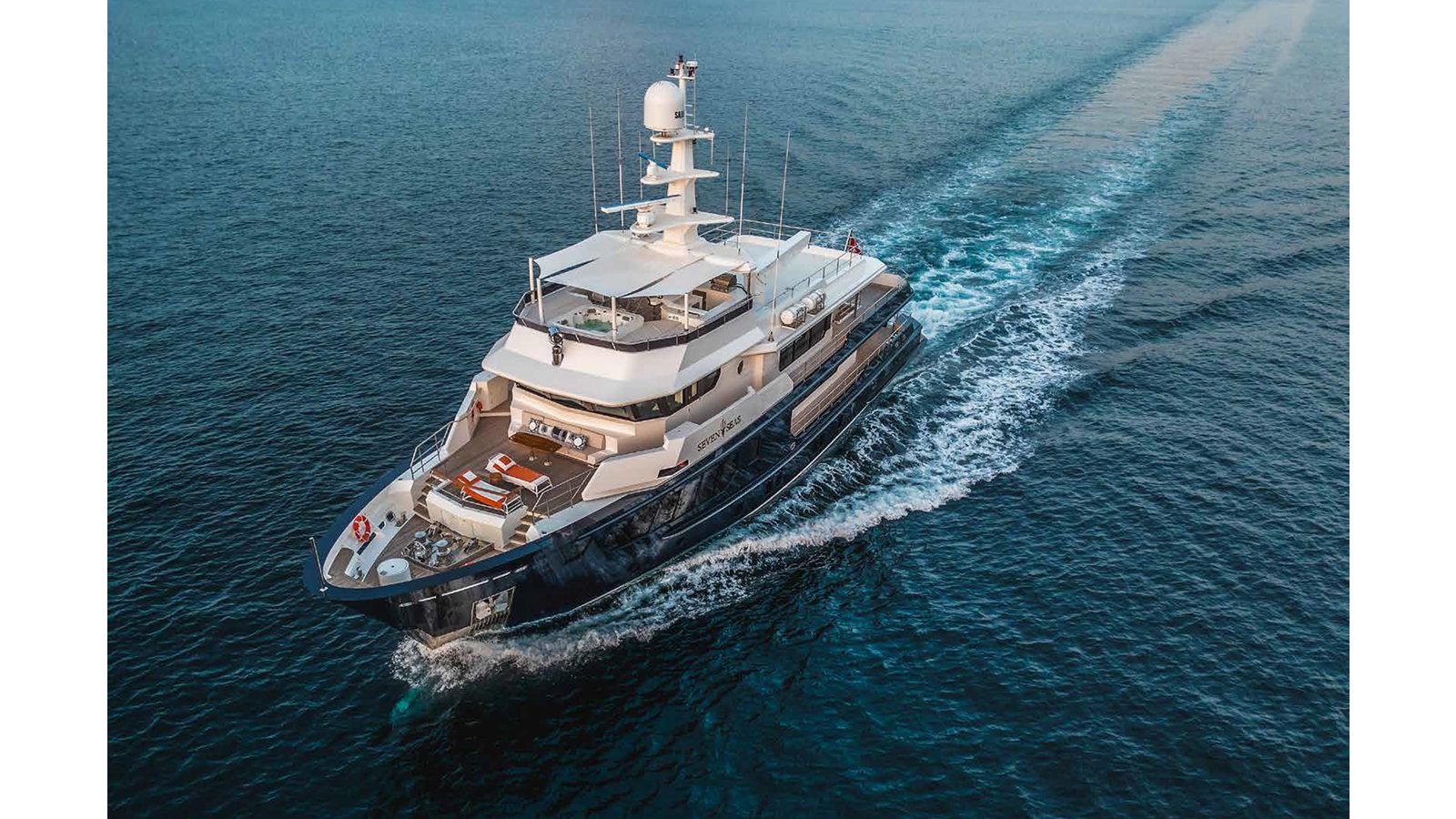

SEVEN SEAS is a custom global explorer designed by well respected Dutch design firm Vripack who has a long history developing some of the most sought after expedition yachts in the world. Vripack has taken that experience & knowledge and teamed up with RMK Shipyard in Turkey to build SEVEN SEAS, the 2024 RMK 120.

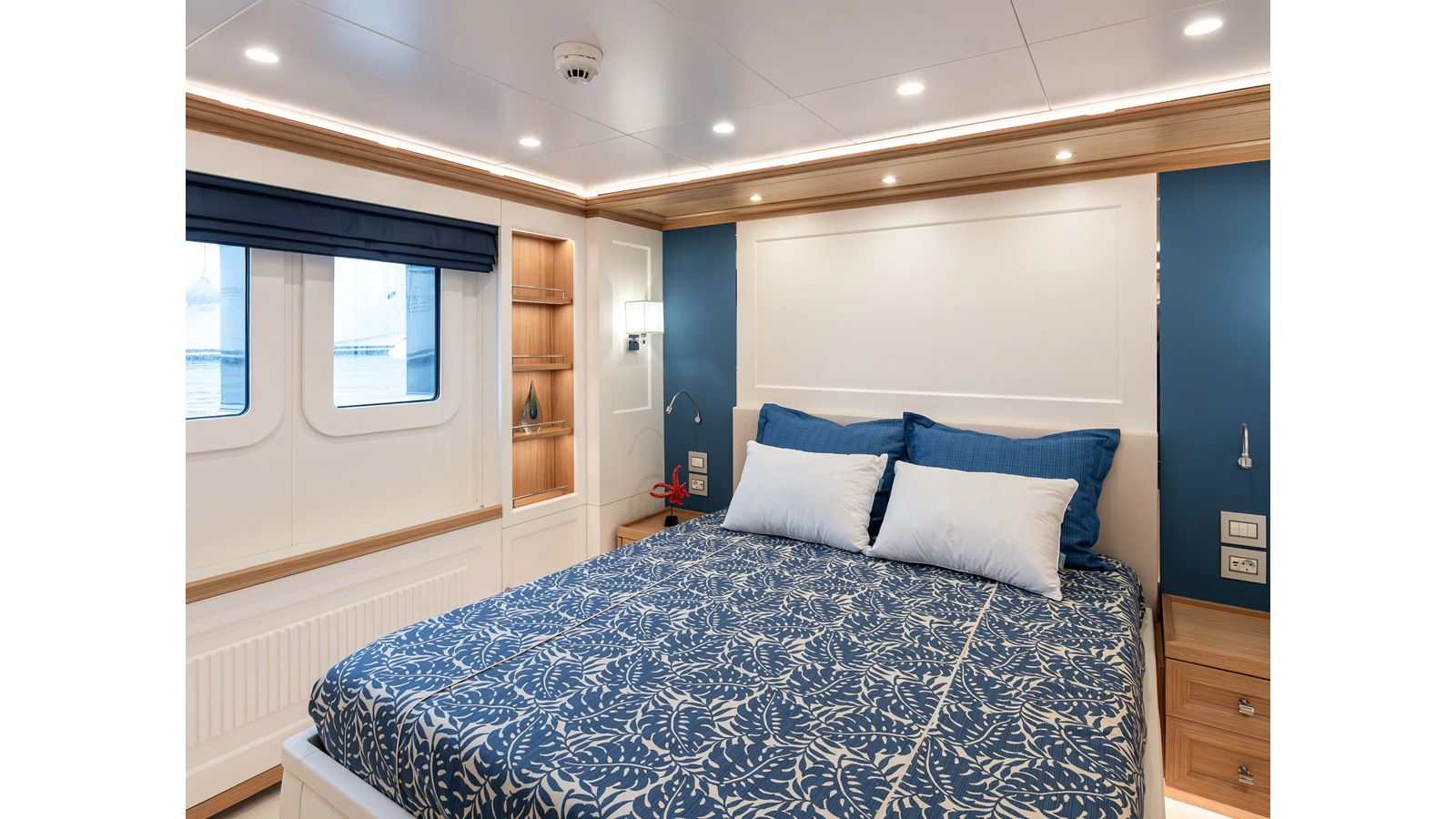

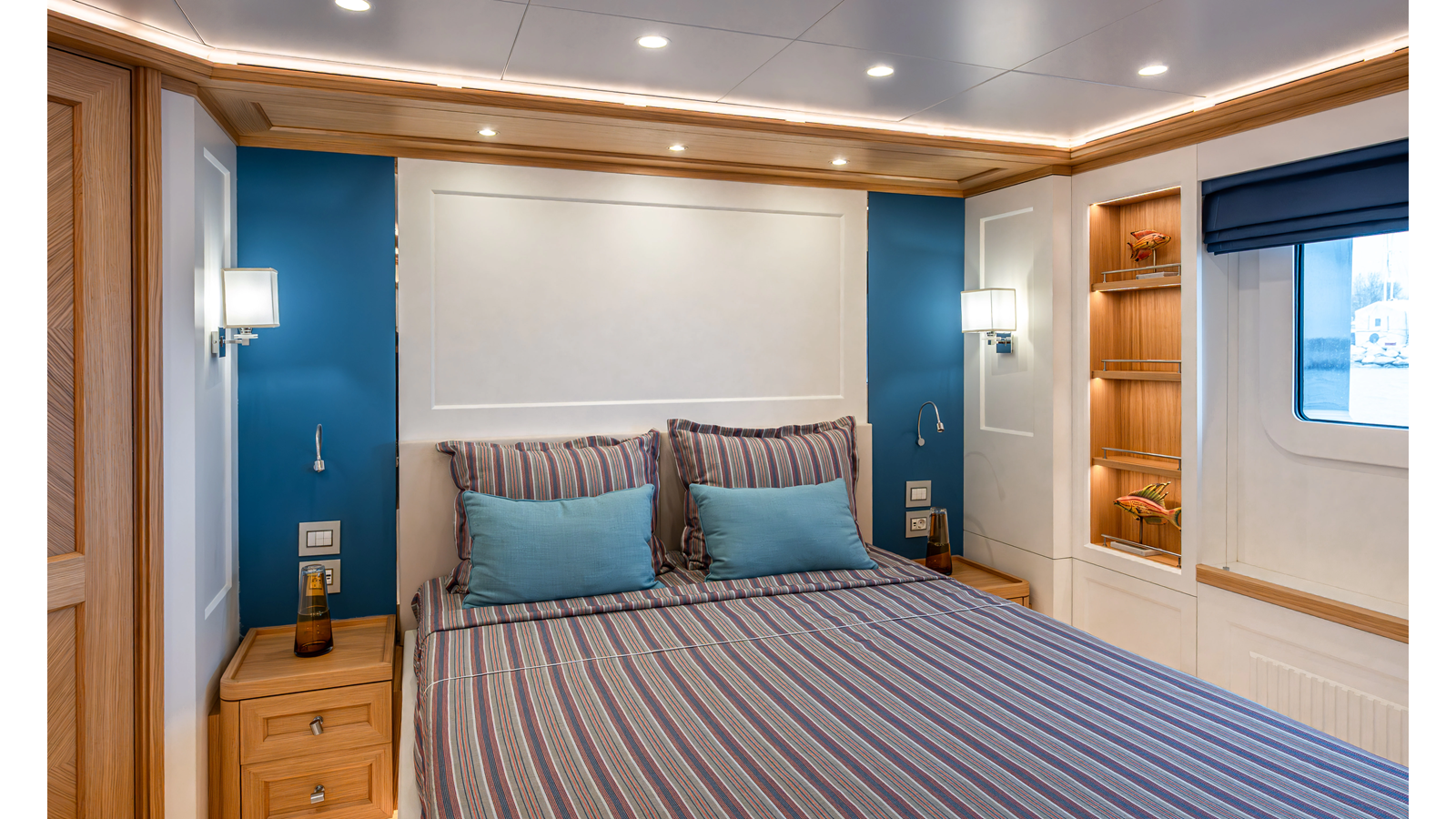

SEVEN SEAS has a timeless interior decor by Epikworks Interior Design and comfortably sleeps 10 guests in 5 cabins including a spacious on-deck master. A 4,000 kg davit located on the upper deck can accommodate a substantial tender. Her Caterpillar C32 give her a range of 3,600nm at cruise speed. She is built to commercial class and built for true blue water cruising.
Full Specifications

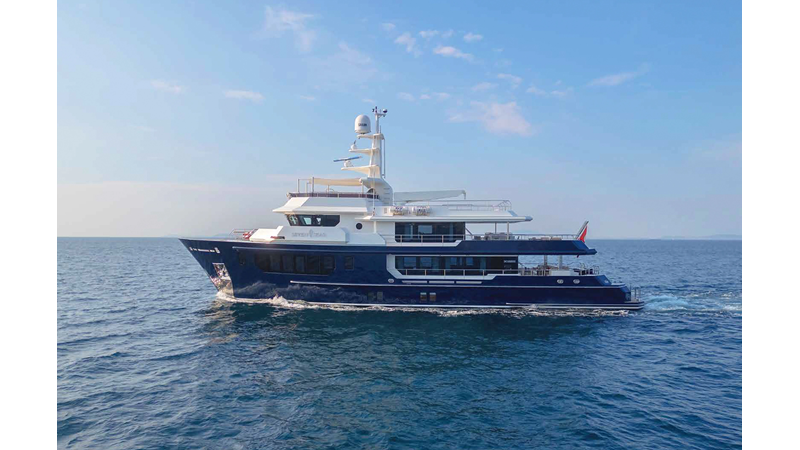

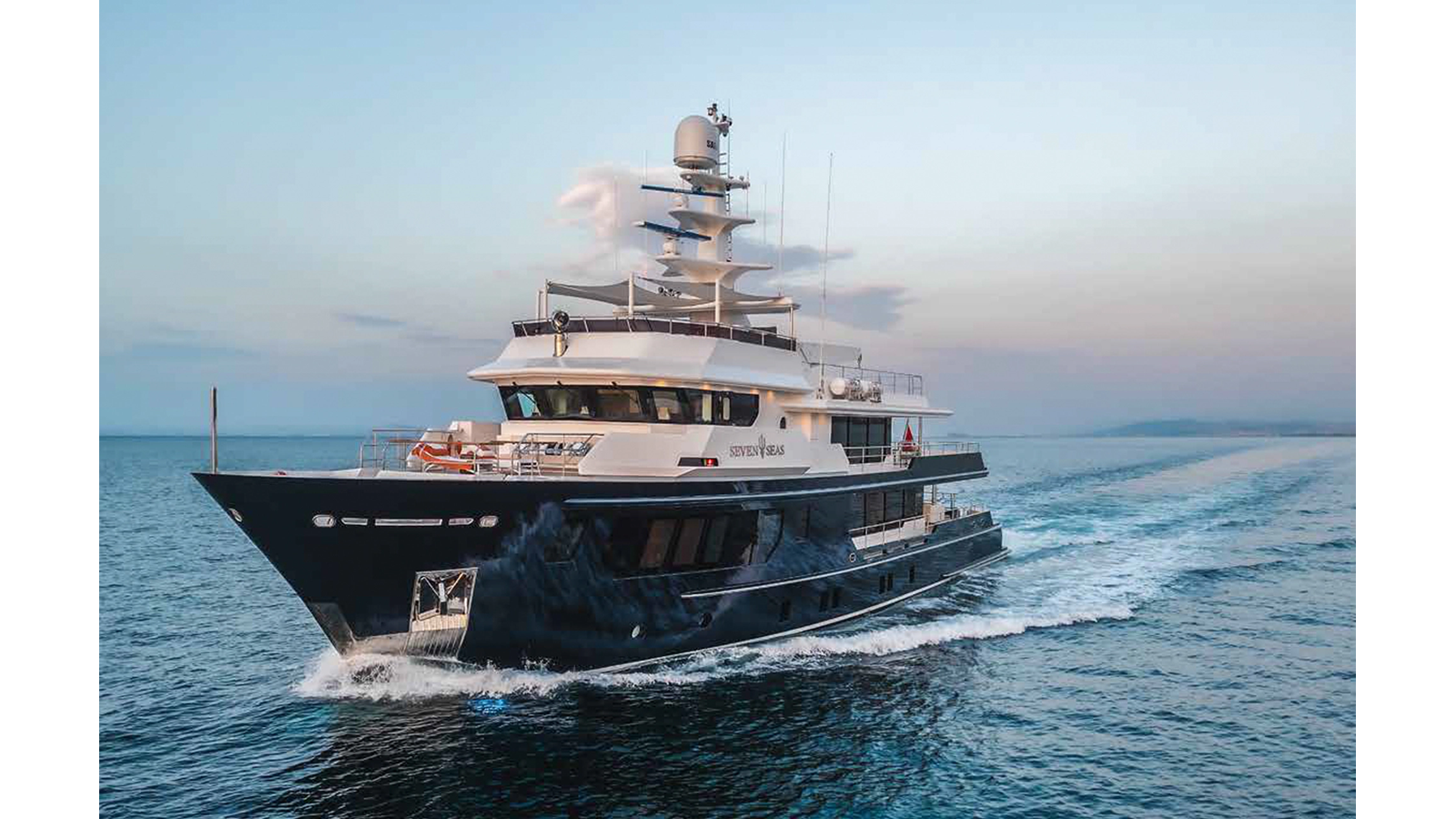

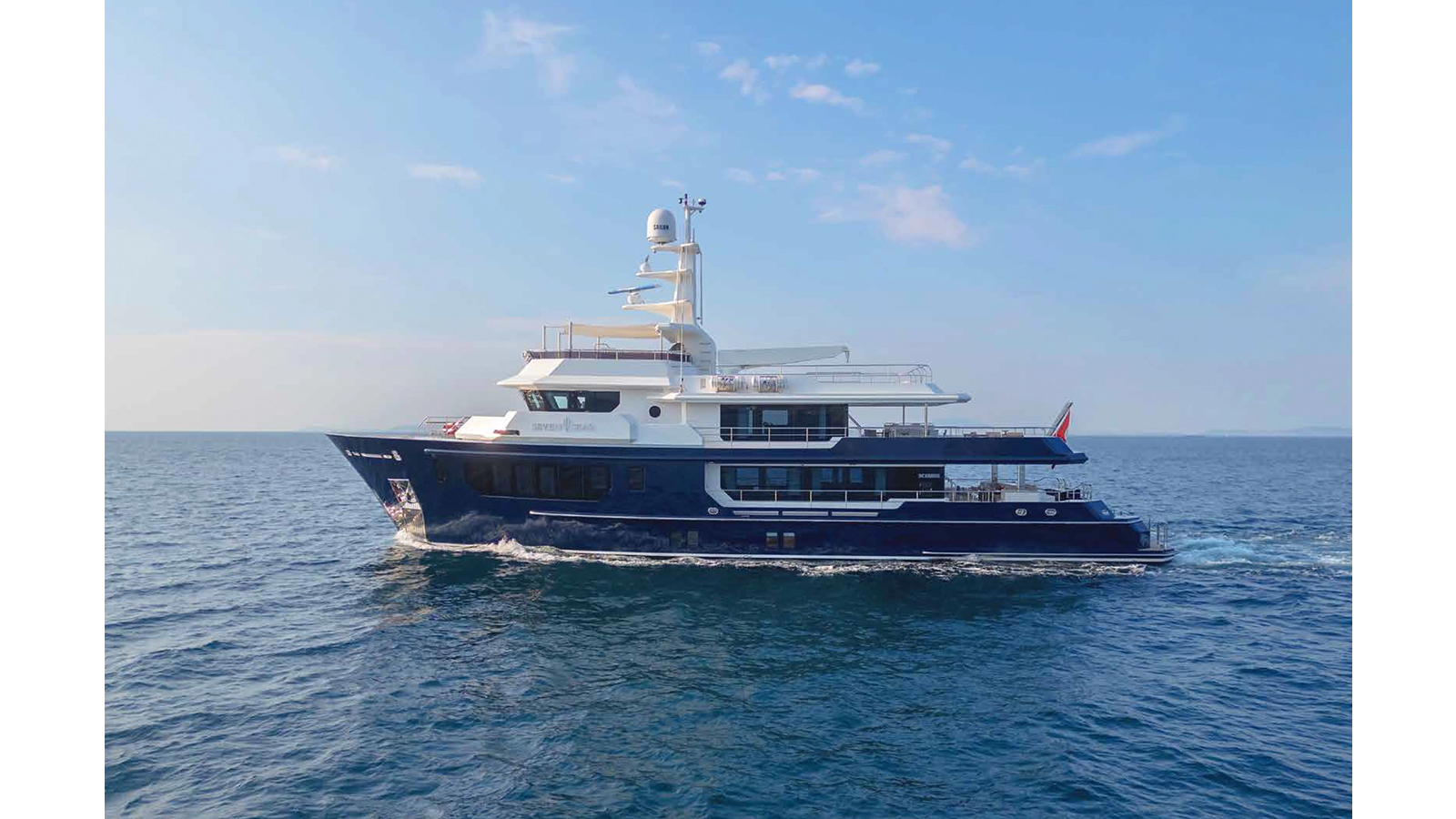

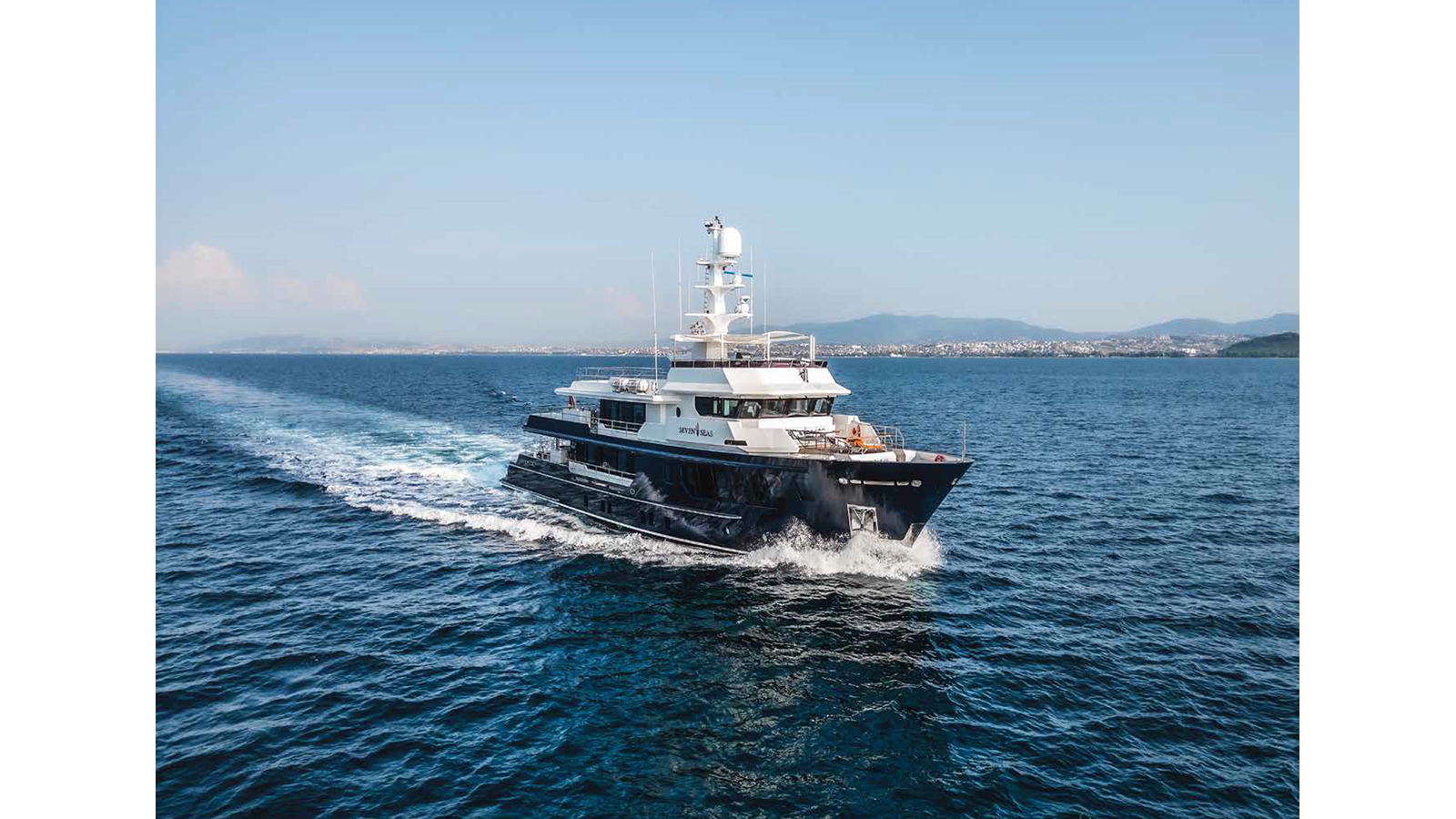

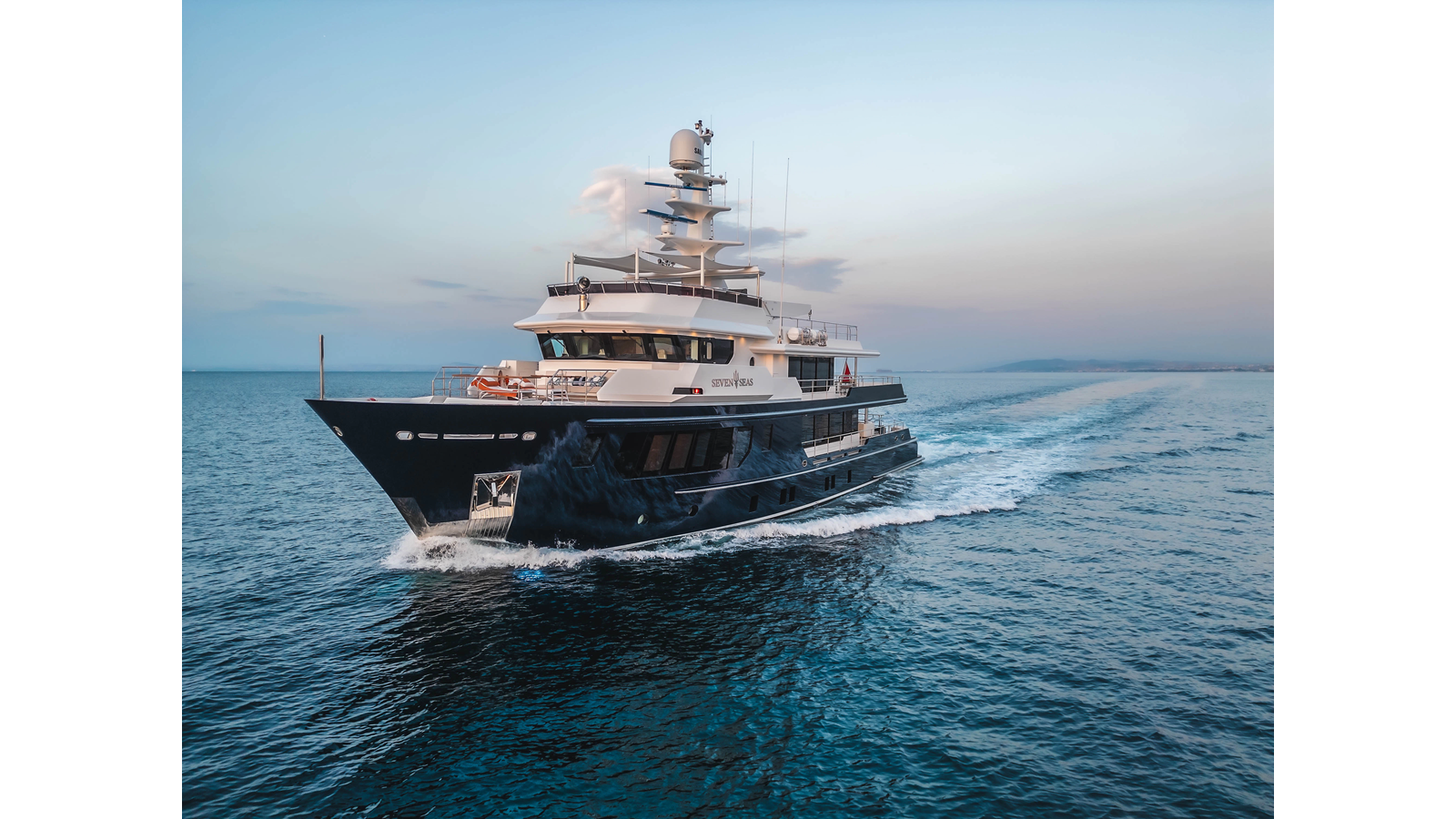

SEVEN SEAS, the 2024 RMK 120 is a timeless expedition yacht designed by Vripack Yacht Design based in Holland and built by Turkish Shipyard RMK. SEVEN SEAS is a true global explorer featuring key design features that allow her to transit to remote regions of the world: substantial 37m at 399GRT, full displacement steel hull with aluminum superstructure, powered by Caterpillar C32 engines that give her a 3,600nm range a cruise, a substantial 4,000kg davit allows her to carry a significant tender on deck, Quantum zero speed stabilizers assure complete comfort even in foul weather, and built to commercial class allowing for both private or charter operations.

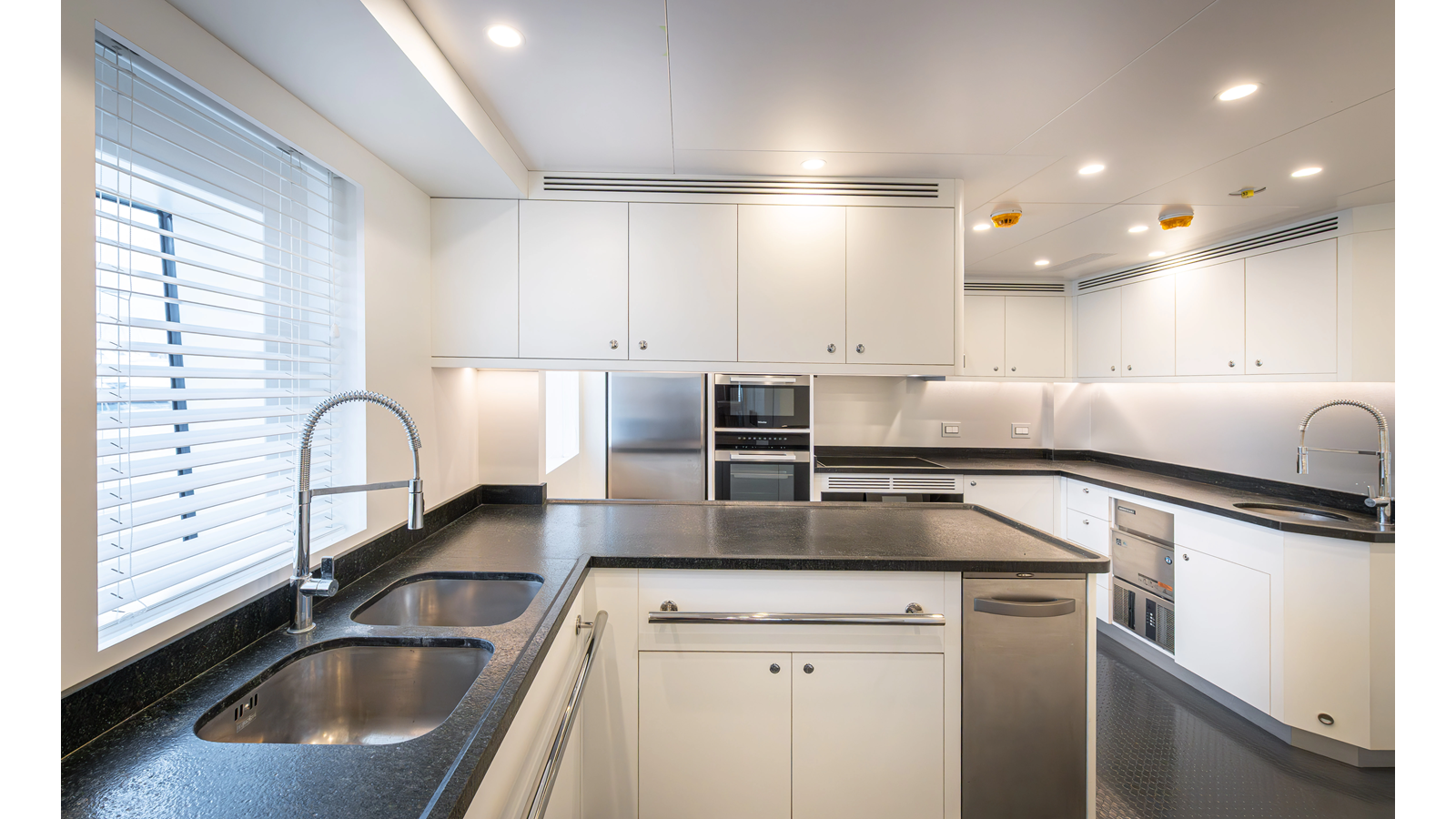

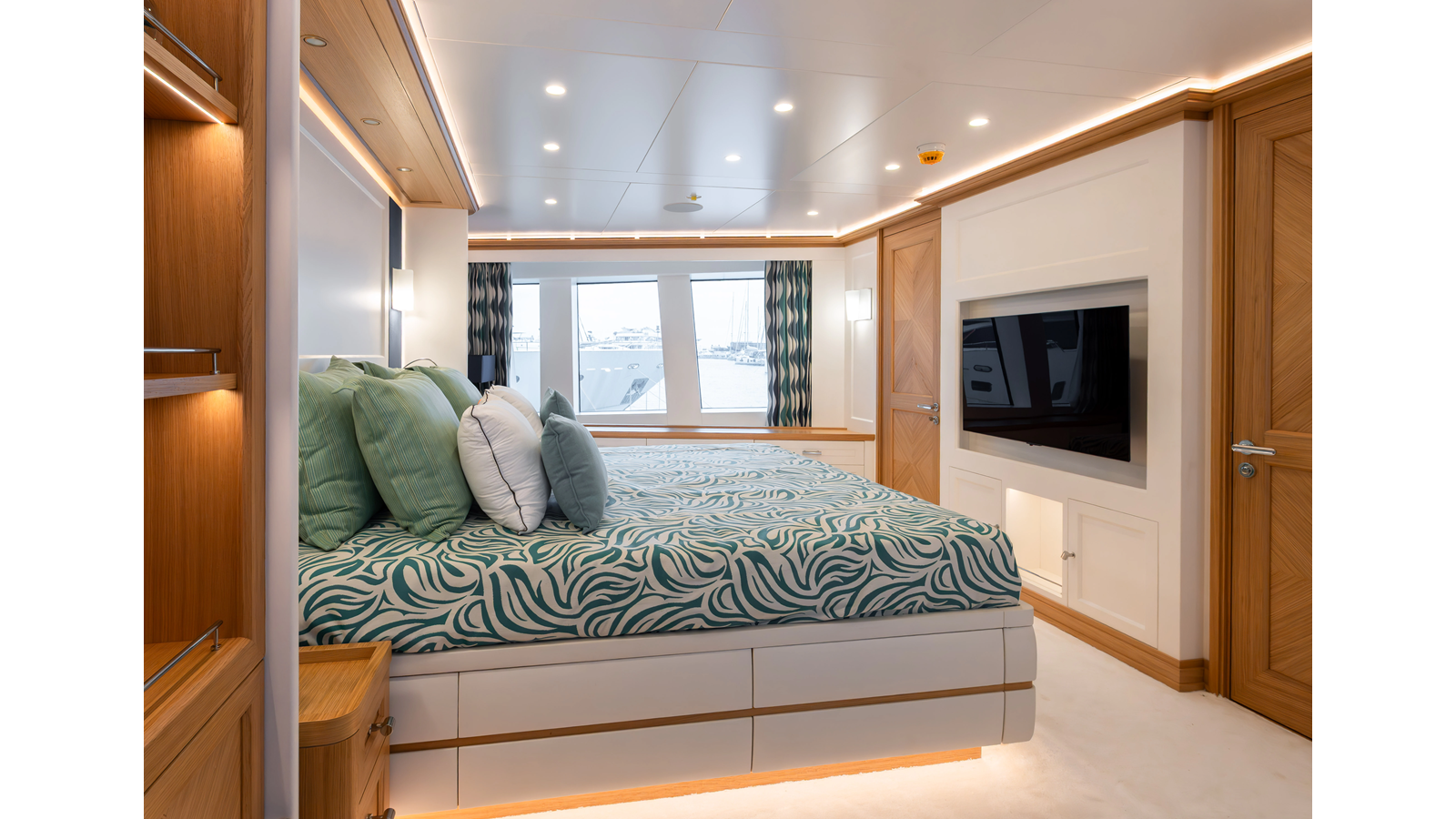

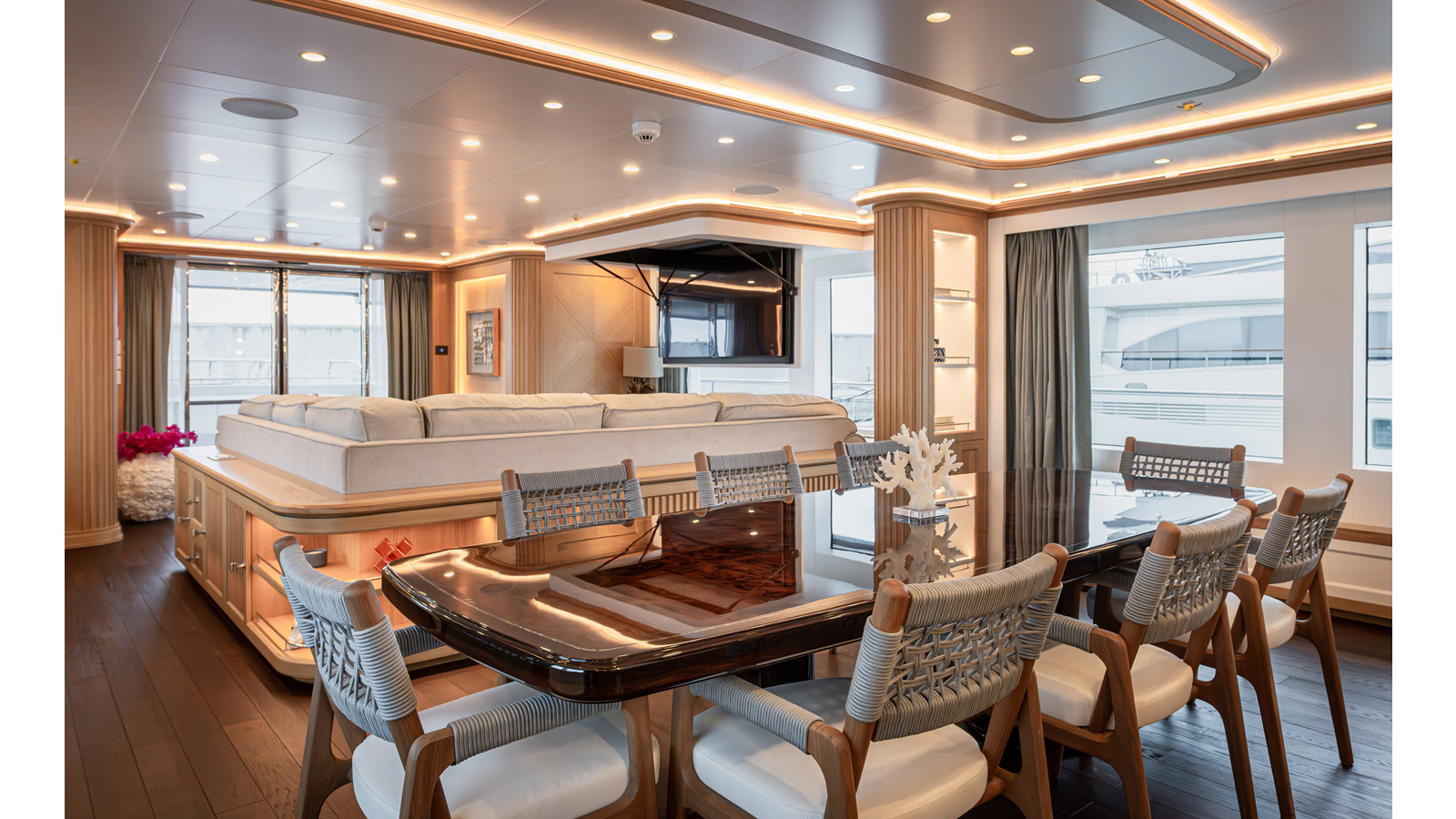

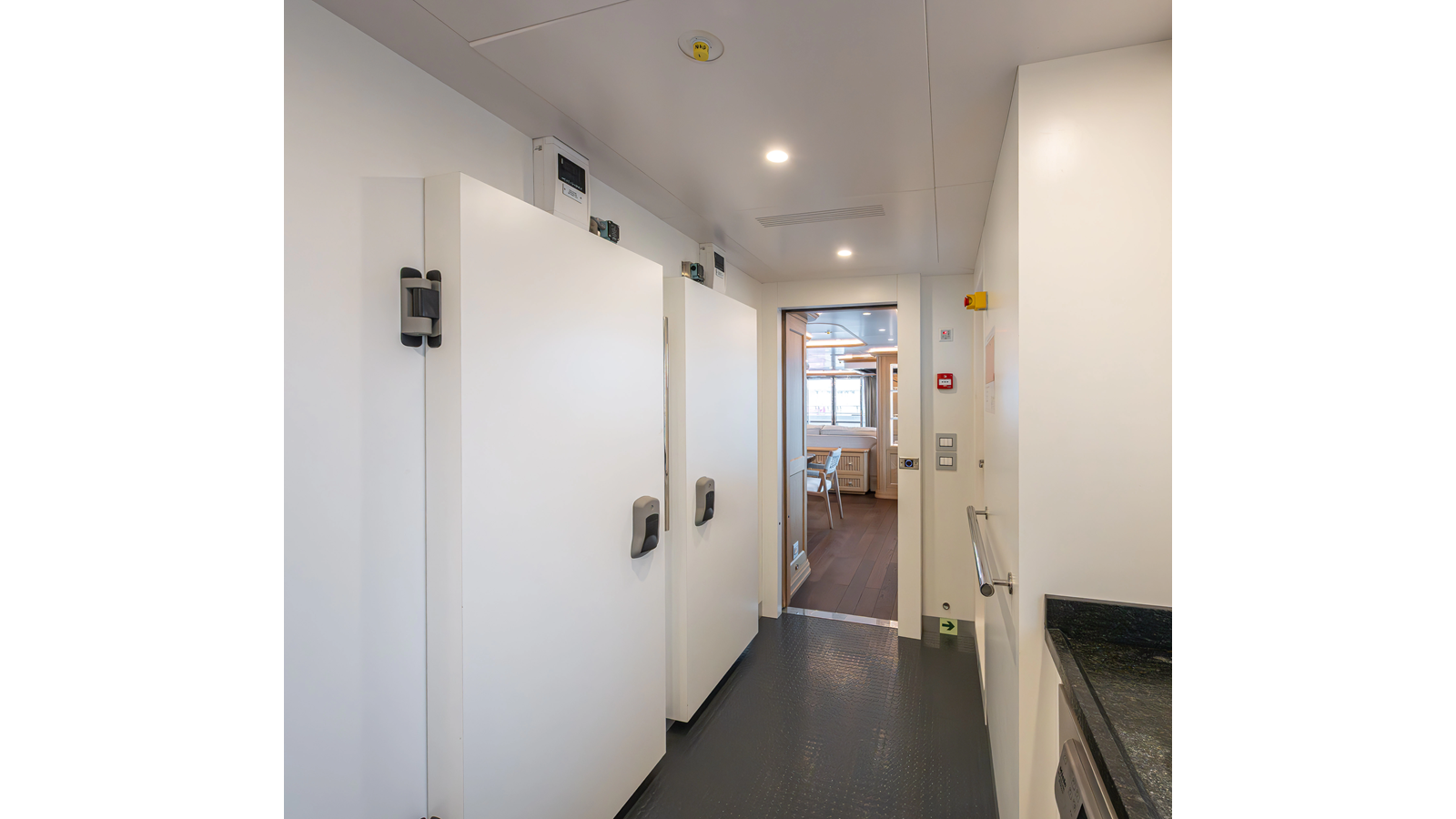

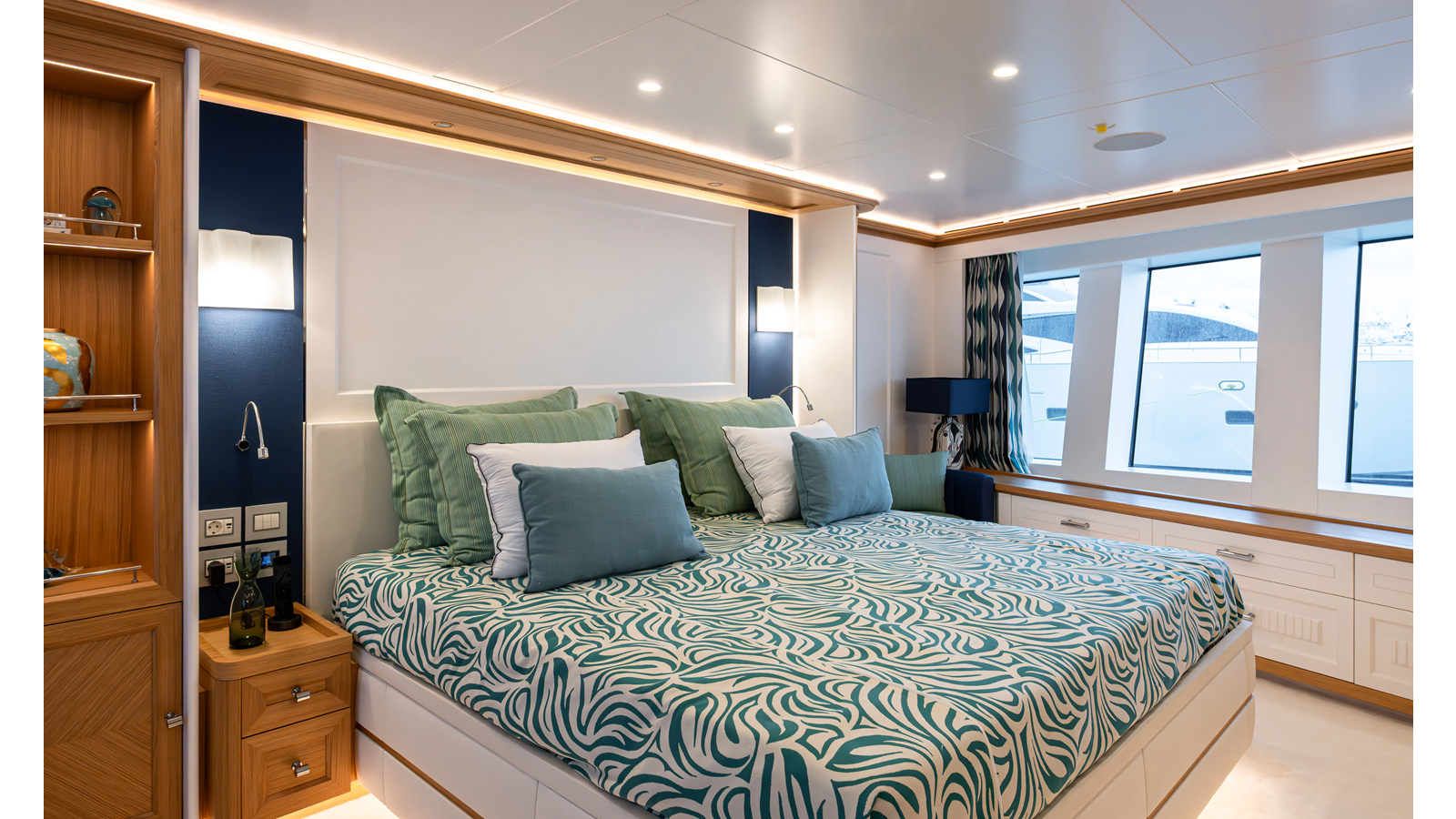

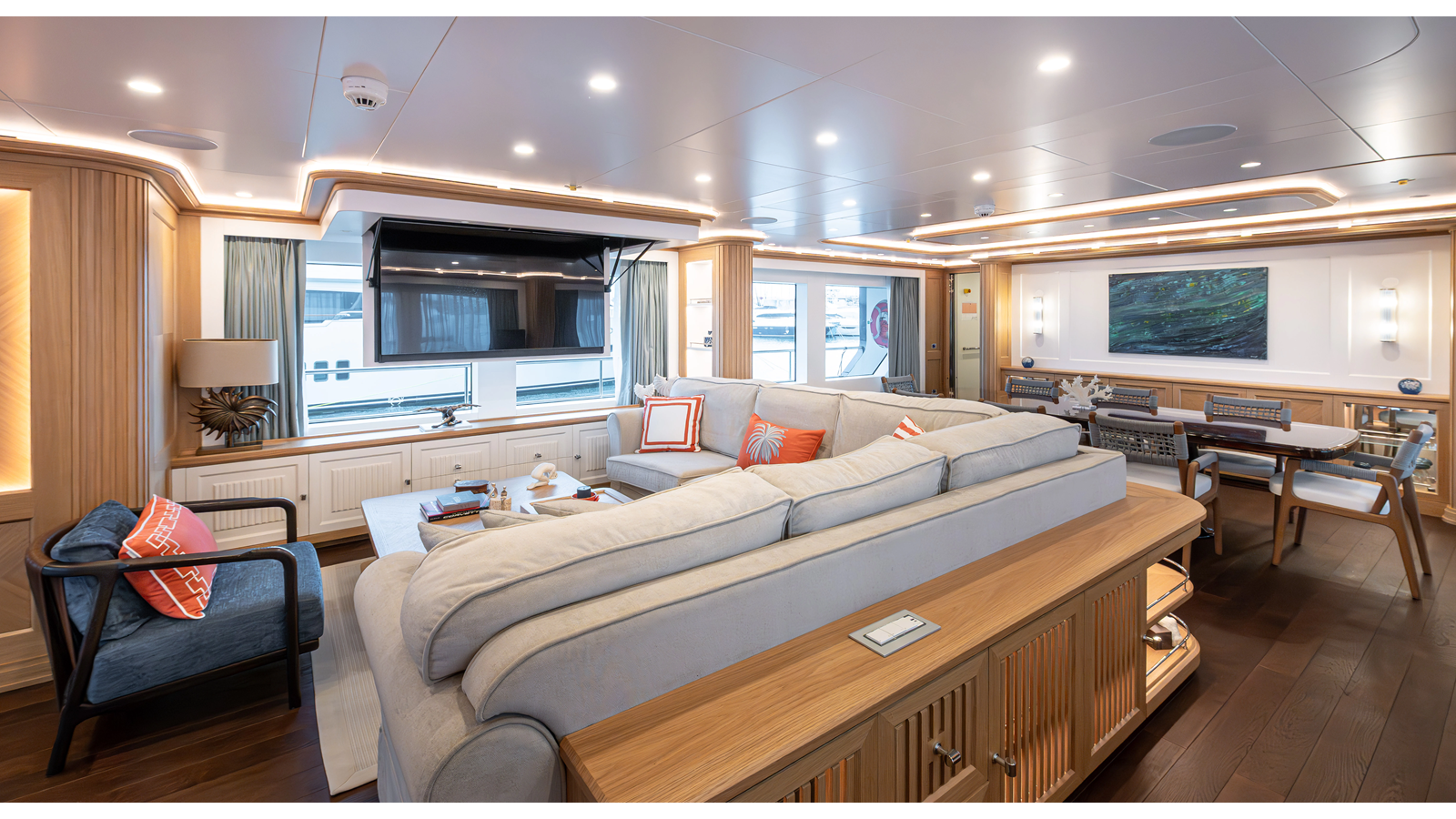

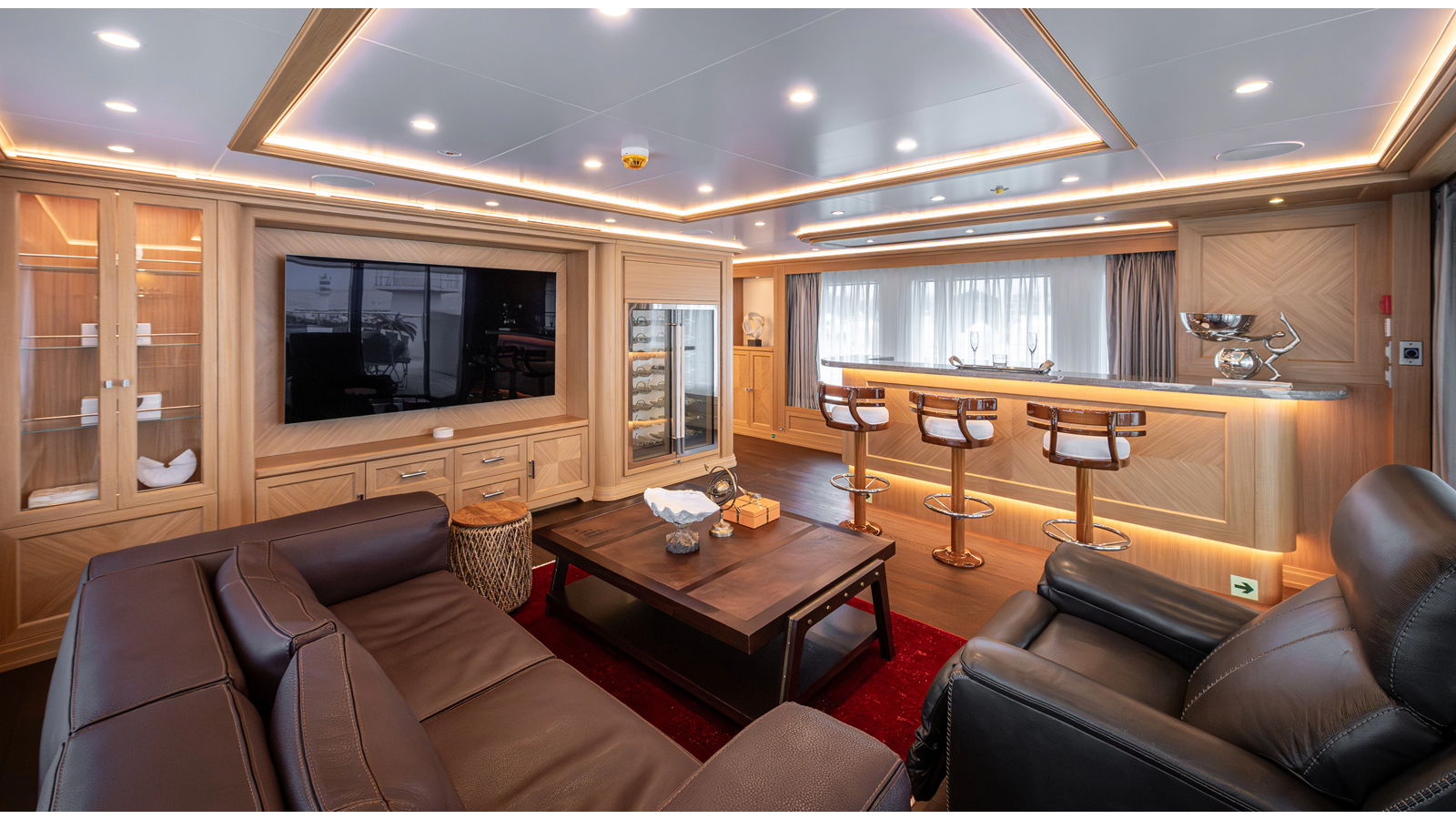

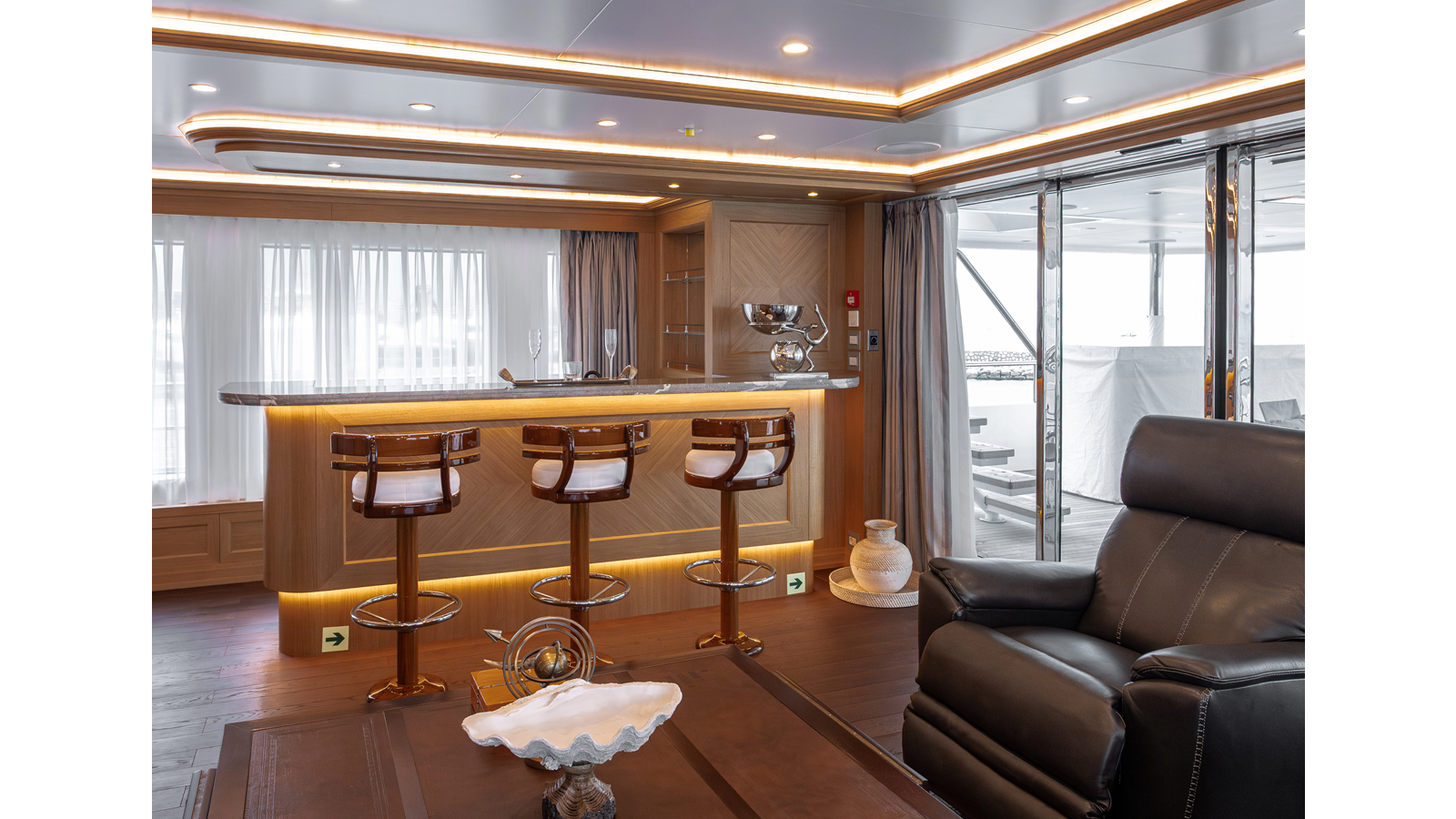

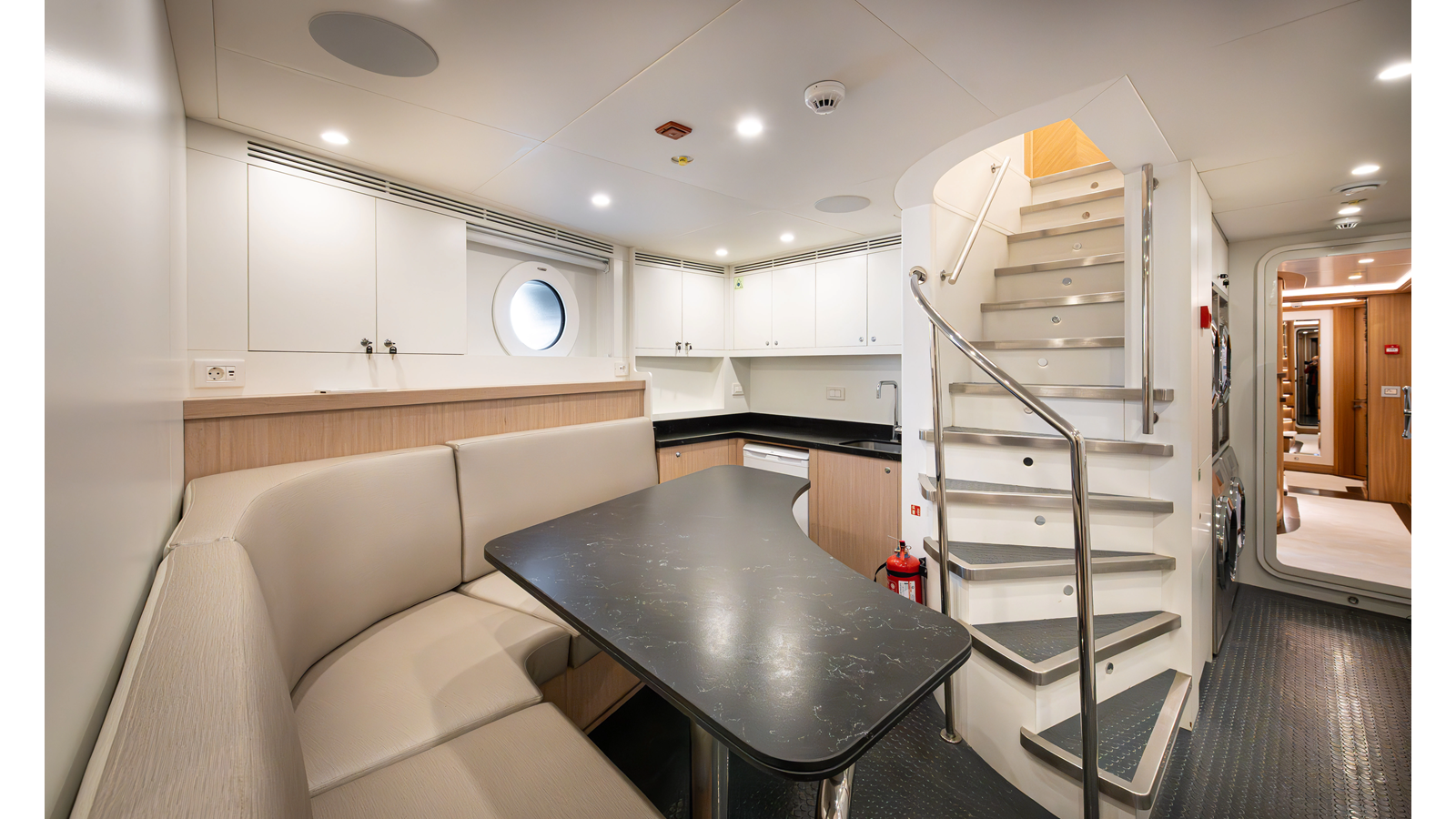

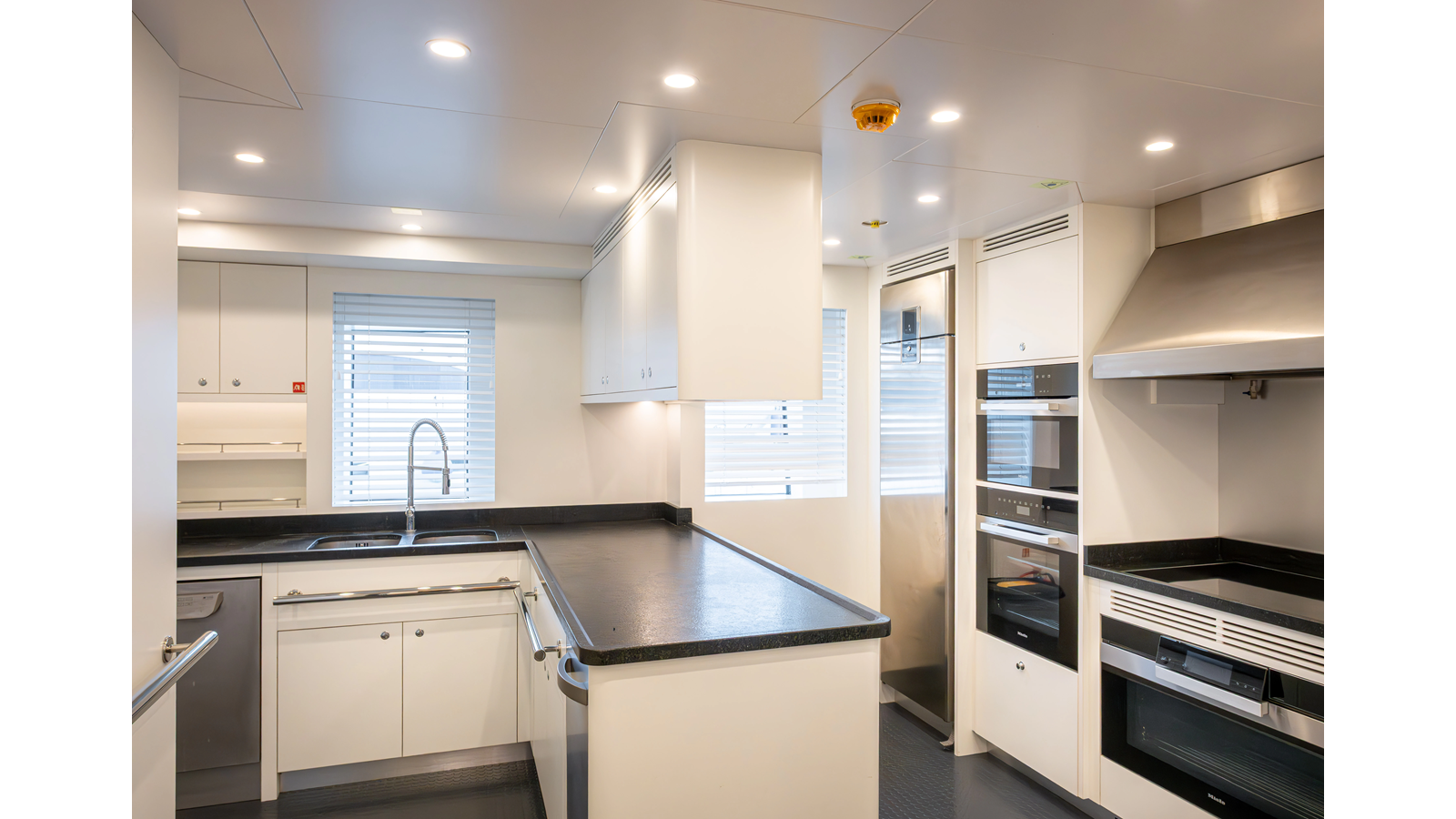

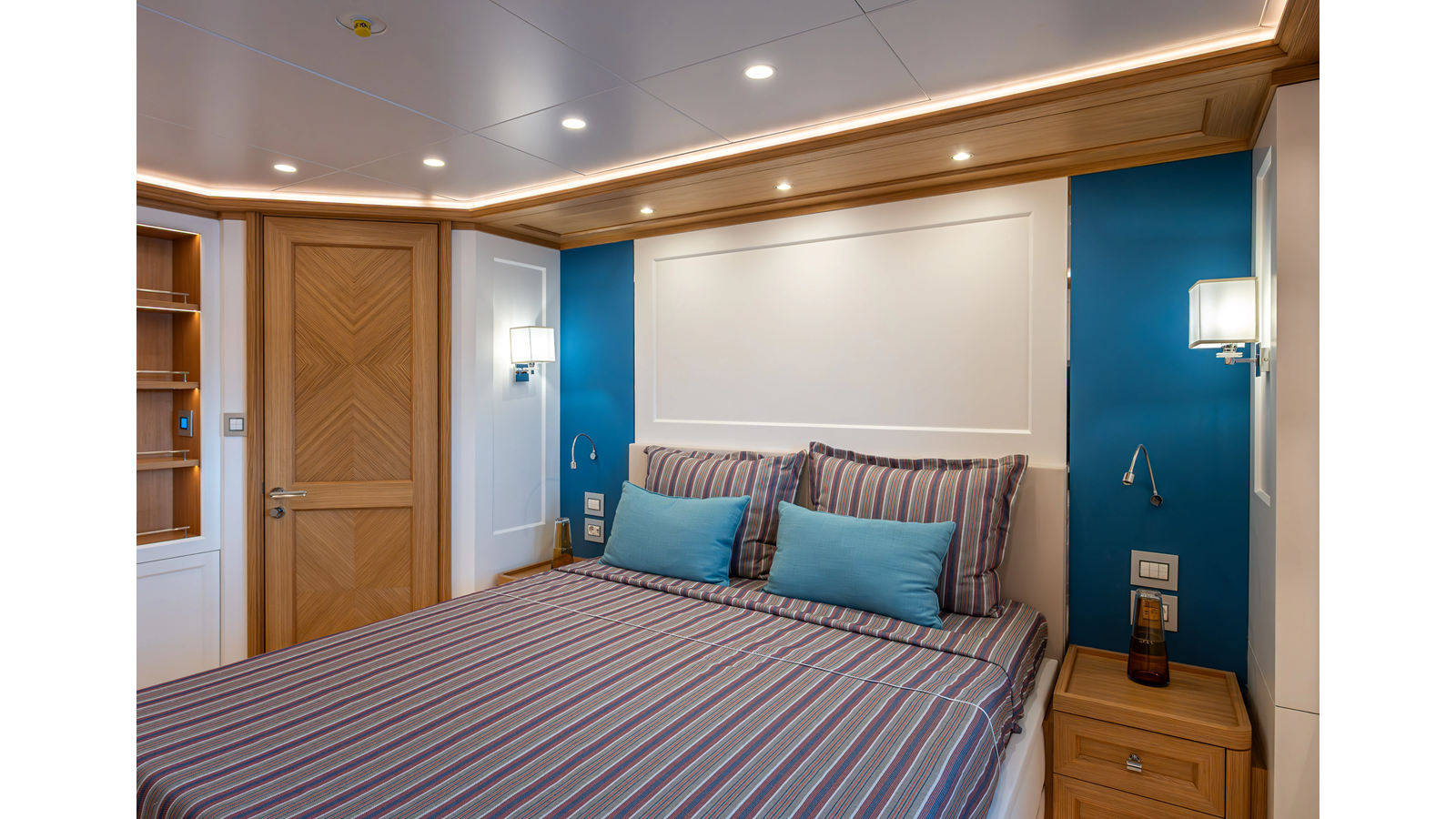

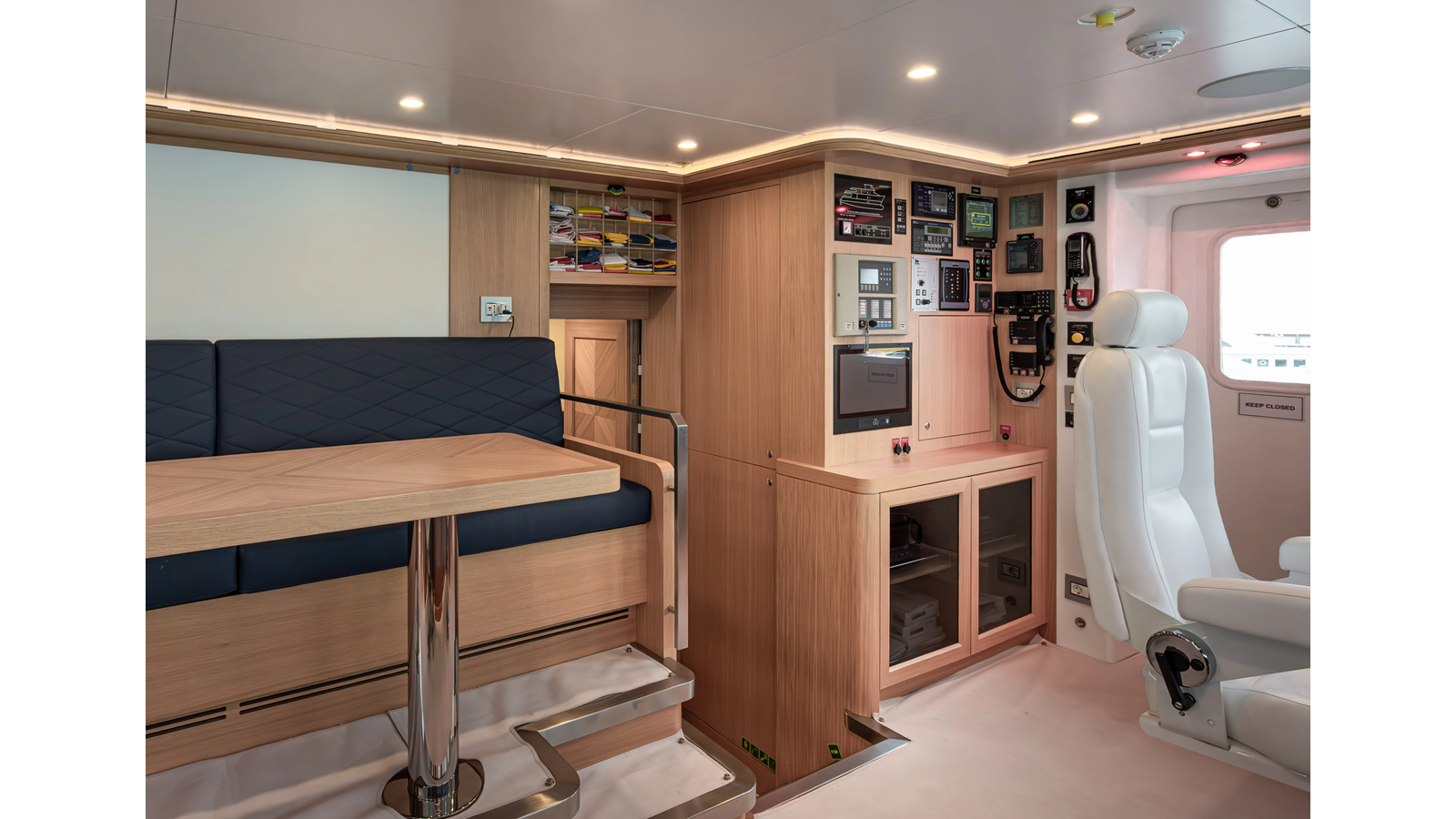

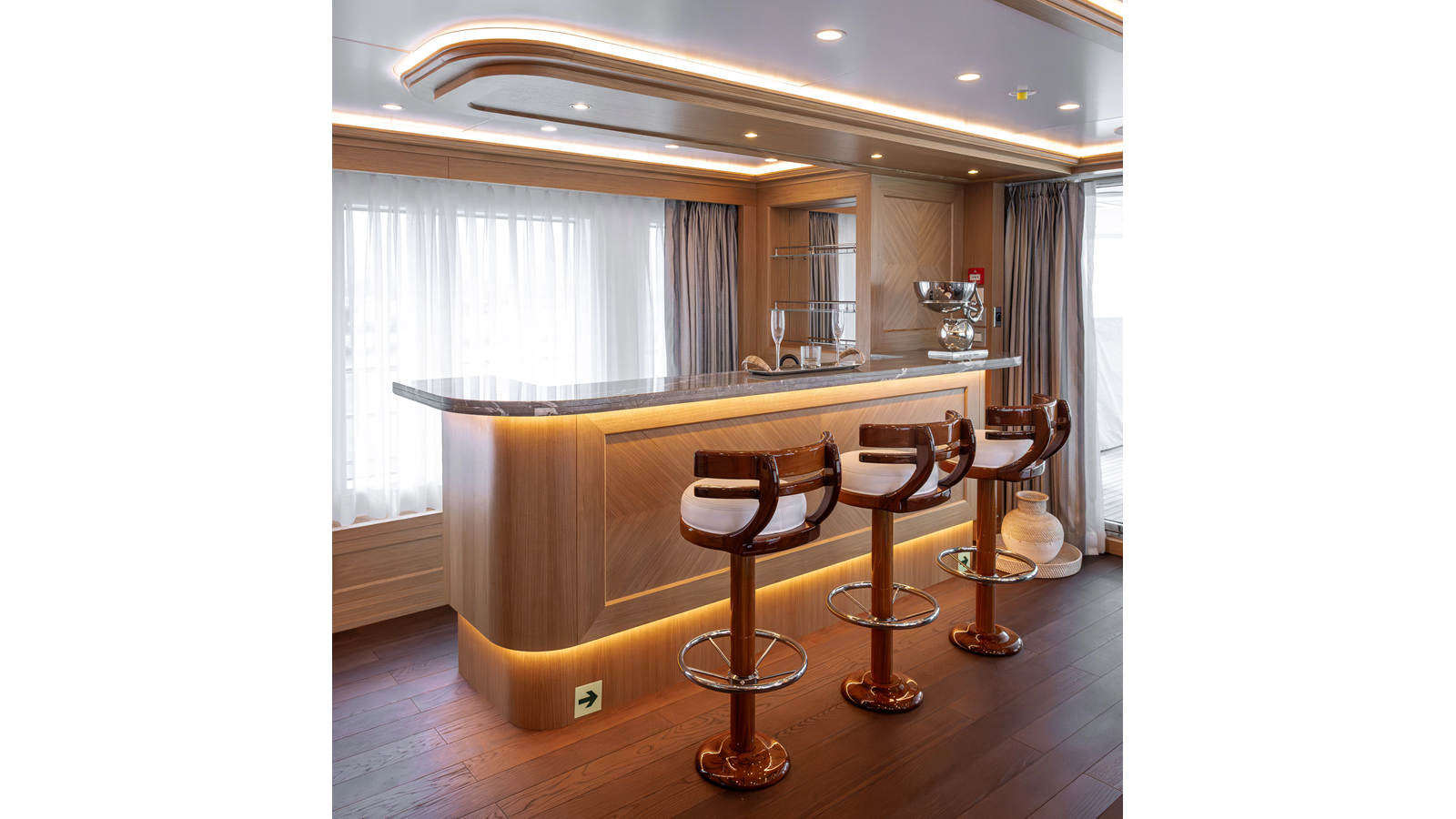

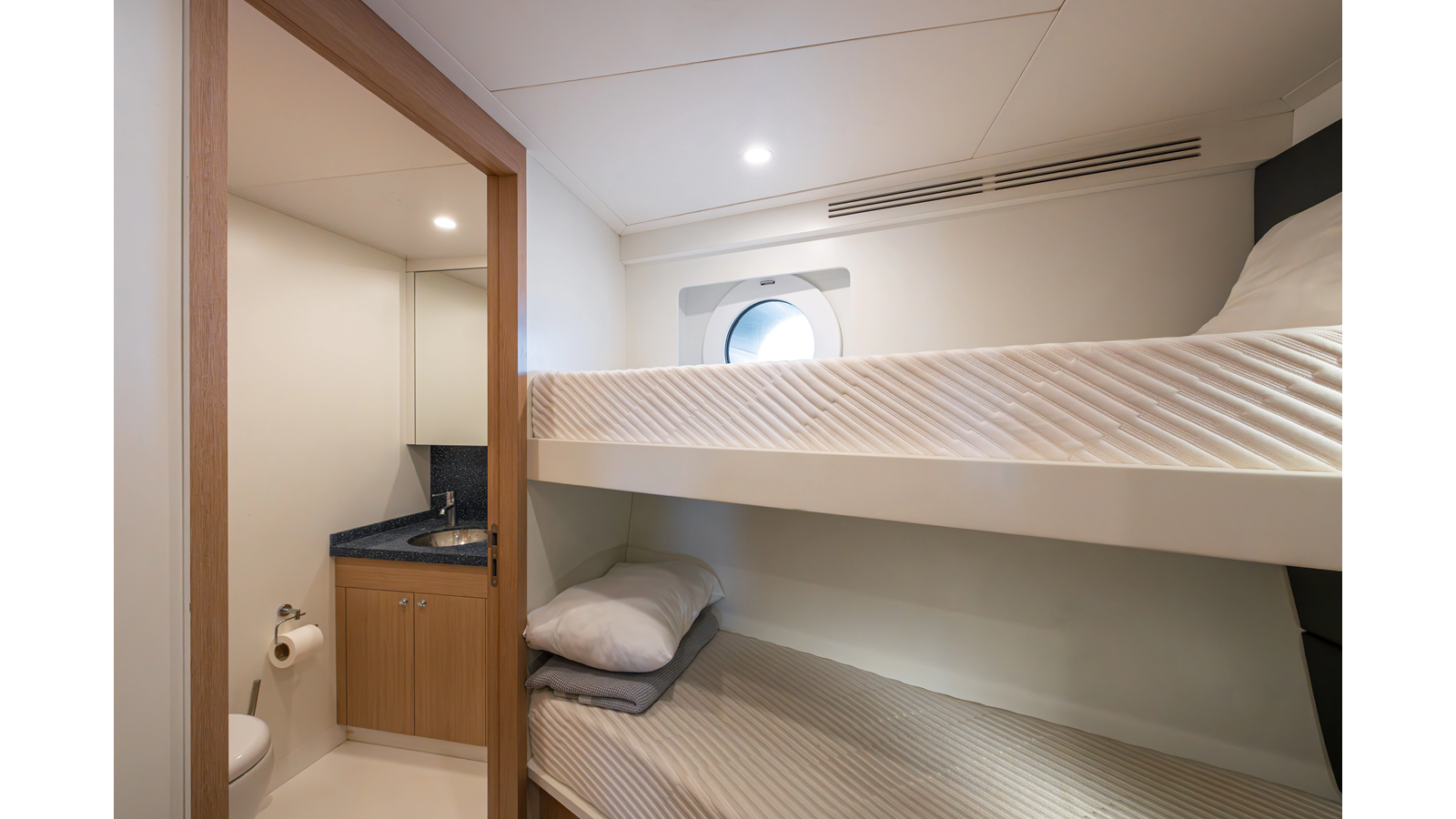

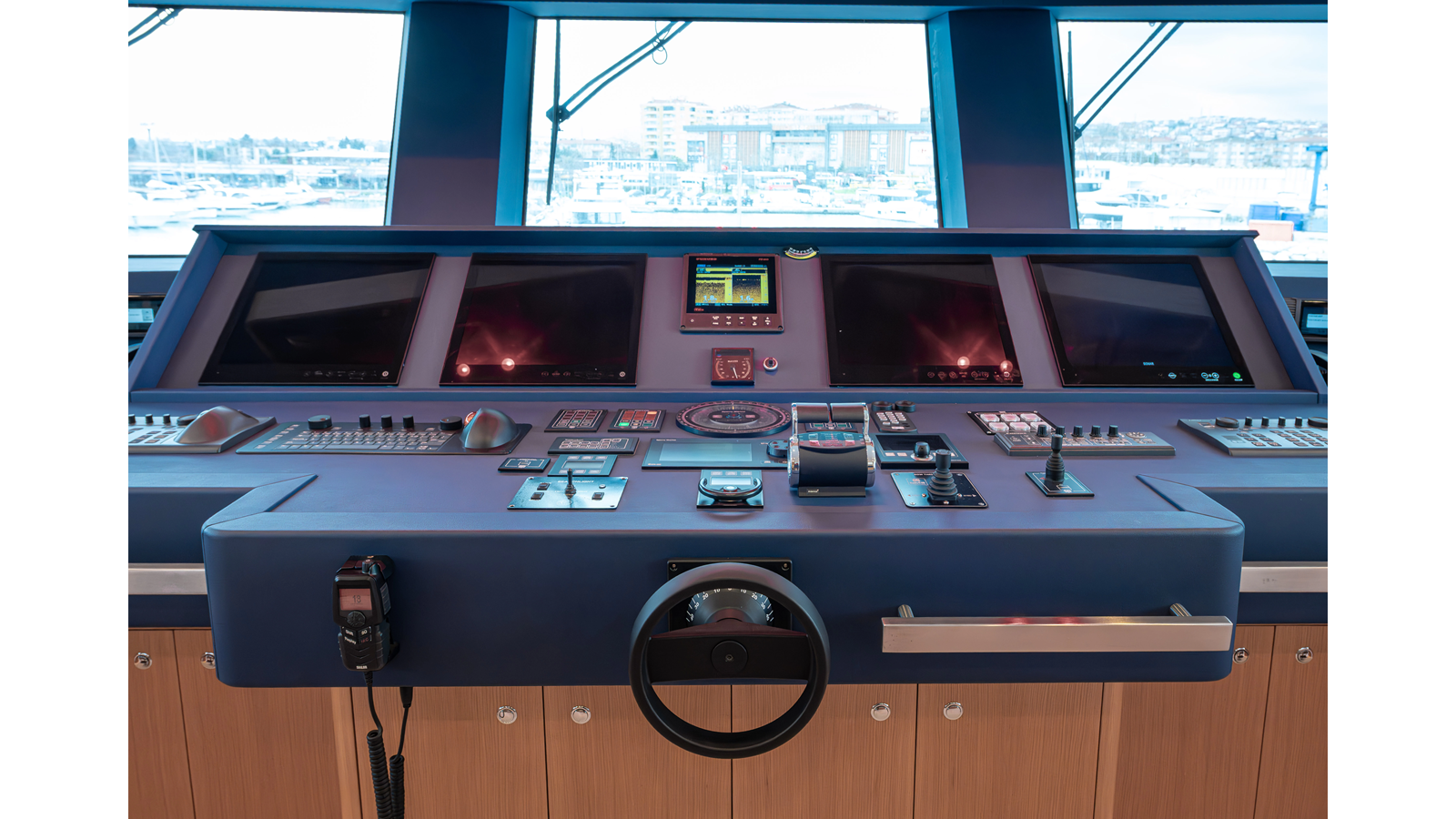

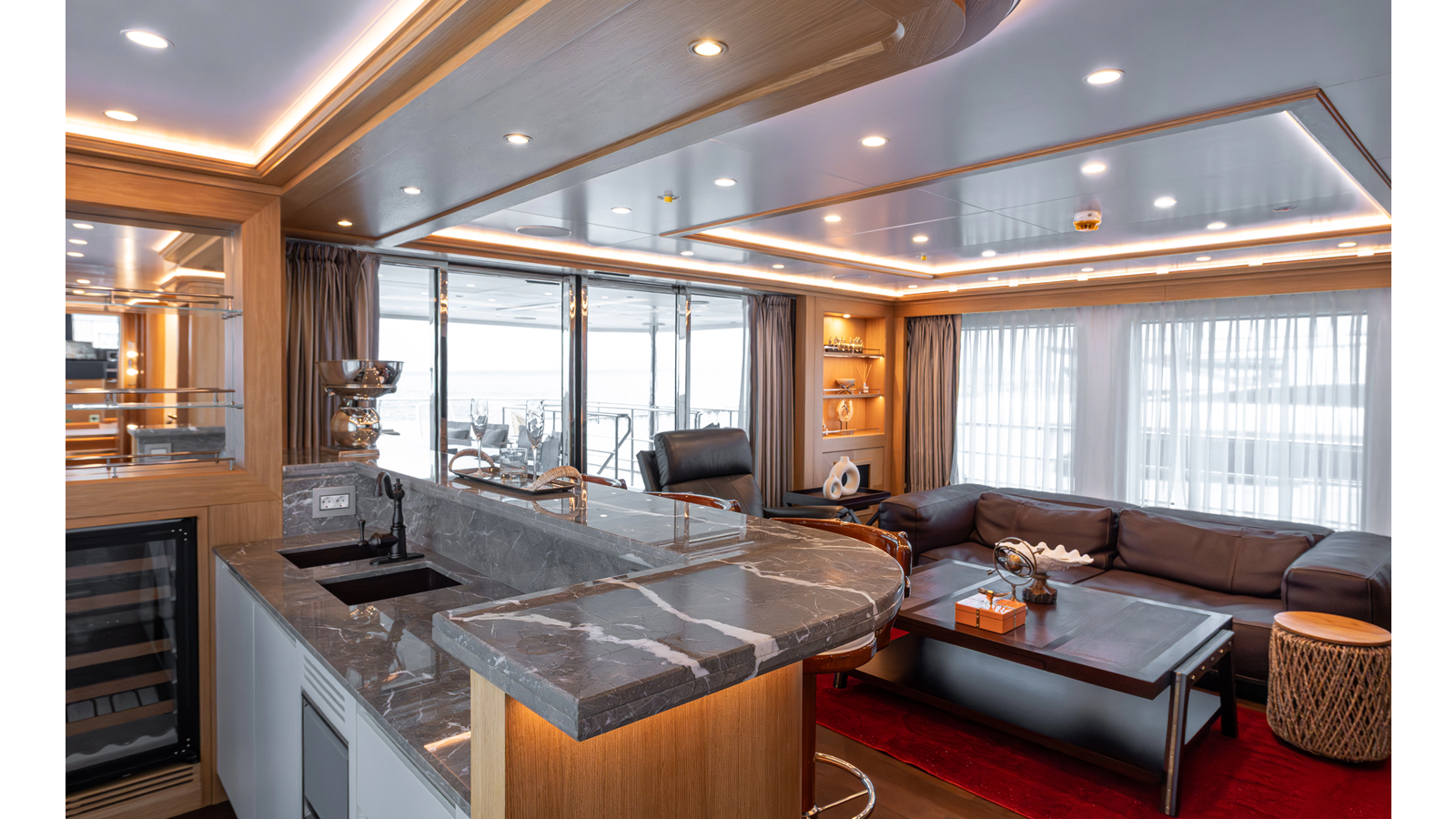

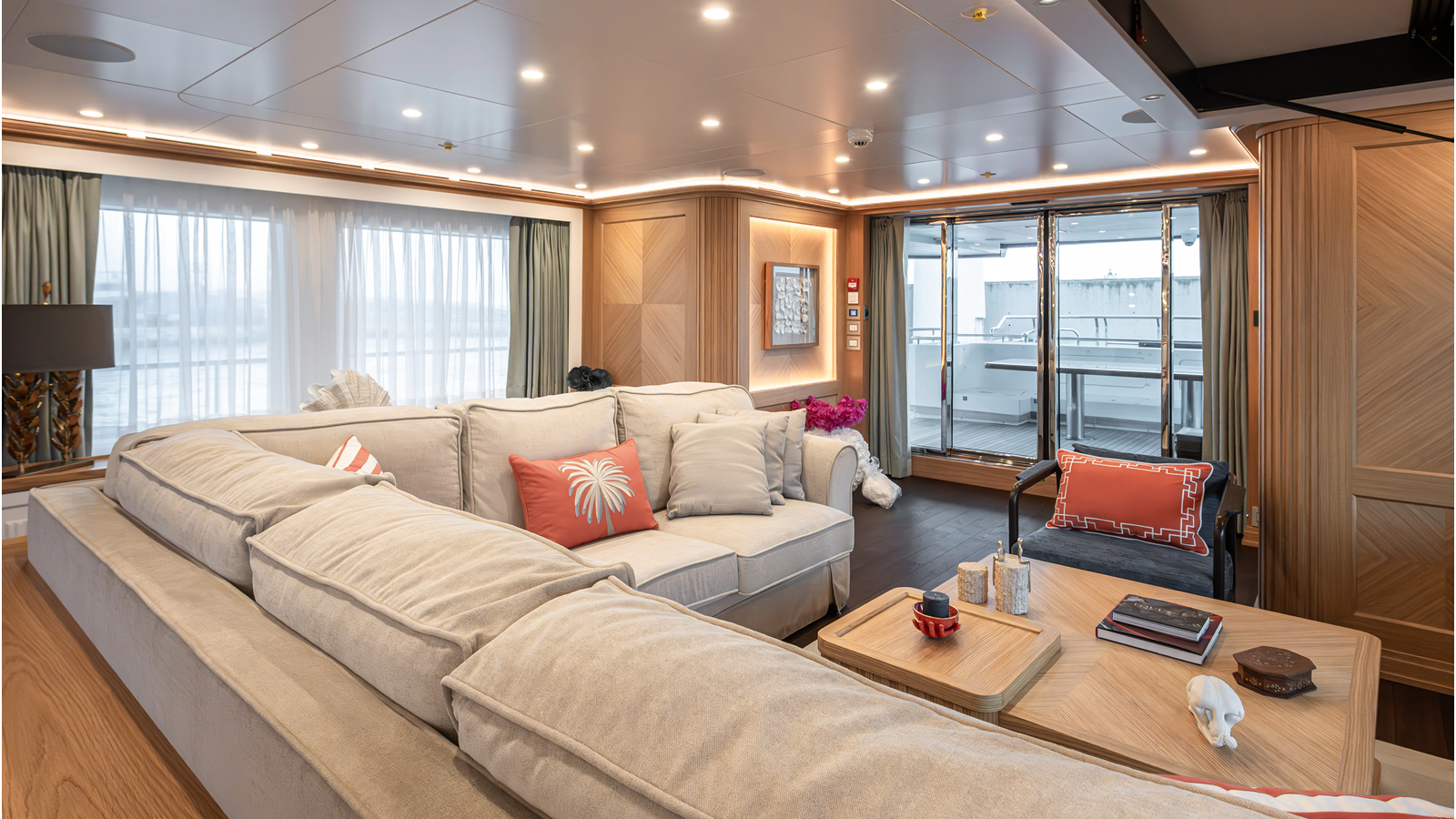

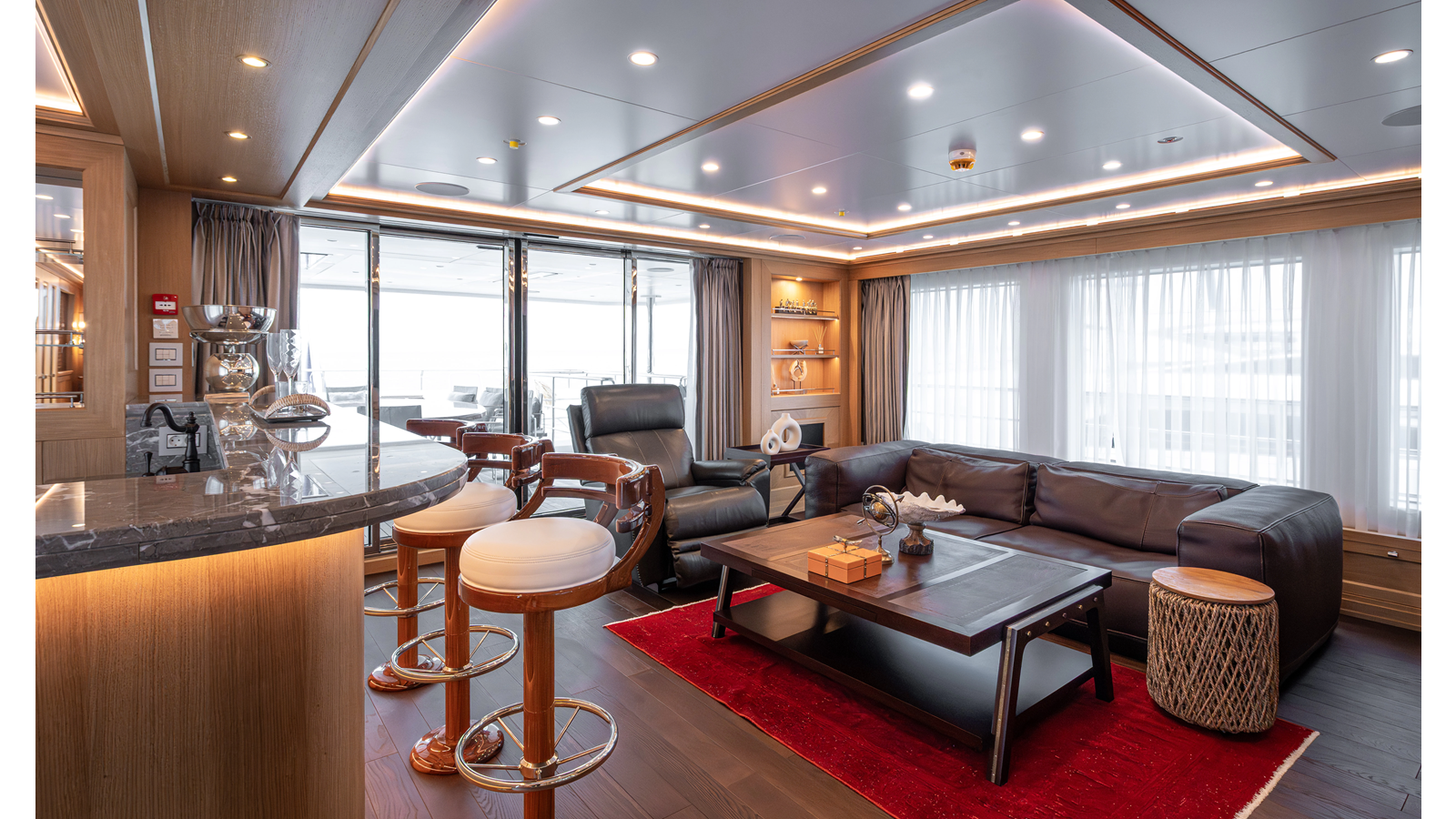

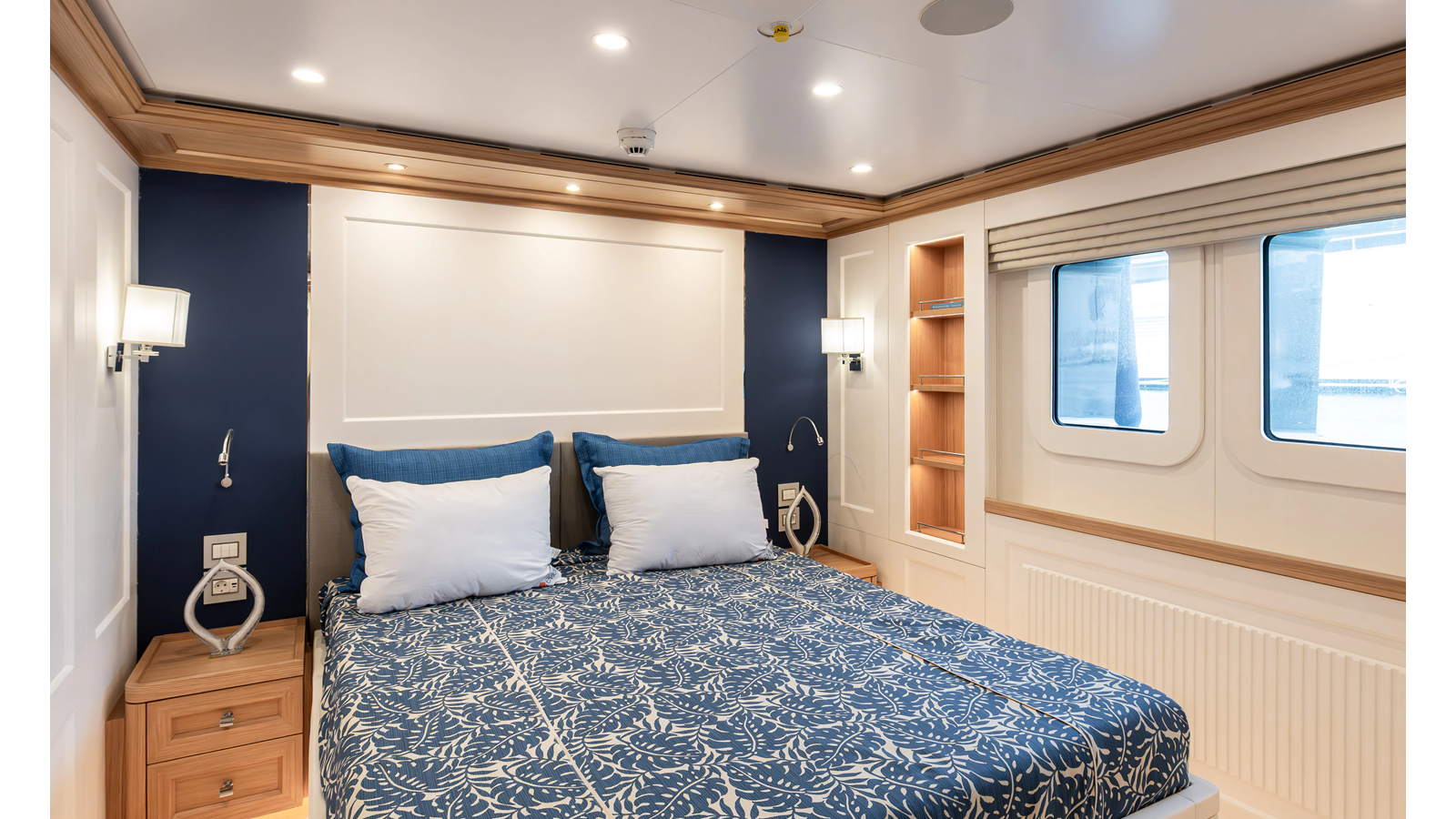

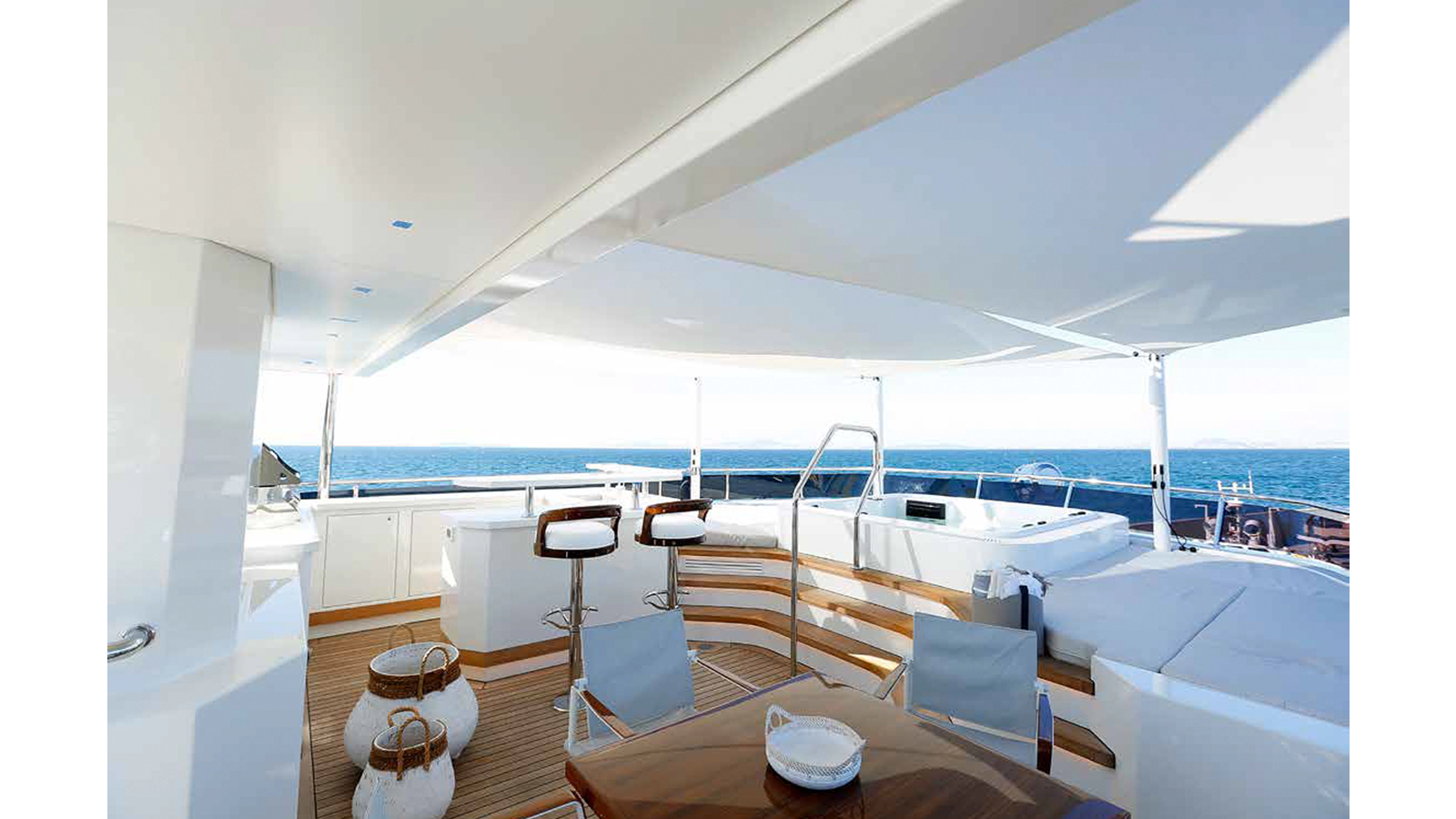

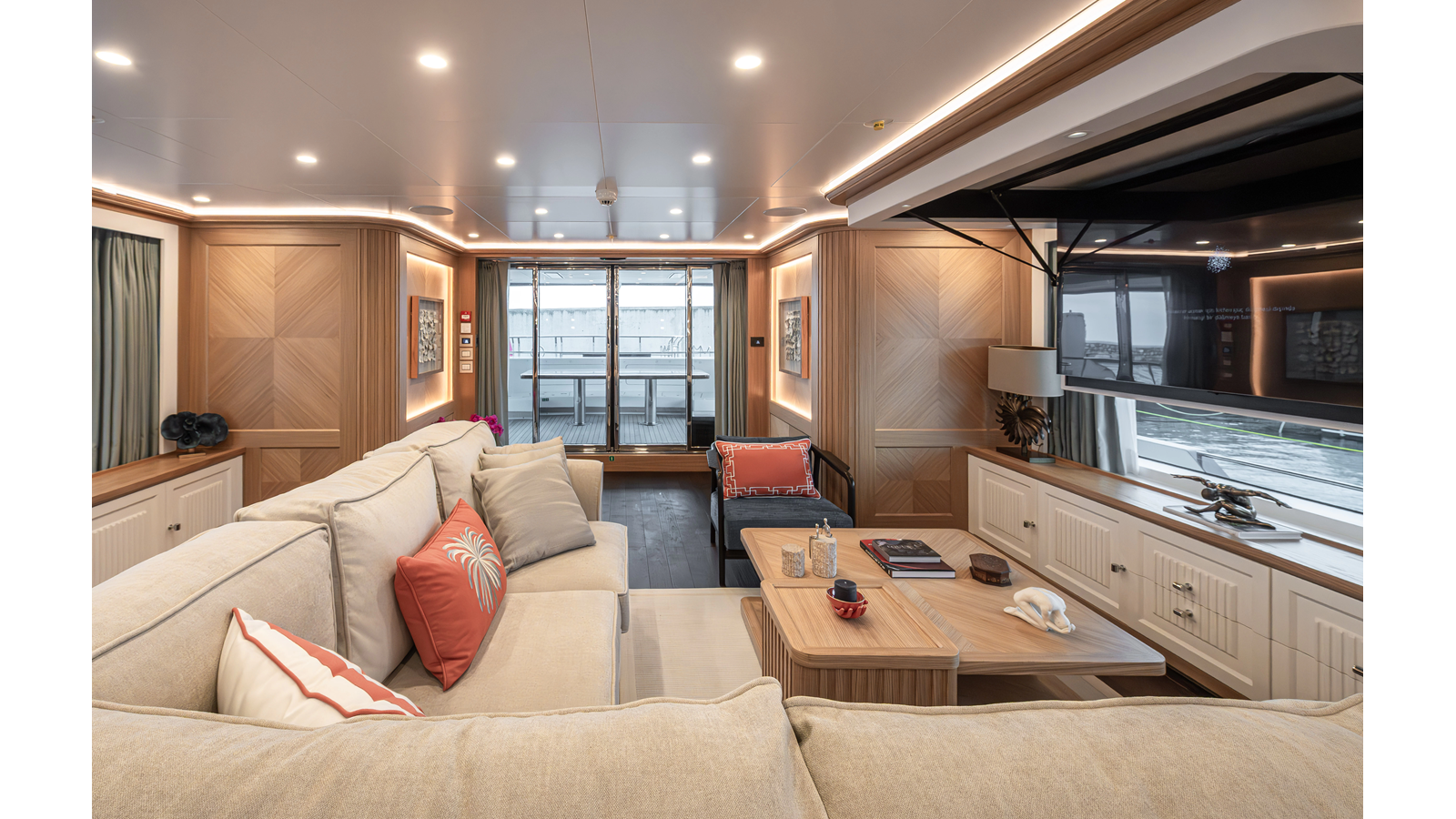

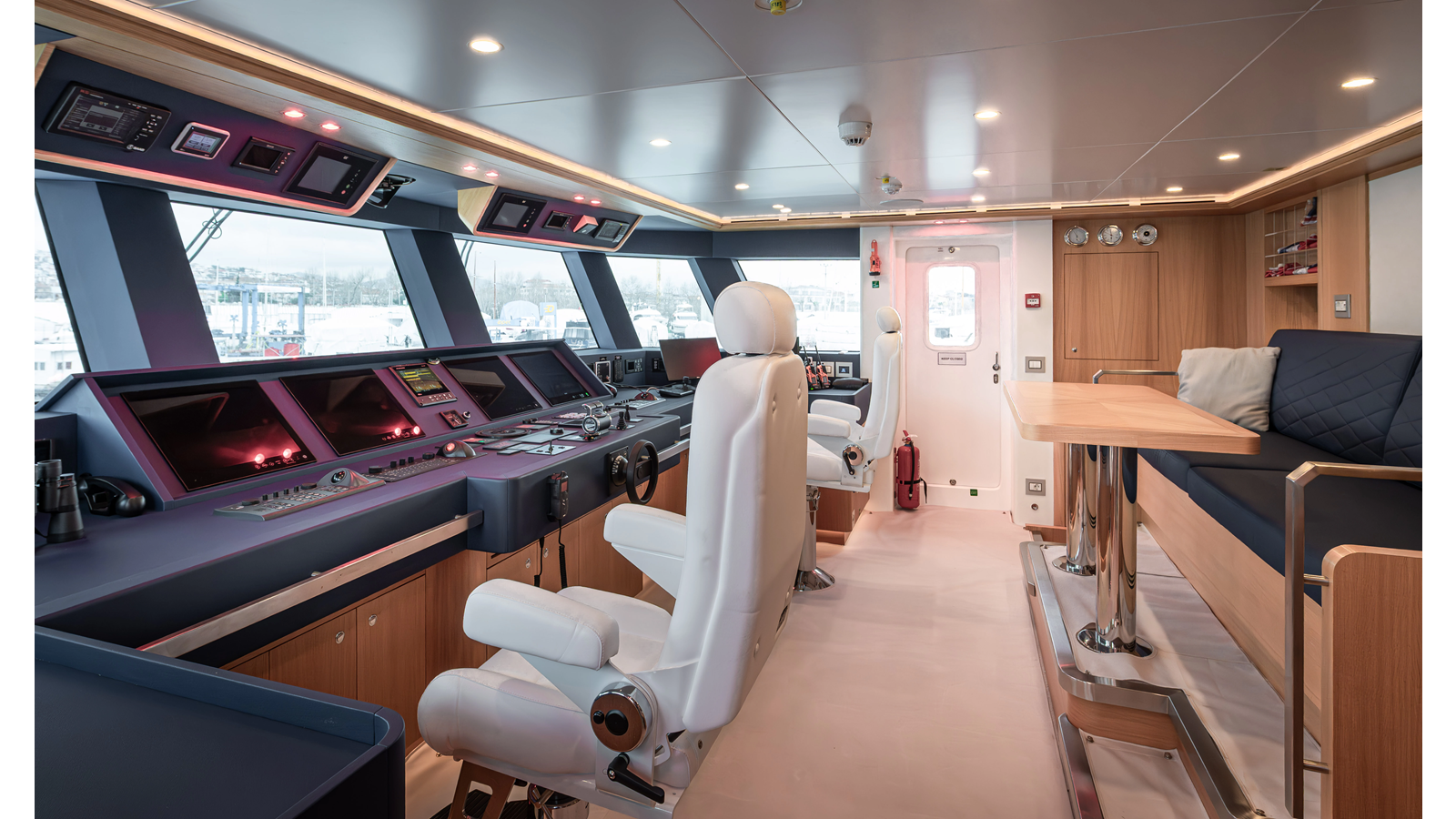

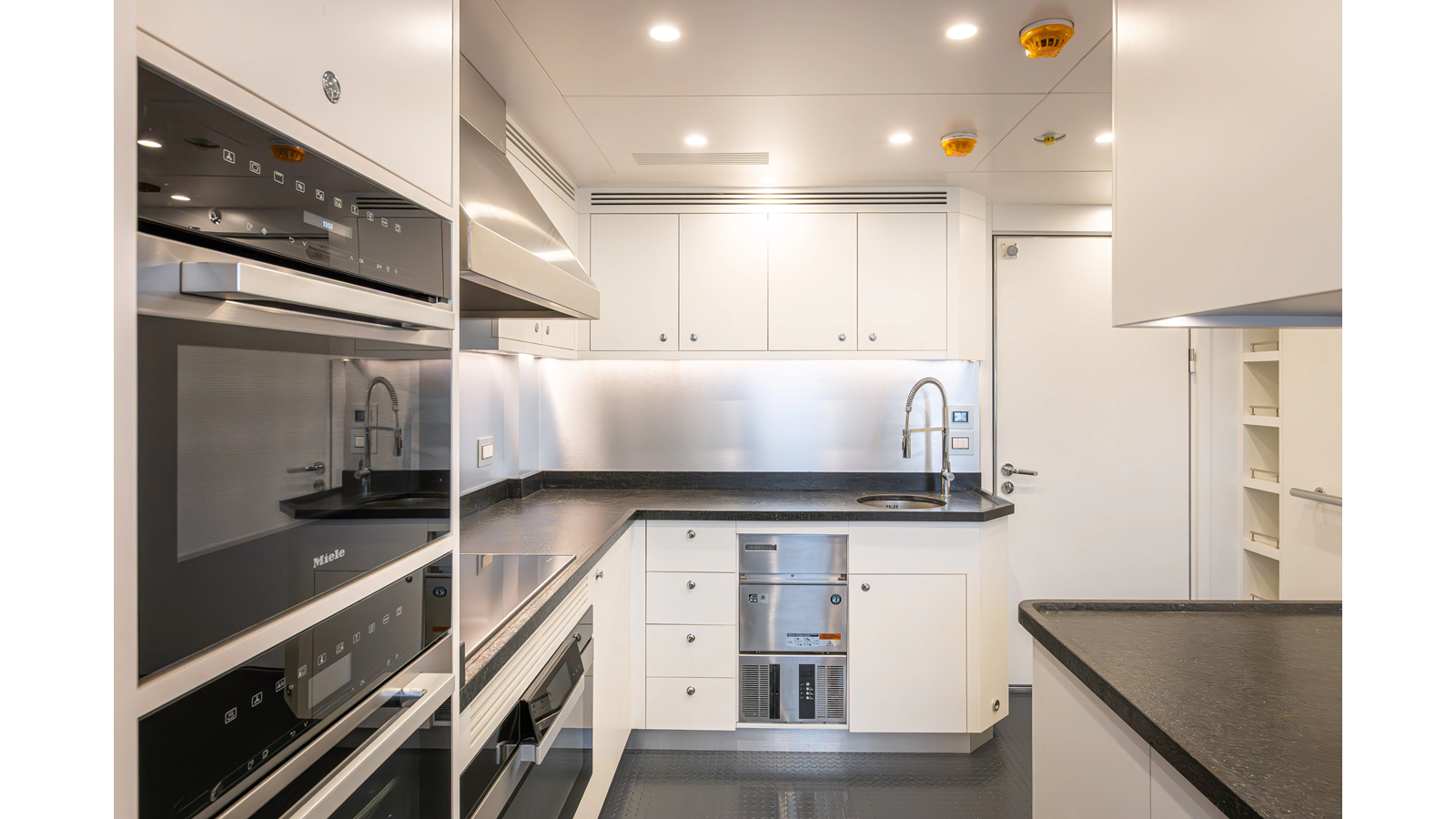

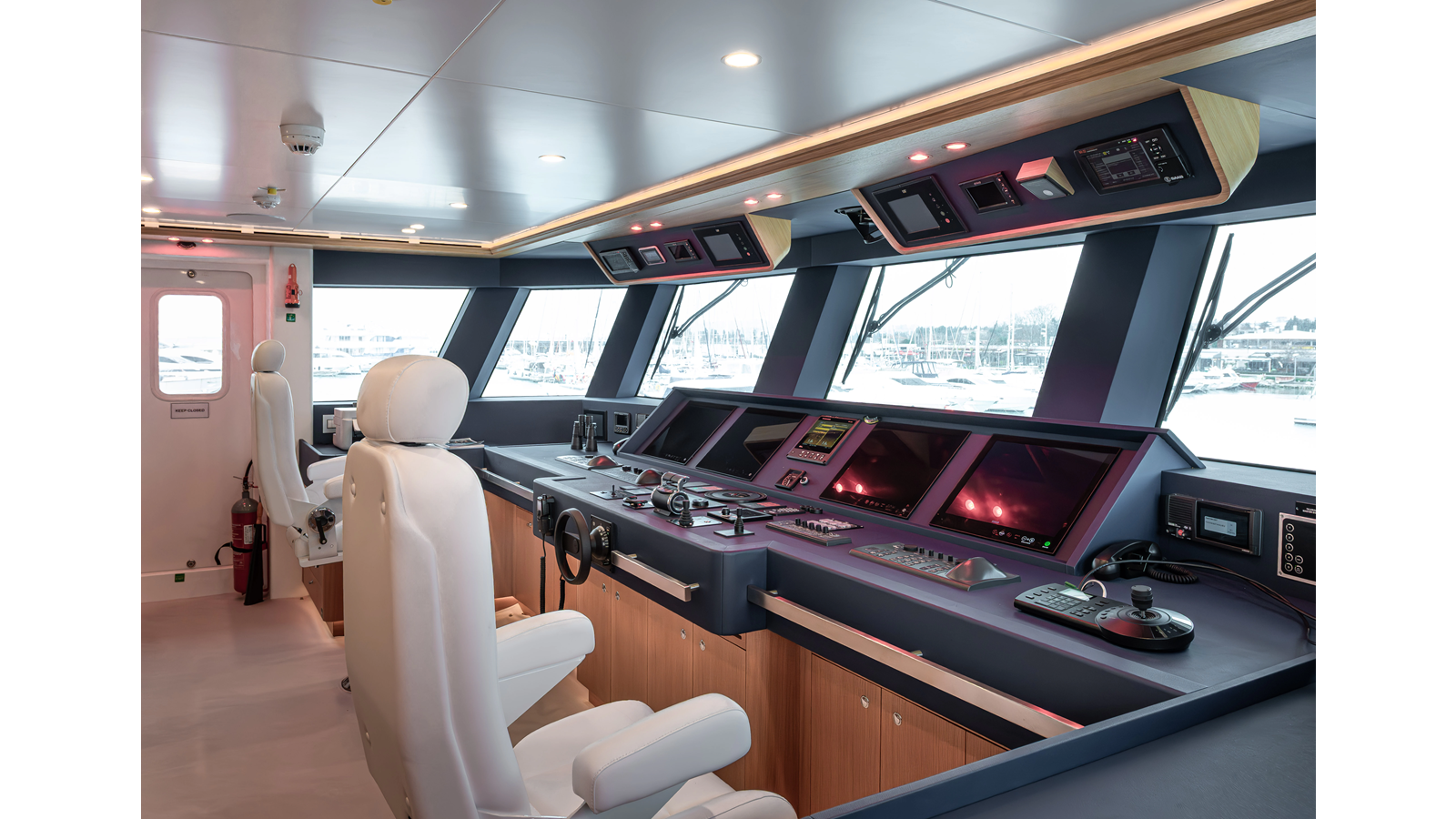

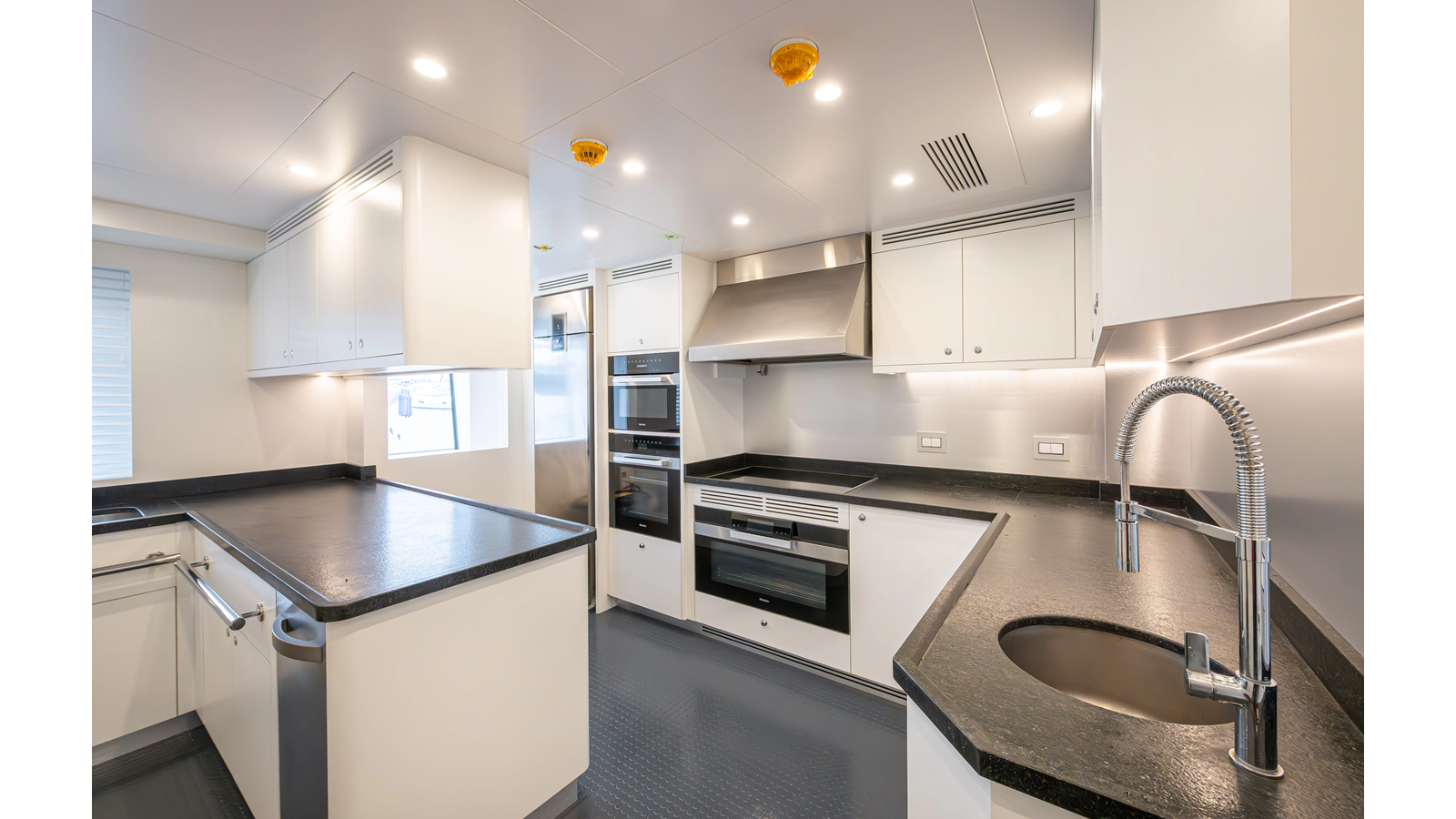

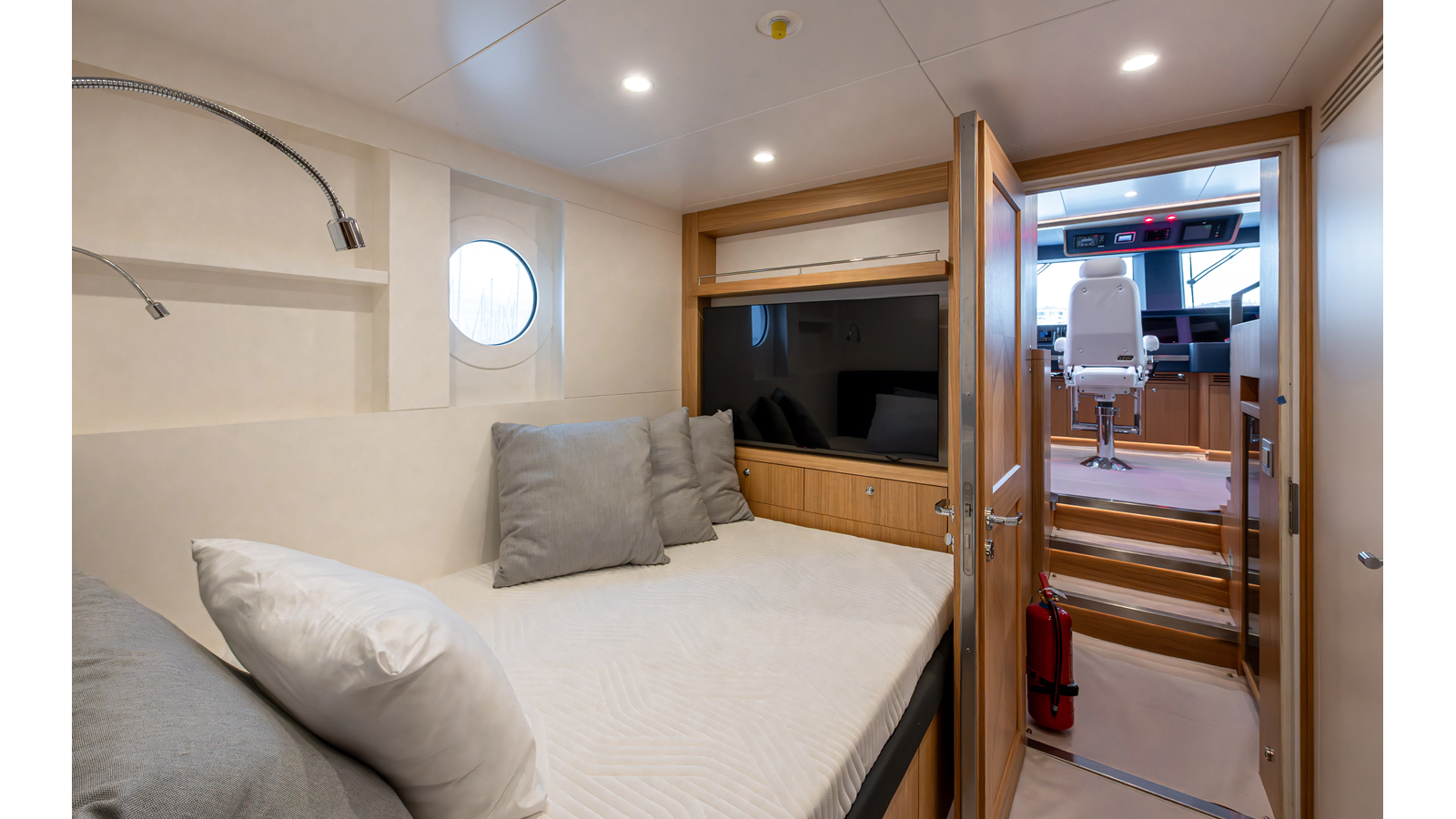

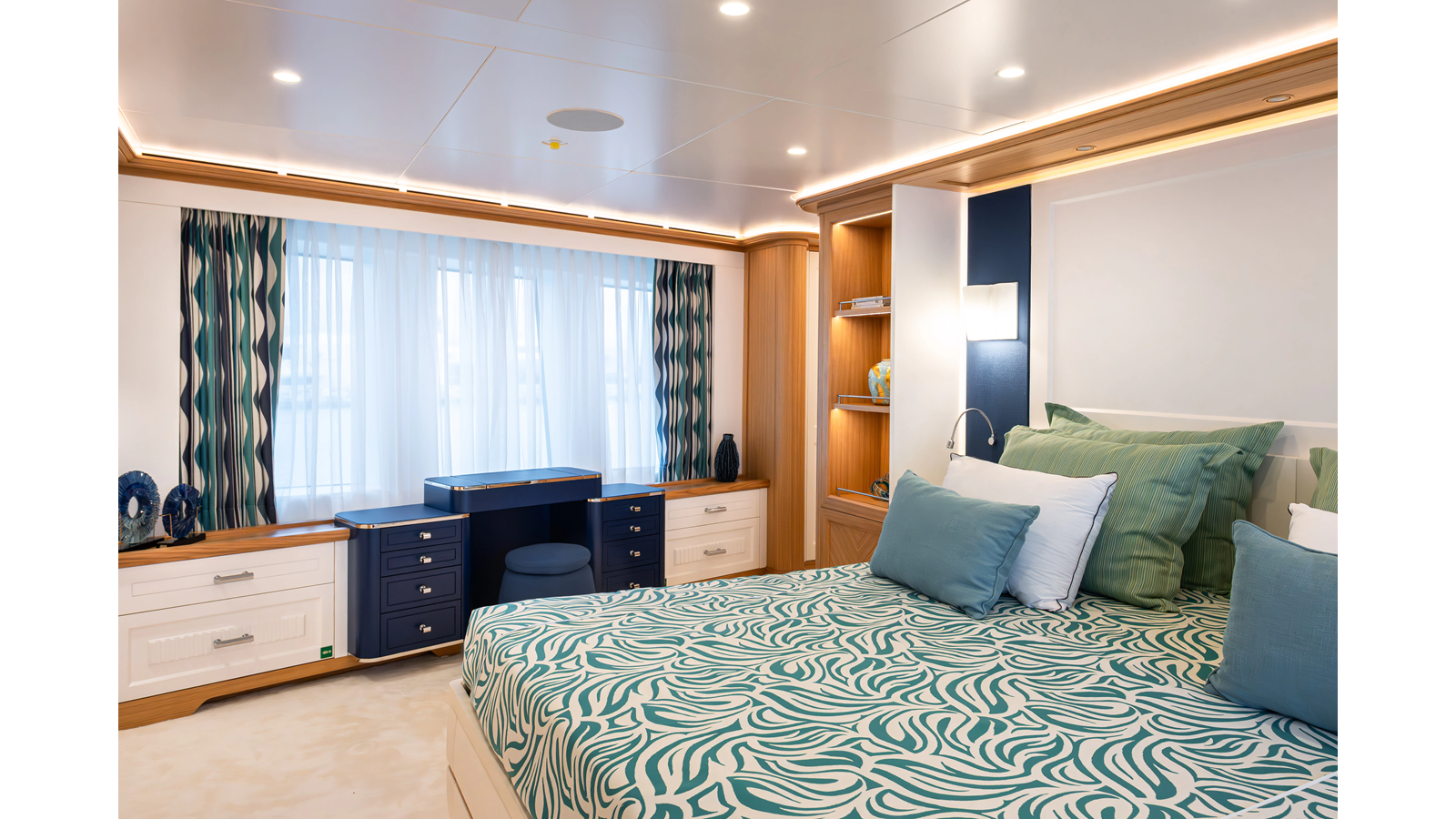

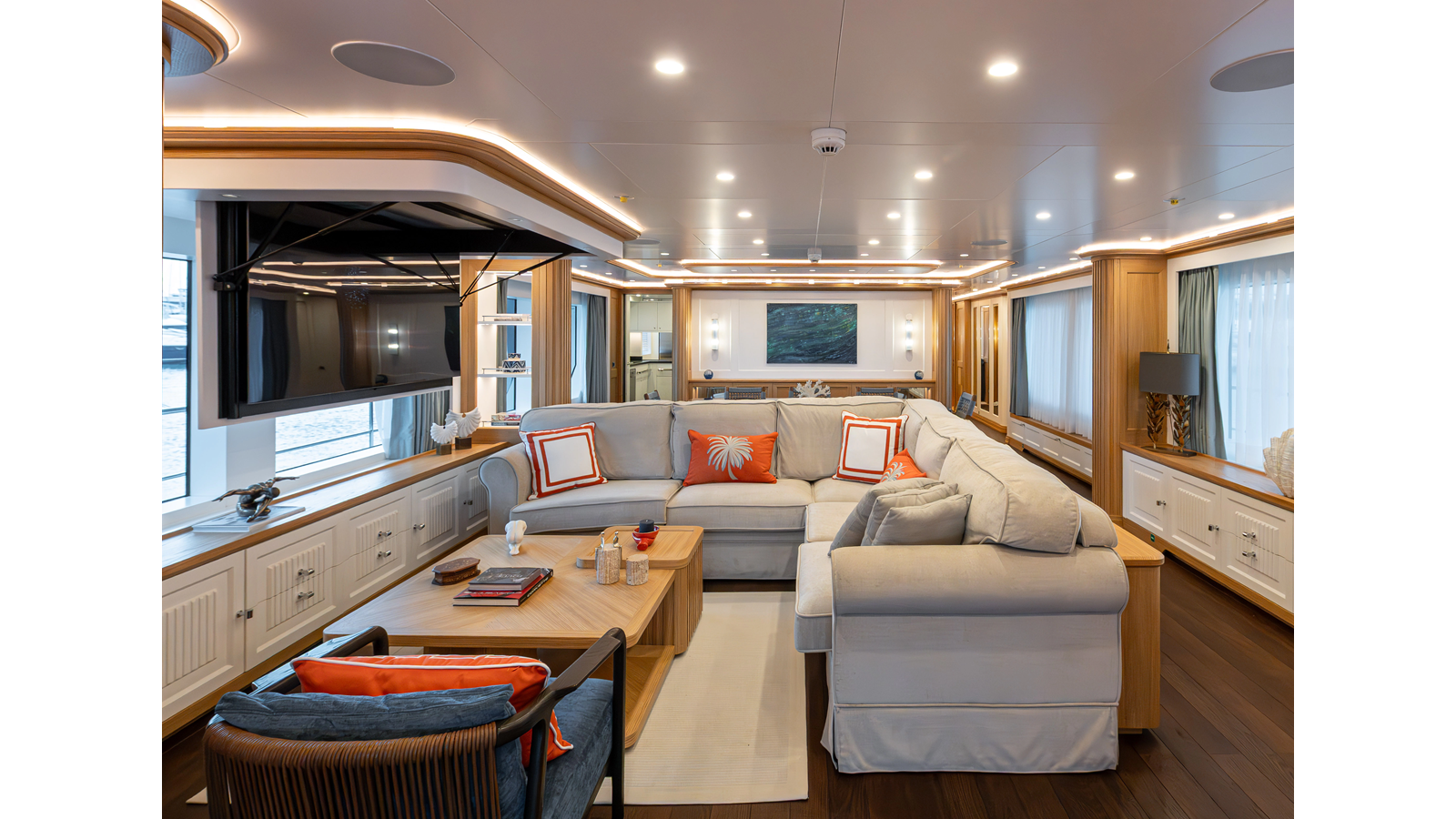

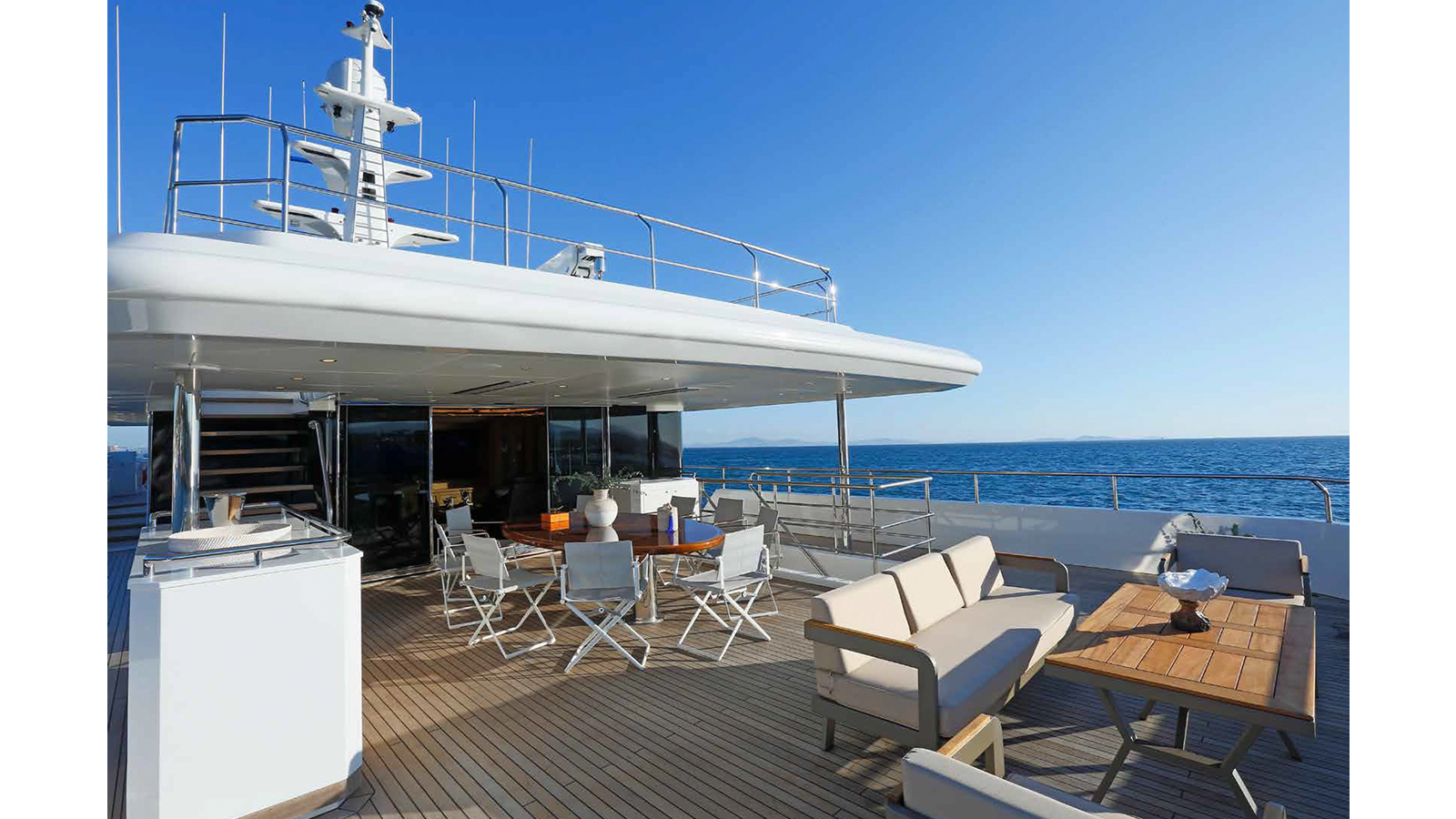

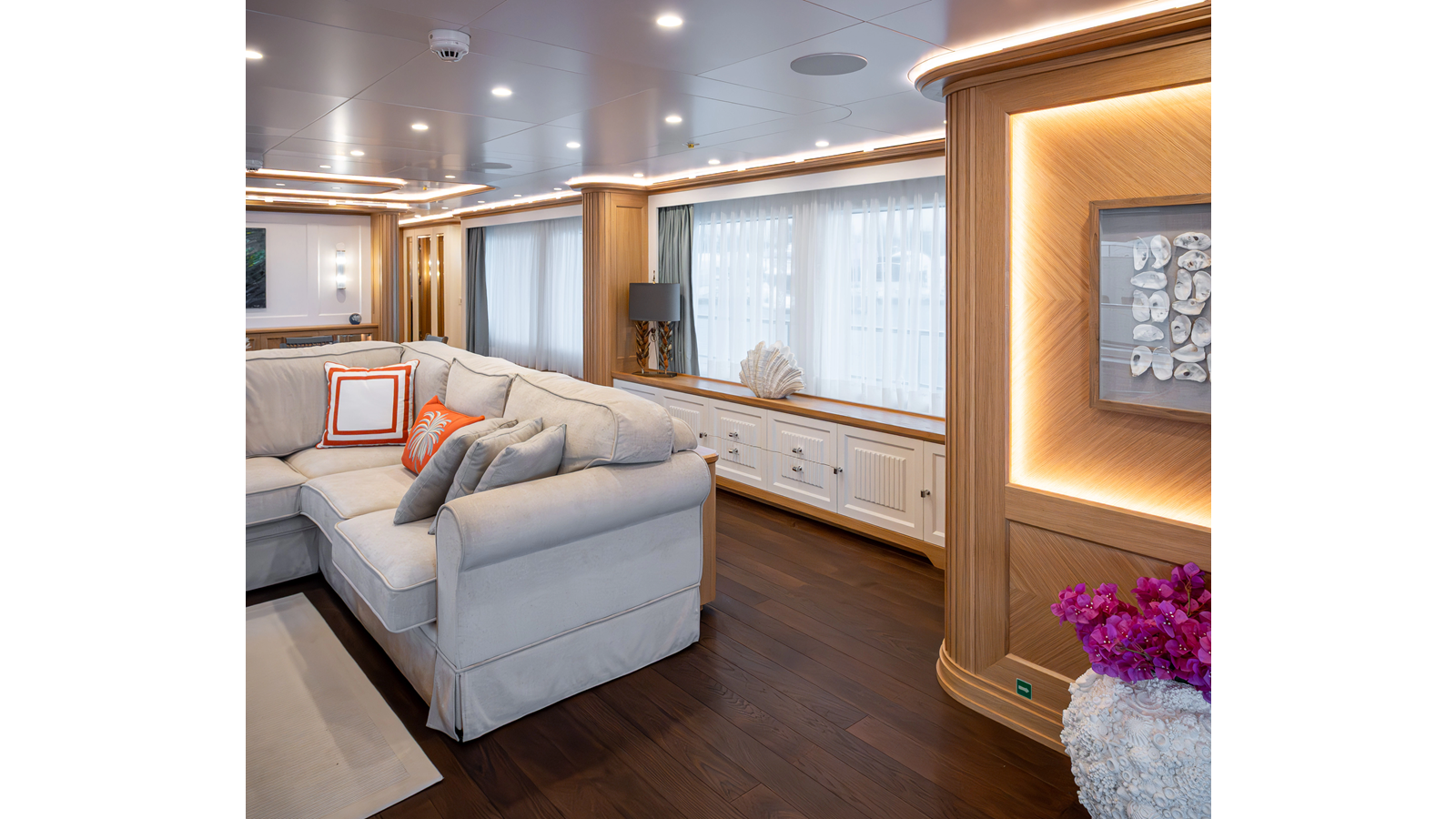

SEVEN SEAS has a classic interior decor from Epikworks, sleeps 10 guests in 5 cabins including spacious master ensuite located forward on the main deck. She has a fantasic sundeck complete with full service bar, jacuzzi, and sunpads. For day to day operations she sleeps up to 7 crew in 3 cabins located on the lower deck along with the mess area while the captain's cabin is located on the upper deck adjacent to the wheelhouse. Commercial grade galley, Atlas shorepower converters, lazarette area back aft for water sports/dive equipment & spare parts, proper bridge/wheelhouse.
- Designer: Vripack
- Naval Architecture: RMK Marine
- Interior Design: Epikworks
- Builder: RMK Marine
- Class: LR ✠ 100A1 SSC Yacht Mono G2A, (✠) LMC
- Length overall: 36,86 m
- Breadth (Moulded): 8,6 m
- Draught (Full Load): 2,84 m
- Gross Tonnage: 399 GT
- Displacement: 420 MT (approx.)
- Speed: 13,5 kts max, 10 kts cruise
- Range @ 10kn: 3,600 nm
- Fresh Water Tanks: 15,320 Lt
- Grey/Black Water Tanks: 11,000 Lt
- Fuel Tanks: 41,100 Lt
- Lube Oil Tank: 900 Lt
- Sludge Tank: 1,340 Lt
- Bilge Tank: 1,134 Lt
- Hull: Steel
- Superstructure: Aluminum
Propulsion & Steering System

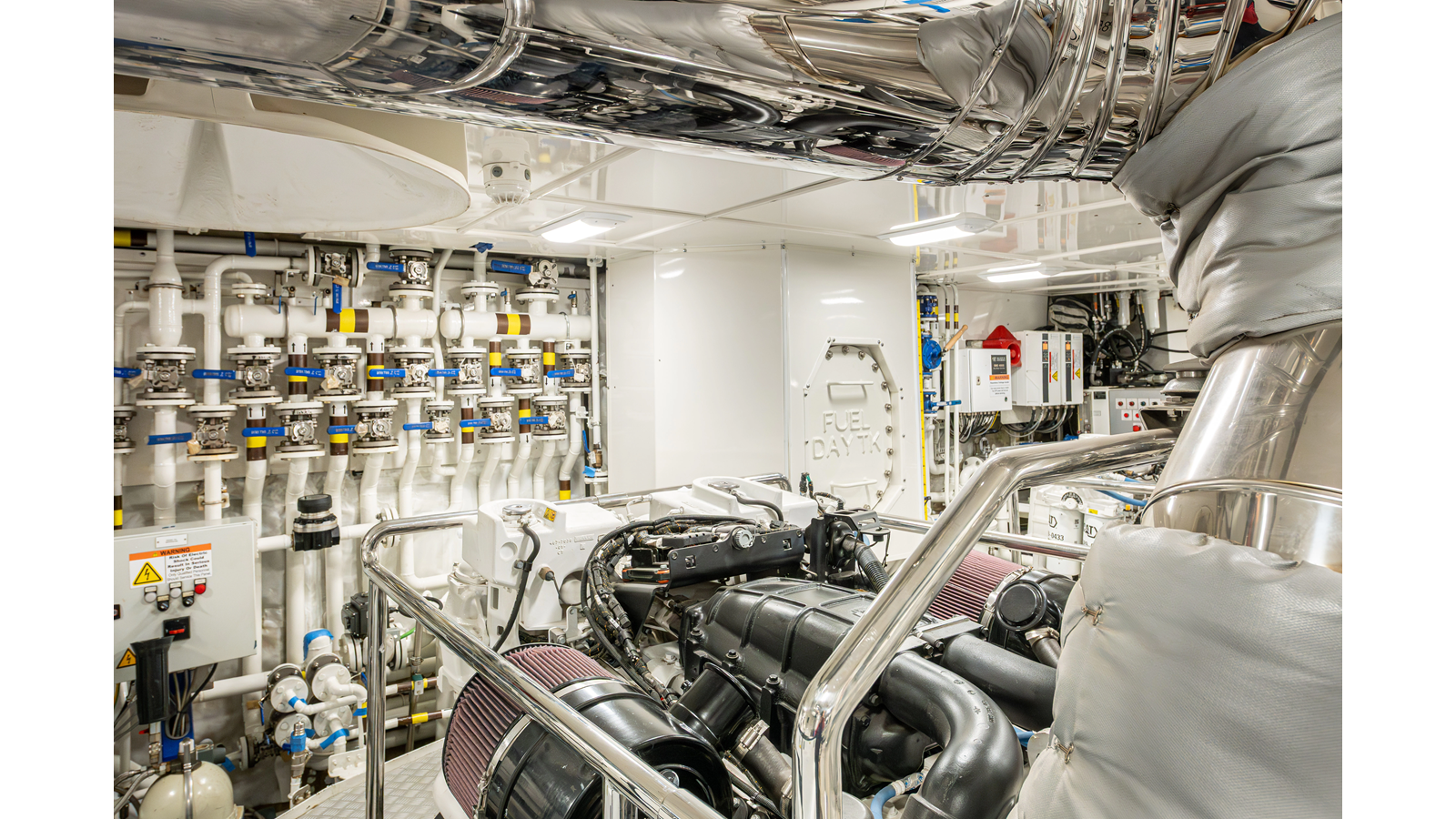

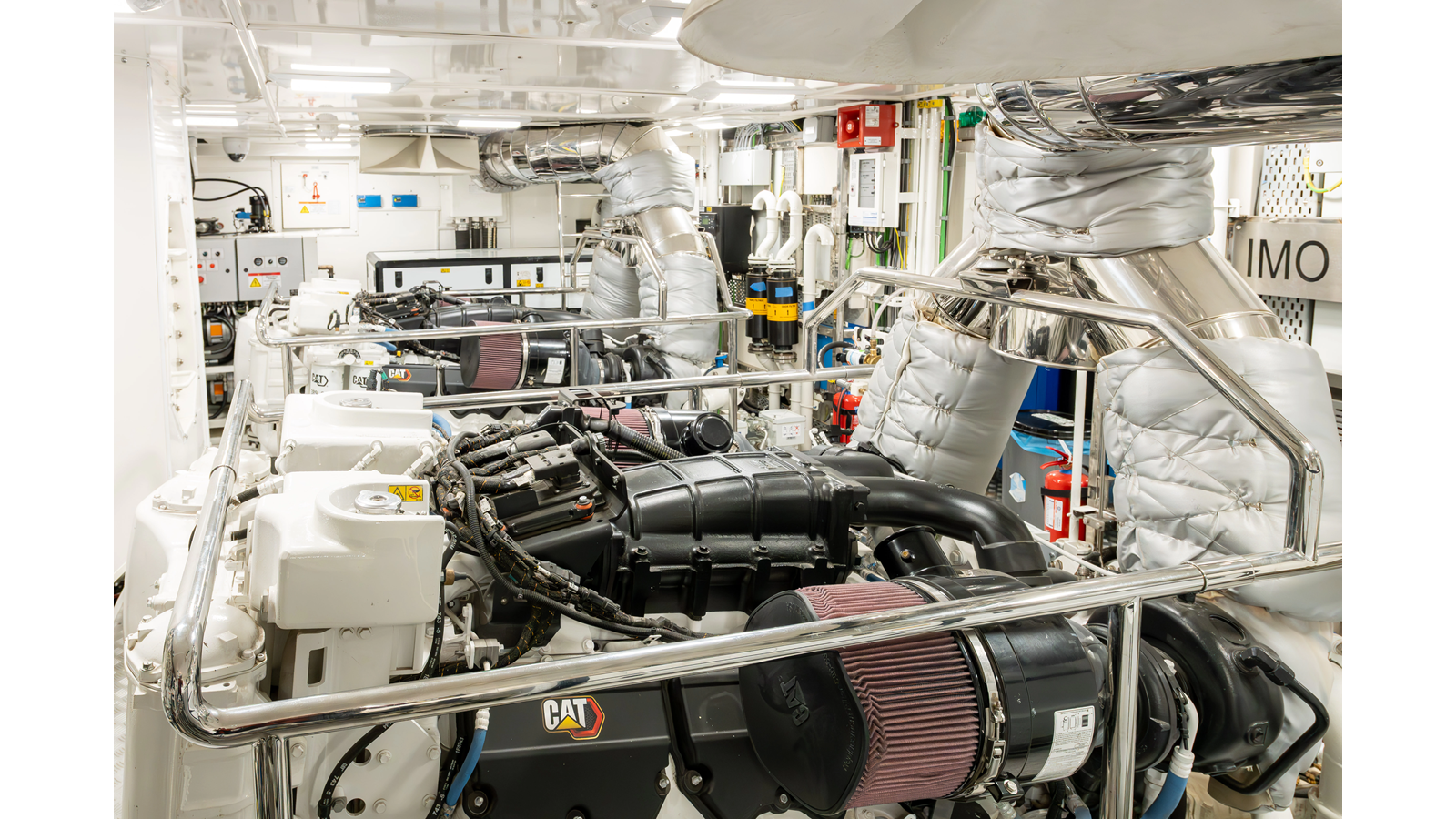

- Engines: (2) Cat C32 709 kW each @ 1600 RPM
- Gearbox: (2) ZF W3350 (4,0:1) with trolling valves
- Propulsion System: MMP 5-bladed FPP
- Steering System: Data Hidrolik
- Rudder Assembly: (2) Steel rudders with SS Shafts
- Exhaust System: Halyard
Thrusters
- Bow Thruster: OMS Ø498mm 75 kW hydraulic driven
Stabilization
- Fin Stabilizer: Quantum Zero Speed, (2) 3,5 m2 fins
Electrical System
- Electricity Network: 24V DC, 230V/400V, 50Hz
- Shore Power Converter: (1) Atlas 75kVA,
- Service Generators: (2) CAT C4.4 69 ekW
- Night Generator: (1) Northern Lights 32 ekW
- Battery Charger: Victron
- Batteries: Sonnenchein OPzV & Exide AGM - Gel type
- Cables: XLPE based LR Certified
- ICAF: Cathelco
- Navigation Light: Aquasignal 55 Serie Incandesant Lamp
- Flood Light: Hella Marine Sea Hawk
- Technical Area Light: E-LED Oceanus & Bakeriş Compact Luminarie
- Interior Lighting: BCM Lite & Bright Serie Down Lights
- Underwater Lights: (8) Underwater Light Ltd. QTS75 RGBW
- External Communication: GMDSS A3
- Radar 1: Furuno 25kW X-Band 8ft Array
- Radar 2: Furuno 30kW S-Band 10ft Array
- GPS: Saab R5 Supreme DGPS
- AIS: Saab R5 Supreme DGPS-AIS
- EPIRB & SART: Sailor 4065 EPIRB - Tron 20 AIS-SART
- Searchlight: Carlisle & Finch 500 Watt Xenon
- Magnetic Compass: Sperry Marine Jupiter 180mm Overhead
- Chart plotter: Transas NS4000 ECDIS & Time Zero Pro
- Weather Station: Airmar WX220
- Echosounder: Furuno FE-800 50kHz & 200kHz Transducers
- Speed Log: Sperry Marine Naviknot 350 Electromagnetic
- Fish Finder: Furuno CH600 Searchlight Sonar
- Data Repeaters: B&G H5000 Hydra & 6 x Graphical Display
- Intercom: Phontech CIS 3100 5 Zones
- VHF: (2) Sailor 7222 VHF DSC Class A
- MF/HF: (1) Sailor 6310 150W DSC Class A
- Navtex: Furuno NX700
- Inmarsat: Sailor 6110
- SAT Phone: Sailor 4300 Iridium L Band
- BNWAS: Furuno BR500 with 3 Stations
- Ship’s Horn: Kahlenberg F-3 5 Horns
- VSAT: Sailor 900 VSAT maritime Ku-band 20W BUC
- GSM Internet Access: Peplink MAX-BR1-PRO 2x2 MIMO
- Wireless: (6) Wi-Fi 6 dual-band Gigabit ceiling AP
- Audio & Video entertainment units: Exterior& interior audio units and TV units
- CCTV: Dahua HDCVI 8 x PTZ Dome Type AHD cameras with 15 Days recording capacity
- Brand / Model : LYNGSO Automation
- Display: (2) 21” Panel PC, 3 x Digital Repeater
- Input/Output: 350DI, 15DO, 108 AI, 400 Serial IO
- Printer: (1) Epson
- Bulwarks & Guard Rails: Polished Stainless Steel Stanchions
- Anchor & Mooring: (2) DATA DZC 3300-2 Windlass
- (2) Data DHC 2200 Capstan
- Anchors & Chain: Anchor (2) HHP 309 kg; Anchor chain (2) Studlink High Tensile Ø19mm
- Teak Deck: Burmese 16 mm

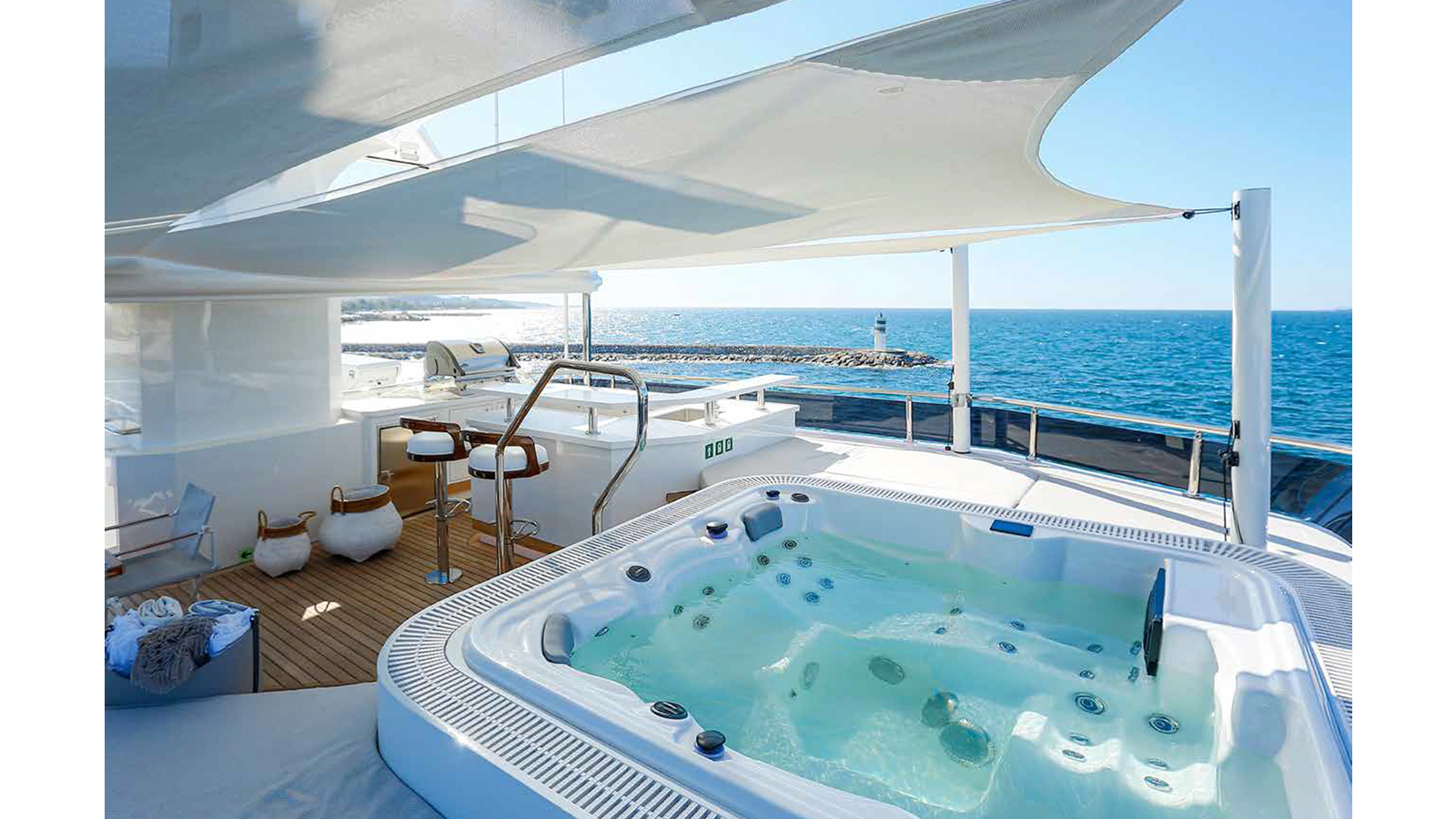

- Jacuzzi: Aqualife 5 person SPA
- Crane: Nautical Structures SWL 4.000 kg
- Passerelle: Opacmare 4710mm
- Side Boarding Ladder: Marquipt Sea Stairs 8 Steps
- Swim Platform: Opacmare 5 Steps 700kg
- Weathertight Hinged doors: Bofor
- Watertight Sliding Doors: Winel
- Weathertight Sliding Doors: (2) Bofor
- Window Wipers: (3) Wynn Hepworth
- Galley & Pantry Appliances: Miele
- Laundry Appliances: Miele
Fresh Water System
- Piping: U-PVC and C-PVC Piping
- Pumps: Headhunter AQX-230
- Water Maker: (2) FCI ATLAS 13.632 lt/day each
- Boilers: Solareks (3) 100 litres, Tanks 2x4,5kW Elements
- Grey Water System
- Piping: U-PVC Piping
- Pumps: Desmi
Black Water System
- Piping: U-PVC and C-PVC Piping
- Pumps: Desmi
- Toilets: (11) Tecma Silence Plus
- Sewage Treatment: Hamann HLCP025
Bilge & Fire System
- Piping: CuNiFe
- Pumps: Desmi
Seawater System
- Piping: CuNiFe
Deck Drain System
- Piping: Steel Piping below Main Deck
Fuel System
- Piping: Stainless Steel
- Pumps: Desmi
- Diesel Oil Separator: (1) Alfa Laval 503
Lube & Dirty Oil System
- Piping: Stainless Steel
- Pumps: Desmi
Tank Vent System
- Piping: Steel
Compressed Air System
- Piping: Stainless Steel
- Service Air Compressor: Dalgakıran TIDY-4 7 bar 24,6m³/h
Hydraulic Systems
- Piping: Steel
- Power Packs: Main HPU and PTO’s. Swimplatform & Pasarella with additional own HPU’s
HVAC
- Chilled Water Piping: PVC
- Fresh Air & Exhaust Ducting: Flexible Ducting
- Chilled Water Plant: (1) Flow Marine 43,9 kW Shell/Tube Titanium; Condanser with VFD Controlled (3) 15 kW Scrool; Type Compressor additional 20kW Heater Barrel for heating process
- Supply & Exhaust Fans: (2) ELTA 7,5kW
- Air Supply Fans: (15) Heinen Hoppman In-Line Fans
- Fancoils: (2) 10K BTU
- (3) 12K BTU
- (4) 16K BTU
- (6) 18K BTU
- (5) 24K BTU
- (4) 400CFM FAMU
Fire Fighting Systems
- Sprinkler: Survitech low pressure sprinkler system for accommodation, CO2 system in engine room. (2) Seawater firefighting pumps in engine room. Portable fire extinguishers in each room.
- Life Rafts: (4) 16 person Survitec
- Windows, port lights etc.: Heat tempered
- Fire Insulation: Rockwool
- Comfort Insulation: Rockwool
