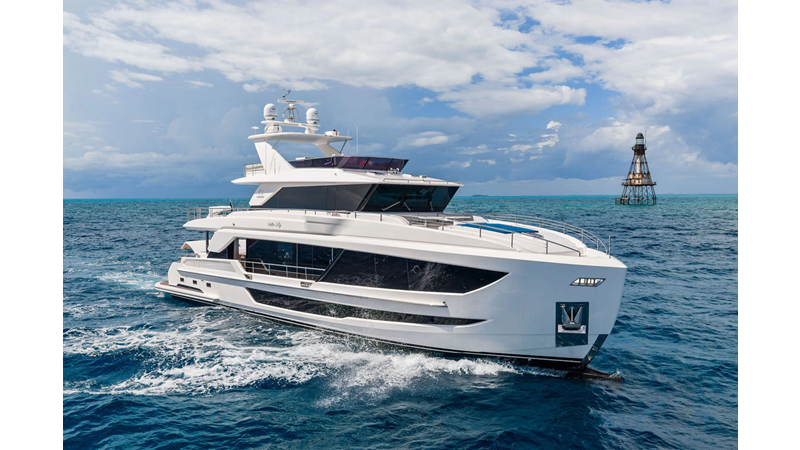

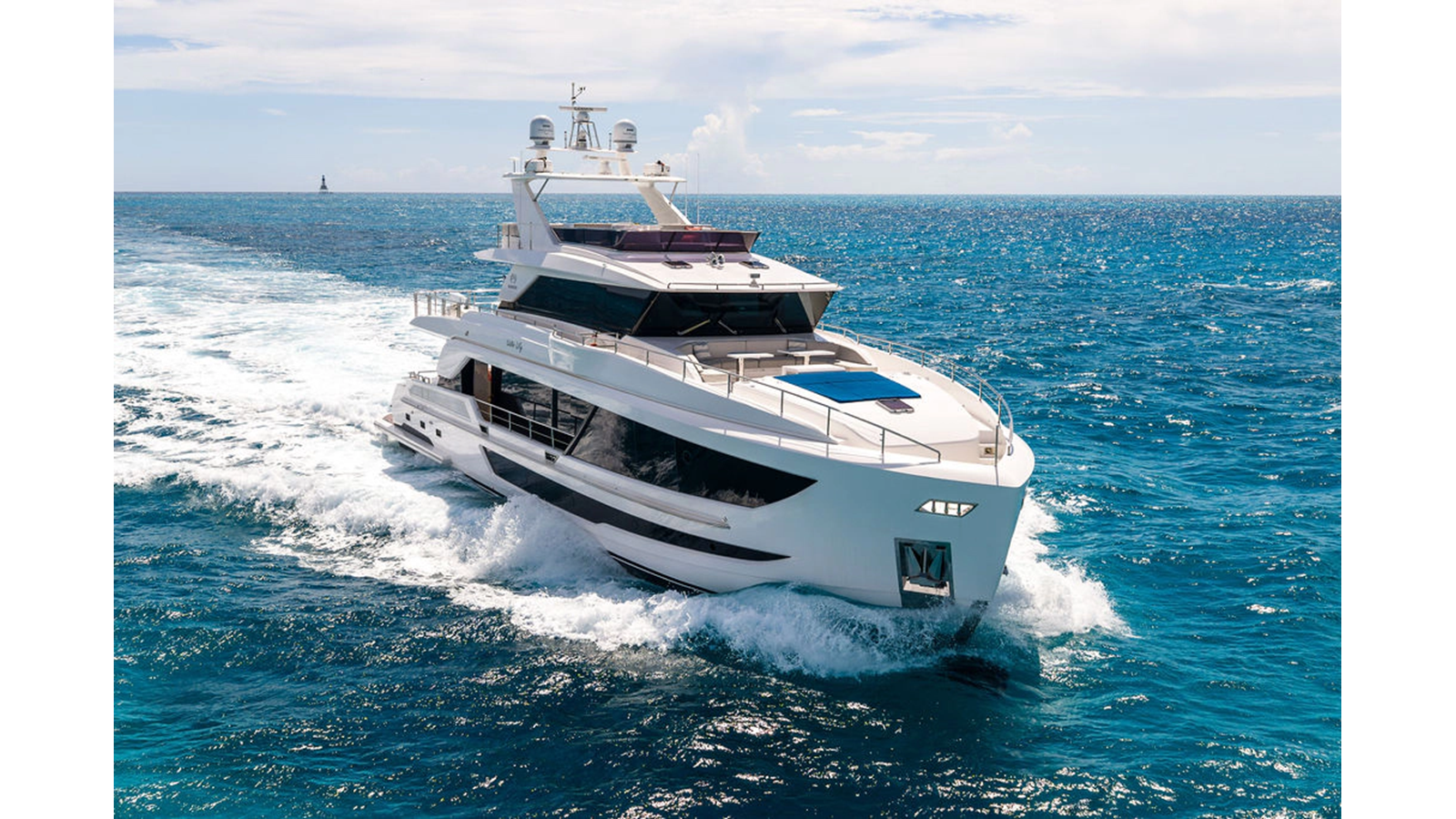

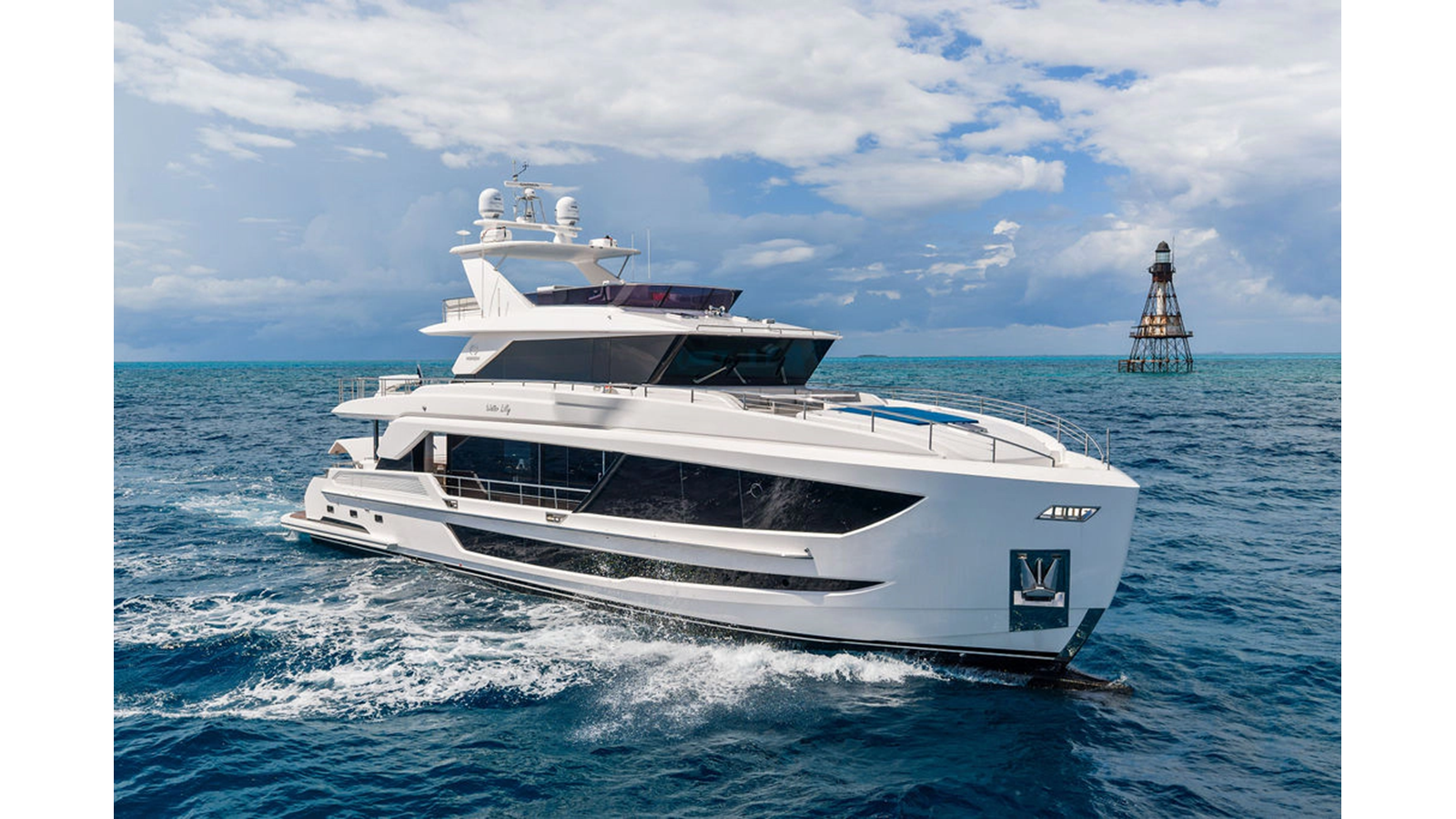

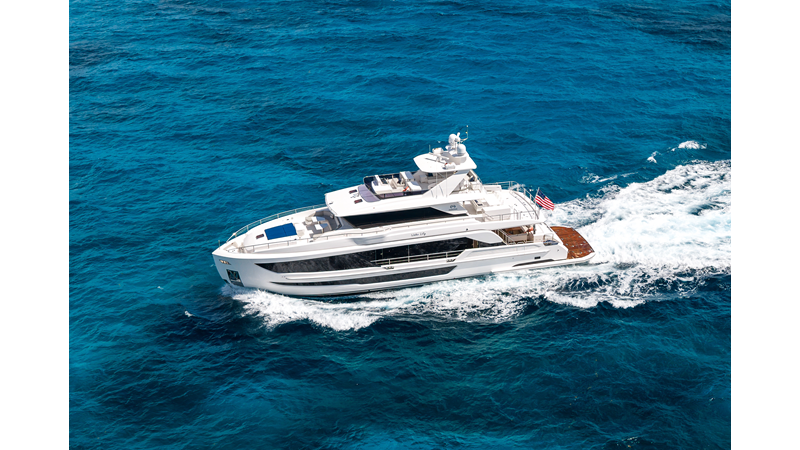

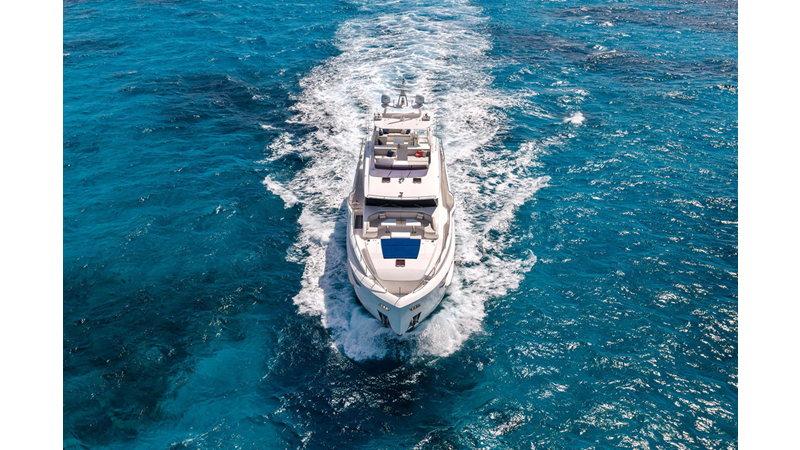

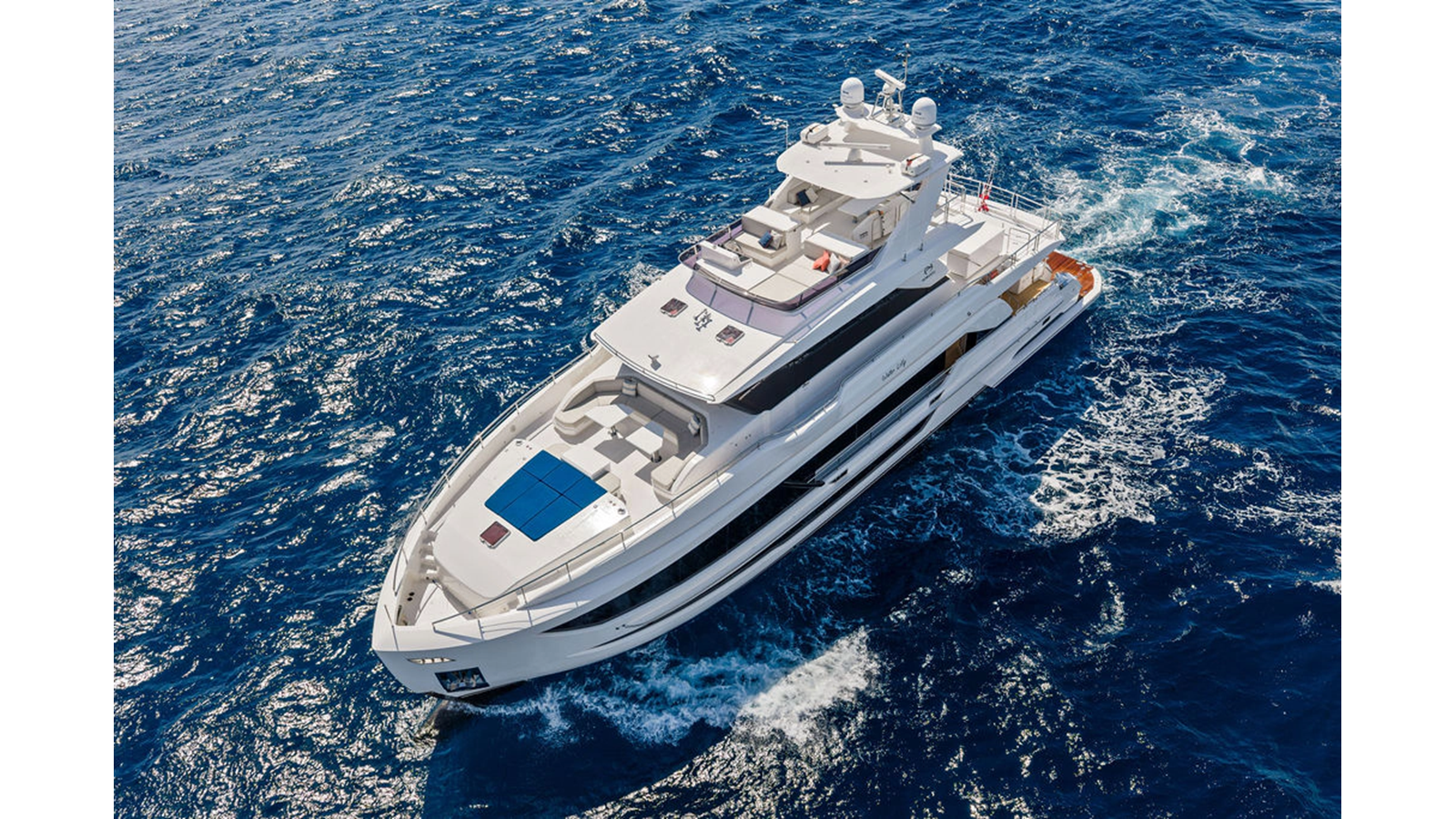

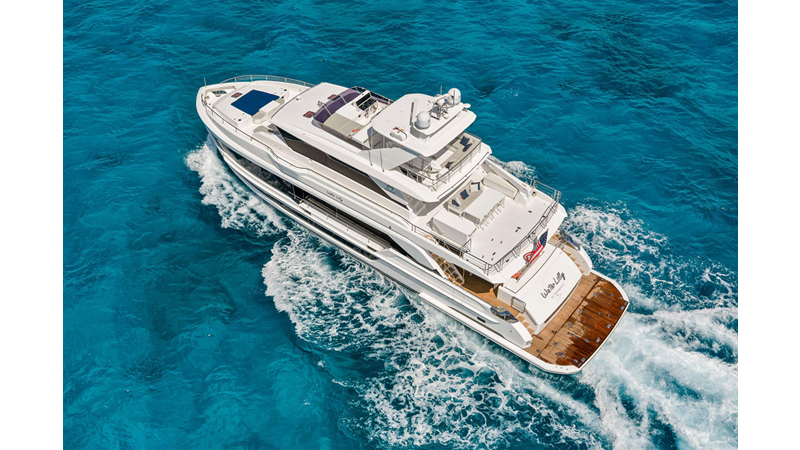

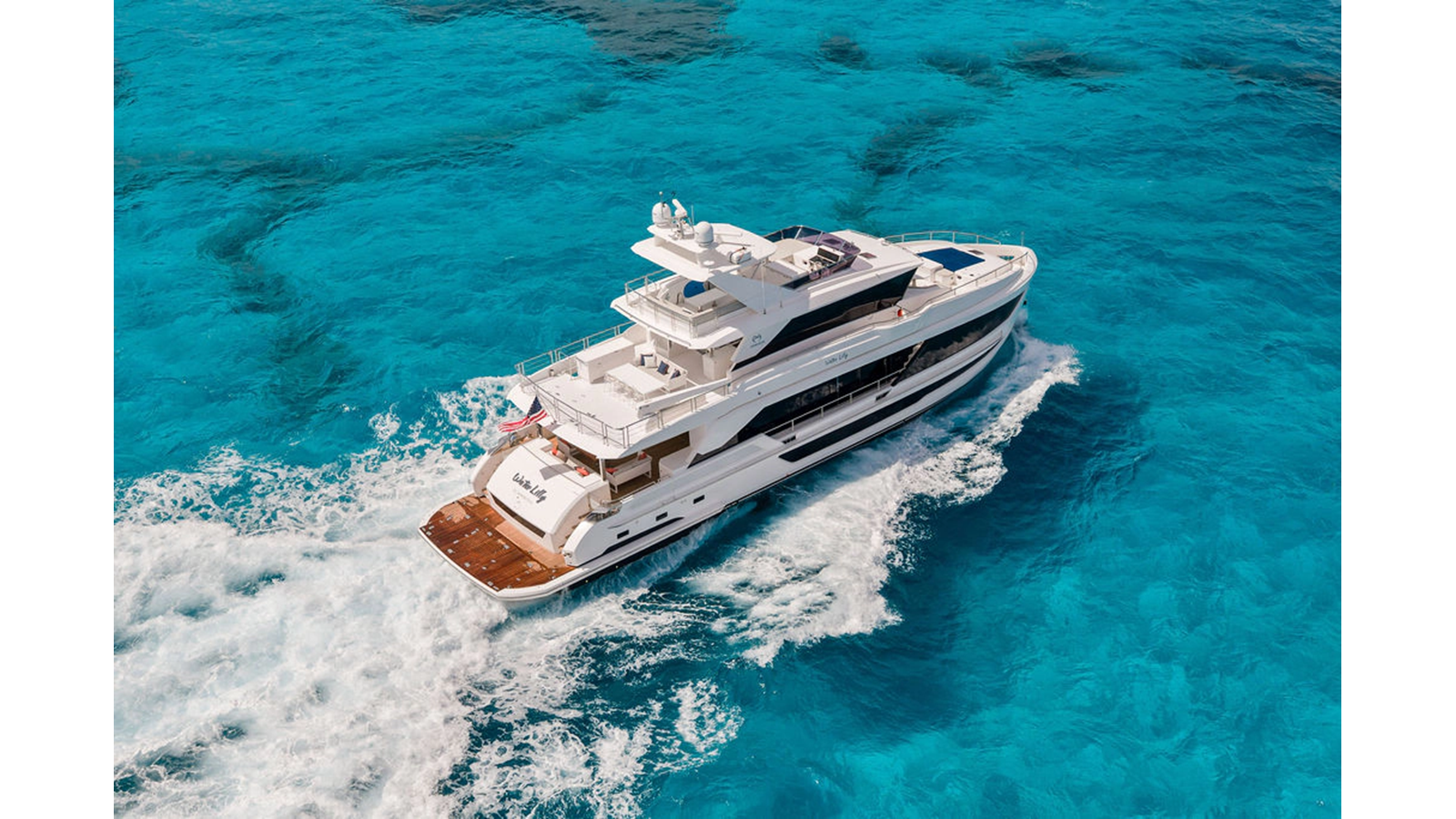

2021 HORIZON YACHTS FD92
Description

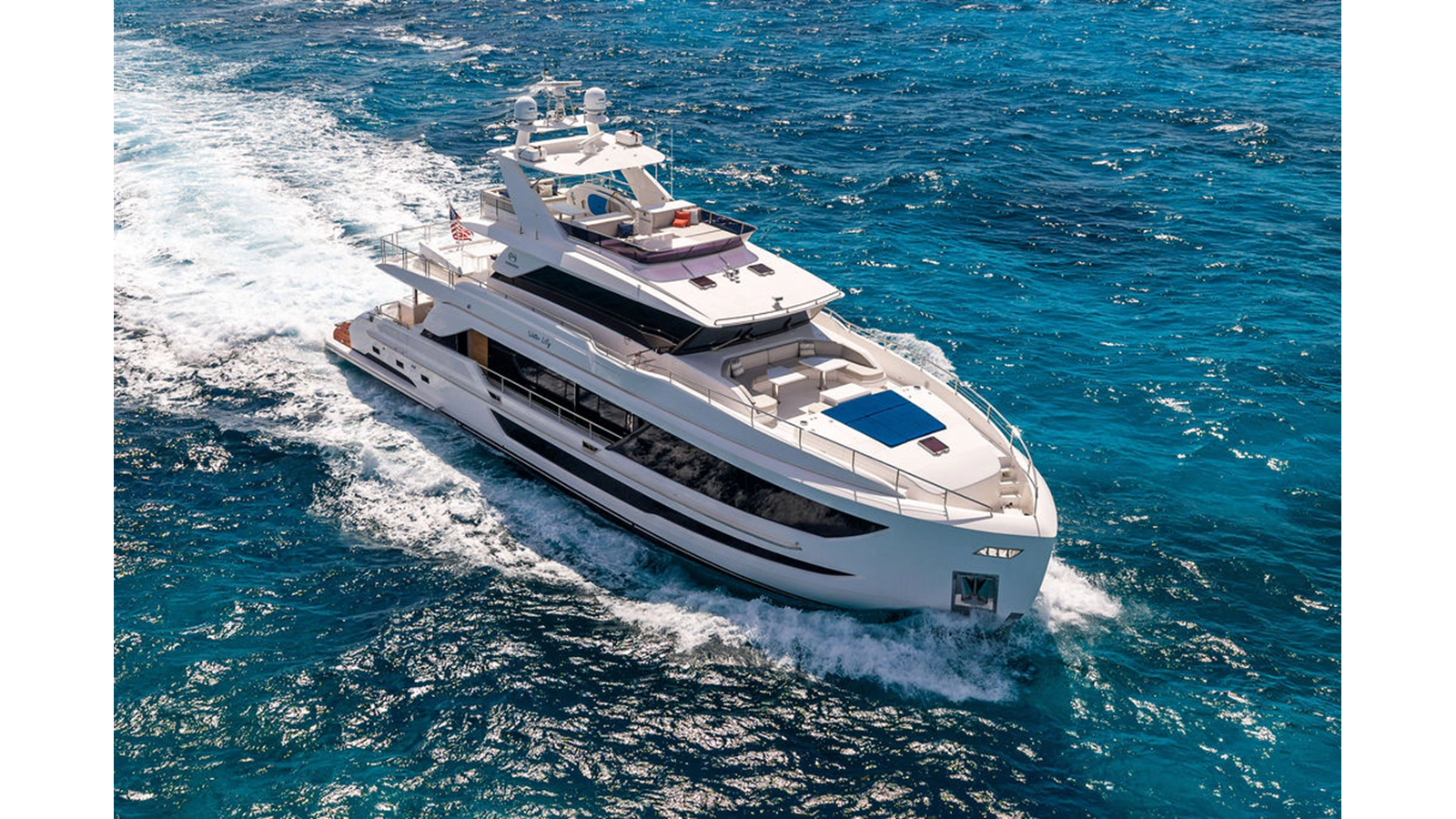

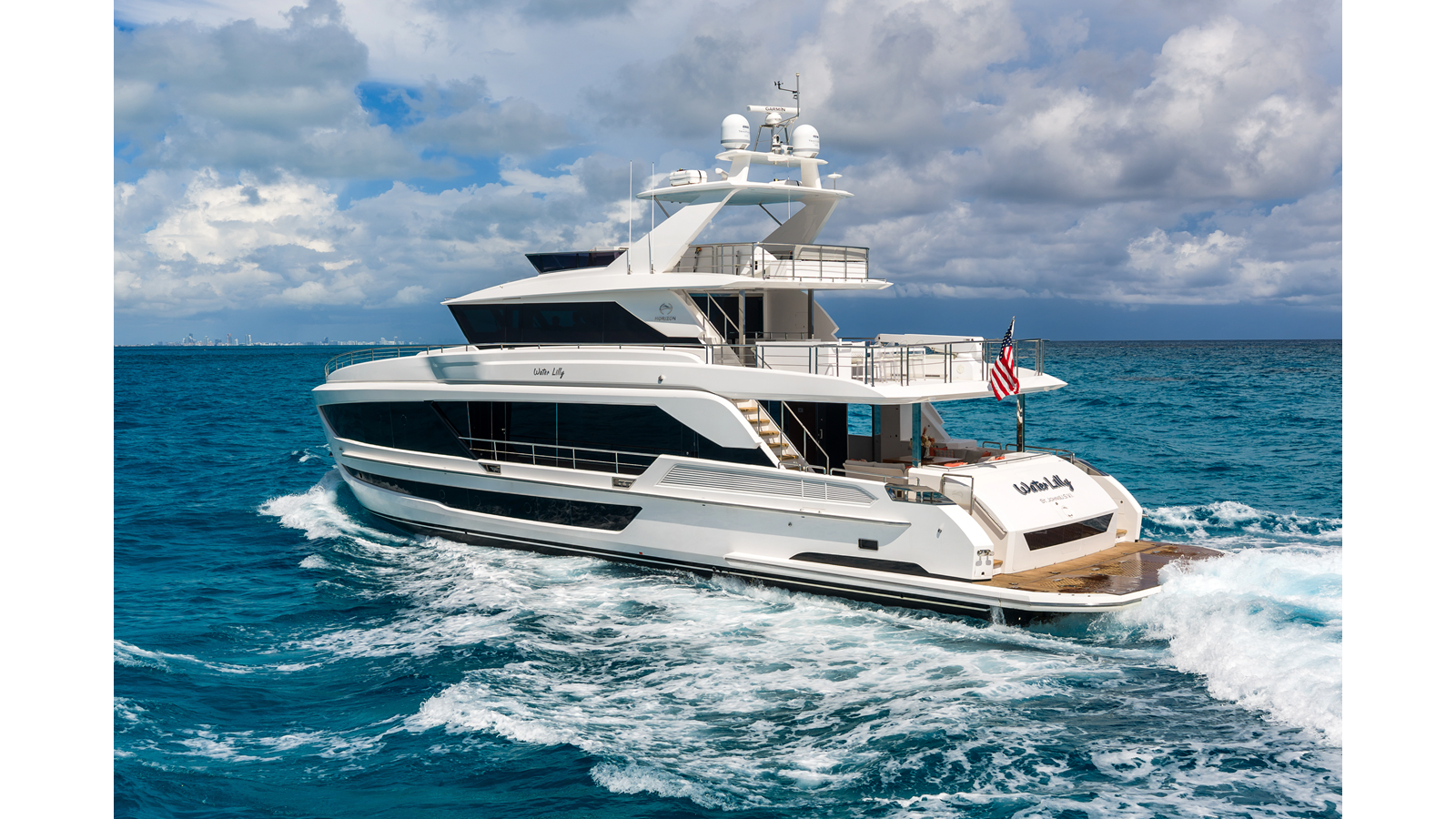

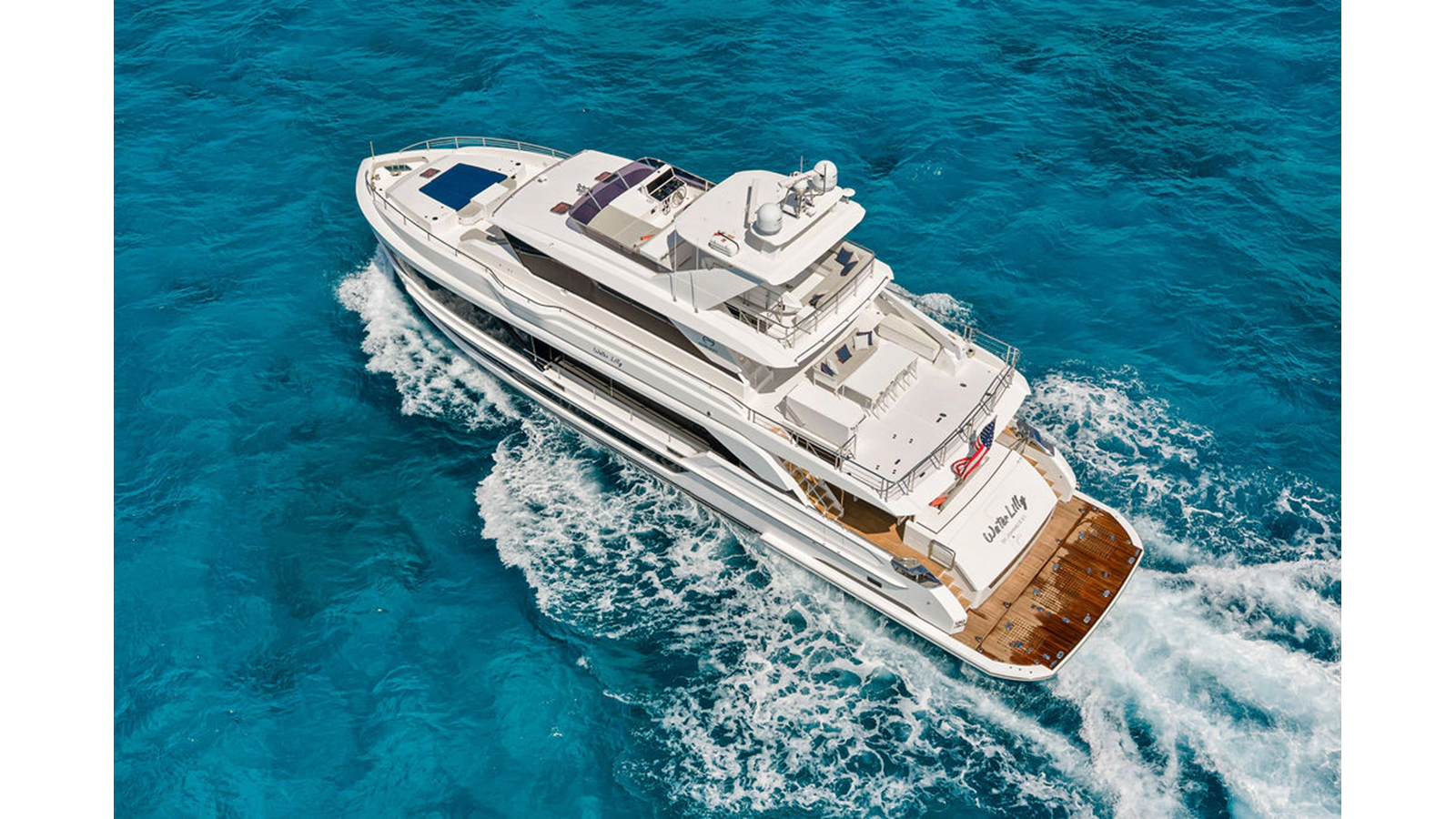

Water Lilly is one of four of the Horizon FD92 series, the first of the FD series with the Tri-Deck design, allowing for an enclosed skylounge on the upper deck and an open flybridge on the tri-deck. Her LOA comes in at 94’, but she has a gross tonnage of 198 (GT ITC), displaying enormous volume in a modern and elegant spacious layout that you would find in much larger vessels.
The Main Deck has spacious custom aft deck seating, a comfortable main salon (with a day head), an open dining area, an open galley (that can be separated with a hi/lo screen and side doors) and an impressive on deck king master forward, with his/her ensuite.
The Lower Deck forward has a queen VIP, a twin guest room to port (with one twin that slides to the other) and two identical opposing VIP queens aft, all ensuite. Continuing further aft is the engine room and the captain and crew cabins. The captain’s cabin is ensuite and the two crew bunkrooms share a separate head. Finally, you end up at a comfortable Beach Club with a garage door that opens aft to the large hydraulic swim platform.
The Upper Deck, forward of the bridge, has u-shaped seating with two opposing tables, sun pads and storage. Mid ship is enclosed, with the pilothouse (main station) shared with the comfortable skylounge (with day head). Aft of the skylounge you step out to the boat deck. To starboard is a full bar with stools. Further aft to port is a hi/lo propane BBQ in an FRP cabinet. Aft of the bar is a wide-open deck with a Steelhead davit to starboard. This deck can double as storage for jet skis and/or a lounging area.
The Tri-Deck is accessed from the boat deck. There is a radar arch with a hard top that provides shade and protection over the aft L-shaped seat and table. Forward of the hardtop is a bench seat with a sun pad to port and a second helm to starboard.
The Horizon FD series are known for offering volume. Water Lilly does not disappoint. She makes a great boat for those with extended families or those wanting to charter, with five comfortable staterooms and many diverse social areas. The boat deck, on the upper deck, and the large swim/dingy platform can handle the toys for enjoyment while at anchor. She has a lot to offer in a 94’ motor yacht!
Full Specifications
Bottom Job-Pressure washed, lightly sanded, two coats of anti-fouling paint and a third coat at the water line
Running Gear-Cleaned to bright metal and PropSpeed applied
Swim Platform-Underwater hardware cleaned to bright metal and PropSpeed applied
Propellers- Removed, inspected and shafts inspected with good rotation
Cutlass Bearings new, installed
ABT Stabilizers-Annual service (hydraulic fluid/filters/cooler/seals/zincs)
Oil Change-Fresh oil change on Main Engines, Generators and Gearboxes
Survey, including seatrial

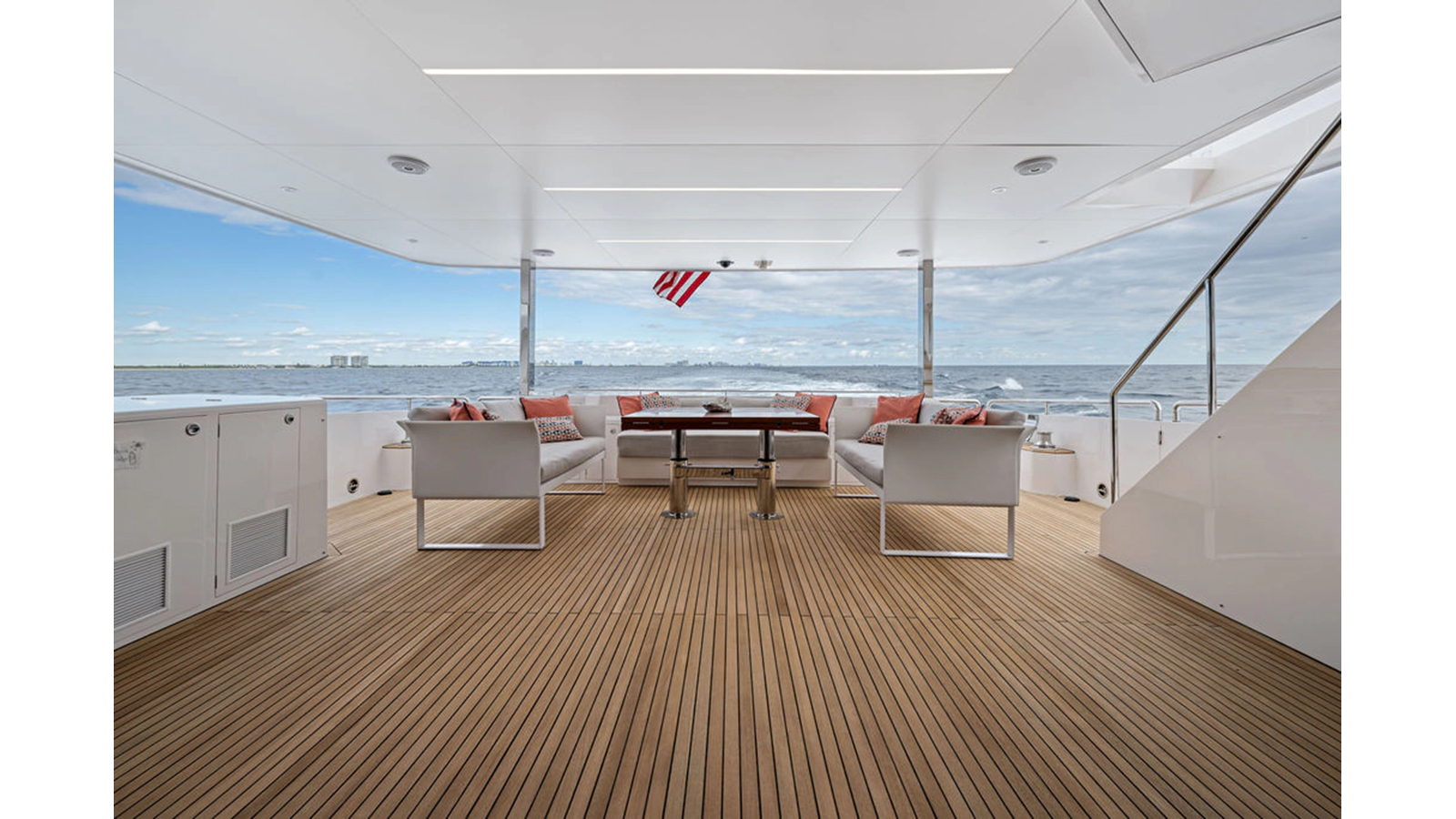

Cockpit
- Teak flooring on aft deck and steps
- Aft bulwark side boarding doors (2)
- Marquipt 7-step side boarding sea stairs

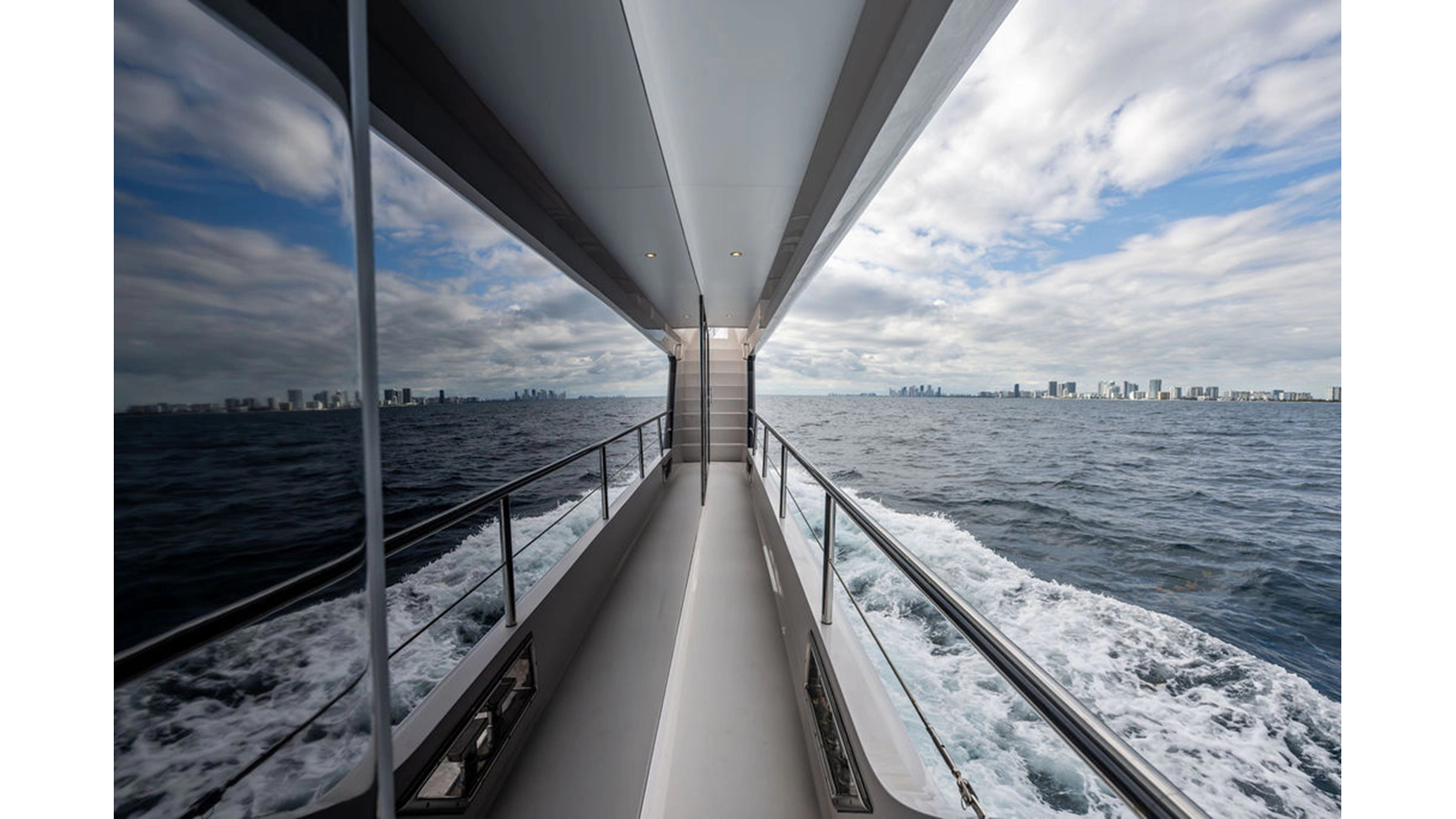

- Wind doors on each side of aft deck, to side walkways
- Upgraded and strengthened cleats for towing

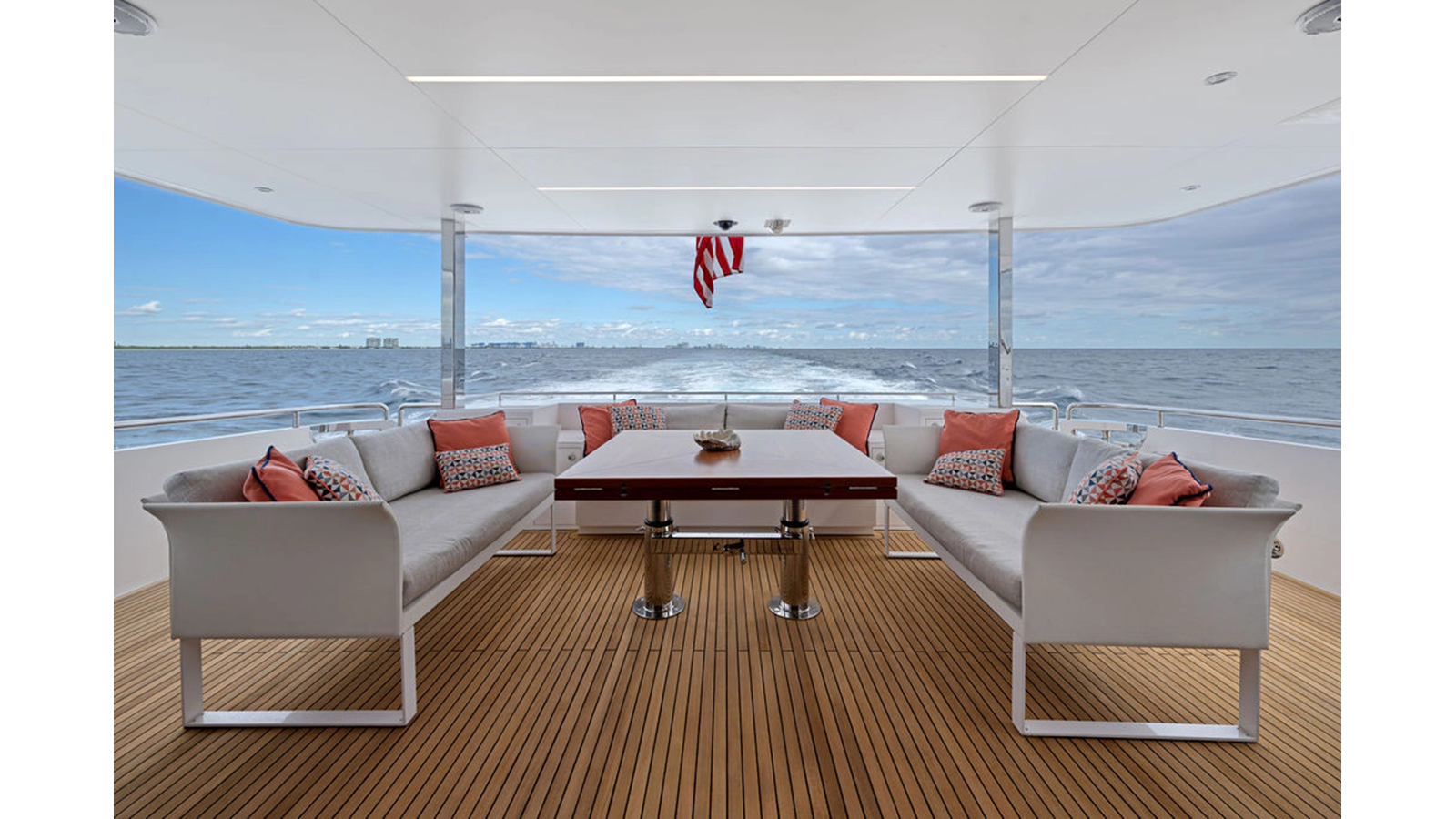

- Custom aft deck seating (four sofas) and a hi/lo table
- To starboard, a mini bar w/ sink, fridge and ice maker
- Electric folding TV cabinet w/ a Samsung 43” QLED 4K TV
- Marine stereo system w/ speakers
- SS sliding door to enter the main salon (self locking)

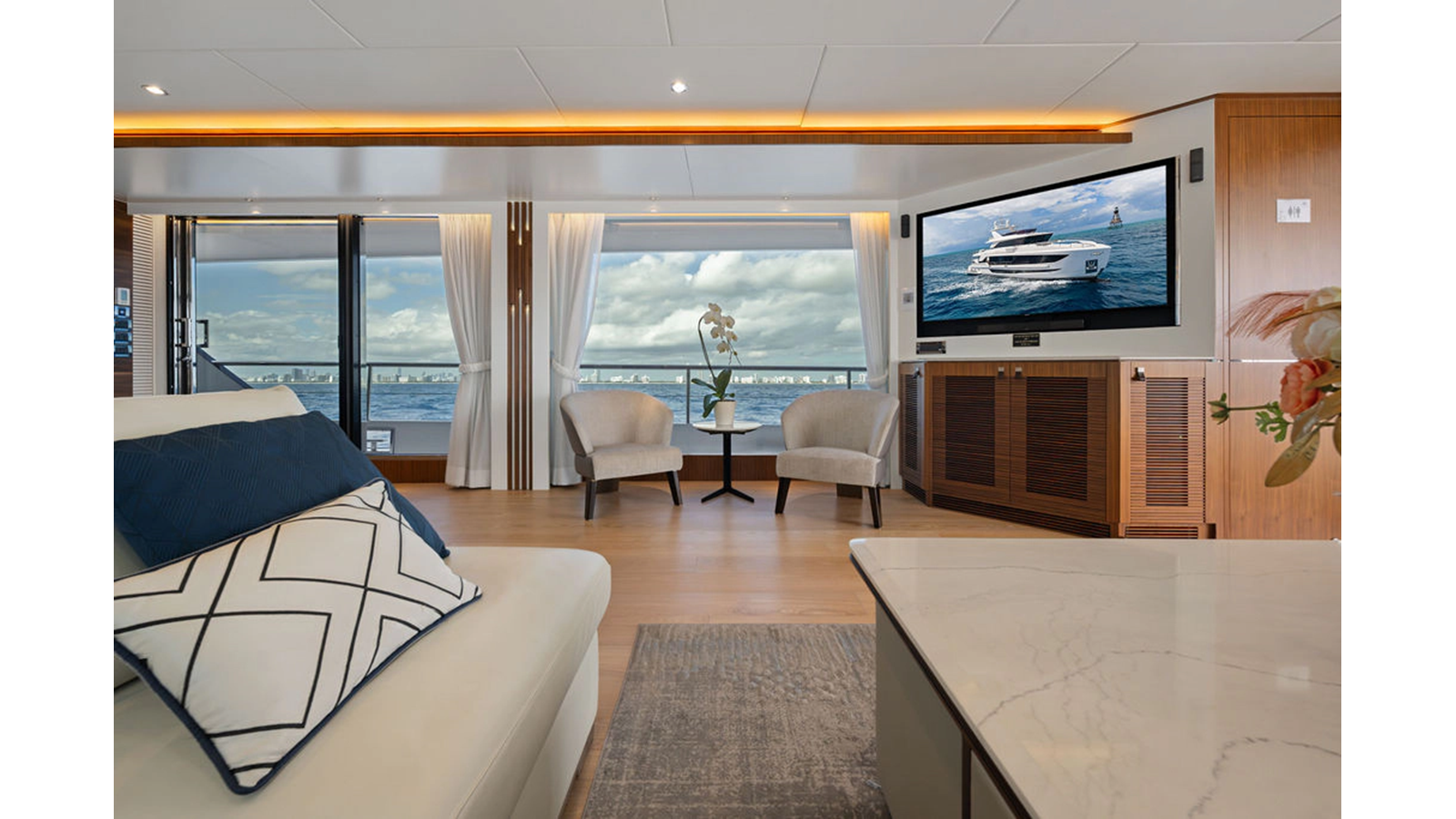

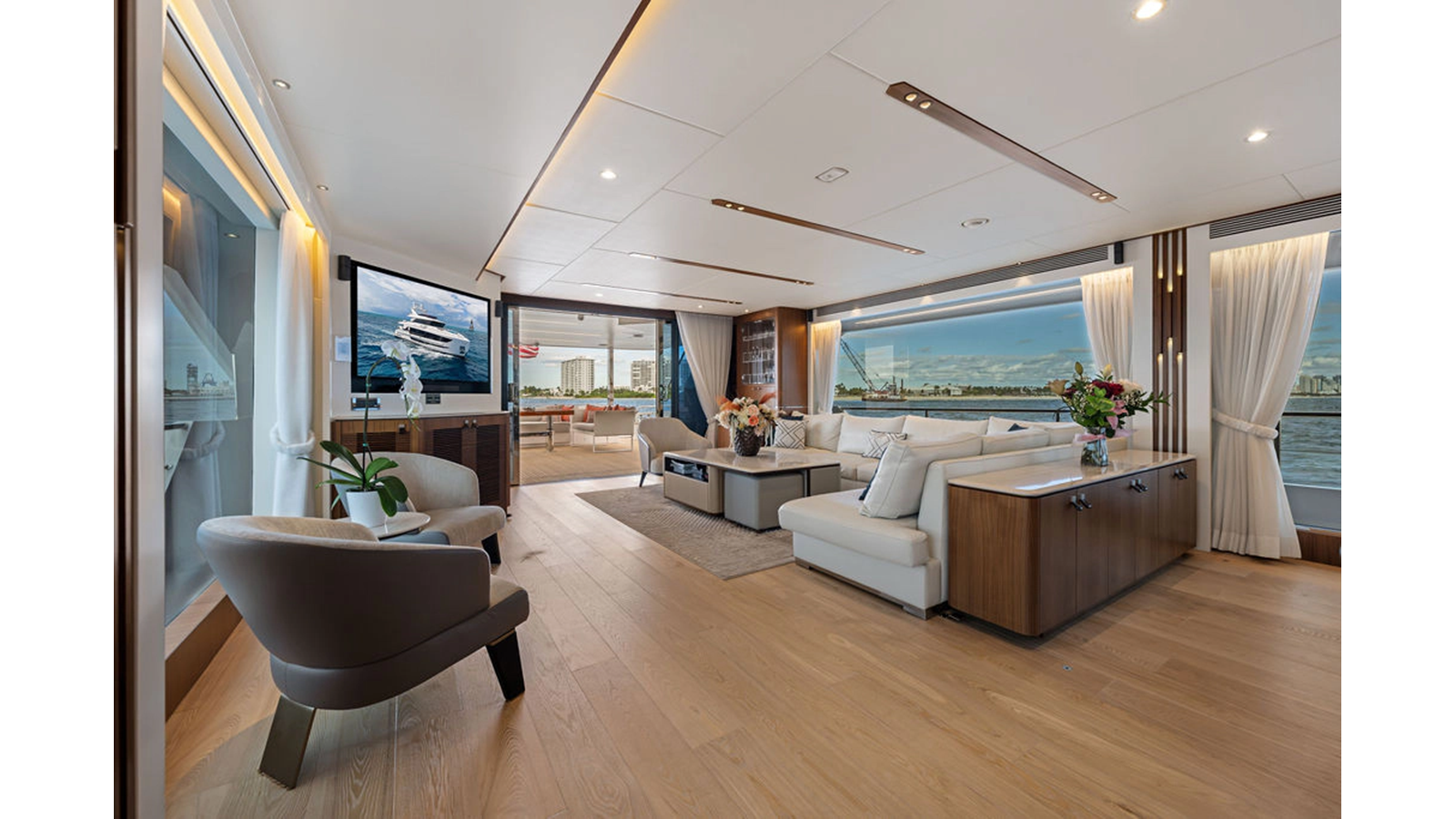

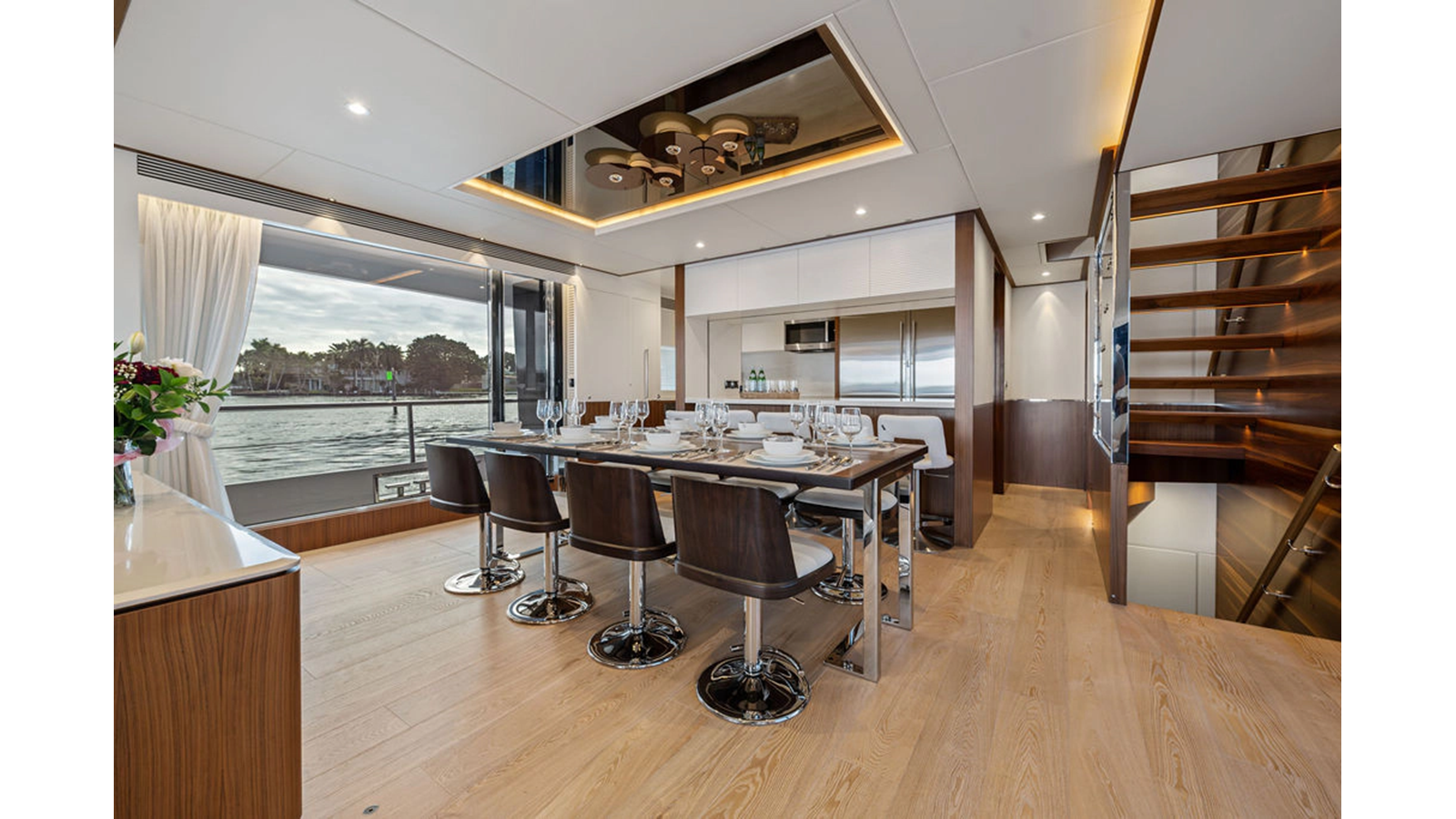

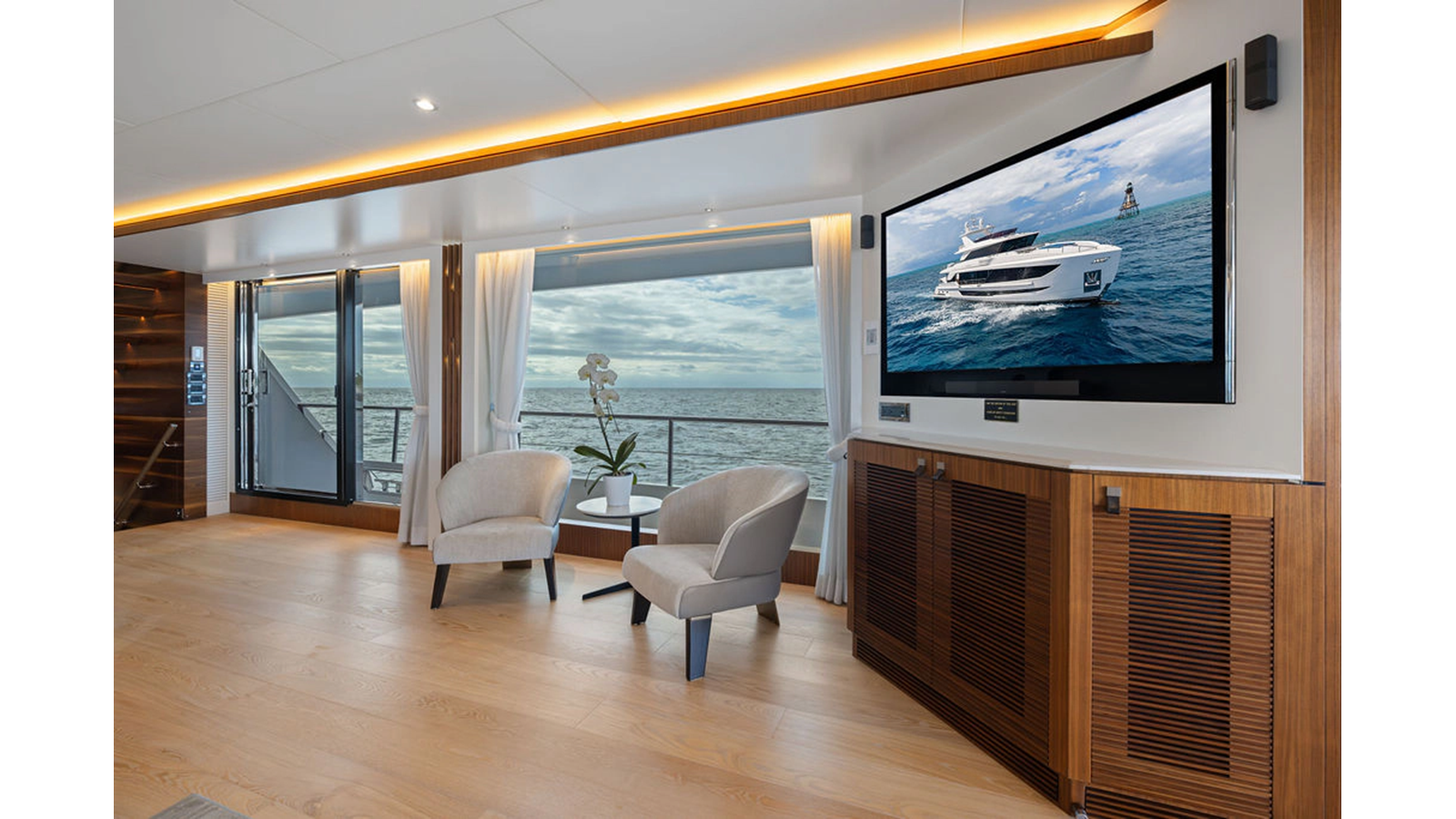

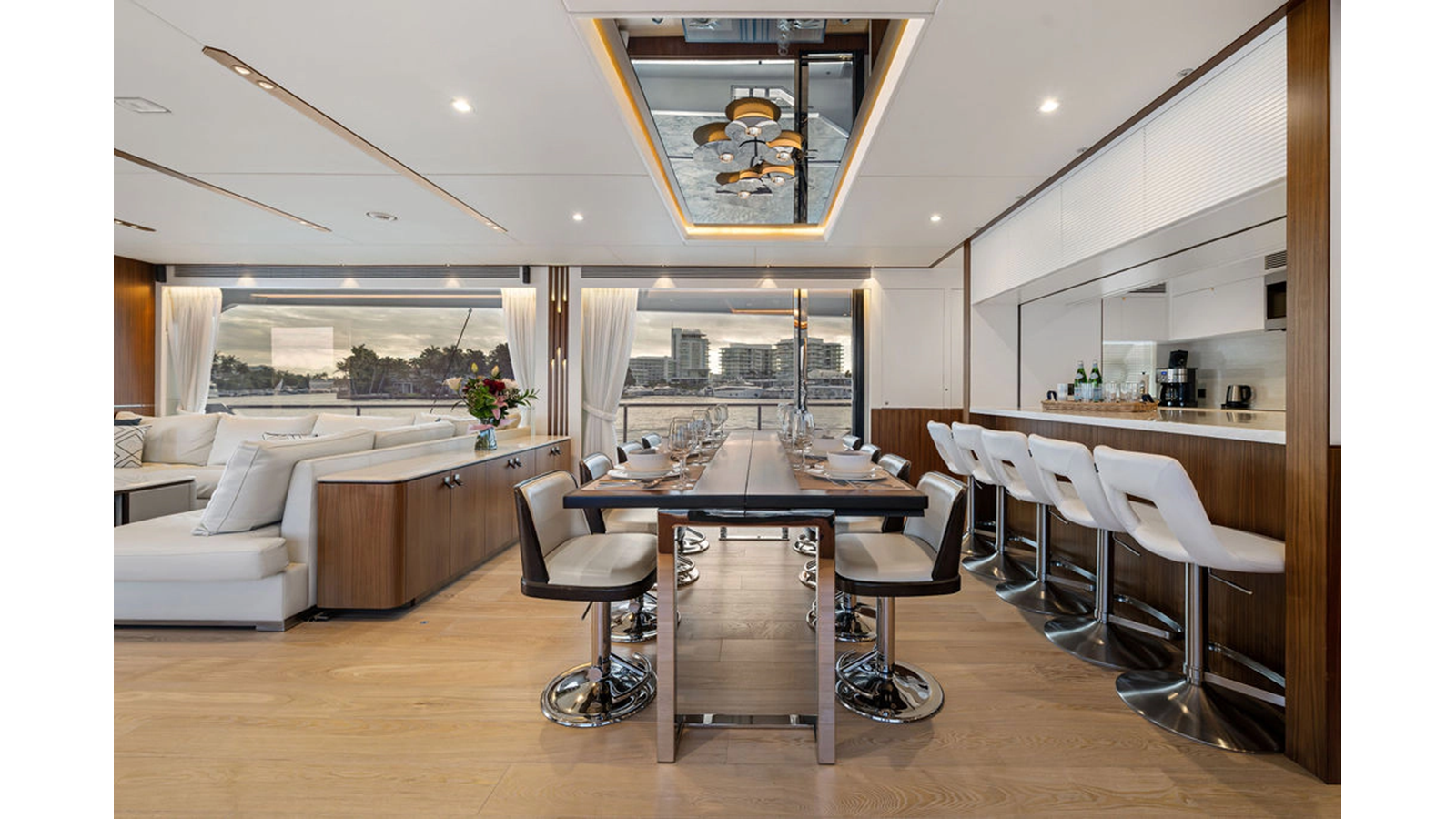

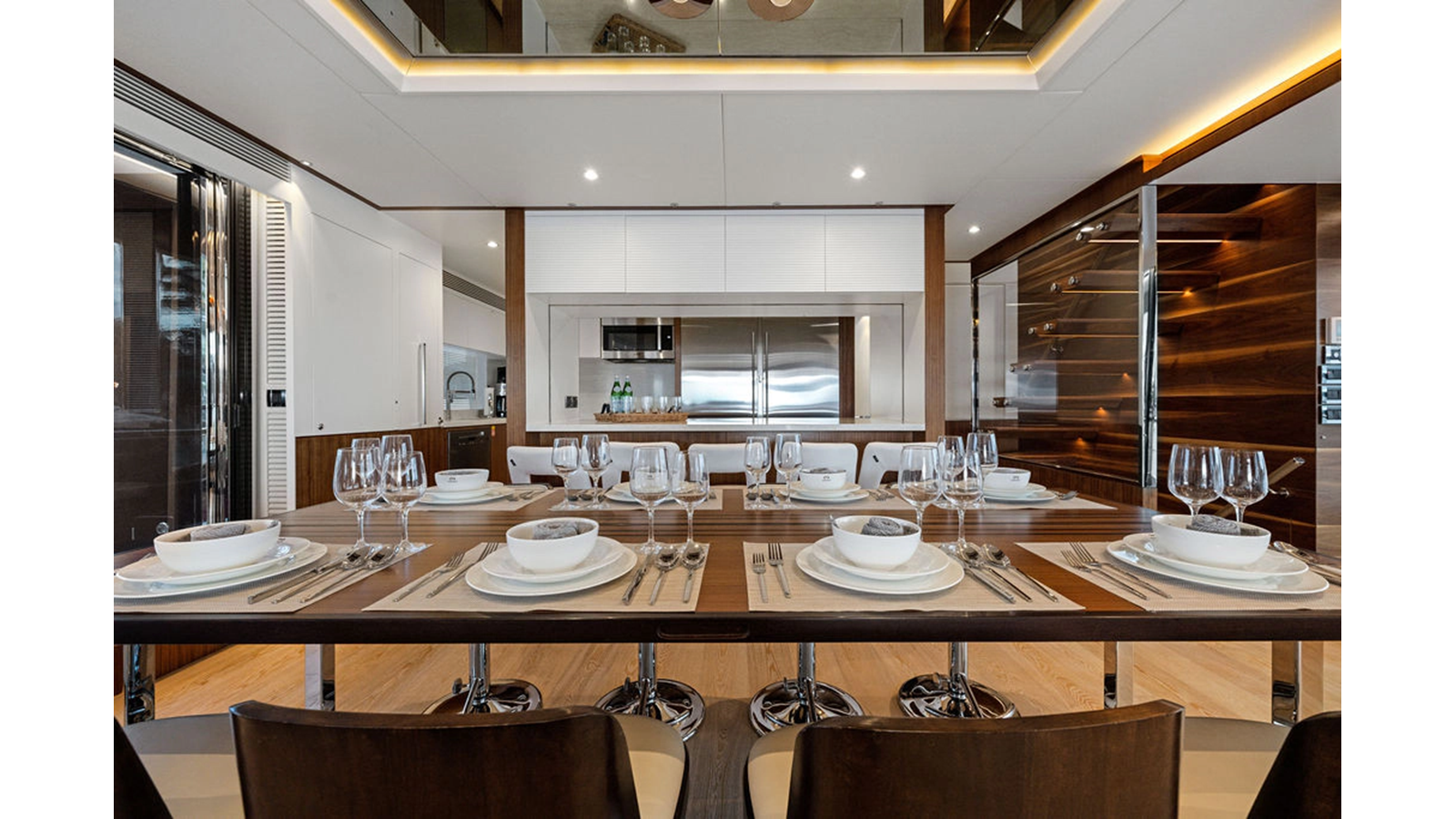

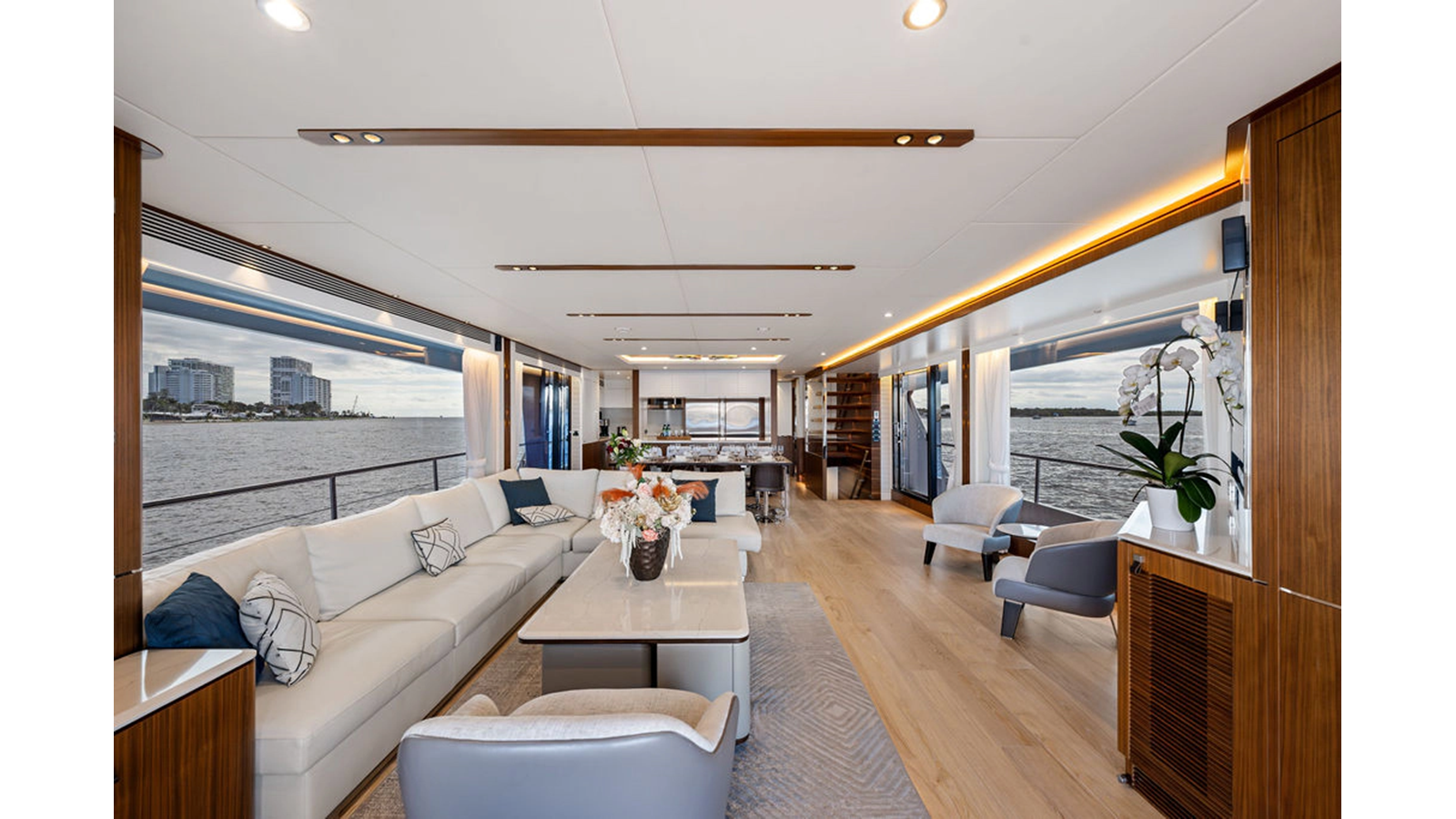

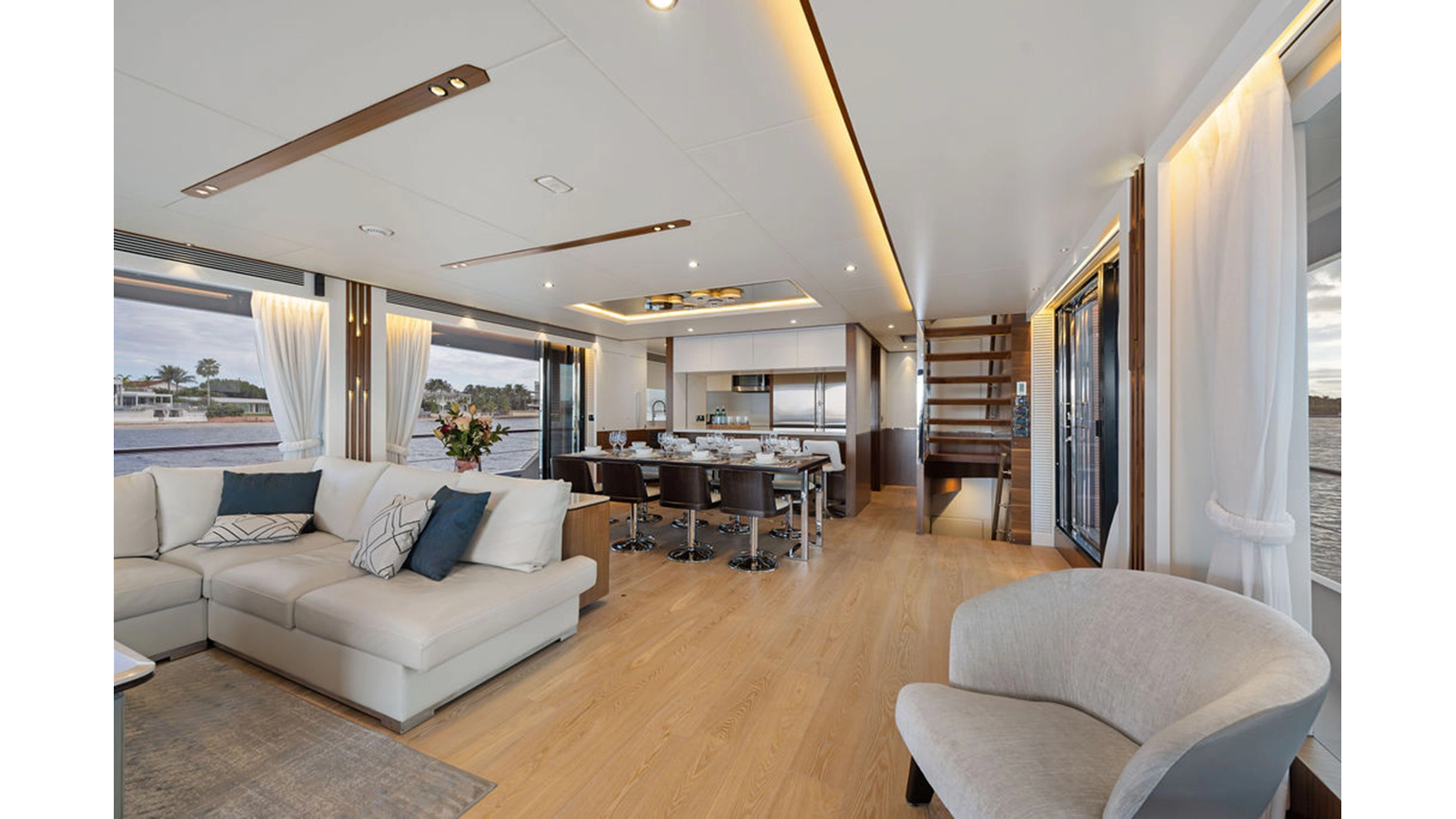

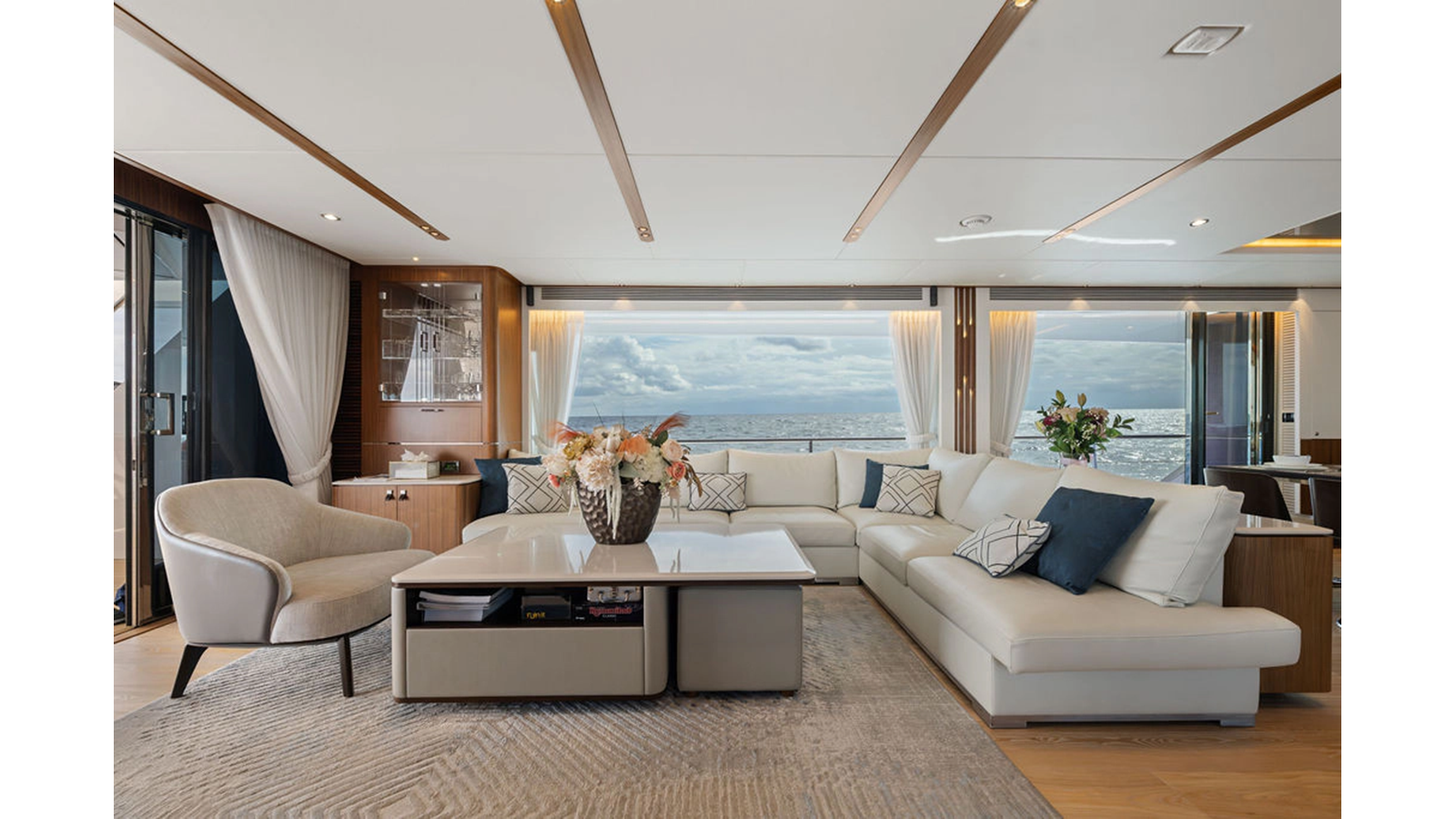

Salon/Dining
- Day head to starboard, aft
- Crystal cabinet, Leather L-shaped sofa, coffee table and chair to port
- Two chairs and a small coffee table to starboard
- Custom Area Rug
- Free standing custom storage cabinet separating salon and dining

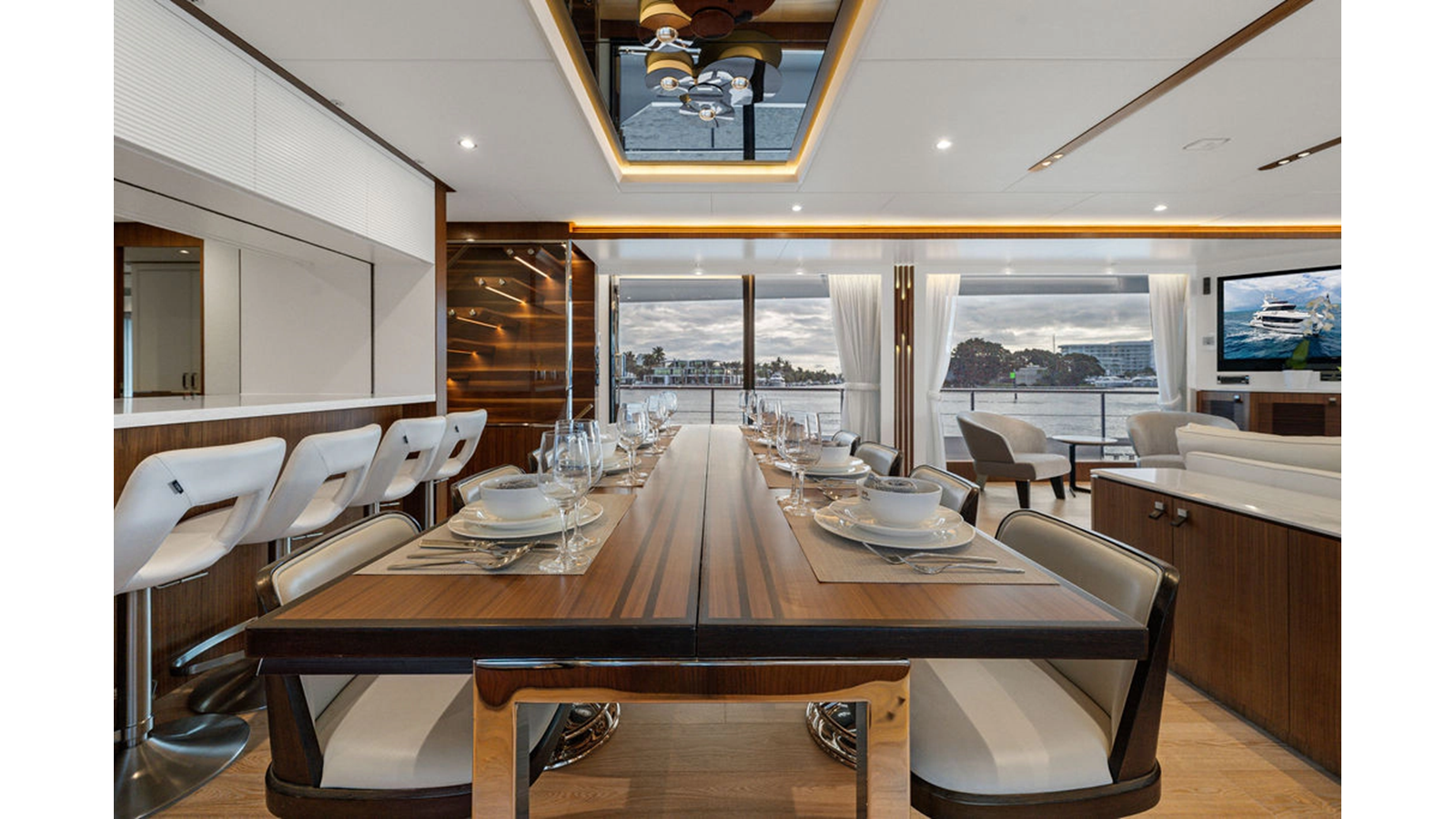

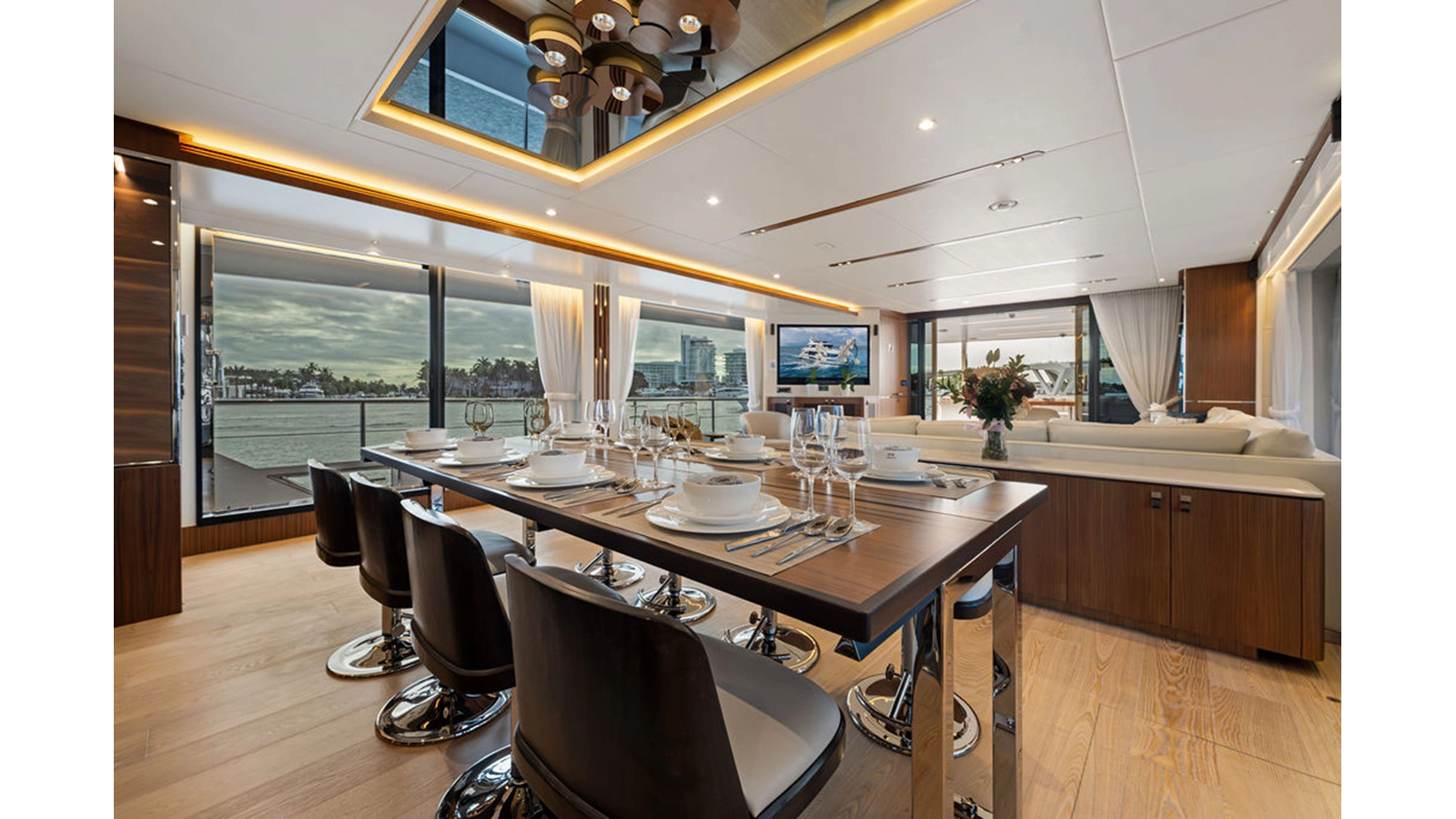

- Custom convertible dining table and eight hi/lo chairs
- Electric single treatment curtains
- Hinged door to port and sliding door to starboard (exterior access)
- 55” QLED 4K TV
- Bose surround sound with Blue-ray player and Apple TV

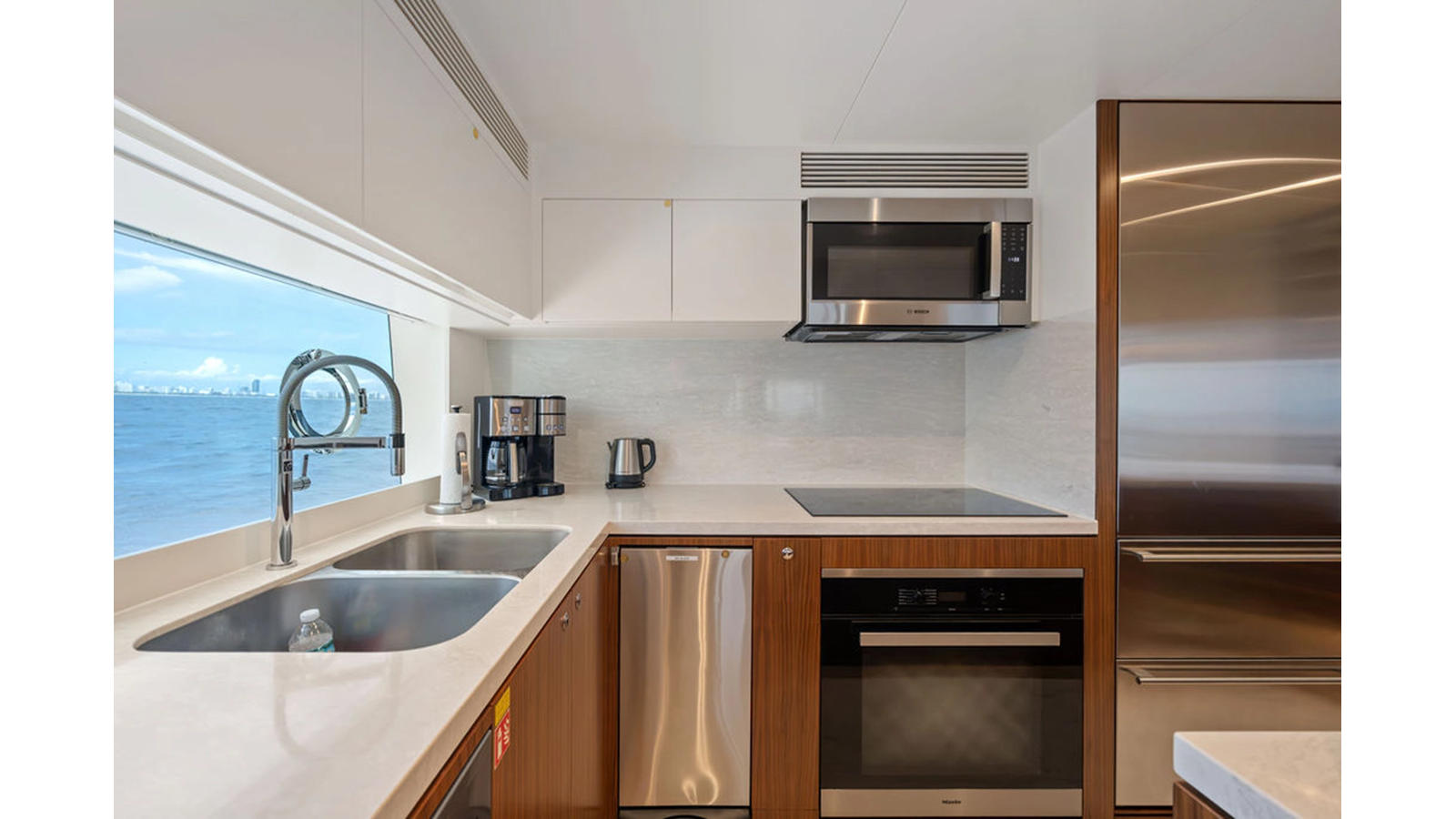

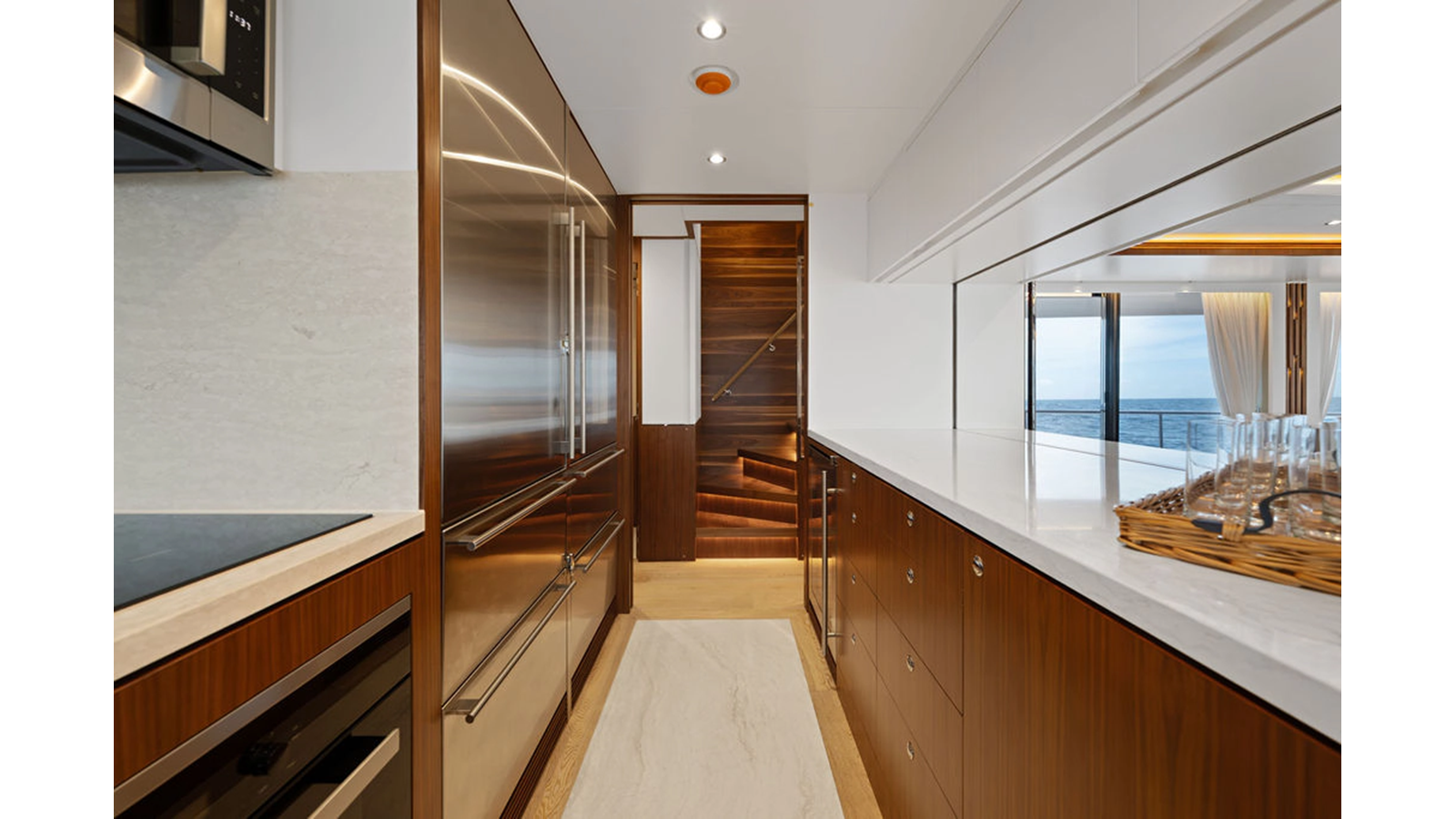

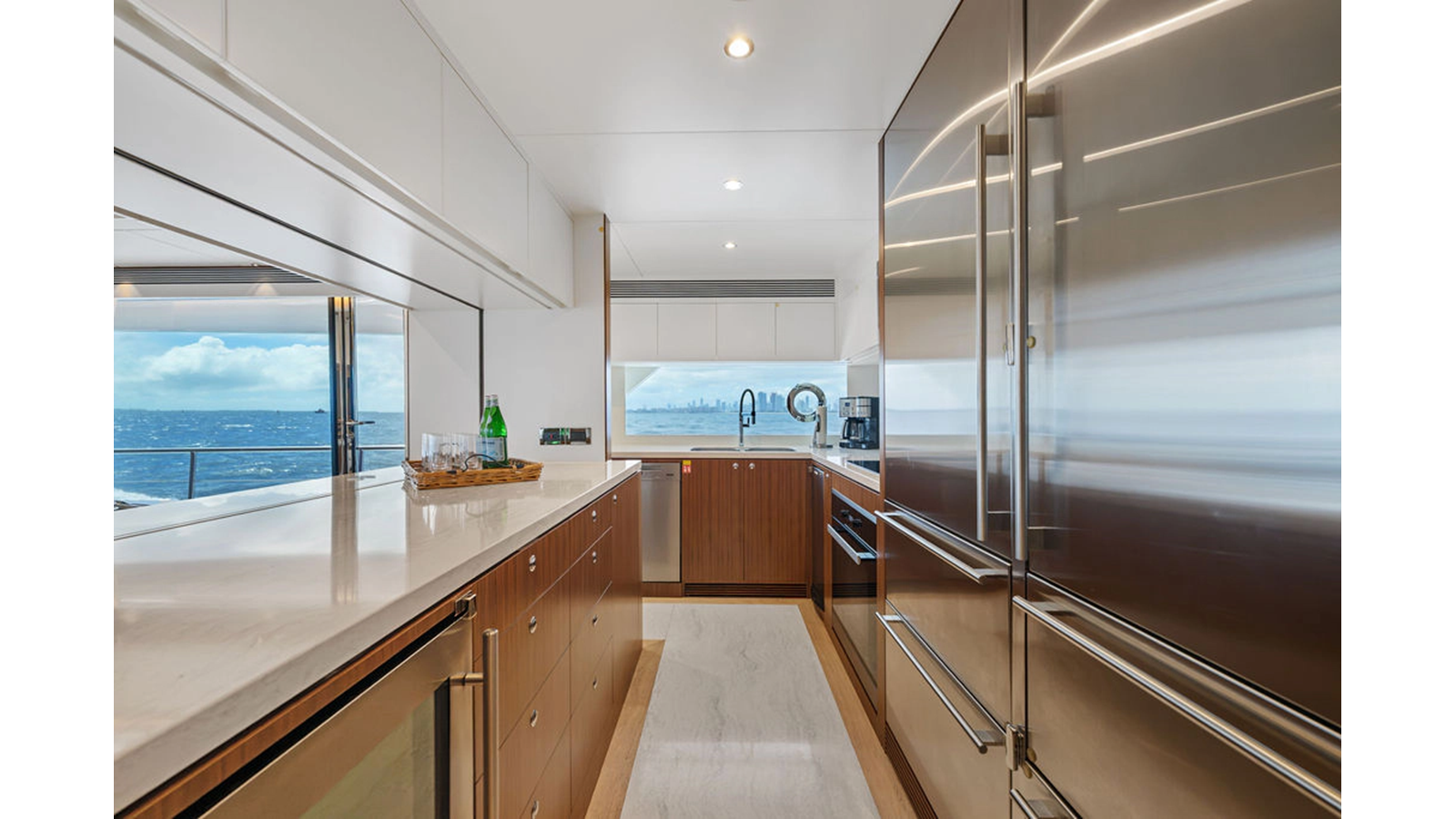

Galley
- Cambria quartz countertops and flooring
- Full height SubZero fridge and freezer w/ icemaker & SS paneling
- Miele oven and dishwasher
- Miele cooktop (three burner induction/two burner electric)
- Bosch over-the-range microwave
- GE trash compactor
- SS double sink w/ InSinkErator disposal

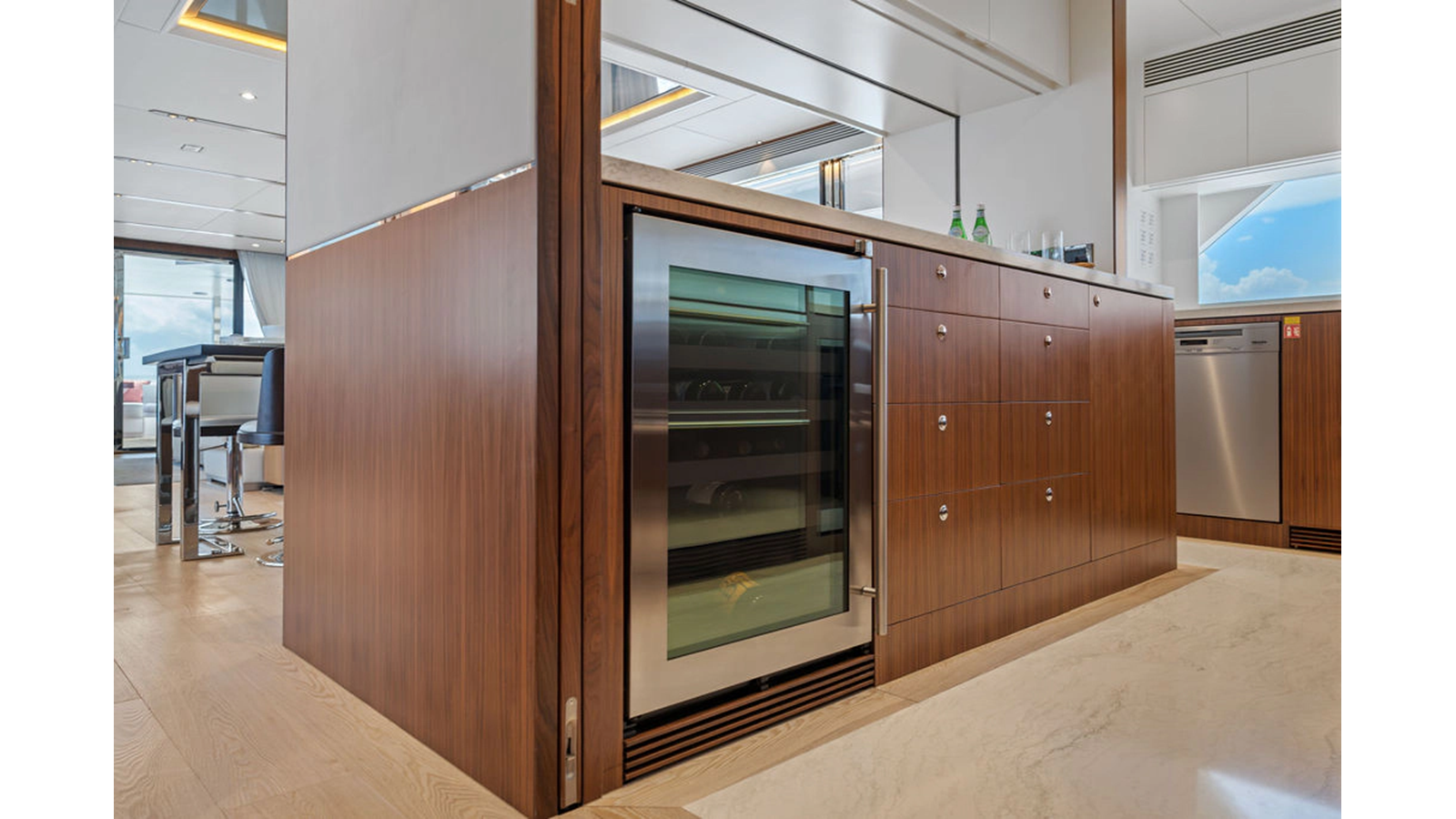

- U-Line wine cooler
- Full height pantry & storage
- Hi/lo screen & privacy doors to enclose galley

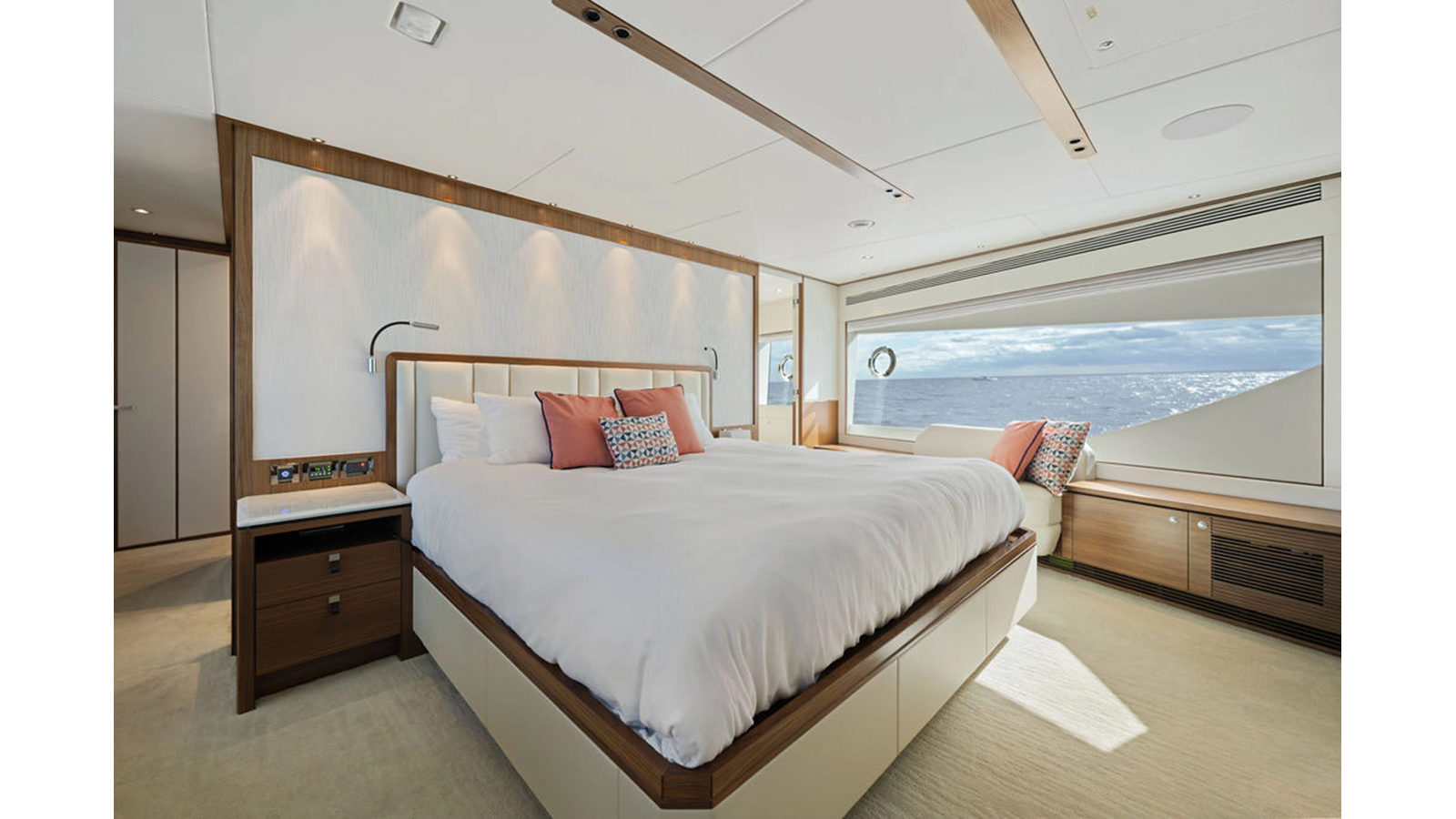

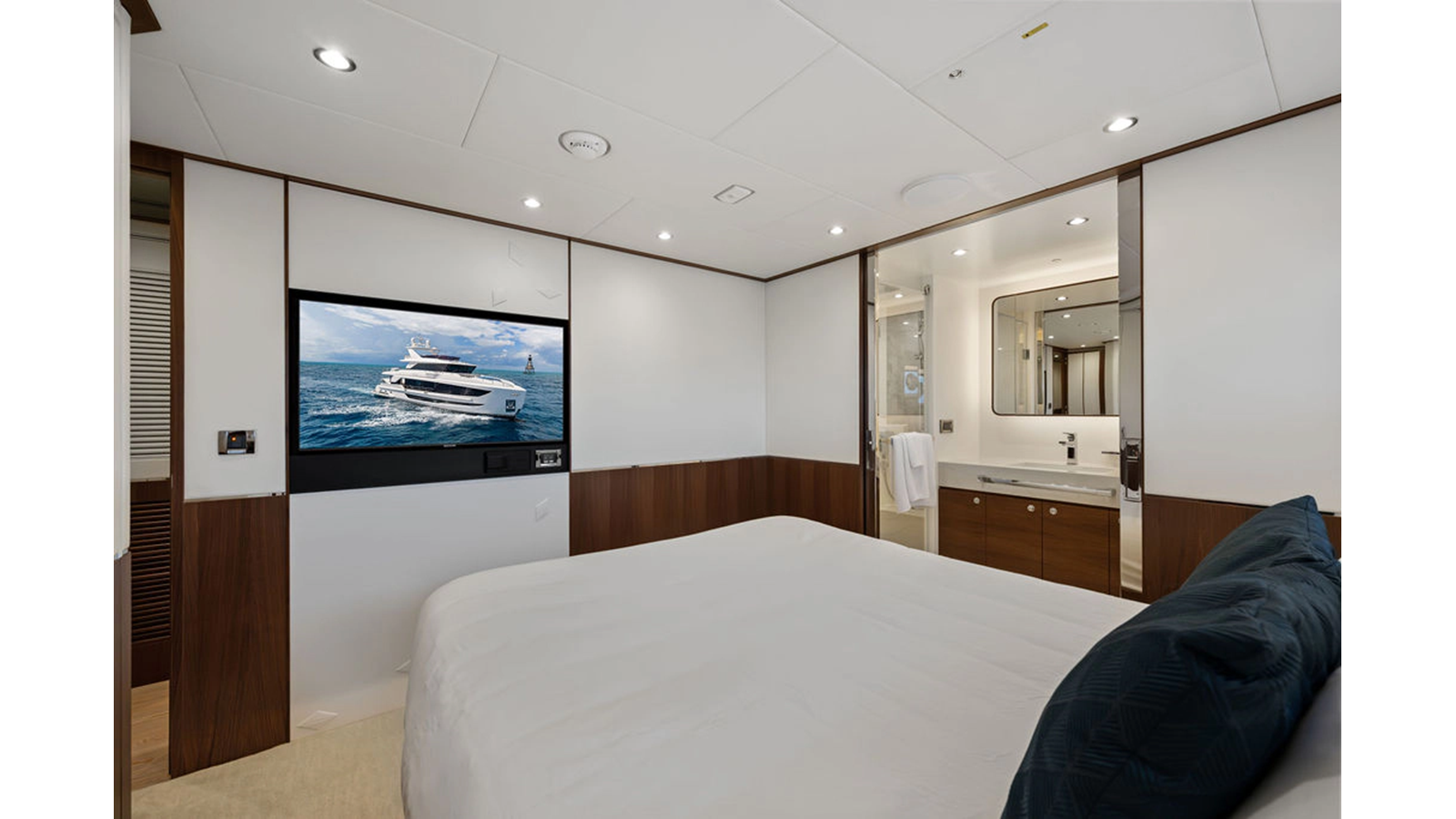

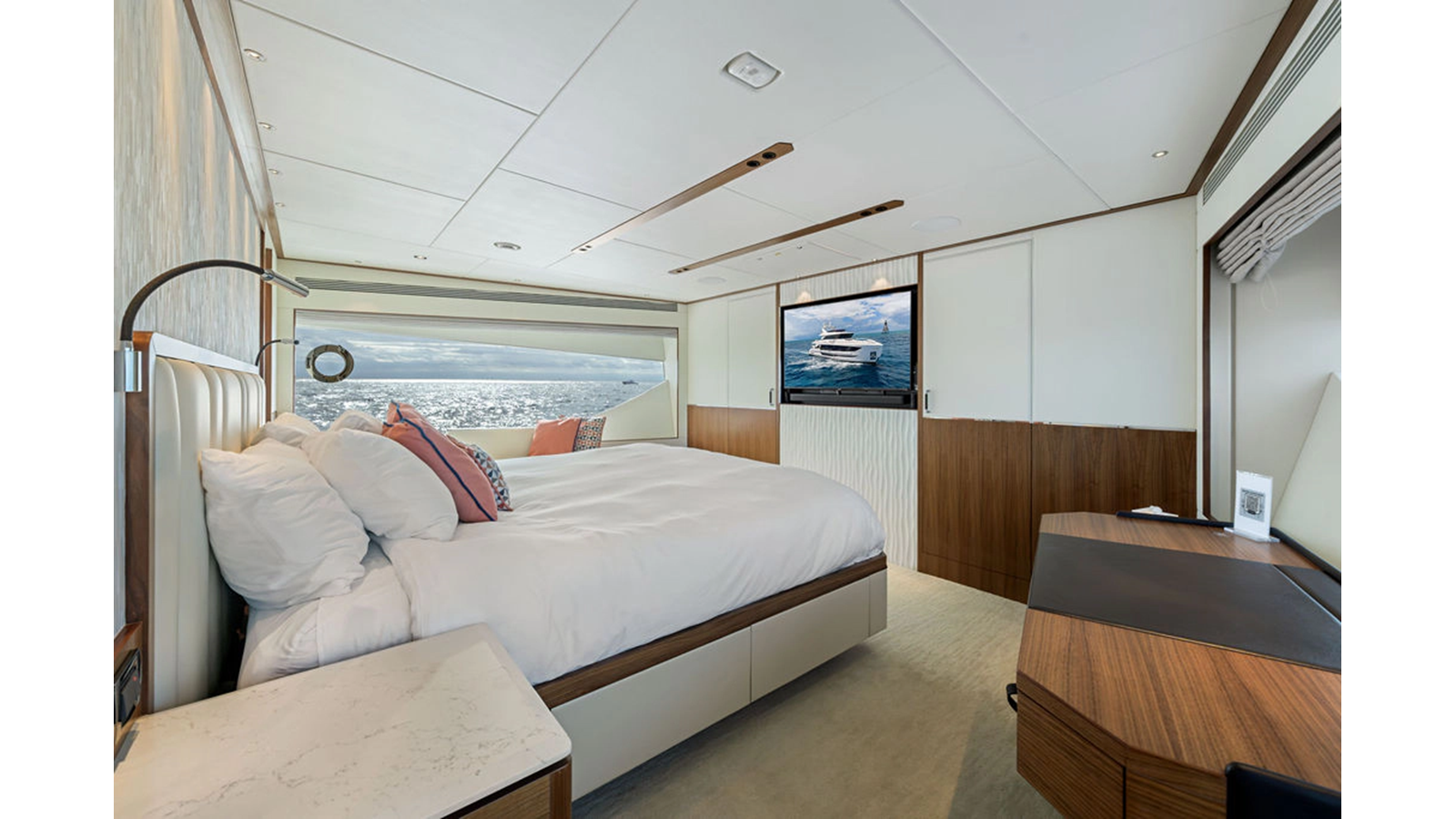

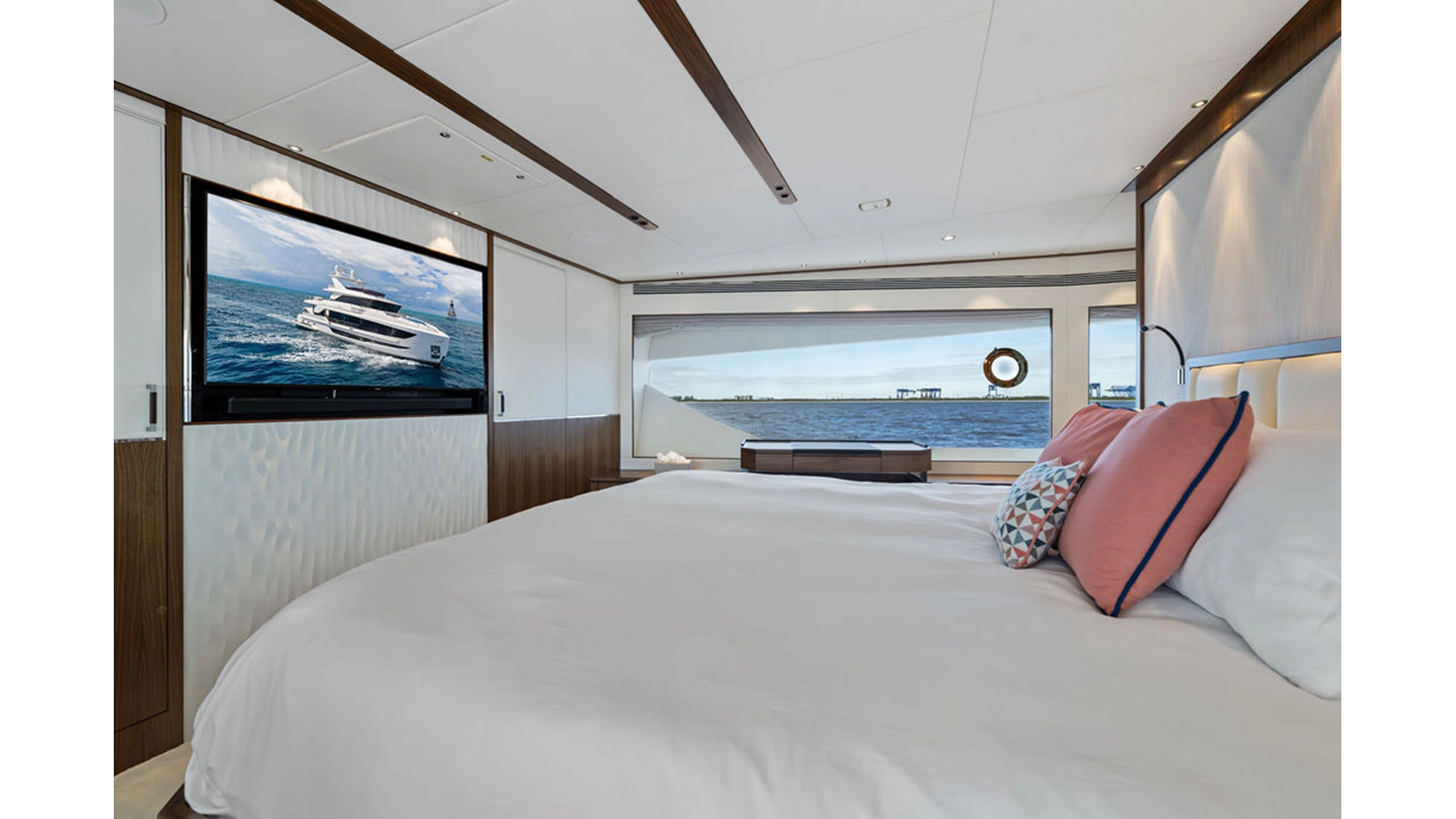

Master Stateroom
- King bed with night stands, including storage drawers

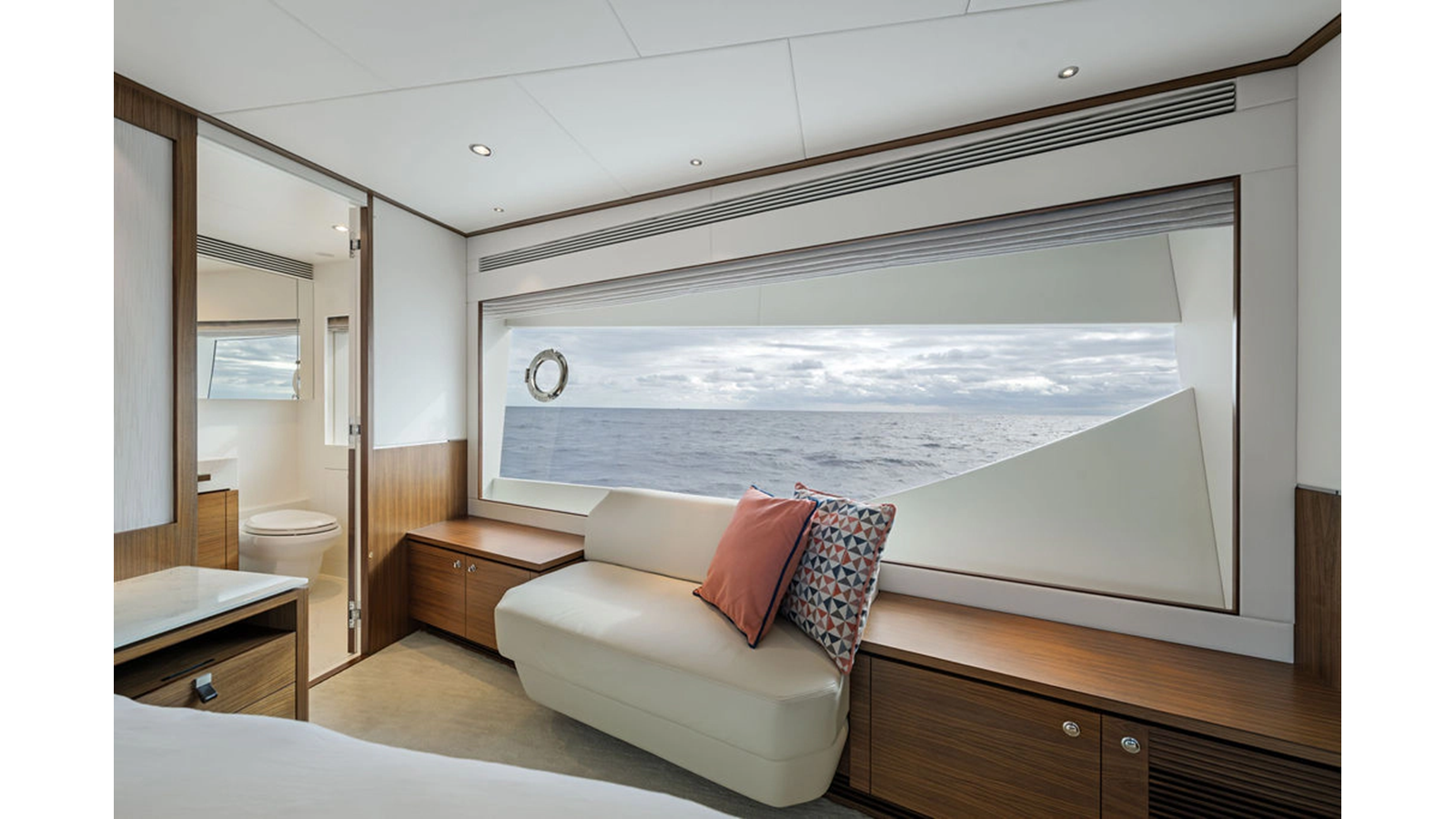

- Port side love seat

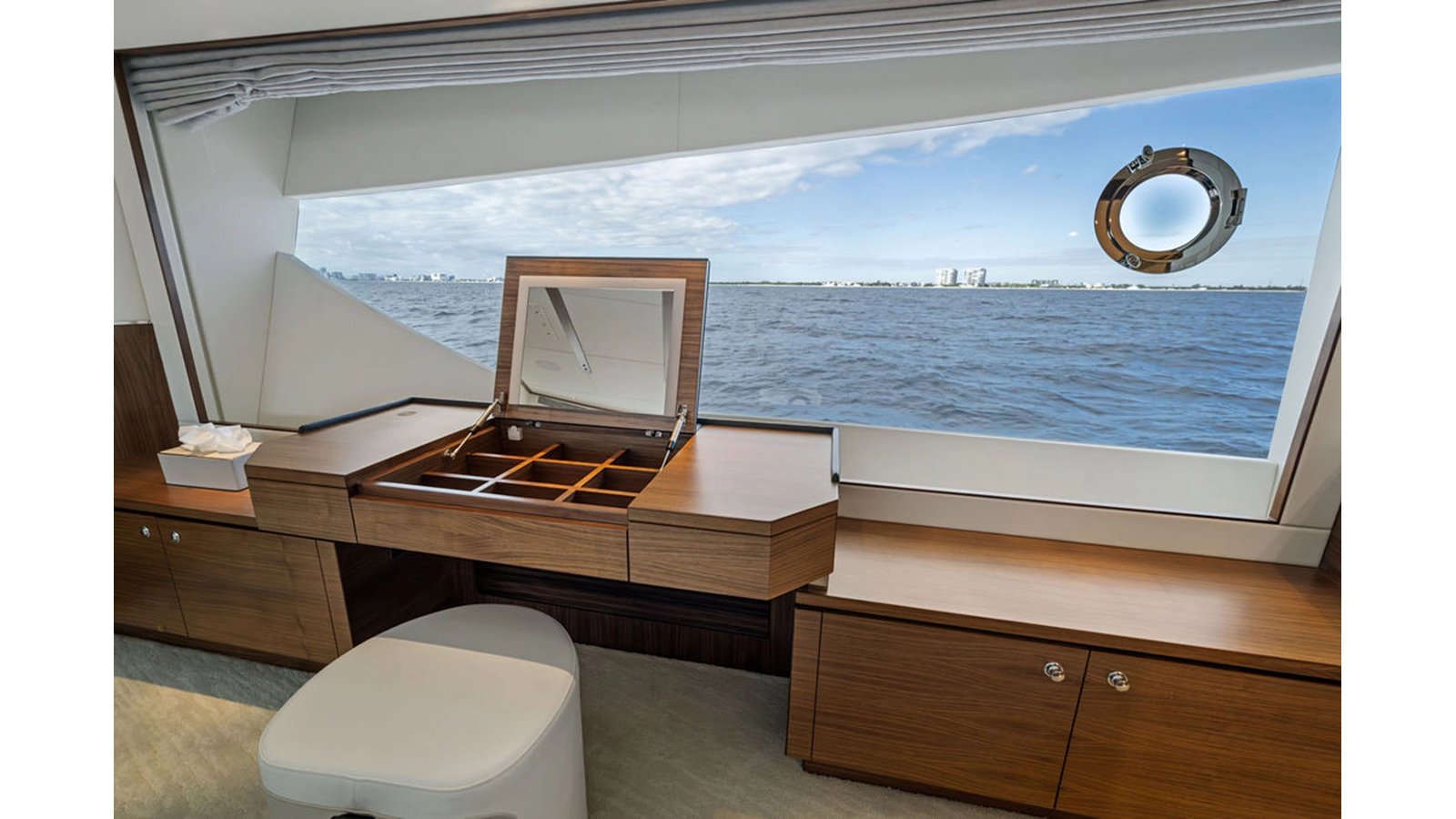

- Starboard side vanity and desk
- Ensuite, his & hers, with sink/vanity and toilet (each side)

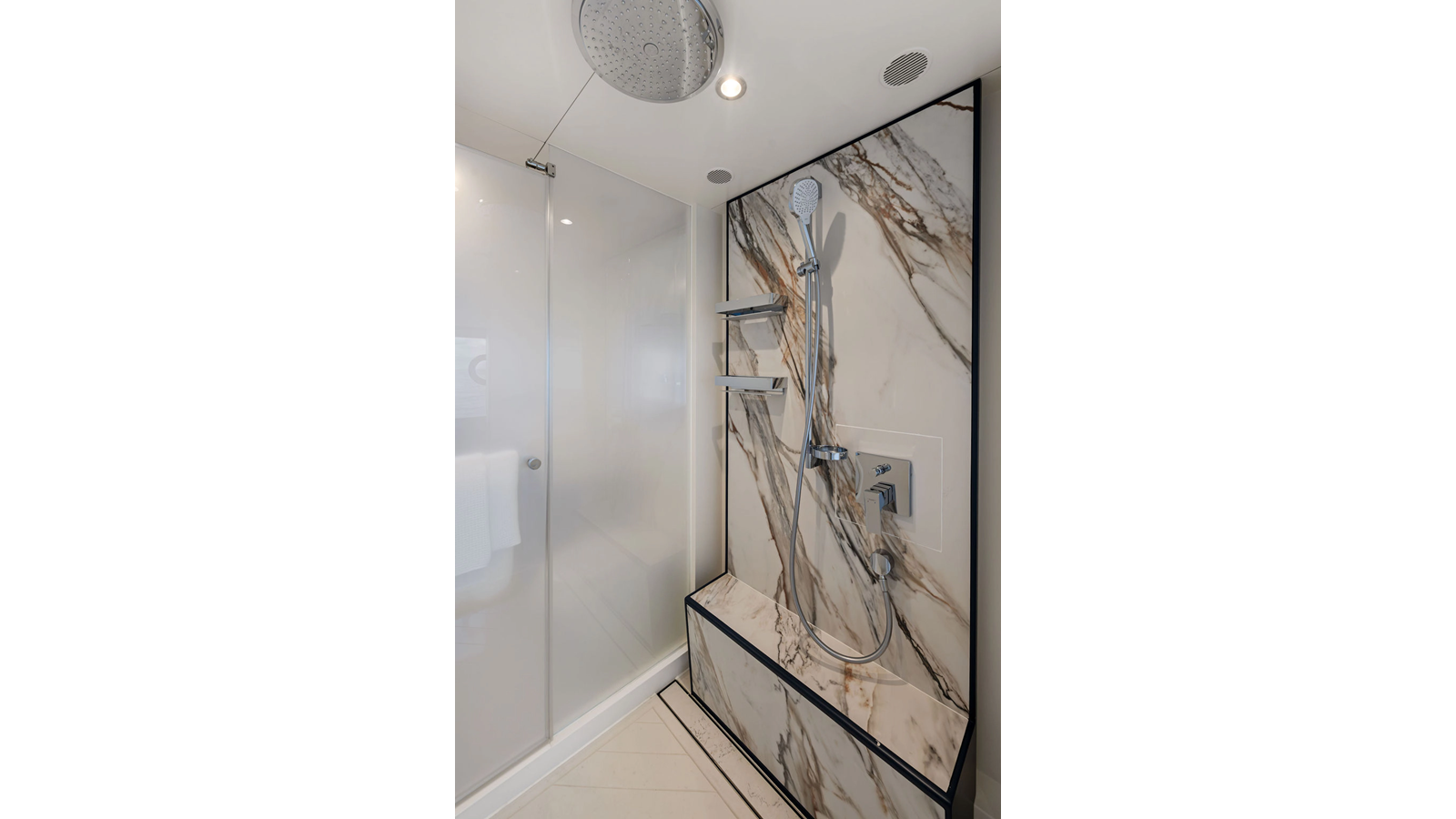

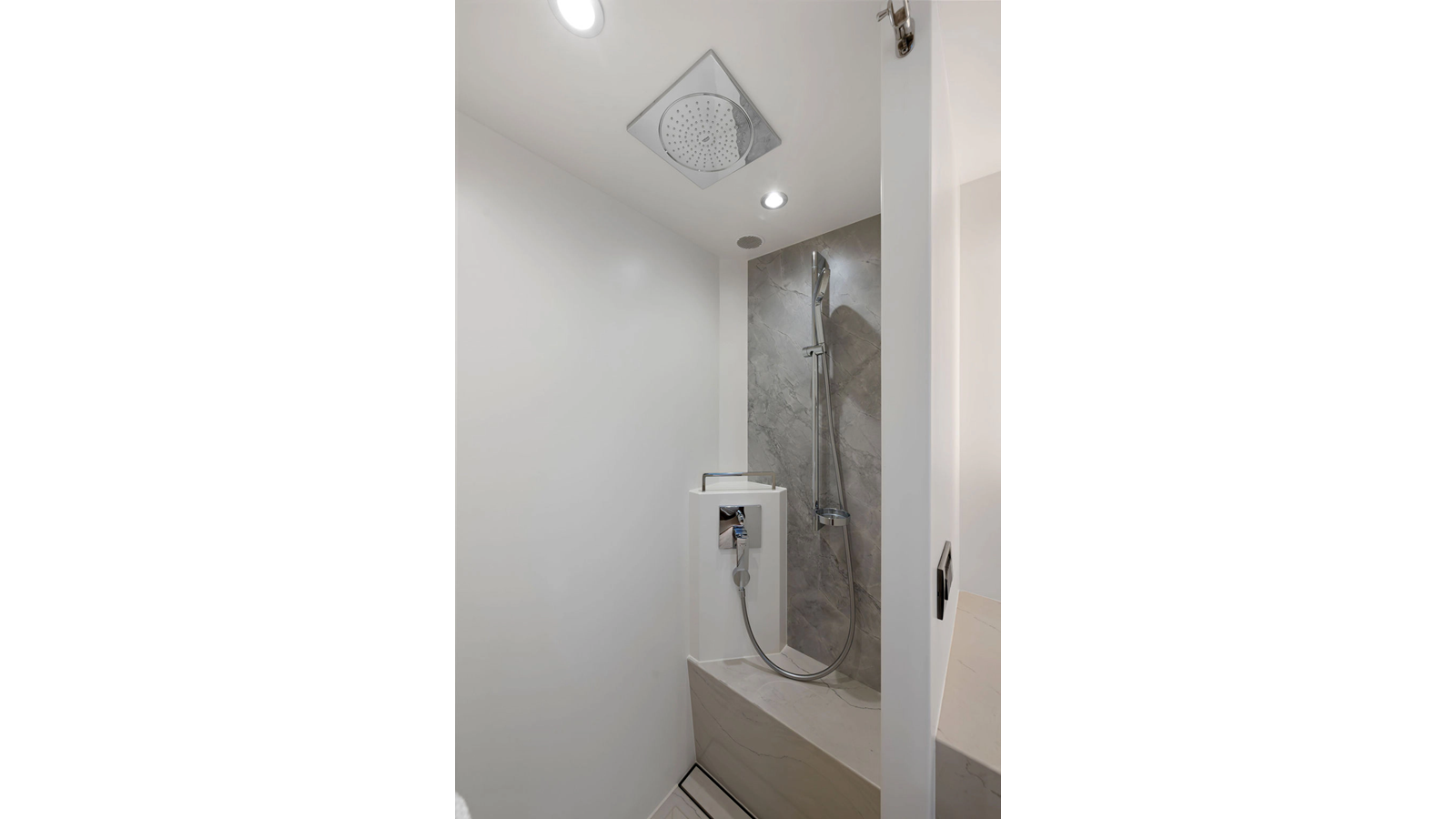

- Center shower w/ rain showerhead
- Two hanging lockers (port & starboard)
- Electric Roman shades
- Three opening portholes
- Home theater system w/ 49” Samsung QLED 4K TV w/ Bose sound bar
- Blu-ray player and Apple TV

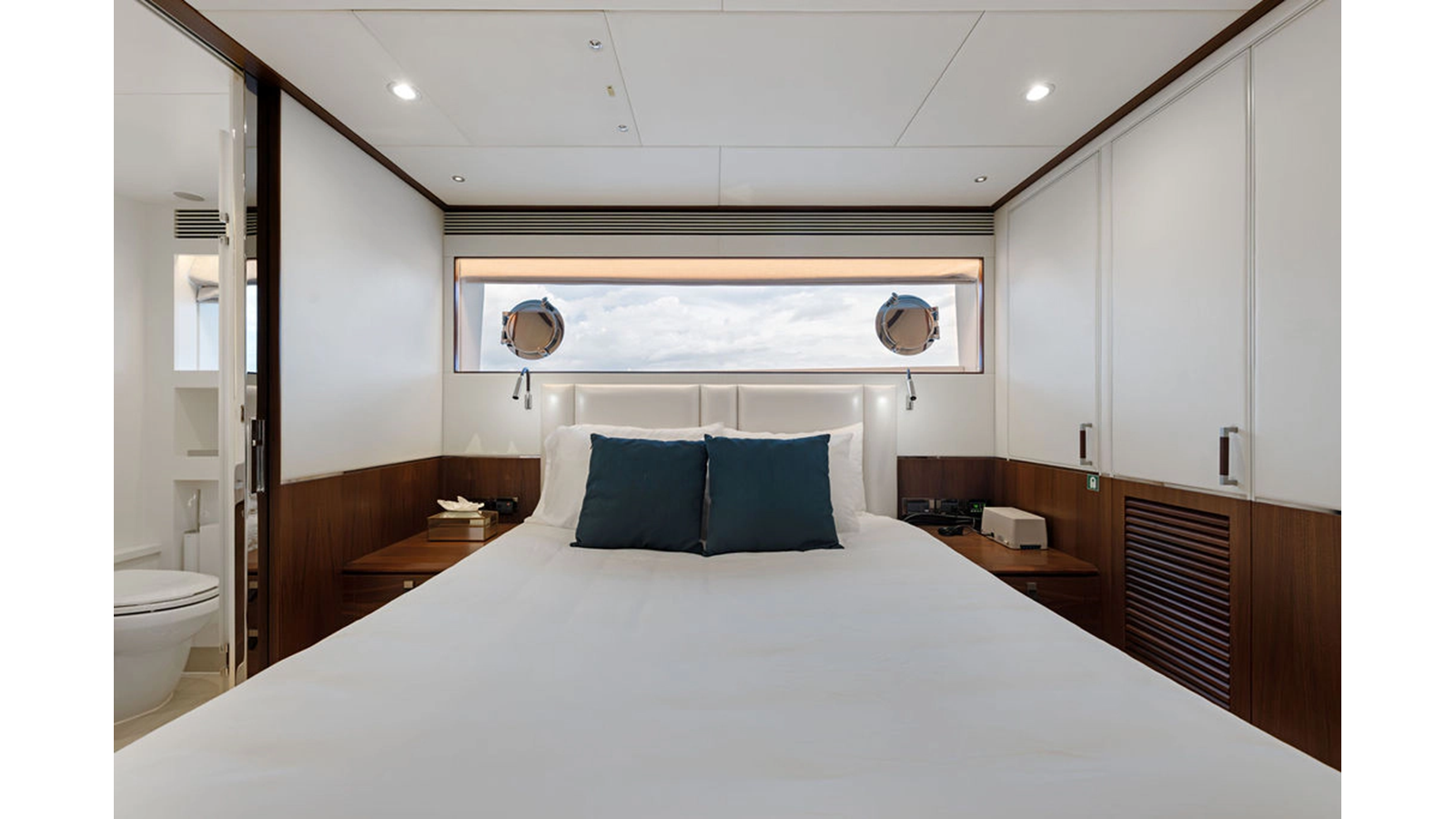

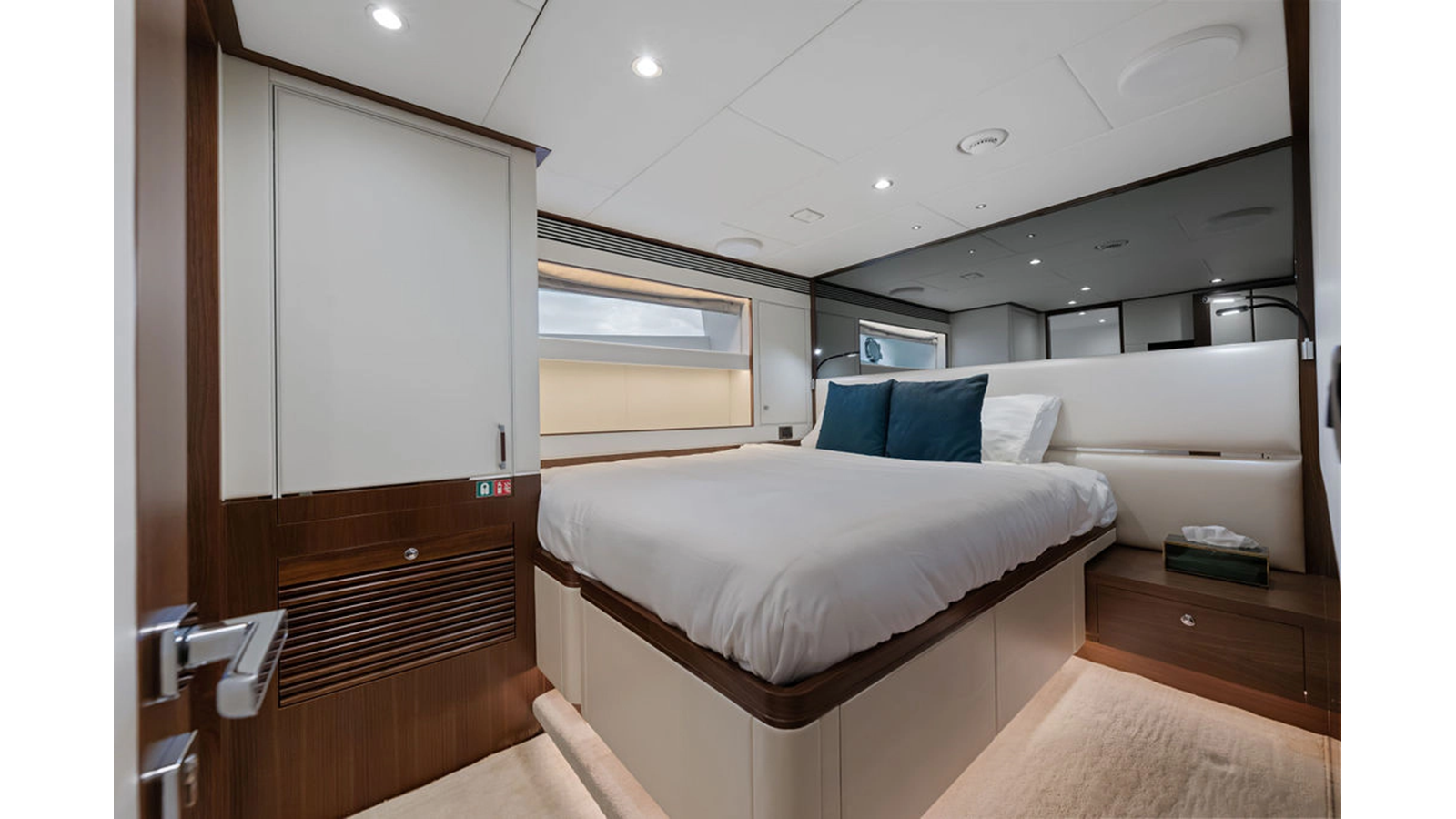

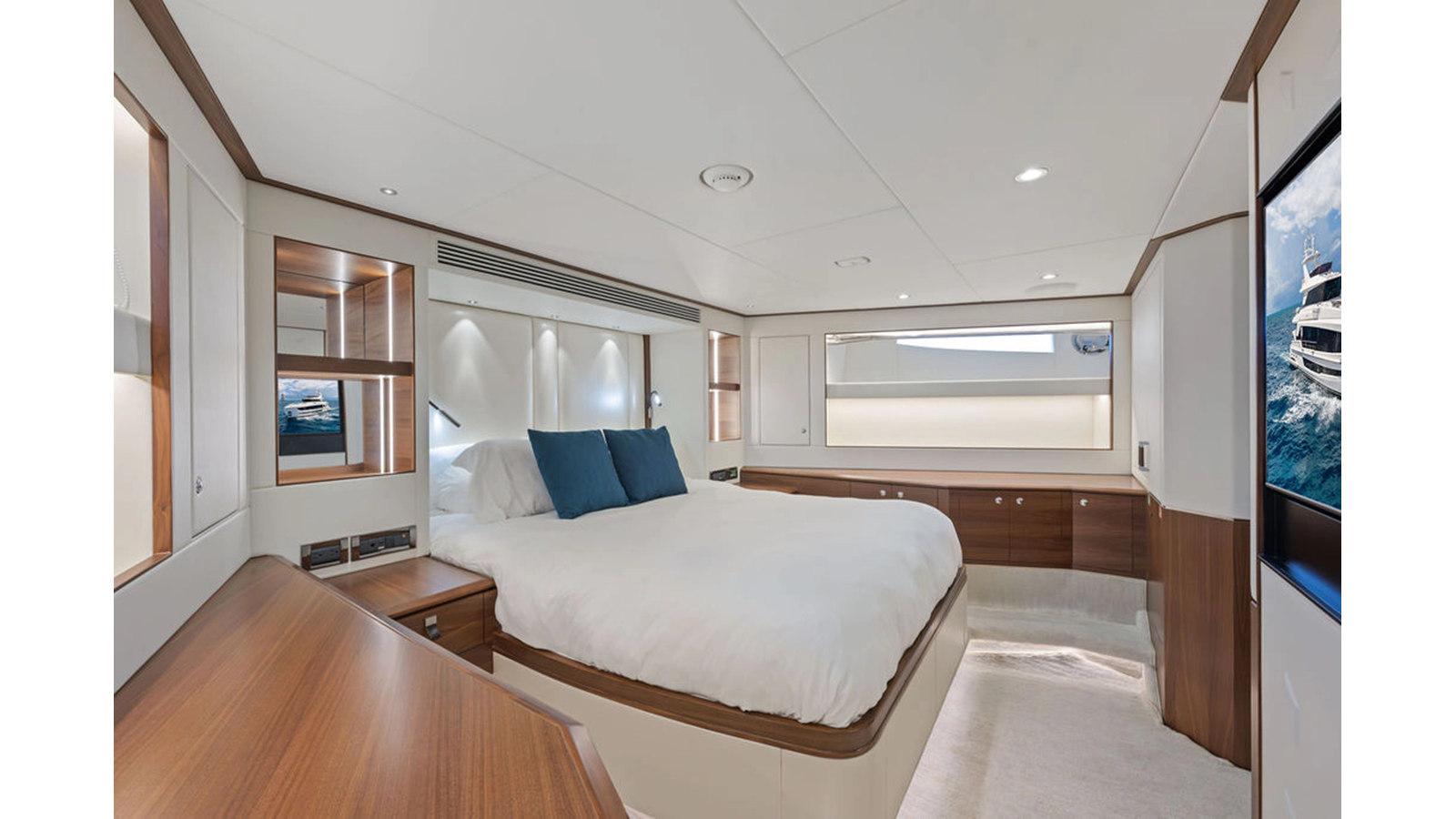

VIP Stateroom Forward
- Queen bed w/ nightstands, including storage drawers
- Storage cabinets, port and starboard
- Large hanging locker to starboard

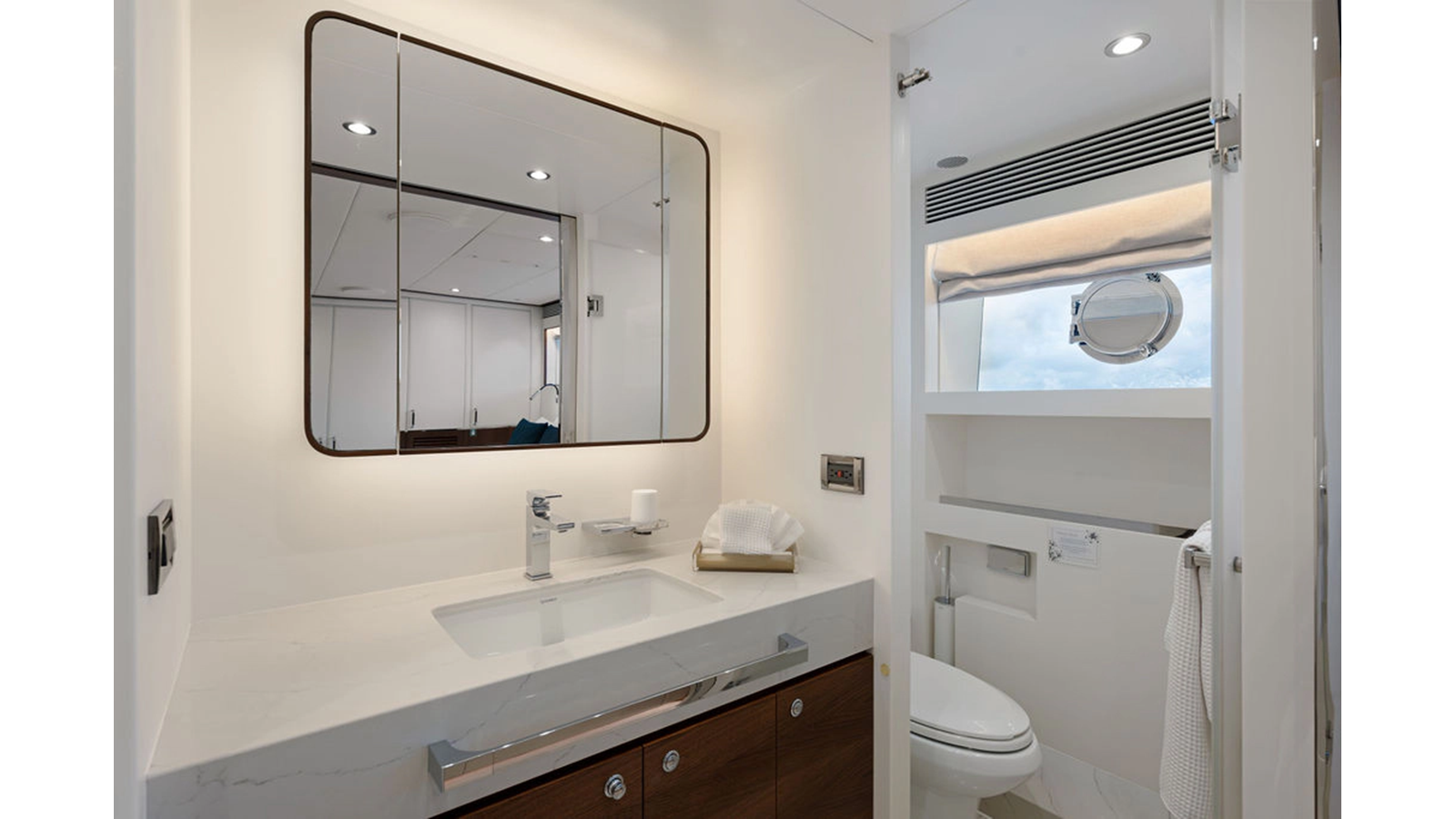

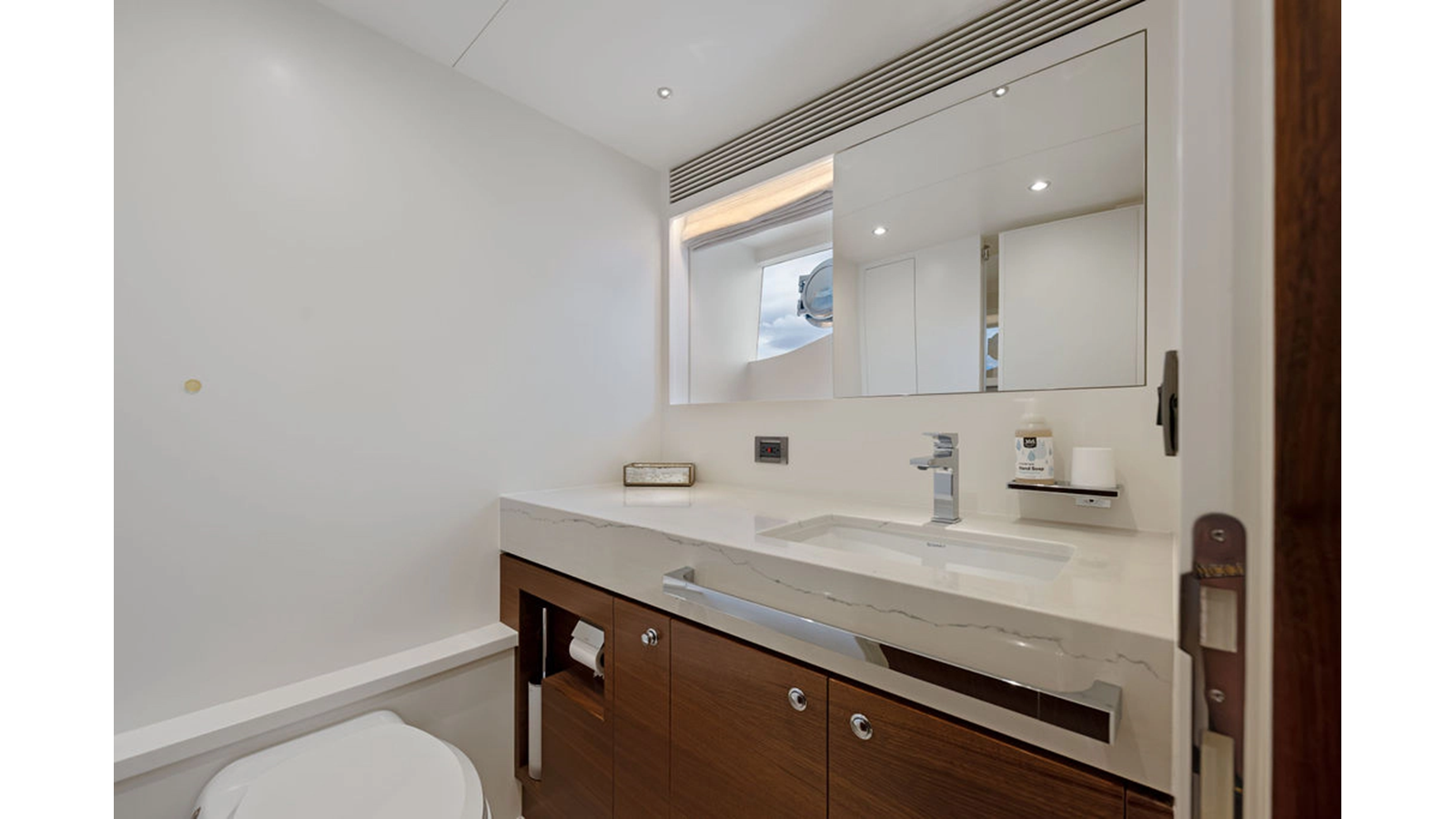

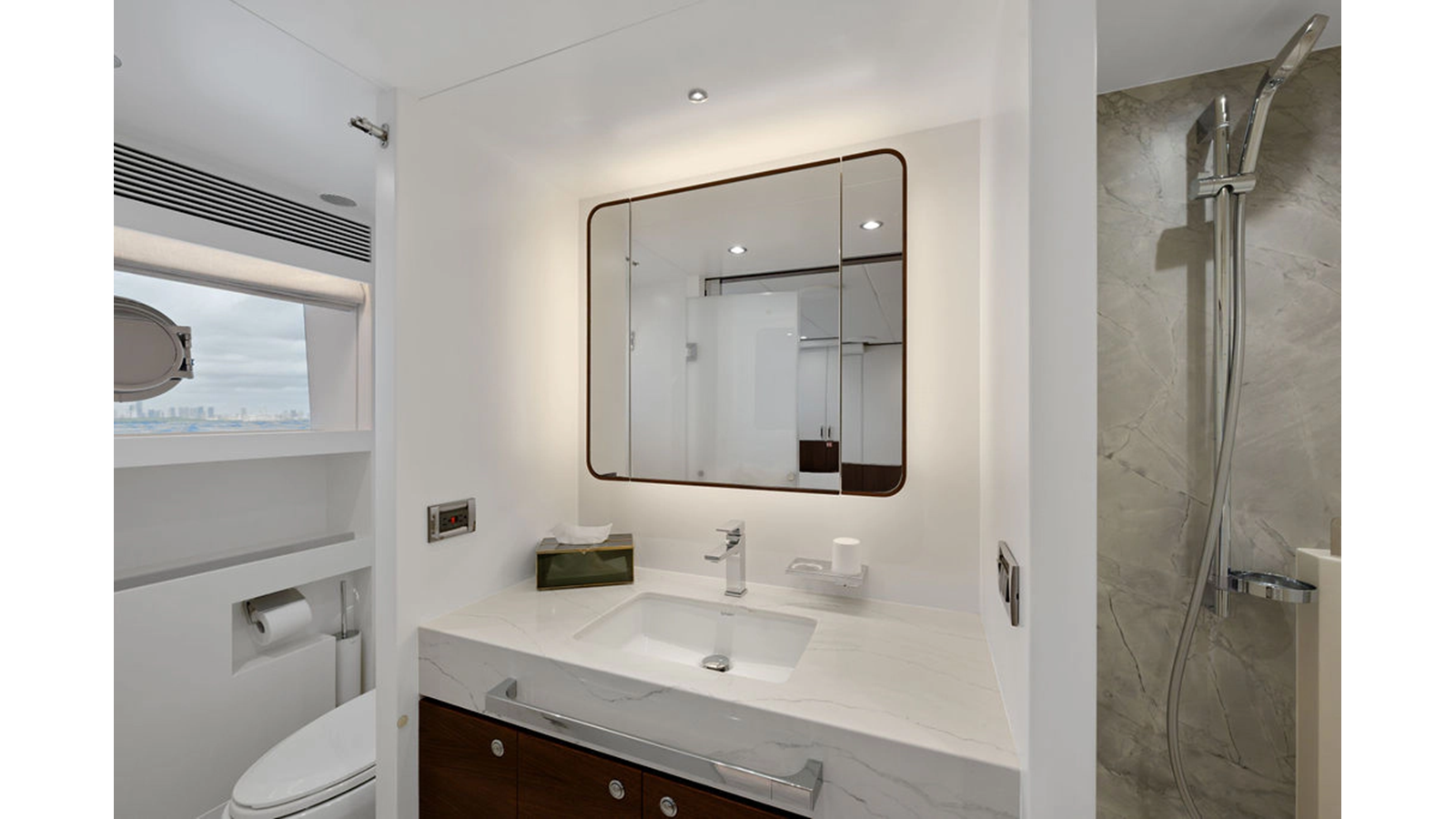

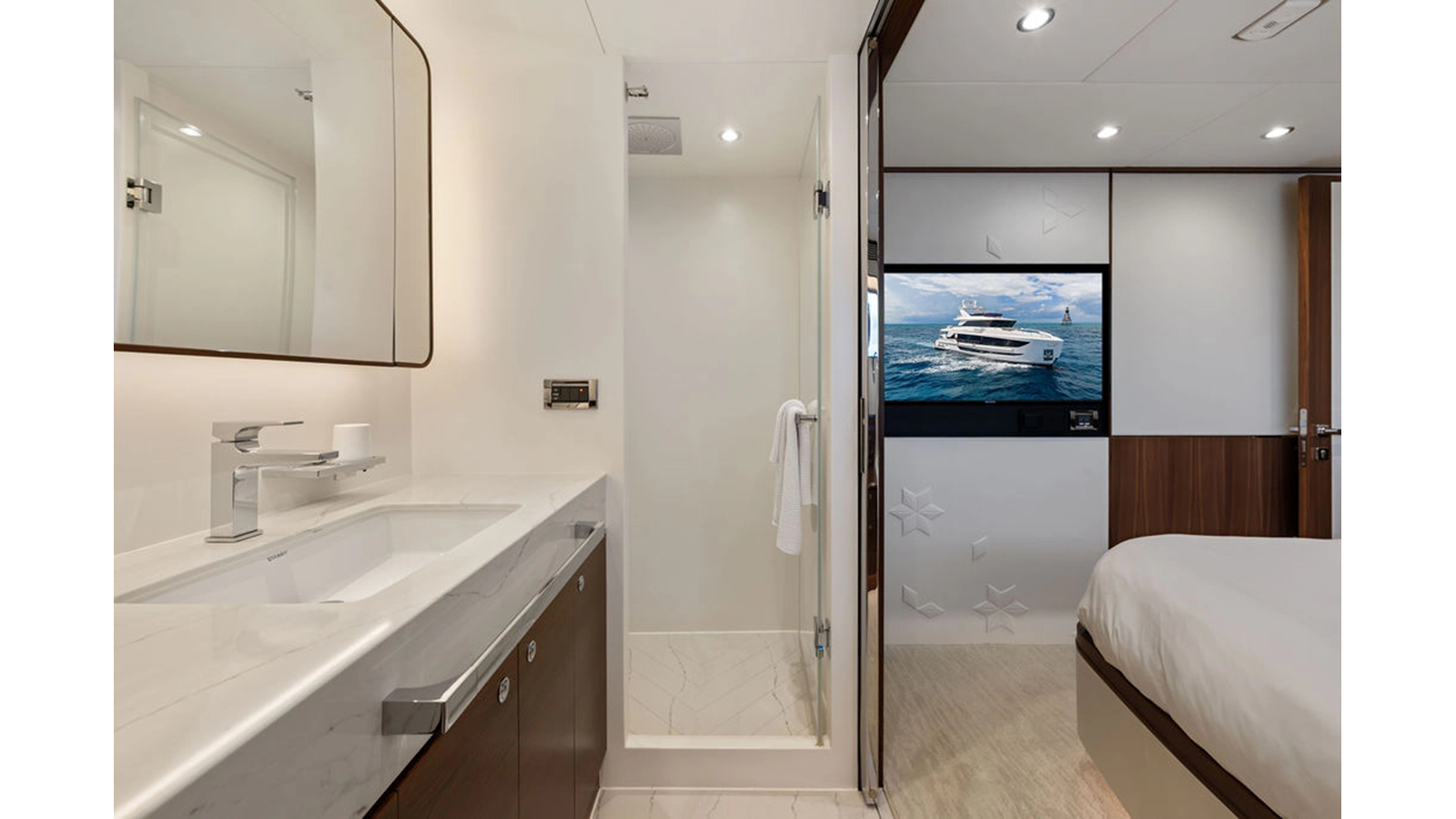

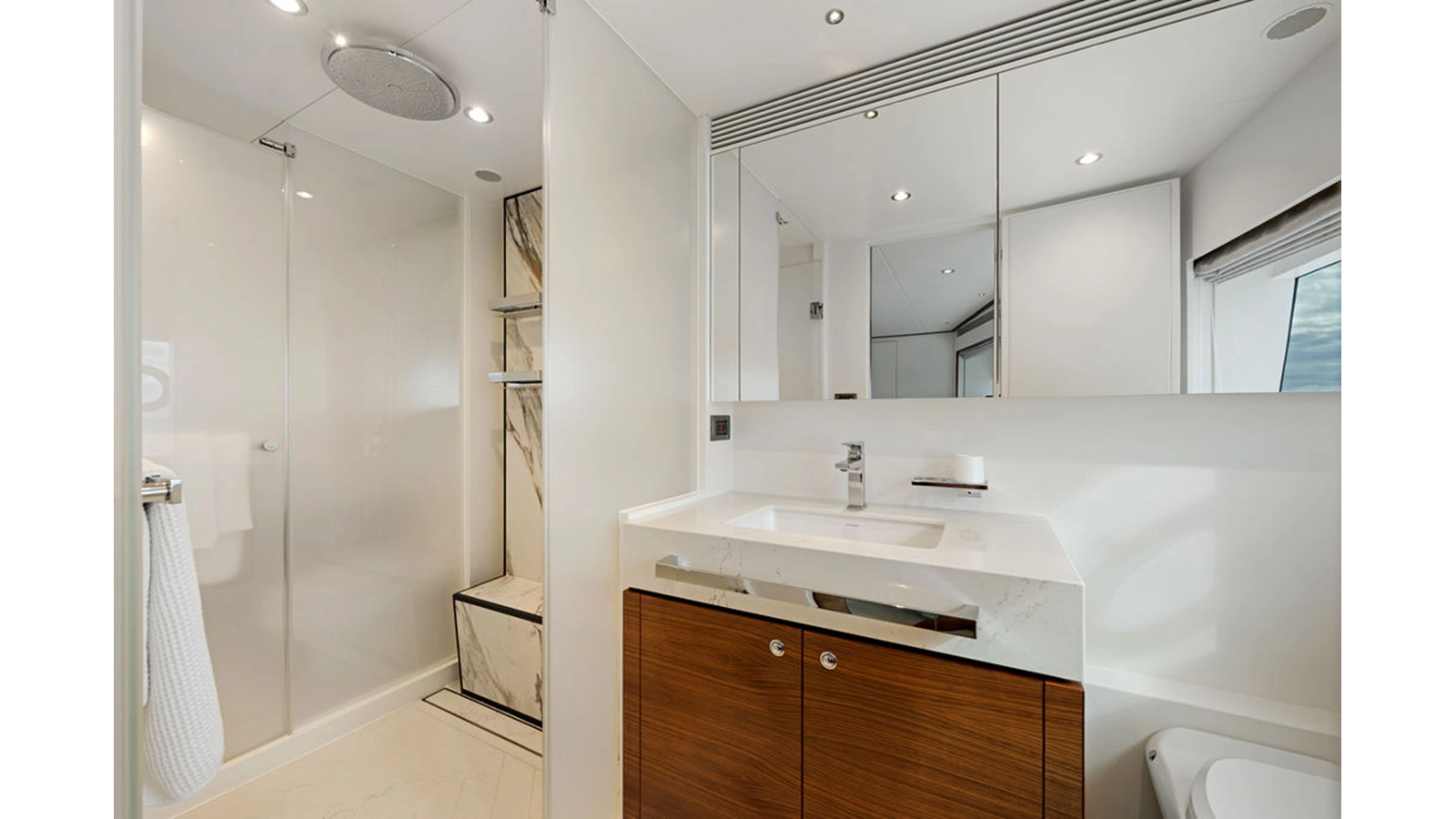

- Ensuite with sink/vanity, rain shower and toilet
- 43” Samsung QLED 4K TV w/ marine stereo system and speakers
Twin Guest Stateroom (Port)
- Twin beds, one fixed and one sliding (for full conversion)
- Hanging Locker

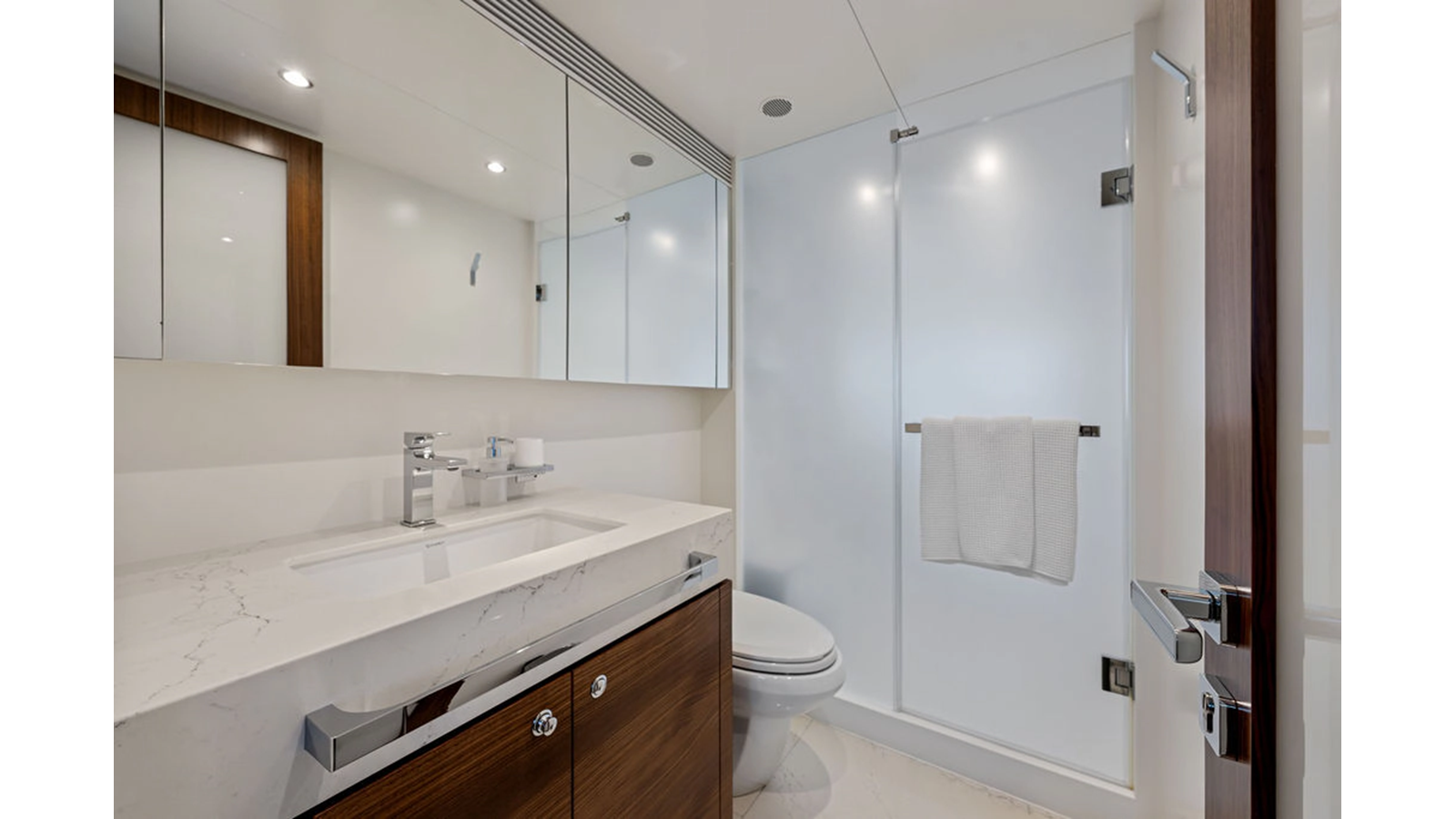

- Ensuite with sink/vanity, shower and toilet
- 32” Samsung QLED 4K TV w/ marine stereo system and speakers

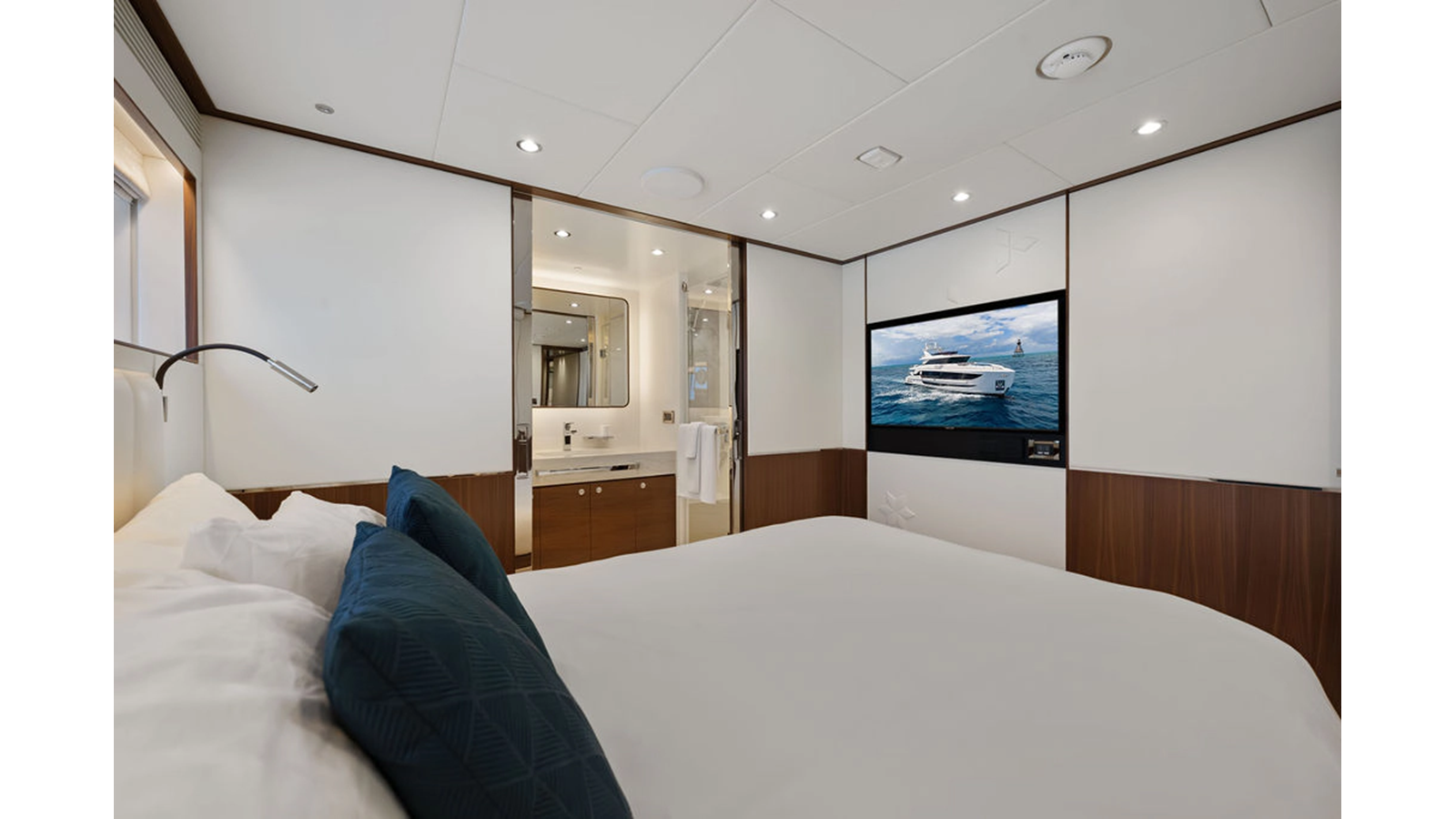

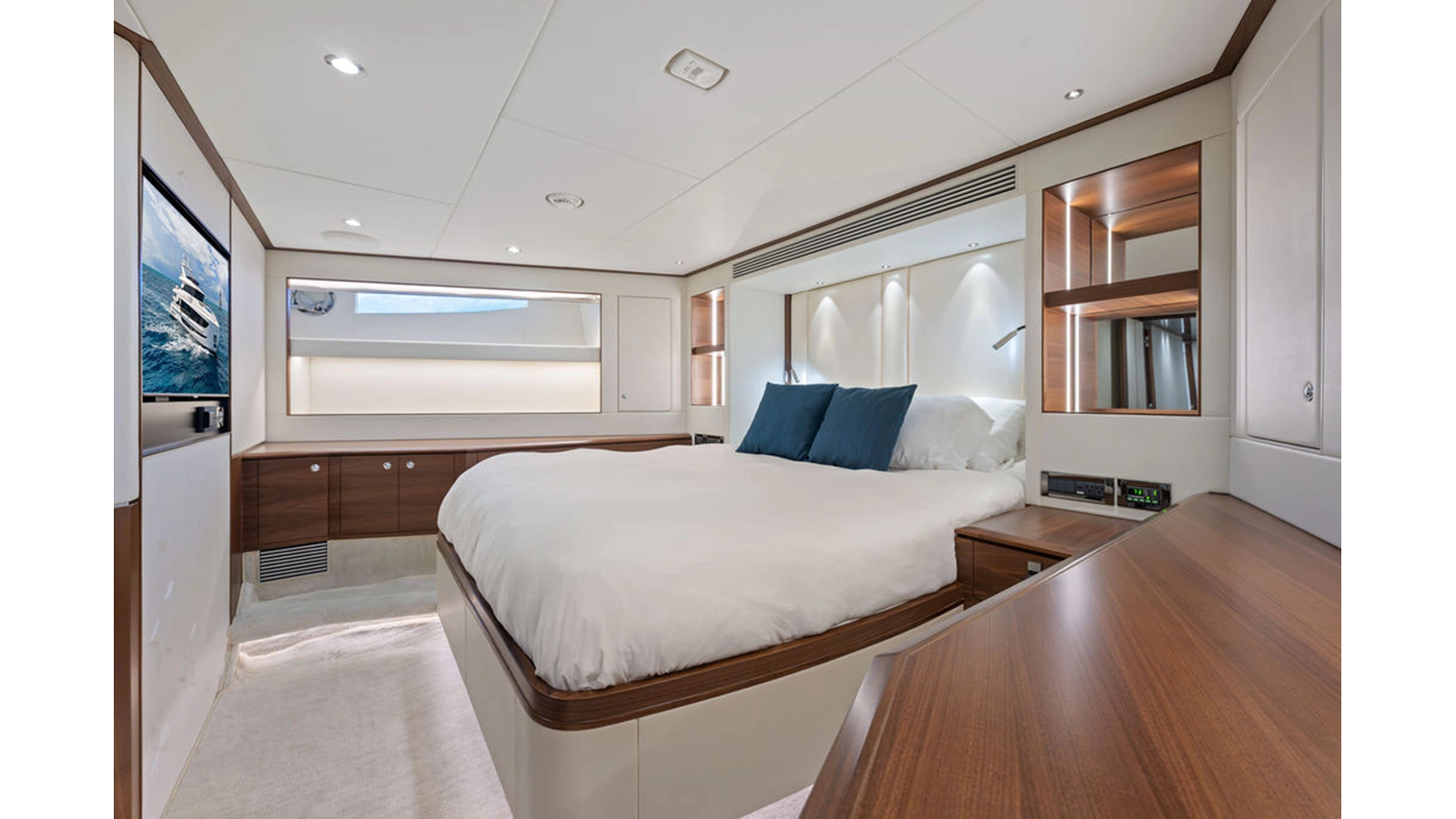

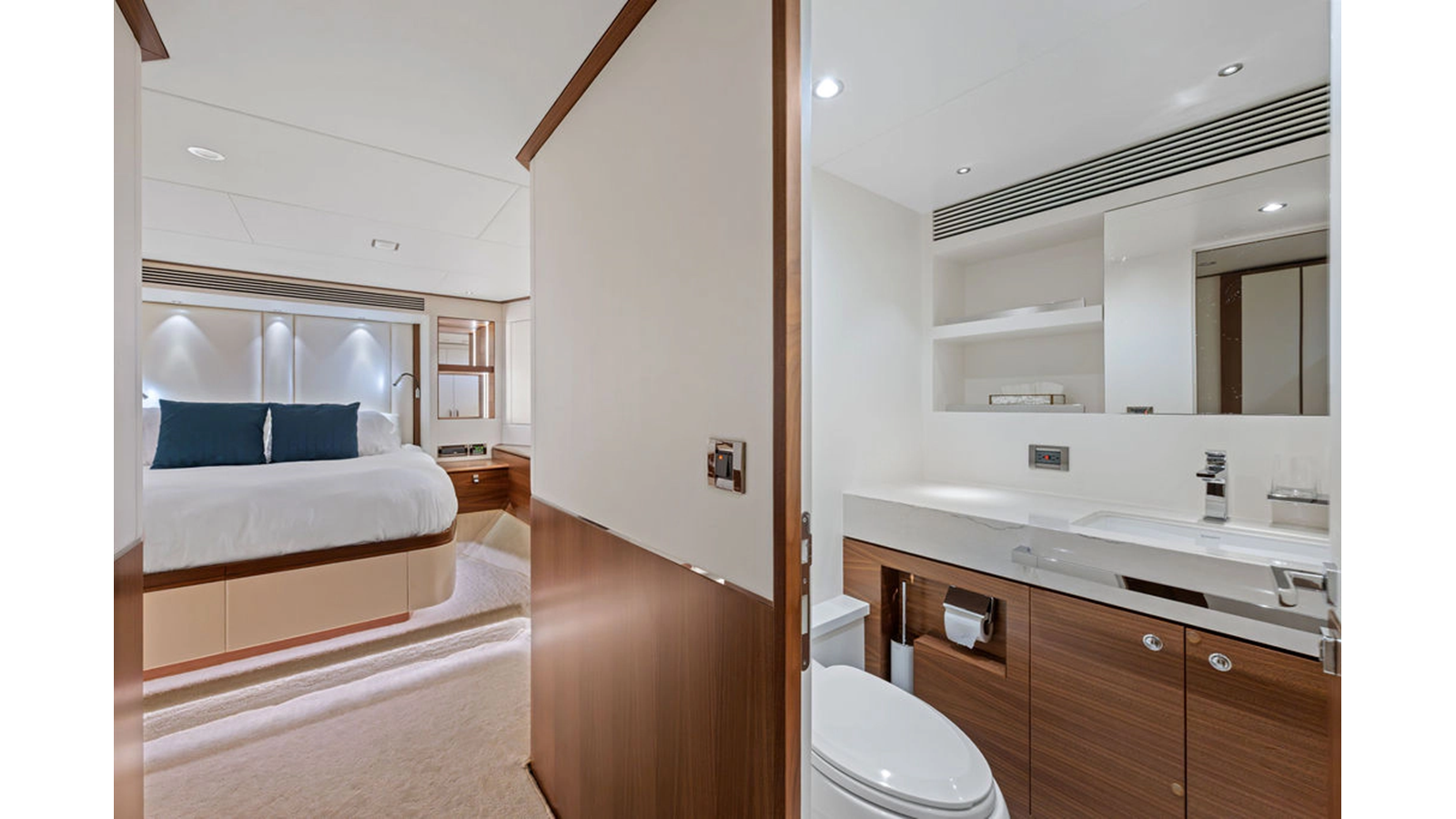

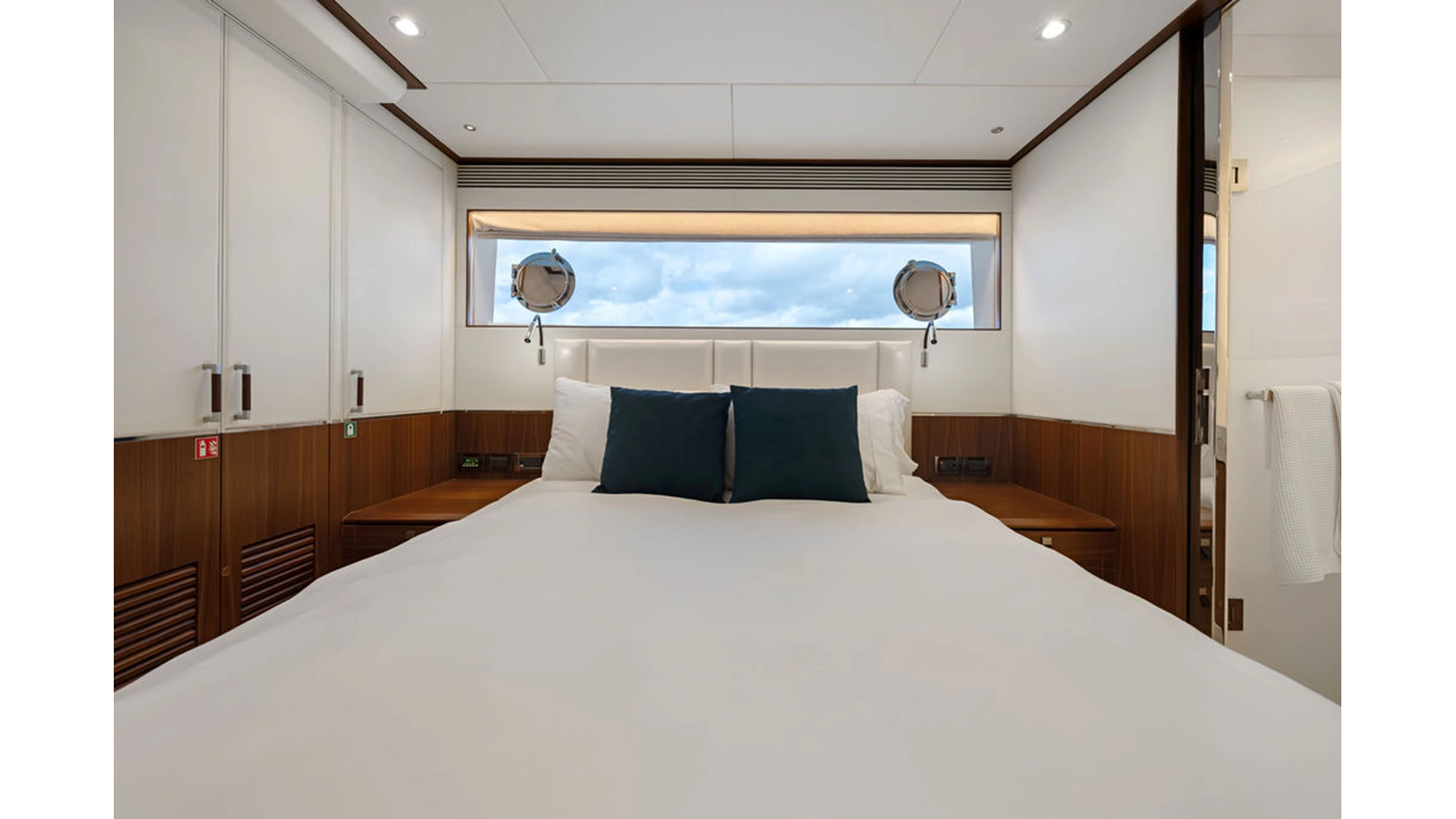

Identical Port & Starboard Opposing Queen Staterooms (Aft)
- Queen bed w/ nightstands, including storage drawers
- Large hanging lockers
- Ensuite with sink/vanity, rain shower and toilet
- 43” Samsung QLED 4K TV w/ marine stereo system and speakers
Captains Cabin
- Full size bed and hanging locker
- Ensuite with sink/vanity, shower and toilet
- 32” Samsung QLED 4K TV w/ marine stereo system and speakers

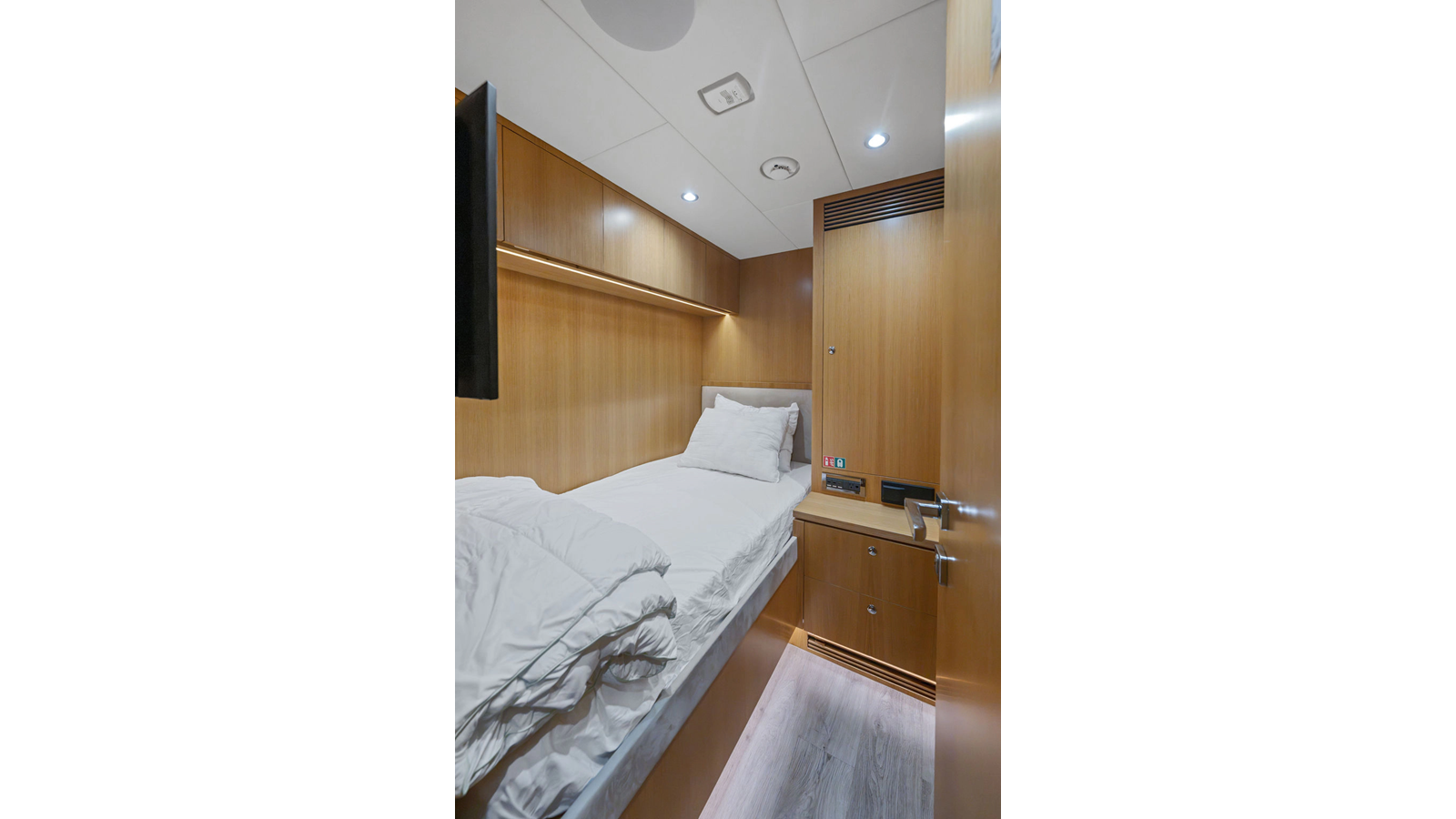

Crew Cabins
- Each with bunk beds, hanging locker and storage
- Shared head with sink/vanity, shower and toilet
Crew Galley
- Sink/cabinet, convection microwave & cooktop

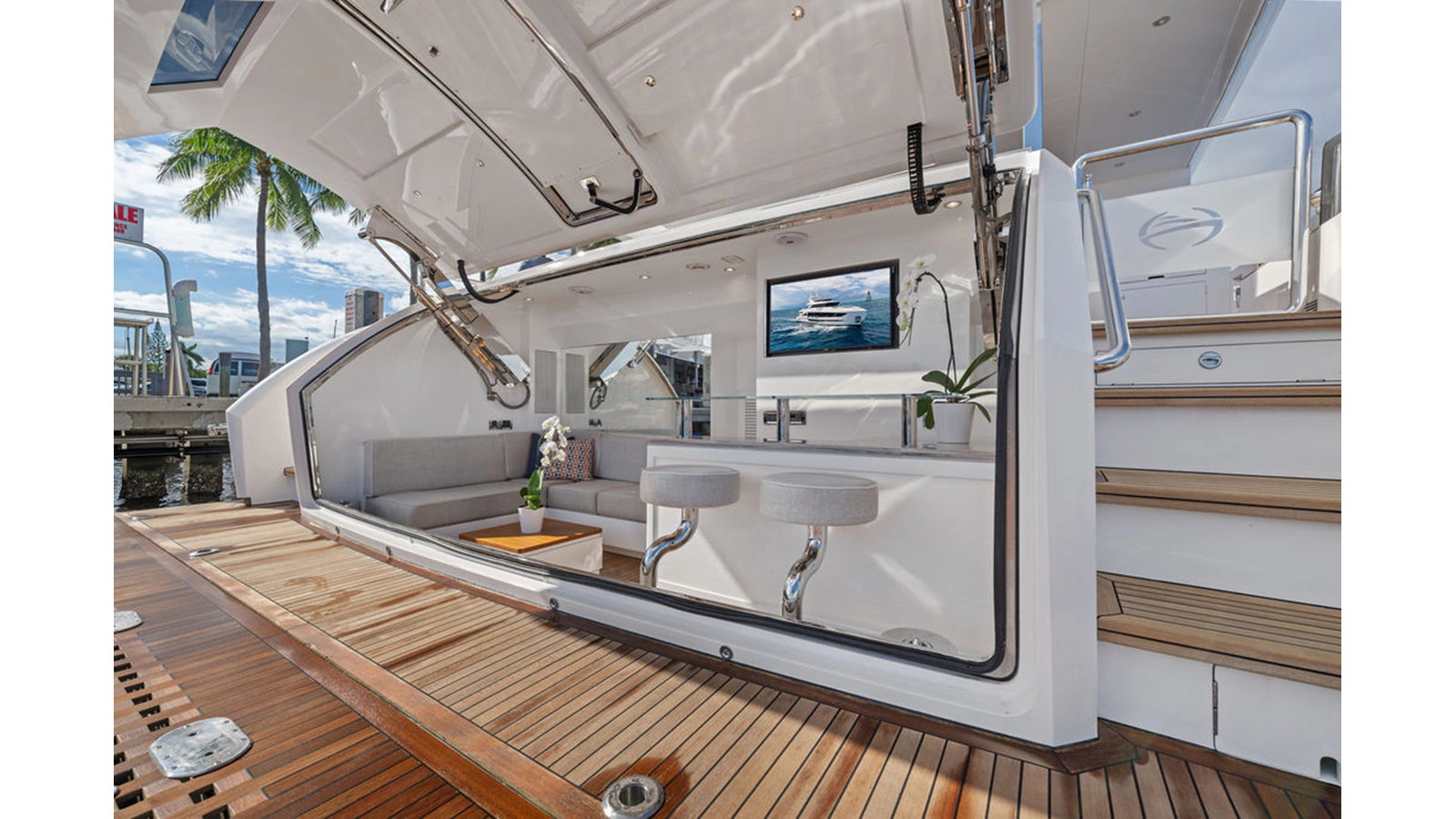

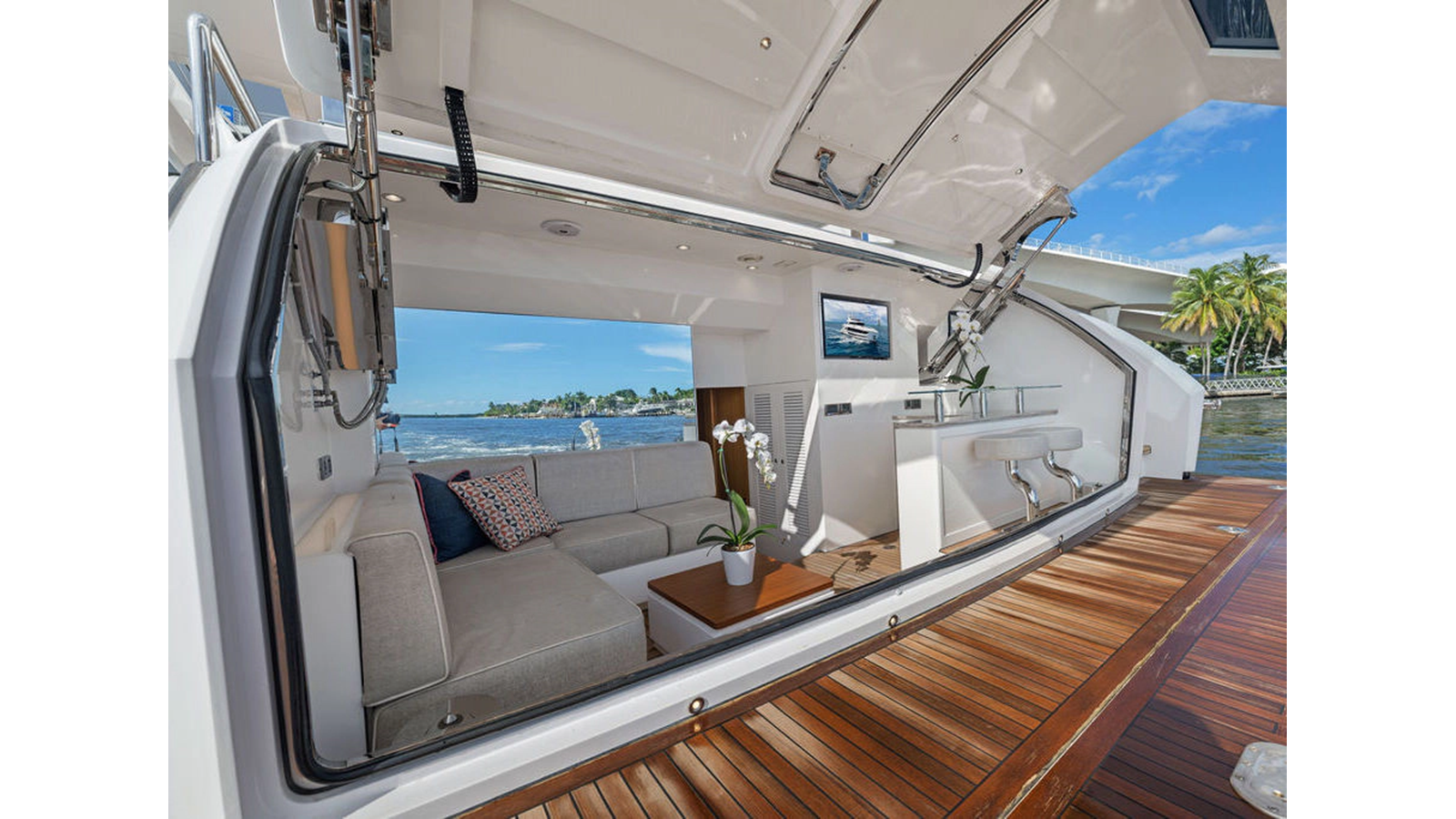

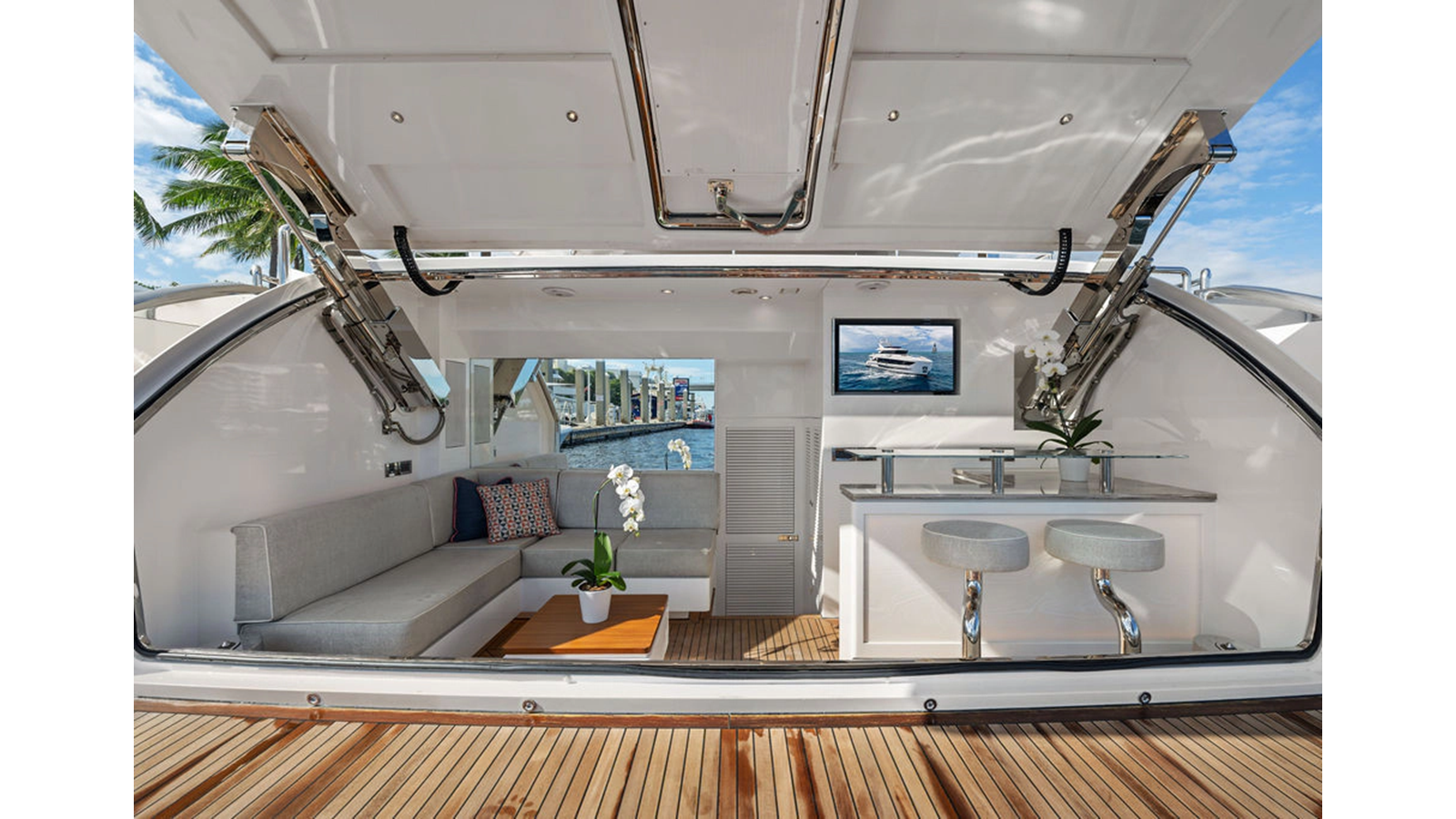

Beach Club and Swim Platform
- Hydraulic door w/ built in pantograph door
- Sofa and bar area with Vitrifrigo fridge/freezer & barstools
- 32” Samsung QLED 4K TV w/ marine stereo system and speakers
- Hydraulic hi/lo swim platform w/ 2000 lb. capacity
- Sockets (4) for removable handrails on swim platform
- Built-in shower with hot/cold water above swim platform
- Teak decking

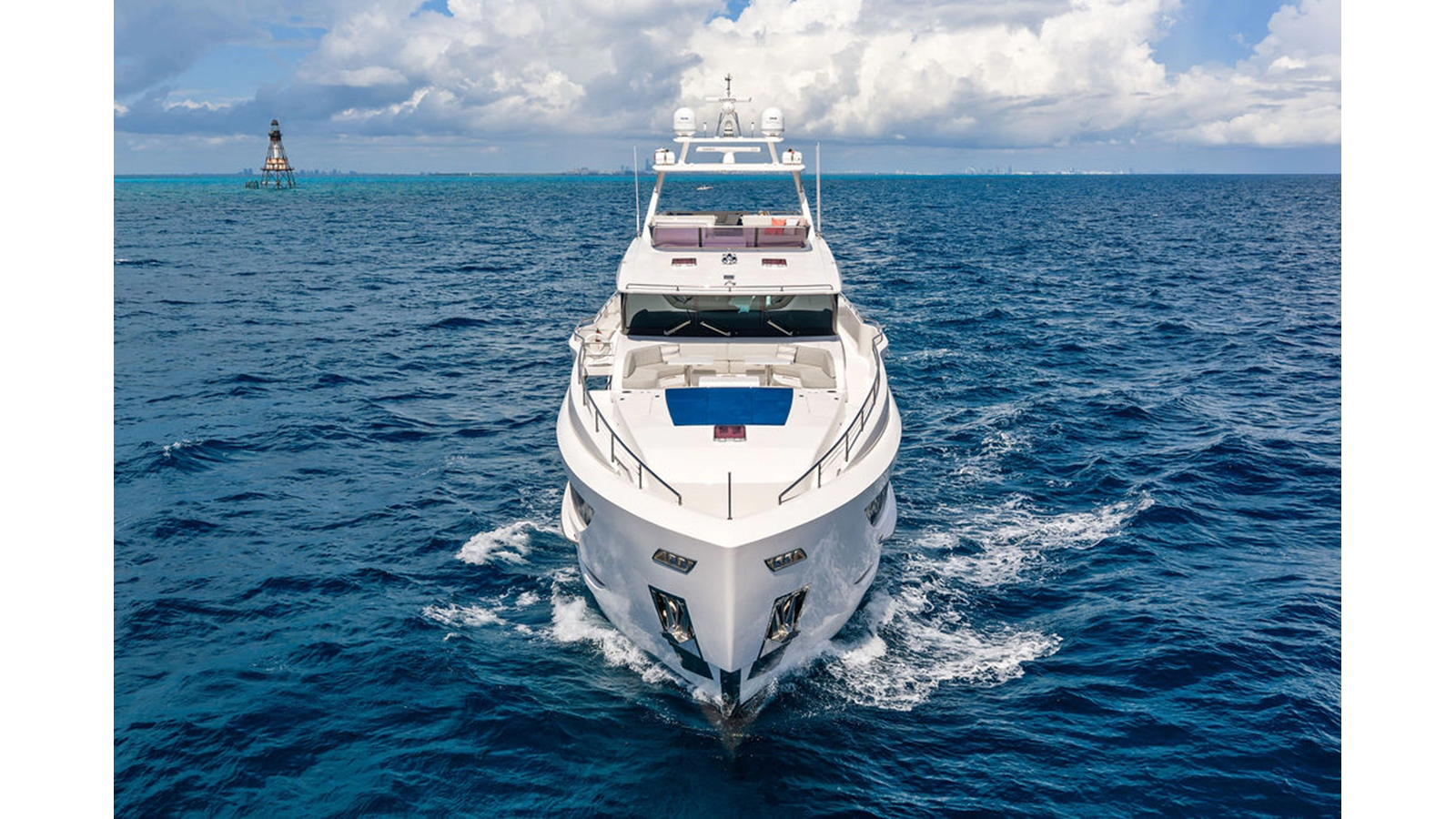

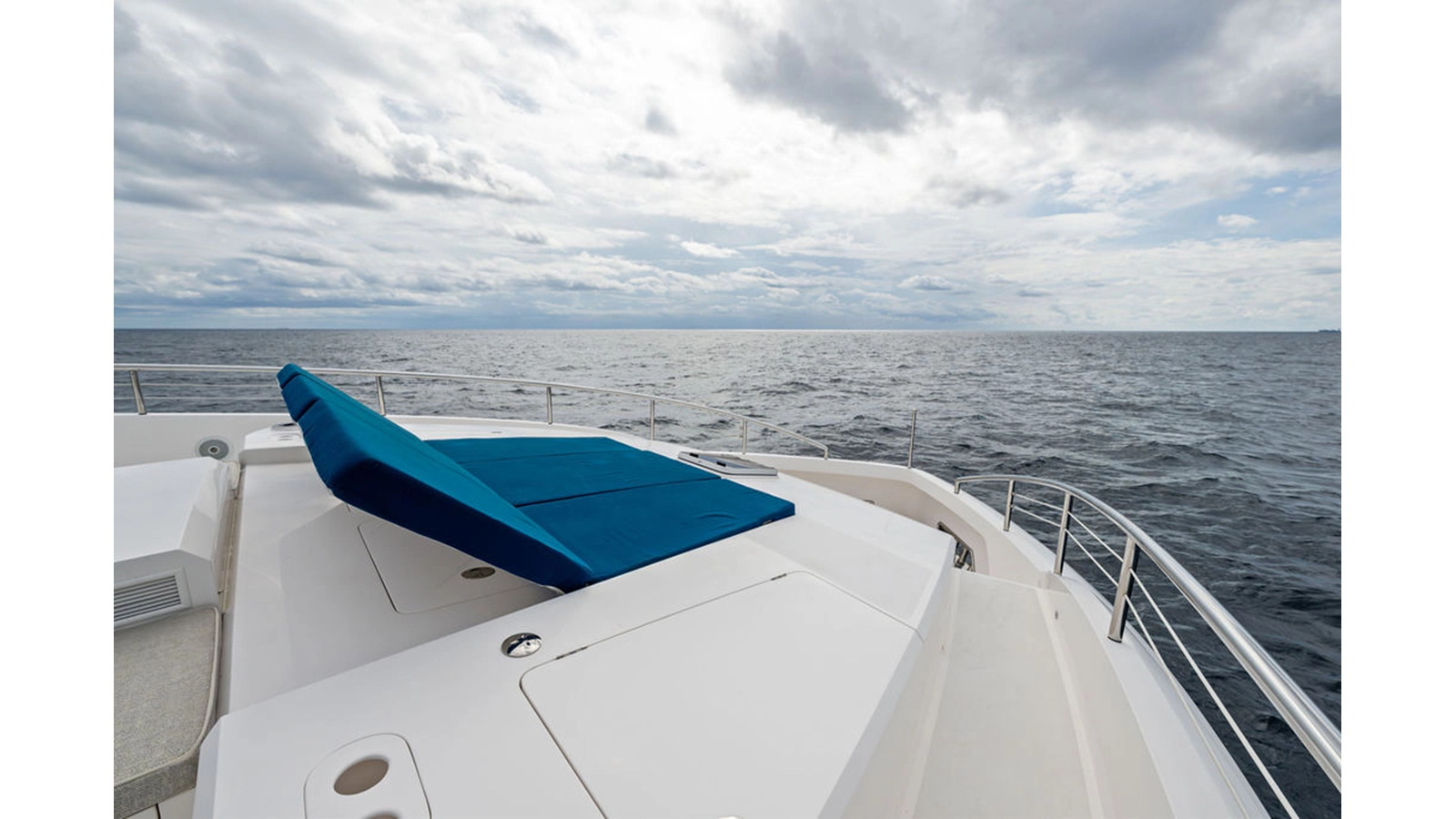

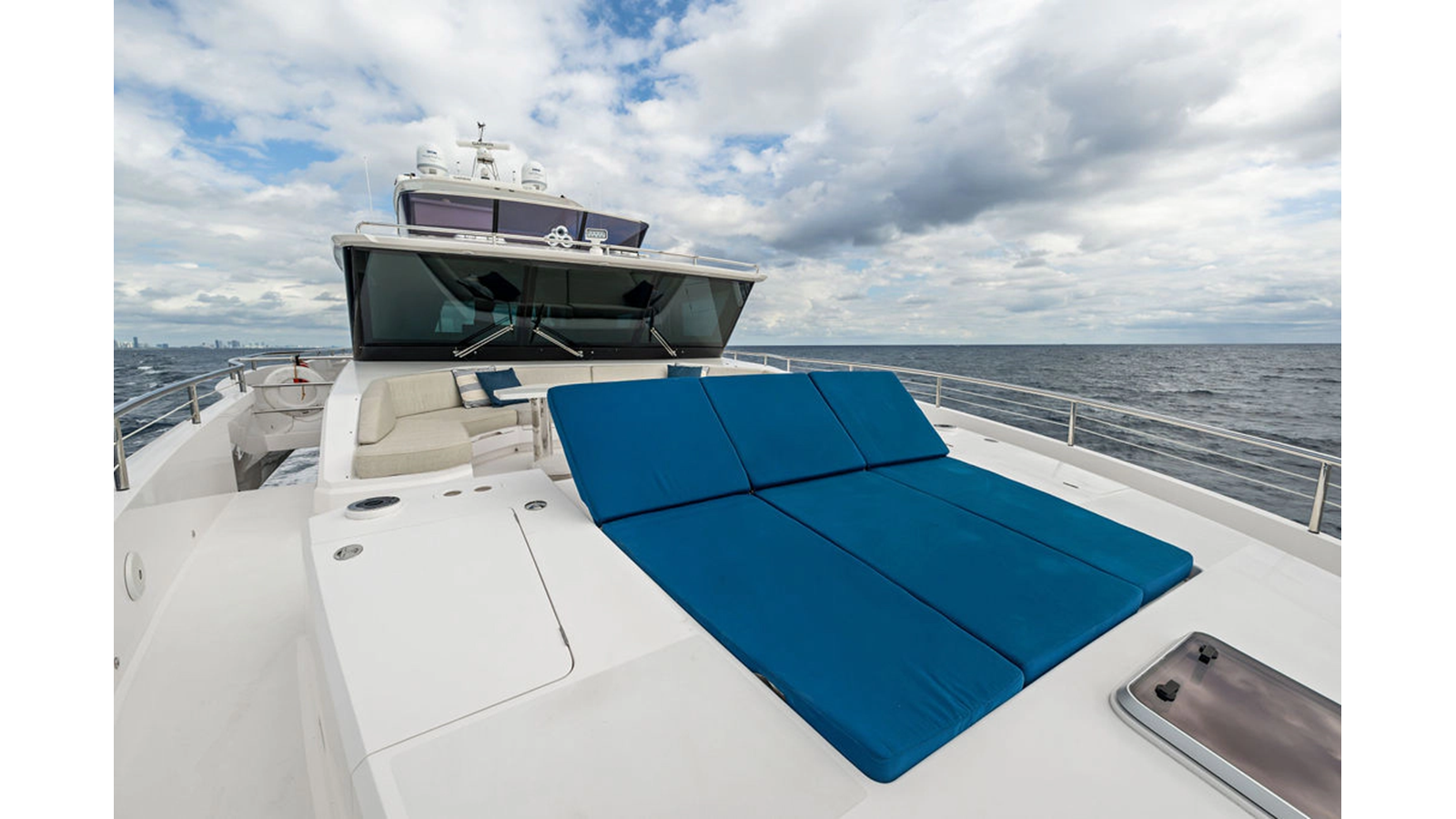

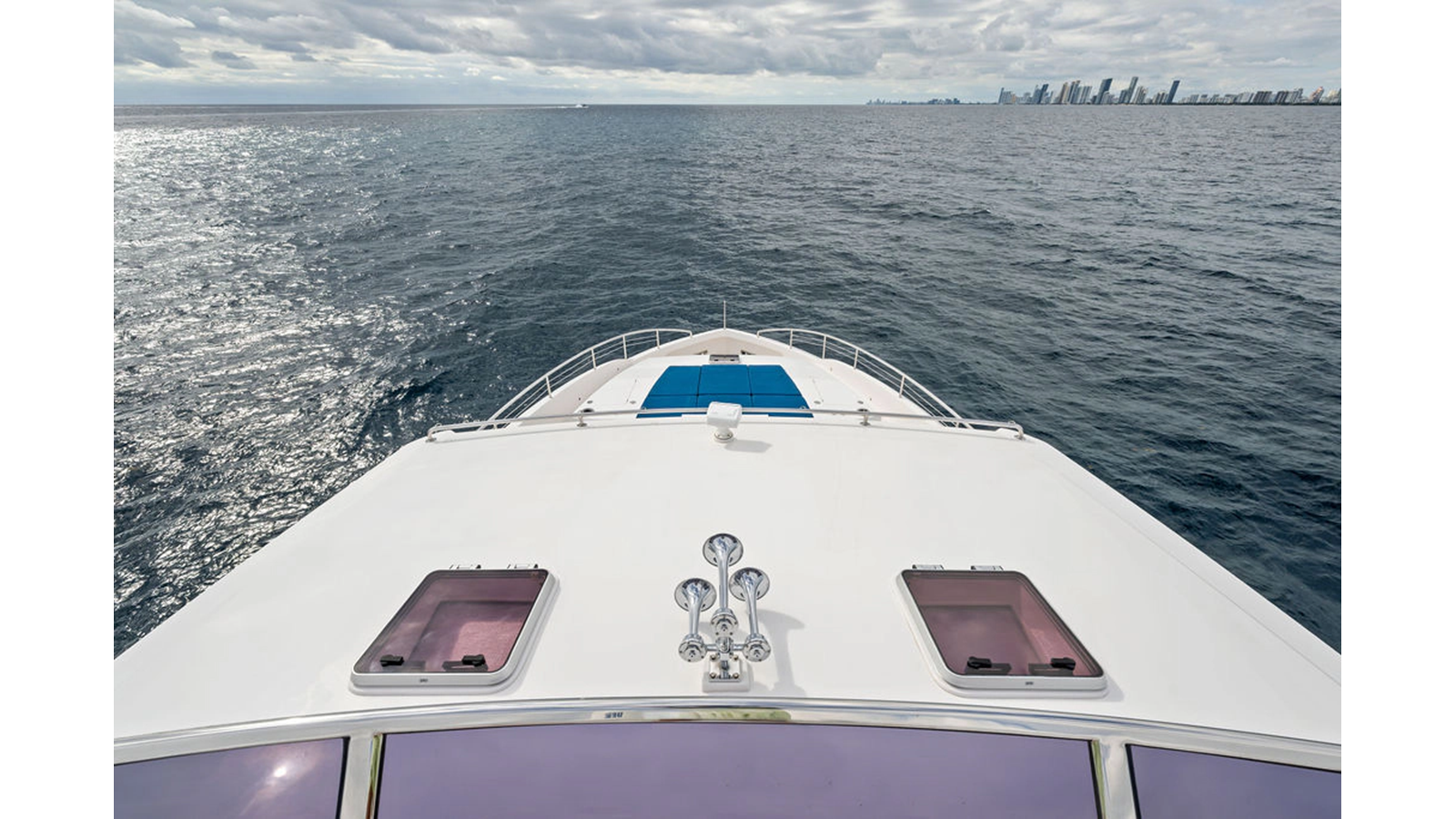

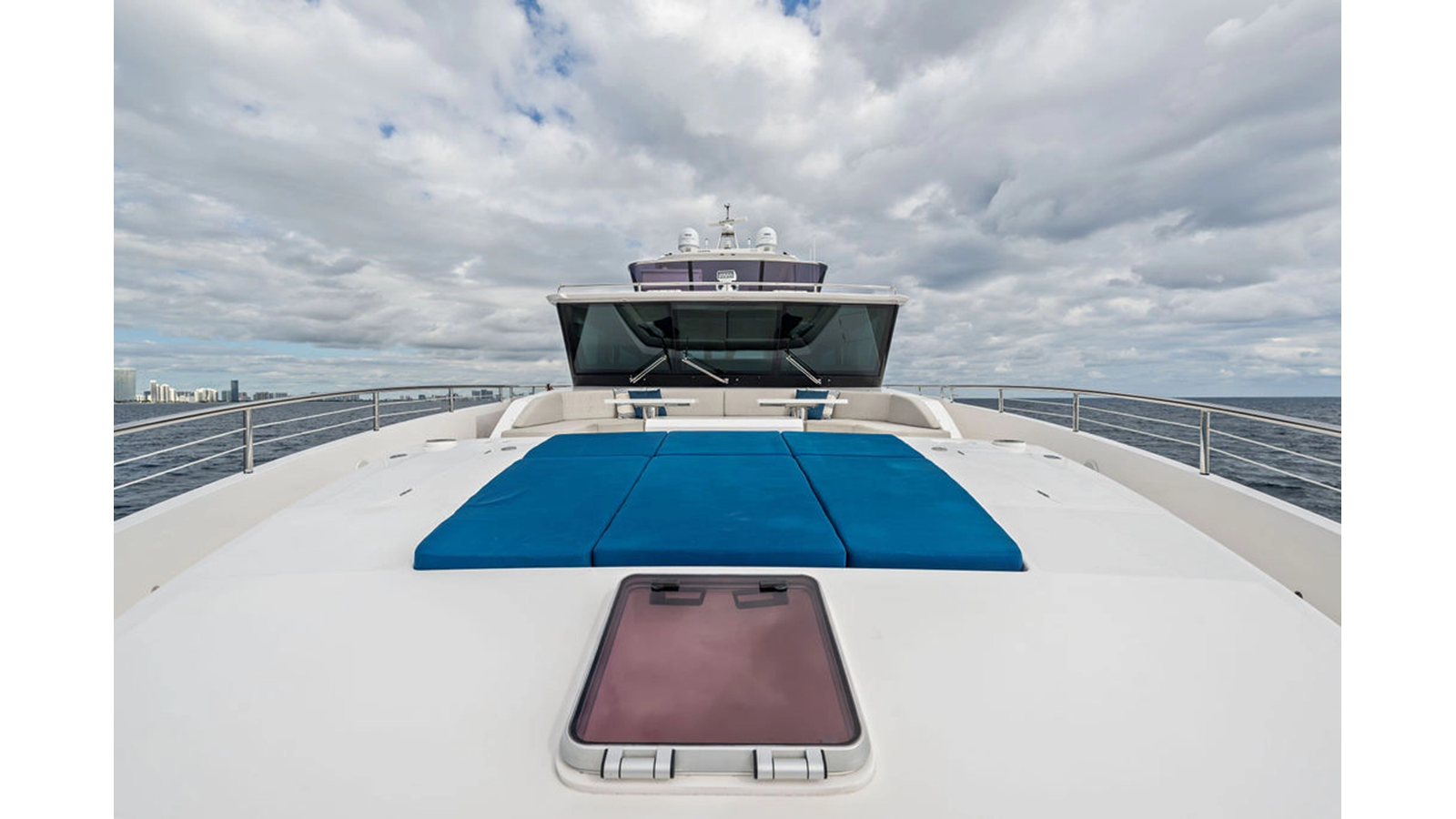

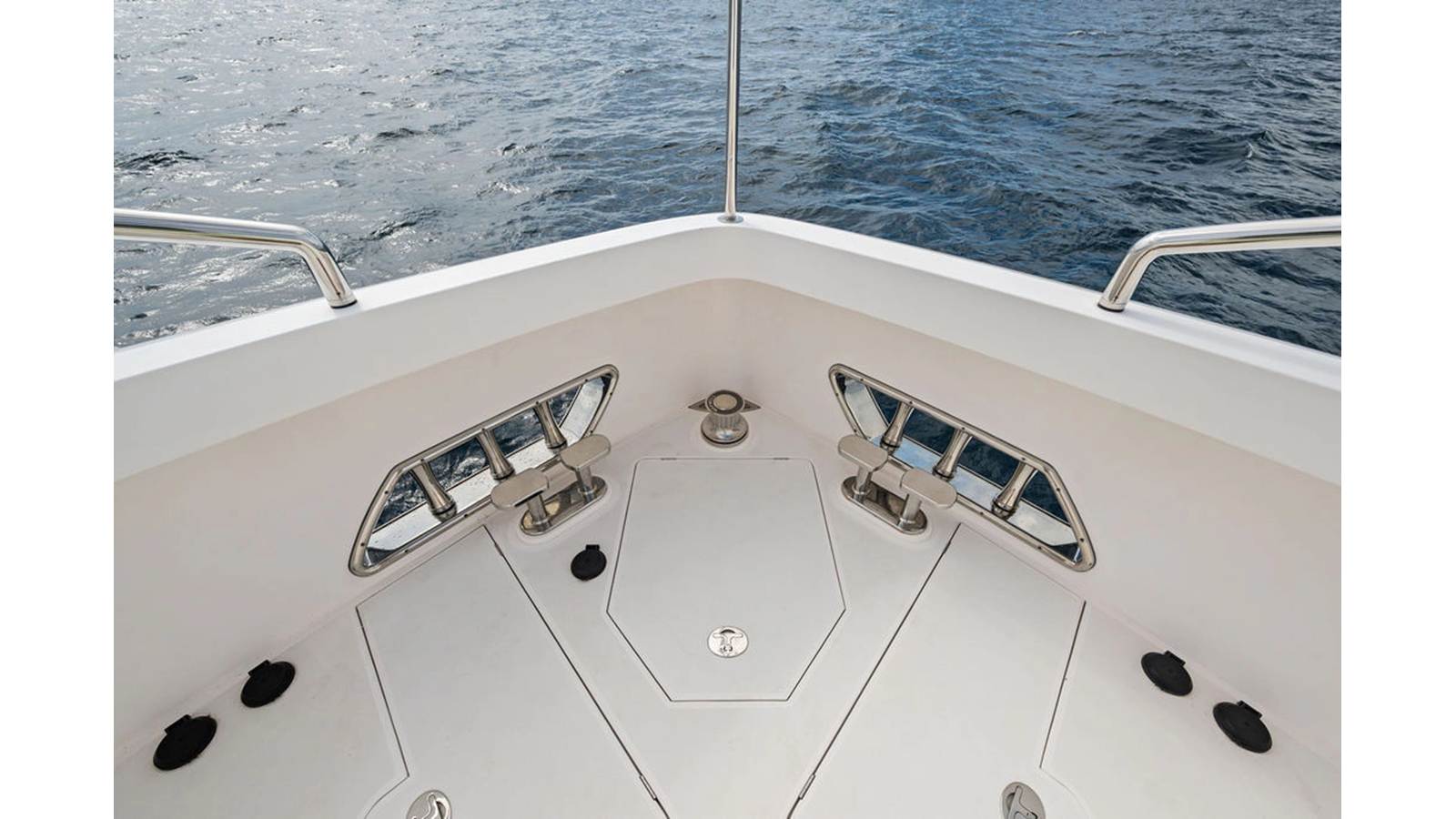

Forward Deck
- Heavy duty SS hand rail, on both sides, leading to ground tackle
- Non-skid forward deck and side decks

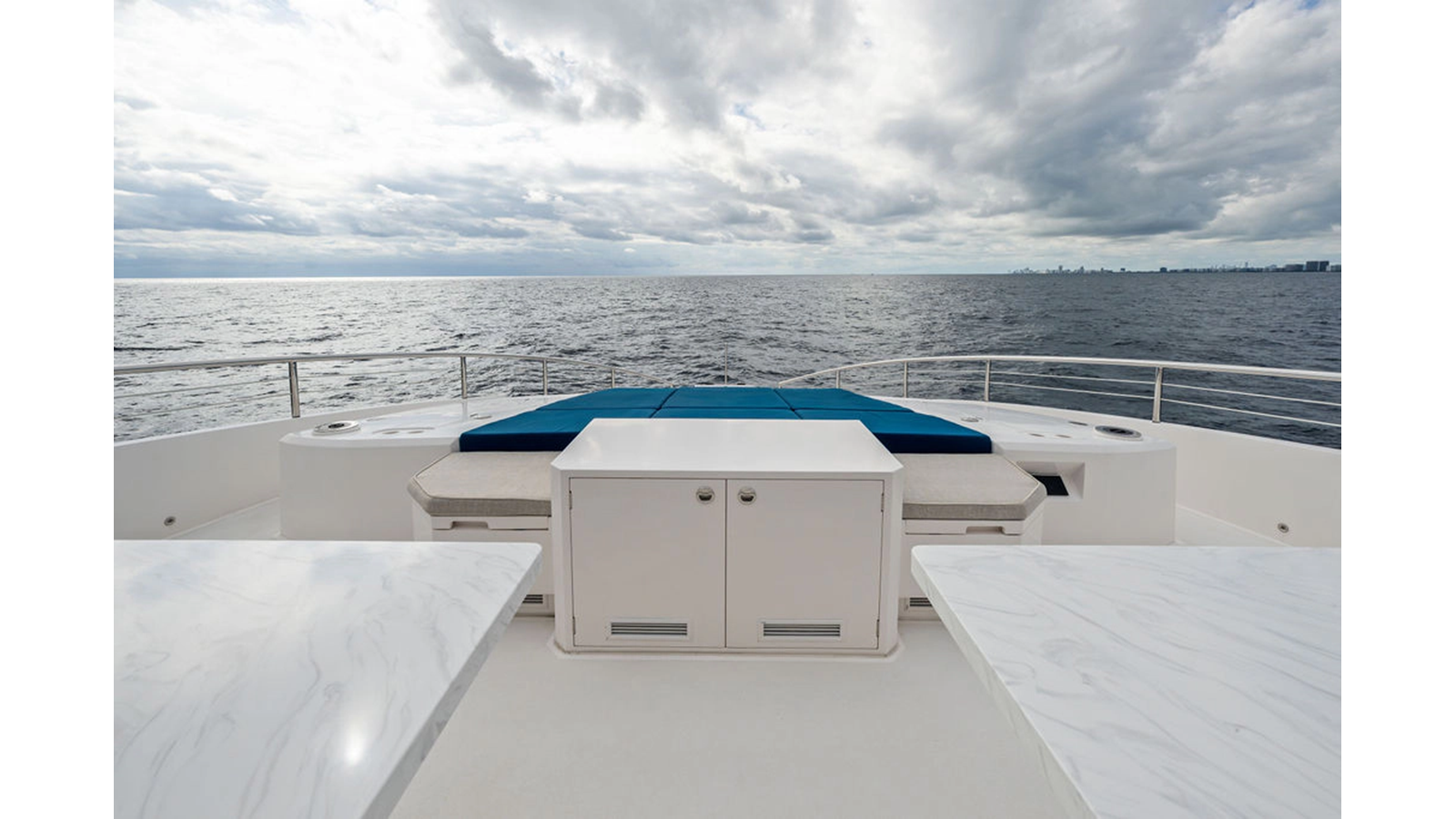

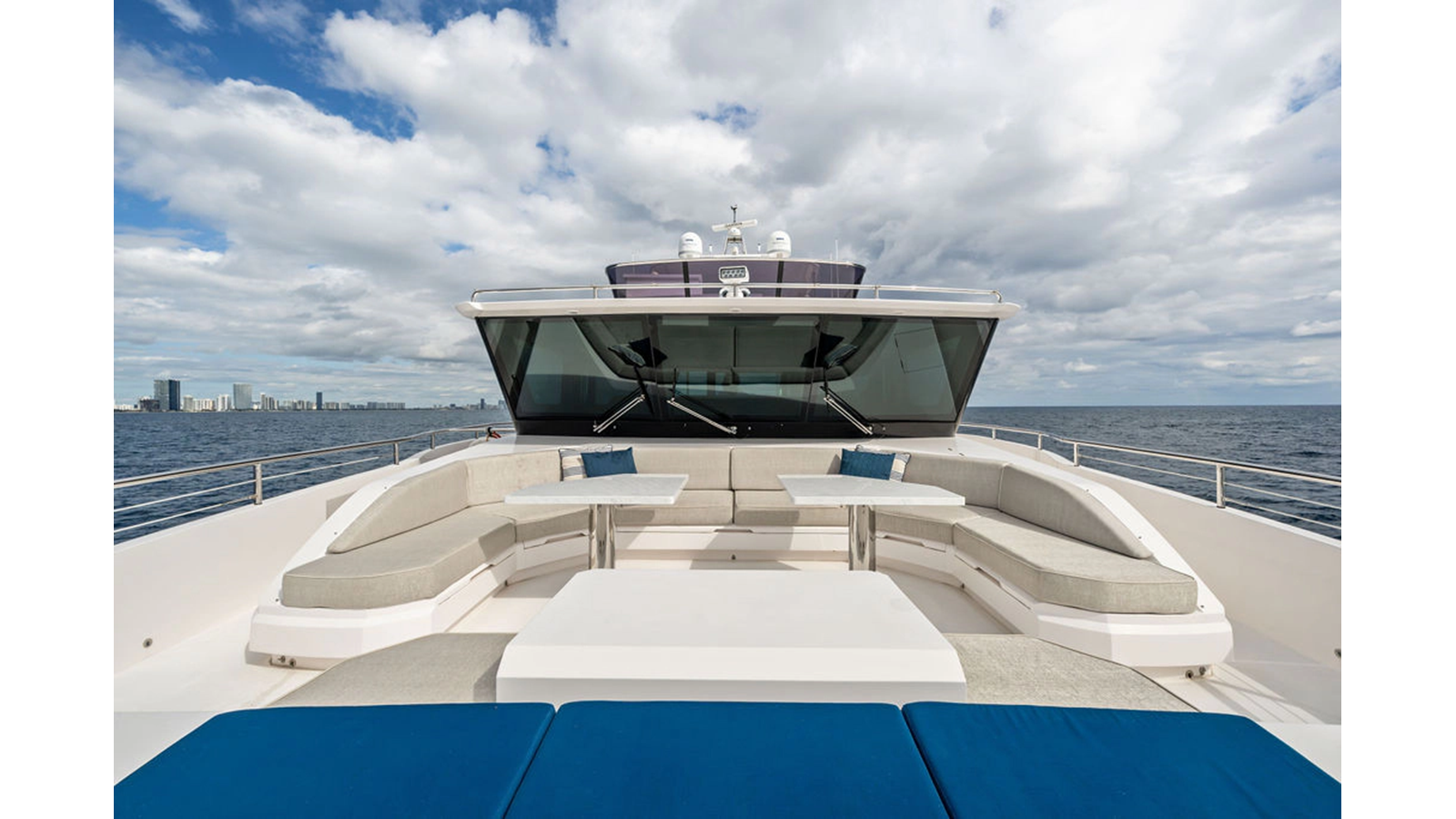

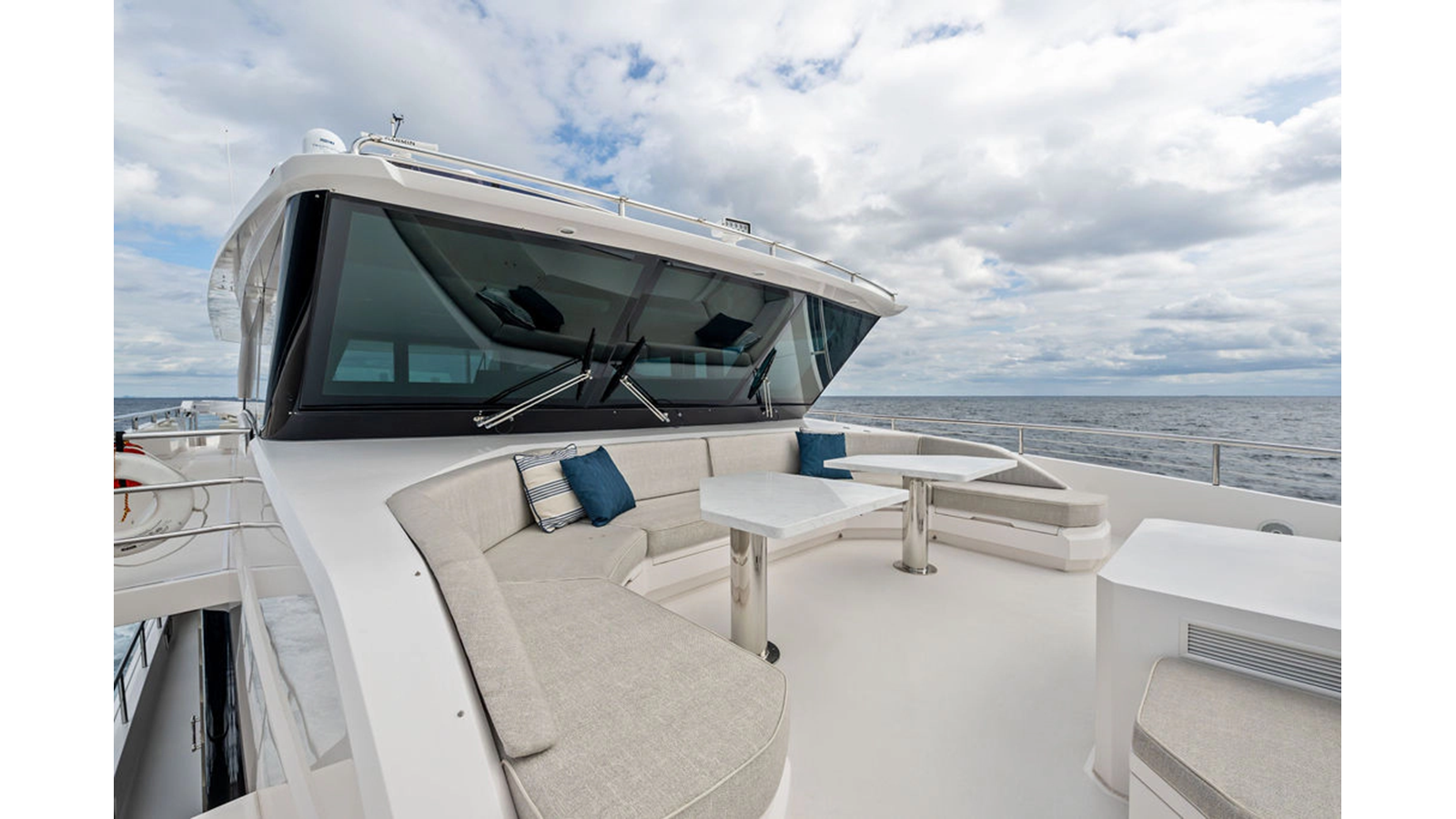

- Portuguese bridge w/u-shaped seating, twin tables, sun pads & storage
- Cabinet forward of seating w/ Vitrifrigo fridge/freezer & icemaker
- Sink & faucet to port of seating
- Sail shade for seating area
- Pop-up secret lights (2)
- Marine stereo system with speakers
Pilot House
- Frameless windows, tinted Low-E tempered glass for windshield
- Frameless windows, tinted tempered laminated glass for side windows

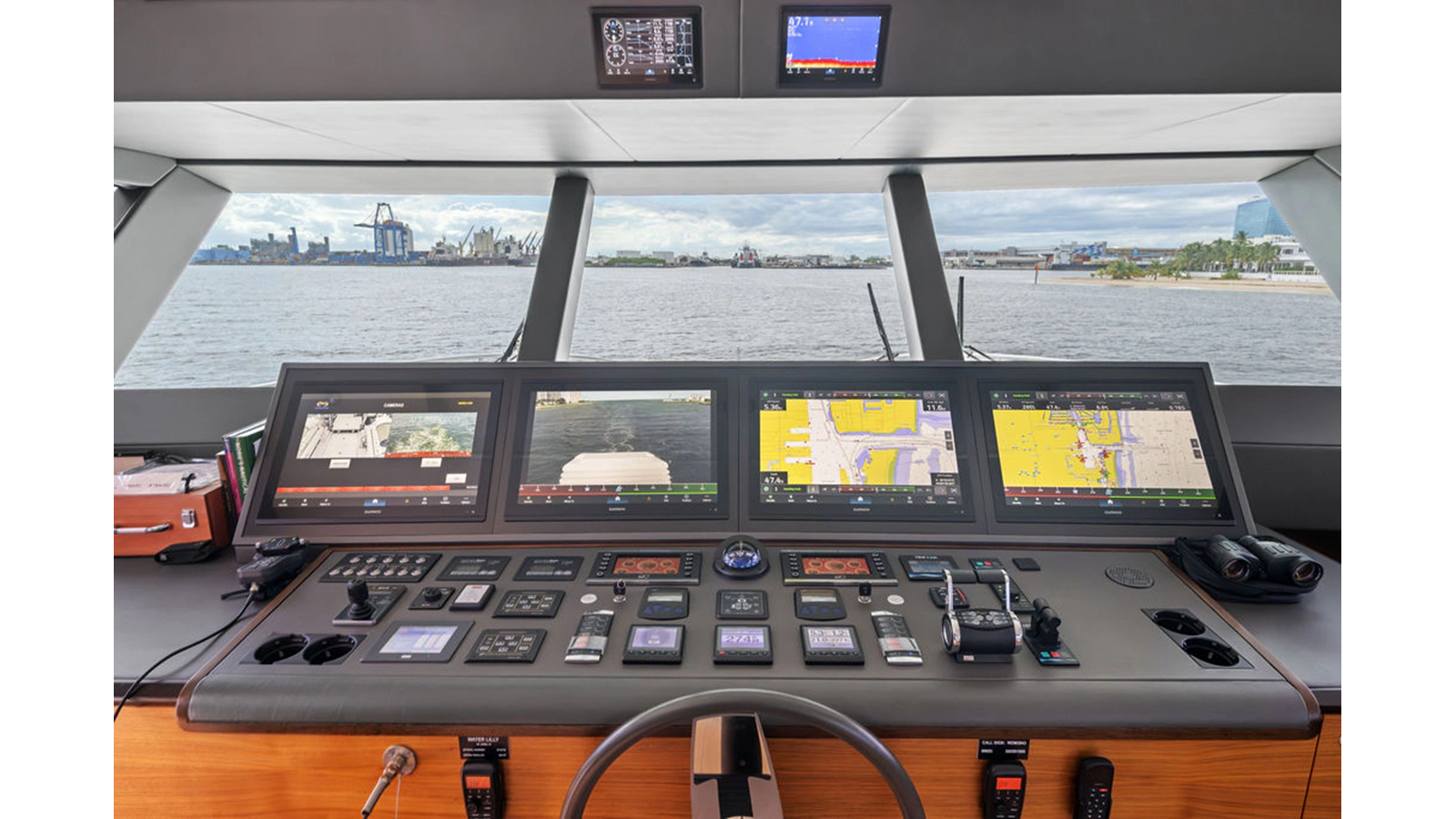

- Custom designed helm w/ two STIDD helm chairs, a full set of engine gauges, monitoring system for important equipment, fuel & water gauges, Ritchie Supersport magnetic compass, surveillance camera system (PZT cameras for aft deck & engine room), bilge pump panel & navigation lights
Pilot House Navigation
- Garmin GPSMAP 8624 24” multifunction displays (4)
- Garmin GPSMAP 943 (2)
- Garmin GPS 19x NMEA 2000 (2)
- Garmin GMR Fantom 54-72nm solid-state open array radar
- Garmin XHD, 36 mile radar
- MBB300C for inputting Maretron info to Garmin display
- Garmin Grid 20 remote input device
- Garmin VHF 315 marine radio (2)
- Garmin AIS 800 class B AIS transceiver
- Garmin Reactor 40 Autopilot System
- Garmin GMI 20 instruments w/ wind transducer & Airmar UST850
- Garmin GSD 25 & fishfinder w Airmar 1kw CHIRP transducer
- Garmin GXM 54 XM Satellite weather antenna

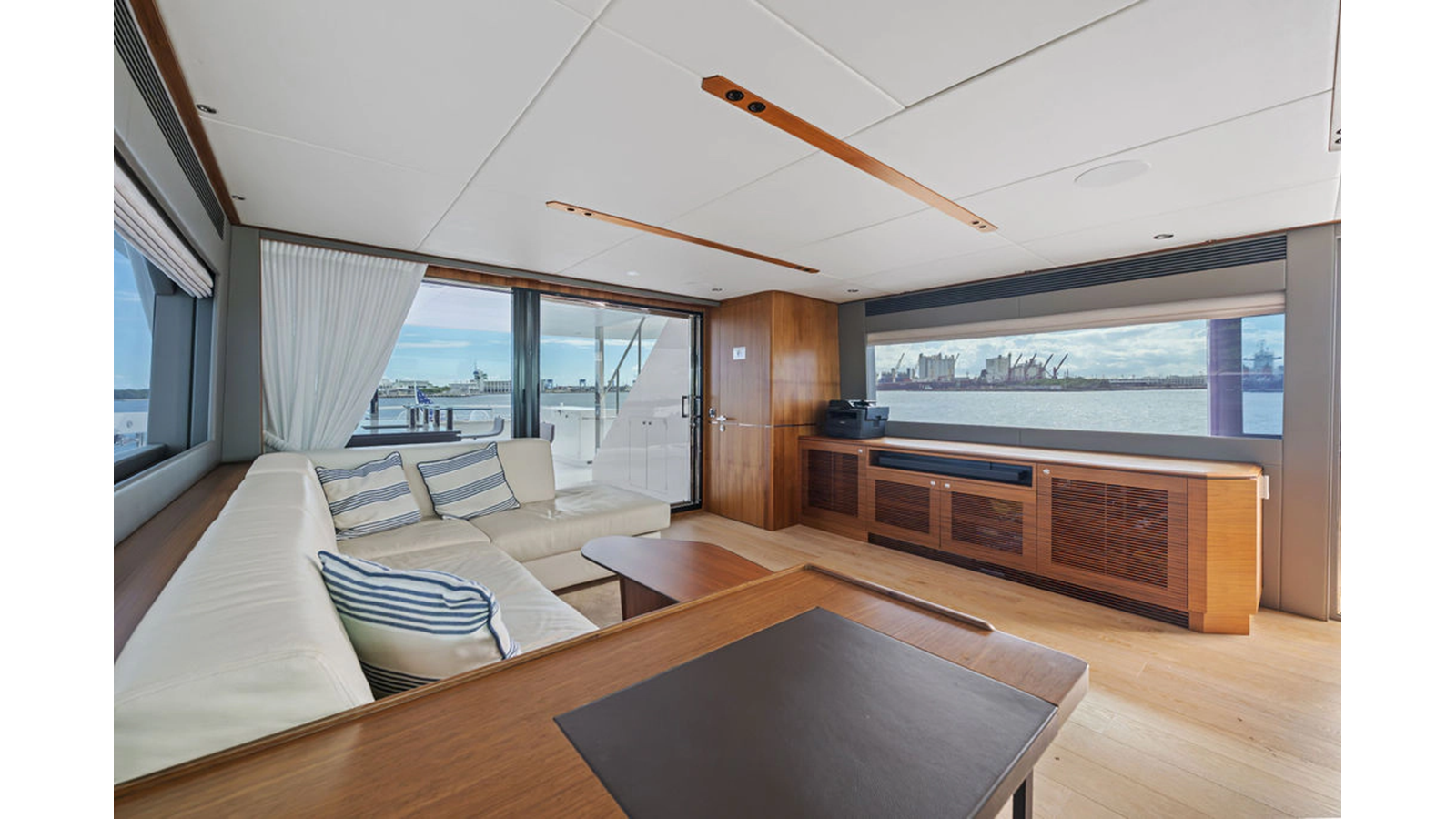

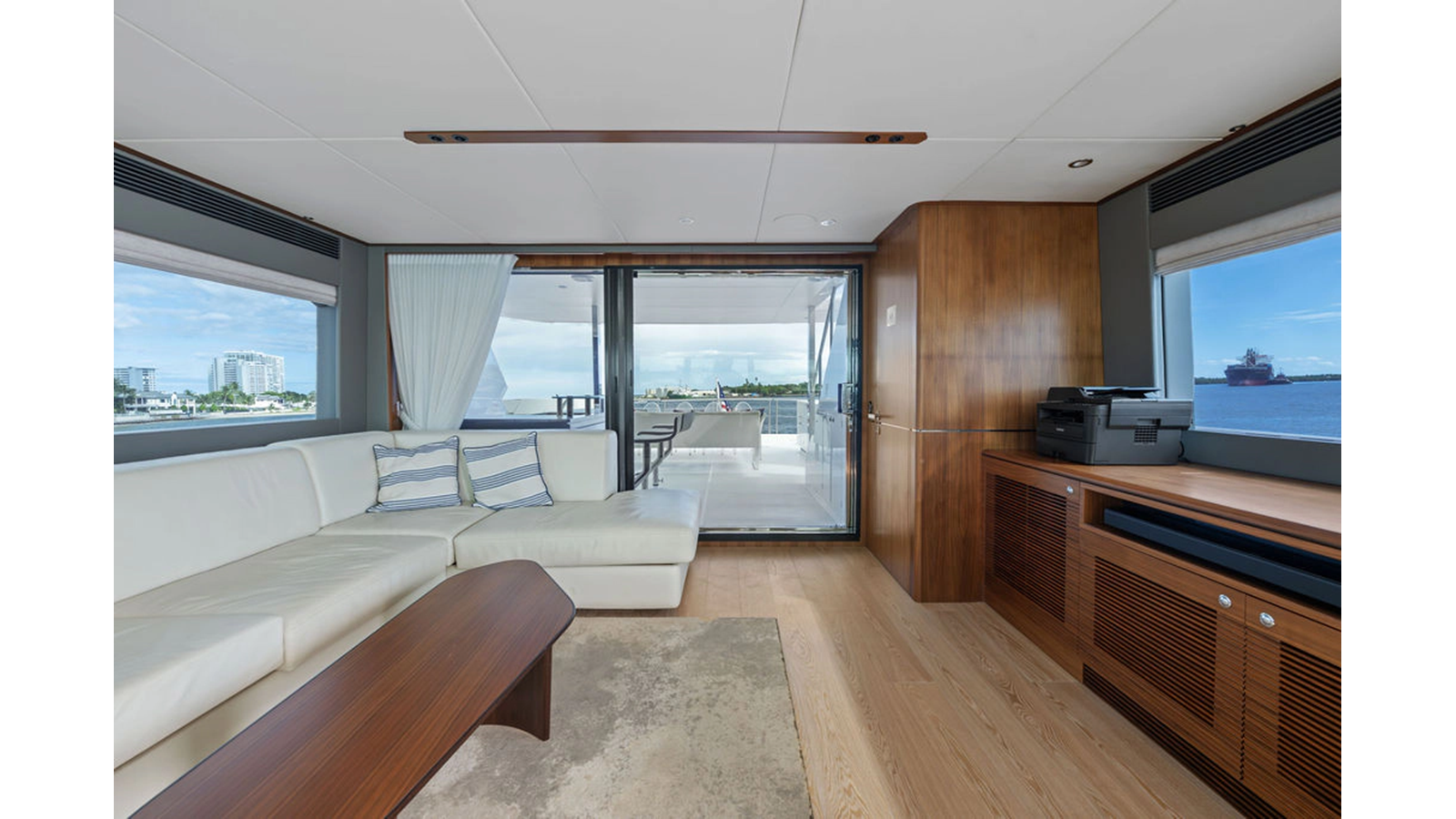

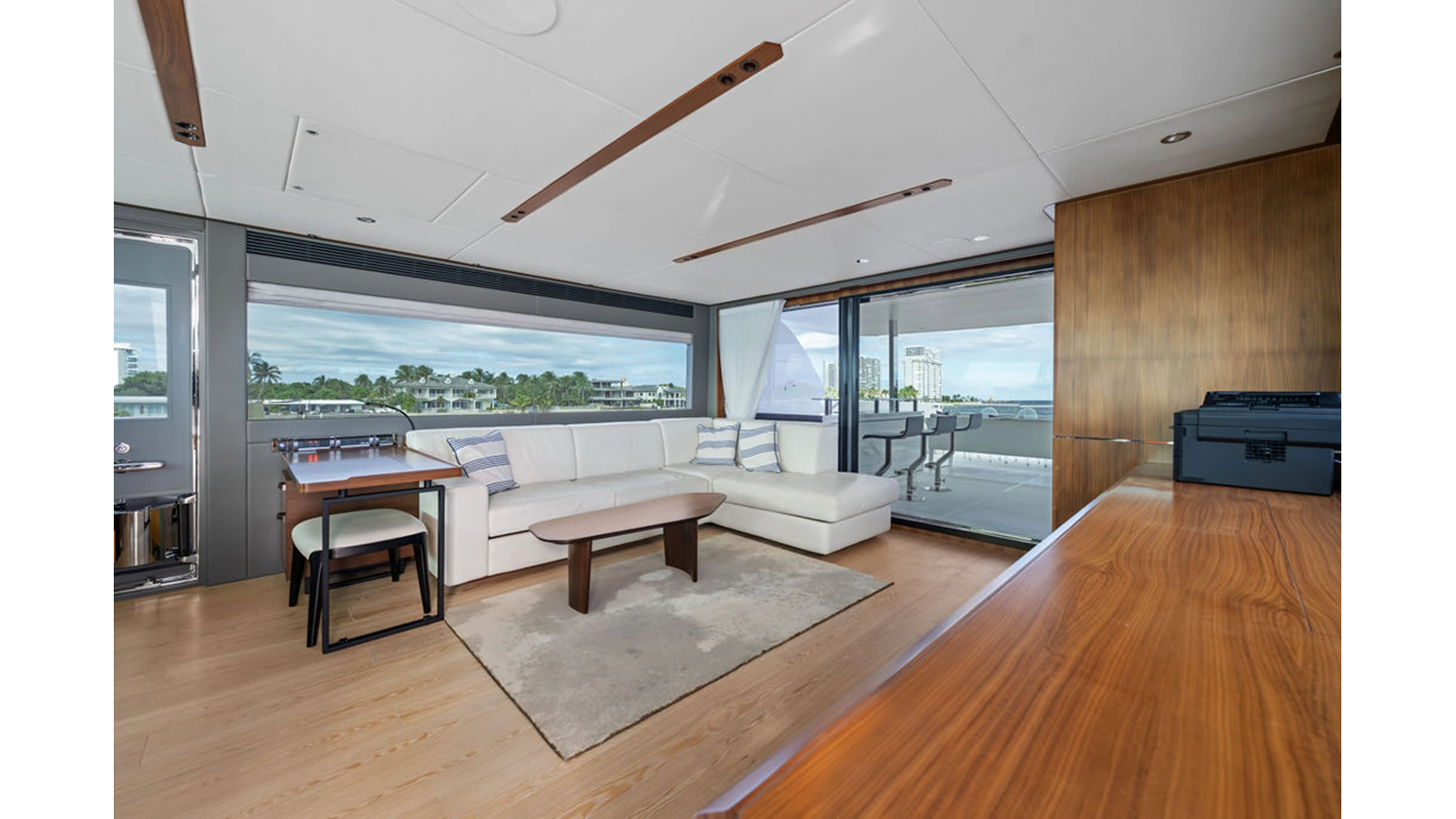

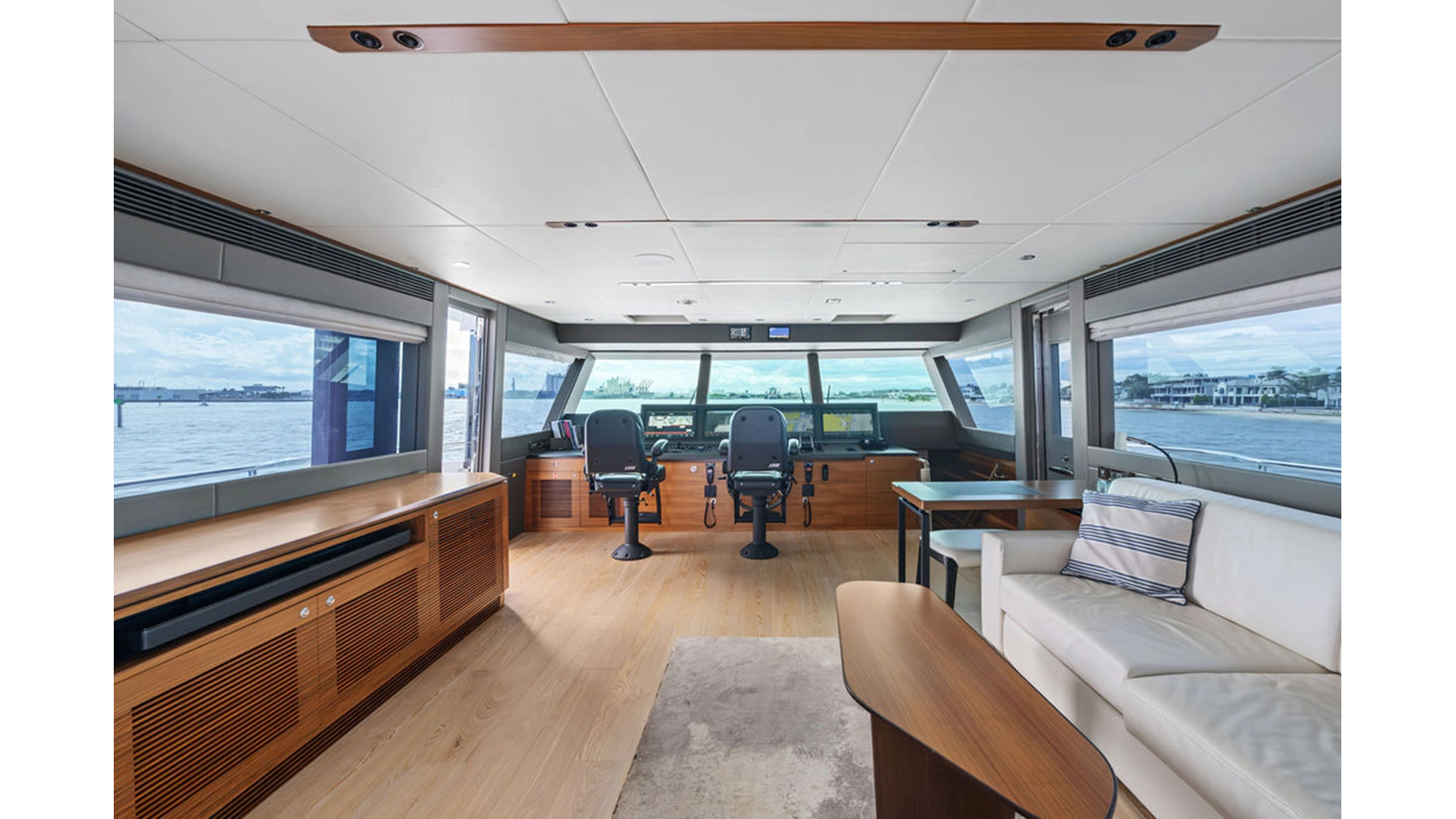

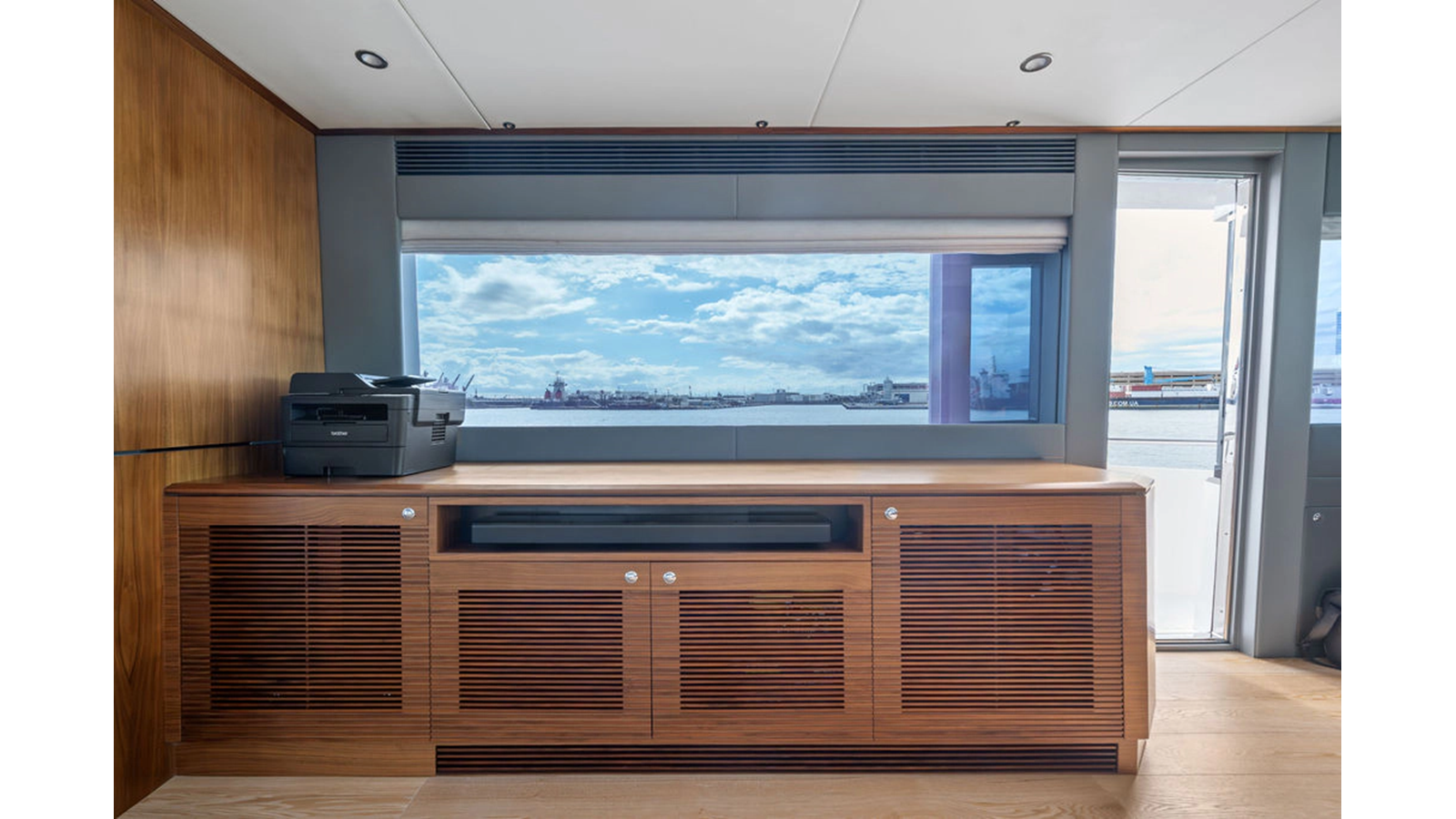

Skylounge
- Two (2) hatches above the helm
- Skylounge designed w/ L-shaped sofa, day head & desk
- Electric Roman blinds
- 49” Samsung QLED 4K TV with hi/lo TV lift and Bose sound bar
- Blu-ray player & Apple TV

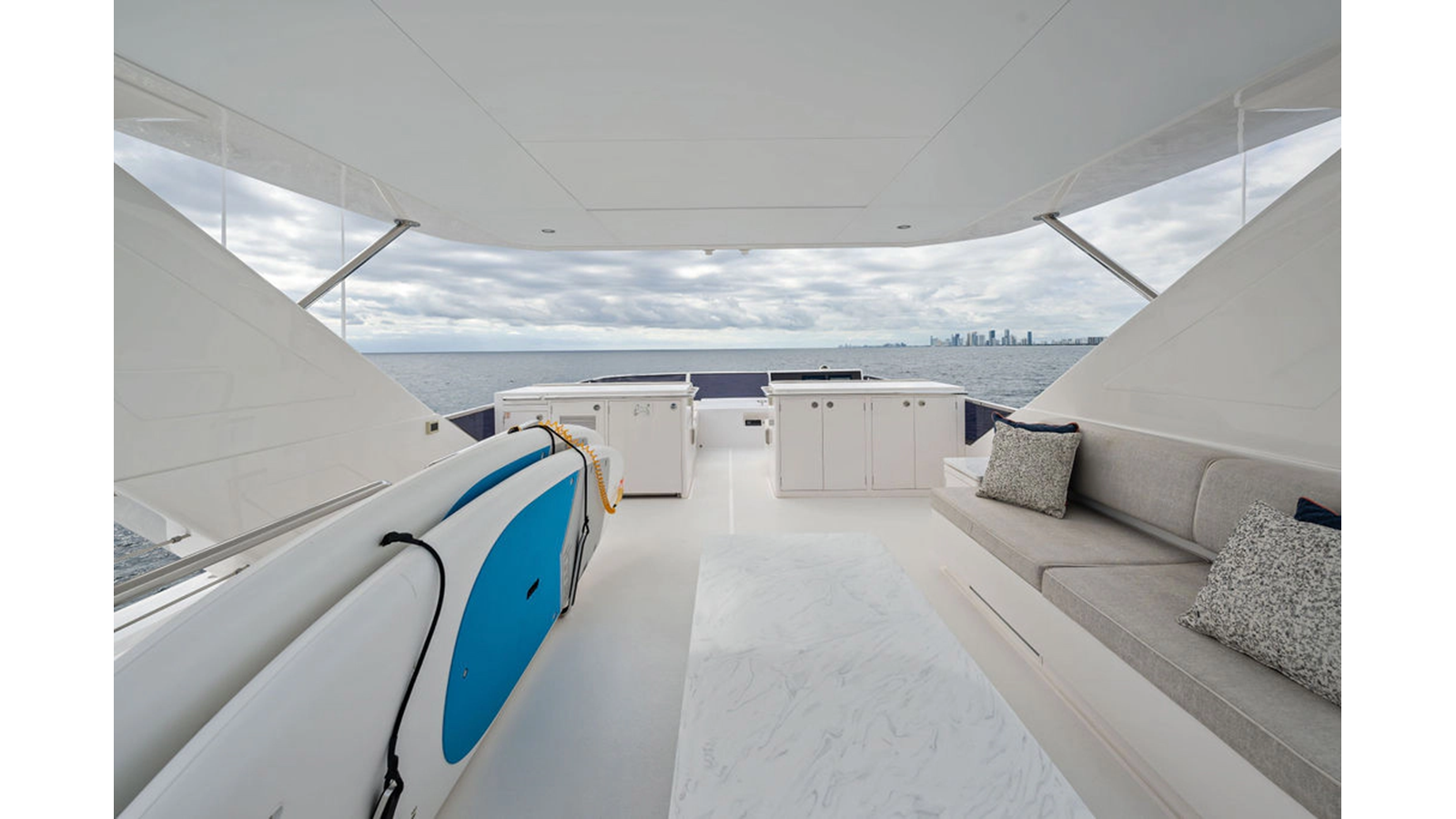

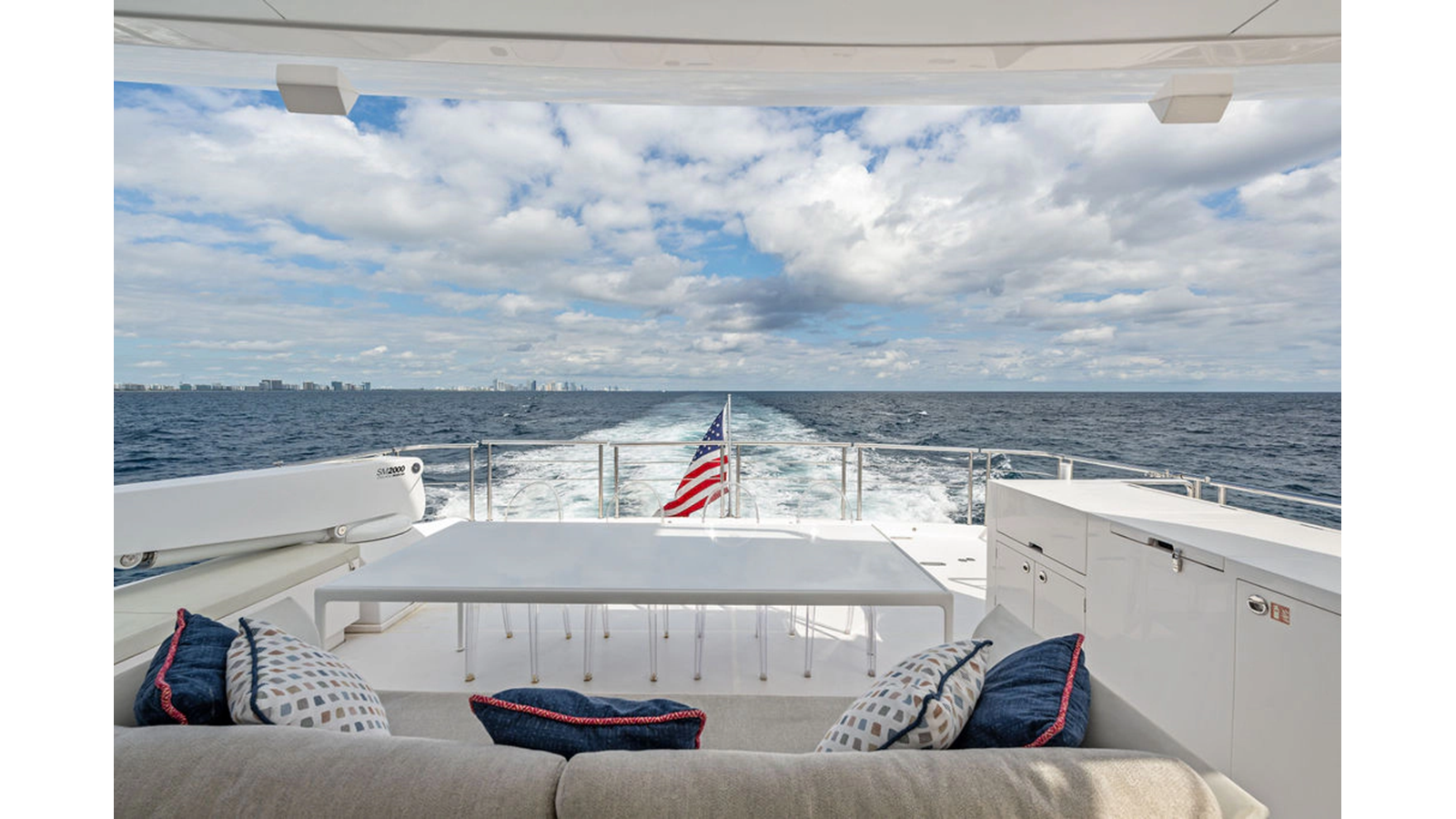

Boat Deck

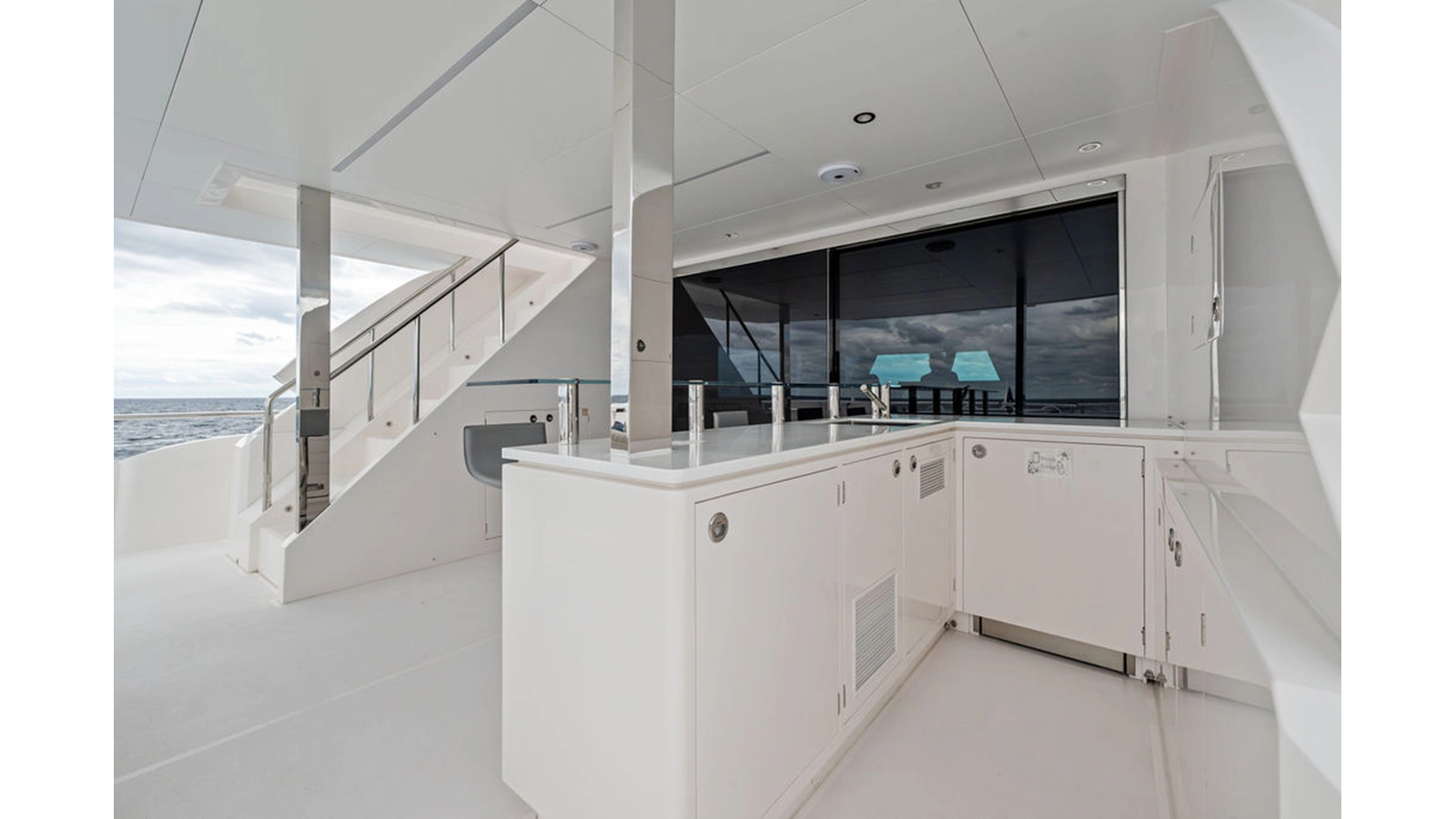

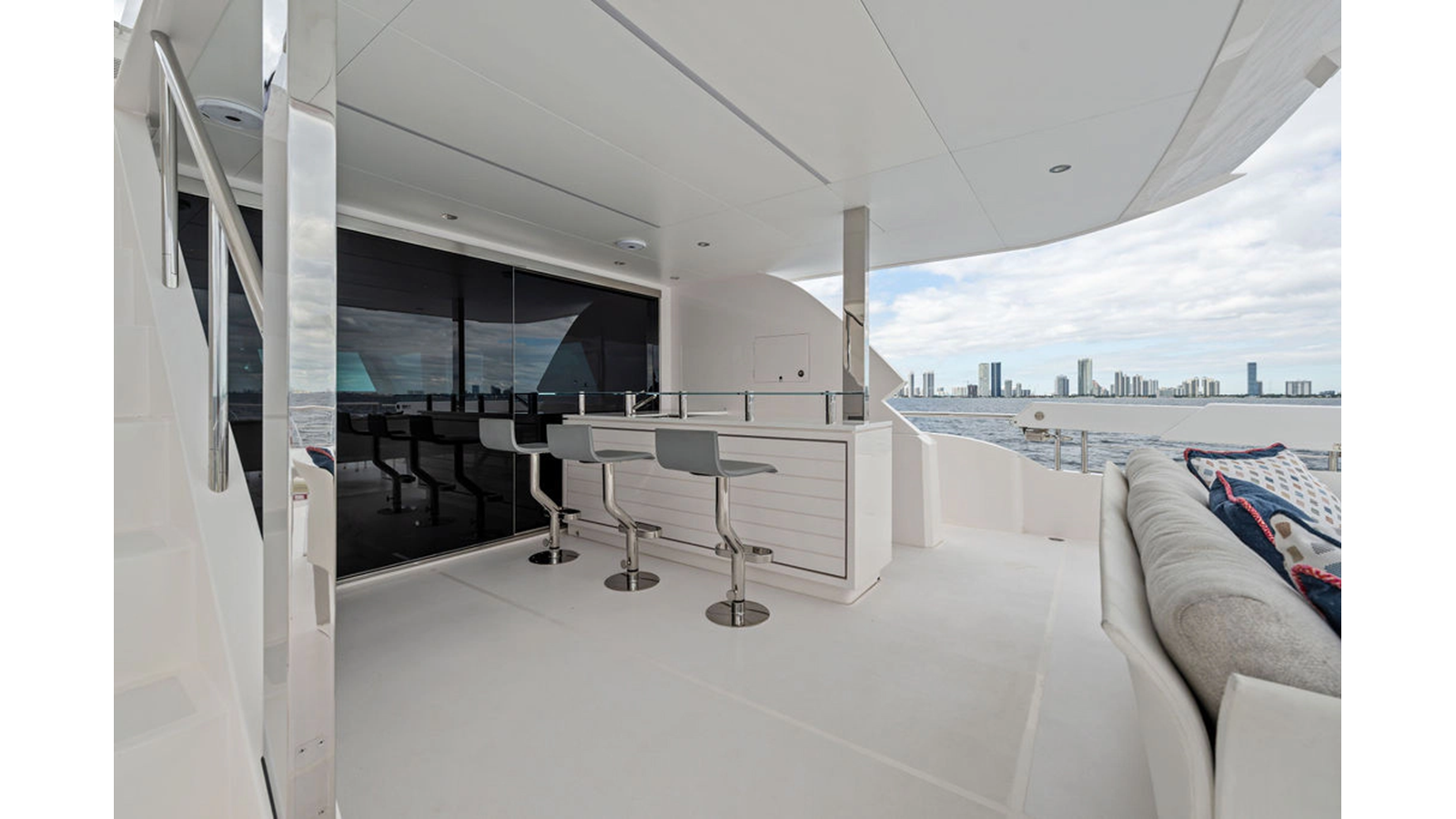

- To starboard, a full bar w/ sink, Vitrifrigo icemaker, fridge & 3 stools

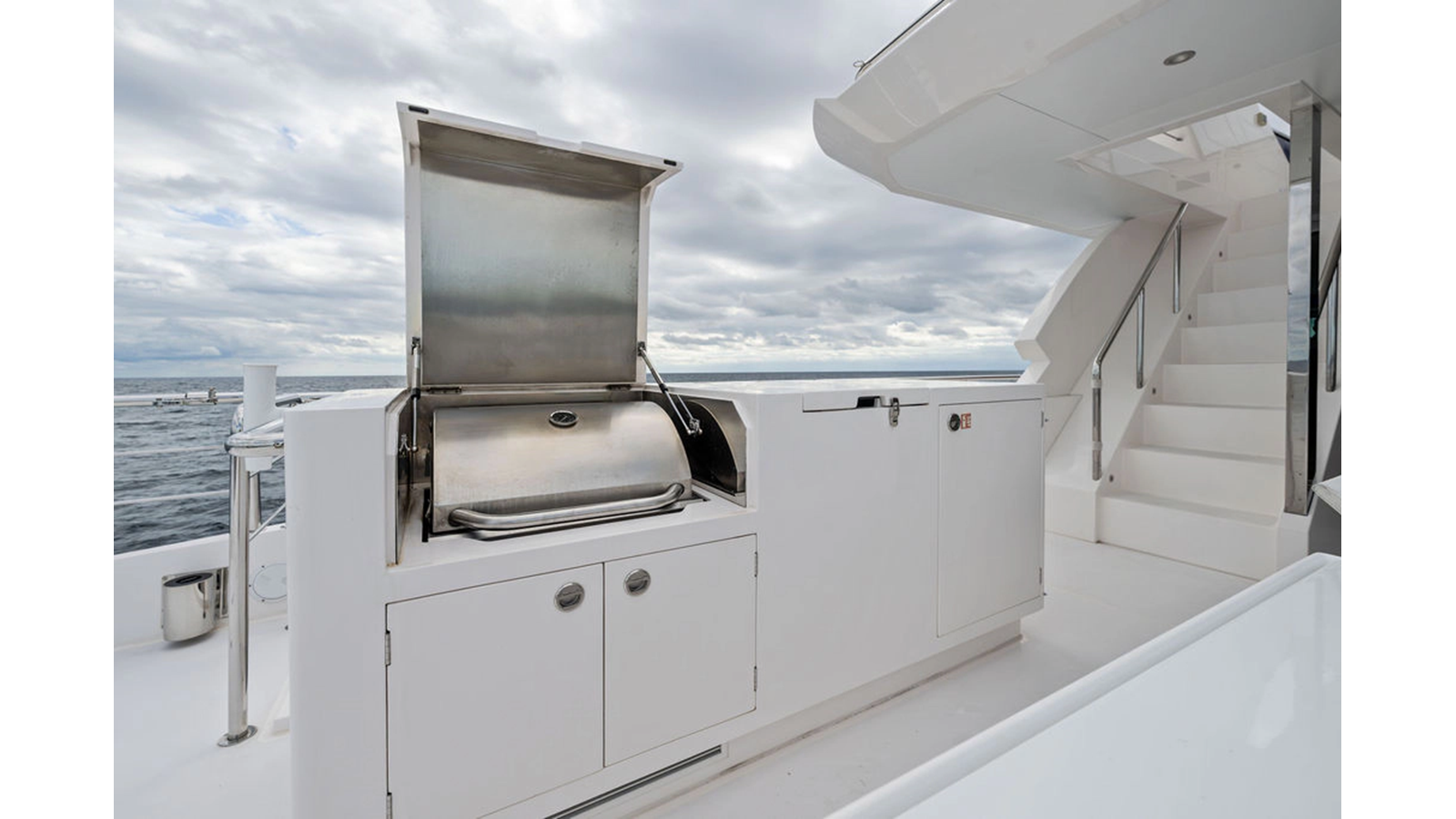

- Hi/Lo 24” propane Airtex BBQ in FRP cabinet (to port)

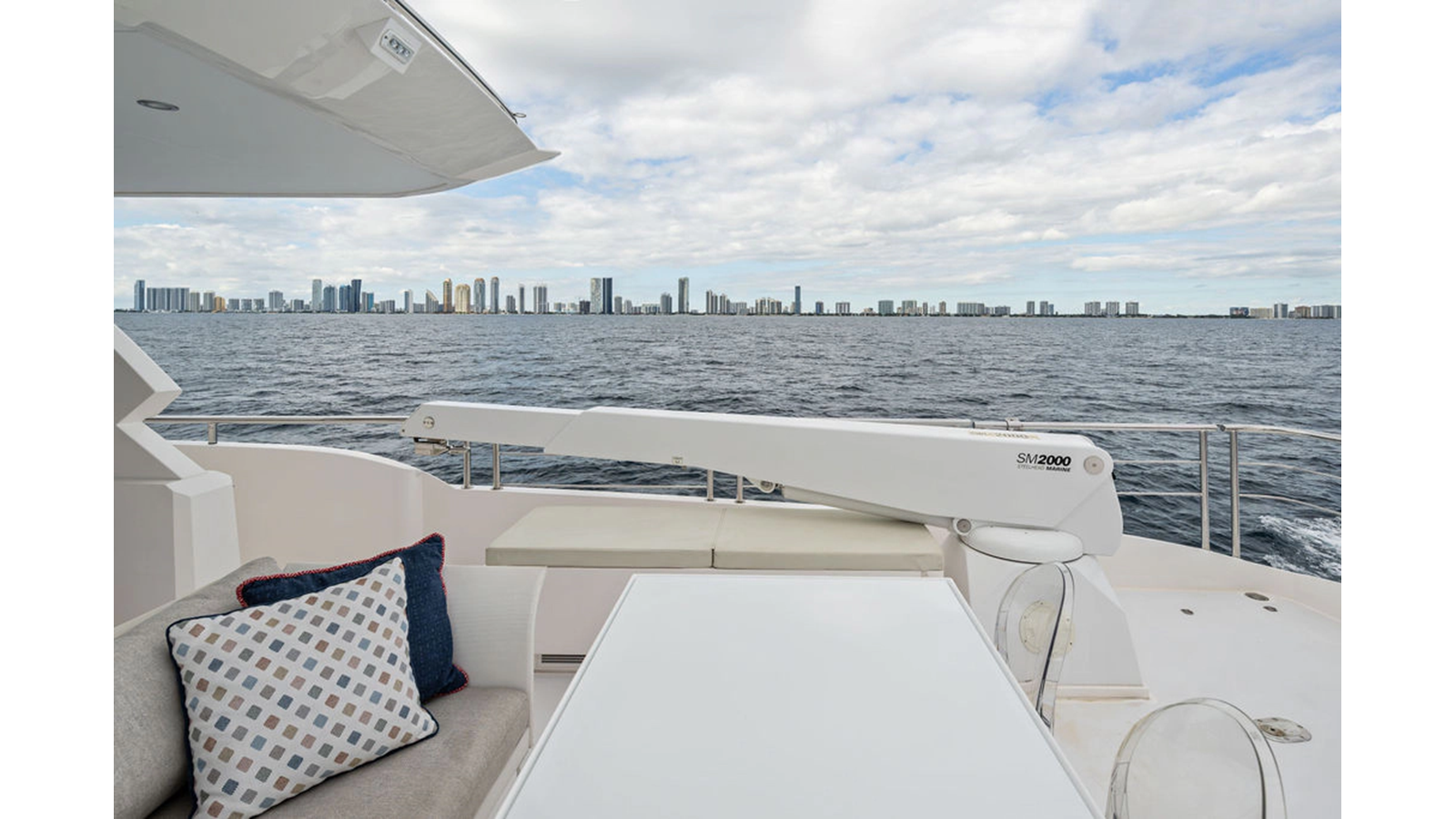

- Hydraulic Steelhead Marine davit (2000 lb.) aft of bar, to starboard
- Added storage box under davit beam
- Floodlights for boat deck
- MTU wired remote plug in on boat deck
- Marine stereo system with speakers
- Sail shade for boat deck area
- Non-skid throughout
- Removable SS rails around the deck
- Oversize drains w/ strainer (each corner) w/ internal overboard drains
- Non-skid throughout

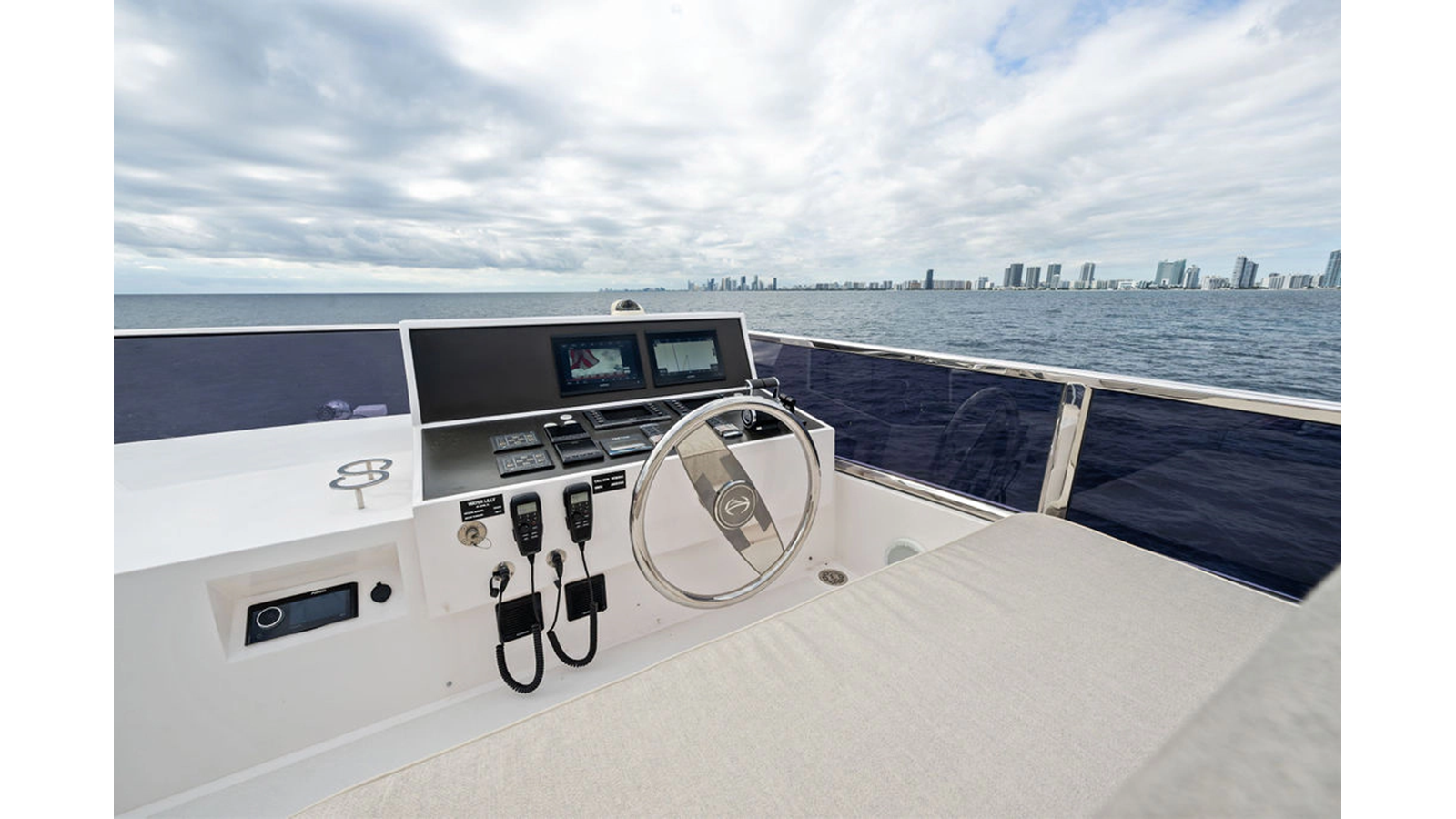

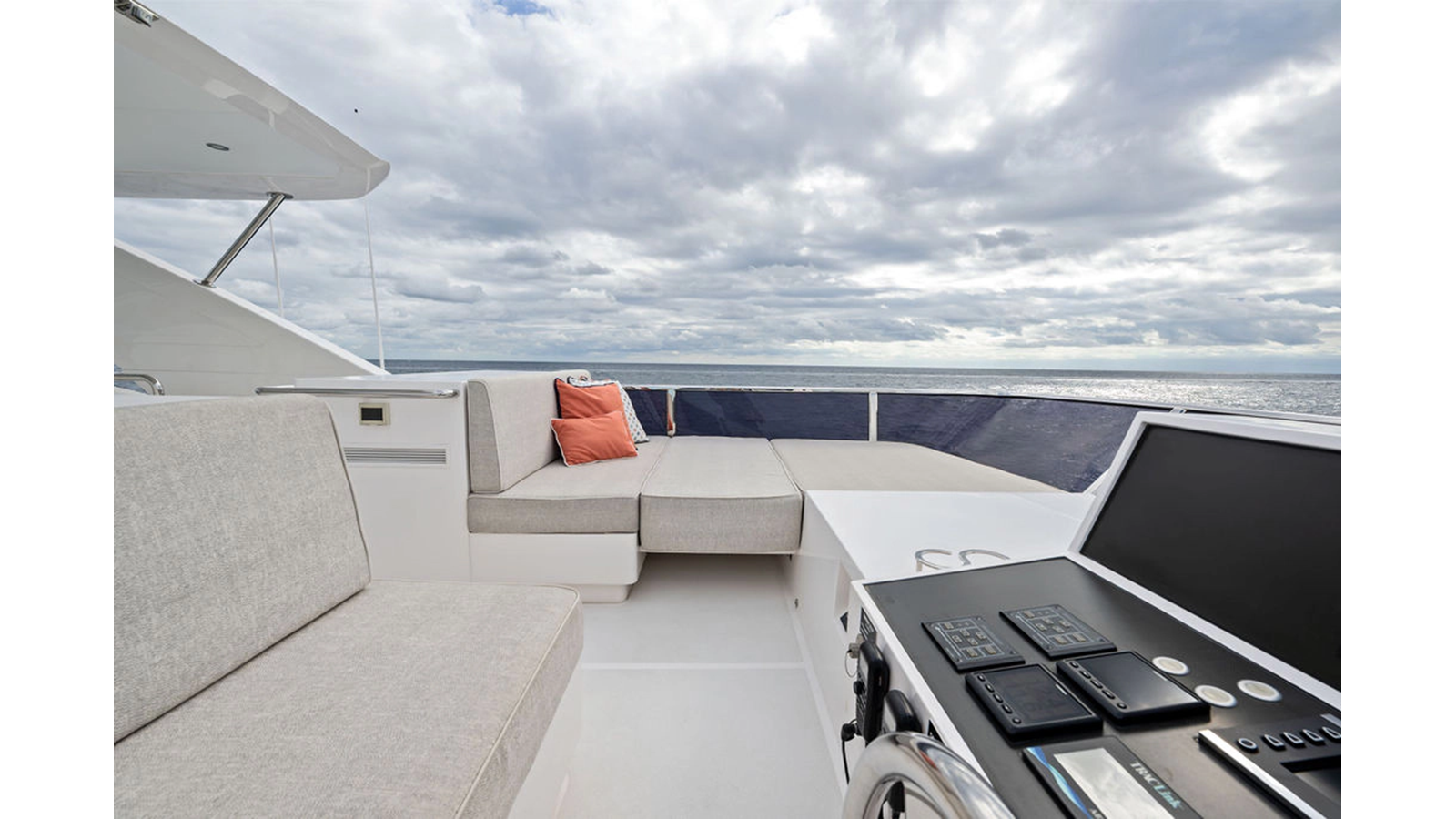

- Forward Helm station to starboard w/ integrated panel, engine controls, engine start/stop, Garmin 8612 screens (2), autopilot, repeaters for wind/speed/depth, 2x Garmin VHF, searchlight control, windlass control, Ritchie magnetic compass & horn
- Radar arch with hardtop and antenna bracket
- Windshield w/ SS frame & SS rails
- Bench seating to port of helm w/ sun pad cushion
- Wet bar w/ sink, Vitrifrigo fridge & icemaker and storage cabinets

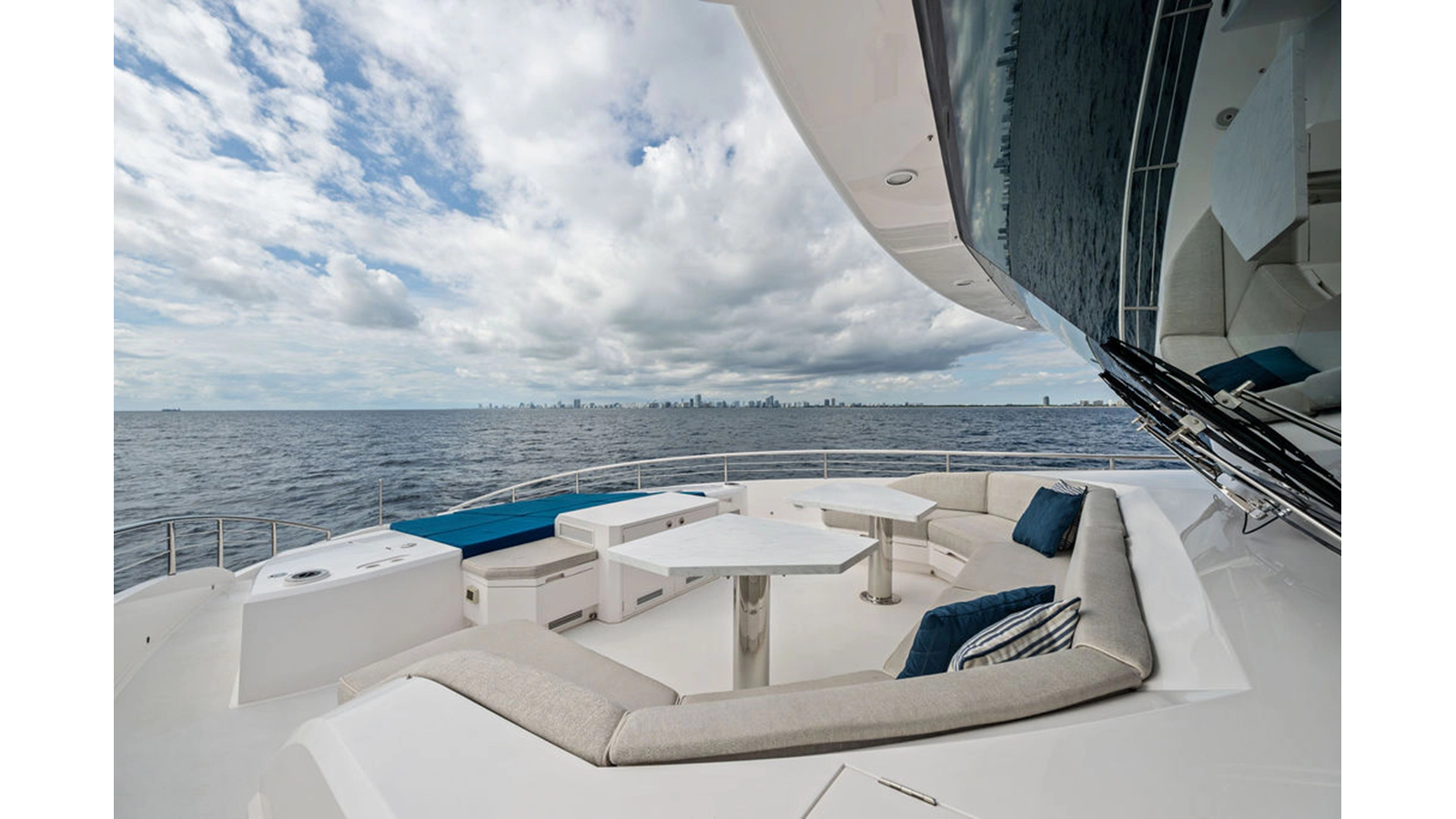

- Aft is a large L-shaped sofa and coffee table
- Marine stereo system and speakers
- GLOMEX TV antenna on radar arch
- SAT TV KVH TracVision UHD7 & TracPhone V7-HTS Dummy Dome
- WAVE WIFI Wi-Fi Booster
- Starlink
- Pepwave MAX BR1 4G-LTE Router
- Panasonic PBX Telephones w/ intercom feature (5)
- Exterior connector for shore phone & cable TV
- Axis CCD cameras (aft deck & engine room) (2)
- Fusion marine stereo system and speakers throughout
- Walnut for main wood w/ Wenge hardwood accents
- Satin oak main wood in crew
- Fabrica carpet for all guest staterooms
- Oak flooring in main salon, dining & skylounge

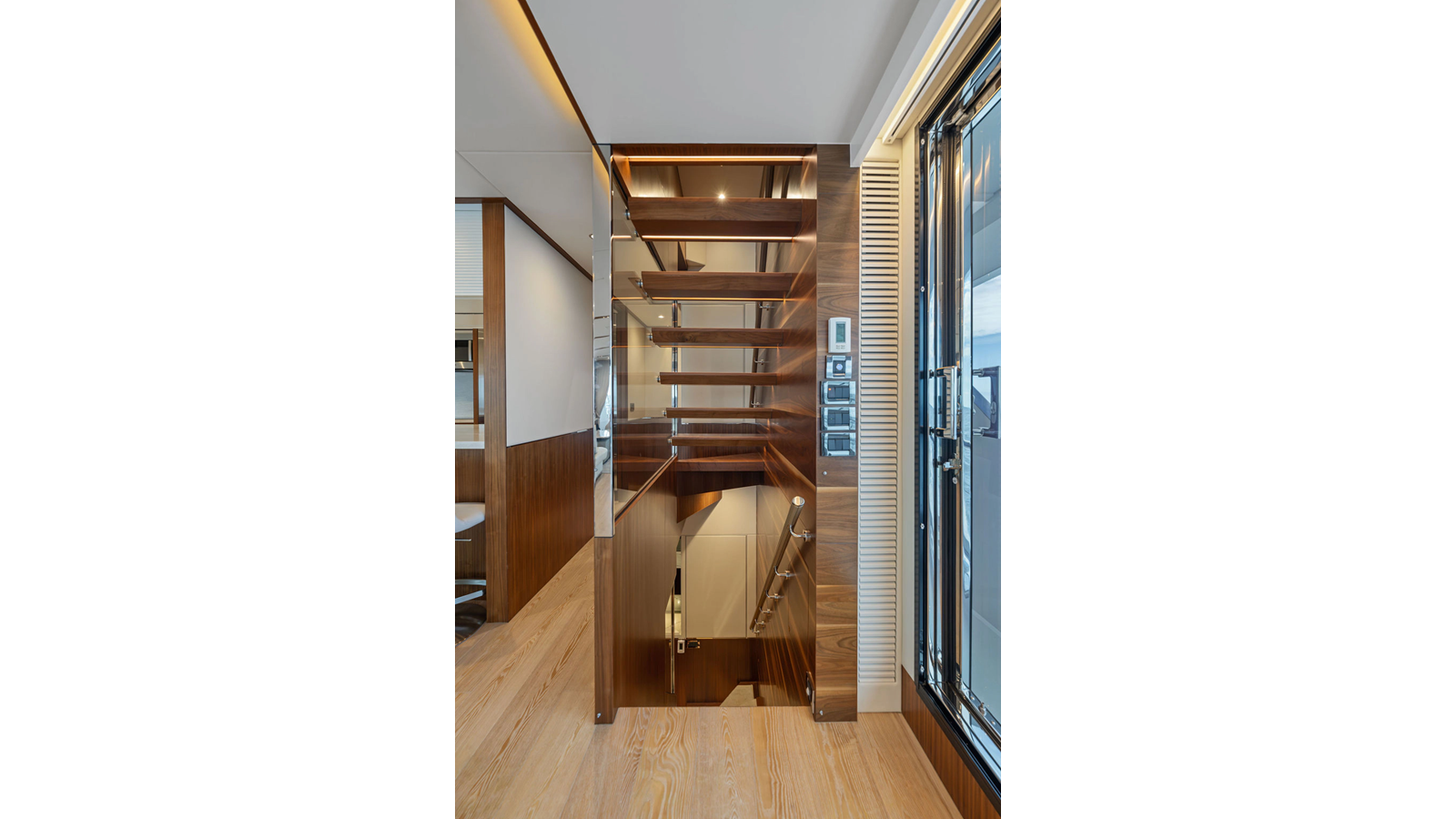

- Walnut flooring for internal stairs
- Cambria quartz countertops & flooring for all guest heads
- Stacked Miele washer/dryers in guest and crew companionway (2)
- Fridge in guest companionway

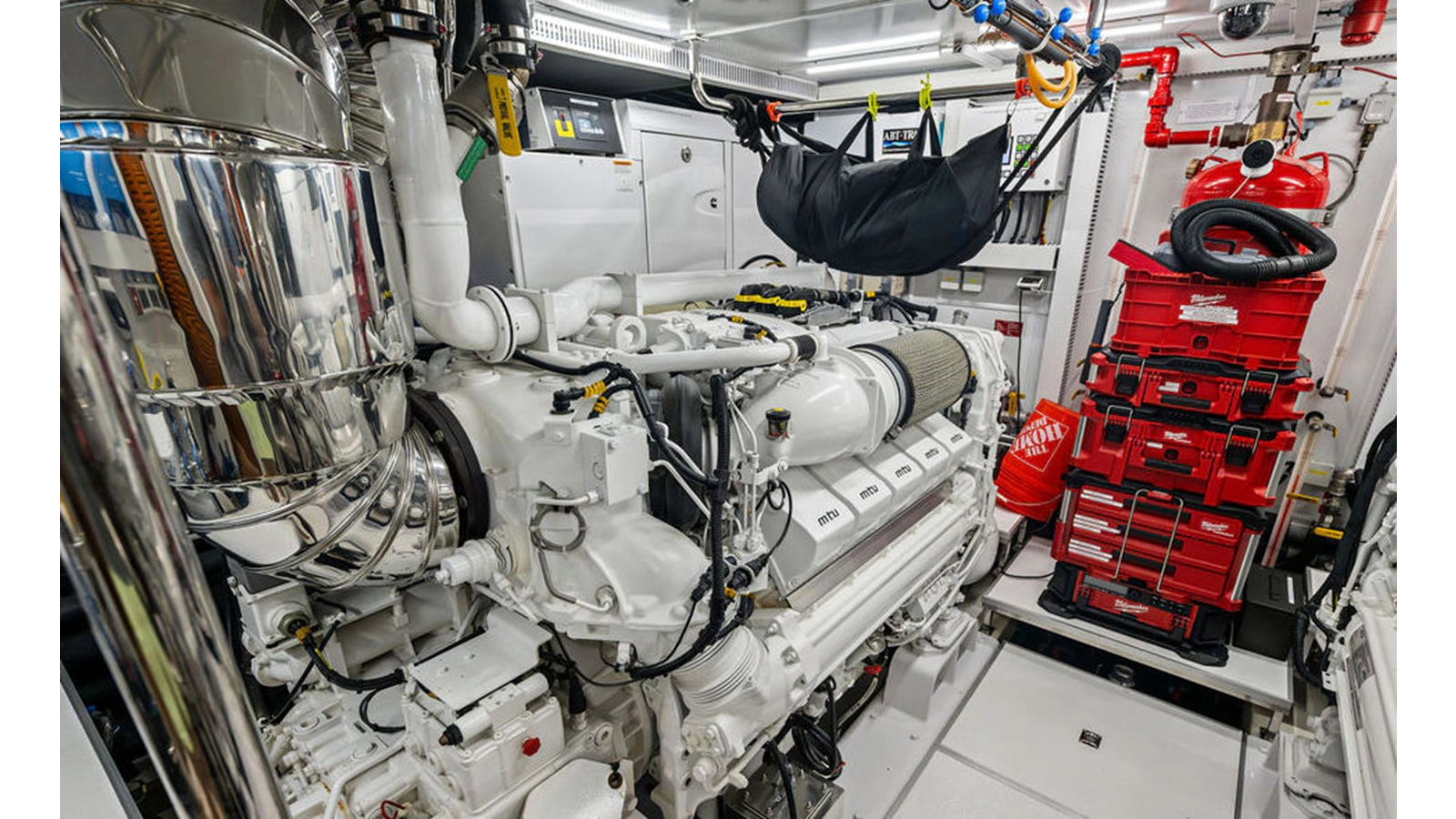

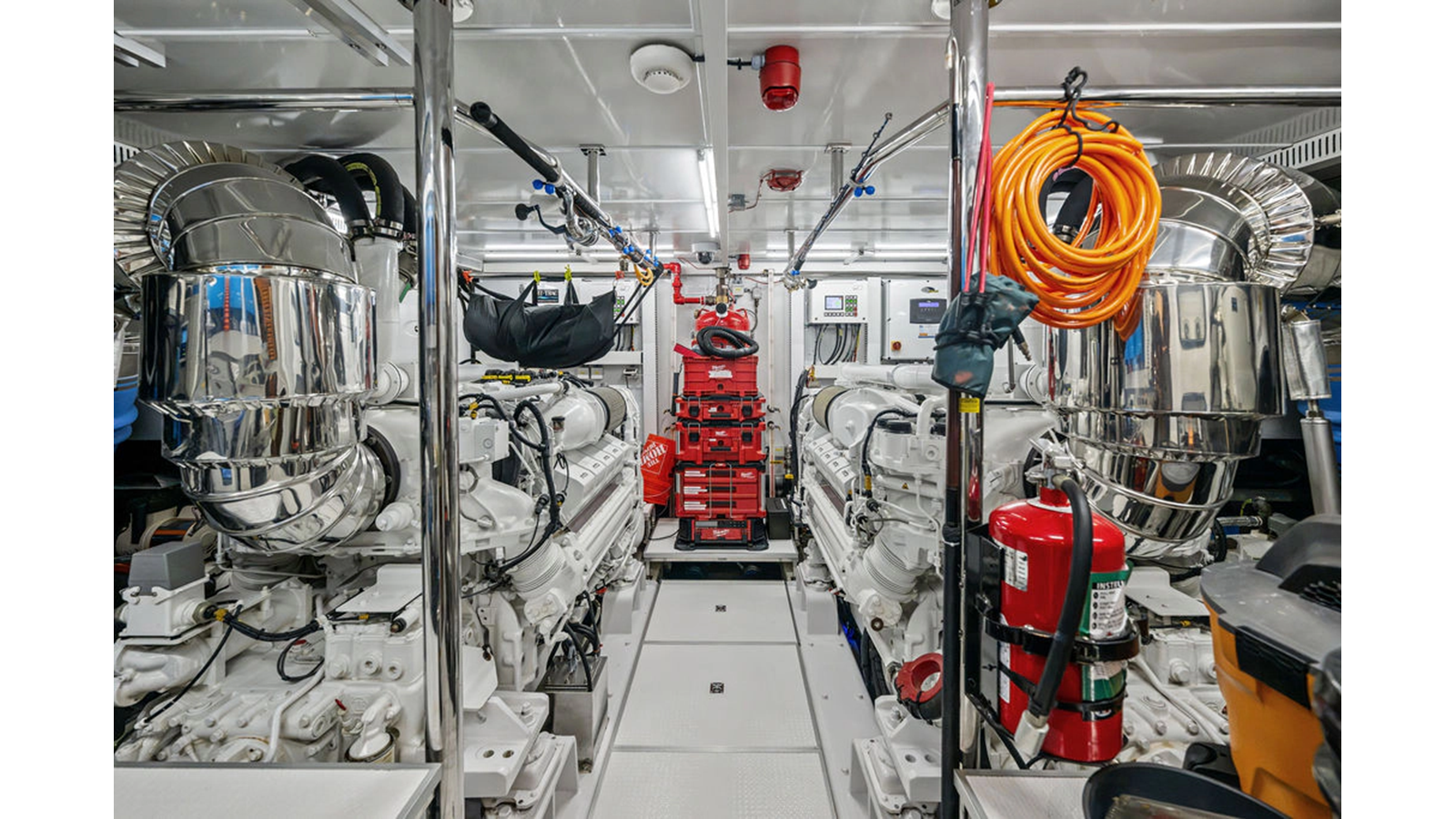

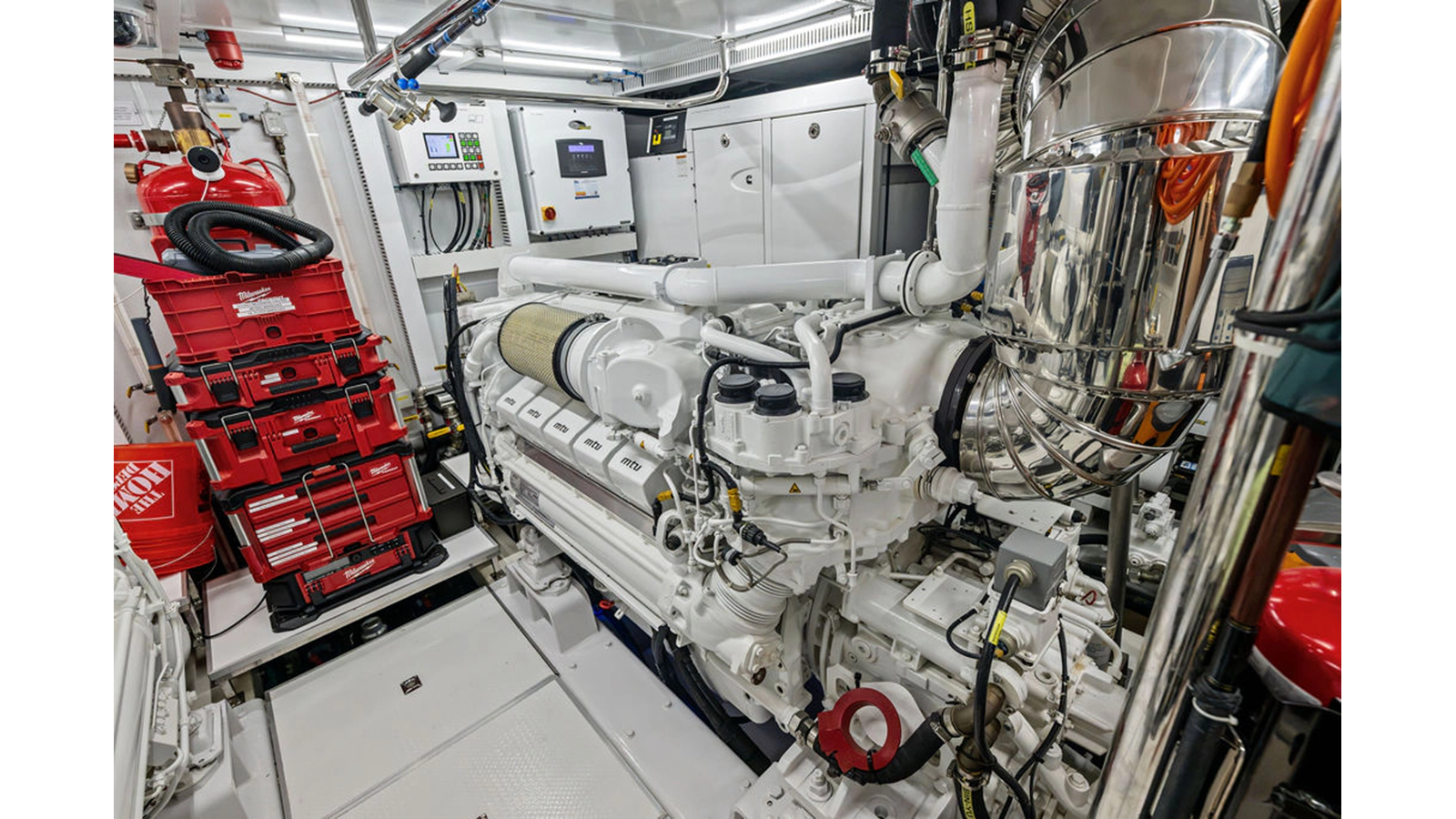

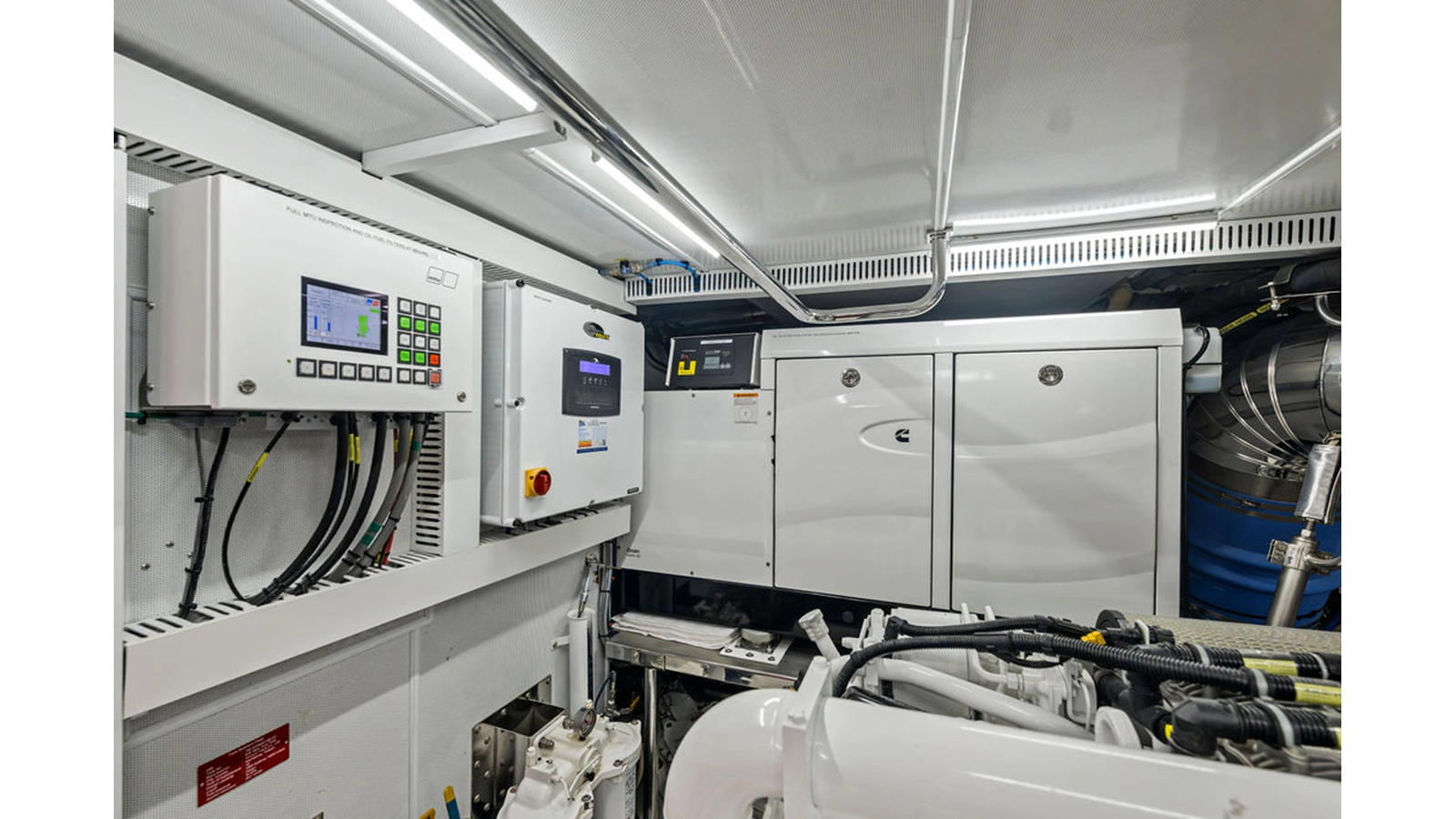

- Twin MTU 10V2000 M96L 1600 HP engines w/ gearboxes
- SS shafts Aqualoy 22HS
- High performance S-class 5 blade Nibral propellers
- Bronze struts w/ backing plates
- Shaft & rudder packing glands w/ Tides
- Marine seals
- SS rudder w/ zinc plates
- Underwater exhaust system for engines (w/ bypass mufflers)
- Anti noise treatment to exhaust system
- Engine load distributed through flexible mountings on SS engine bed bonded to hull
- Engine alarm system for low oil pressure & high water temp
- Fuel filters/water separators supplied by MTU
- Dual Racor 75/100-MA fuel filters/water separators, each engine
- Racor 500 MA fuel filters, one on each generator
- Delta-T engine room ventilation system
- Engine room clean design w/ lightweight honeycomb floor
- SS overhead grab rail on each side of engine
- Engine room LED ceiling lights & LED lights under engines
- Air conditioning in engine room
- Workbench w/ sink & vice
- Fuel tanks w/ sight and electrical gauges
- Water tank 400 gallon FRP
- Fresh water charcoal filters in main supply pipe (and galley)
- Fresh water hose for filling engine and generator expansion tank
- Engine room strainer plumbing w/ cross-over line & fresh water flush
- Marine grade lines for fresh water system
- Two (2) 30 gallon water heaters
- Holding tank 200 gallon FRP (w/ macerator pump)
- Sump pump 100 gallon FRP
- Electric level indicators for holding tank and sump tank
- High water level bilge alarm
- Air hose to bow

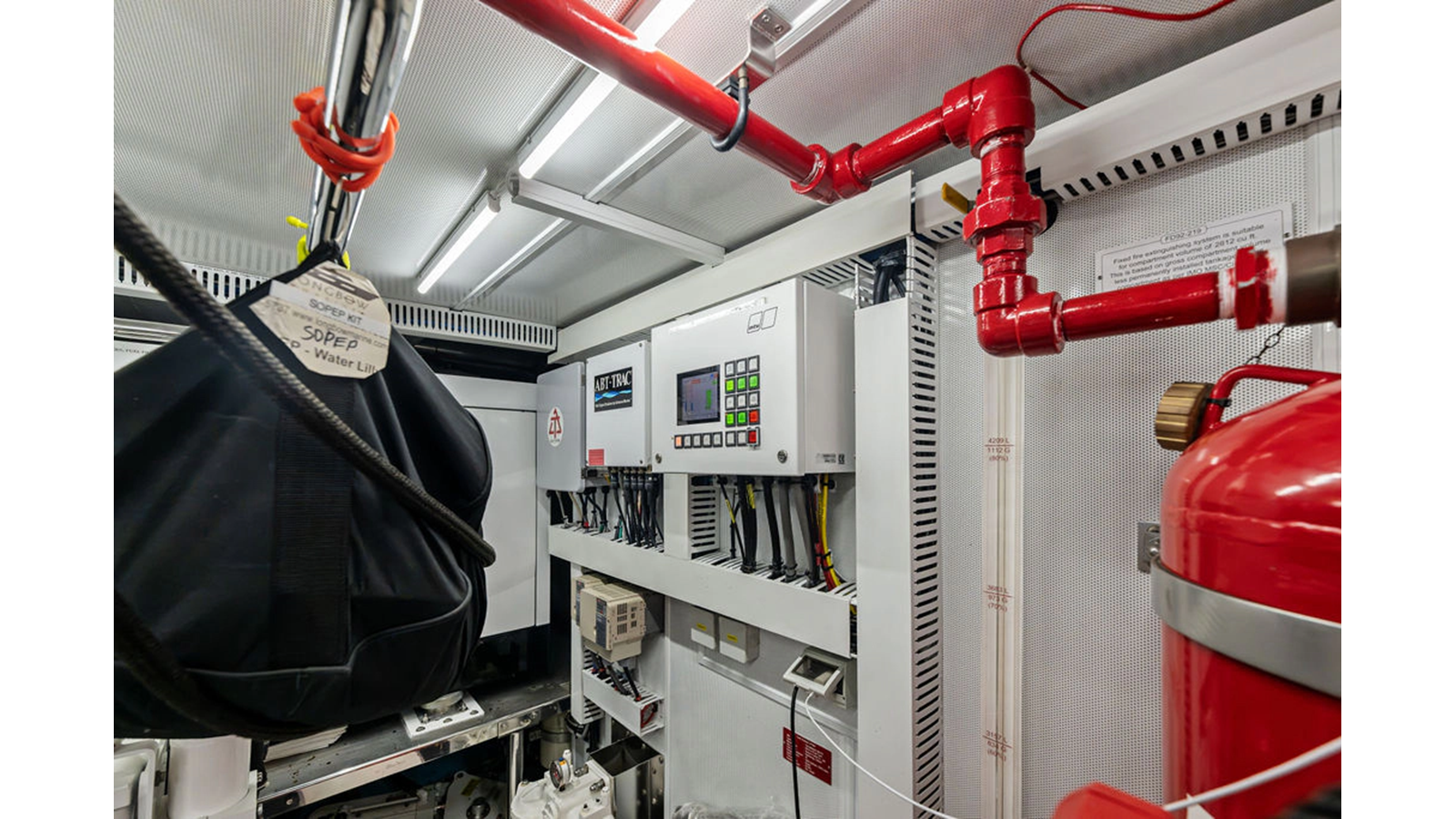

- Seafire fixed fire extinguisher (FM200) for ER w/ remote control
- Fire insulation in engine room, fire resistant treatment for pipe
- Portable fire extinguishers in recessed lockers (5)
- Integrated fire alarm in skylounge w/ heat & smoke detectors in each cabin
- ABT Zero Speed Stabilizers (370/16X)
- ABT hydraulic bow & stern thrusters (45hp)
- SS emergency tiller in rudder cabin
- Hypro steering system
- Bennett trim tabs w/ indicators
- Dive compressor & Swan air compressor
- Dyson wireless wand vacuum cleaners (2)
- Chilled water Marine Air air conditioning
- Electric fuel transfer pumps (2)
- Reverso FPS210 fuel polishing system
- Oil change pump system for engines, generators and gears

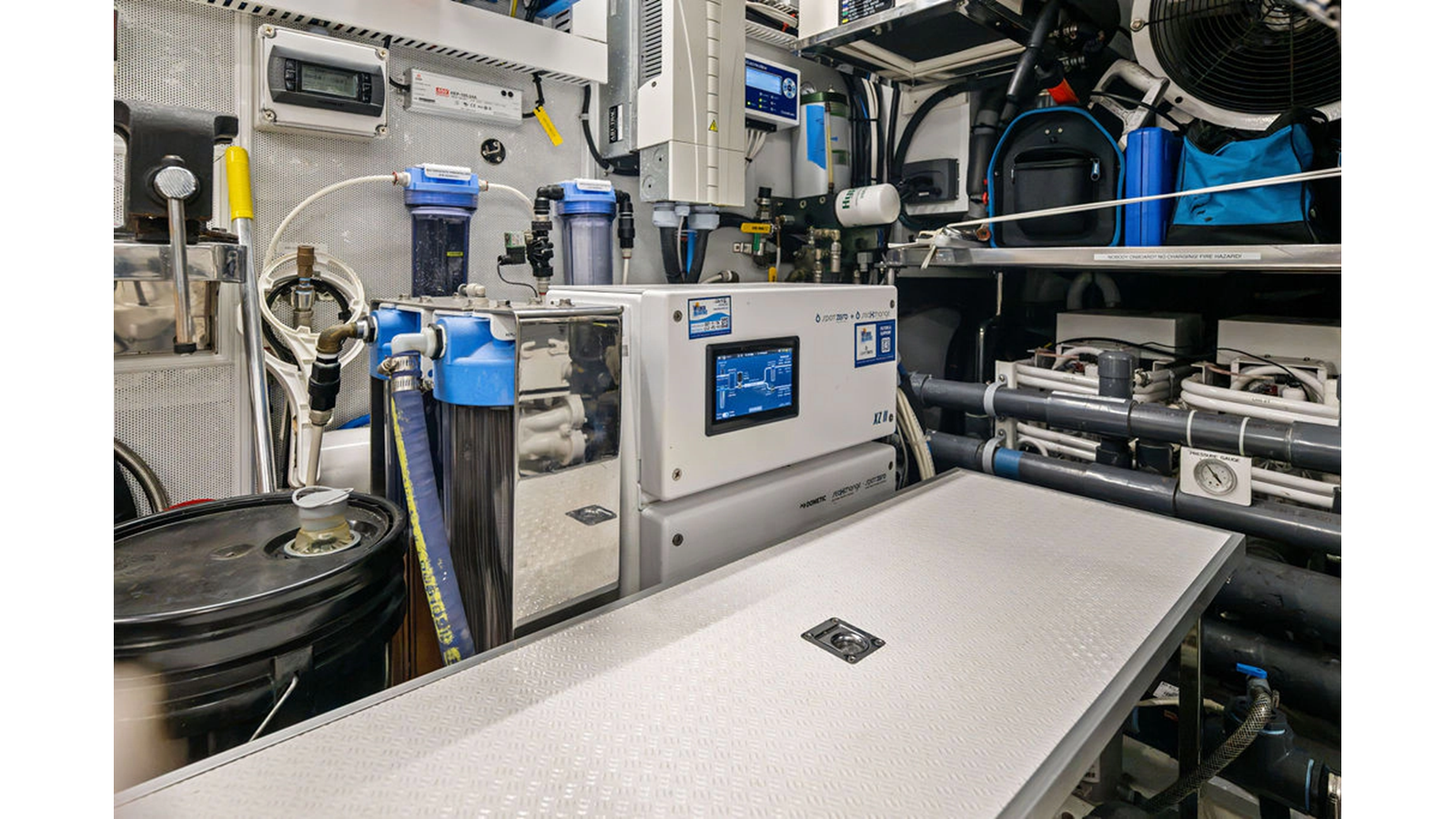

- Dometic Seaxchange watermaker 1800 GPD + SpotZero 2000 GPD
- High-volume Headhunter AC freshwater pressure pump & back up DC pump
- Hot water circulation pump
- HeadHunter sanitary waste treatment system
- HeadHunter Bravo toilets
- Sump pump system for grey water
- Electric Rule bilge pumps (5)
- Manual bilge pump in engine room & forward staterooms (2)
- Bilge exhaust ventilation fans
- Auto shutdown system
- Automatic fire damper system
- Dehumidification system units (4) + TrueIAQ controls (4)
- SS 100kg anchors (2)
- High tensile ½” 300’ anchor chains (2)
- Maxwell anchor chain counters (2)
- SS anchor rollers and chain stoppers (2)
- Maxwell VWC3500 vertical hydraulic winches (2) w/ foot switches & remote
- Maxwell VC2500 electric capstans at bow (no reverse function)
- Maxwell VC2500 electric capstans (2) at aft deck
- Freshwater/seawater anchor chain washdown
- Onan 40kW/60Hz generators (2) w/ sound shields (P 2790hrs/S 2840hrs)
- 100A shore power system w/ ISO Boost transformers 100A (2)
- 100A Cablemasters (2)
- 255Ah AGM start batteries (4) for engines/gens w/ battery chargers (2)
- 210Ah Lifeline AGM batteries (8) for house
- DC24V service power w/ combined inverter/chargers (2)
- 210 Ah Lifeline emergency batteries (2) w/ independent battery charger
- Vapor proof battery switch
- Main electric panel includes AC & DC circuit breakers
- Emergency power package & lighting system
- AC volt receptacles located throughout engine room
- GFI protection for all AC outlets in heads, galley & engine room
- Second two-outlet + GFCI in master bath & extra outlets in port guest cabin
- Electrolysis bonding system
- Cathodic protection w/ zinc anodes for shafts, struts, etc.
- LED lighting system throughout interior & exterior
- Underwater lights (8) & stern docking lights (2)
- Extra LED search light
- Maretron monitoring & control system
