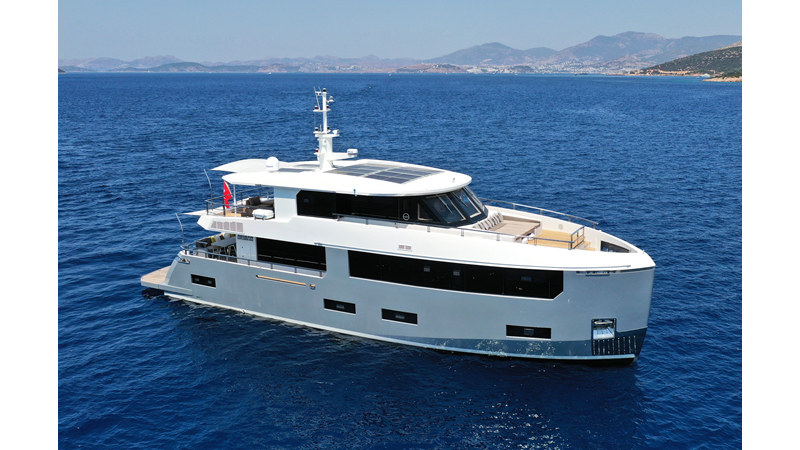

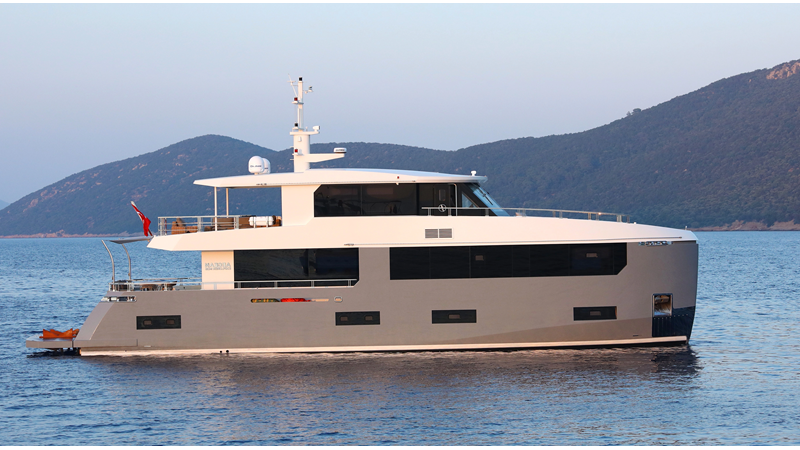

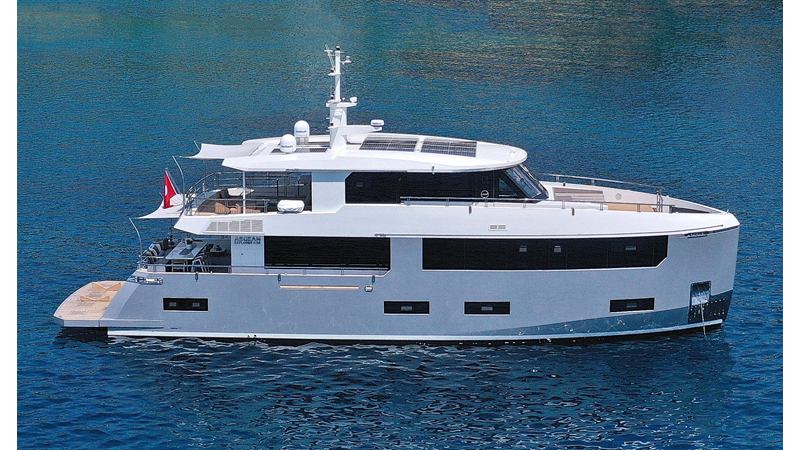

2024 AEGEAN YACHT 26M
Description
Having launched the first unit of this new line of explorer yachts in 2022, the Aegean Explorer M26 hull #2 was delivered in July 2024. Designed and developed entirely inhouse by the Aegean team, this go everywhere, genuine world cruiser has a steel hull with aluminum superstructure ensuring a stable ride and excellent handling while at sea.
The intelligently designed general arrangement and generous interior volumes, has allowed for up to 6 cabins, including 3 full beam master suites, accommodating up to 12 guests onboard. The standard configuration includes 3 almost identically sized “owner cabins” – ideal for use in charter – a VIP double as well as two twin berthed cabins, all with ensuite facilities.
The main deck features elegant saloon and comfortable dining area for guests in warm colours. Forward of the saloon on the port side is a large and modern galley, including crew mess as well as a crew staircase to the lower deck – another clever feature, which allows the crew to seamlessly pass around the yacht. Outside areas are equally generous with multiple separate relaxing areas for guests to enjoy, including a sky lounge and a large swimming platform.
Powered by two MAN 650 HP engines, she achieves a maximum speed of 13 knots and cruises comfortably at 11 knots. A range of over 3,500 nautical miles, huge storage areas together and individual cabins for the 4 crew, makes her an ideal vessel for long stays and journeys to remote unique destinations.
Full Specifications
3 Master Cabins • Full beam master cabins • Located on every deck - lower, main and upper deck • The master cabin on the upper deck features a large sliding glass door, opening to a private upper aft deck • Identically sized • Equipped with ensuite bathrooms • Beauty/Desk corner
2 Twin Cabins • Located on the lower deck • Twin berths • Equipped with ensuite bathrooms • Beautiful design in warm colours and wood finishing
VIP Cabin • Double Cabin • Located on the lower deck • Equipped with ensuite bathroom • Beautiful design in warm colours and wood finishing
4 Crew Cabins • Accommodating 4 crew onboard • Intelligent layout, allowing each member of the crew to have an individual cabin • Equipped with ensuite bathroom in each cabin
MACHINERY & MAIN PROPULSION • Main Engines Two MAN D2676LE425 650 HP @ 2100 RPM marine diesel Engine Medium Duty with ZF reverse reduction gears to be controlled from wheel house & aft deck • Propulsion Gear Two reverse reduction gearboxes ZF 550-1A with reduction ratio of 2.96:1. The gearboxes will be connected to the stainless-steel shafts with flexible couplings • Propellers & Stern tubes & Bow thrusters Two ERIS or equivalent well balanced manganese bronze propellers to be supplied and installed Propeller shafts in 316 L stainless steel or duplex steel diameter as per CE rules, Seamless steel stern tubes, Bronze stern glands • Main Diesel Generators Diesel generators, KOHLER or equivalent brand, 2 x 35 kW The generators will be furnished with sound insulation cabins and installed on steel foundations with rubber chocks • Pumps GIANNESCHI or equivalent pumps to be installed as per rules All pumps have to be installed on rubber chocks All pumps to be installed with by-pass emergency systems • Fire-Fighting System A fixed & remote controlled NOVEC 1230 fire-fighting system for fire protection of engine room to be supplied and installed The system will be installed in the engine room in compliance with regulations. Number and type of detectors according to CE requirements The accommodation will have an extensive fire detection system, with signals in the main fire alarm panel
DOMESTIC APPLIANCES & GALLEY EQUIPMENT • POLYCOR or equivalent acrylic counters & non skid ceramic floors • SIEMENS or equivalent refrigerator / freezer • SIEMENS or equivalent cook top 4 burners, electric • SIEMENS or equivalent overhead hood • SIEMENS or equivalent electric oven • SIEMENS or equivalent dishwasher
NAVIGATIONAL ELECTRONIC EQUIPMENT The new owner can upgrade or change the below: • SIMRAD GB 12 INCH GLASS BRIDGE DISPLAY I-marine TCBS CLASS B AIS • SIMRAD BSM-1 BROADBAND SOUNDER • SIMRAD B260 1 KW TRANSDUCER • SIMRAD HALO20 RADAR • SIMRAD AP44 AUTO PILOT • SIMRAD RS 20SVHF RADIO WITH CLASS-D DSC • NAVIONICS Aegean Sea, Black and Mediterranean Sea Chart • SIMRAD HS75 GPS COMPASS • FURUNO NX300 NAVTEX RECEIVER INTELLIAN i6P SAT TV
DECK EQUIPMENT • Two DATA DZC 1400 hydraulic vertical windlasses at fore main deck with rope drums • Two stainless steel FOB HHP anchors as per CE rules • Two, size, as per CE rules, studlink galvanized anchor chains with 2 swivels, 137,5 meters each, Ø 12.5 mm • Stainless steel bollards and fairleads • Mooring ropes, 24 mmø, 2 x 80 m. & 24 mmø, 1x 100 m. Two DATA DHC 1000 hydraulic capstans aft • Hydraulic swimming platform
